Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU)

  • Free transport
SKU: RM-1730S

The Lilliput RM-1730S is a 17.3″ Full HD pull-out rackmount monitor that takes up just 1U. It accepts 3G-SDI, HDMI and DVI, cross-converts SDI to HDMI and vice versa, and offers waveform, vectorscope, time code, histogram, peaking, false color and more. The metal drawer-type design integrates easily into a studio or post-production rack.

More information

1 459 € with VAT 1 205.79 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
RM-1730S
Add to Compare Price history

Lilliput RM-1731S

In stock 1 pcs1 209 €without VAT 999.17 €

Lilliput RM-1731

969 €without VAT 800.83 €

Lilliput RM-1731S-12G

2 299 €without VAT 1 900 €

Top accessories for Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU)

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Canare HDMI Cable 3 m

  • New
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs

Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC

  • New
  • LAST PIECE
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput RM-1730S is a 17.3″ Full HD pull-out rackmount monitor that takes up just 1U. It accepts 3G-SDI, HDMI and DVI, cross-converts SDI to HDMI and vice versa, and offers waveform, vectorscope, time code, histogram, peaking, false color and more. The metal drawer-type design integrates easily into a studio or post-production rack.

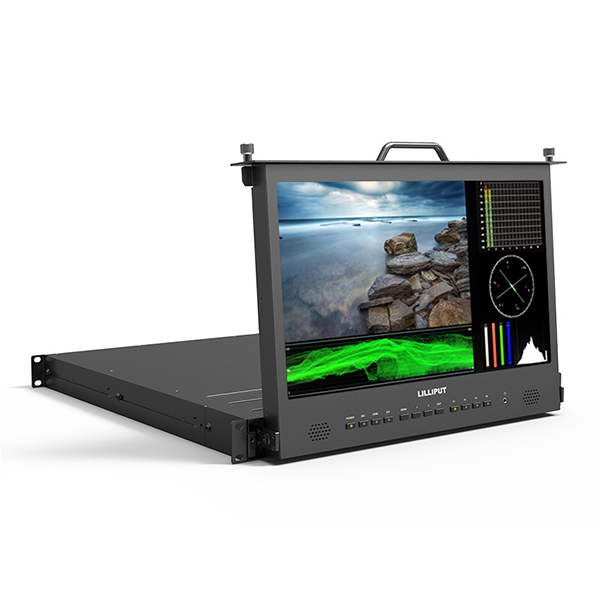

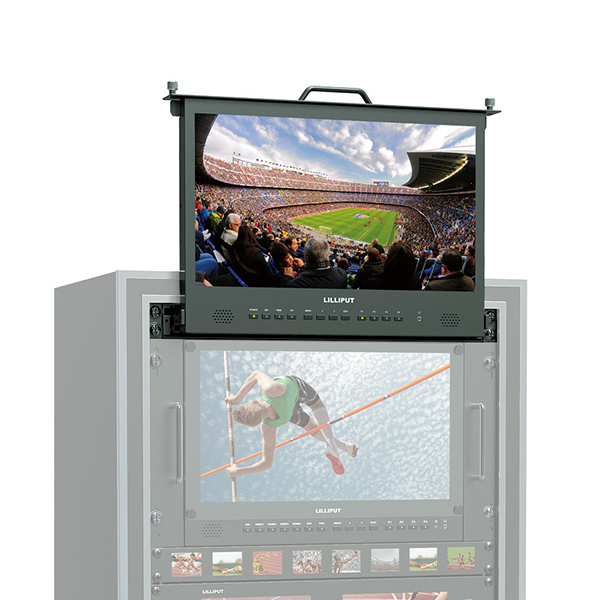

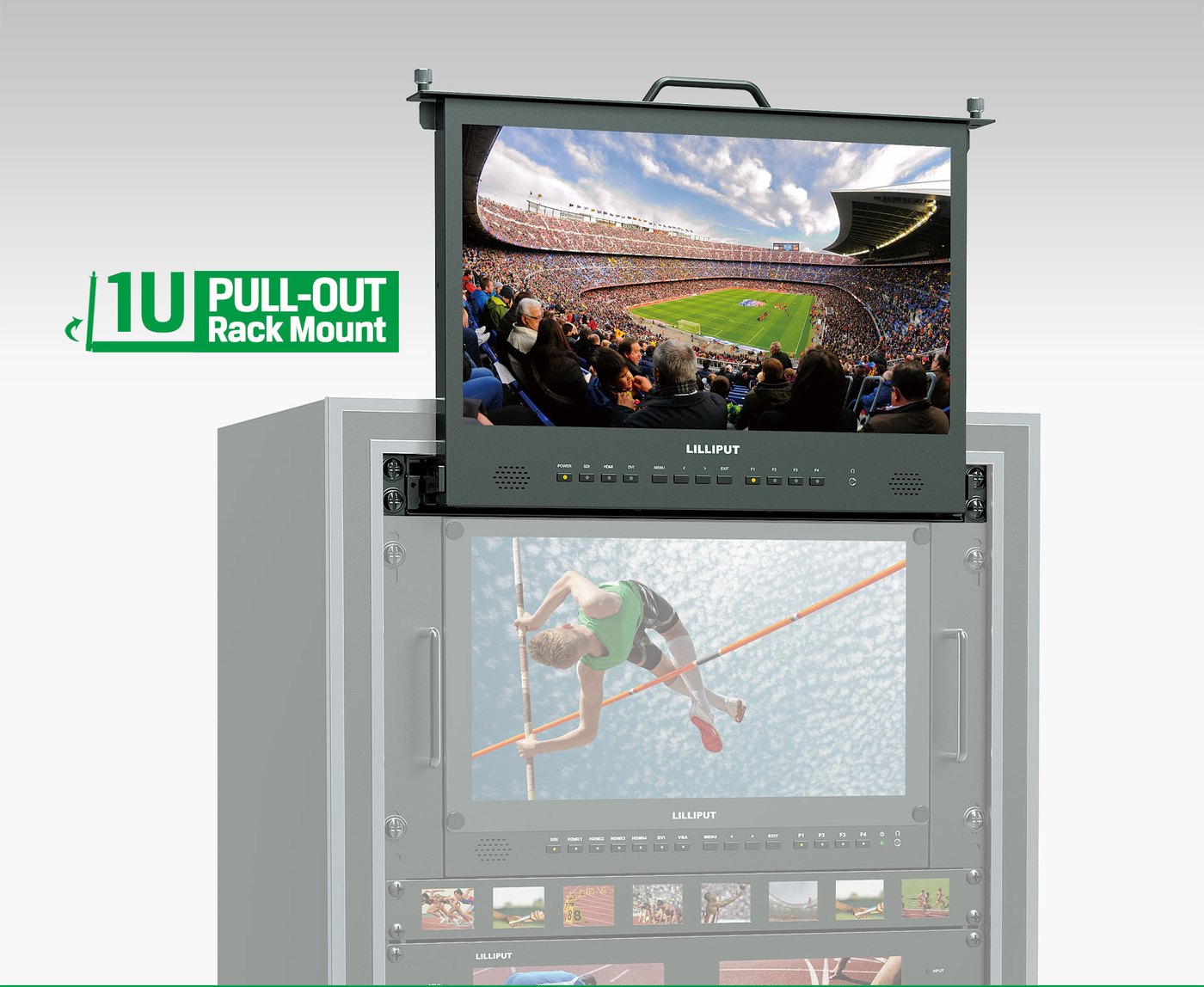

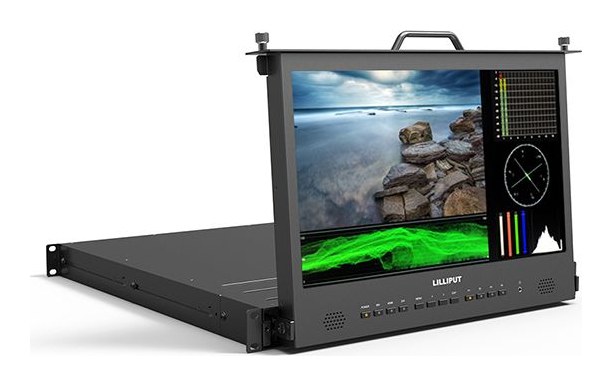

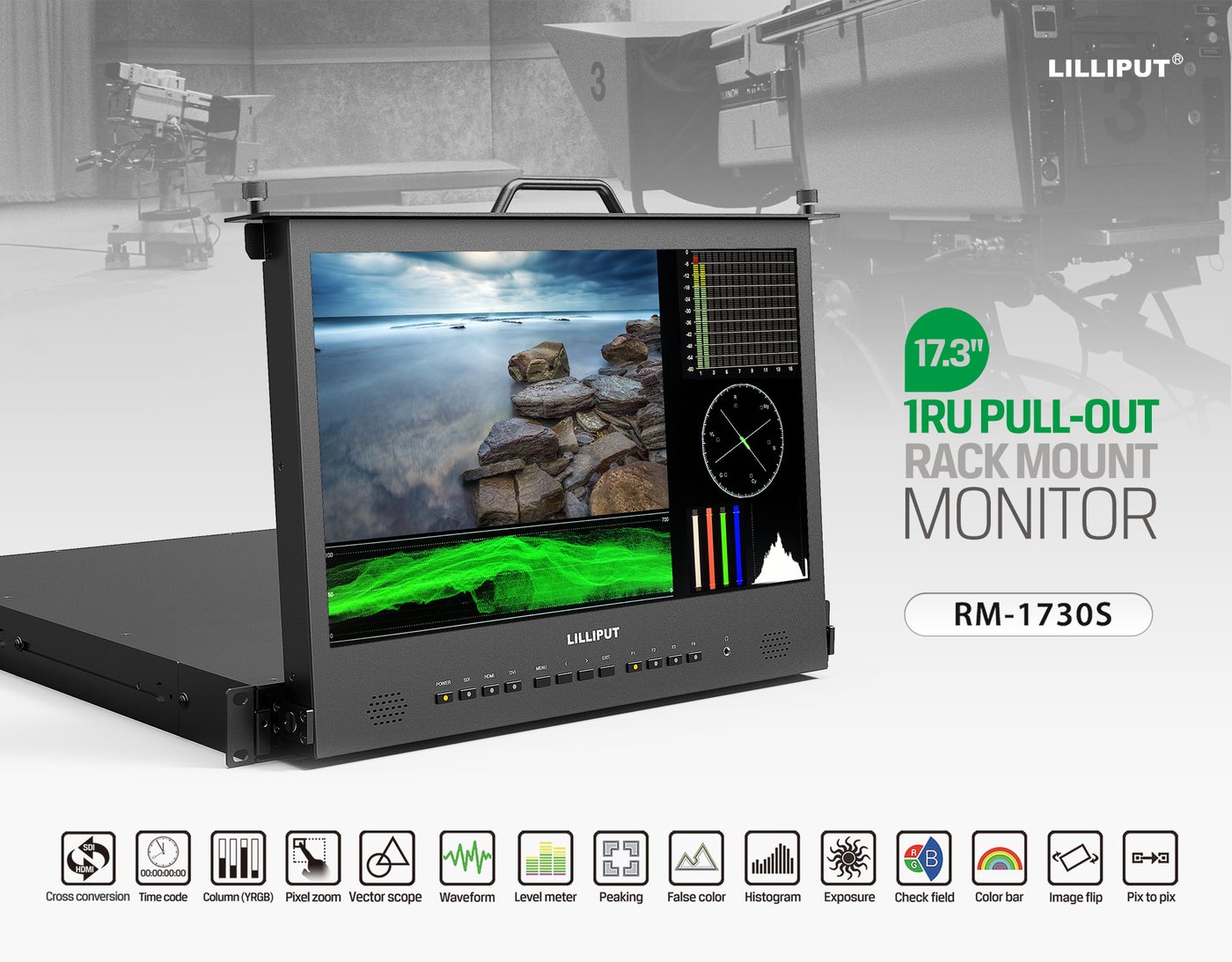

A 17.3" pull-out monitor for 1U racks

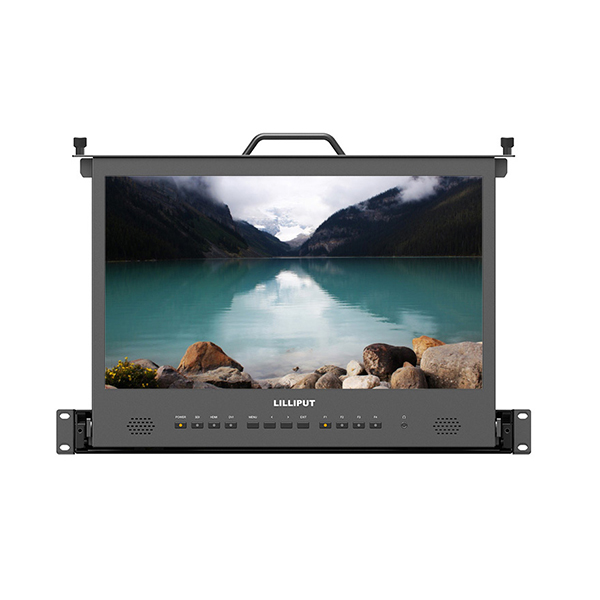

A Full HD panel with 178° viewing angles in a metal drawer – pull it out, flip it up and monitor right at the rack.

Lilliput RM-1730S
17.3" Full HD1U pull-out3G-SDI + HDMI + DVICross conversion178° / 178°

SDI ↔ HDMI cross conversion

It sends an HDMI input to the SDI output and an SDI input to the HDMI output, so in the rack the monitor also works as a small converter between both worlds.

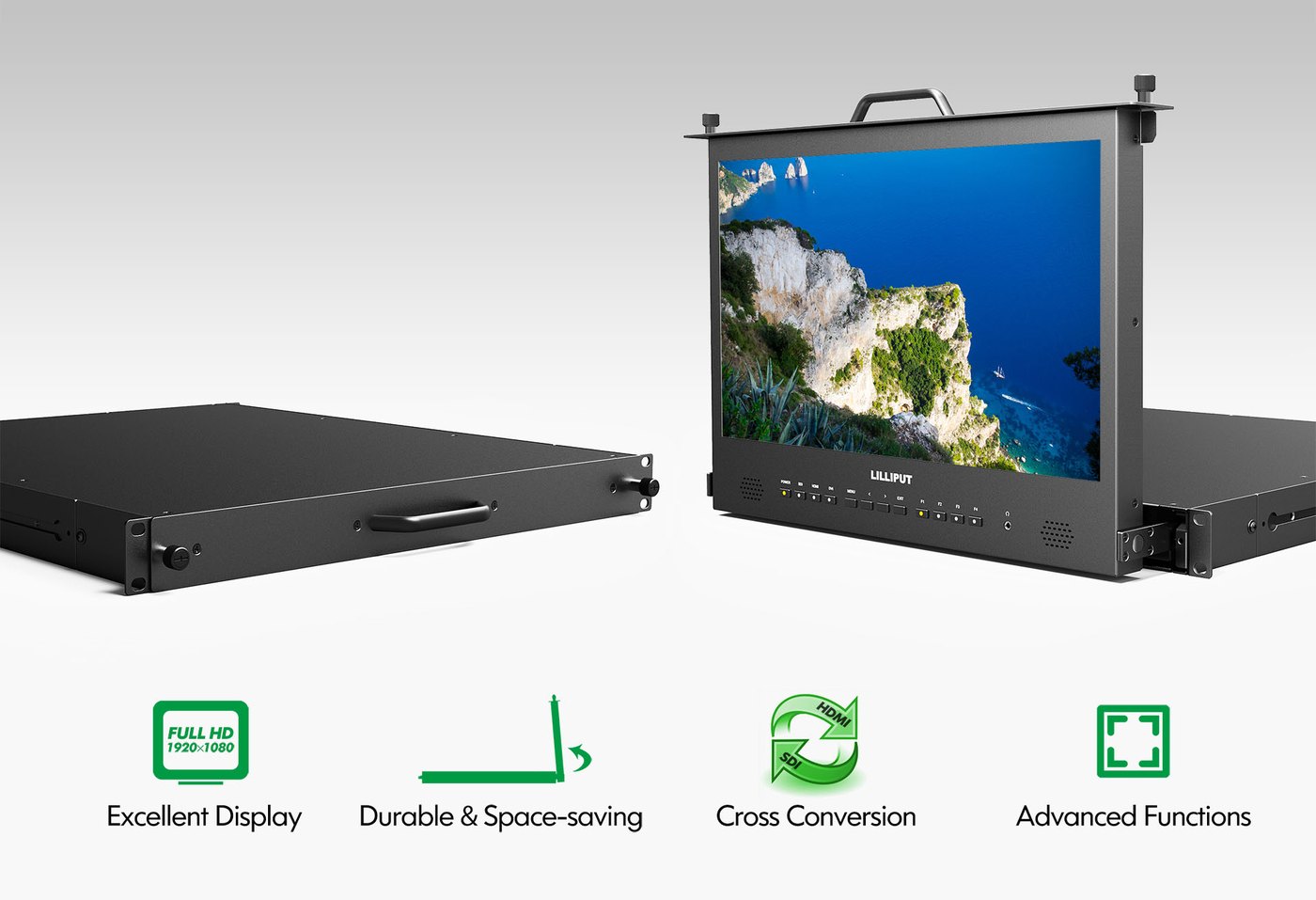

Excellent display

Full HD, 330 cd/m² brightness and 178° viewing angles.

Durable and space-saving

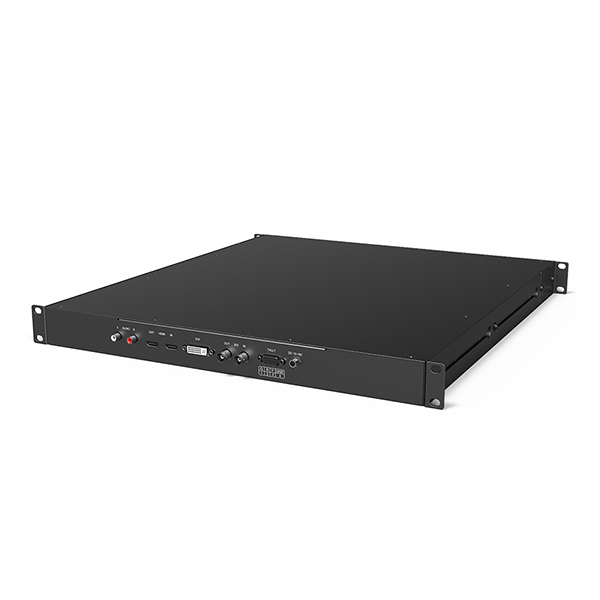

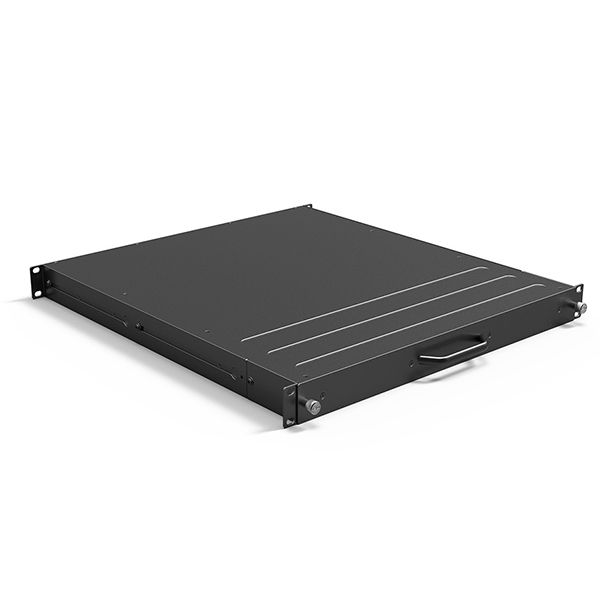

Metal construction that occupies a single unit when closed.

Advanced functions

Time code, waveform, vectorscope, histogram, pixel zoom and more.

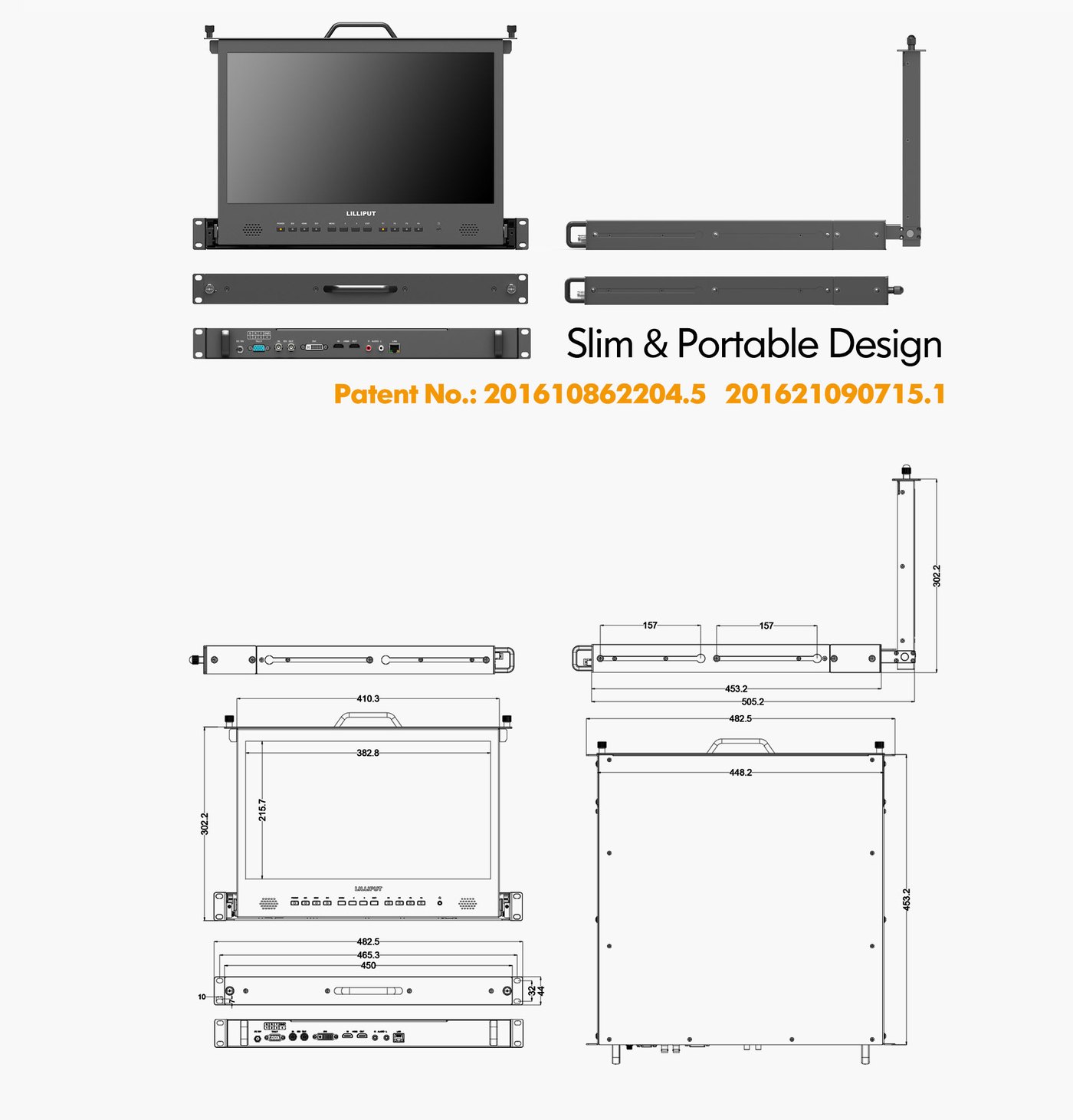

Slim design

Patented pull-out construction covered by two manufacturer patents.

Lilliput RM-1730S – infographic 1Lilliput RM-1730S – infographic 2Lilliput RM-1730S – infographic 3Lilliput RM-1730S – infographic 4Lilliput RM-1730S – infographic 5Lilliput RM-1730S – infographic 6

More information

About the monitor

The RM-1730S features a 17.3" 16:9 panel with a maximum resolution of 1920 × 1080p60, 330 cd/m² brightness, 700:1 contrast and 178° viewing angles. Its 1U design lets it integrate easily into a studio or post-production rackmount setup.

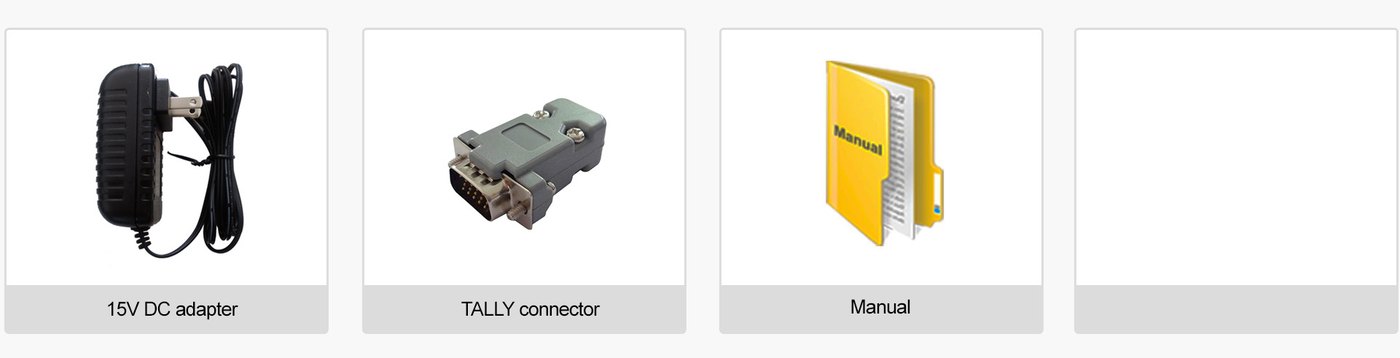

PACKAGE CONTENT

  • 1× monitor Lilliput RM-1730S
  • 1× 15 V DC power adapter
  • 1× tally connector
  • 1× user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: RM-1730S
  • Display: 17.3"
  • Resolution: 1920 × 1080 (Full HD), 16:9
  • Brightness: 330 cd/m²
  • Contrast: 700:1
  • Viewing angle (H/V): 178° / 178°
  • Video inputs: 1× 3G-SDI, 1× HDMI 1.4, DVI
  • Video outputs: 1× 3G-SDI, 1× HDMI 1.4 (loop with SDI ↔ HDMI cross conversion)
  • SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
  • HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60
  • Audio: SDI 12 ch 48 kHz/24-bit, HDMI 2 ch, 2 speakers, 3.5 mm headphones

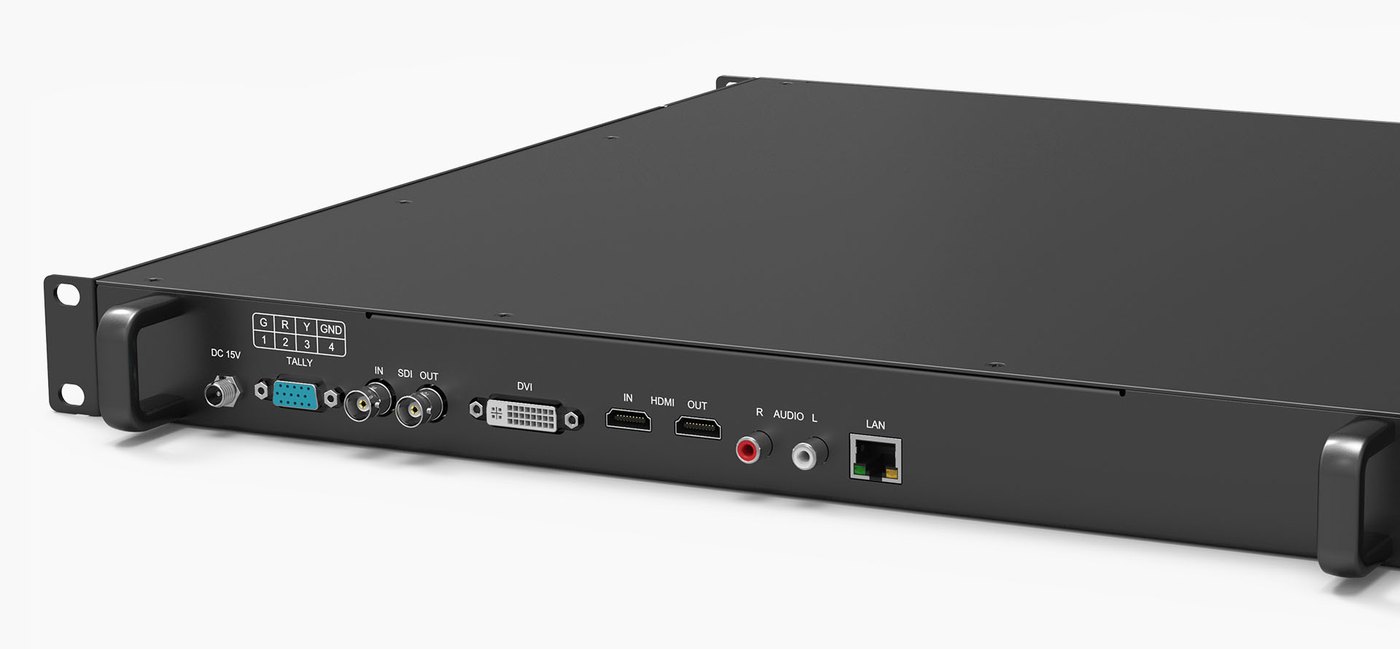

  • Other interfaces: LAN, tally, audio L/R
  • Functions: cross conversion, time code, YRGB column, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bar, image flip, pixel to pixel
  • Power: DC 10–18 V
  • Power consumption: ≤ 32 W
  • Operating temperature: -20 to 60 °C
  • Storage temperature: -30 to 70 °C
  • Dimensions (L × W × D): 482.5 × 44 × 507.5 mm
  • Weight: 8.6 kg
  • Mounting: 1U 19" rack, pull-out drawer
Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p
Size17.3"
Monitor inputsHDMI · SDI · 3G-SDI · DVI · HDMI 1.4
Luminosity330cd/m2
Panel resolution1920x1080
Monitor power supply15V DC

Other parameters

TallyYes
Other featuresRack-mountable · Tally · Vectorscope
High BrightnessNo
