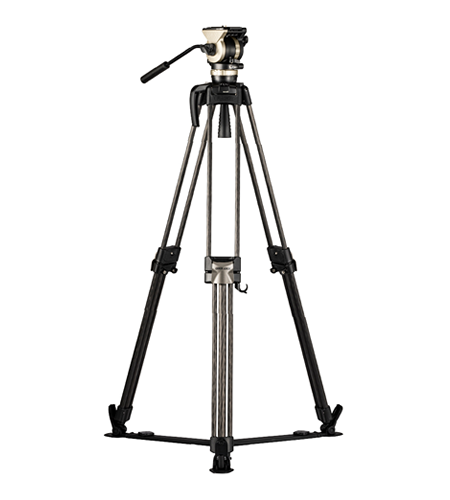

Libec NX-200QC

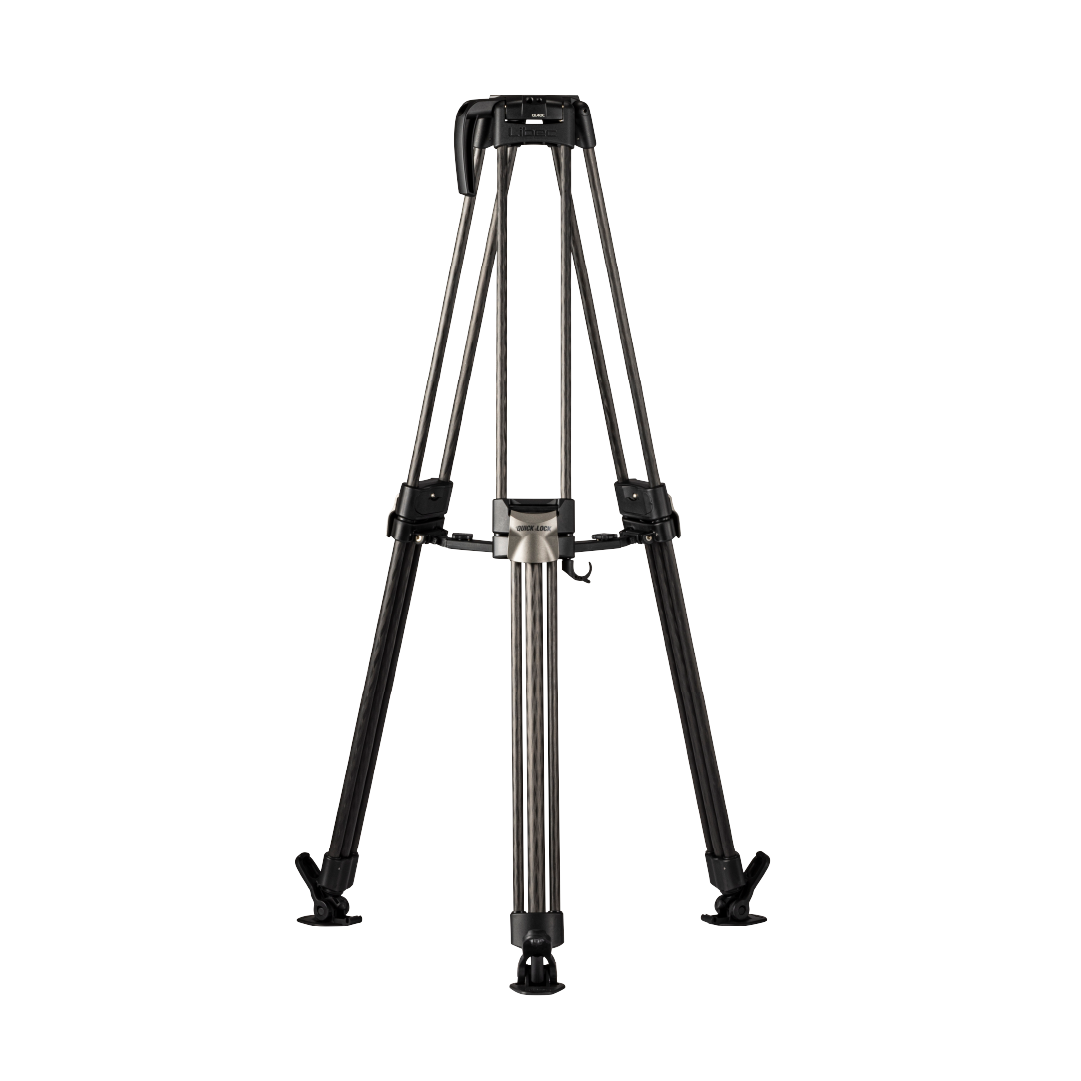

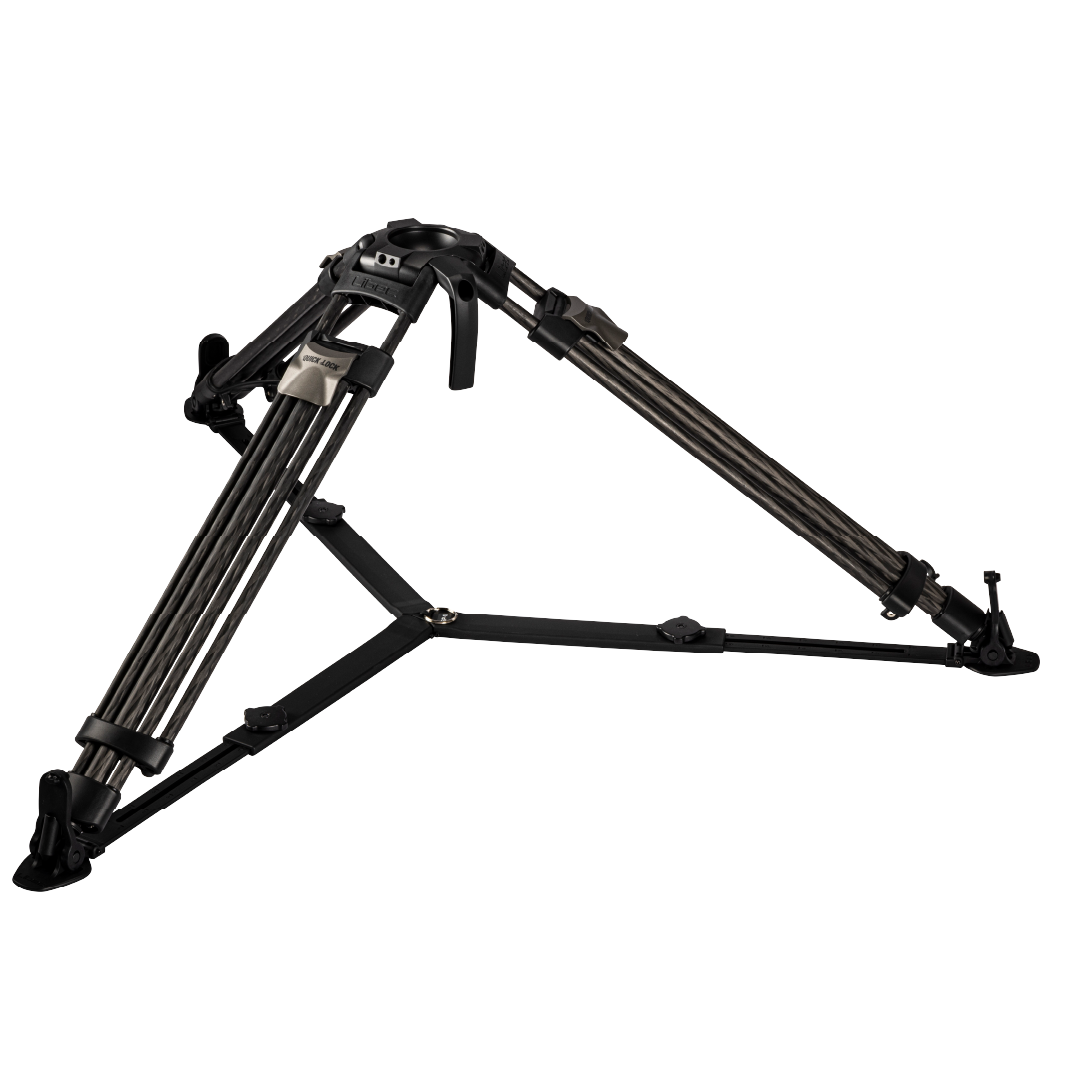

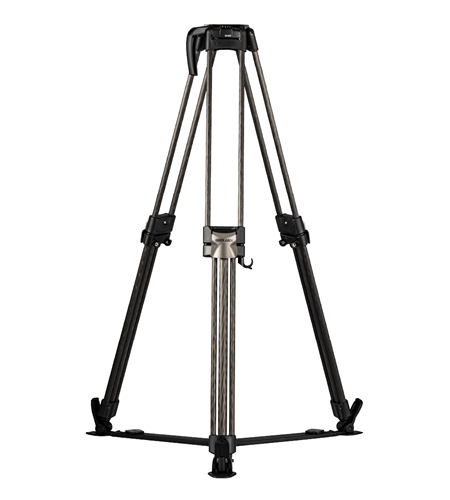

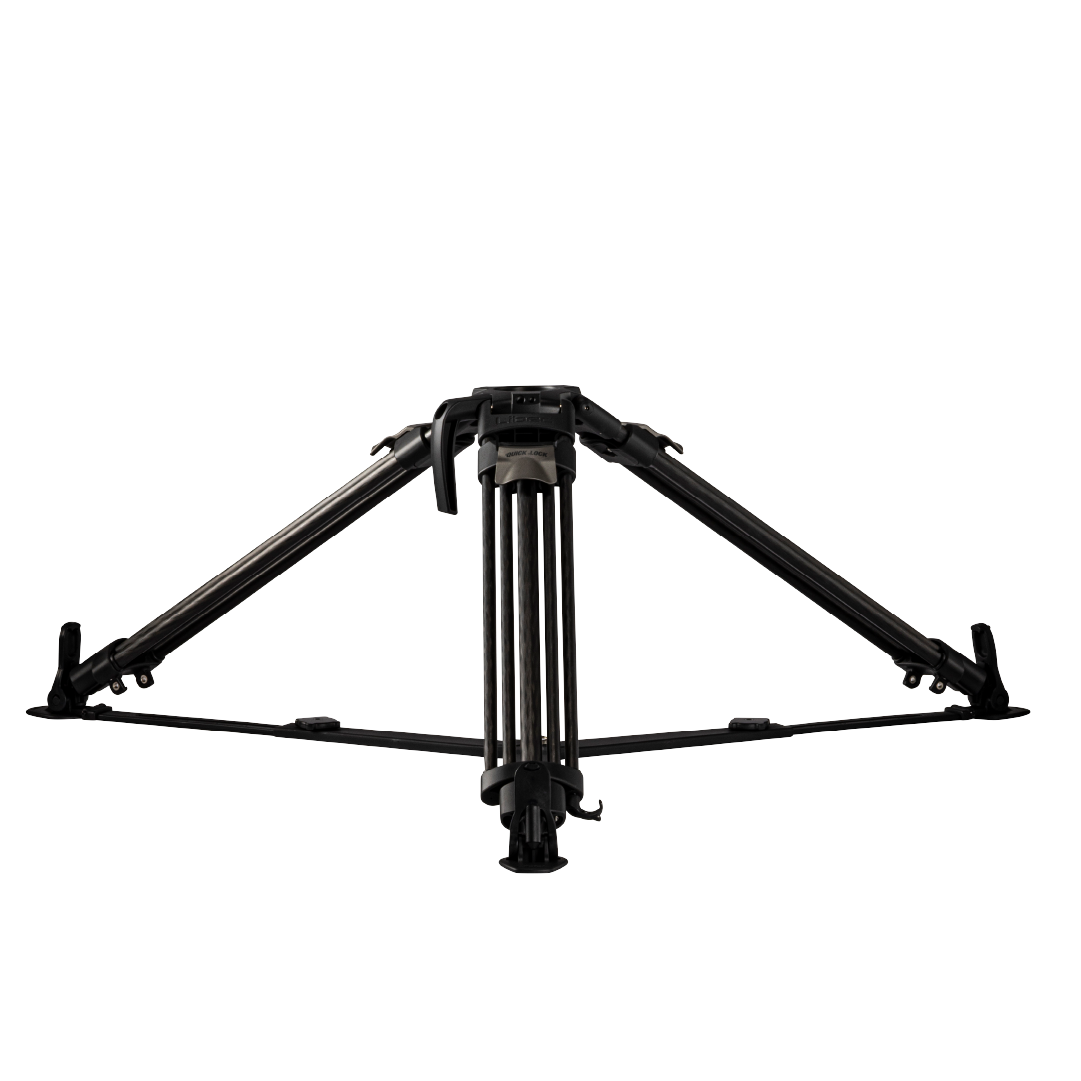

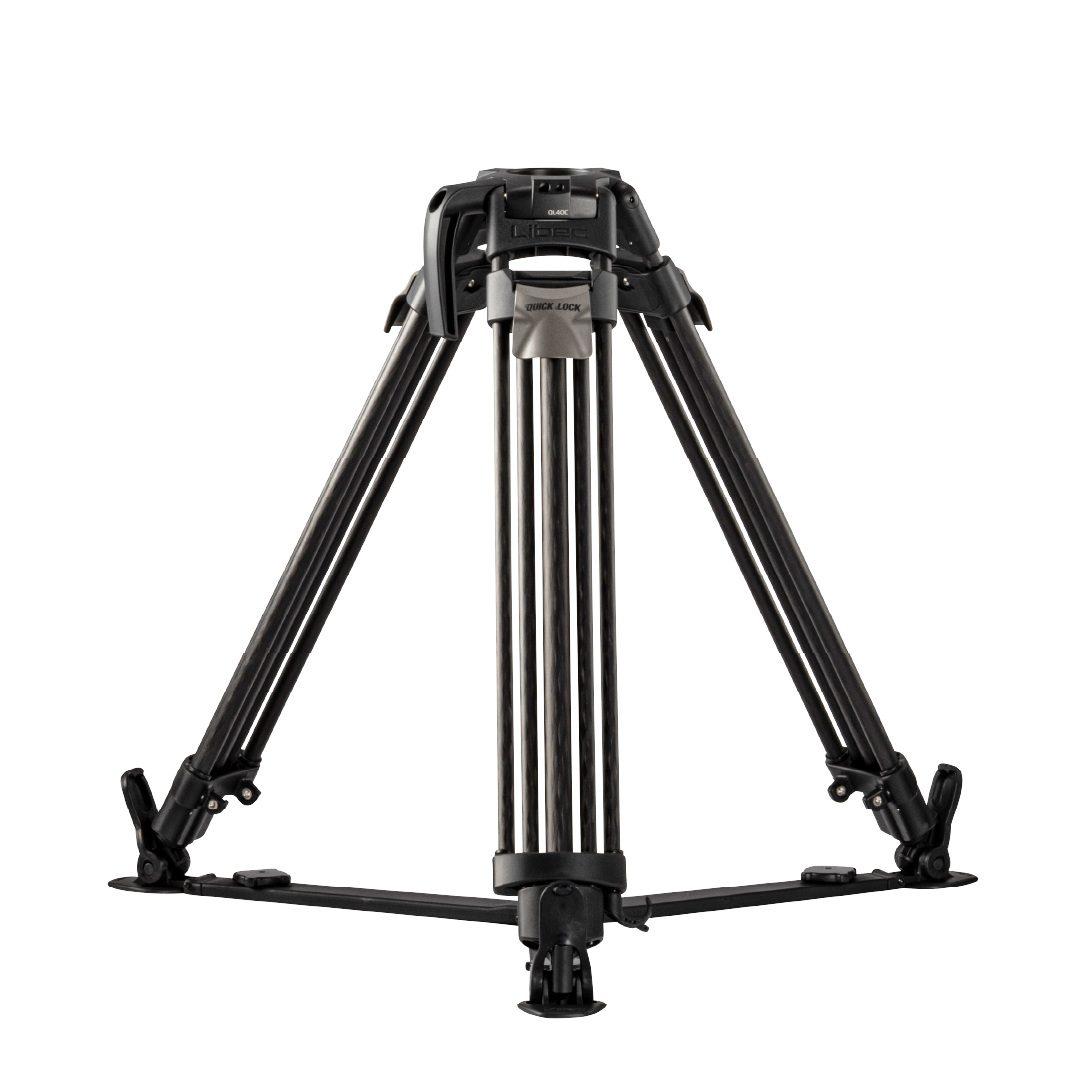

The Libec NX-200QC tripod set consists of QL40C carbon fiber legs, NH20 video head, and SP-1B bottom spreader. The RC-30 bag is also included.

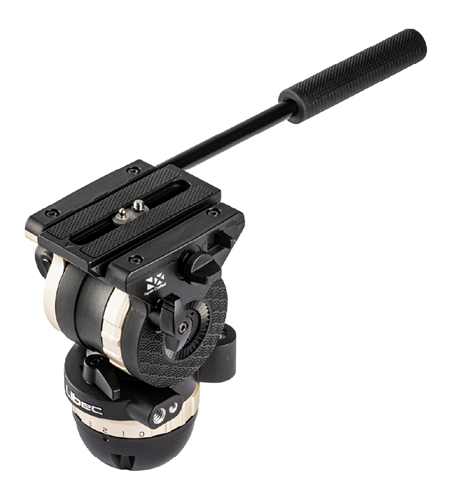

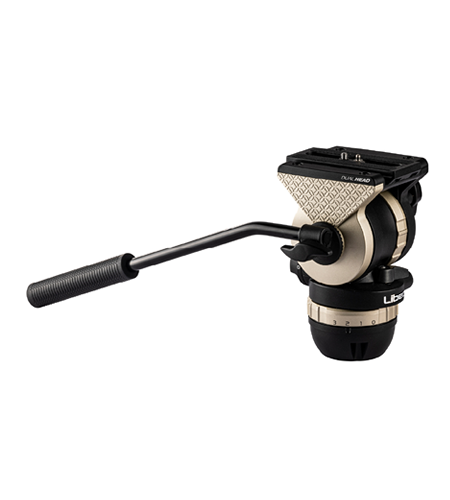

NH20 HeadThe new NH20 video head features improved durability for long-term use and significantly increased clamping force of the sliding plate and locking force of the pan and tilt mechanism. Compared to previous models, the "clicking" feel of each resistance control wheel has been improved, and their clarity has also been increased by adding indicator marks to the counterweight control wheel and resistance control wheels.

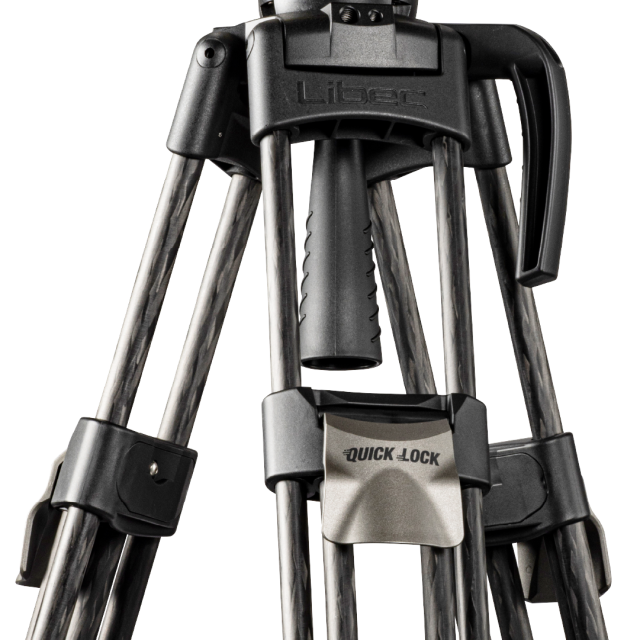

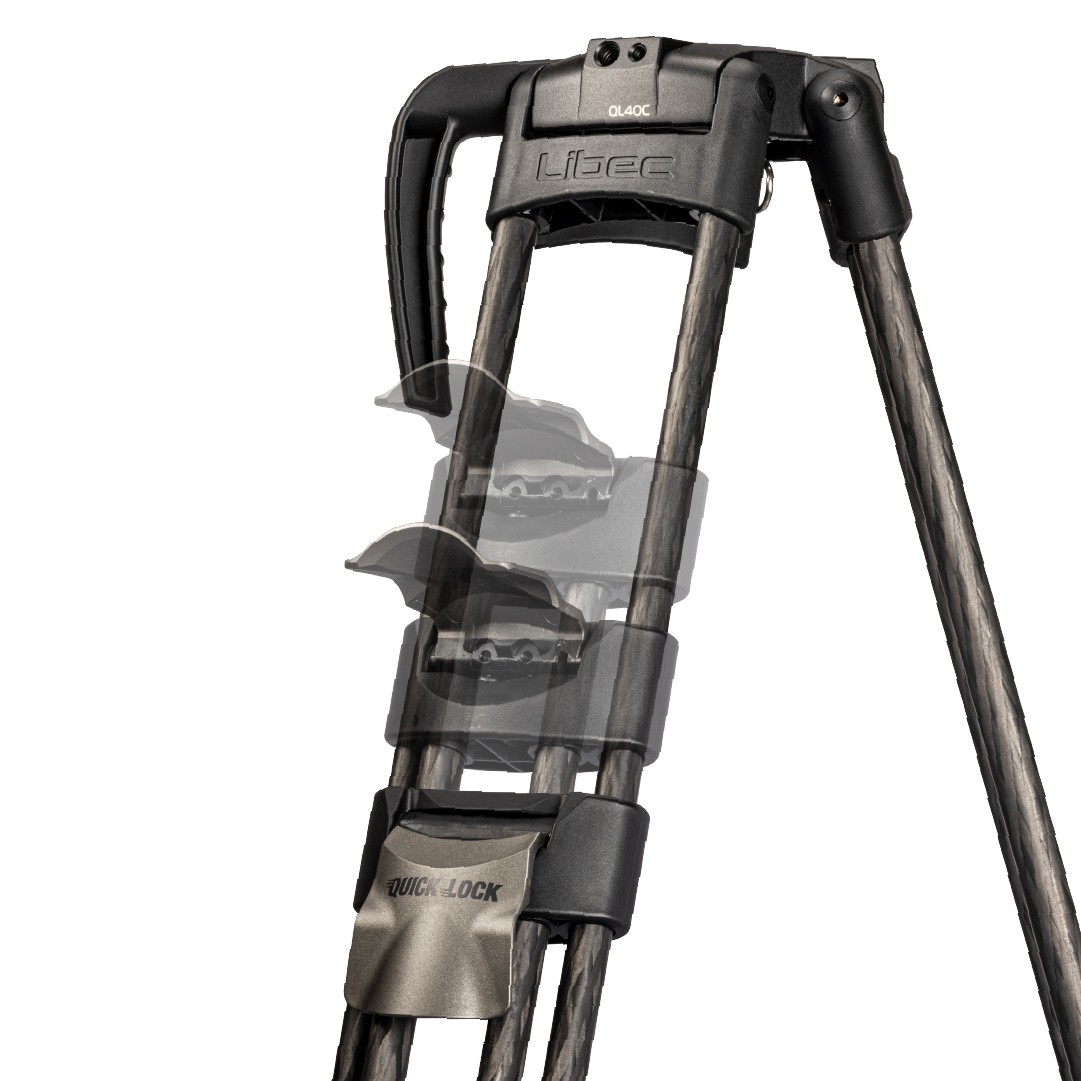

Mobility and low weight

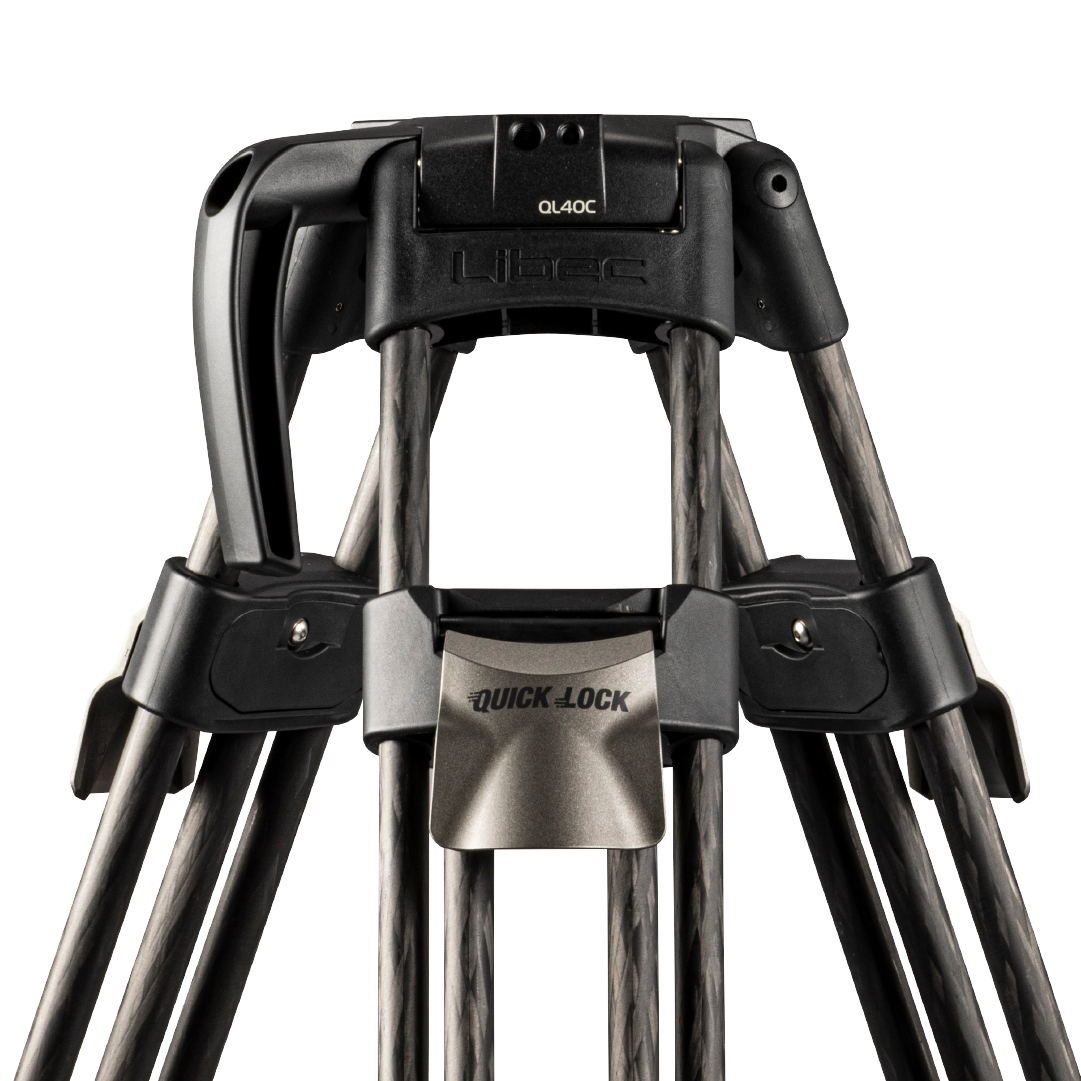

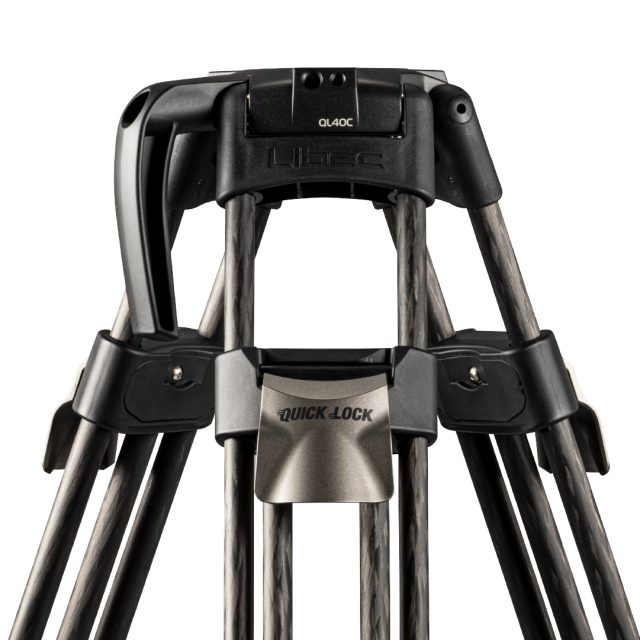

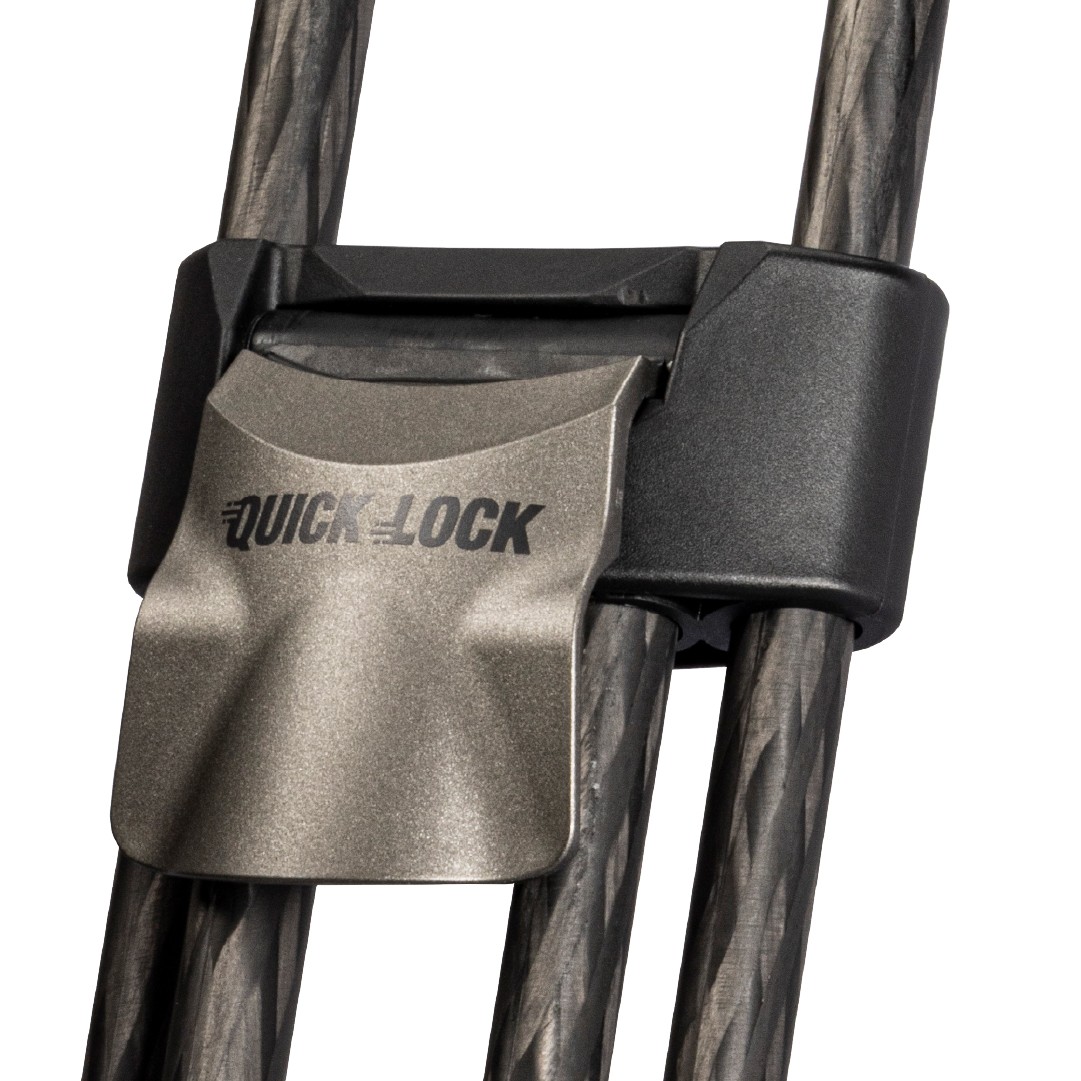

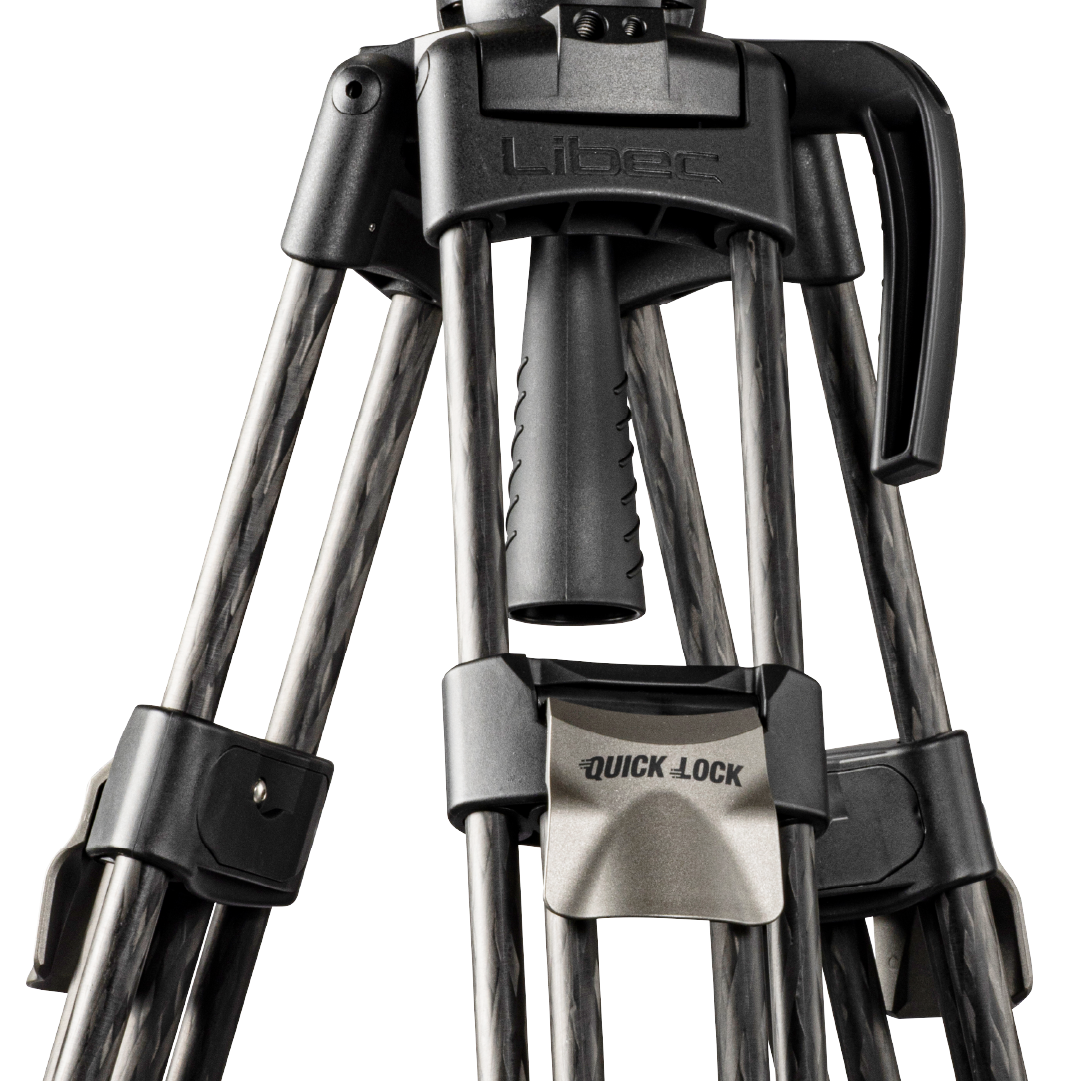

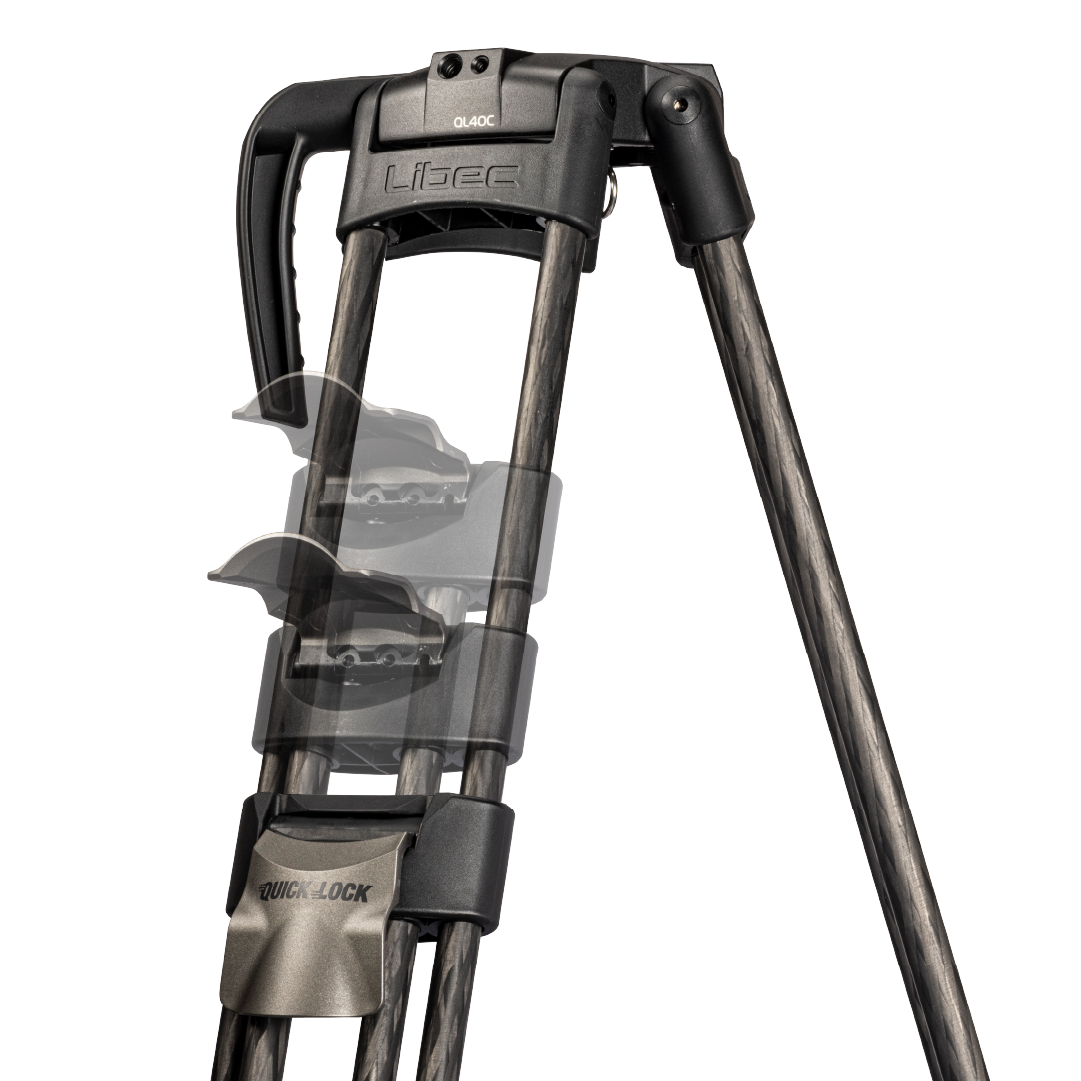

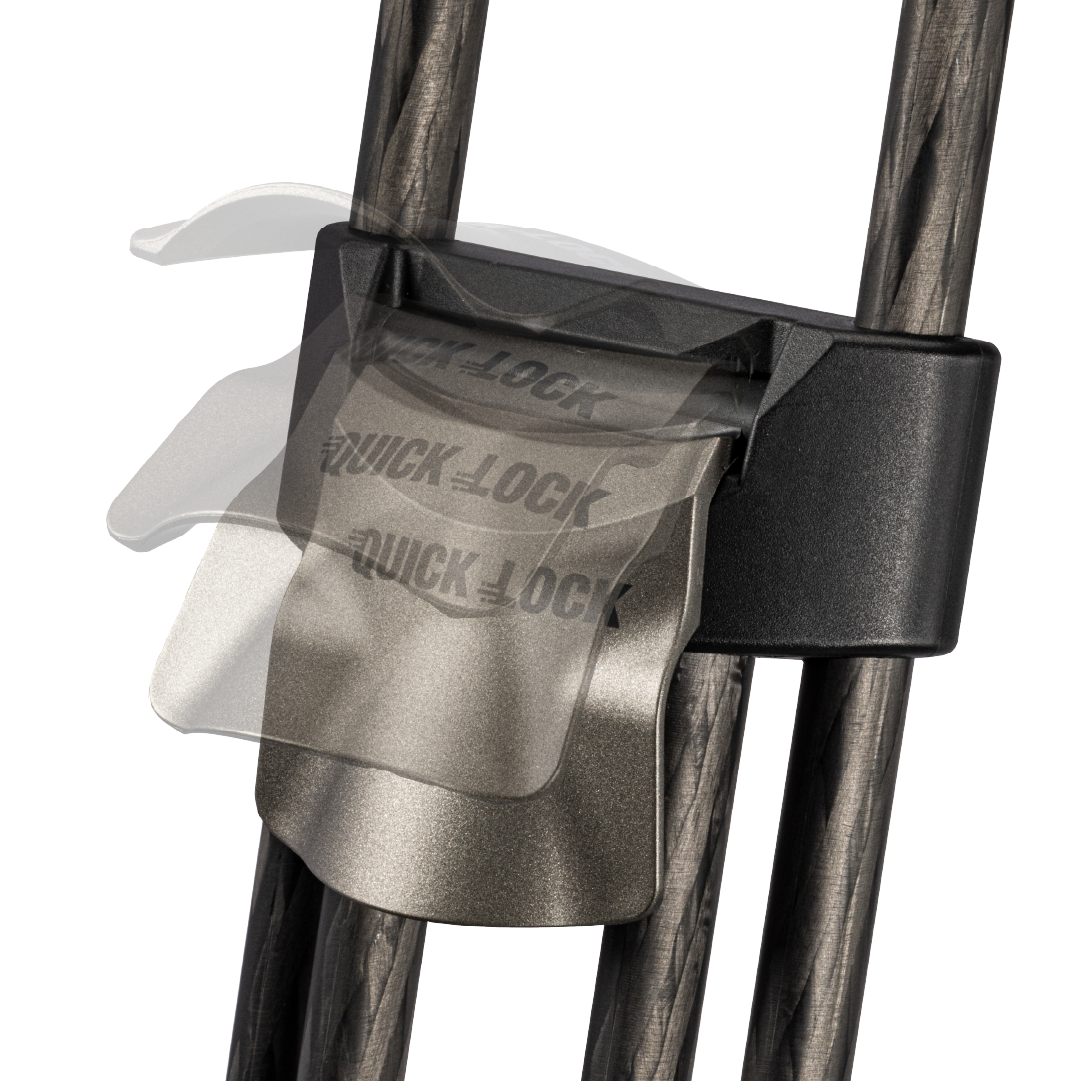

The NH series heads combine a lightweight design with a multi-stage counterbalance system that allows for quick adjustment. Combining this video head with the lightweight QL40C tripod with quick-release system creates synergy for increased mobility.

Precise control
Thanks to the skilled craftsmen at Libec Japan, an innovative design has been created that maximizes the performance of the NX. The result is a significant reduction in vibration and play during pan and tilt movements, offering the best precision control in its class.

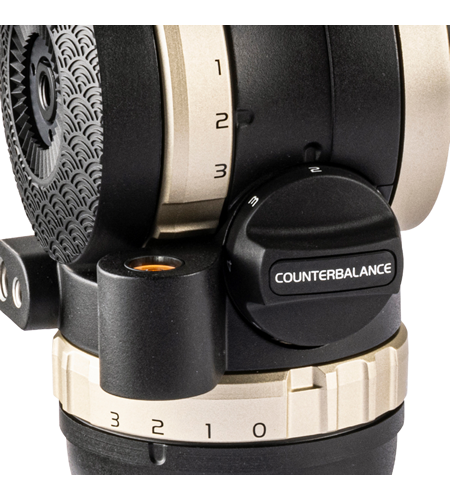

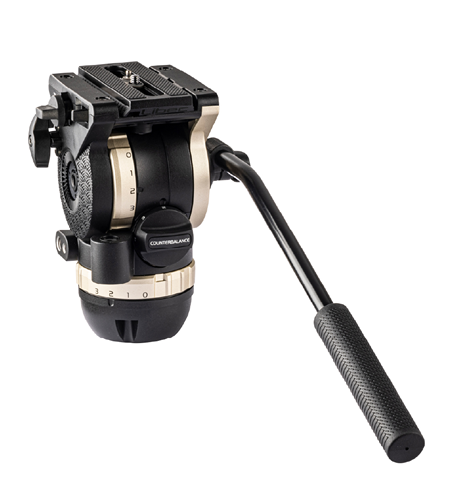

Multi-stage counterbalance system
The NX series supports a wide range of camera configurations thanks to a multi-stage counterbalance system that accommodates different production styles. Users can choose from 5 counterbalance steps/modes, including a zero "free" mode, allowing for quick counterbalance adjustment.

Advanced multi-stage drag unit
With an emphasis on controllability, durability, and reliability, this system uses a multi-layer metal construction. Compared to the inexpensive plastic units used by other brands, it ensures a smooth start, suppresses backlash, and provides excellent durability even with long-term use. The use of premium silicone grease provides a premium feel and maintains consistent operation even at temperatures ranging from -40°C to +60°C. Unlike other products, there is no need to set the drag wheel to zero when storing.

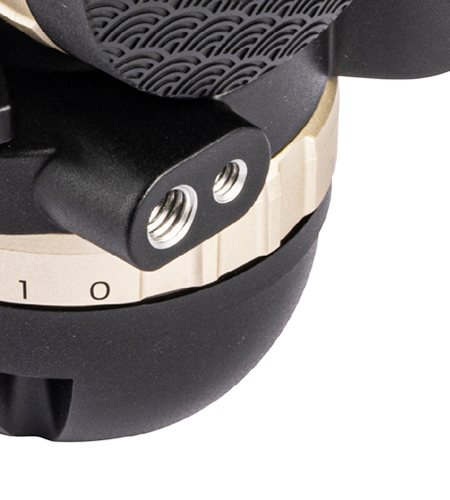

Accessory ports for added convenience
The tripod base has three sets of accessory ports with 1/4" and 3/8" threads, making it easy to securely attach monitors, lights, and other accessories.

Double-sided gearing
The heads are equipped with teeth on both sides so that an additional swivel handle or other accessories can be attached.

Double head
The double head design is available for both 75mm hemispherical and flat base tripods. The double head can also be used with sliders, camera dollies, and photo tripods.

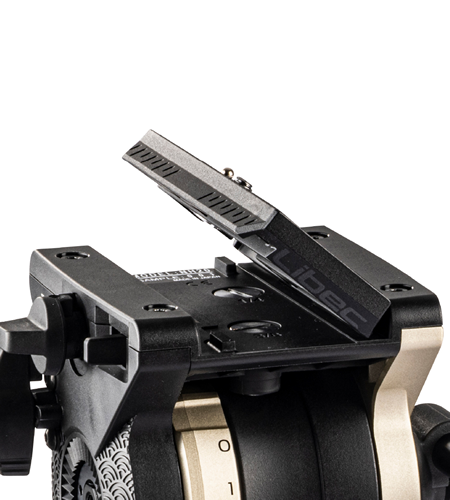

Snap-on sliding plate (Snap ON/OFF)
The sliding plate can be attached and released with a single touch. Easy and smooth adjustment in the field is thus quickly achievable.

Highly compatible sliding plate
In addition to Libec's TH and HS series, this universal sliding plate can also be used with many other 75mm video heads and gimbals from other manufacturers.

LED spirit level
The spirit level is equipped with an LED light that allows you to level the tripod even in the dark.

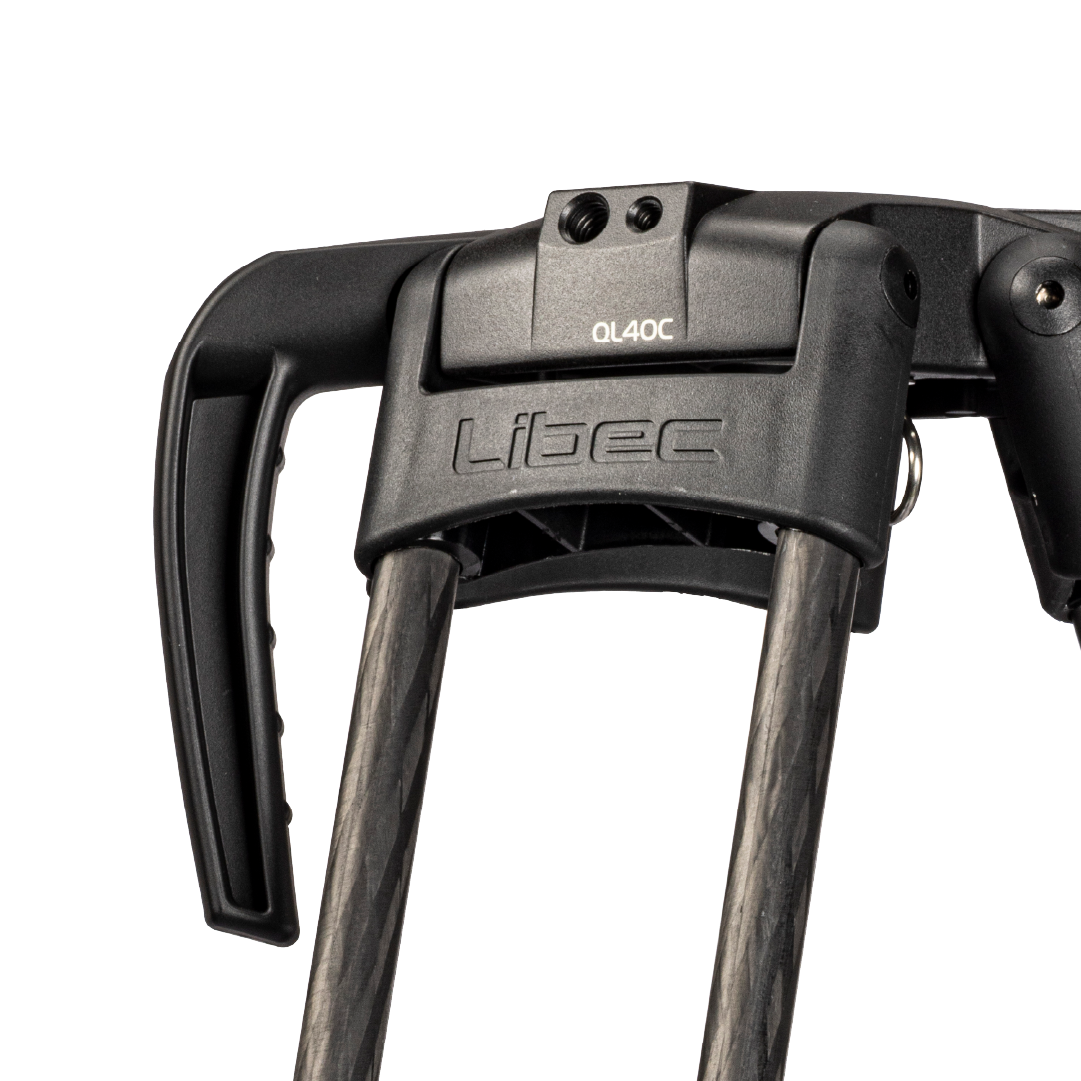

Safety design

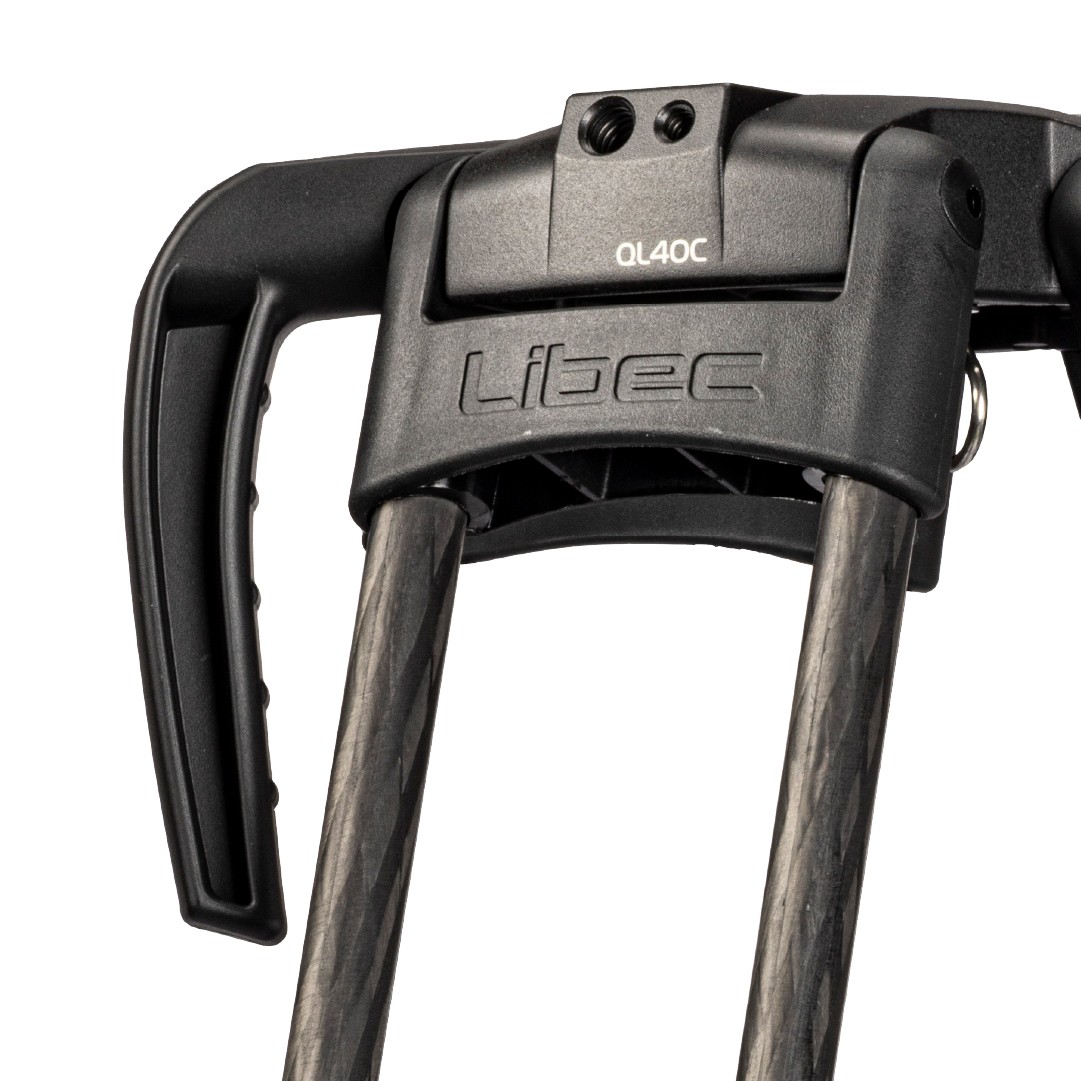

The tripod legs are carefully designed with safety in mind so that users do not pinch their fingers when intentionally or unintentionally folding the tripod.

Cup clamp with "adjustable pad"
Removing the pad from the bowl clamp extends the length of the thread for insertion, allowing more devices to be attached to the head.

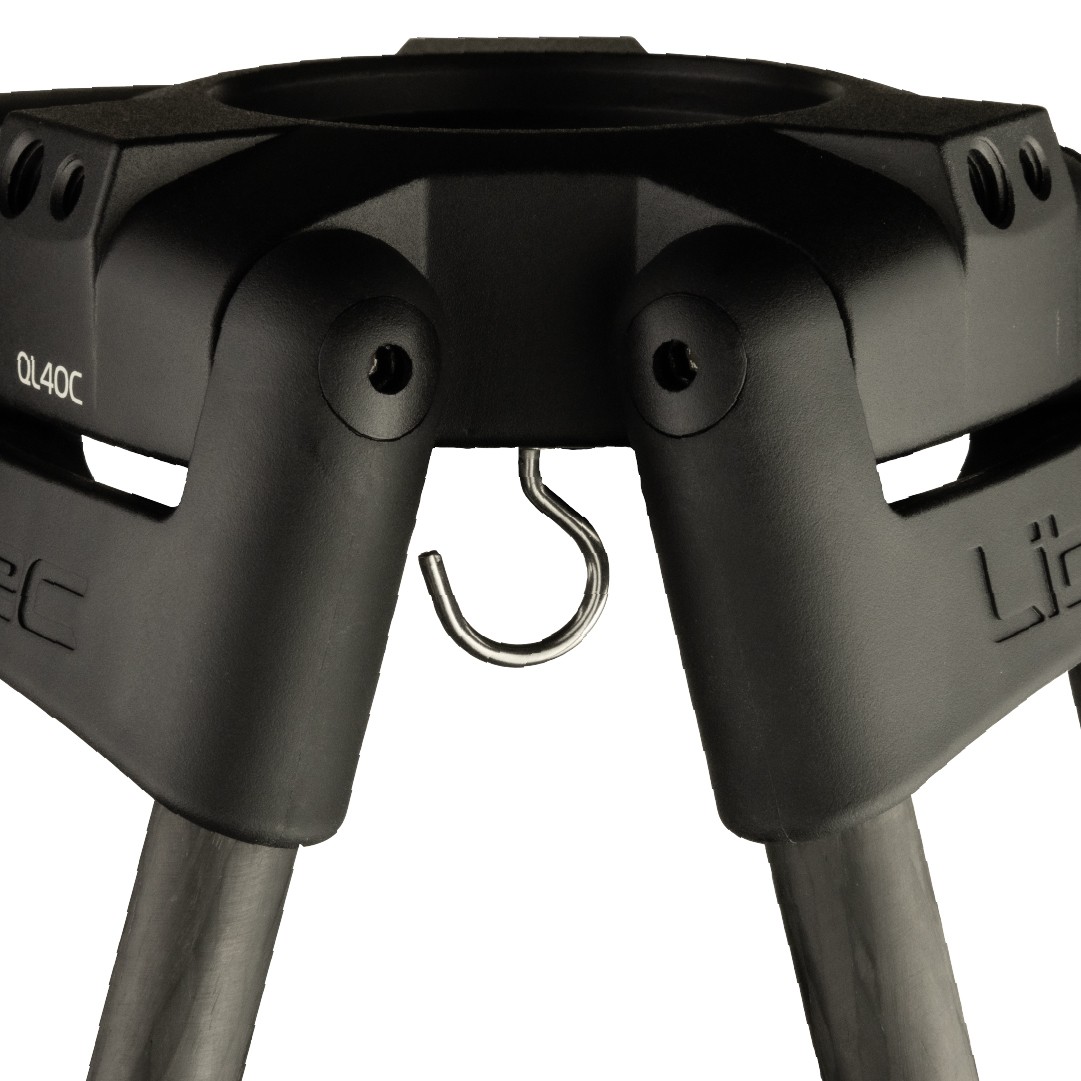

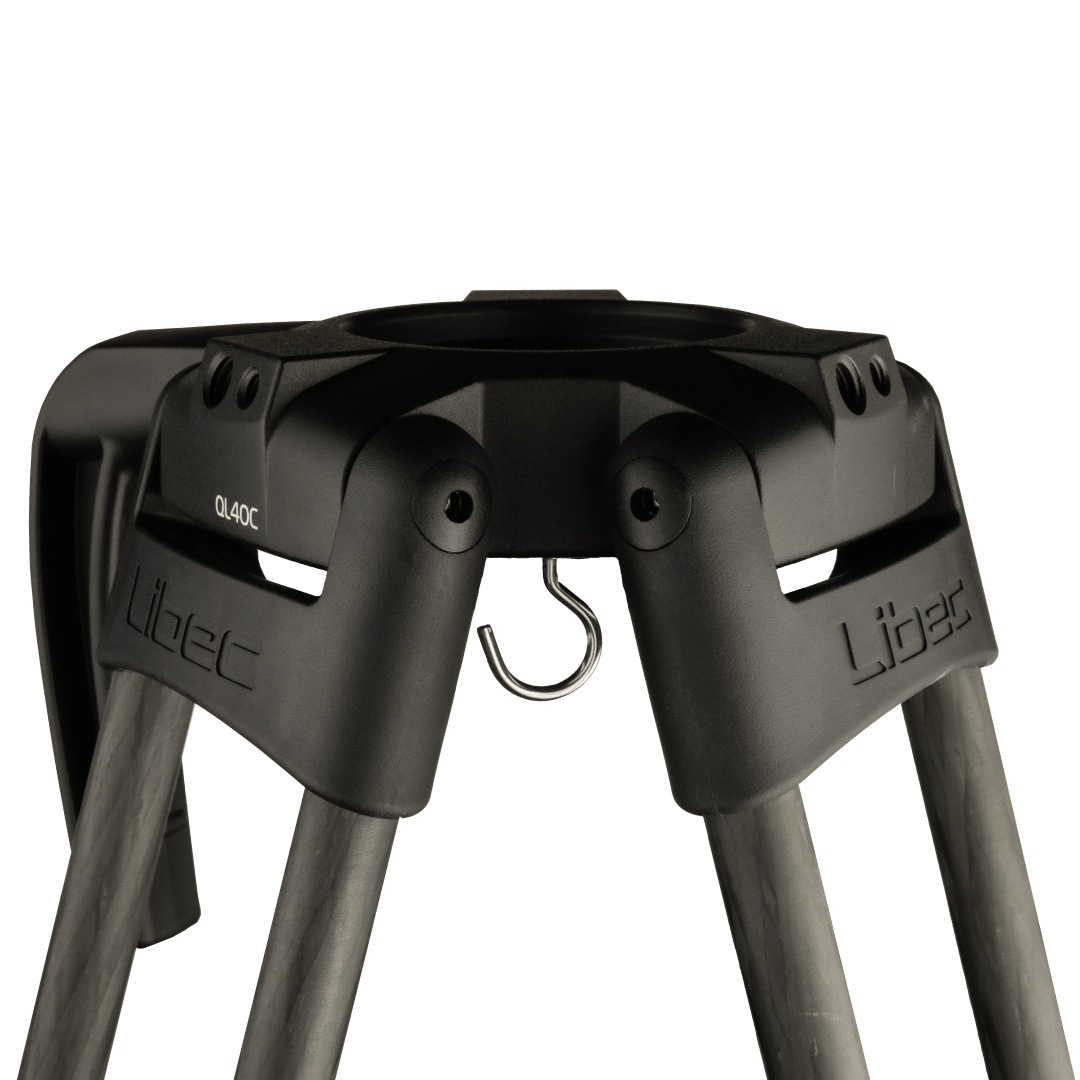

Weight hook
The included hook allows you to hang weights, which increases the stability of the tripod and helps it withstand strong winds and other situations where greater stability is needed.

Technical parameters:

• Counterweight range: 0 to 2.5 kg (C.G. 55 mm)
• Load capacity: 4 kg
• Counterweight: free + 5 steps
• Drag mode: free + 3 steps
• Drag system: multi-layer metal construction
• Tilt angle: +90° to -70°
• Temperature range: -40 °C to +60 °C
• Spirit level: backlit
• Camera plate: compatible with sliding plate
• Compatible with heads: Manfrotto and Sachtler
• Sliding range: +/- 30 mm
• Long sliding plate: optional

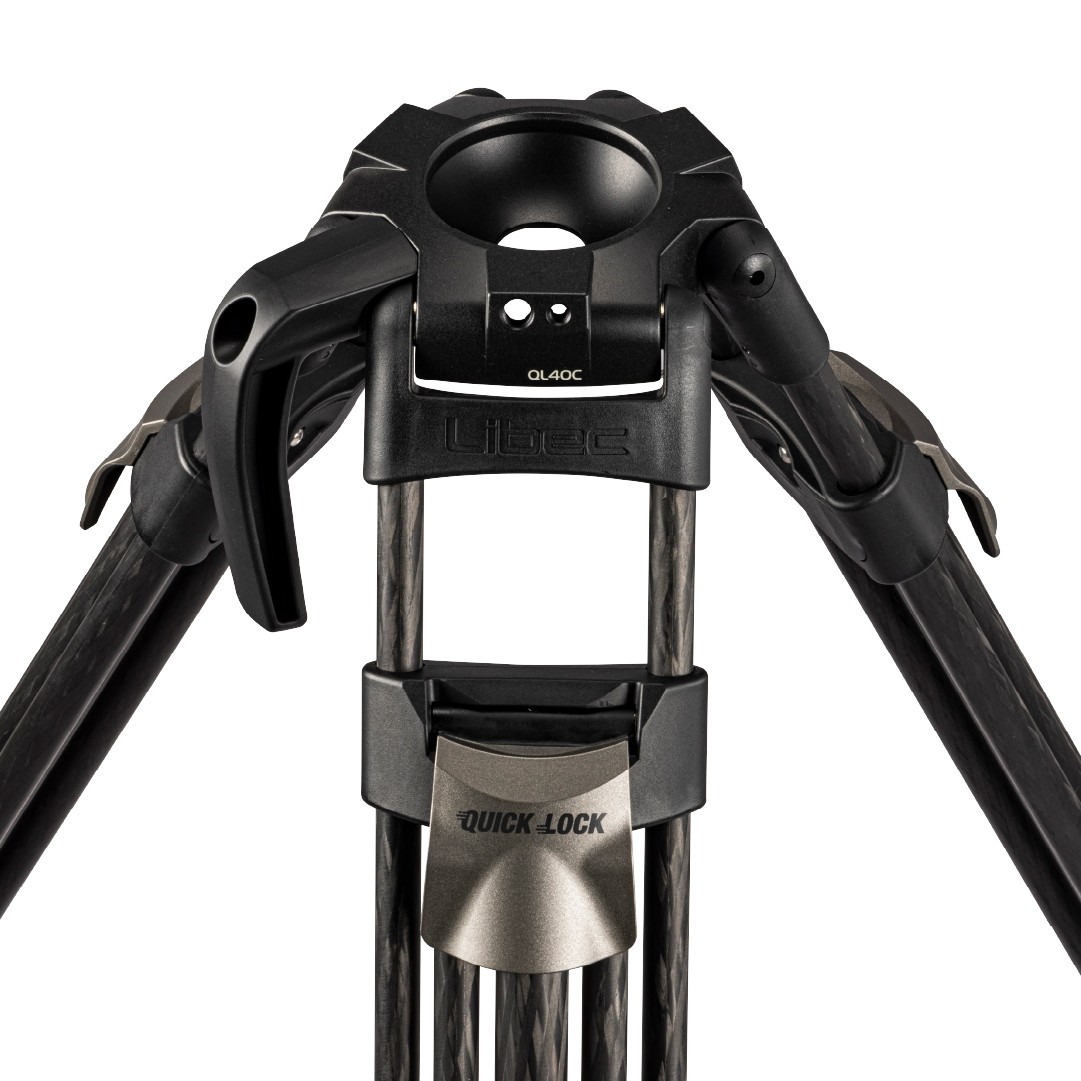

• Head base: 75 mm hemisphere / flat base
• Plate attachment: 1/4" screw with video pin
• Accessory attachment: Head: 1/4" and 3/8" screw holes; Tripod: 3 sets of 1/4" and 3/8" screw holes
• Spare screws: 1/4" and 3/8"
• Weight: 4.8 kg
• Height: 55 to 168 cm
• Head attachment: 75 mm hemisphere
• Tube material: carbon
• Sections: 2-level
