Hollyland Wireless Tally System - 8 Lights Set

Free transport
LAST PIECE

SKU: Wireless Tally System-8 Lights

Hollyland Wireless Tally System – 8 Lights is a complete wireless tally kit for eight cameras. It offers up to 800 m range, green PVW and red PGM indication, adaptive frequency hopping, up to 16 channels over RJ45, and broad switcher compatibility.

1 419 € with VAT 1 172.73 € without VAT

Price history

Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow

In stock 1 pcs
Praha 1 pcs

SKU:
Wireless Tally System-8 Lights

Price history

Top accessories for Hollyland Wireless Tally System - 8 Lights Set

Blackmagic Design ATEM Mini Pro

Top product

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted

352 €

To be sent 2 pcs

Hollyland DB25 Male to Dual HDB15 Male Tally Cable 1,5m

Hollyland DB25 Male to Dual HDB15 Male Tally Cable HL-TCB10 is a 1.5 m tally cable

59 €

In stock > 5 pcs

Hollyland Solidcom C1 Pro Battery

LAST PIECE

Hollyland Solidcom C1 Pro Battery HL-C1PRO-BAT is a replacement lithium polymer battery

22 €

In stock 1 pcs

Blackmagic Design ATEM Mini Extreme

-12 %
Free transport

Promotion: -12%

Blackmagic Design ATEM Mini Extreme is a new massively larger model of the ATEM Mini

1 062.04 €

1 208.79 €

on request

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Wireless tally system for eight cameras

The system connects the control room to eight two-color tally lights, providing cameramen with clear information about the PVW preview and PGM program feed at distances of up to 800 m.

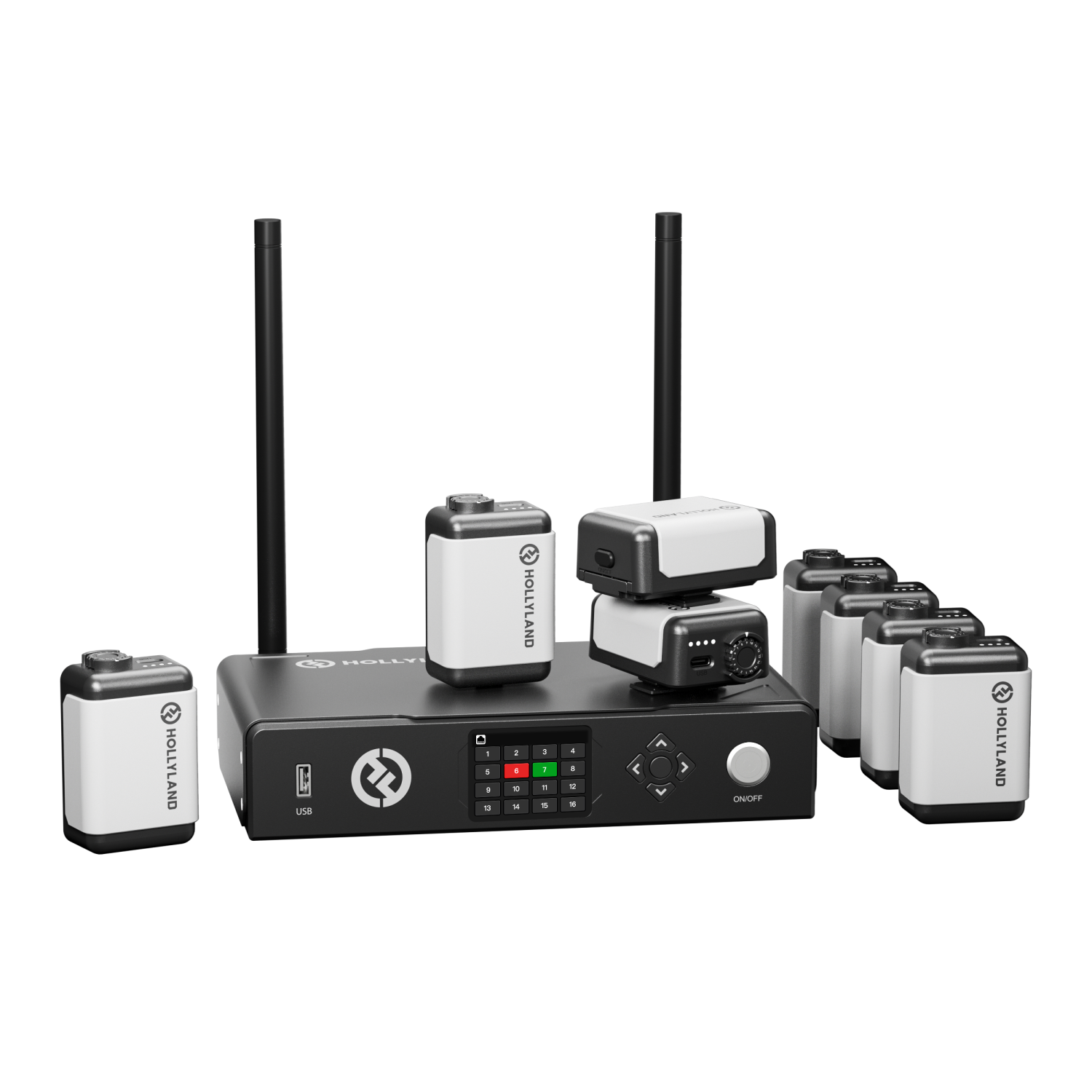

Hollyland Wireless Tally System 8 Lights

DB25, RJ45, and expansion-ready

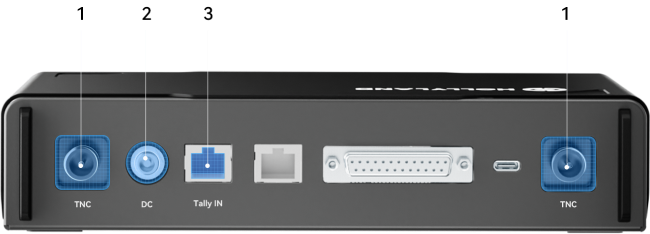

The tally station features a DB25 input, an RJ45 input and loop-out, a pair of TNC antennas, DC power, and a reserved USB-C port. Sequential learning helps adapt the setup to various production consoles.

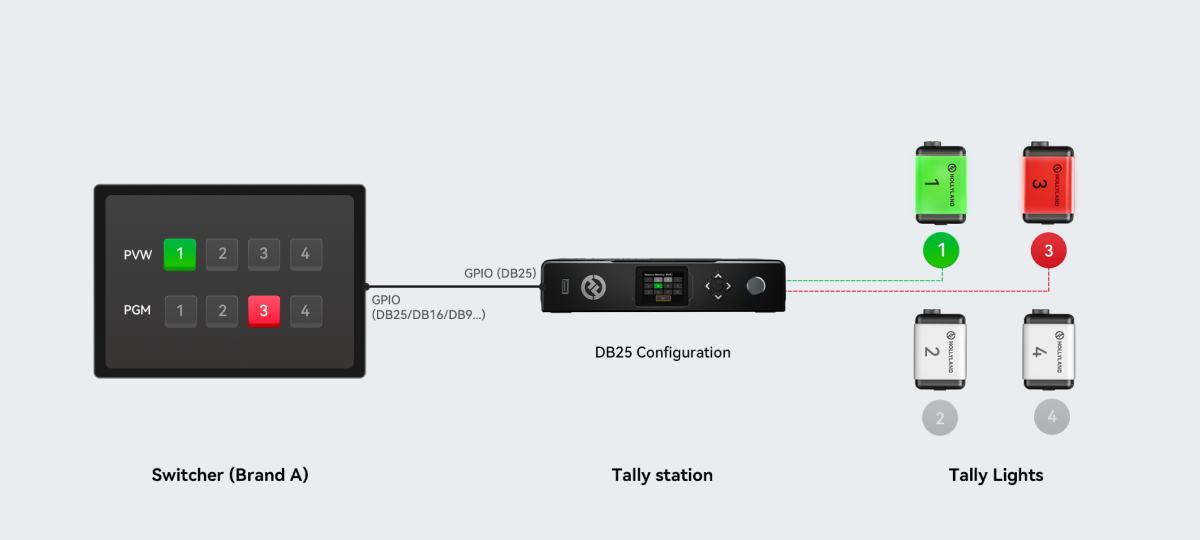

Hollyland Wireless Tally System Connection Diagram

DB25 Setup

Video SwitcherTally StationTally Lights

Camera status visible at a glance

The green PVW indicator shows the preview, while the red PGM indicator shows the camera currently being broadcast. Adaptive frequency hopping helps maintain the connection even in a busy RF environment.

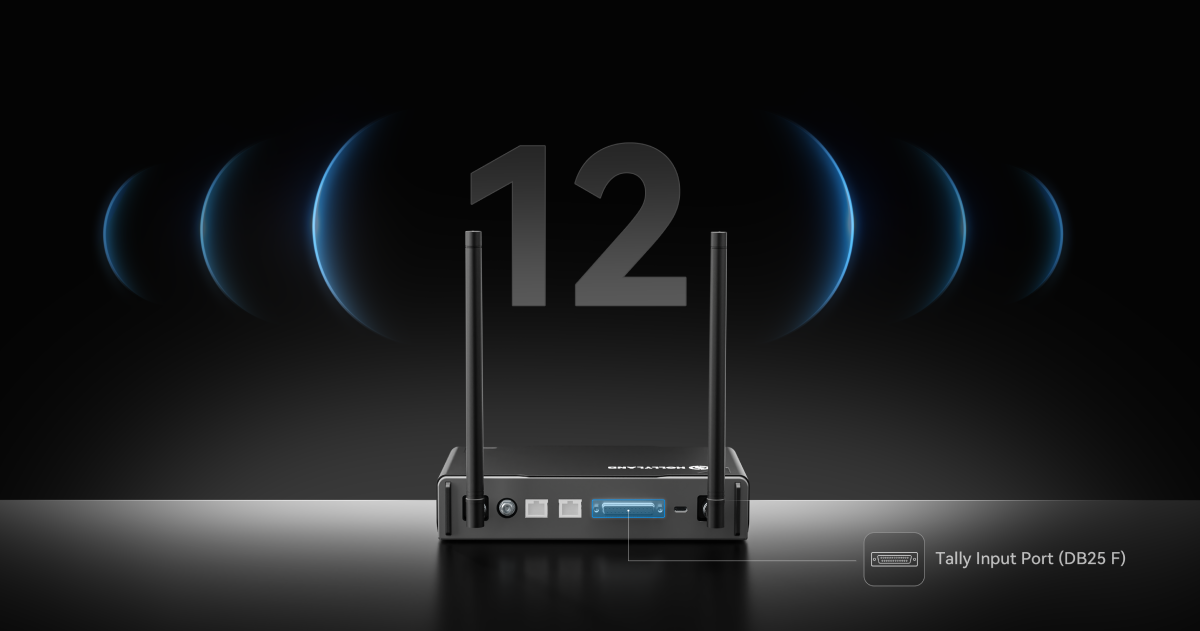

DB25 F tally input – up to 12 channels

Up to 16 two-color channels

The system supports up to 16 channels via RJ45 and up to 12 via DB25. The number of lights can be expanded according to the project without limiting the number of receivers.

Replaceable battery for continuous operation

Each light lasts more than eight hours and uses a Li-ion 700 battery that is also compatible with Solidcom C1 and C1 Pro systems.

PACKAGE CONTENT

Tally light ×8
Tally station ×1
Rigid carrying case ×1
DC power adapter ×2
Wireless Tally System antenna ×2
8-slot charging cradle ×1
Li-ion 700 battery ×8
USB-A to USB-C cable ×1
Number stickers ×1
Quick Start Guide ×1
Warranty Card ×1
Declaration of Conformity ×1

SPECIFICATIONS

Number of tally lights: 8
Maximum number of channels: 16 via RJ45 / 12 via DB25
Range: up to 800 m LOS
Frequency: 2.4 GHz
Modulation: LoRa
Receiver sensitivity: < −115 dBm
Latency: < 150 ms
Light runtime: more than 8 hours
Light dimensions: 77.8 × 50.5 × 37.4 mm
Light weight: approximately 85 g
Station dimensions: 142.5 × 232.8 × 50.1 mm
Station weight: approximately 1,262 g
Operating temperature: 0 to 45 °C
Storage temperature: −10 to 60 °C

ARTICLES

Hollyland Wireless Tally System

Parameters

Manufacturer:	Hollyland
Category:	Intercom/Tally

Main parameters

Wireless technology	2,4 GHz
Range	800m
