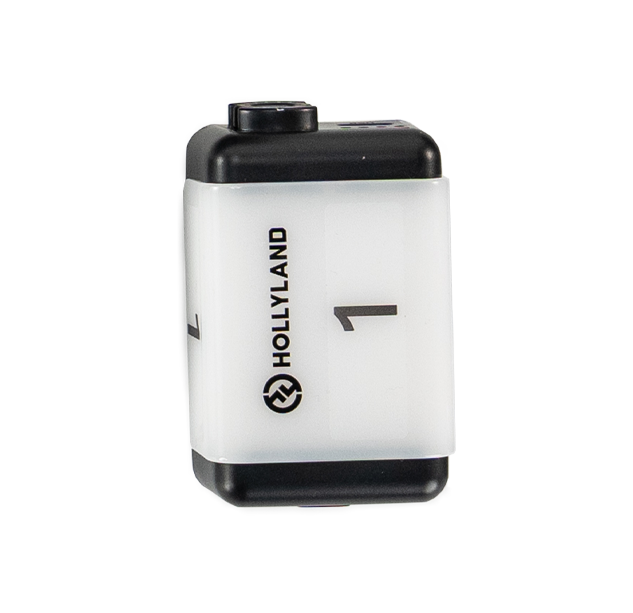

Hollyland HL-WTS-TL01 Tally Light

The Hollyland HL-WTS-TL01 is a stand-alone expansion tally light for the Wireless Tally System. It works in the 2.4 GHz band with up to 800 m range, shows PVW preview in green and PGM programme in red, and runs for more than eight hours per charge. It adds another camera to the system – the station handles up to 16 channels – and comes with its own Li-ion 700 battery.

The stand-alone module adds another camera to the Hollyland system and shows green PVW and red PGM. You assign it to one of the tally station channels with the number dial, and the LoRa link carries the status with under 150 ms latency.

Expansion tally light for the Wireless Tally System

One more camera in the system: a light with swappable battery and channel number dial.

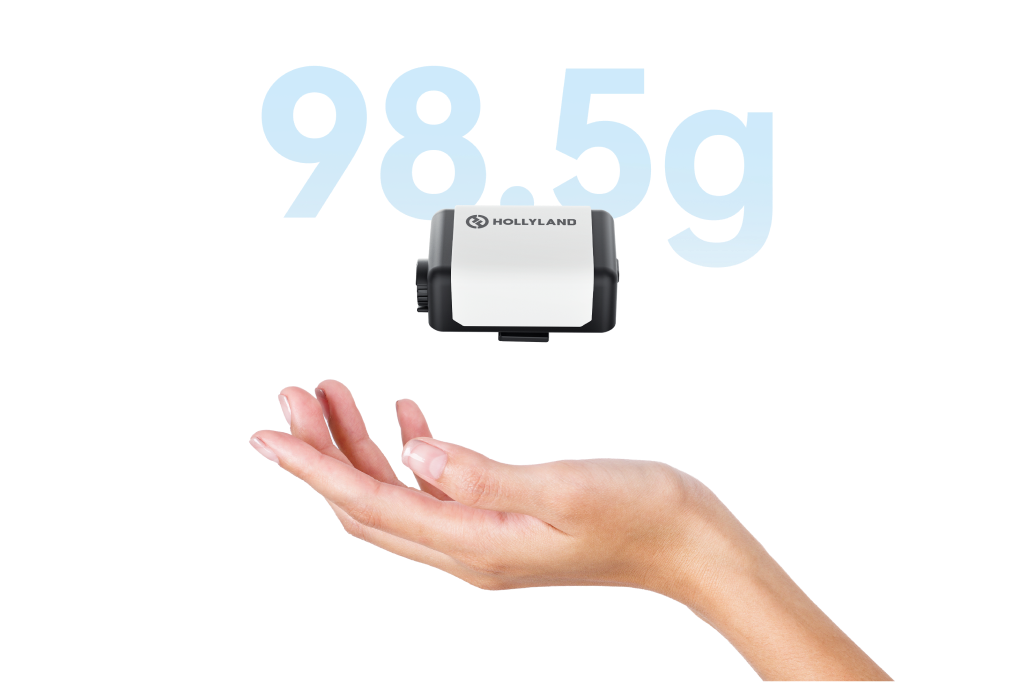

up to 800 mPVW / PGM98.5 g with battery> 8 h runtime

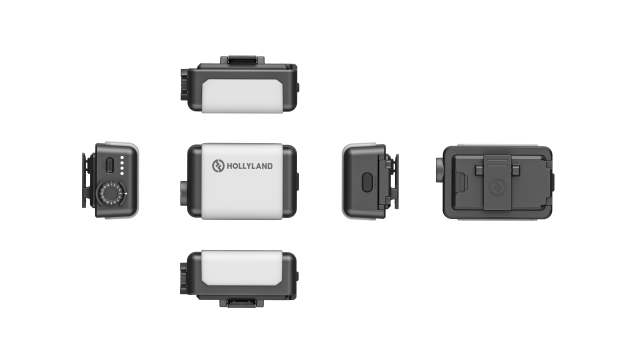

Channel number dial

The dial on the side sets which camera and station channel the light belongs to. Mark the number with the included sticker.

Camera mount

The back carries the camera mount next to the bay for the swappable Li-ion 700 battery.

Green PVW, red PGM

Green PVW marks the camera on preview, red PGM the camera currently on air.

Over 8 hours

One Li-ion 700 battery covers a full shooting day; swap a flat one without stopping work.

Battery shared with Solidcom

The Li-ion 700 battery also fits Hollyland Solidcom C1 and C1 Pro intercoms.

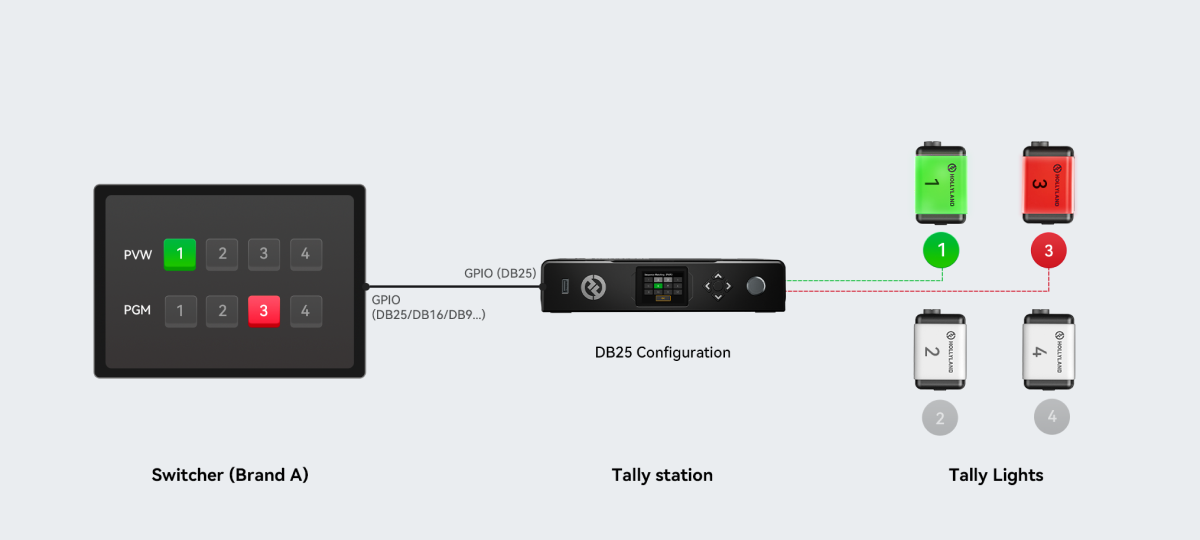

Setup: switcher → tally station → tally lights

The tally station connects to the switcher with a standard tally cable. The sequence learning function works out by itself which PGM and PVW button belongs to which camera, so the system works with switchers using both high and low voltage levels.

Up to 16 channels

The RJ45 input handles up to 16 channels of dual-colour tally, the DB25 input up to 12. Each tally light is assigned to its camera with the number dial, so the number of lights can easily grow or shrink with the project.
