FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor

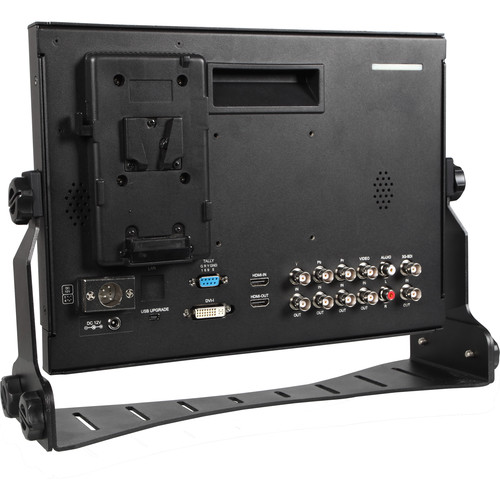

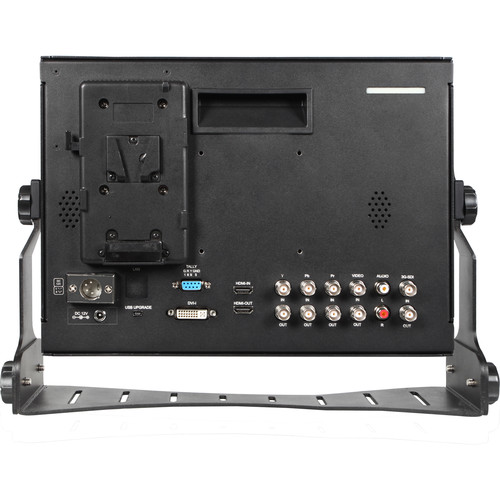

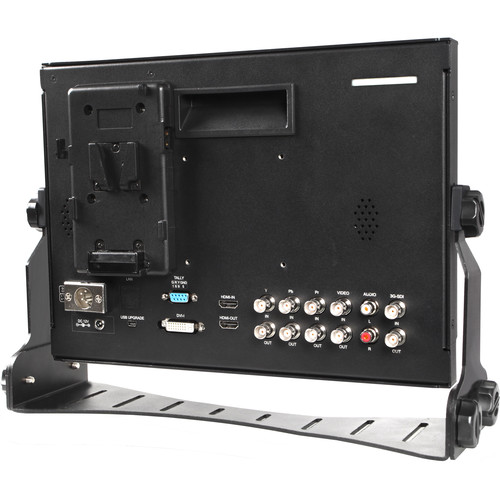

Featuring a full-HD IPS LCD panel, the FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component, and composite. Separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.

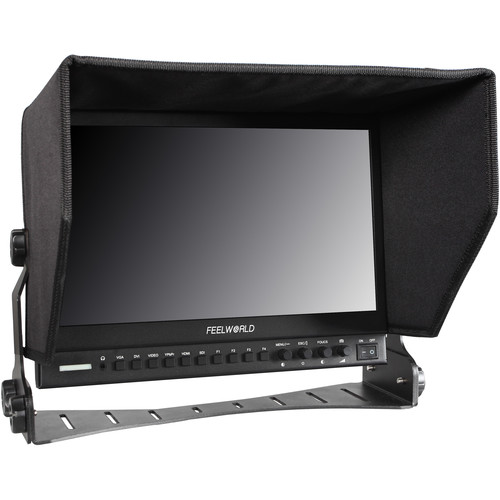

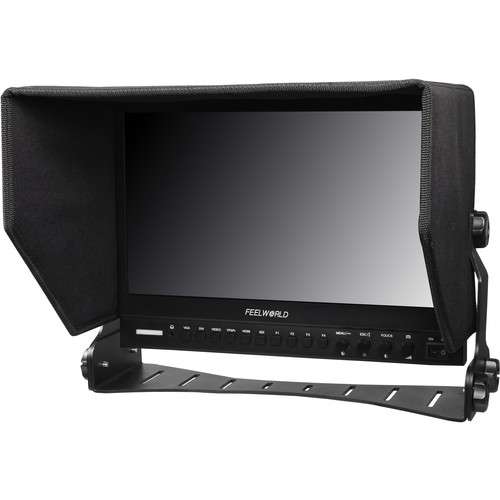

Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a main source. If shooting outdoors attach the included sun hood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.

13.3" professional broadcast monitor

Keep focus and framing under control on site

The P133-9HSD has a 13.3" Full HD IPS panel with 1920x1080 resolution, 400 cd/m² brightness and a 1000:1 contrast ratio. The image is crisp and the colours accurate, so you can judge it on set and spend less time in the edit.

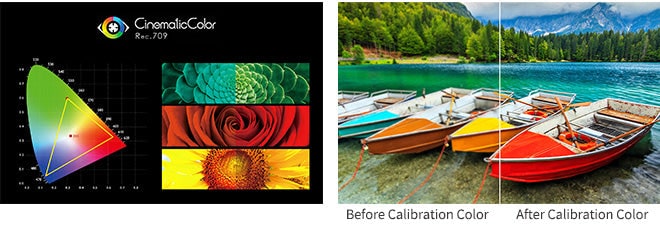

True colour

Rec.709 standard

The monitor is calibrated at the factory to the Rec.709 standard, so colours are accurate and you do not have to mentally compensate.

Button operation

The buttons are laid out so you can work them without looking. The F1 and F2 keys take whatever function you assign — focus assist, image flip and so on.

4K HDMI input and output

The monitor takes a signal up to 4K HDMI from a camera or a DSLR and passes it on through the loop-out — to a second display or to a recorder.

Mounting

On a camera, a cage or a desk

The P133-9HSD has standard 1/4" mounting points, so it goes on a camera, on a cage or stands on a desk — at whatever angle you need to watch from.

Power

Battery or mains

There is a 12V DC input on the side and space for a battery plate on the back. The F970 plate is supplied as standard; D28S, D54 and U60 plates are available on request.

Assist tools

Check field separates the red, green and blue channels and a monochrome view; image flip works horizontally, vertically or both at once. Plus focus assist and other exposure tools.
