SWIT ET-N80 Intercom Control Panel

The SWIT ET-N80 NDI® EFP Intercom Control Panel is a director-side communication hub for the SWIT NDI® EFP Multi-camera Production System. Using a single RJ45 network connection, it provides full-duplex intercom control for up to 8 camera adaptors, with expandable channel capacity for larger productions.

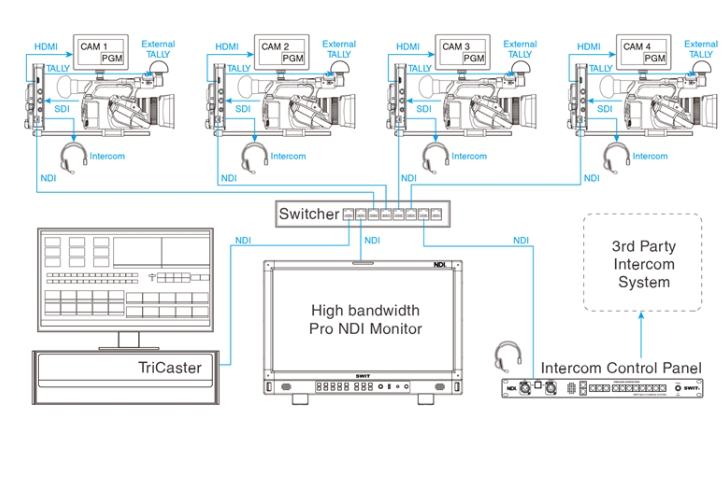

The SWIT ET-N80 NDI® EFP Intercom Control Panel is designed for seamless director-to-camera communication in professional IP-based live production environments. As part of the SWIT NDI® EFP Multi-camera Production System, the ET-N80 connects directly to the NDI® network via a single RJ45 LAN cable, enabling efficient setup and streamlined workflows.

The ET-N80 can bind with up to 8 camera adaptors, supporting both EC-N200 (HD) and EC-N200-4K models, and allows link connections to expand intercom channels for larger multi-camera setups. It provides full-duplex intercom communication, allowing simultaneous talk and listen between the director and camera operators.

Flexible communication modes include individual channel selection and ANN (announcement) mode for broadcasting instructions to all connected cameras at once. The panel supports both headphone and swan-neck microphone connections and includes a 4-wire interface for integration with third-party intercom systems. Configuration and firmware updates are handled via an intuitive web-based interface, while the 19-inch 1RU rack-mount design ensures easy installation in broadcast racks and control rooms.

Key Features

• Director-side intercom control panel for SWIT NDI® EFP systems

• LAN-based full-duplex intercom with cameramen

• Binds up to 8 camera adaptors per unit

• Supports EC-N200 and EC-N200-4K camera adaptors

• Expandable channel count via link connection

• ANN announcement mode and individual channel selection

• Headphone and swan-neck microphone connectors

• 4-wire interface for third-party intercom integration

• Webserver-based configuration and firmware updates

• 19-inch 1RU rack-mount form factor
