Lilliput TK2150/T 21.5" industrial touch monitor
SKU: TK2150/T
The Lilliput TK2150/T is a 21.5" Full HD industrial touch display for HMI applications, self-service kiosks, smart lockers and healthcare. It offers 1000 nits, an IP65 front panel, 10-point capacitive touch, an aluminium housing, auto dimming, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers and 12–24 V power.
549 € with VAT
453.72 € without VAT
Availability
14-30 days
Top accessories for Lilliput TK2150/T 21.5" industrial touch monitor
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
PremiumCord Ultra High Speed HDMI 2.1 Optical Fiber Cable 8K@60Hz, Gold-Plated, 30 m
This HDMI 2.1 Ultra High Speed 8K@60Hz or 4K@120Hz optical cable is designed to connect
49 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK2150/T is a 21.5" Full HD industrial touch display for HMI applications, self-service kiosks, smart lockers and healthcare. It offers 1000 nits, an IP65 front panel, 10-point capacitive touch, an aluminium housing, auto dimming, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers and 12–24 V power.
A large display for HMI and kiosks
A 21.5" Full HD panel with 1000 nits in an aluminium body that fits tightly around the screen. The IP65 front copes with outdoor use as well.
21.5" 1920 × 10801000 nitsHDMI · VGA · AVIP65 front10-point touch

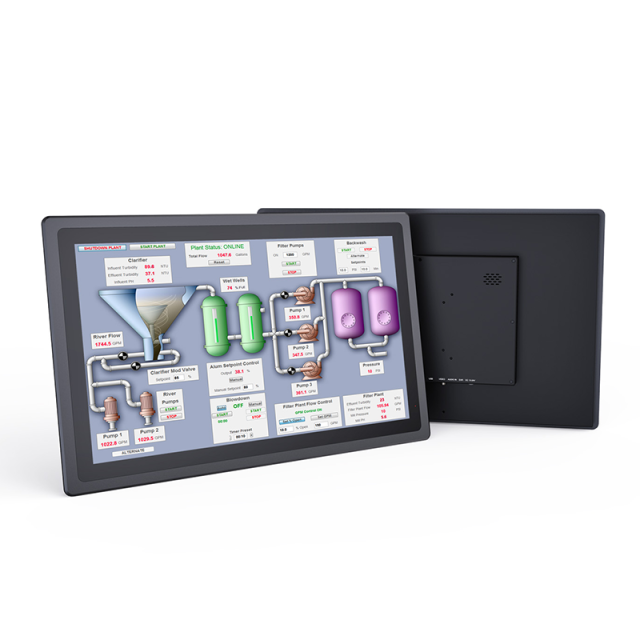

Information display and interactive terminal
Ten-point capacitive touch turns it into an operator panel or a self-service terminal for customers. The interfaces are ready for customisation and the sheet-metal connector cover is easy to replace.
Auto dimming
Brightness adapts to the surroundings and saves energy.
37 W
Consumption at 15 V, 12–24 V DC input.
0 to 50 °C
Operating temperature, storage −20 to 60 °C.
Cable retention
A clamp holds the cables under vibration.

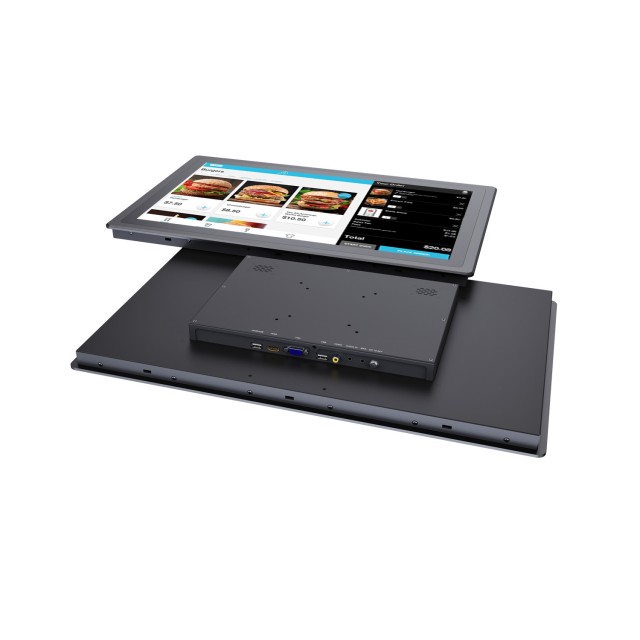

Rear connector box
HDMI, VGA, USB, AV, power and headphones sit in a compact box in the middle of the back.

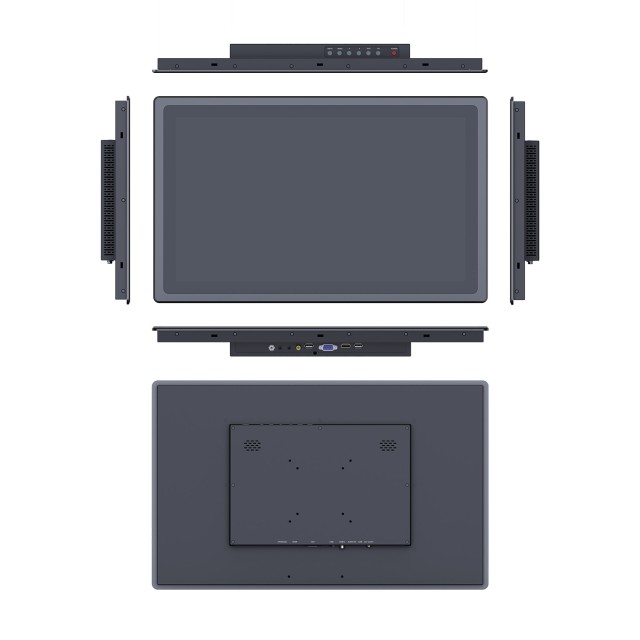

All sides
A flat aluminium body 48.2 mm deep with control buttons on the top edge.
More information
About the TK2150/T
The 21.5" Full HD industrial display is designed for HMI applications and serves many industries – healthcare, AI-equipped production facilities, smart locker installations or self-service kiosks.
The 10-point capacitive touch screen can work as an information display or as an interactive interface for staff and guests, depending on the application. The 21.5" panel delivers a sharp 1080p image and its IP65 rating allows outdoor use.
PACKAGE CONTENT
- Lilliput TK2150/T display
- 15 V / 3 A power adapter
- HDMI A–A cable
- VGA cable
- USB A–A cable (for touch)
- Audio/video input cable
- Fixing screws (4 pcs)
- Cable clamps (4 pcs)
SPECIFICATIONS
- Model: TK2150/T
- Display: 21.5" LCD
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angle: 178° / 178° (H/V)
- Touch panel: 10-point capacitive
- Inputs: 1× HDMI 1.4b, 1× VGA, 1× AV
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: 2× speaker, HDMI (2ch), 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 12–24 V
- Power consumption: ≤ 37 W (15 V)
- Protection rating: front panel IP65 (dust IP6x, water IPx5)
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C
- Dimensions (W × H × D): 556 × 344.5 × 48.2 mm
- Weight: 5.99 kg
- Housing: aluminium housing
WE RECOMMEND
Recommended for the Lilliput TK2150/T 21.5" industrial touch monitor:
Cables – to connect the video source
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p |
| Size | 21.5" |
| Monitor inputs | HDMI · Composite Video · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Tally | No |
| Other features | Touchscreen · Resilient · IP65 |
| High Brightness | Yes |
