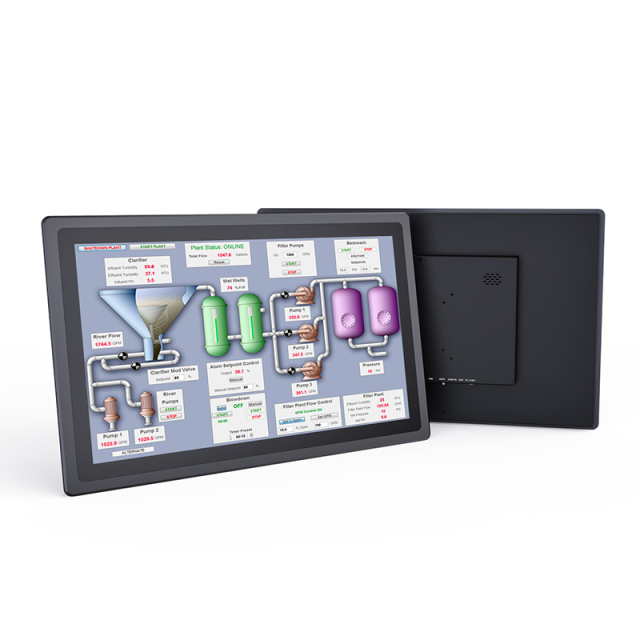

Lilliput TK2150/C 21.5" industrial monitor

SKU: TK2150/C

The Lilliput TK2150/C is a 21.5" Full HD industrial display for HMI applications, self-service kiosks, smart lockers and healthcare. It offers 1000 nits, an IP65 front panel, an aluminium housing, auto dimming, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers and 12–24 V power.

More information

479 € with VAT 395.87 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
TK2150/C
Add to Compare Price history

Lilliput TK2150/T 21.5" industrial touch monitor

549 €without VAT 453.72 €

Top accessories for Lilliput TK2150/C 21.5" industrial monitor

PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum

  • SHOWROOM PRAHA
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

Canare HDMI Cable 3 m

  • New
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs

PremiumCord Ultra High Speed HDMI 2.1 Optical Fiber Cable 8K@60Hz, Gold-Plated, 30 m

This HDMI 2.1 Ultra High Speed 8K@60Hz or 4K@120Hz optical cable is designed to connect
49 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput TK2150/C is a 21.5" Full HD industrial display for HMI applications, self-service kiosks, smart lockers and healthcare. It offers 1000 nits, an IP65 front panel, an aluminium housing, auto dimming, HDMI (up to 4K 30 Hz), VGA and AV inputs, two speakers and 12–24 V power.

A large display for HMI and kiosks

A 21.5" Full HD panel with 1000 nits in an aluminium body that fits tightly around the screen. The IP65 front copes with outdoor use as well.

Lilliput TK2150/C
21.5" 1920 × 10801000 nitsHDMI · VGA · AVIP65 front178° angles

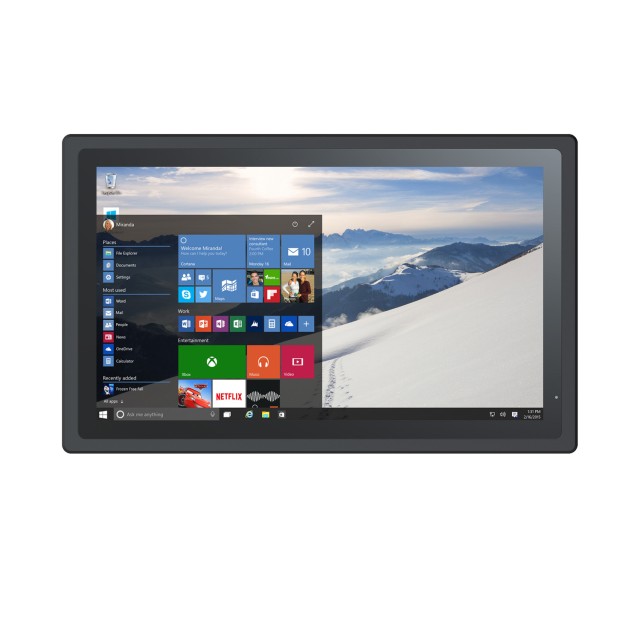

An information display without touch

Where staff or guests only need to see status, production or queue information, a clean non-touch display is enough. 178° angles keep it readable from the side.

Auto dimming

Brightness adapts to the surroundings and saves energy.

37 W

Consumption at 15 V, 12–24 V DC input.

0 to 50 °C

Operating temperature, storage −20 to 60 °C.

Cable retention

A clamp holds the cables under vibration.

Lilliput TK2150/C – infographic 1Lilliput TK2150/C – infographic 2

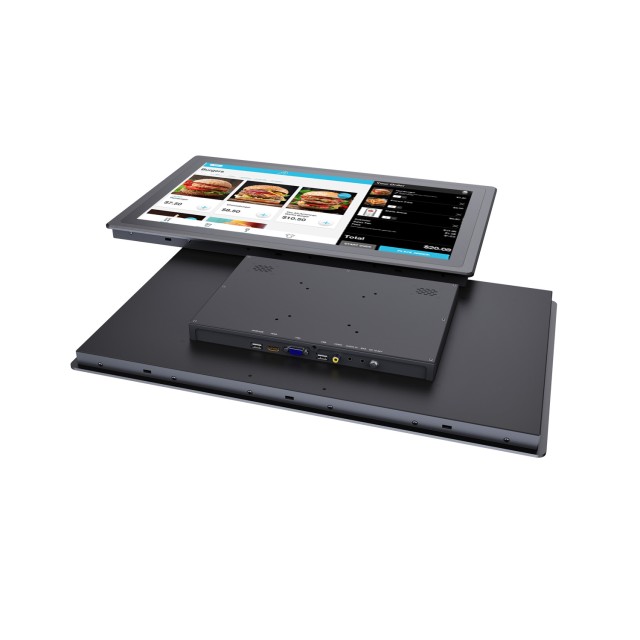

Lilliput TK2150/C – Rear connector box

Rear connector box

HDMI, VGA, USB, AV, power and headphones sit in a compact box in the middle of the back.

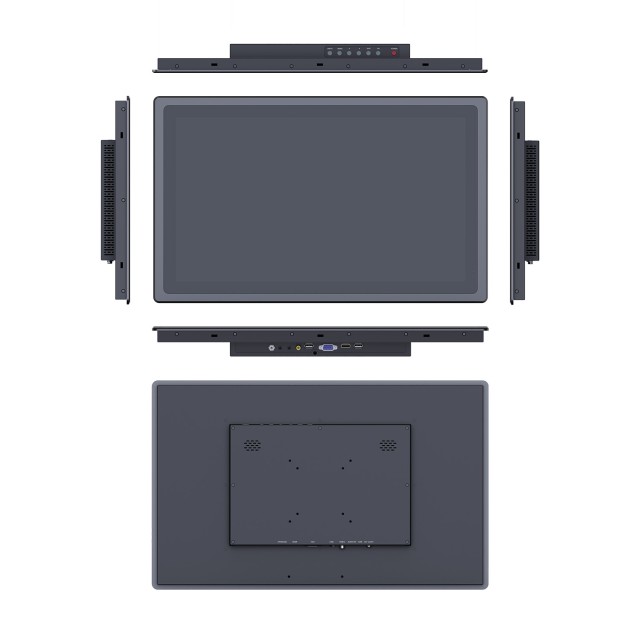

Lilliput TK2150/C – All sides

All sides

A flat aluminium body 48.2 mm deep with control buttons on the top edge.

More information

About the TK2150/C

The 21.5" Full HD industrial display is designed for HMI applications and serves many industries – healthcare, AI-equipped production facilities, smart locker installations or self-service kiosks.

The display has no touch interface, making it ideal where an information screen for staff or guests is all that is needed. The 21.5" panel delivers a sharp 1080p image and its IP65 rating allows outdoor use.

PACKAGE CONTENT

  • Lilliput TK2150/C display
  • 15 V / 3 A power adapter
  • HDMI A–A cable
  • VGA cable
  • Audio/video input cable
  • Fixing screws (4 pcs)
  • Cable clamps (4 pcs)

SPECIFICATIONS

  • Model: TK2150/C
  • Display: 21.5" LCD
  • Resolution: 1920 × 1080
  • Aspect ratio: 16:9
  • Brightness: 1000 cd/m²
  • Contrast: 1000:1
  • Viewing angle: 178° / 178° (H/V)
  • Touch panel: none (non-touch)
  • Inputs: 1× HDMI 1.4b, 1× VGA, 1× AV
  • HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • Audio: 2× speaker, HDMI (2ch), 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
  • Power input: DC 12–24 V
  • Power consumption: ≤ 37 W (15 V)
  • Protection rating: front panel IP65 (dust IP6x, water IPx5)
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Dimensions (W × H × D): 556 × 344.5 × 48.2 mm
  • Weight: 5.99 kg
  • Housing: aluminium housing

WE RECOMMEND

Recommended for the Lilliput TK2150/C 21.5" industrial monitor:

Cables – to connect the video source

Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p
Size21.5"
Monitor inputsHDMI · Composite Video · VGA
Luminosity1000cd/m2
Panel resolution1920x1080
Monitor power supplyDC 12–24 V

Other parameters

TallyNo
Other featuresResilient · IP65
High BrightnessYes
