DZOFilm Arles 40 mm T/1,4 FF/VV Prime Cine Lens (PL) (Metric)
SKU: DZO-SAP40MPL
The DZOFILM Arles Prime 40 mm T1.4 is a fast cine lens with a PL mount and metric scale for full-frame and Vista Vision. It offers a 46.5 mm image circle, 0.4 m minimum focus, a 16-blade iris, and the uniform Arles mechanics for fast work on a cine rig.
2 249 € with VAT
1 858.68 € without VAT
Availability
on request
DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 249 €without VAT 1 858.68 €
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 249 €without VAT 1 858.68 €
DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (PL) (Metric)
2 249 €without VAT 1 858.68 €
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (PL) (Metric)
Backordered 1 pcs2 249 €without VAT 1 858.68 €
DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 249 €without VAT 1 858.68 €
DZOFilm Arles 14 mm T/1,9 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 679 €without VAT 2 214.05 €
DZOFilm Arles 21 mm T/1,4 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 569 €without VAT 2 123.14 €
DZOFilm Arles 135 mm T/1,8 FF/VV Prime Cine Lens (PL) (Metric)
In stock 1 pcs2 569 €without VAT 2 123.14 €
DZOFilm Arles 180 mm T/2,4 FF/VV Prime Cine Lens (PL) (Metric)
2 679 €without VAT 2 214.05 €
DZOFilm Arles Prime 18mm T1.4 PL – Metric Scale
In stock 1 pcs2 479 €without VAT 2 048.76 €Top accessories for DZOFilm Arles 40 mm T/1,4 FF/VV Prime Cine Lens (PL) (Metric)
K&F 3pcs* Microfiber Cleaning cloth Kit, 15*15cm, White, Dry, in vacuum
Imported optical microfiber cleaning cloth is used to ensure that the coating of
6.2 €
In stock > 5 pcs
K&F Concept 23-in-1 Camera Lens Cleaning Kit
K&F Concept 23-in-1 Camera Lens Cleaning Kit with Replacement Cleaning Pen, 15ml
55 €
In stock > 5 pcs
K&F Concept 86mm Variable ND Filter ND2-ND400 (9 Stop)
Nano-X — variable ND filter 86 mm, changes the amount of light steplessly as you
143 €
In stock > 5 pcs
K&F Concept 4-In-1 Camera Lens Cleaning Kit for DSLR Camera
KF 4-in-1 Cleaning Kit (1*Cleaning pen + 1*Silicone air blower + 6*vacuum cleaning
27 €
In stock 3 pcs
DZOFilm Koop Rear Filter Kit for Vespid / Catta Ace PL-Mount Lenses (Artistic Set)
Promotion: -3%
The DZOFILM KOOP Artistic Set is a set of magnetic rear filters for Vespid Prime
325.82 €
337.59 €
In stock > 5 pcs
K&F 86MM XU06 Nano-X B270 MCUV Filter, HD, Waterproof, Anti Scratch, Green Coated
Shield your lens from dirt, scratches, fingerprints, and accidental damage with UV
37 €
In stock 2 pcs
K&F 86MM Nano-X Black Mist Filter 1/4, HD, Waterproof, Anti Scratch, Green Coated
Nano-X — Black Mist filter 86 mm, softens the highlights and takes off digital sharpness.28
112 €
In stock 3 pcs
K&F Concept Lens Air Blower, Rubber Bulb Air Pump Dust Blower Cleaner, with Long Nozzle for Cell
The K&F Concept Lens Air Blower is a versatile and efficient dust blower cleaner
7.7 €
Backordered > 5 pcs
K&F 86MM XC16 Nano-X B270 CPL Filter, HD, Waterproof, Anti Scratch, Green Coated
Promotion: -42% ends in: 8d: 01h: 15m
Nano-X — polarising filter 86 mm, cuts reflections and deepens colour.28 anti-reflective
48.74 €
83.59 €
In stock 1 pcs
PolarPro 86mm - FX GoldMorphic Filter
The QuartzLine FX GoldMorphic streak filter adds professional anamorphic-style warm
110 €
In stock 1 pcs
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description

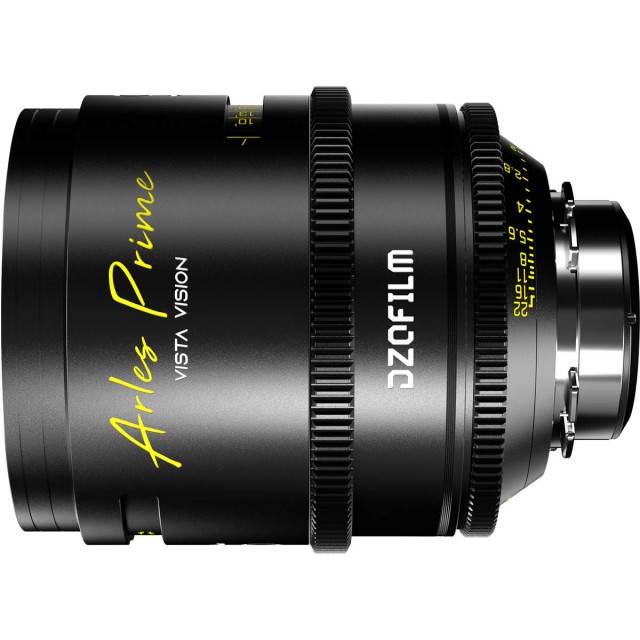

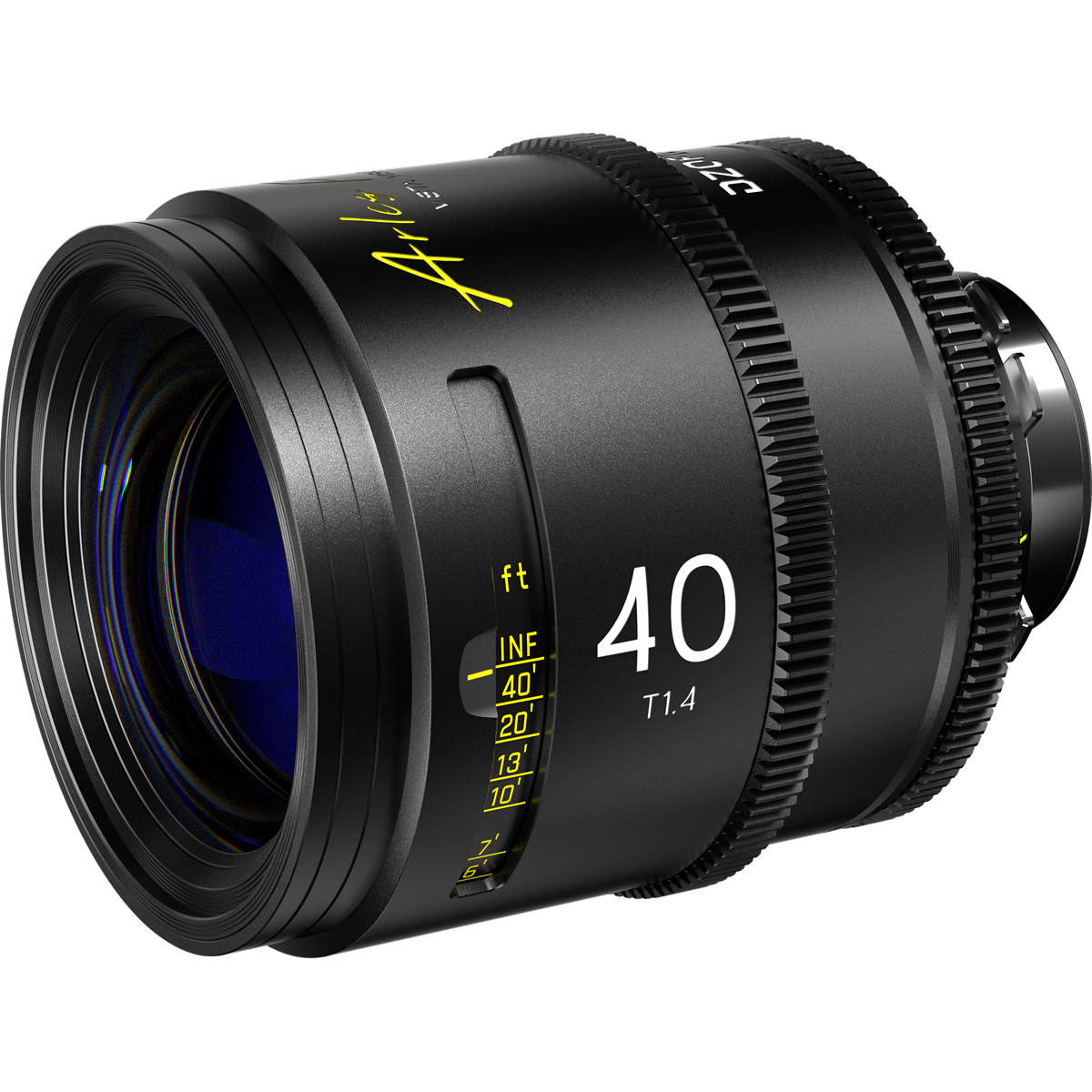

The DZOFILM Arles Prime 40 mm T1.4 is a fast cine lens with a PL mount and metric scale for full-frame and Vista Vision. It offers a 46.5 mm image circle, 0.4 m minimum focus, a 16-blade iris, and the uniform Arles mechanics for fast work on a cine rig.
Fast 40mm cine standard
The Arles Prime 40 mm T1.4 combines a natural perspective with a fast aperture and 46.5 mm VV / FF coverage. Its 13-element, 11-group optical design and floating elements help maintain performance from infinity through close focus.
The Arles series’ blue multi-layer coating helps control flares and stray light while preserving neutral color reproduction.
0.4 m
Minimum focusing distance measured from the sensor plane.
Cine standard
95 mm front diameter, M86 filter, 0.8 MOD gearing, and 270° focus throw.
For a seamless workflow
A 16-blade iris, matched ring positions, and interchangeable metric/imperial scales simplify focal-length changes without rebuilding cine accessories. This configuration has a PL mount; the manufacturer states that the series also supports an optional EF mount and DZOFilm Koop magnetic rear filters.
The PL aluminum-alloy housing is 121 mm long and weighs approximately 1,633 g.
ARLES SERIES IMAGE SAMPLE
Official frame from the manufacturer’s test footage for the Arles Prime 14–180 mm series. It illustrates the family’s image character and does not claim a specific focal length.
PACKAGE CONTENT
- 1× DZOFILM Arles Prime 40 mm T1.4 lens, PL, metric scale
- 1× front lens cap
- 1× PL rear cap
- 1× shim set
- 1× support base
- 1× support rod

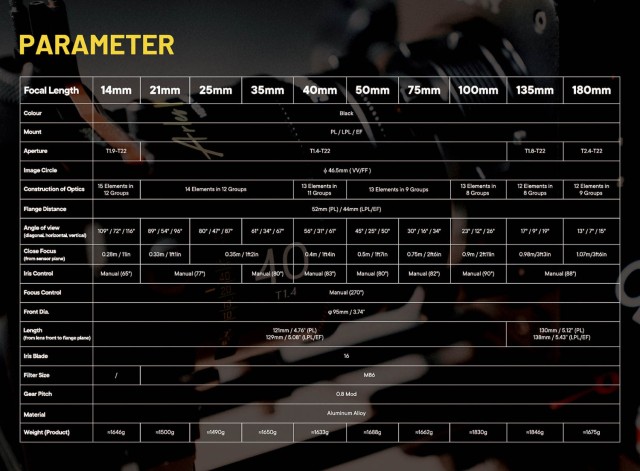

SPECIFICATIONS
- Focal length / mount: 40 mm / PL
- Aperture: T1.4–T22; 16 blades
- Image circle / optics: 46.5 mm; 13 elements / 11 groups
- Minimum focusing distance: 0.4 m
- Iris / focus rotation: 83° / 270°
- Front diameter / filter: 95 mm / M86
- Length / gearing: 121 mm (PL) / 0.8 MOD
- Material / weight: aluminum alloy / approximately 1,633 g
ARTICLES
Parameters
![]()
Parameters
| Manufacturer: | DZO Optics |
| Category: | Lenses |
Main parameters
| Filter thread | 86mm |
| Minimum Focusing Distance | 400mm |
| Number of aperture blades | 16 |
| Lens diameter | 95mm |
| Lens Length | 121mm |
| Bayonet | PL |
| Lens color | Black |
| Lens Type | Fixed Glass |
| Lens suitable for | Full frame |
| Aperture (f) | 1.4 |
| Focal length | 40mm |
| Optical stabilisation | No |
| Auto focus | No |
| Zoom | No |
| Anamorphic | No |
| Macro | No |
| Weight | 1633g |
Other parameters
| Series | DZOFilm Arles |
