DJI SDR Transmission 2 Combo

  • New
  • LAST PIECE
SKU: CP.TR.00000059.03

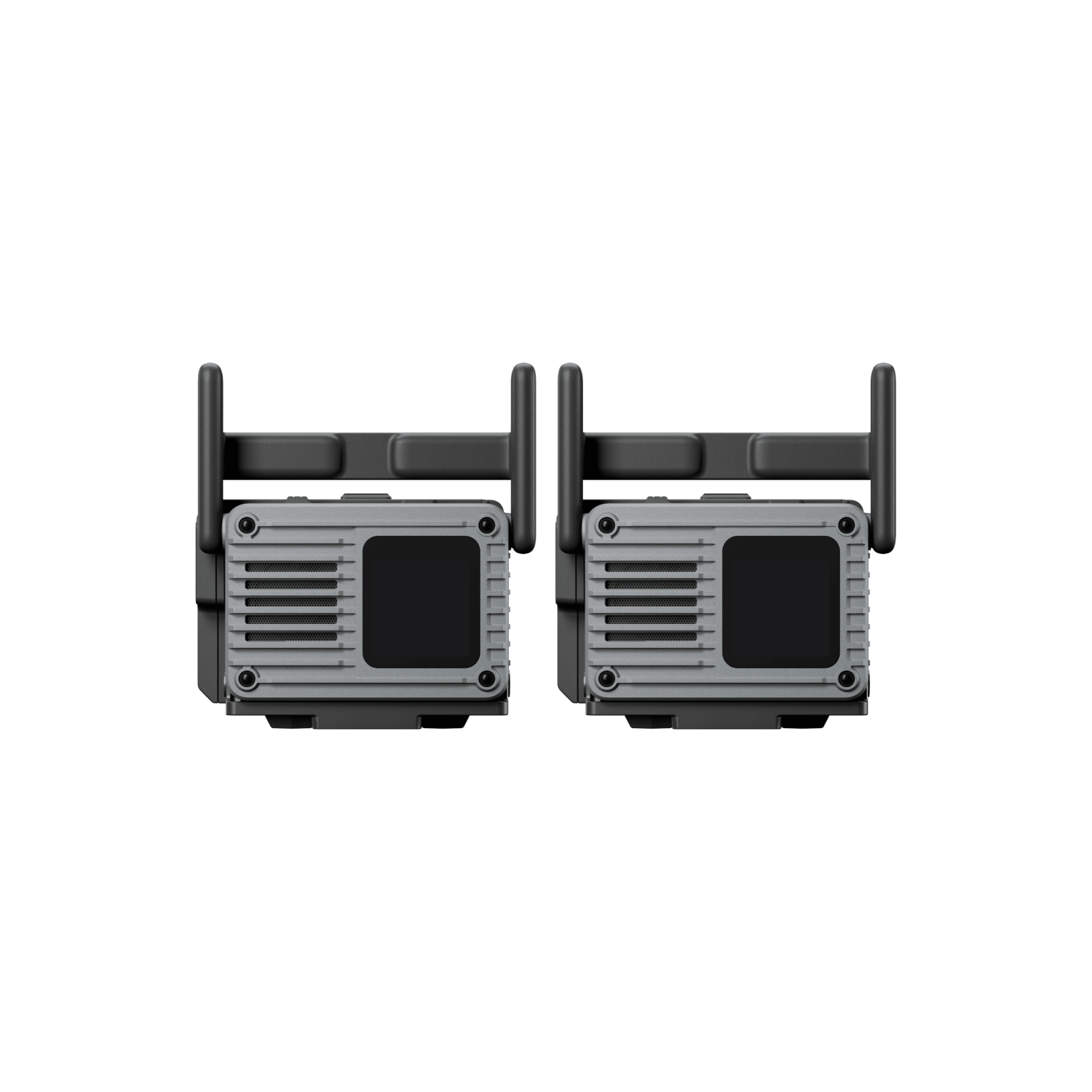

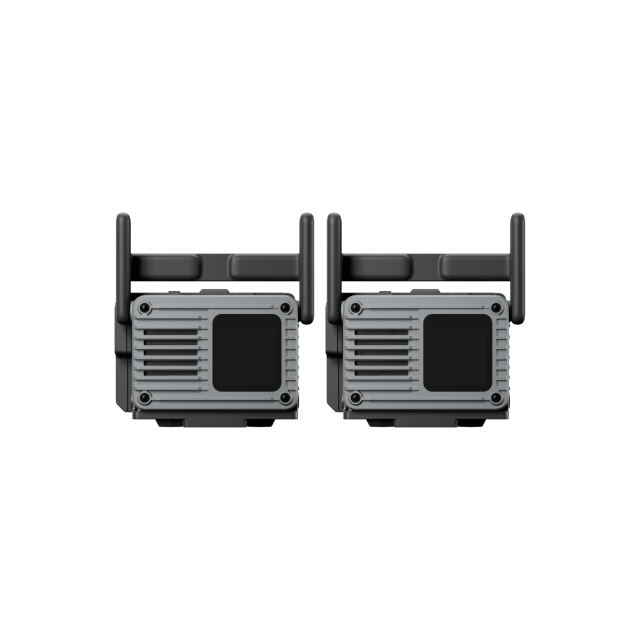

DJI SDR Transmission 2 Combo includes two transceivers, each switchable between transmitter and receiver roles on set – a ready-to-use TX + RX setup. It transmits DCI 4K/60fps 10-bit HDR video in H.265 at up to 50 Mbps over up to 4 km (CE) with latency from 35 ms. One transmitter feeds up to eight receivers with control. Each unit weighs approx. 136 g.

More information

659 € with VAT 544.63 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
SKU:
CP.TR.00000059.03
Add to Compare Price history

DJI SDR Transmission 2

Backordered 2 pcs365 €without VAT 301.65 €

Top accessories for DJI SDR Transmission 2 Combo

SmallRig NP-F970 Battery and Charger Kit 3823

Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)

  • SHOWROOM PRAHA
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs

DJI SDR Transmission 2 Gimbal Control Cable(USB-C to 4-pin)

  • New
The DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) connects the SDR
51 €
In stock 2 pcs

DJI SDR Transmission 2 L-Shaped USB-C Video Cable (DP, 50 cm)

  • New
  • LAST PIECE
The DJI SDR Transmission 2 L-Shaped USB-C Video Cable (DP, 50 cm) connects the SDR
19 €
In stock 1 pcs

DJI SDR Transmission 2 Expansion Accessory Kit

  • New
The DJI SDR Transmission 2 Expansion Accessory Kit adds an SDI/HDMI/USB-C Expansion
175 €
Backordered 1 pcs

DJI SDR Transmission 2 USB to CAN Control Cable

  • New
The DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN) connects the SDR Transmission
22 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

DJI SDR Transmission 2 Combo includes two transceivers, each switchable between transmitter and receiver roles on set – a ready-to-use TX + RX setup. It transmits DCI 4K/60fps 10-bit HDR video in H.265 at up to 50 Mbps over up to 4 km (CE) with latency from 35 ms. One transmitter feeds up to eight receivers with control. Each unit weighs approx. 136 g.

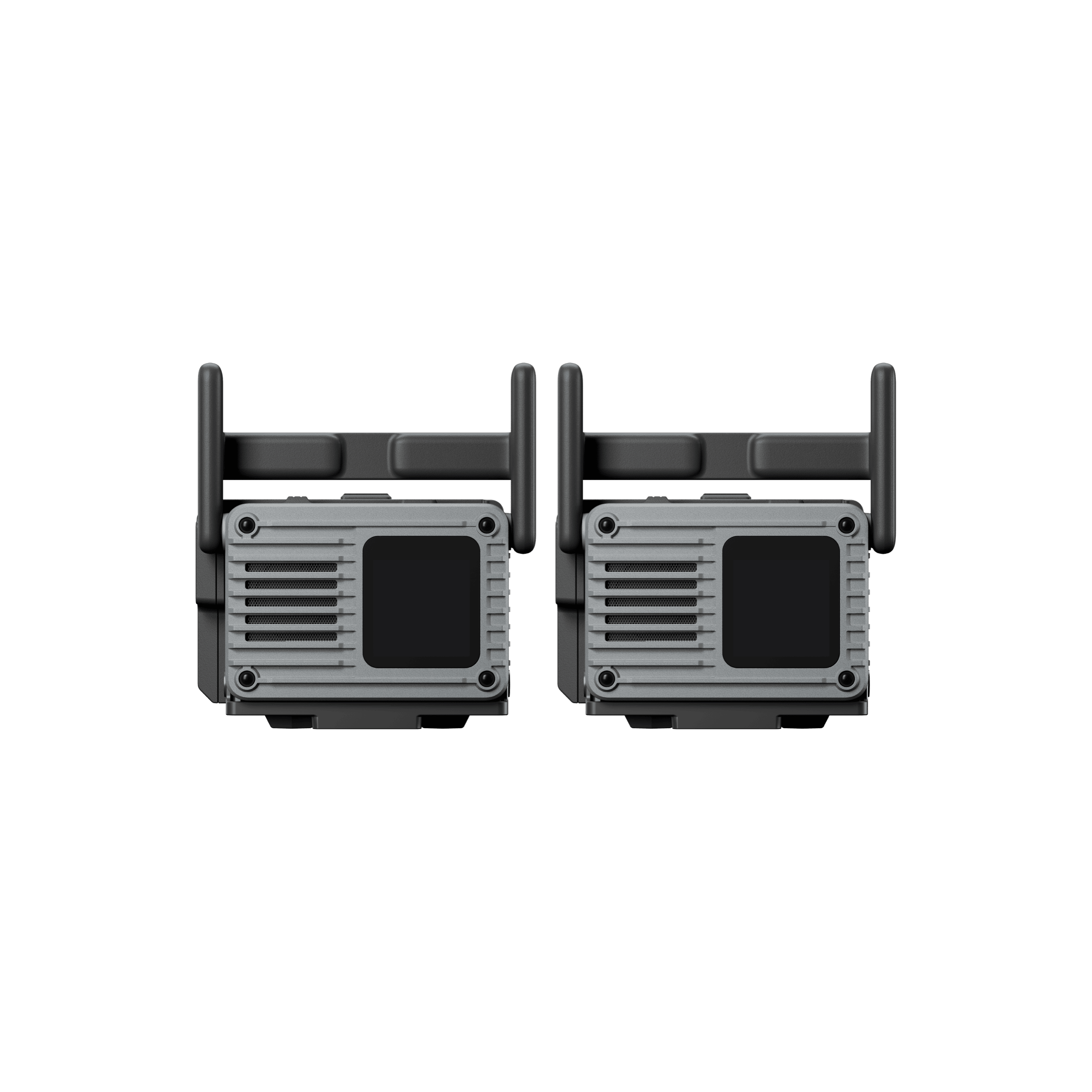

4K transmission for complex sets

The unit switches between transmitter and receiver roles right on set, so there is no need to plan your TX-to-RX ratio in advance. It weighs approx. 136 g including antennas, and the light body puts less load on handheld gimbals.

DJI SDR Transmission 2 Combo
DCI 4K/60fps 10-bit HDRH.265 up to 50 MbpsUp to 4 km range (CE)Latency from 35 ms1 TX → 8 RXTX/RX switchable

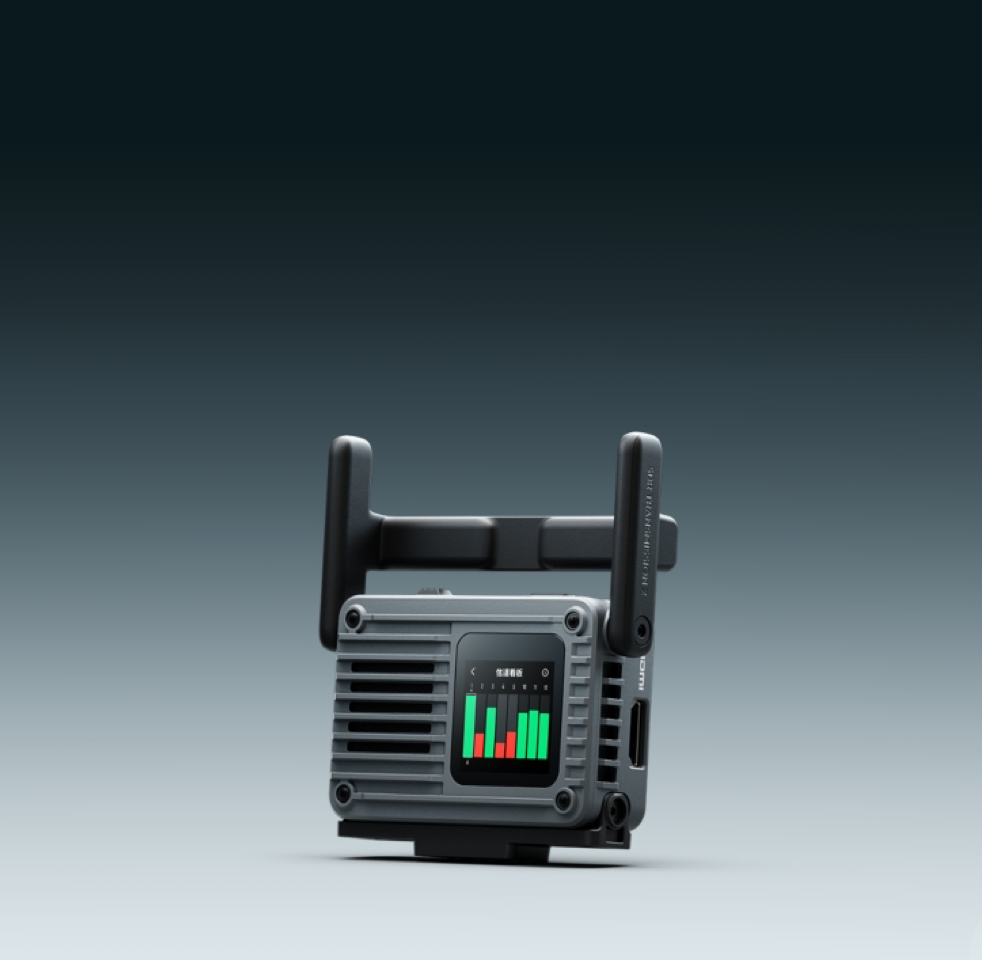

Auto Channel 2.0

In Auto mode, the units recognise one another and coordinate frequencies intelligently. More accurate spectrum scanning and conflict diagnostics let each unit hop frequencies seamlessly as conditions change, keeping the link stable even with multiple systems running side by side.

Up to 5 transmitters and 40 receivers

Up to five transmitters and forty receivers can run at the same time. A single transmitter feeds up to eight receivers, each with remote control of the camera.

Pairing-free camera switching

Switch between camera feeds on the unit or in the DJI Ronin app – no rebooting, scanning or re-pairing.

Ronin ecosystem

Works with DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels. RS 4 Pro, RS 4 and RS 3 Pro need the USB-C to CAN cable, Ronin 2 and Master Wheels the USB-C to 4-pin cable.

Three ways to power it

From a Ronin gimbal, a standard USB-C PD charger (65 W adapter or higher) or an NP-F battery rated at 6.8–8.4 V.

DJI SDR Transmission 2 Combo – Feed for professional monitors

Feed for professional monitors

The receiver delivers a low-latency feed over HDMI, DP or – with the Expansion Plate – SDI, so multiple monitors share the same clean image.

DJI SDR Transmission 2 Combo – TX or RX as needed

TX or RX as needed

Change the transmitter or receiver role right on the unit, so every unit adapts to whatever the shoot calls for.

DJI SDR Transmission 2 Combo – Feed on a phone or tablet

Feed on a phone or tablet

Connect the receiver to a phone or tablet over USB-C for a stable, high-bitrate feed in the DJI Ronin app. Cable not included.

DJI SDR Transmission 2 Combo – Control of RS gimbals

Control of RS gimbals

In the DJI Ronin app you control an RS series stabilizer wirelessly (Force Mobile, virtual joystick, recentering) and start or stop camera recording.

More information

System compatibility: The unit works only with other DJI SDR Transmission 2 units and cannot be cross-connected with other DJI video transmission products. SDI is added by the Expansion Plate from the separately sold Expansion Accessory Kit. For the best transmission, operate no more than five transmitters simultaneously in the same area.

Osmo cameras: Osmo Action 6 and Osmo Pocket 4 and later connect over USB-C for monitoring and power – a lightweight way to add a remote feed from angles larger rigs cannot reach.

Camera control: Supports PTP camera control (view and adjust aperture, shutter speed and ISO, photo capture and recording from the app) and CEC control of Sony cameras with Mirror Control mode. With an RS gimbal, remote camera control also requires a Multi-Camera Control Cable between gimbal and camera. When the unit is attached to a gimbal via the Quick-Release Plate, native vertical shooting is not supported.

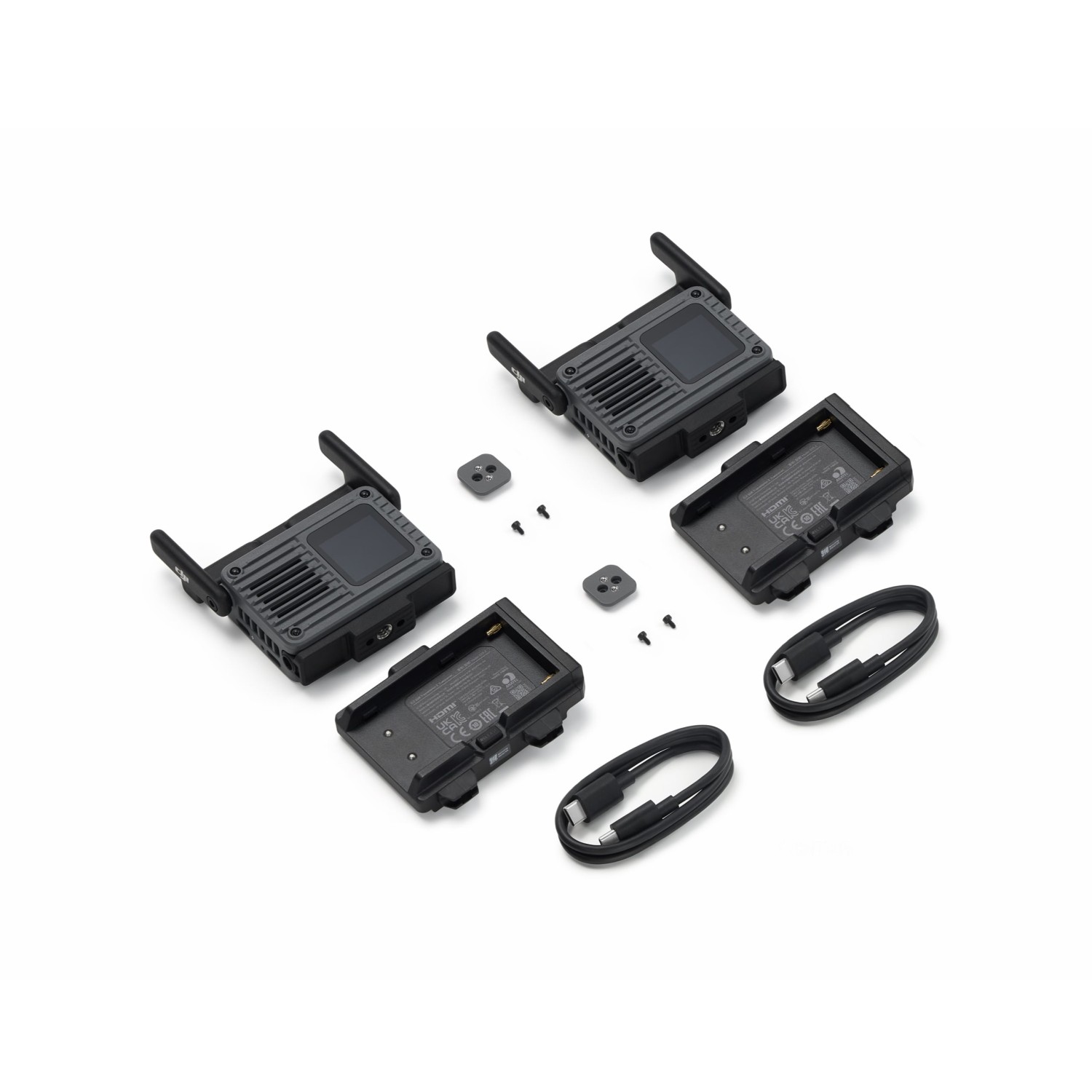

PACKAGE CONTENT

  • 2× DJI SDR Transmission 2 Transceiver
  • 2× DJI SDR Transmission 2 Camera Cold Shoe Adapter
  • 2× DJI SDR Transmission 2 NP-F Battery Adapter
  • 2× Firmware Update Cable (USB-C to USB-C, 50 cm)

SPECIFICATIONS

  • Brand: DJI
  • Model: DJI SDR Transmission 2 Combo
  • Manufacturer code: CP.TR.00000059.03
  • Number of units: 2 transceivers
  • Type: TX/RX switchable transceiver
  • Video transmission system: SDR
  • Video formats: DCI 4K, 4K UHD and 1080p: 23.98–60fps; 1080i: 50/59.94/60fps (input only on the main unit); 720p: 50/59.94/60fps; 4K only via HDMI and the bottom USB-C port of the main unit
  • Coding and bitrate: H.265, max. 50 Mbps; 10-bit HDR
  • Audio: input embedded in SDI, HDMI and DP; output 16-bit, 48 kHz, stereo PCM
  • Max. transmission distance: 4 km (CE), one TX and one RX in open, unobstructed, interference-free conditions
  • Latency: from 35 ms (1080p/60 and 4K/60fps, excluding camera and screen latency)
  • Operating frequency: 2.400–2.4835 GHz; 5.150–5.250 GHz; 5.725–5.850 GHz; DFS 5.250–5.350 GHz and 5.470–5.725 GHz (5.8 GHz and DFS are not permitted in all countries)
  • Max. bandwidth: 40 MHz
  • Ports: HDMI (input/output); top USB-C (PD power input/output); bottom USB-C (DP input/output, PD power, activation and firmware updates, phone app, Ronin gimbals, Osmo Action 6 and Osmo Pocket)
  • Power supply: USB-C PD 15 V, 3 A (65 W adapter or higher); USB-C 6.8–17.5 V DC; NP-F battery 6.8–8.4 V; from a Ronin gimbal
  • Power consumption: standby approx. 5.04 W (transmitter) / 5.31 W (receiver); 1T1R transmission approx. 8.52 W (transmitter) / 7.58 W (receiver)
  • Weight: approx. 136 g (one unit including antennas)
  • Dimensions: 76 × 61 × 25 mm (excluding antennas and Cold Shoe Adapter)
  • Operating temperature: −10 to 40 °C (14 to 104 °F)
  • Compatibility: DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, Master Wheels; Osmo Action 6, Osmo Pocket 4 and later

WE RECOMMEND

For DJI SDR Transmission 2 Combo we recommend accessories that belong to this transmission system.

Original DJI accessories – cables, expansions, holders and antennas designed for this transmission system.

Power – NP-F batteries and power modules for longer cable-free operation.

Parameters

Parameters

Manufacturer: DJI
Category: Wireless video transmission

Main parameters

Line-of-sight range4000m
Weight per unit136g
Maximum receiving devices8
Maximum transmission resolution4096px
Maximum frame rate60fps
Frequency band2.4 GHz · 5 GHz
Power supplyNP-F550 · NP-F750 · NP-F970 · USB-C
FunctionsAutomatic channel selection
Latency35 ms
InputHDMI · USB-C (DisplayPort)
OutputHDMI
