DJI SDR Transmission 2 Expansion Accessory Kit

  • New
SKU: CP.TR.00000058.01

The DJI SDR Transmission 2 Expansion Accessory Kit adds an SDI/HDMI/USB-C Expansion Plate and a protective Transceiver Cage to your SDR Transmission 2 setup. It also includes a 50 cm D-TAP to USB-C power cable, a Camera Cold Shoe Adapter and a 2 mm ball-end hex key. Accessories only: the SDR Transmission 2 transceiver itself is not included.

More information

175 € with VAT 144.63 € without VAT
Add to Compare Price history
Availability
Backordered 1 pcs
SKU:
CP.TR.00000058.01
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The DJI SDR Transmission 2 Expansion Accessory Kit adds an SDI/HDMI/USB-C Expansion Plate and a protective Transceiver Cage to your SDR Transmission 2 setup. It also includes a 50 cm D-TAP to USB-C power cable, a Camera Cold Shoe Adapter and a 2 mm ball-end hex key. Accessories only: the SDR Transmission 2 transceiver itself is not included.

SDI for cinema workflows

The Expansion Plate adds SDI to the SDR Transmission 2 transceiver and with it metadata transmission from mainstream cinema cameras such as ARRI and RED.

DJI SDR Transmission 2 Expansion Accessory Kit
SDI input/outputHDMI input/outputCage with NATO portPlate approx. 105 g

One SDI, one HDMI and four USB-C

With the Expansion Plate, the unit offers one SDI, one HDMI and four USB-C ports. The plate’s right USB-C port handles power and the DJI RS 5 connection, the bottom USB-C port power, camera control (photo capture, recording start/stop) and connection to other Ronin gimbals.

Protective cage

The cage protects both unit and plate and offers a NATO port, two 1/4″-20 threads, a 3/8″-16 thread and HDMI and USB-C cable clamps against disconnection.

D-TAP power

The included 50 cm D-TAP to USB-C cable powers the setup from a D-TAP output, for example on a camera battery.

DJI SDR Transmission 2 Expansion Accessory Kit – Plate and cage

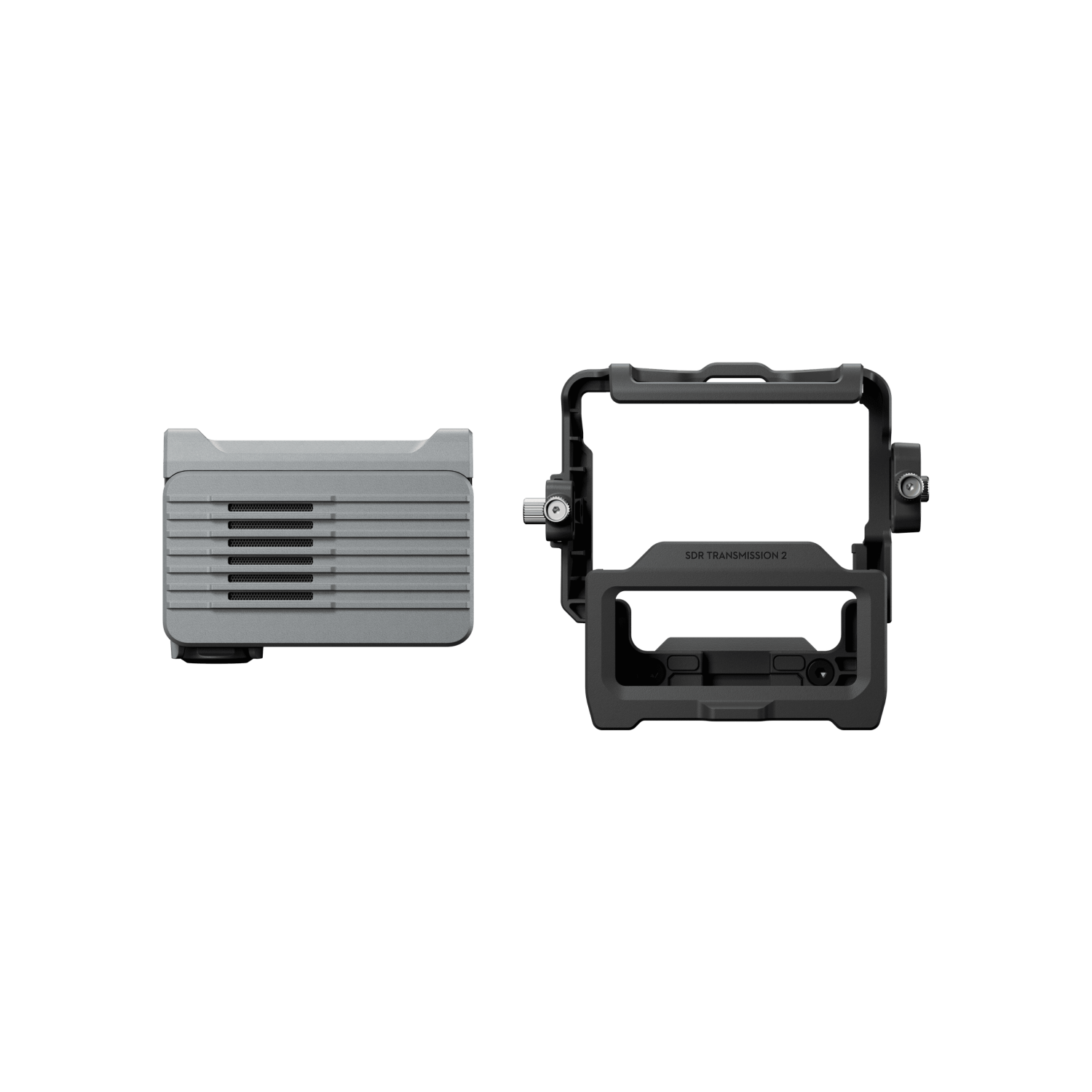

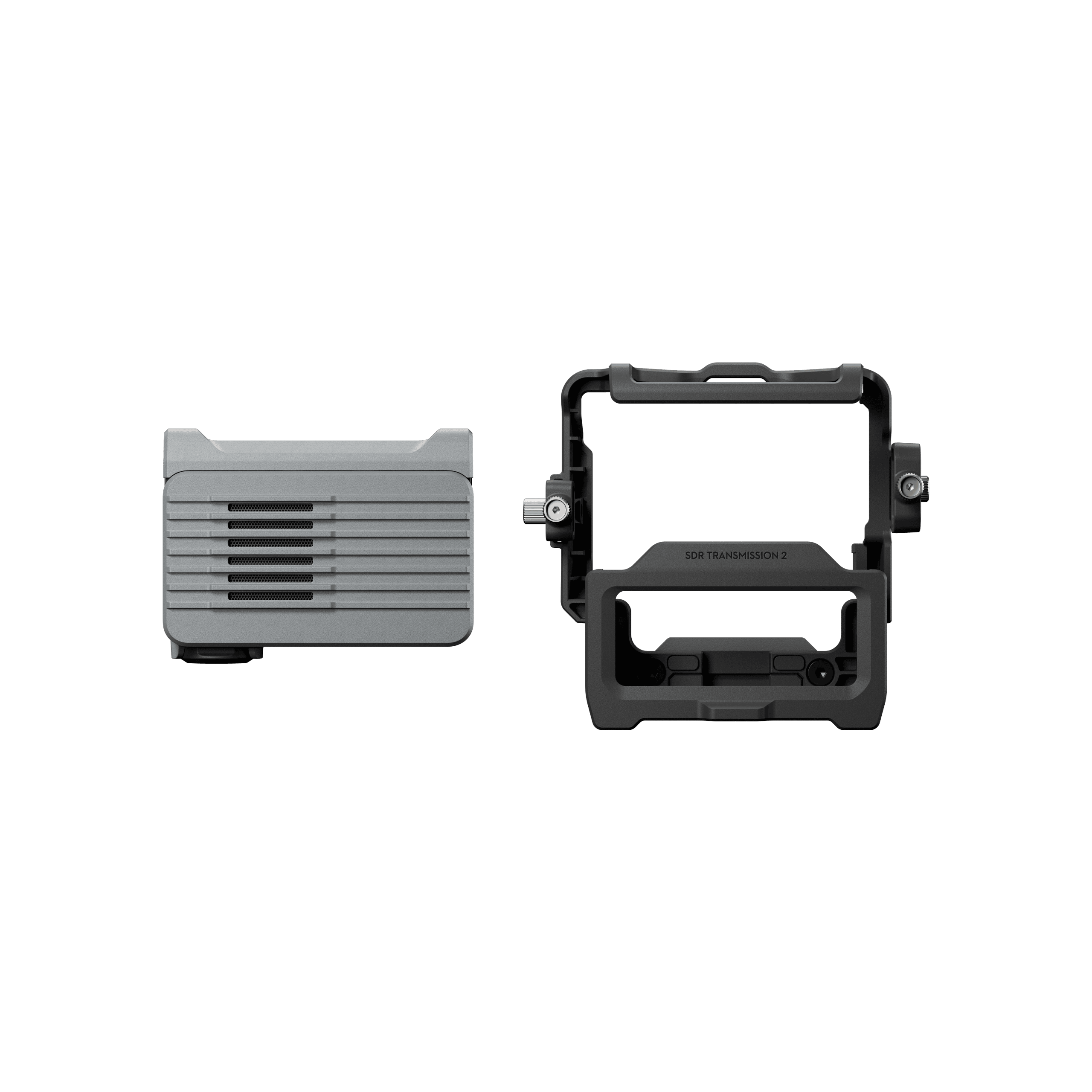

Plate and cage

The SDI/HDMI/USB-C Expansion Plate and cage from the kit; the SDR Transmission 2 transceiver is sold separately.

DJI SDR Transmission 2 Expansion Accessory Kit – Cage 124 × 110 × 49 mm

Cage 124 × 110 × 49 mm

The cage weighs approx. 91 g and locks the unit firmly onto gimbals and rigs, for example for off-road car shoots.

More information

Control cables: Ronin 2 and Master Wheels require the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin); RS 4 Pro, RS 4 and RS 3 Pro require the Gimbal Control Cable (USB-C to CAN). Both are sold separately.

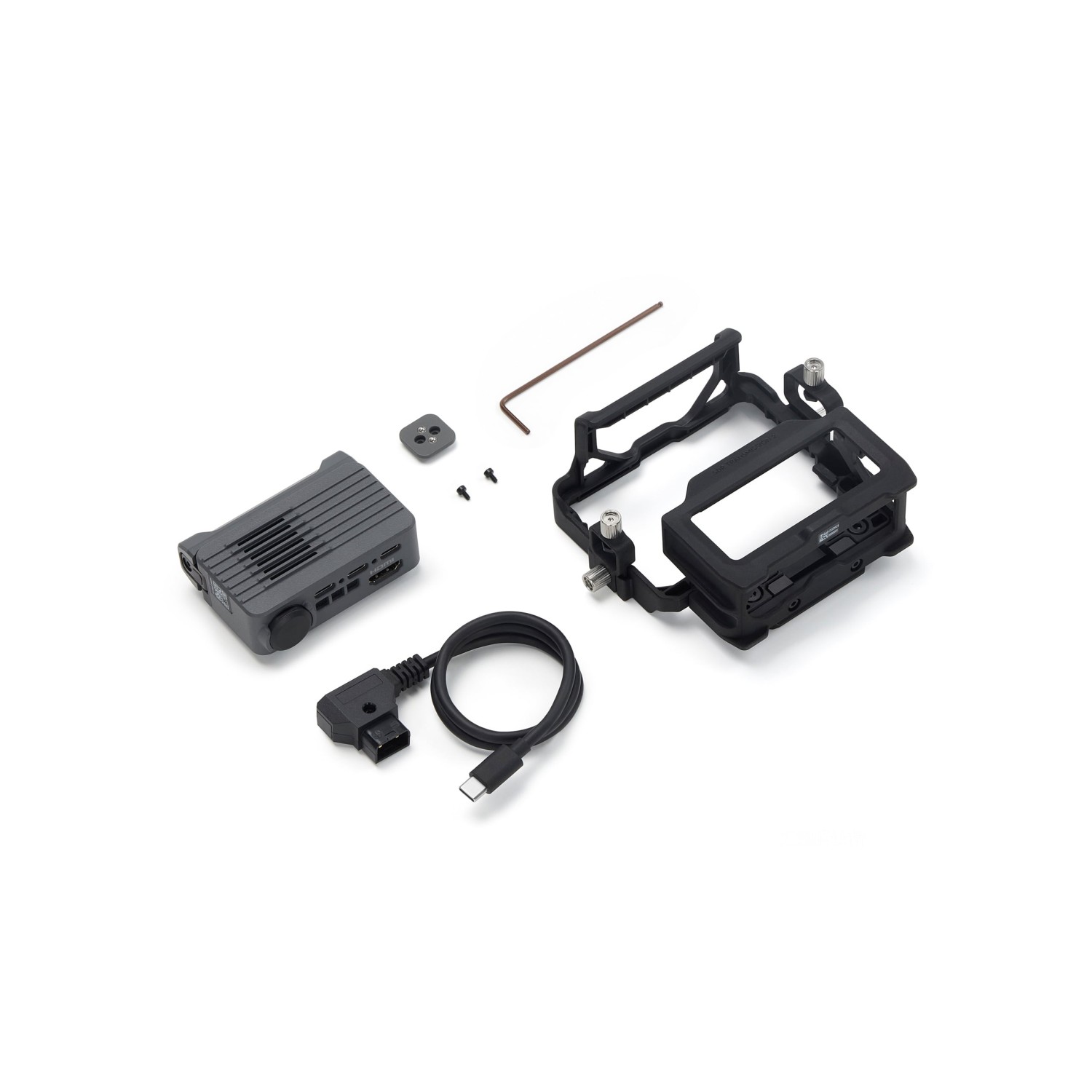

PACKAGE CONTENT

  • 1× DJI SDR Transmission 2 Expansion Plate (SDI/HDMI/USB-C)
  • 1× DJI SDR Transmission 2 Camera Cold Shoe Adapter
  • 1× D-TAP to USB-C Power Cable (50 cm)
  • 1× Ball-End Hex Key (2 mm)
  • 1× DJI SDR Transmission 2 Transceiver Cage

SPECIFICATIONS

  • Brand: DJI
  • Model: DJI SDR Transmission 2 Expansion Accessory Kit
  • Manufacturer code: CP.TR.00000058.01
  • Expansion Plate ports: HDMI (input/output); SDI (input/output); right USB-C (power, DJI RS 5 connection); bottom USB-C (power, camera control, connection to Ronin gimbals other than RS 5)
  • Expansion Plate power supply: USB-C PD 15 V / 9 V, 3 A (65 W adapter or higher); USB-C 6.8–17.5 V DC
  • Power consumption: unit with Expansion Plate (SDI input/output), 1T1R: transmitter approx. 10.36 W, receiver approx. 8.89 W
  • Expansion Plate – weight and dimensions: approx. 105 g; 76 × 54 × 25 mm (excluding Cold Shoe Adapter)
  • Cage – weight and dimensions: approx. 91 g; 124 × 110 × 49 mm
  • Cage mounting: NATO port; 2× 1/4″-20 screw hole; 3/8″-16 screw hole; HDMI and USB-C cable clamps
  • Operating temperature: −10 to 40 °C (14 to 104 °F)
  • Compatibility: DJI SDR Transmission 2
