Desview P5II

The Desview P5II is a compact 5.5-inch on-camera monitor with Full HD 1920 × 1080 resolution, 800 cd/m² brightness, HDR support, and advanced monitoring tools including false color, focus peaking, and waveform. It supports HDMI input up to DCI 4K24, custom 3D LUTs, and offers flexible power options via L-Series battery or DC input.

More information

131 € with VAT 108.26 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Desview P5II is a compact 5.5-inch on-camera monitor with Full HD 1920 × 1080 resolution, 800 cd/m² brightness, HDR support, and advanced monitoring tools including false color, focus peaking, and waveform. It supports HDMI input up to DCI 4K24, custom 3D LUTs, and offers flexible power options via L-Series battery or DC input.

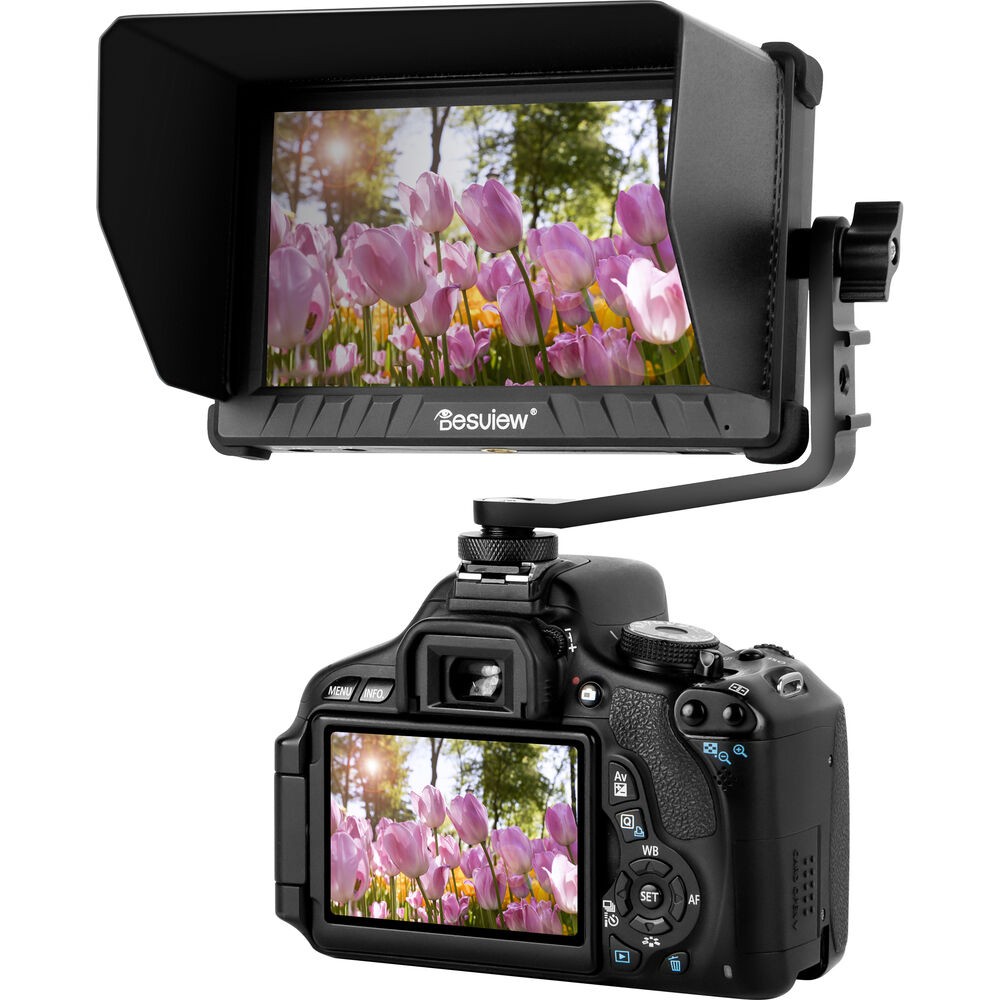

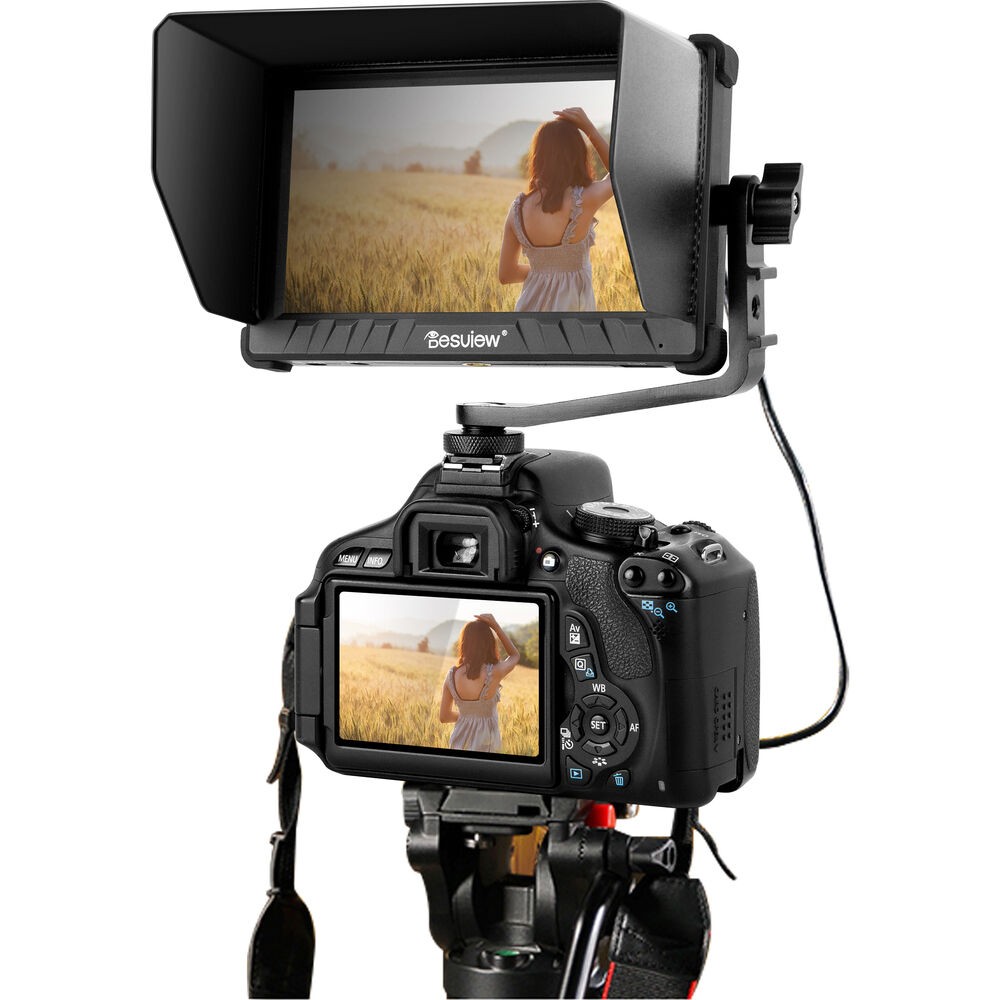

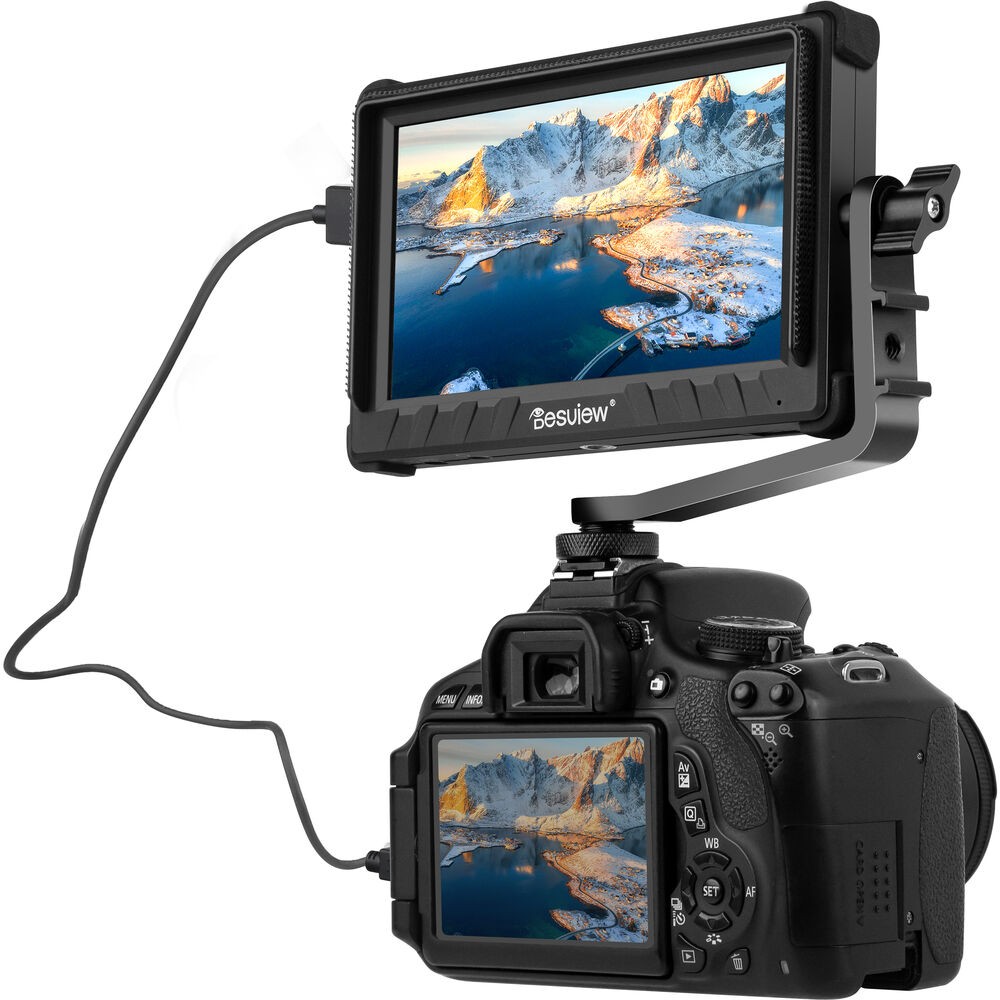

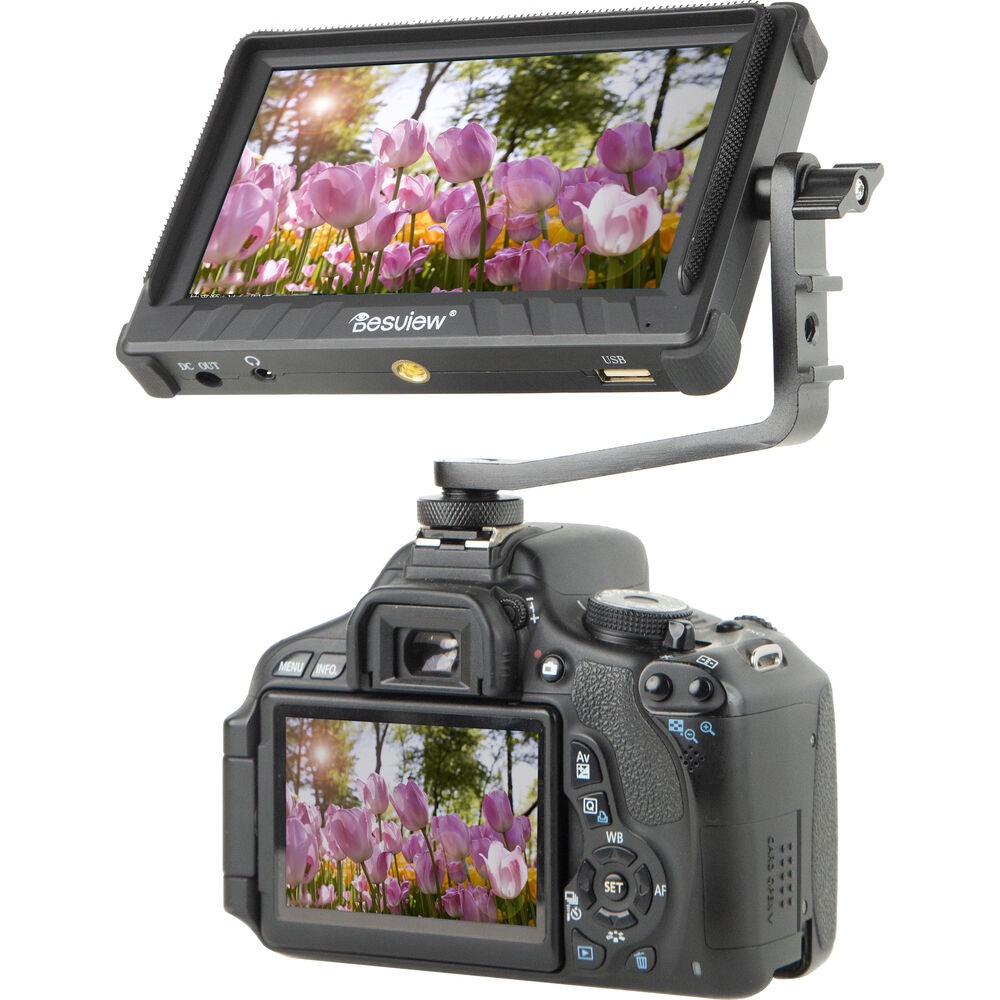

Compact on-camera monitor

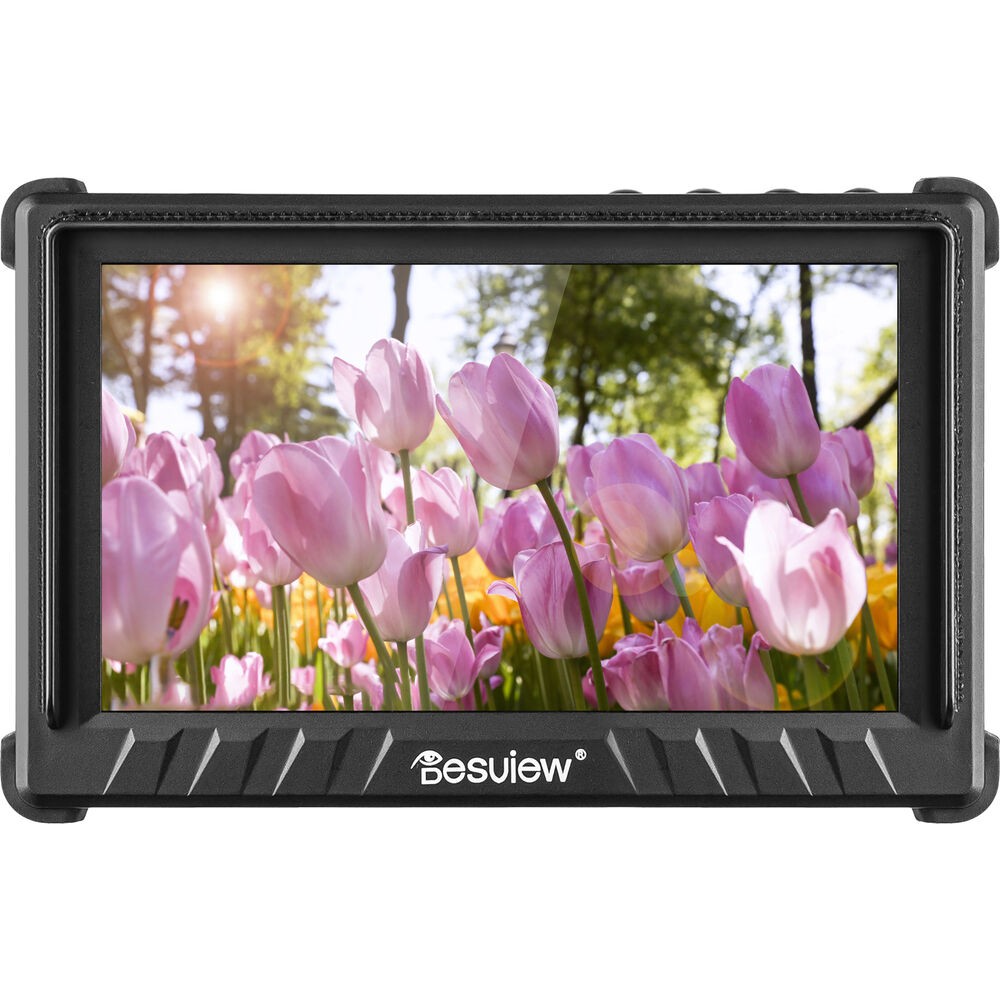

The 5.5" Full HD 1920 × 1080 display with 800 cd/m² brightness and a 1100:1 contrast ratio shows the picture from your camera or camcorder. Weighing only 170 g, the monitor adds almost nothing to your rig. It is operated by touchscreen as well as buttons.

Compact on-camera monitor

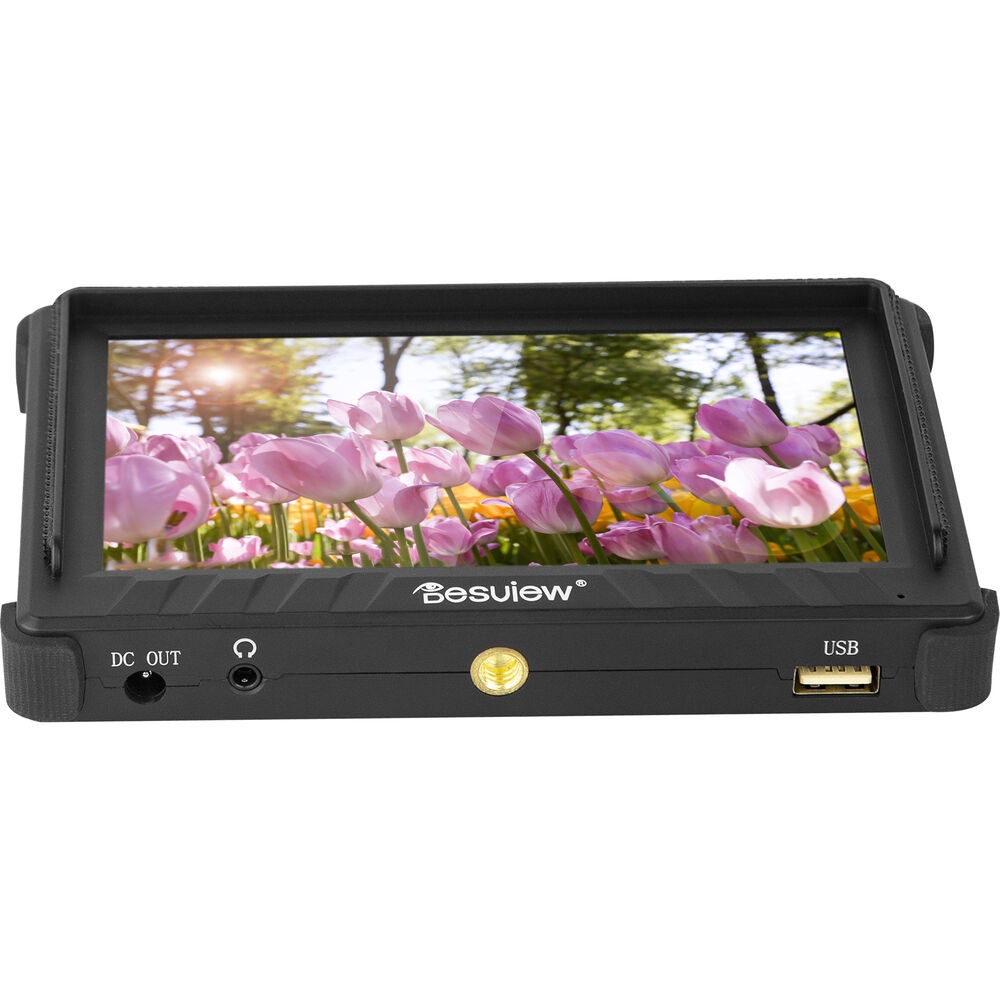

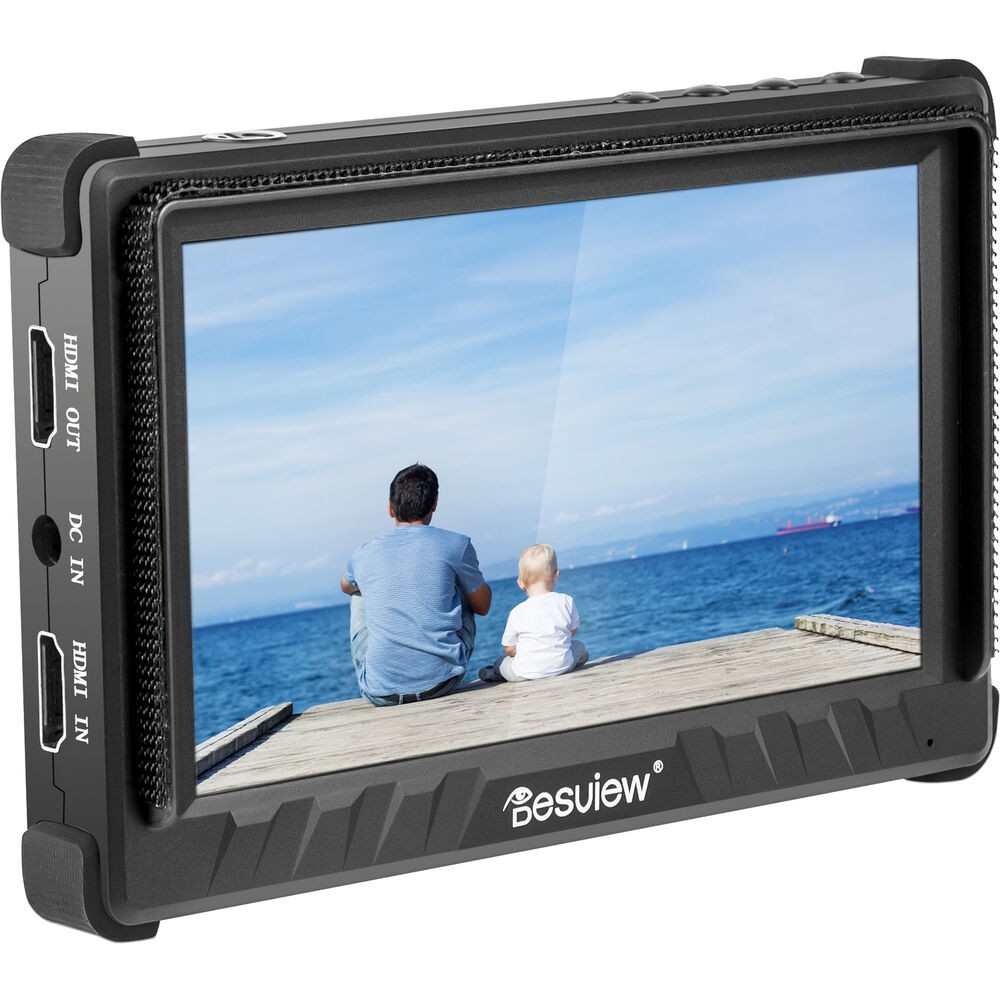

Interfaces and dimensions

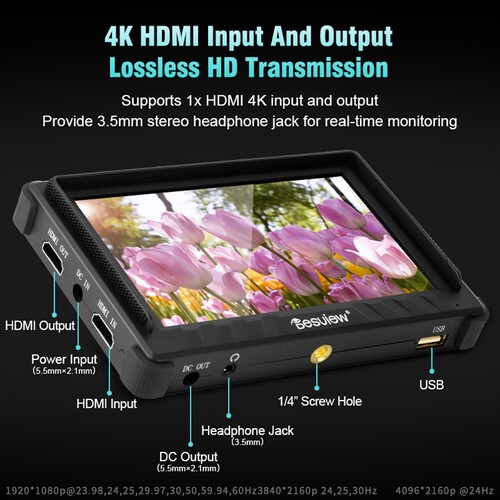

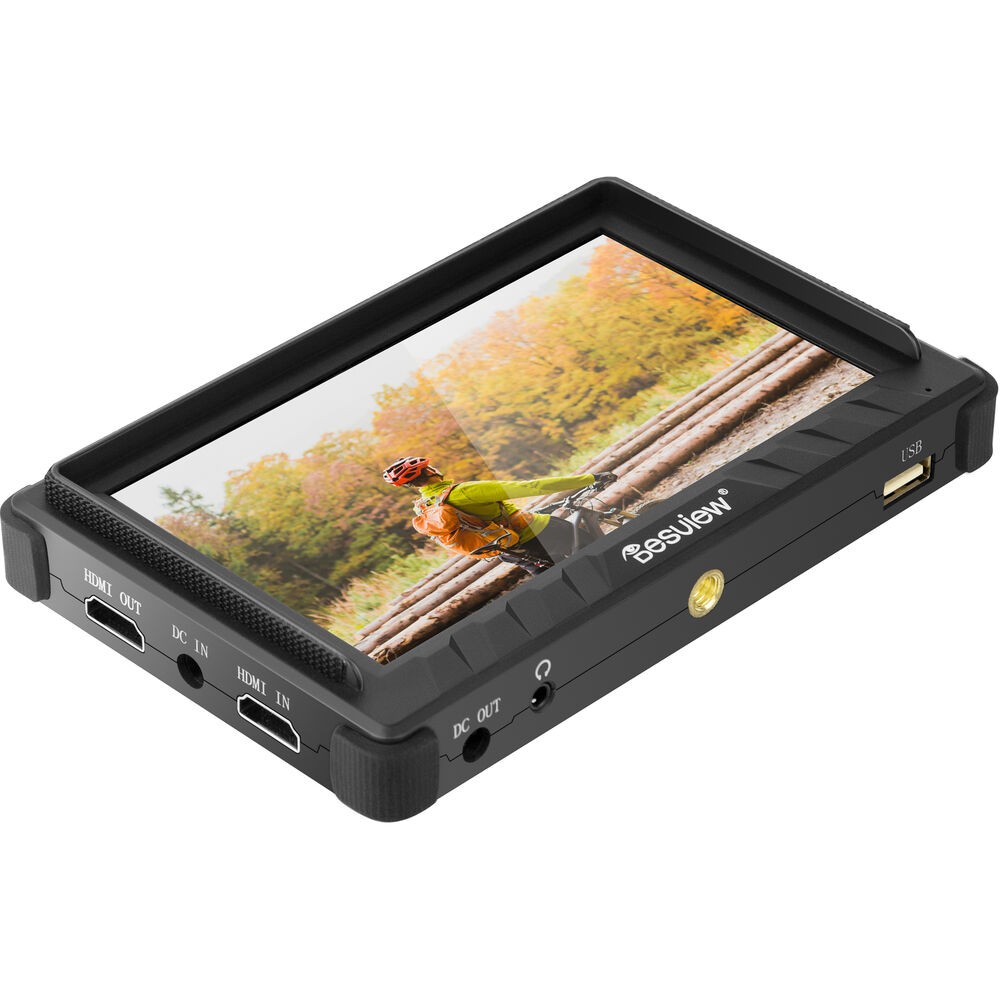

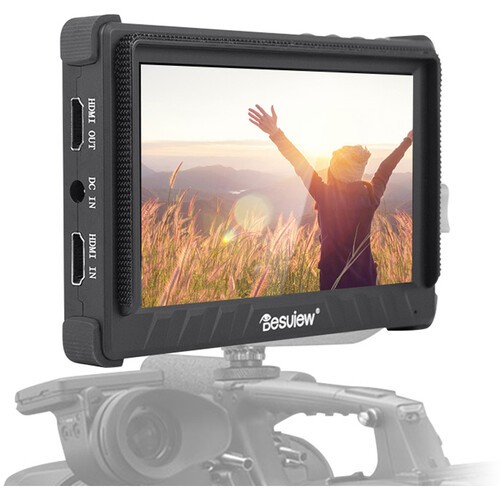

The monitor has an HDMI input and output, a DC power input and DC power output (5.5 × 2.1 mm), a 3.5 mm headphone jack, a USB port and 1/4" mounting threads. It measures 152.3 × 98.4 × 28.6 mm and weighs 170 g.

Interfaces and dimensions

Custom 3D LUTs

Load up to 64 LUT groups into the monitor from the supplied USB drive and match the colours of the picture right on set.

Custom 3D LUTs

Features you would expect from a monitor

False colour, single colour, brightness and RGB histogram, luminance and RGB waveform, safe area, center mark, focus peaking, zebra, HDR, LUT, audio meters, image flip, battery indicator, grid lines, aspect ratio and zoom.

Features you would expect from a monitor

Drop-resistant

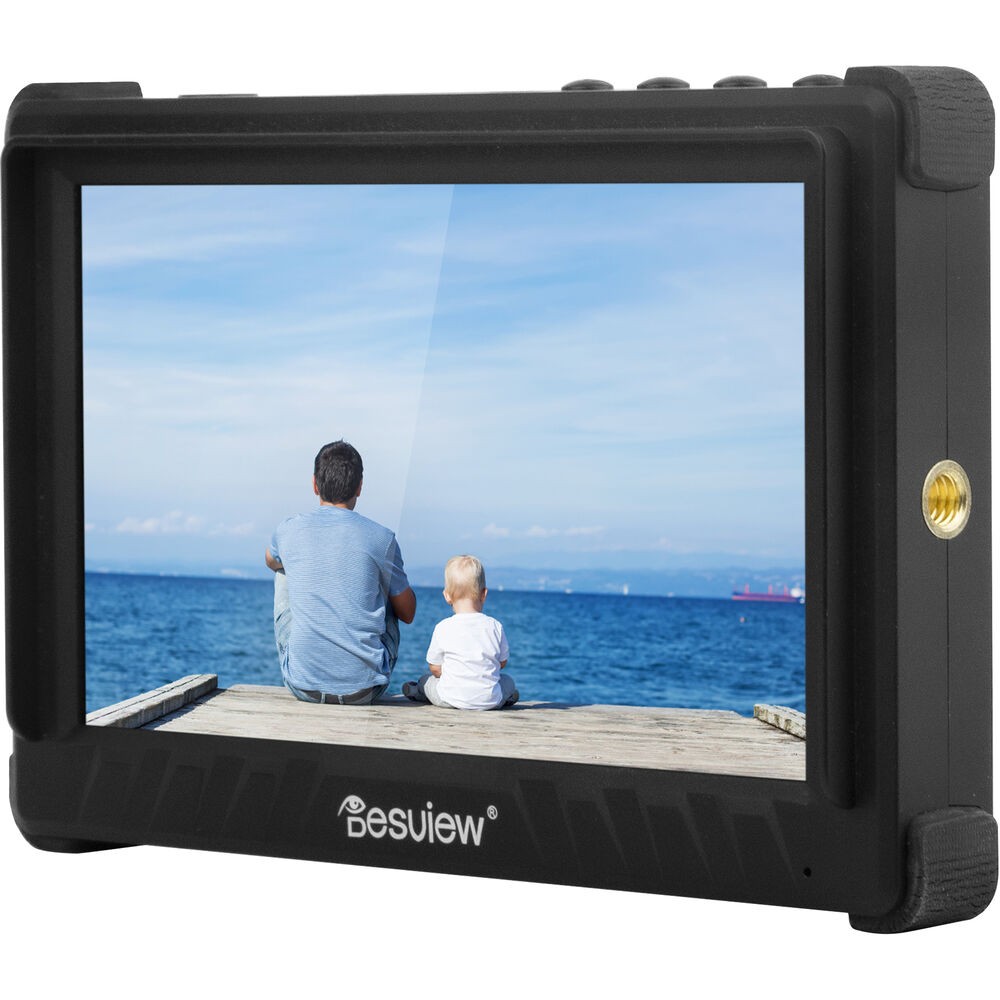

Specially designed rubber bumpers on the corners of the housing give the monitor better protection against knocks.

Drop-resistant

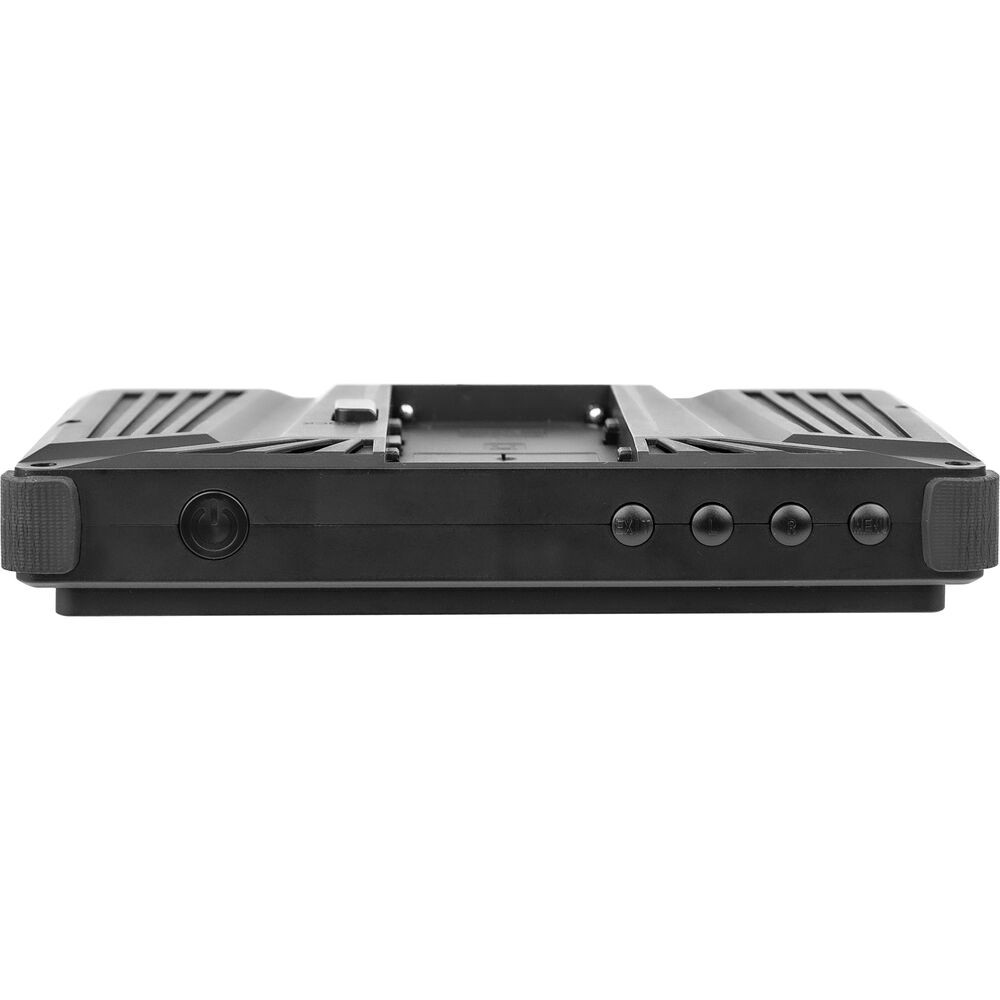

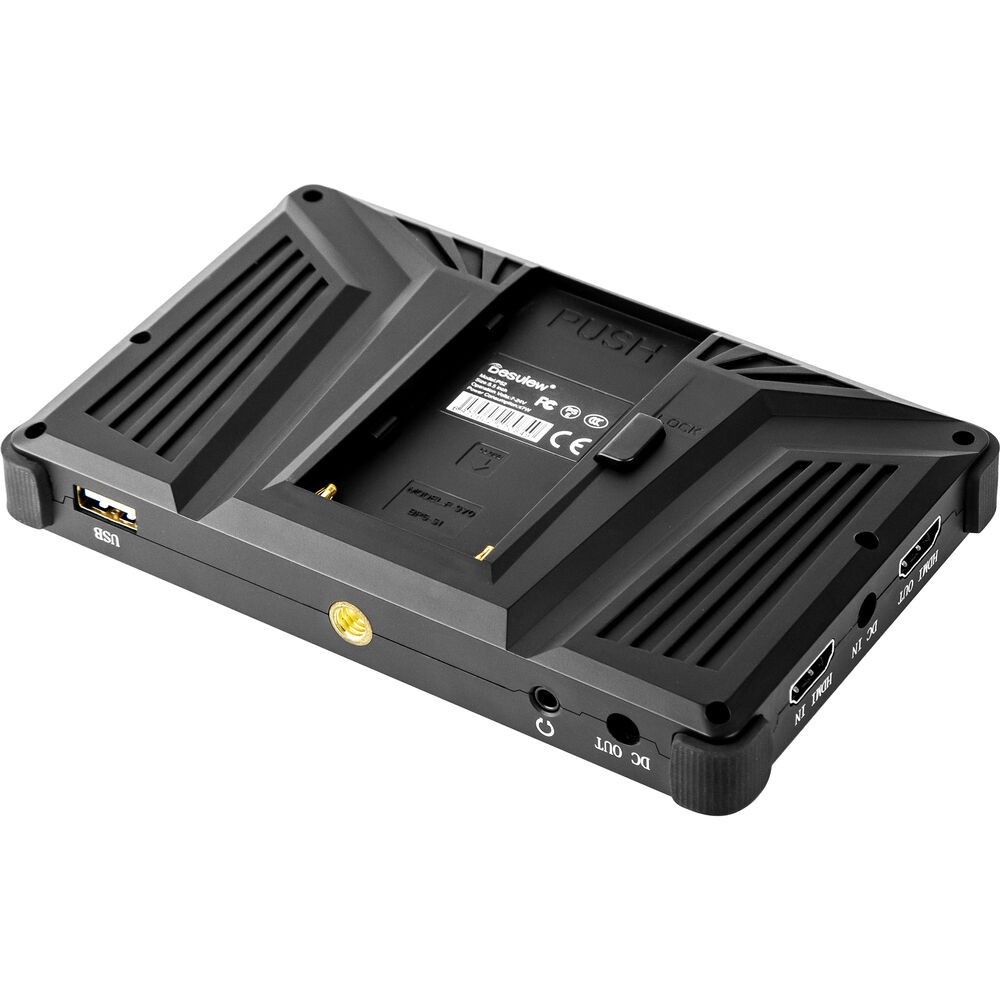

Power

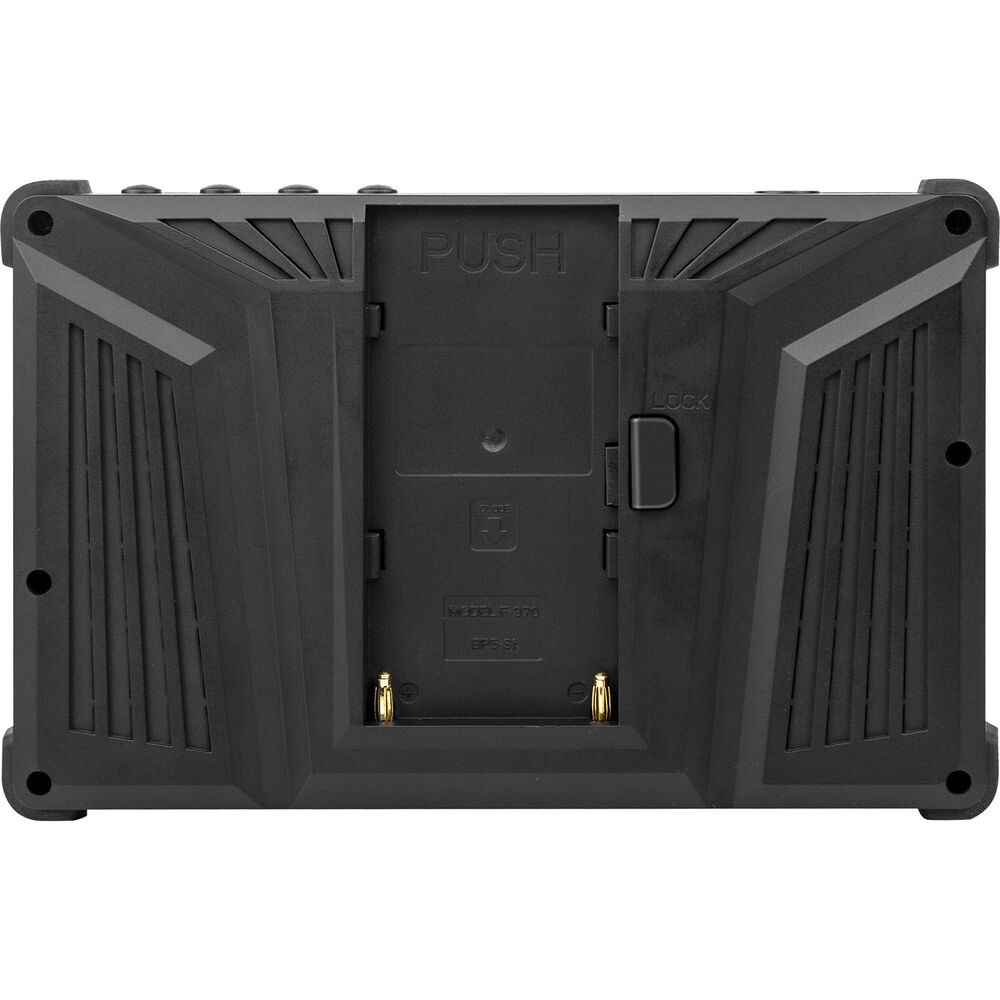

The monitor runs on Sony L-series (NP-F) batteries in the plate on the back or on a power supply via the DC 7–24 V input. A DC power output is also provided.

Power

More information

The Desview P5II is a professional on-camera monitor designed for filmmakers, videographers, and content creators who need precise monitoring in a portable form factor. Its 5.5″ LCD display delivers 1920 × 1080 Full HD resolution, 800 cd/m² brightness, and 1100:1 contrast for clear, vibrant visuals. With HDR support and the ability to load up to 64 custom LUTs via USB-A, users can achieve accurate color grading directly on set.

Equipped with HDMI 1.4 input and output, the monitor supports up to DCI 4K24 and UHD 4K30 video formats. The P5II includes professional monitoring tools such as false color, focus assist, waveform, zebra, and anamorphic de-squeeze (1.33x, 1.5x, 1.66x, 1.79x, 2.0x) to aid precise shooting. It features button controls for quick adjustments, multiple mounting options via 1/4"-20 threads, and can be powered with a Sony L-Series battery or DC barrel input. Lightweight and portable at just 170 g, the P5II is ideal for DSLR, mirrorless, and cinema camera setups.

Key Features:

  • 5.5″ Full HD (1920 × 1080) LCD display
  • 800 cd/m² brightness, 1100:1 contrast ratio
  • HDMI 1.4 input and output, supports DCI 4K24 & UHD 4K30
  • HDR support, up to 64 custom 3D LUTs via USB-A
  • Monitoring tools: false color, focus assist, focus peaking, waveform, zebra
  • Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
  • 1/4"-20 mounting on side and bottom, includes shoe to 1/4"-20 adapter
  • Flexible power: L-Series battery or 5.5 mm DC barrel input/output
  • 3.5 mm headphone output
  • Lightweight and portable (170 g / 6 oz)

PACKAGE CONTENT

  • 1 × Desview P5II 5.5″ On-Camera Monitor
  • Shoe to 1/4"-20 Mount Adapter
  • User Manual
  • USB drive

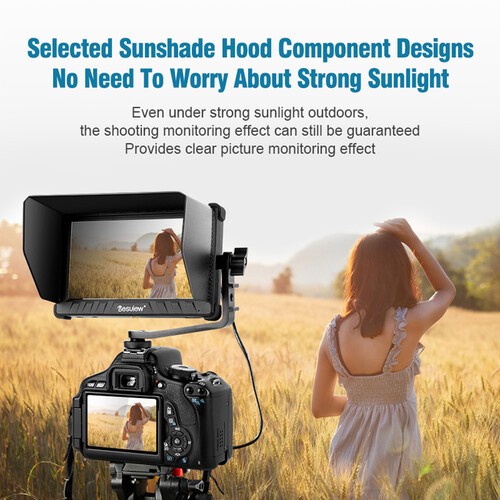

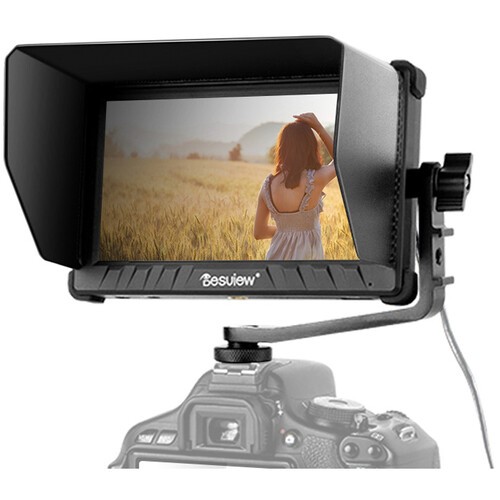

  • Sun hood
  • Micro HDMI cable
  • Mini HDMI cable
  • Cleaning cloth

SPECIFICATIONS

  • Display: 5.5" 1920×1080, 16:9, 800 cd/m², 1100:1 contrast, 178° H/V viewing, HDR, supports up to 64 custom 3D LUTs
  • Video & Audio: HDMI 1.4 in/out, 3.5 mm audio out, embedded HDMI audio
  • Monitoring Tools: False color, focus peaking, waveform, zebra, anamorphic de-squeeze, aspect ratio markers
  • Power: L-series battery, 7–24 VDC input/output, 0.1 W idle
  • Physical: Plastic, 152.3×98.4×28.6 mm, 170 g, 2× 1/4"-20 mount threads
  • HDMI signal formats: 1920×1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz; 3840×2160p @ 24/25/30 Hz; 4096×2160p @ 24 Hz
  • Power connectors: DC input and DC output, 5.5 × 2.1 mm
  • USB: LUT loading (up to 64 groups)

WE RECOMMEND

The Desview P5II is a compact 5.5-inch monitor with a high brightness of 800 cd/m² and HDR support, making it ideal for live view on DSLRs and mirrorless cameras. To expand its functionality in a production environment, it is recommended to pair it with wireless video transmission systems and professional readout devices for studio work.

Wireless Video Transmission - Systems for wireless transmission of HDMI signals from a camera to a monitor without the need for cables.

Prompter systems - Compatible teleprompters for studio production, where the monitor serves as a control preview for the cameraman.

Parameters

Parameters

Manufacturer: Desview
Category: Camera monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080p up to 60p · 4K DCI/UHD up to 30p
Size5.5"
Monitor inputs4K HDMI · HDMI · HDMI 1.4
Luminosity800cd/m2
Panel resolution1920x1080
For monitorOn-camera / field video production monitor
Monitor power supplyDC 7-24V · DC-OUT · L-Series · Sony NP-F

Other parameters

Other features3D LUT correction · HDR · Lightweight · Power output · Touchscreen
