Desview D21 Pro

The Desview D21 Pro is a professional 21.5" vertical display broadcast monitor designed for modern vertical and horizontal production workflows. Featuring multi-view monitoring, ultra-bright 1000 nits output, SDI and HDMI dual coverage, advanced waveform tools, HDR and 3D-LUT support, and a rugged pressure-resistant housing, the D21 Pro delivers precise, reliable monitoring for film sets, live broadcasts, and multi-camera productions in any environment.

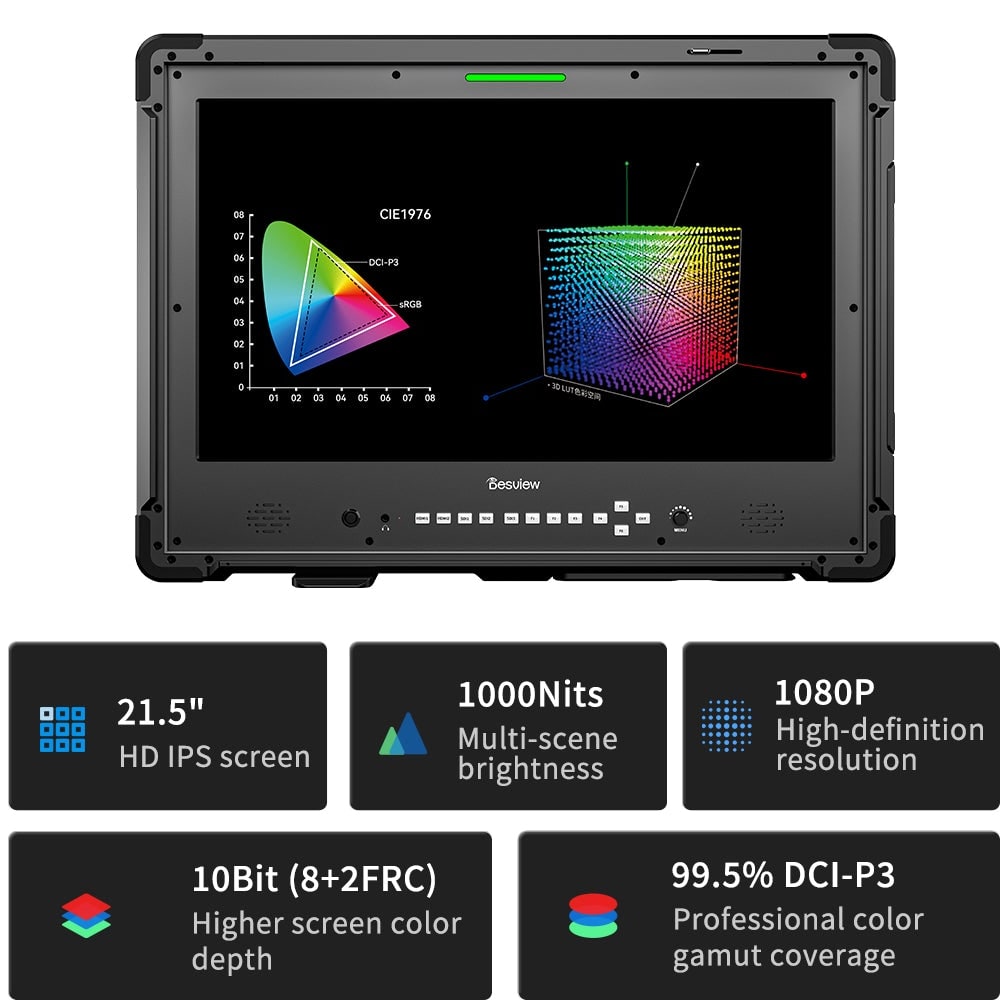

The Desview D21 Pro Vertical Display Broadcast Monitor represents a new generation of professional monitoring solutions, purpose-built for today’s vertical content era while maintaining full compatibility with traditional horizontal workflows. Equipped with a 21.5-inch IPS 10-bit display, the D21 Pro delivers accurate color reproduction with 99.5% DCI-P3 coverage, a 1000:1 contrast ratio, and an ultra-bright 1000 nits output, ensuring excellent visibility both indoors and outdoors.

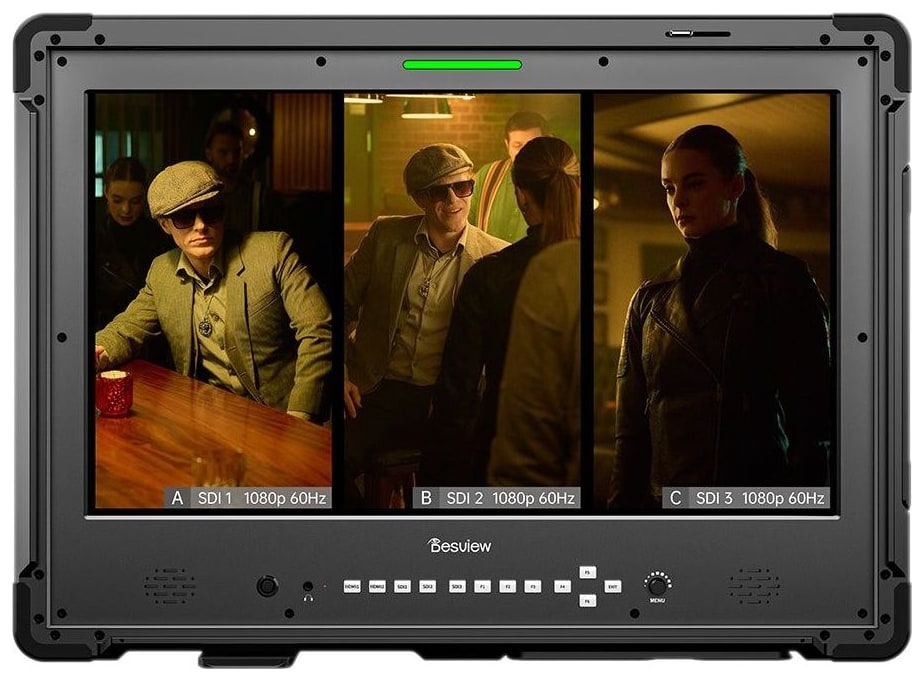

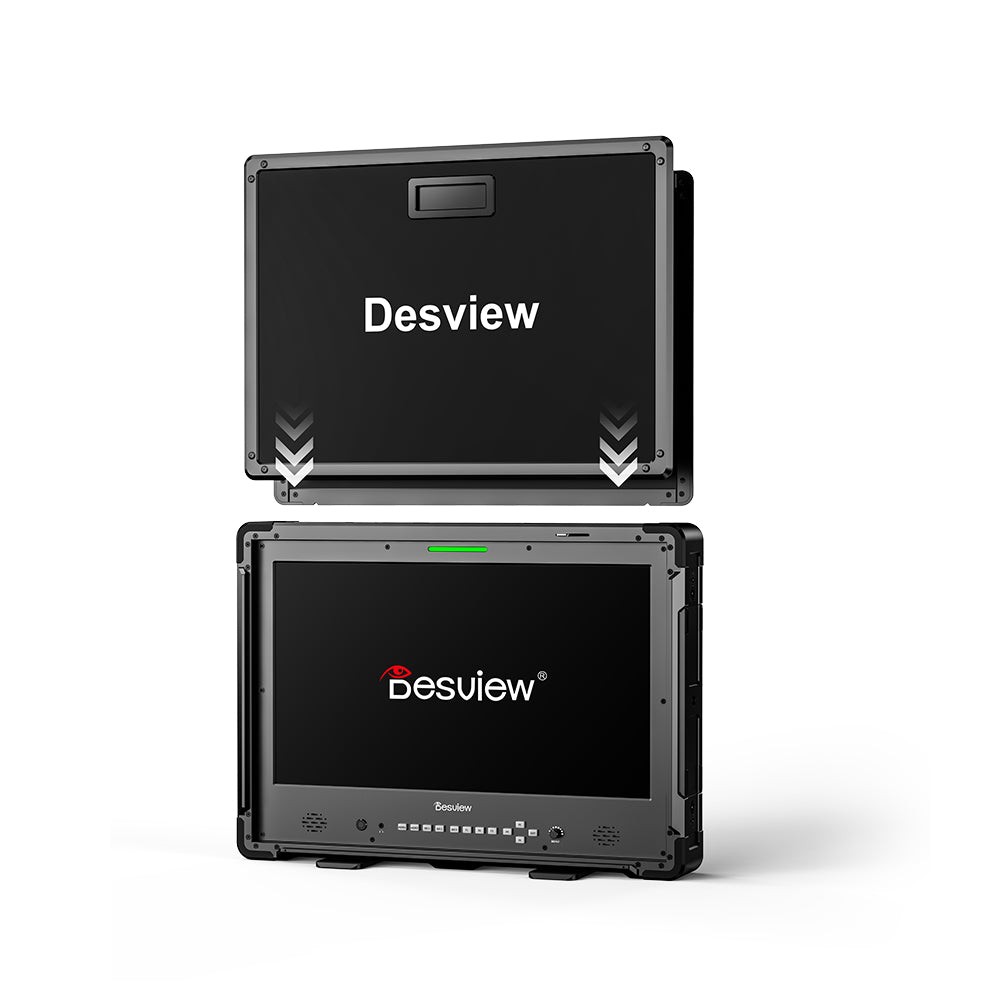

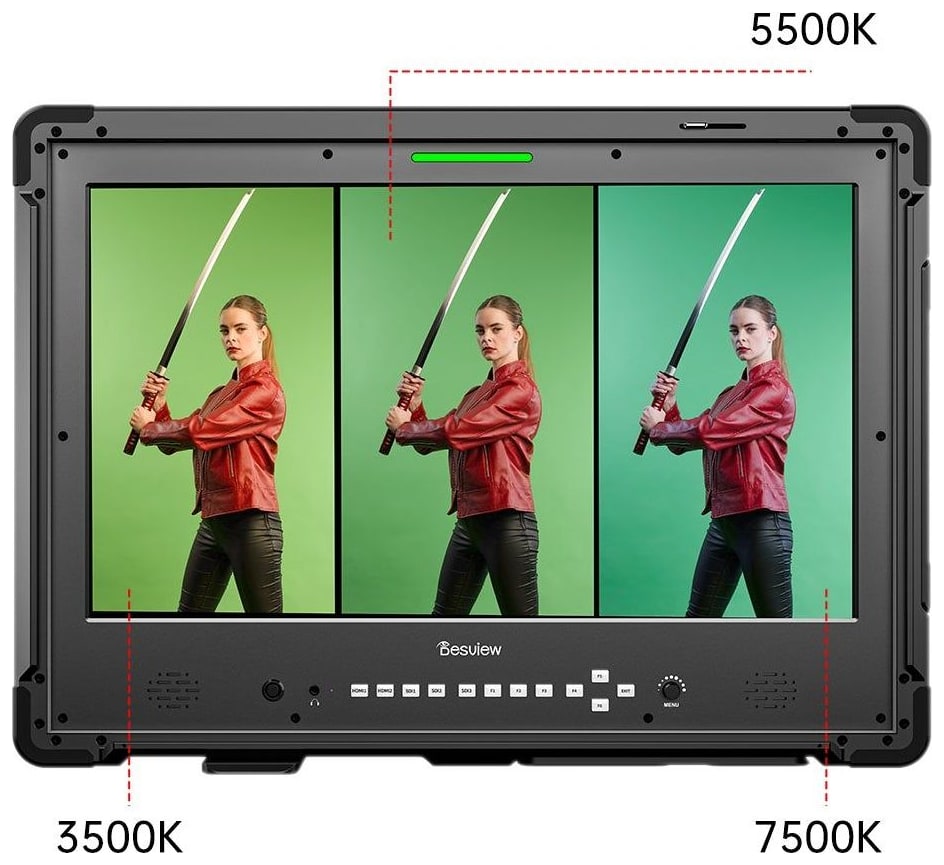

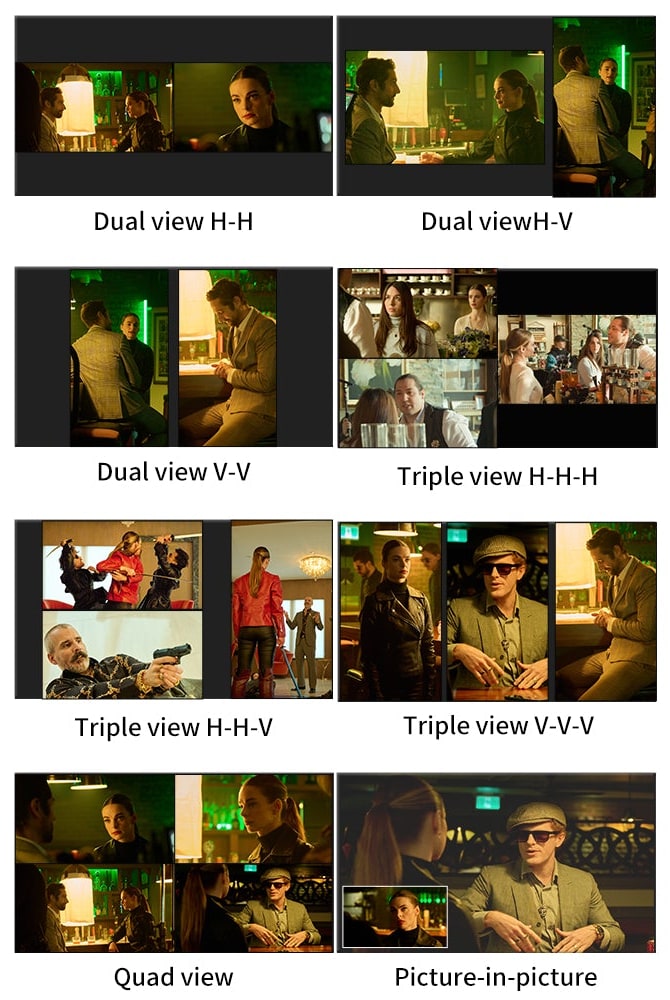

Designed for efficiency on set, the D21 Pro features an innovative 3-second quick-release sliding cover, allowing rapid deployment straight out of the case. Its multi-view monitoring modes support dual, triple, and quad views with picture-in-picture, while single-window independent control enables precise adjustment of brightness, contrast, color temperature, saturation, sharpness, flip, and distortion for each window individually. This flexibility makes it ideal for multi-camera productions and complex monitoring setups.

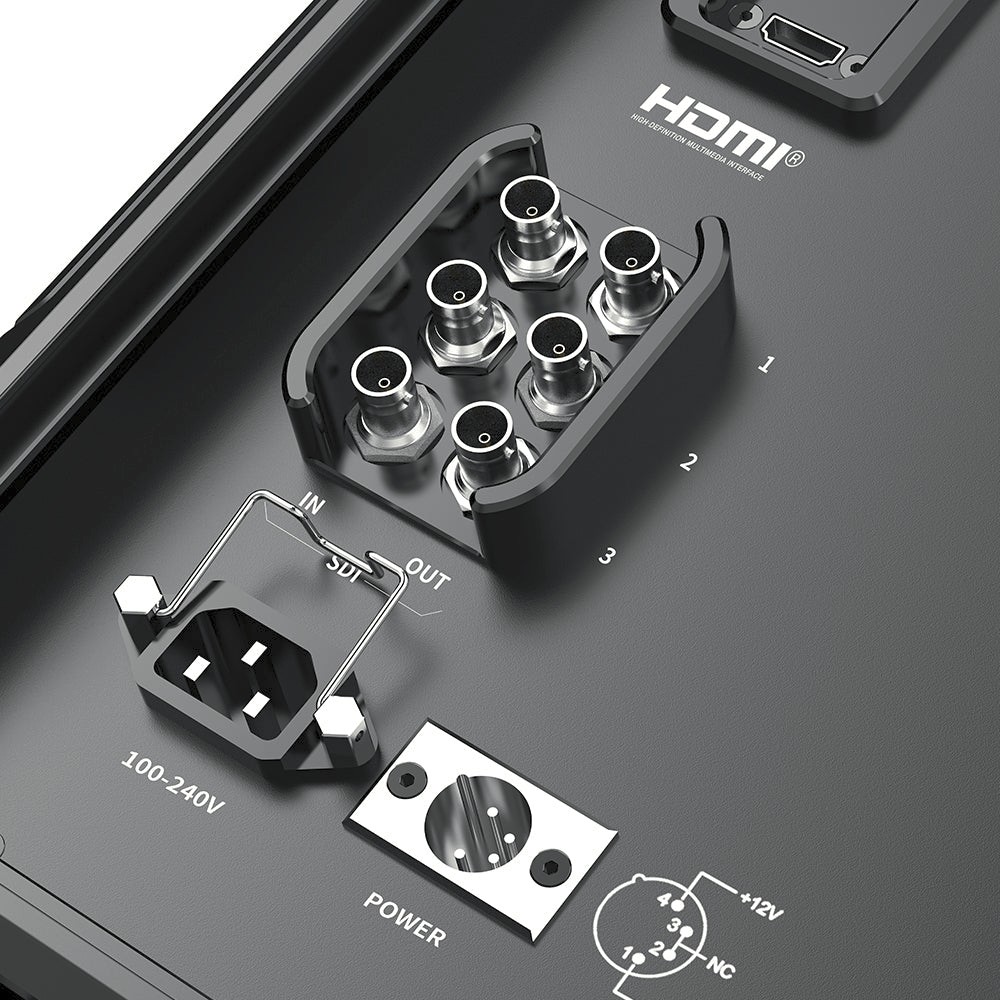

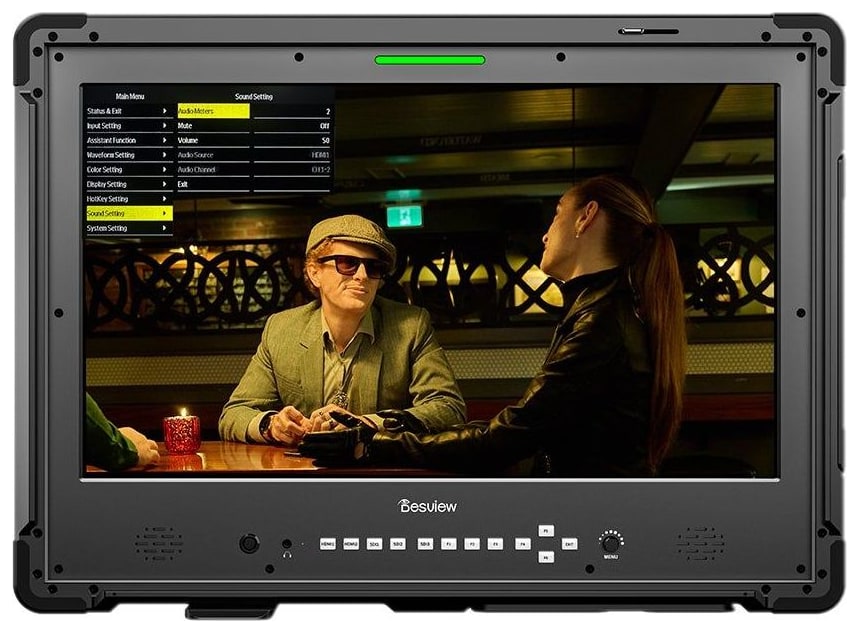

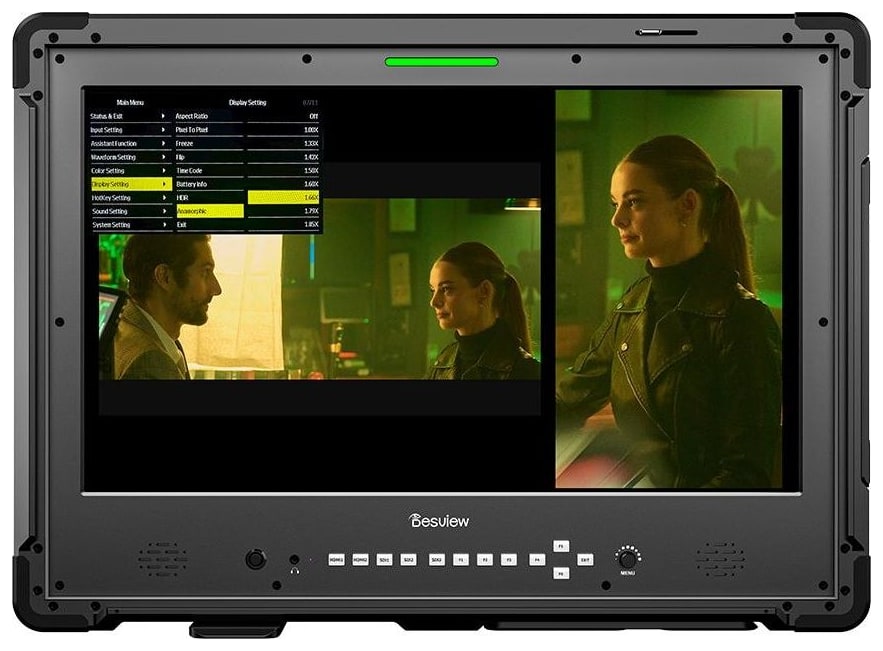

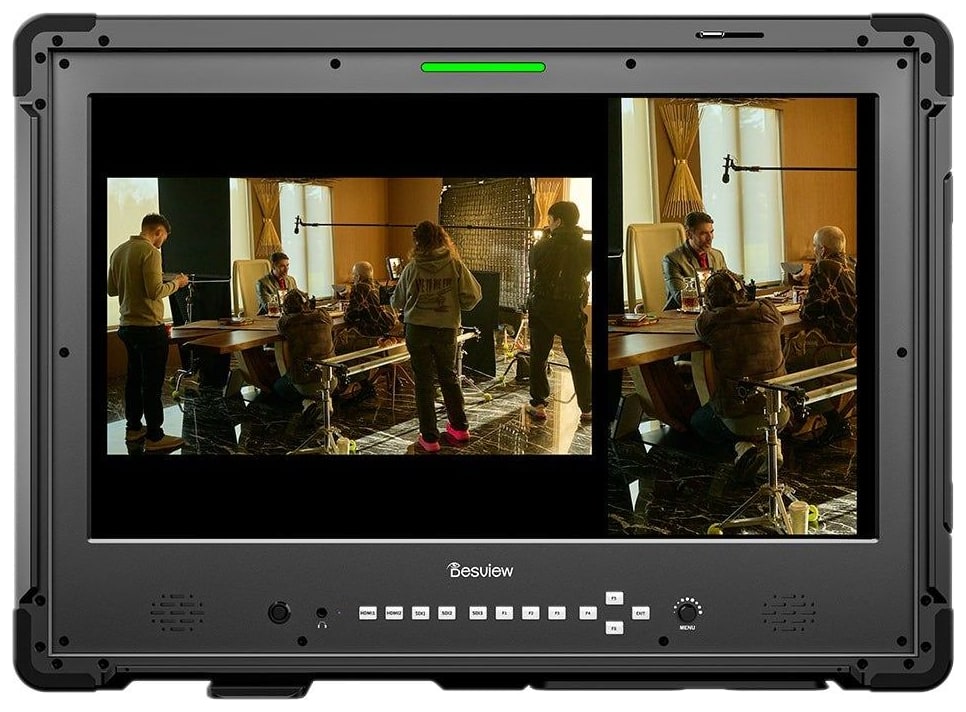

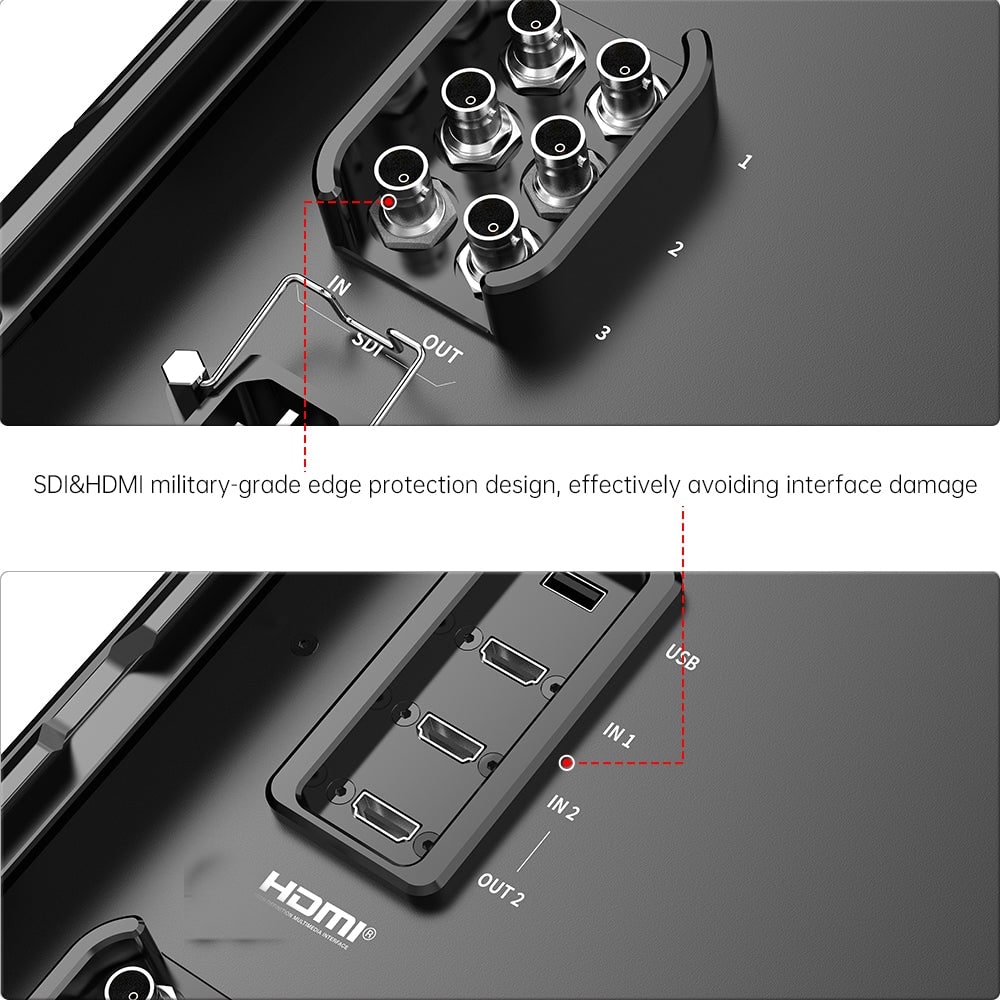

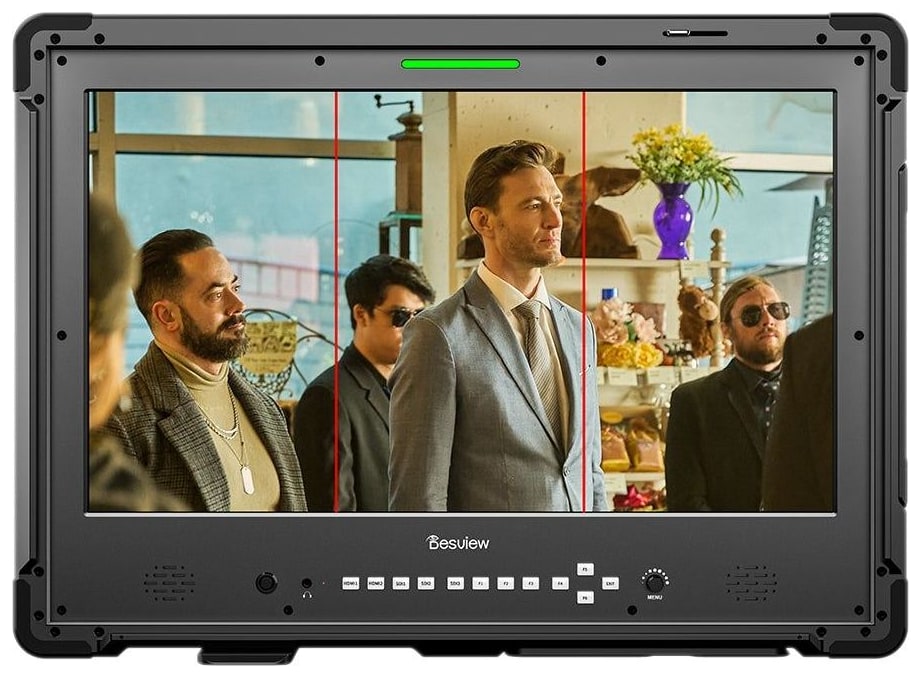

The monitor supports full waveform monitoring for both SDI and HDMI signals, providing frame-level exposure and color analysis for confident image control. Professional connectivity includes three 3G-SDI inputs with loop outputs and two HDMI 2.0 inputs with one output, supporting up to 4K 60p signals. Advanced cinematic tools such as anamorphic de-squeeze (1.33x, 1.6x, 2.0x, 2.35x), horizontal and vertical cropping, and 9:16 composition markers make the D21 Pro especially powerful for film, advertising, and social media production.

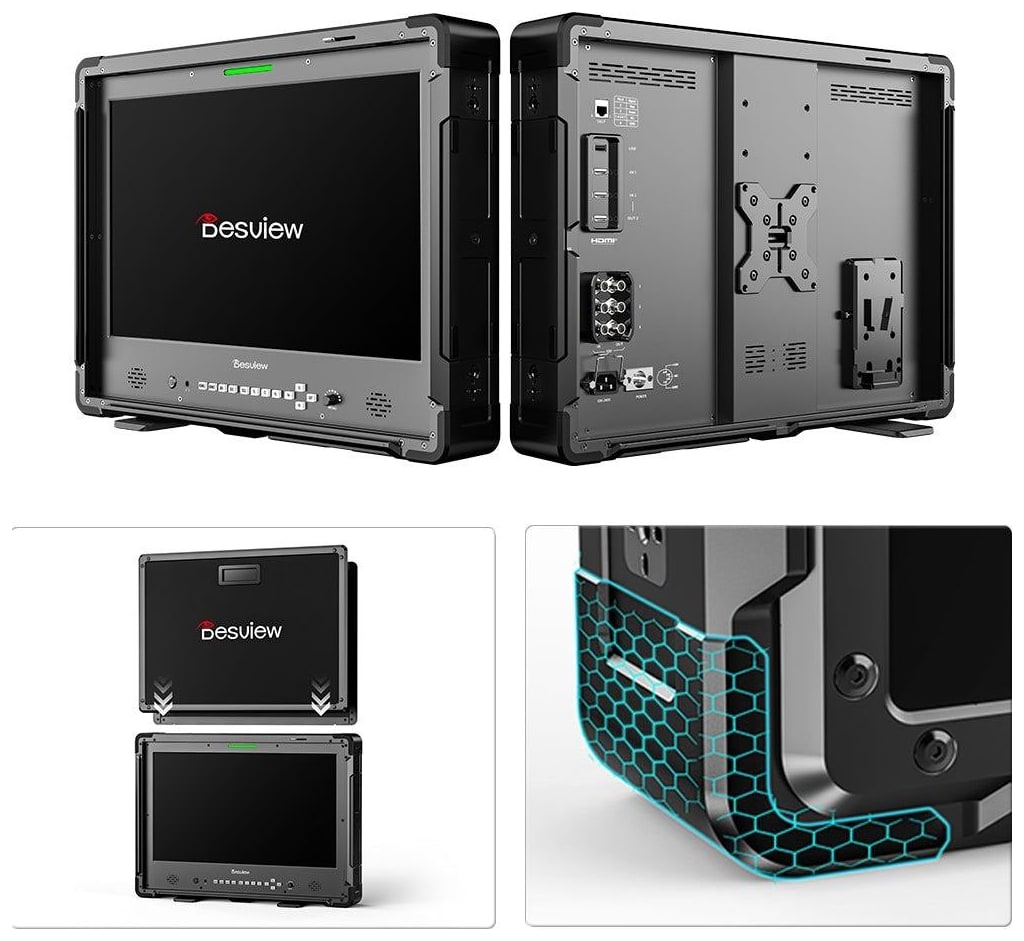

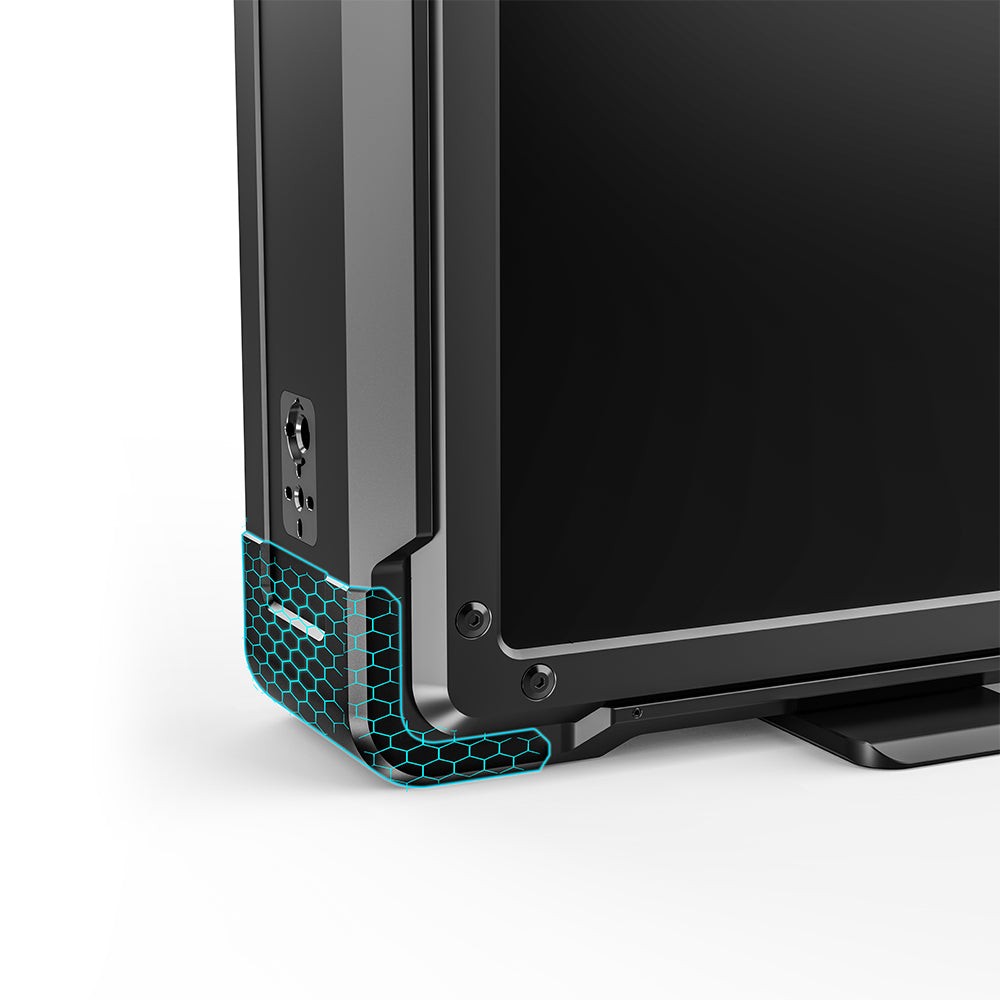

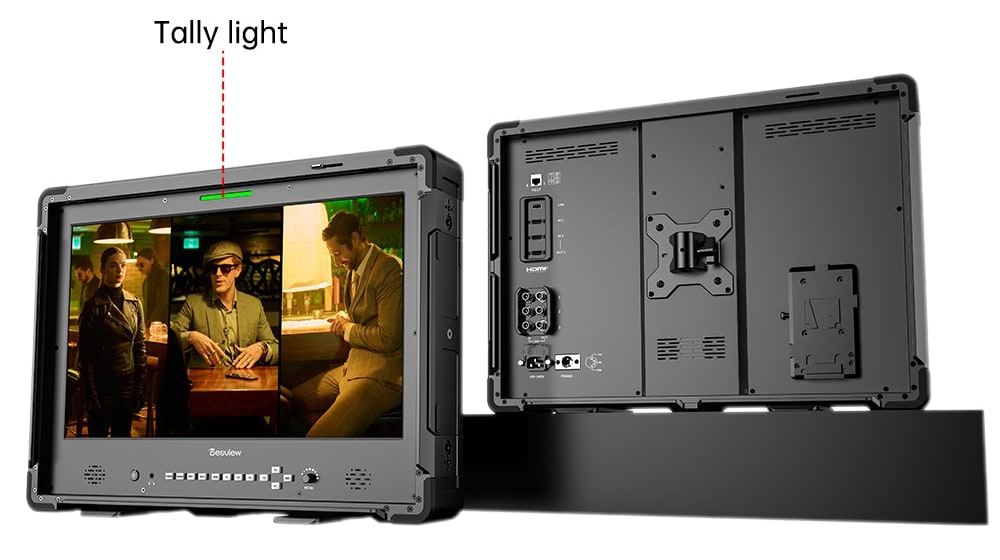

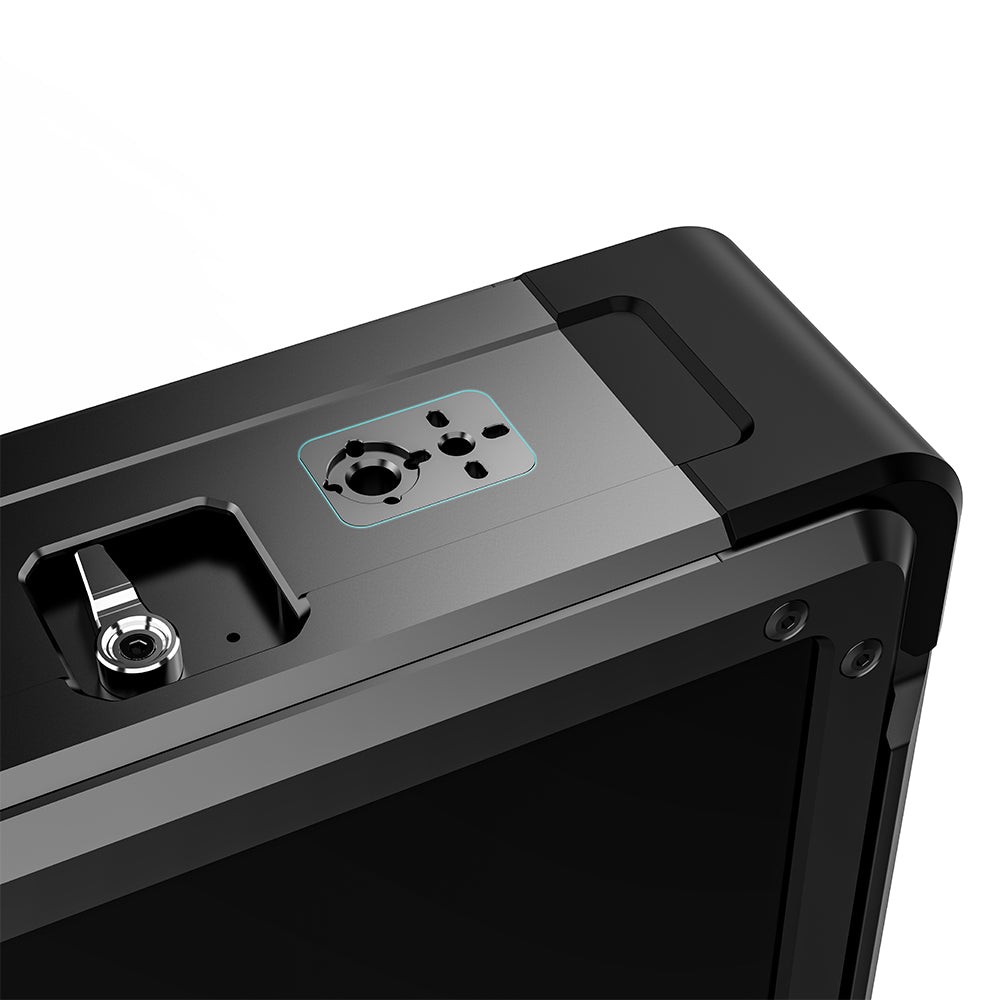

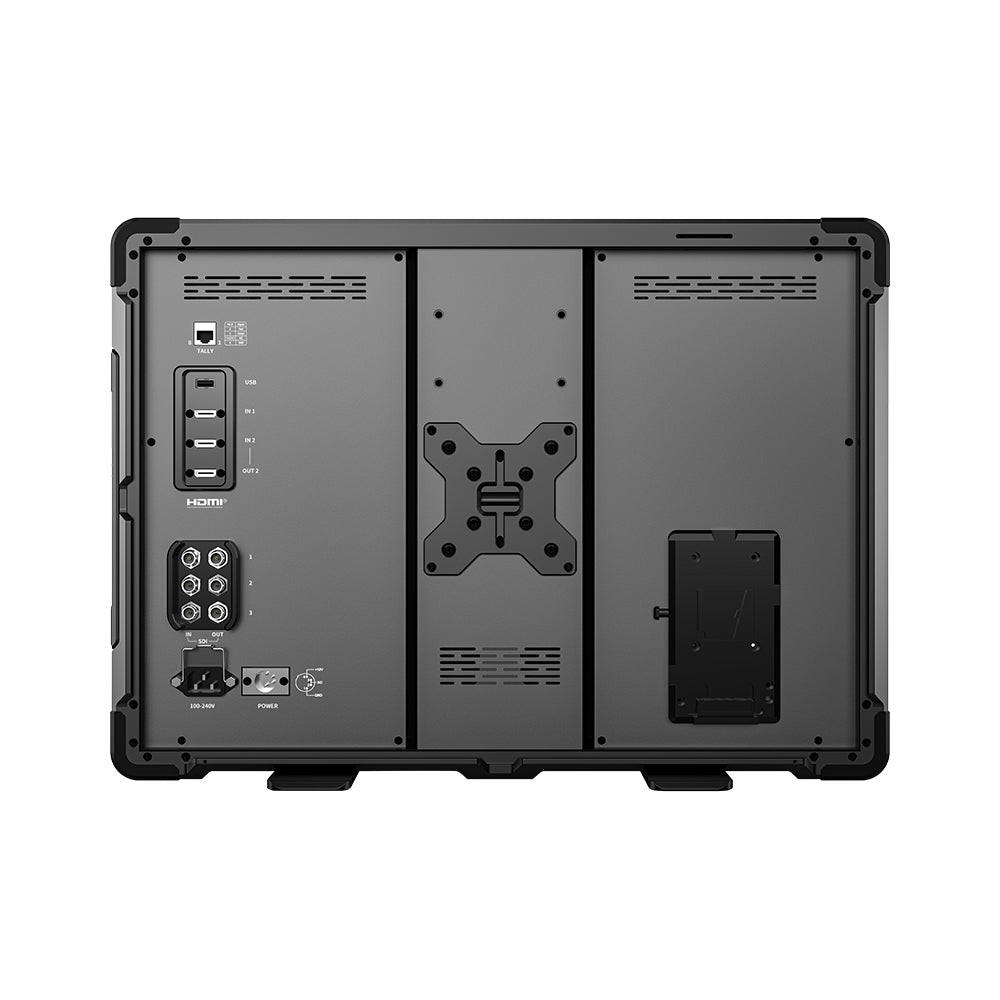

Built for demanding environments, the D21 Pro features a pressure-resistant composite housing capable of withstanding up to 80 kg load, reinforced with military-grade anti-collision corner guards tested for 1.5-meter drops. Multiple 1/4"-20 and 3/8" mounting points and VESA mount compatibility allow seamless integration with light stands, carts, and studio rigs. Power flexibility is ensured through AC power, XLR DC input, or V-mount battery support, making it adaptable to studio, outdoor, or mobile shooting scenarios. A front-facing tri-color tally light (red/green/blue) further enhances its suitability for live production and broadcast environments.

Key Features:

• 21.5" IPS 10-bit professional display
• Ultra-bright 1000 nits brightness for indoor/outdoor use
• Vertical and horizontal monitoring with hardware rotation

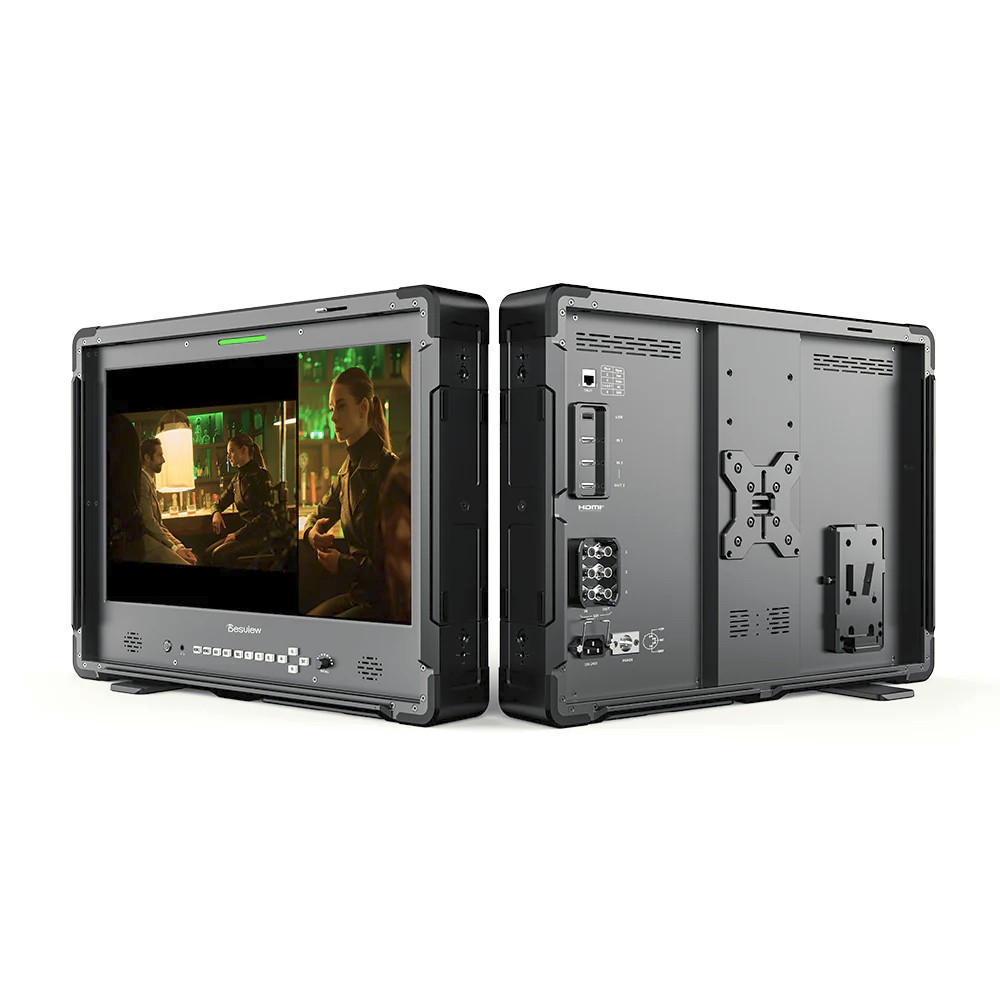

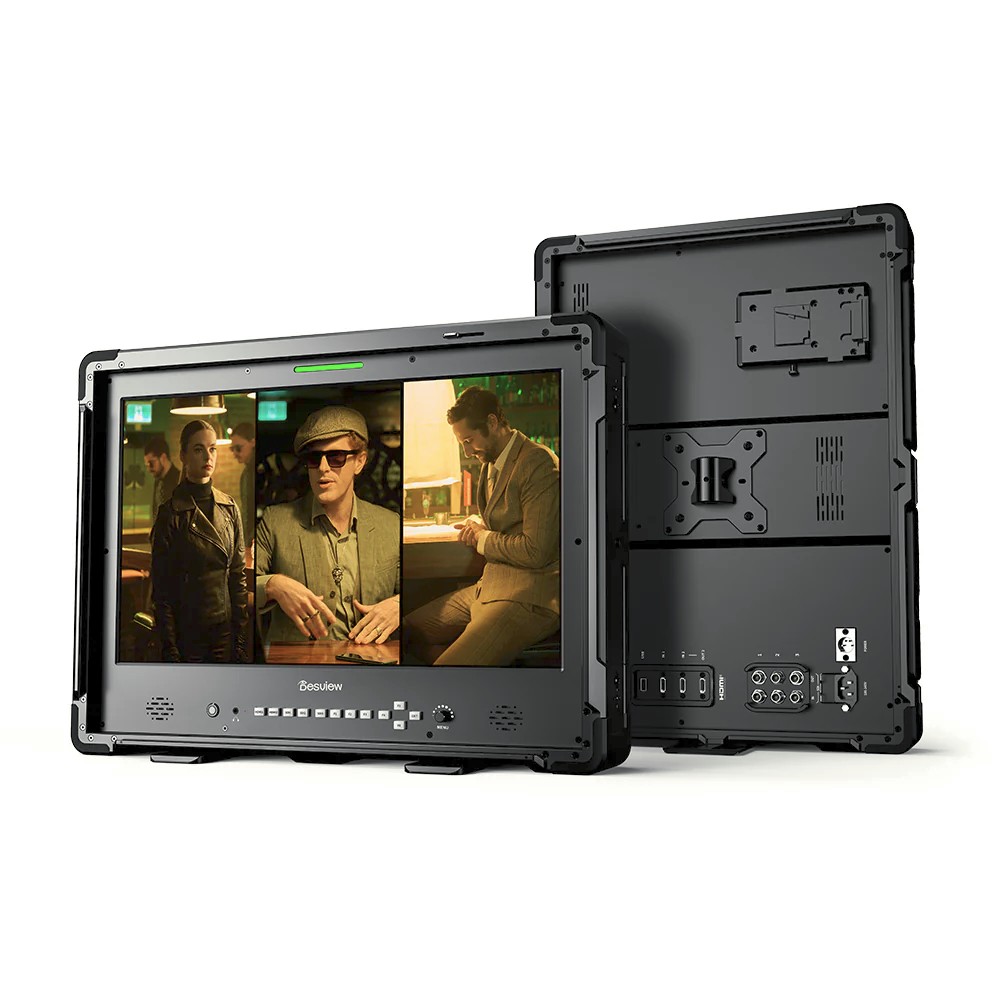

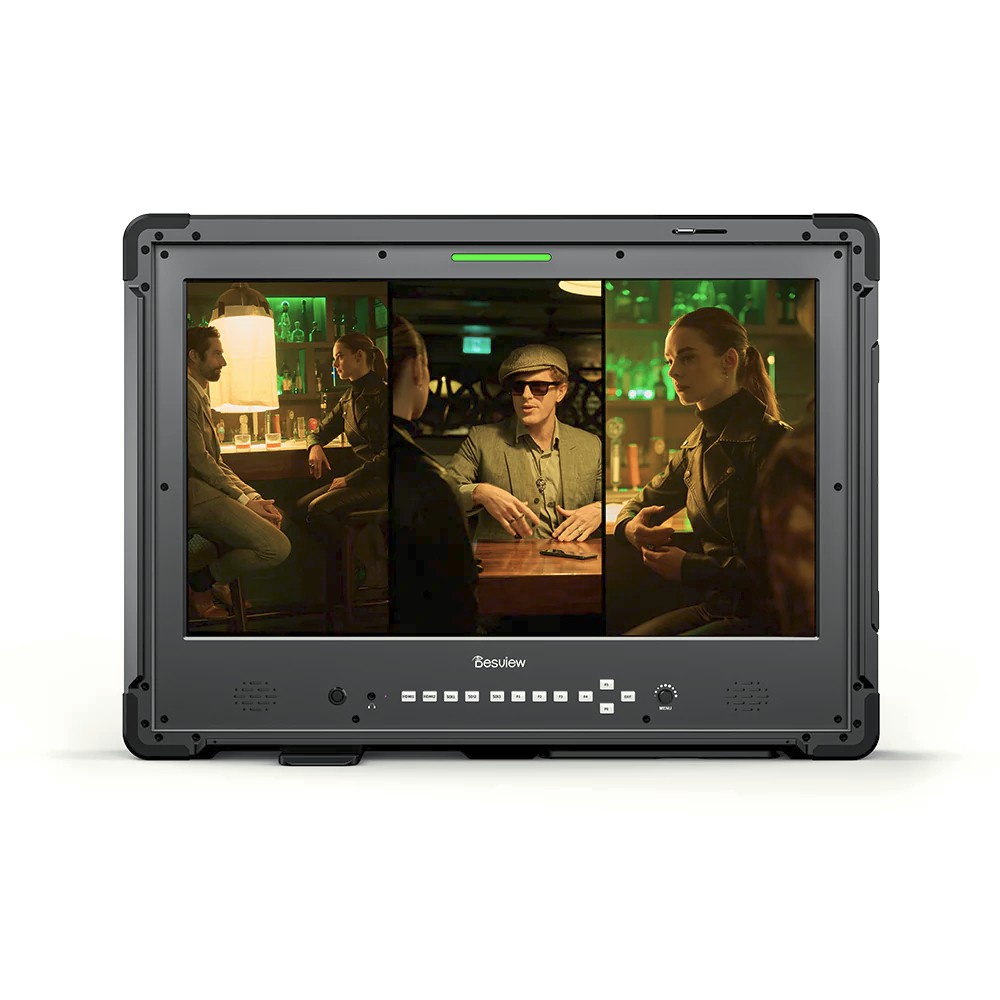

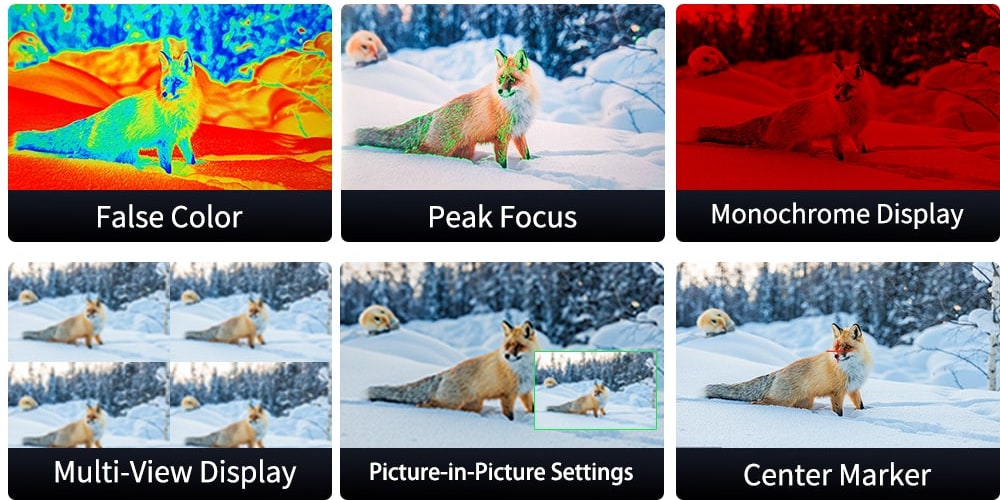

• Multi-view modes: dual, triple, quad, and PIP

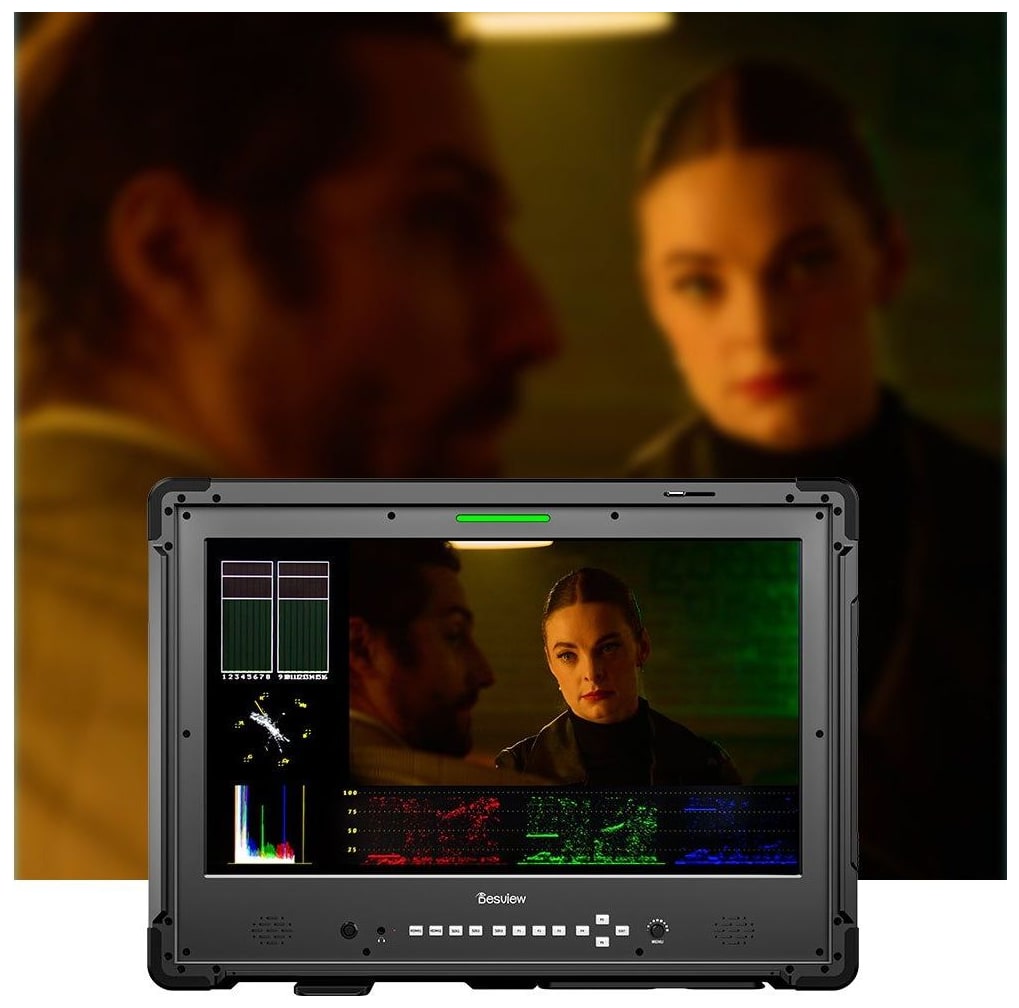

• Full waveform monitoring for HDMI and SDI
• 3G-SDI ×3 input/loop output, HDMI 2.0 ×2 input / ×1 output

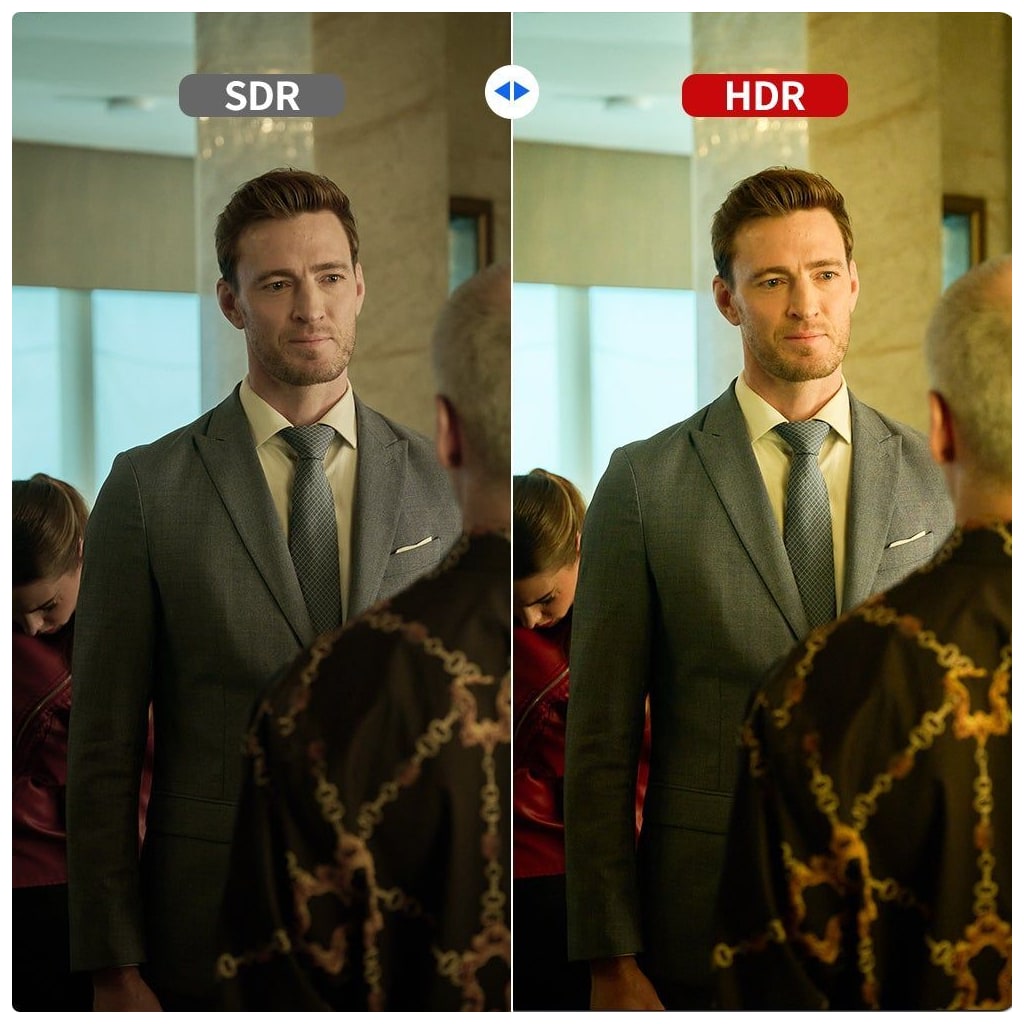

• Custom 3D-LUT support (33×33×33) and HDR monitoring
• Anamorphic de-squeeze support (1.33x, 1.6x, 2.0x, 2.35x)
• Independent control for each monitoring window
• Pressure-resistant aluminum alloy + composite housing
• Military-grade corner protection

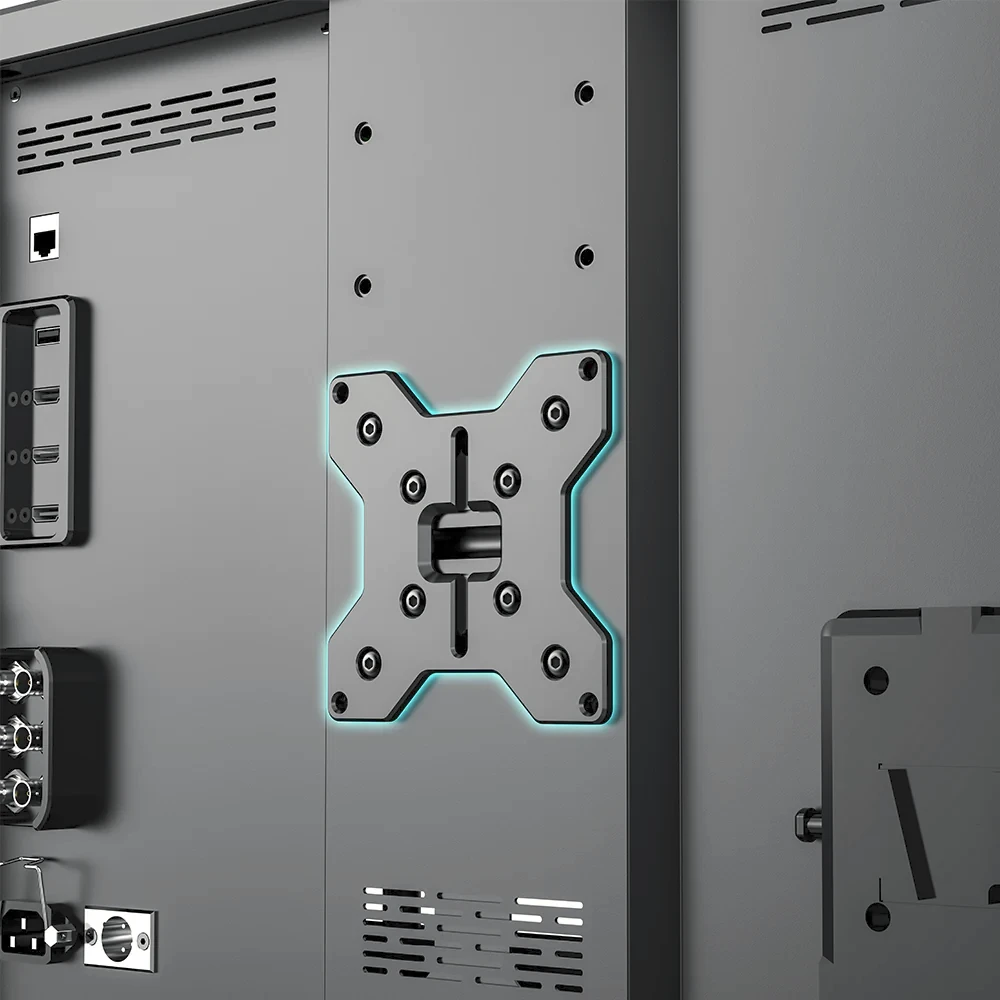

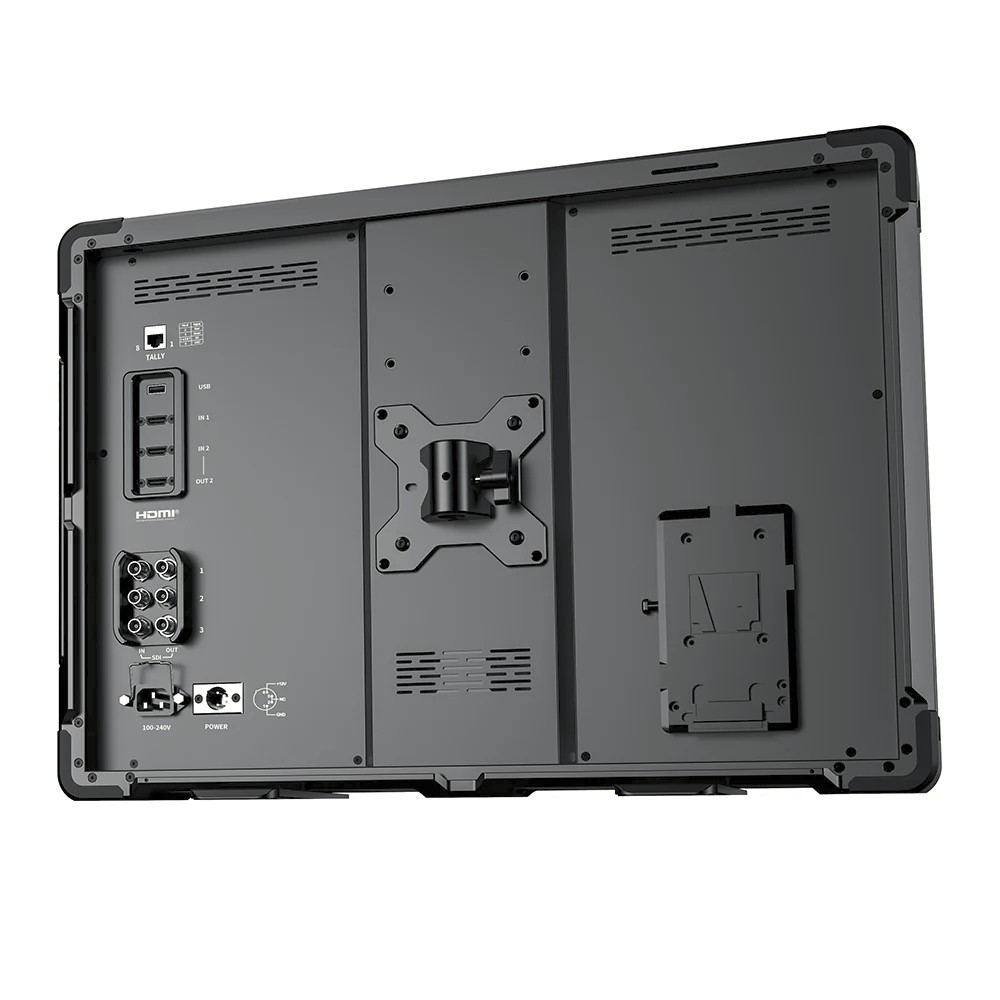

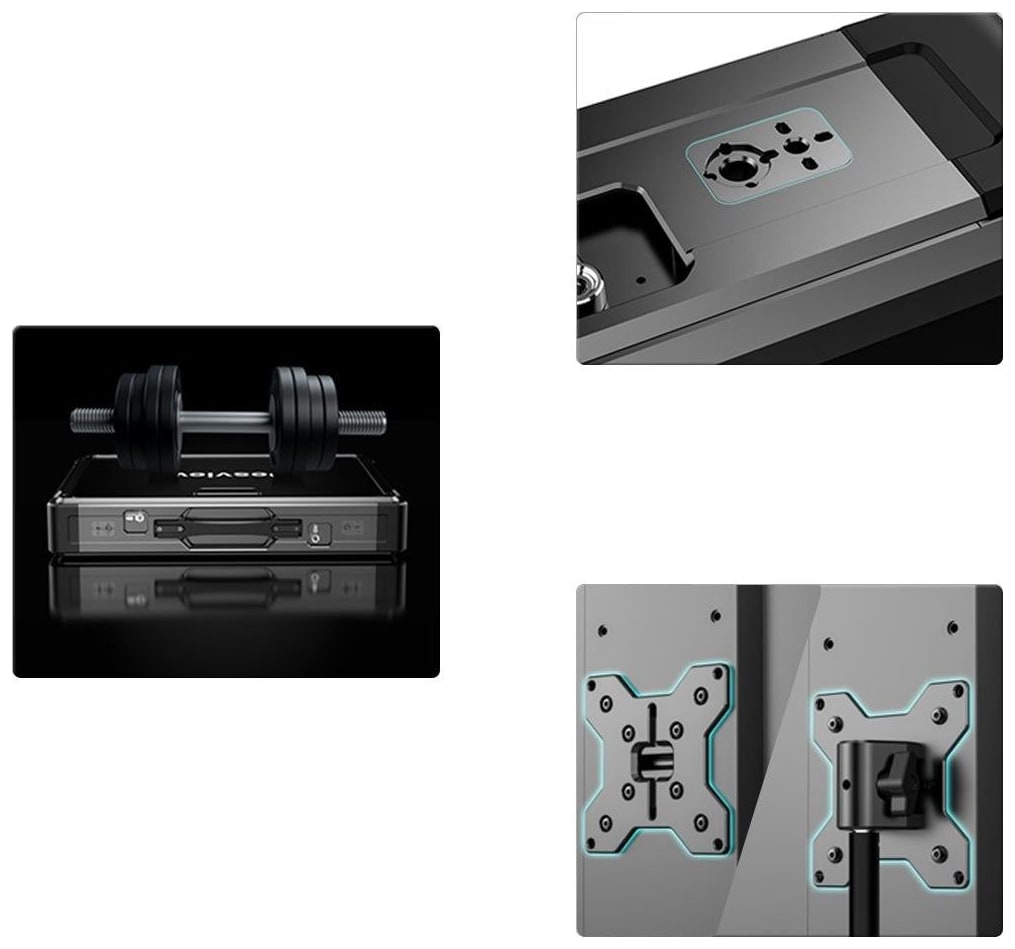

• VESA mount and multiple accessory mounting points

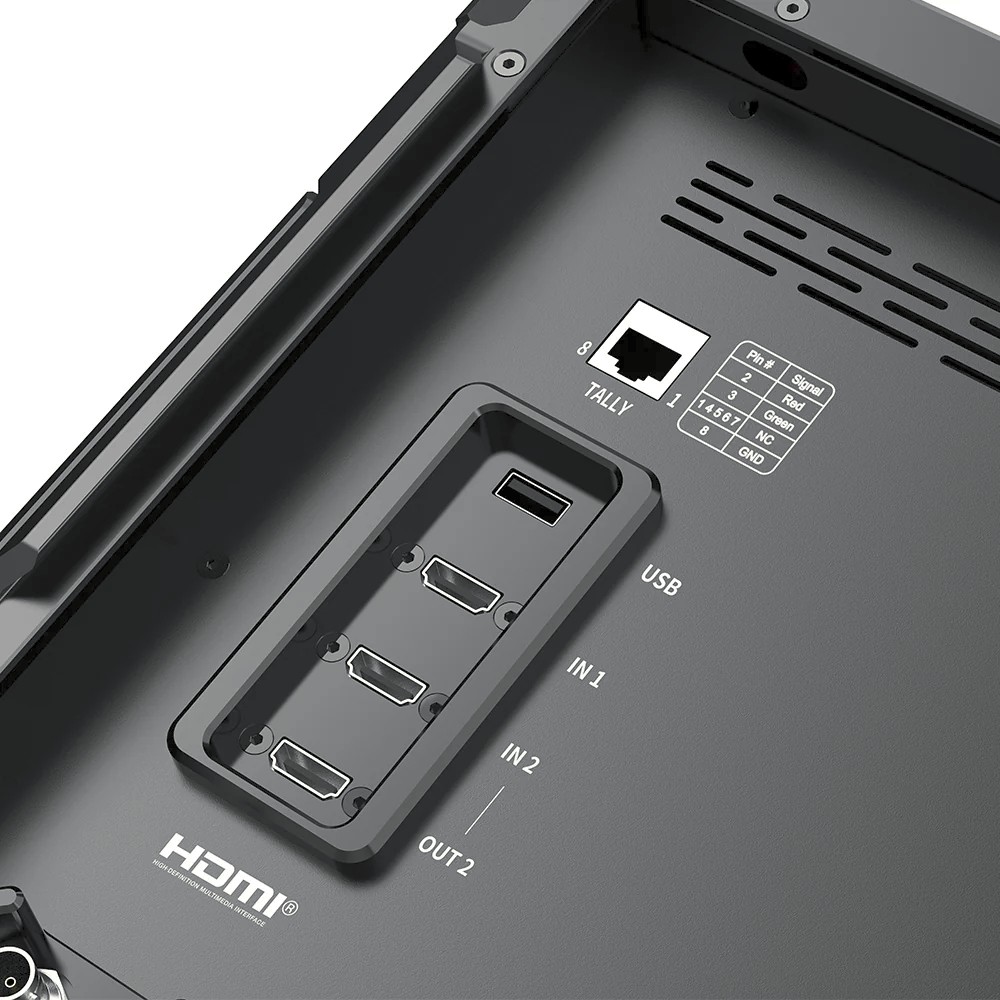

• Front tally indicator light (RJ45)

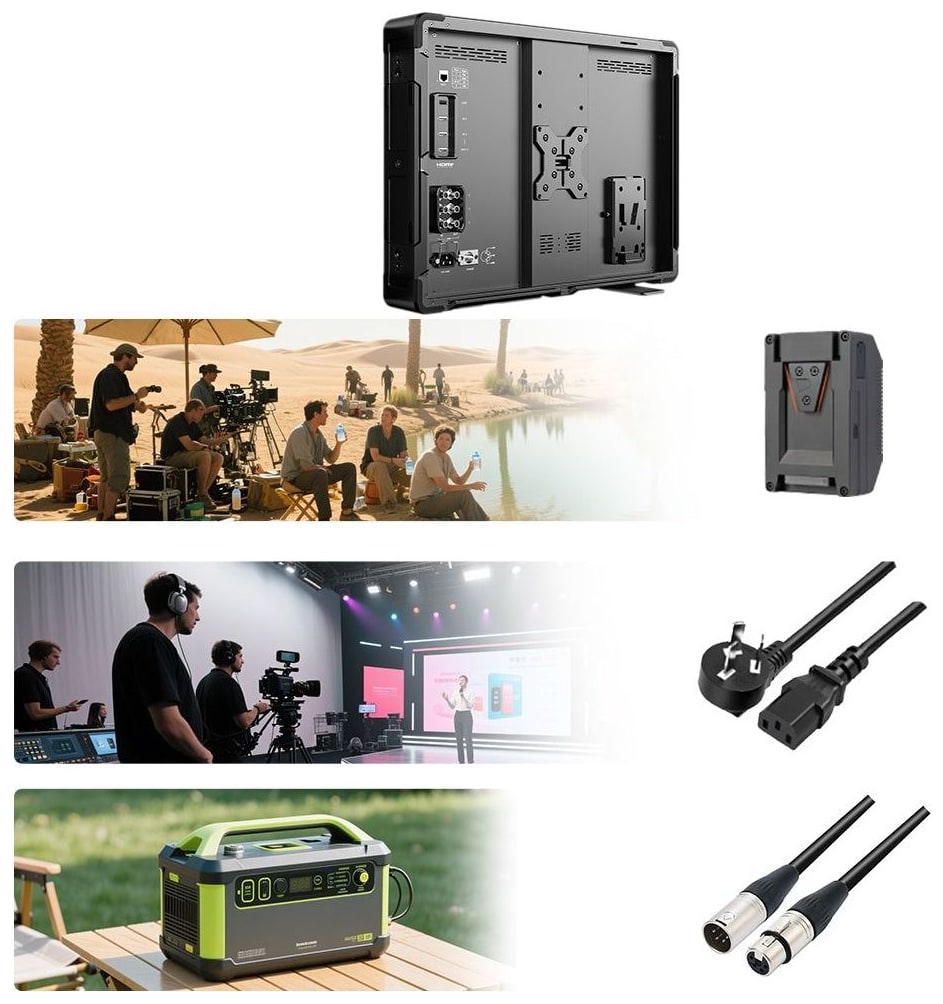

• Multiple power options: AC, XLR DC, V-mount battery
