Desview D24-HDR
SKU: des-D24HDR
The Desview D24-HDR is a 23.8" 4K UHD broadcast and director monitor with HDR support and 99.5% DCI-P3 coverage. Three HDMI 2.0 inputs (4K 60p) and two SDI inputs can be monitored in up to four windows with full waveform, histogram and vectorscope. It has a front tally light, runs on mains, an XLR adapter or a V-mount battery, and comes in a protective…
1 429 € with VAT
1 180.99 € without VAT
Availability
on request
Top accessories for Desview D24-HDR
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock 1 pcs
SmallRig X-Touch Smart Triple-Proof V-Mount Battery X99 4984
A smart 99Wh V-mount battery with a two-inch touchscreen and a companion mobile app.
353 €
In stock > 5 pcs
ZGCINE V-Mount Battery 16.8V 150WH
The ZGCINE V-Mount Battery 16.8V 150Wh is a high-capacity, multi-output power solution
230 €
In stock 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Desview D24-HDR is a 23.8" 4K UHD broadcast and director monitor with HDR support and 99.5% DCI-P3 coverage. Three HDMI 2.0 inputs (4K 60p) and two SDI inputs can be monitored in up to four windows with full waveform, histogram and vectorscope. It has a front tally light, runs on mains, an XLR adapter or a V-mount battery, and comes in a protective case with a sunshade.
D-series director monitor with 4K and HDR
The Desview D24-HDR is built for professional broadcast, live production and studio monitoring workflows where precision, flexibility and reliability are essential. Its 23.8" UHD 4K display with a resolution of 3840 × 2160 delivers clear detail, a wide 178° viewing angle and a 99.5% DCI-P3 colour gamut for accurate colour reproduction. HDR monitoring support provides enhanced dynamic range with richer highlights, deeper shadows and more natural tonal transitions.

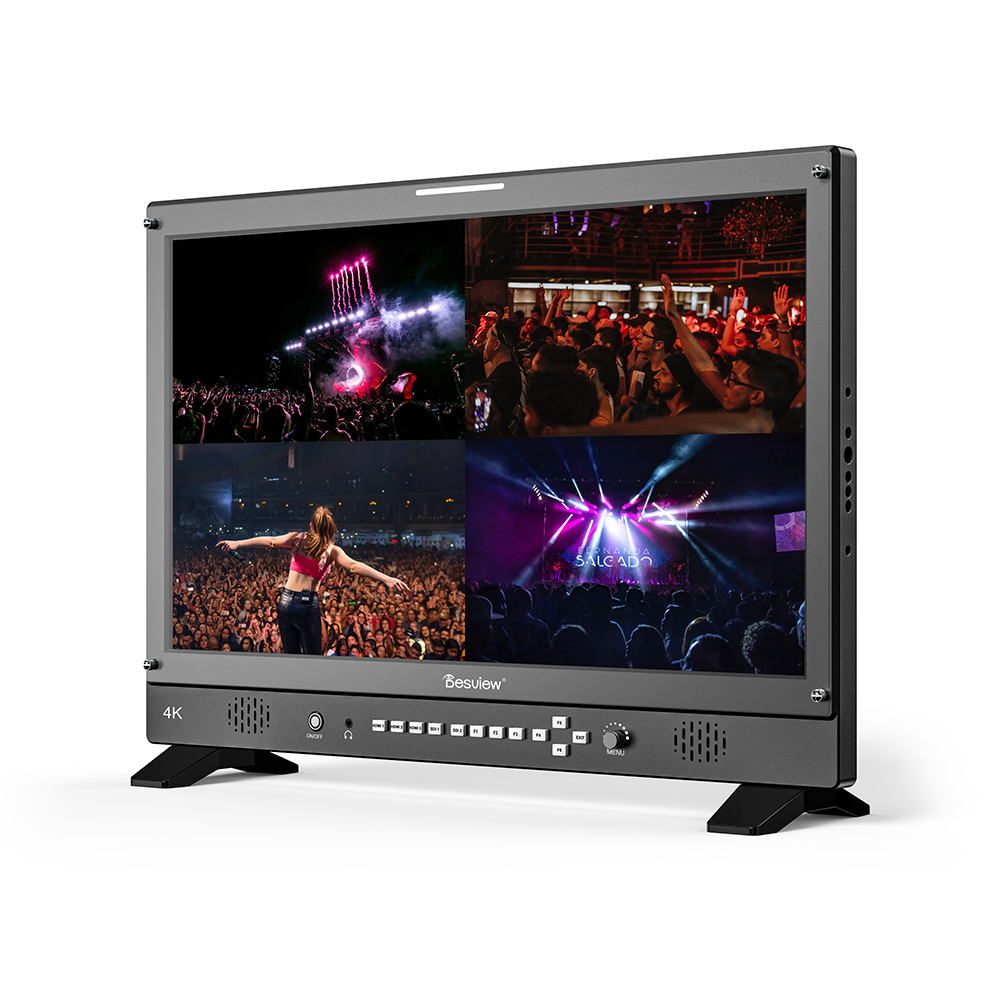

Multi-view mode – convenient simultaneous monitoring
The screen can be set to single, dual, triple or quad view and supports picture-in-picture mode to meet different monitoring needs.
H in the layout name stands for a horizontal picture and V for a vertical one – layouts with vertical windows suit short vertical videos.
Full waveform monitoring – precise control of picture quality
Built-in full waveform monitoring uses waveform diagrams to help you better understand and analyse the quality of the video signal.

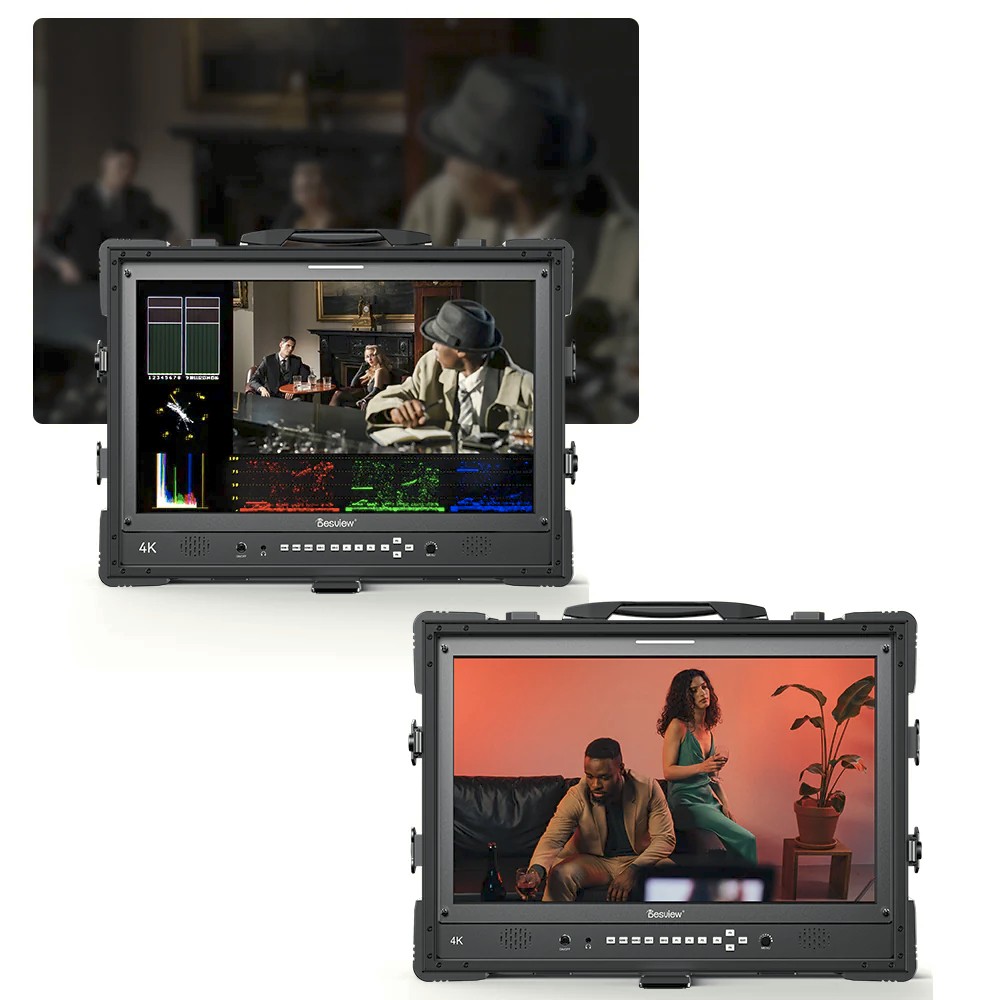

Safety protection upgraded
To better meet the high standards of film and television production, Desview has completely upgraded the protective case of its D-series director monitors. The well-thought-out design makes work on set more efficient.

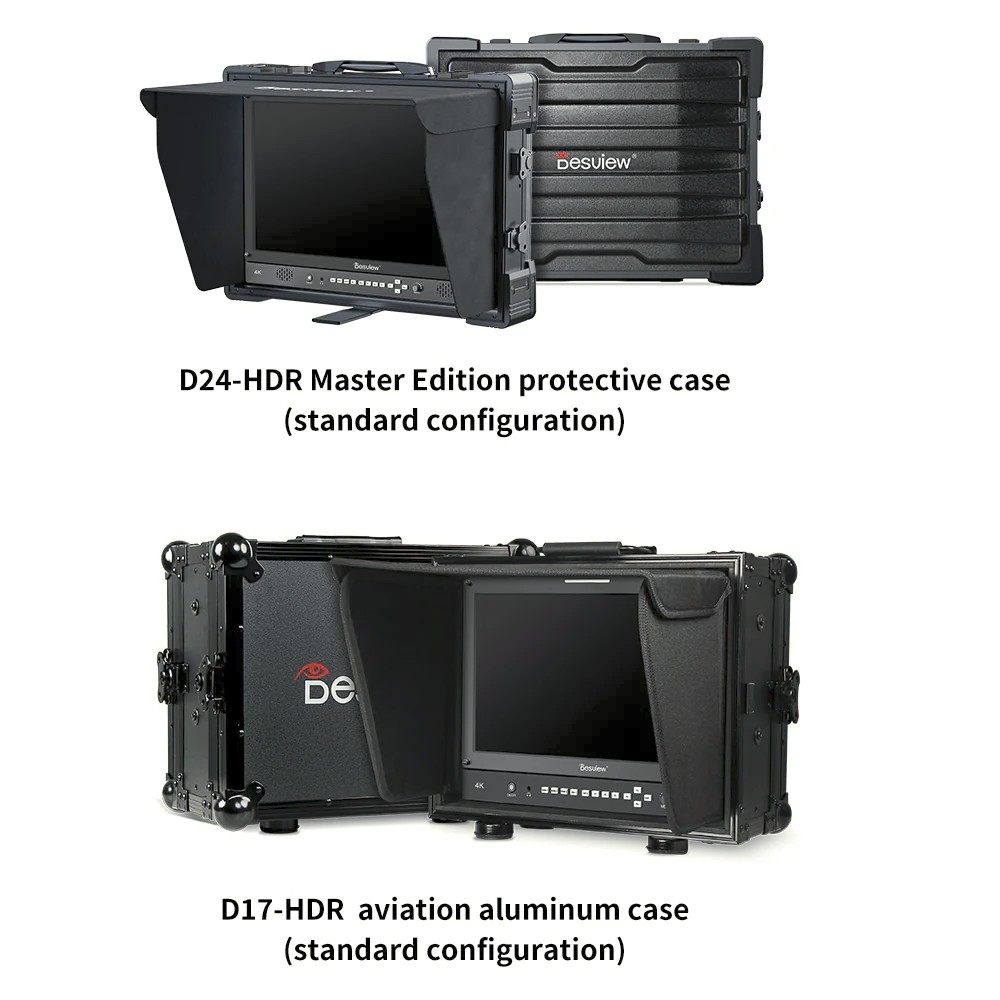

All-in-one protective case, revolutionary efficiency
The flip-cover quick-access design responds to shooting needs in 3 seconds. A built-in wireless transmission mounting module and accessory storage zones support moves without dismantling, so the setup is ready to use straight out of the box.
Vertical monitoring in one step
D-series monitors in the new protective case easily stand upright for vertical monitoring without the need to buy a support bracket.
Quick-install light stand mounting for mobile monitoring
The rear VESA interface enables instant mounting on light stands, providing fast and stable monitoring for vertical short dramas, live streams and multi-camera transitions.
Long-lasting durability with controllable costs
Aviation-grade wear-resistant and corrosion-resistant materials withstand high-intensity handling and multi-location transitions, extending the equipment life cycle with lower maintenance costs.
All-purpose expansion interfaces
The top of the protective case integrates six 1/4" threads, two 3/8" threads and two cold-shoe interfaces, compatible with multi-device operation and meeting the needs of complex shooting scenarios.
Full-scenario transport compatibility
The protective case complies with air-transport standards, assisting seamless cross-region shooting.
4K ultra-clear resolution – detailed display before your eyes
A resolution of 3840 × 2160 shows even fine picture details clearly for a high-quality visual experience.
- 1000:1 contrast ratio
- 400 nits brightness
- 4K UHD resolution
- 178° (H/V) viewing angle
99.5% DCI-P3 – vivid and colourful
A large screen with a professional colour gamut and wide viewing angle – no colour shift when viewed from any angle.
Built-in BT.2020, SMPTE-C, Rec.709 and DCI-P3 colour spaces adapt to different video production workflows.
4K HDR monitoring – fusion of light and dark with true-to-life colours
HDR monitoring support brings richer colours and natural transitions, faithfully reproducing the texture of the picture.

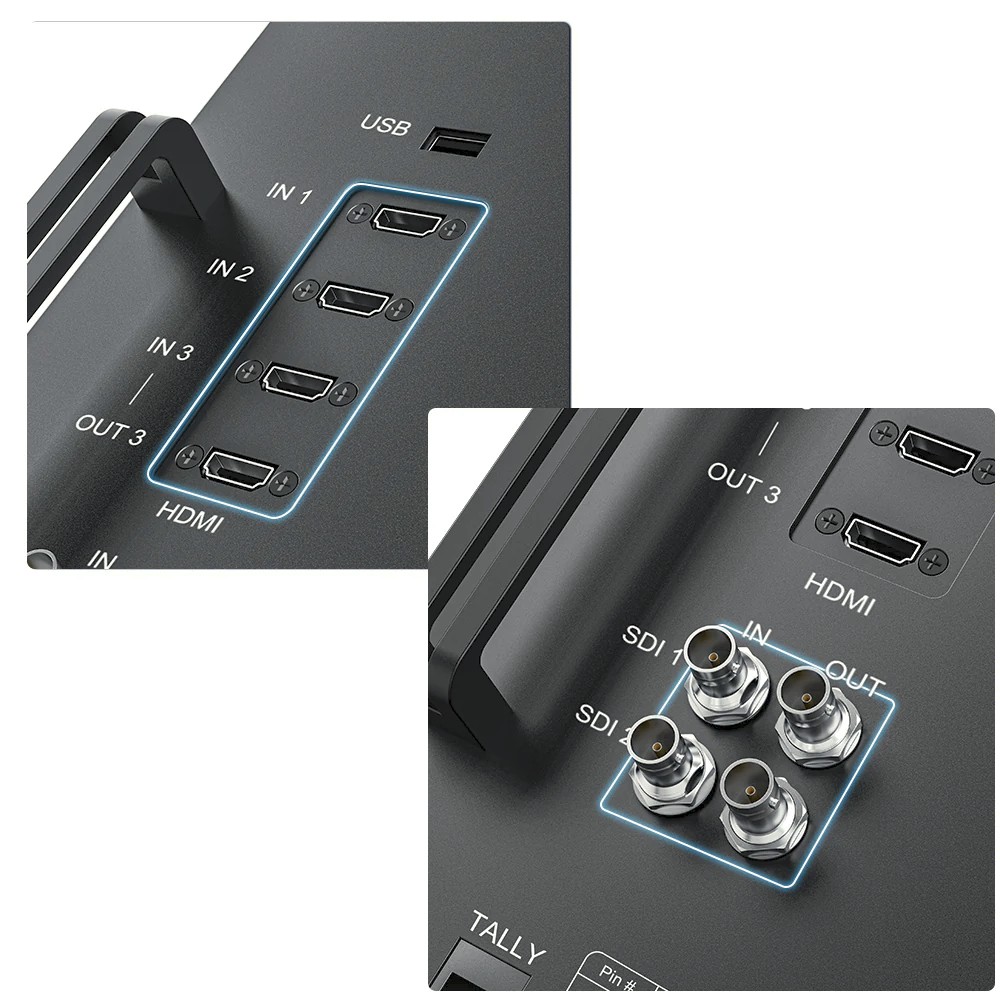

4K 60 Hz HDMI – three inputs and one output
Three 4K 60p HDMI signal inputs and one output transmit the picture without loss, making it smoother and clearer.
SDI input and output – professional creation starts here
Two SDI inputs and two SDI loop outputs provide flexibility and diversity for your creations. Easily connect multiple devices and unlock unlimited creative possibilities.
Three power supply modes for long-lasting power
The monitor supports V-mount batteries, an AC power cord and an XLR power adapter. Three different power supply modes adapt to the shooting needs of different scenes.

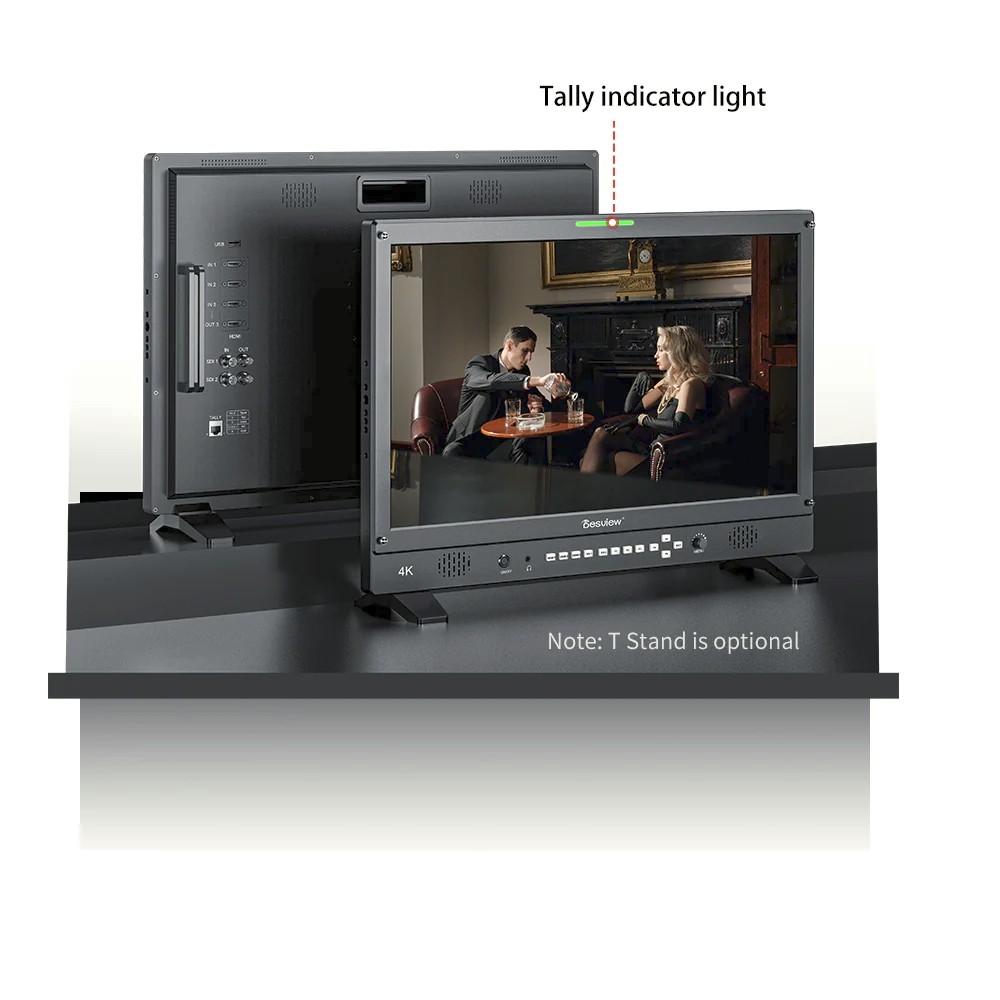

Tally light
The front tally light provides three different colour signals: red, green and blue. The T stand shown is optional.

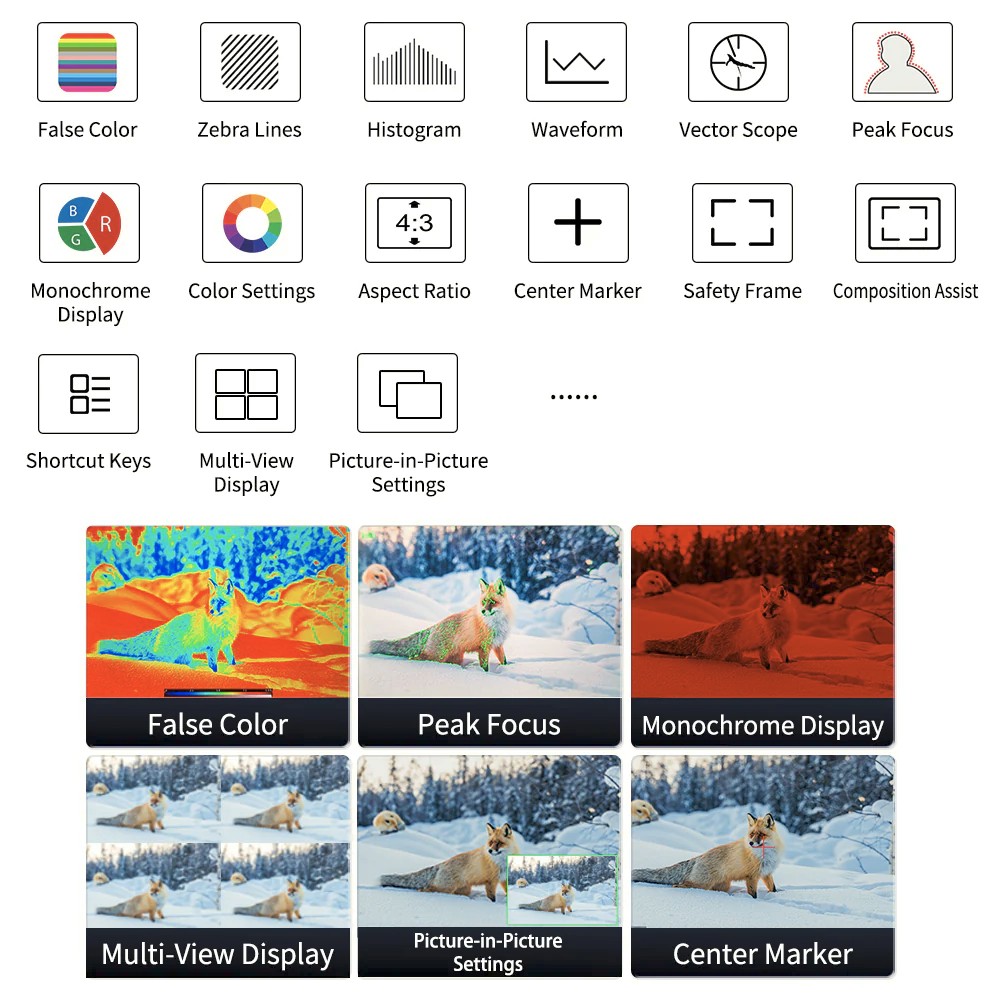

Professional auxiliary functions
Built-in histograms, waveform and vectorscope intuitively display light, shade and colour conditions, allowing you to observe every frame and achieve the best results. False colour, zebra lines, peak focus, monochrome display, colour settings, aspect ratio, centre marker, safety frame, composition assist, shortcut keys, multi-view display and picture-in-picture settings are also available.
More information
Designed for advanced production setups, the D24-HDR supports multi-view monitoring in horizontal and vertical orientation, adapting to various shooting scenarios. It offers three HDMI 2.0 inputs and one HDMI output for 4K 60p signals, along with professional SDI inputs and outputs for broadcast-grade signal transmission. Built-in full waveform monitoring, histogram and vectorscope allow precise control of exposure, colour and image quality. With a front tally light and multiple power options – V-mount battery, AC power cord and XLR input – the Desview D24-HDR is a robust solution for directors, engineers and production teams.
Key features
- 23.8" UHD 4K (3840 × 2160) professional broadcast monitor
- HDR monitoring support for enhanced dynamic range
- 99.5% DCI-P3 colour gamut
- wide 178° viewing angle (horizontal and vertical)
- multi-view monitoring in horizontal and vertical orientation
- three HDMI 2.0 inputs and one HDMI 2.0 output (4K 60p)
- SDI inputs and outputs for professional workflows
- full waveform monitoring, histogram and vectorscope
- front tally light with red, green and blue signals
- multiple power options for studio and field use
- protective case included
PACKAGE CONTENT
- D24-HDR monitor – 1×
- AC power cord – 1×
- HDMI cable – 1×
- dust cloth – 1×
- user manual and warranty card – 1×
- protective case – 1×
- sunshade – 1×
SPECIFICATIONS
- Model: D24-HDR
- Size: 23.8" IPS LCD
- Brightness: 400 nits
- Resolution: 4K UHD (3840 × 2160)
- Colour gamut: 99.5% DCI-P3
- Contrast ratio: 1000:1
- Colour depth: 10-bit (8-bit + 2 FRC)
- Viewing angle: 178° (H/V)
- Aspect ratio: 16:9
- Backlight: LED
- HDMI input: 3× HDMI 2.0 (4K 60p)
- HDMI output: 1× HDMI 2.0
- SDI input: 2×
- SDI output: 2× loop out
- Audio output: 3.5 mm stereo
- Data interface: USB 2.0
- Tally: RJ45
- Power supply: AC power cord, XLR power adapter, V-mount battery
- Speakers: 2× (2 Ω, 8 W)
- Case material: aluminium alloy
- Operating temperature: 0–50 °C
- Storage temperature: −20 to 60 °C
Parameters
Parameters
| Manufacturer: | Desview |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 4K DCI/UHD up to 60p |
| Size | 23.8" |
| Monitor inputs | HDMI · SDI · HDMI 2.0 |
| Luminosity | 400cd/m2 |
| Panel resolution | 3840x2160 |
| For monitor | Broadcast production |
| Monitor power supply | V-Mount · 12V XLR · AC 100-240V |
Other parameters
| Tally | Yes |
| Other features | HDR · Vectorscope · Multi-screen modes (single/dual/triple/quad) · 99.5% DCI-P3 · IPS panel |
| High Brightness | No |
