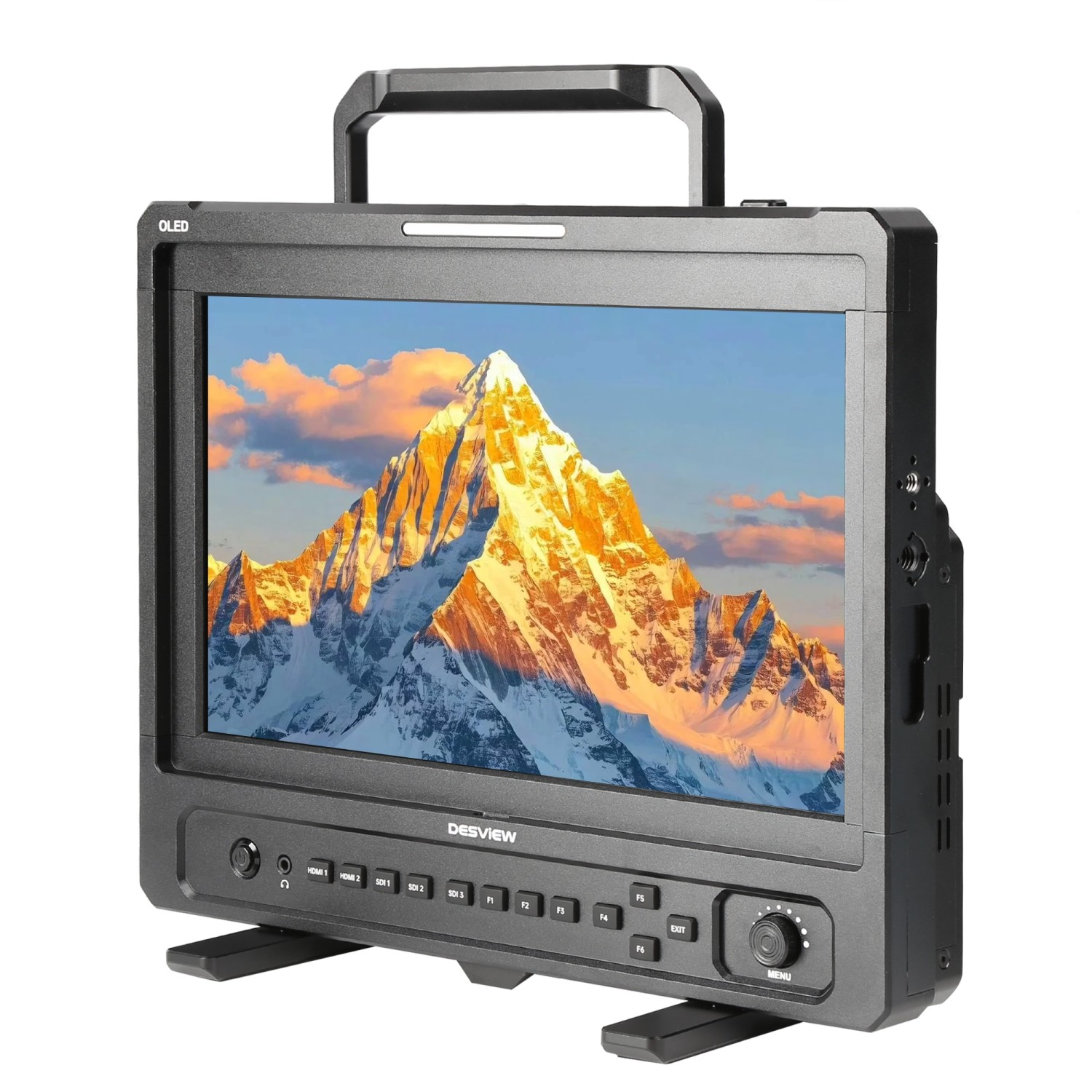

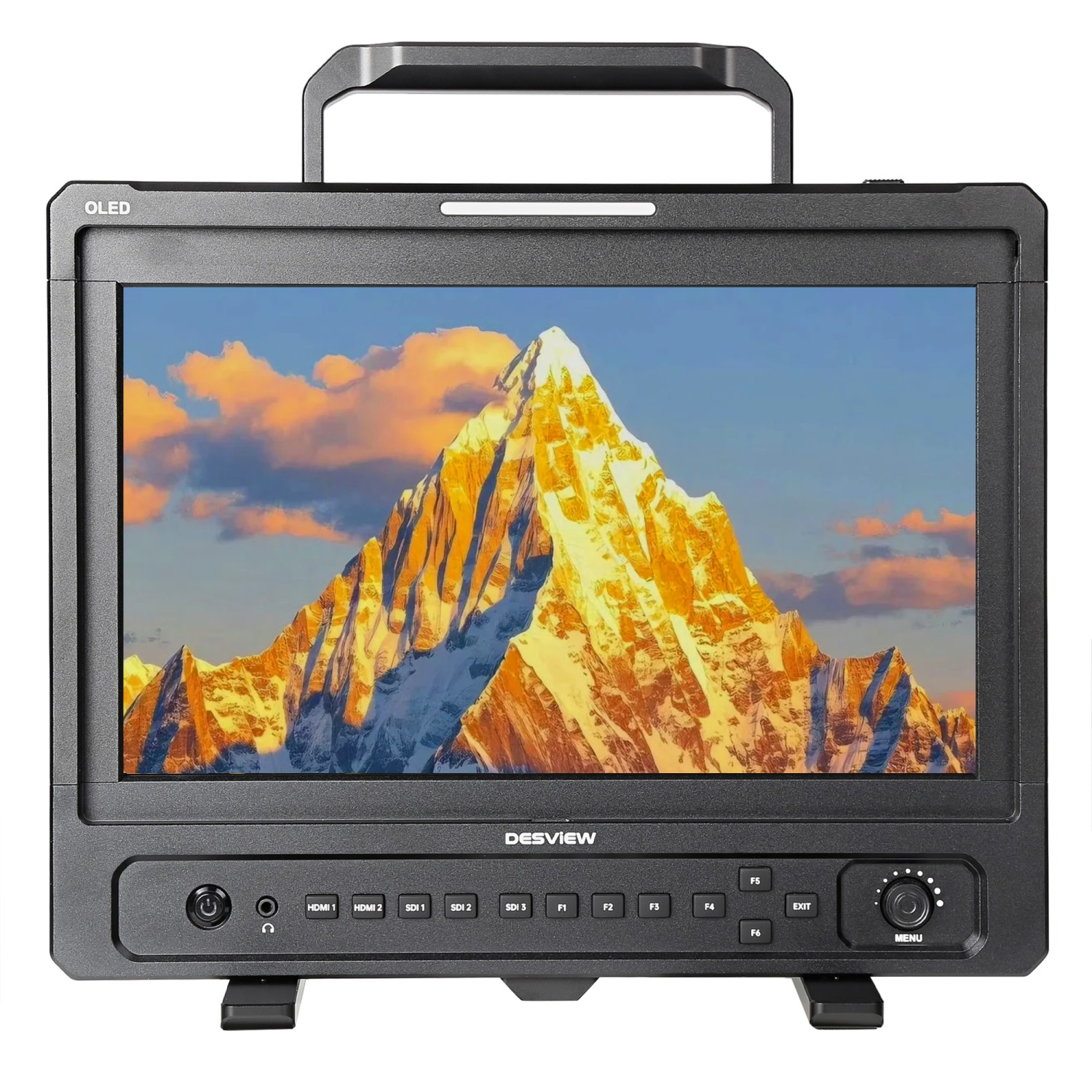

Desview Core OL14 Pro

The Desview Core OL14 Pro is a 14-inch AMOLED production monitor with 1920 × 1080 resolution, 1200 nits peak brightness, a 100,000:1 contrast ratio and 100% DCI-P3 coverage. Two 4K 60 Hz HDMI inputs, three 3G-SDI inputs and outputs, 3D LUT support, waveform and anamorphic de-squeeze make it a dependable reference for directors, camera operators and smaller multi-camera setups.

Core series performance in a compact body. Every pixel of the AMOLED display emits its own light, so blacks stay black and colors remain true even from an angle. The monitor is carried by its top handle, runs on a V-mount battery in the field and on the adapter in the studio.

True color on 14 inches

AMOLED with 1.074 billion colors, 400 nits typical brightness and a 100,000:1 contrast ratio renders even subtle color differences accurately – vivid, clean and sharp.

14" AMOLED1920 × 10801200 nits2× HDMI 4K603× 3G-SDI

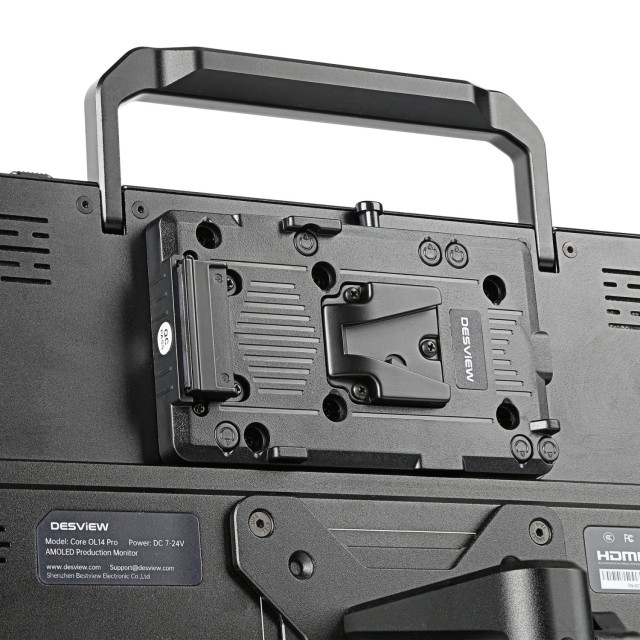

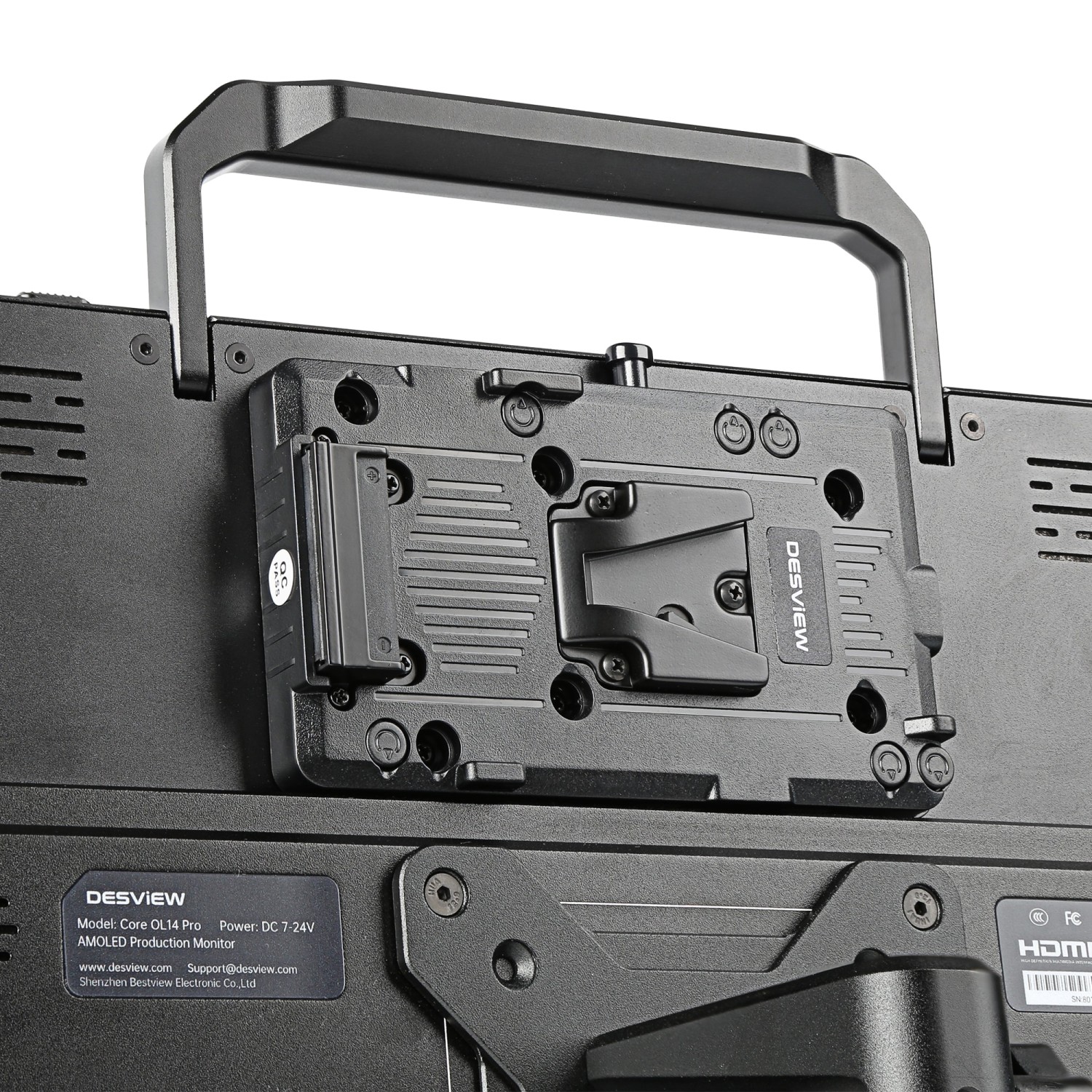

V-mount battery power

The V-mount plate on the back powers the monitor without a cable. In the studio, use the adapter on the locking DC jack or 4-pin XLR power instead.

Tally, USB and three power outputs

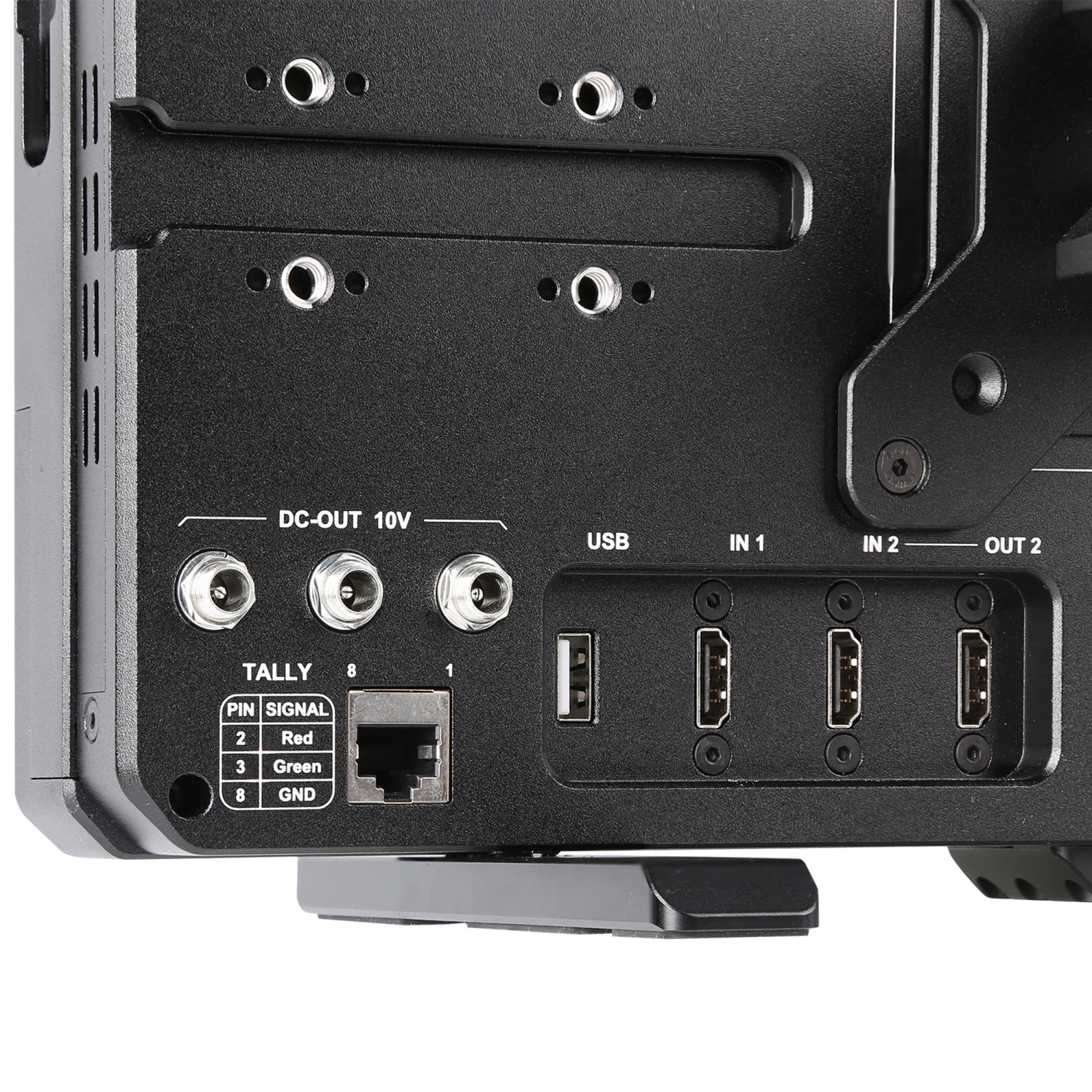

The rear offers an RJ45 tally port, a USB port, two HDMI inputs with a loop-out of the second channel and three locking 5.5 × 2.1 mm DC outputs for other gear.

1200 nits – visible in any light

The display stays readable even in direct sunlight, with no lost detail in highlights or shadows outdoors.

3D and creative LUTs

Loads 3D LUTs from Calman, ColourSpace and other tools as well as creative LUTs to check exposure, skin tones and the look right on set.

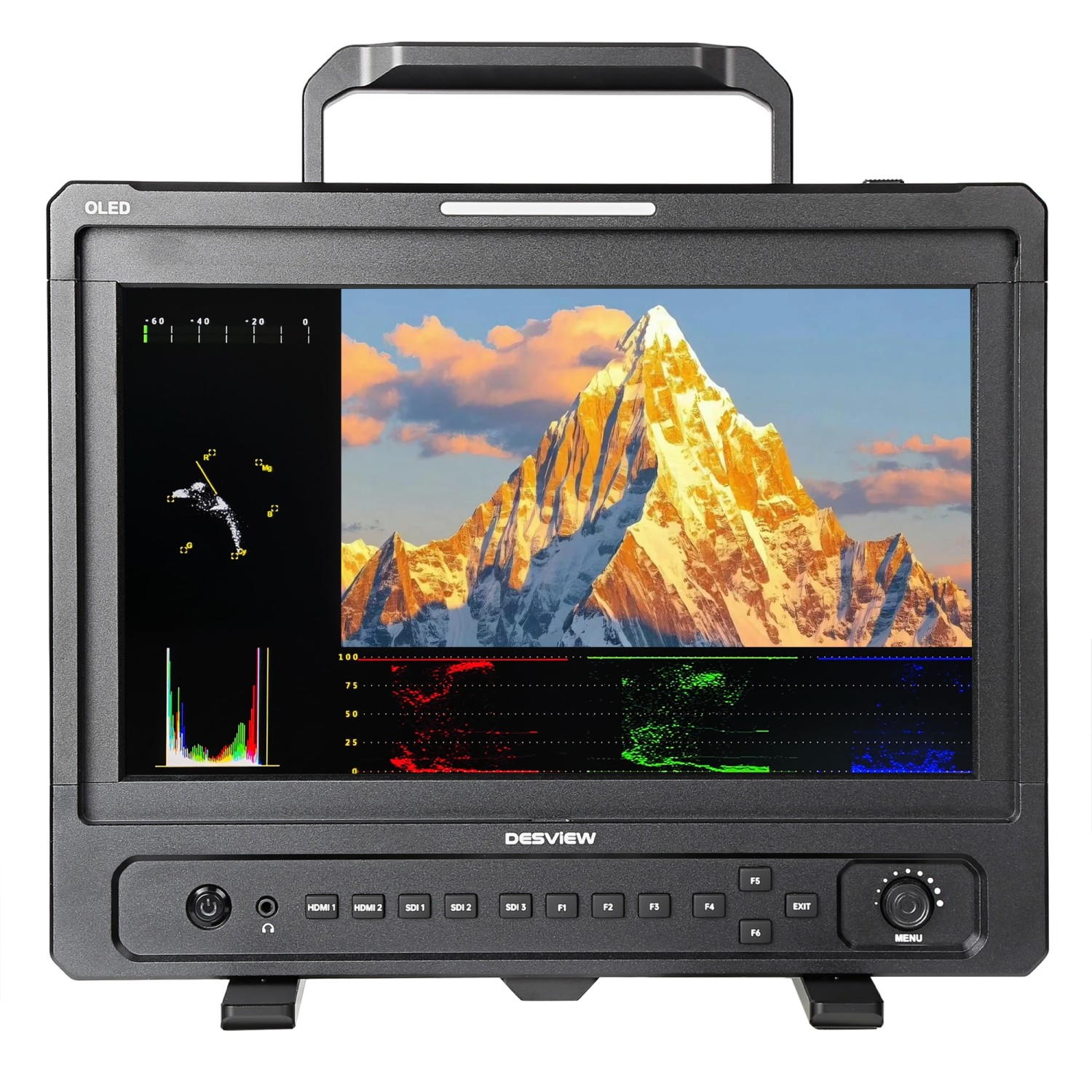

Waveform and vectorscope

A finer waveform, histogram and vectorscope help you keep exposure, contrast and white balance in check in real time.

Anamorphic de-squeeze

1.33×, 1.6×, 2.0× and custom ratios restore the correct proportions of anamorphic footage without an external converter.

Loop-out ports

HDMI and SDI loop-outs pass the signal on to further monitors, so directing, camera, lighting and sound crews all watch the same picture.

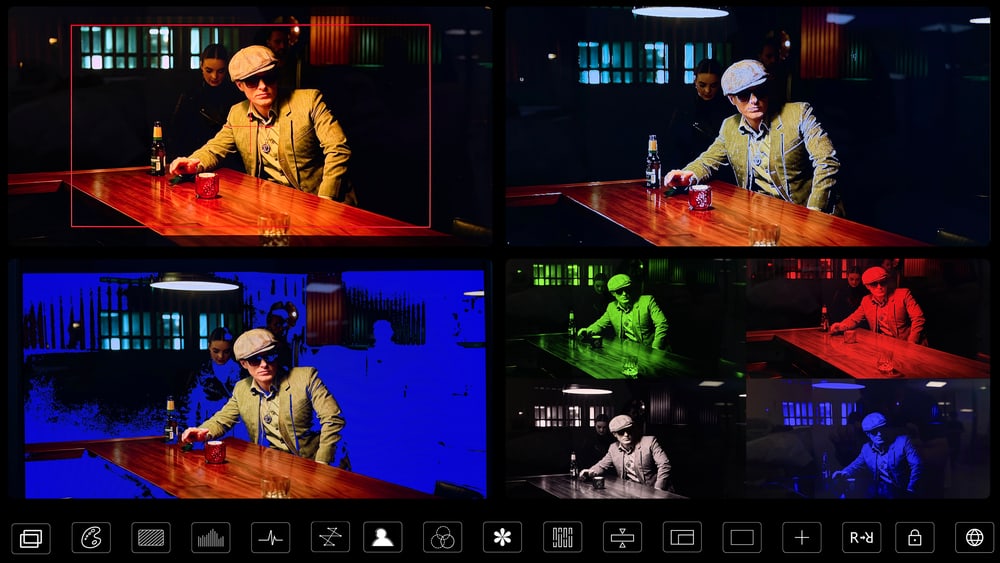

Pro assist tools on demand

Histogram, waveform and vectorscope combined in one view show brightness distribution, contrast and white balance in real time, so camera operators can quickly judge exposure compensation and highlight and shadow detail and avoid over- or underexposure.

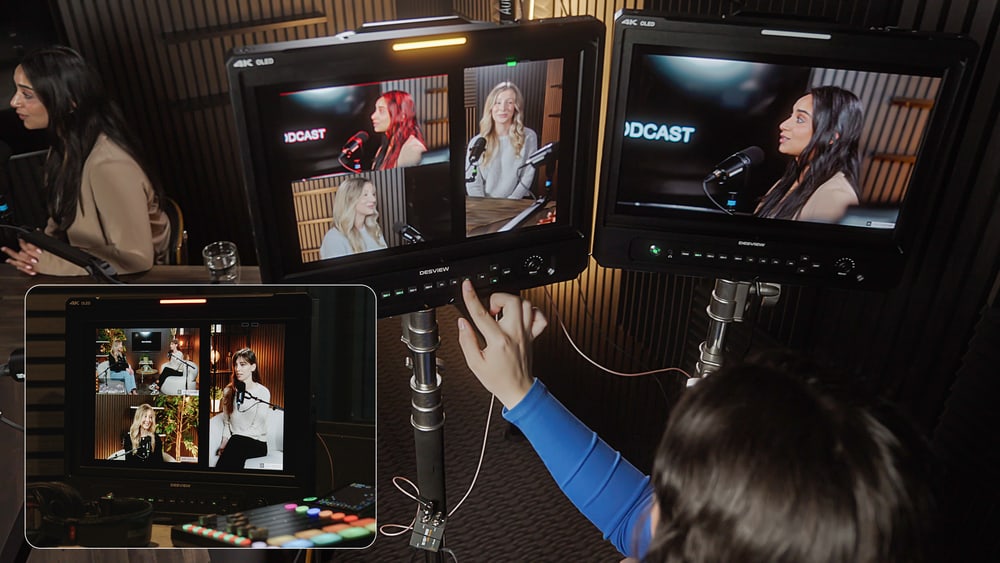

One screen, every angle

HDMI and SDI loop inputs and outputs daisy-chain further monitors without quality loss, so every crew station watches a synchronized feed with no latency or mismatch. In multi-view mode, a single display also shows several sources at once.

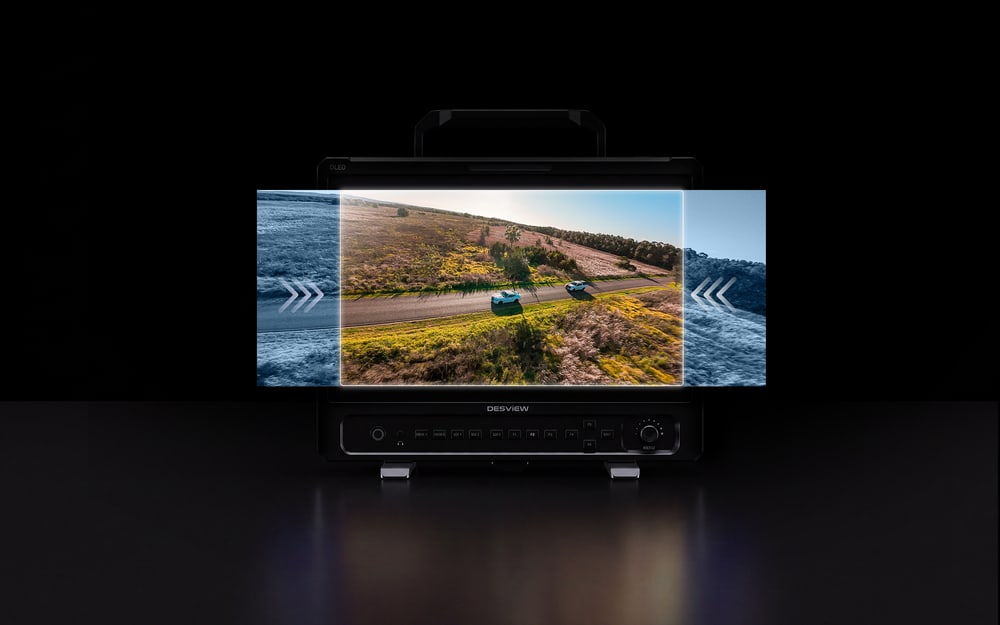

Real-time anamorphic de-squeeze

De-squeeze factors of 1.33×, 1.6× and 2.0× plus custom ratios restore true widescreen proportions on set, improving framing accuracy without an external converter.

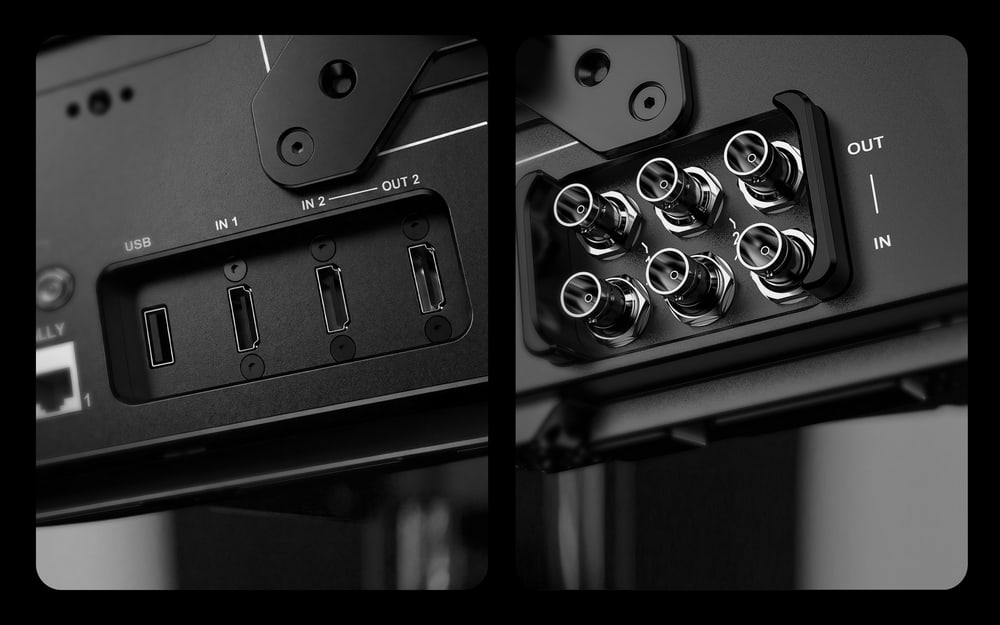

Broadcast-grade interfaces

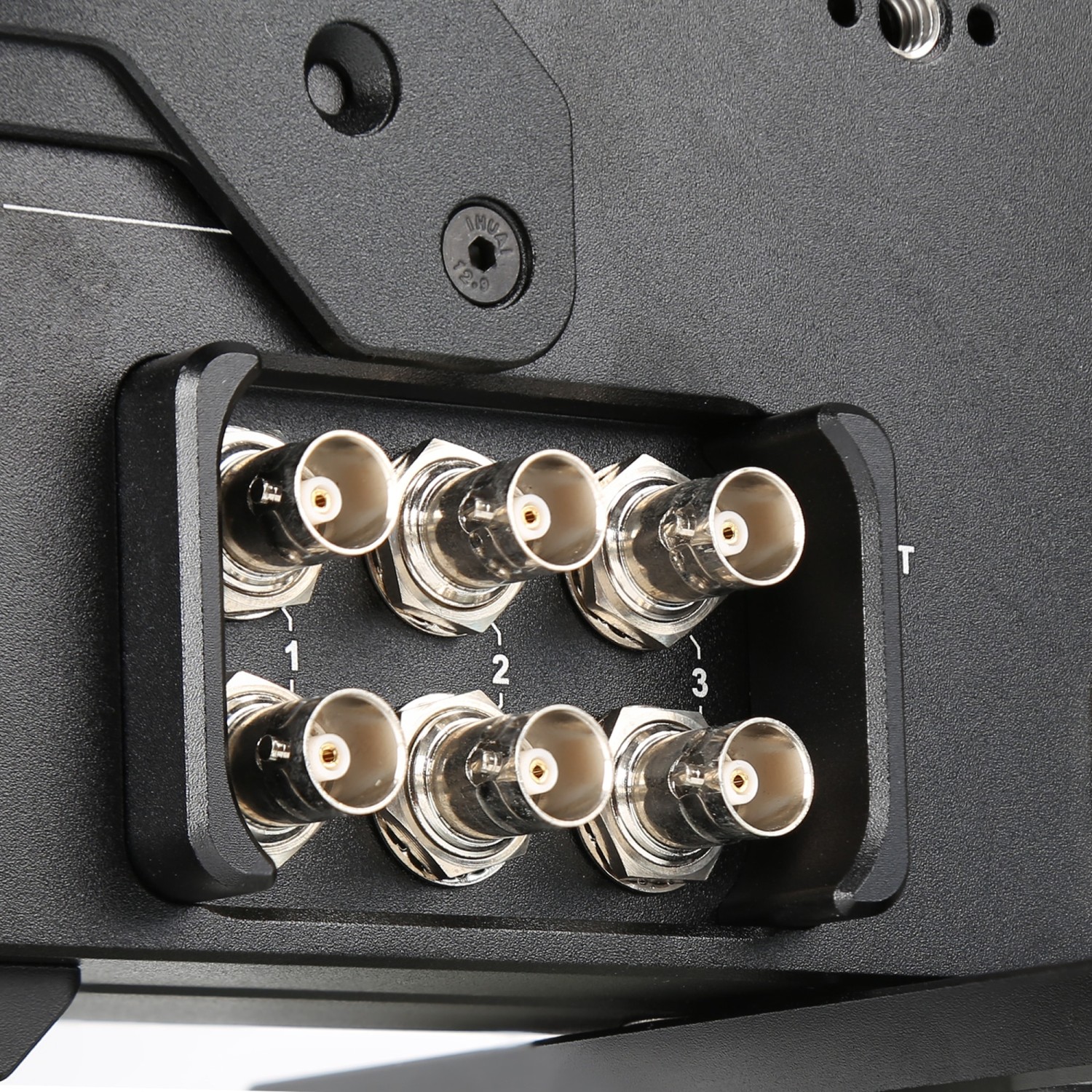

Two HDMI inputs with 4K 60 Hz signal (the second channel has a loop-out) and three 3G-SDI inputs and outputs provide reliable connectivity in a professional setup.

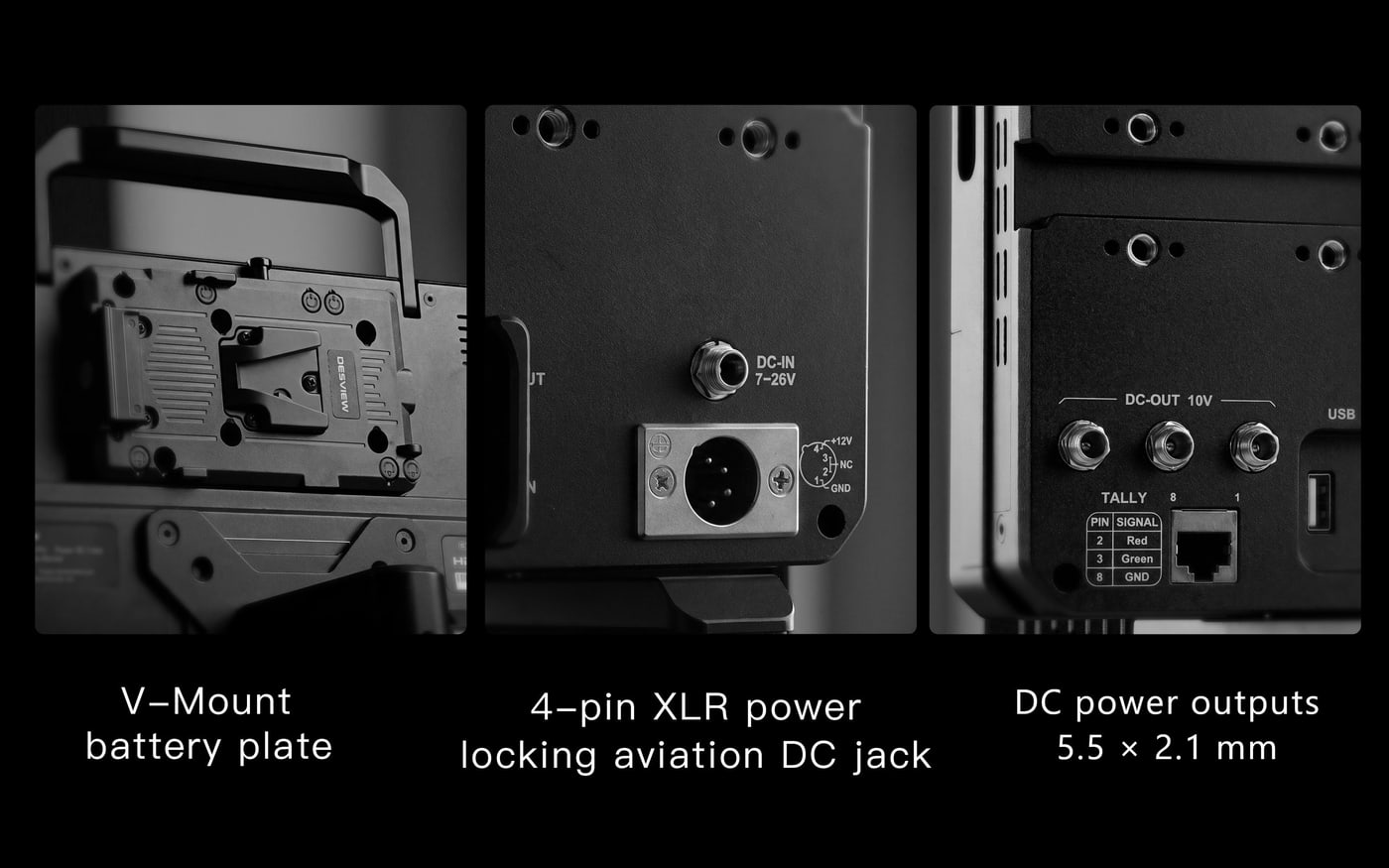

Power in, power out

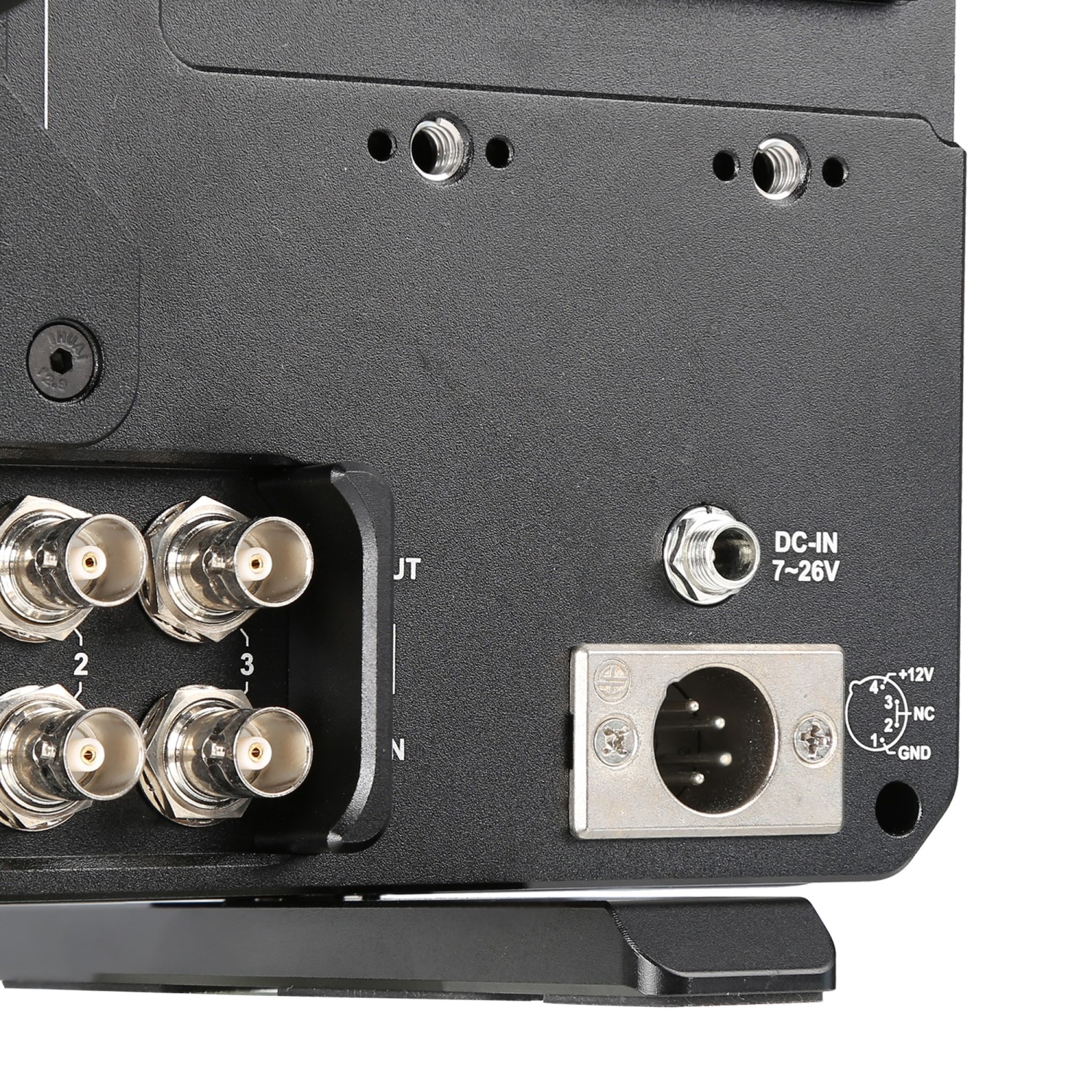

The monitor is powered via 4-pin XLR or a locking 5.5 × 2.1 mm DC jack, and from a V-mount battery in the field. Three locking 5.5 × 2.1 mm DC outputs power other gear on set.

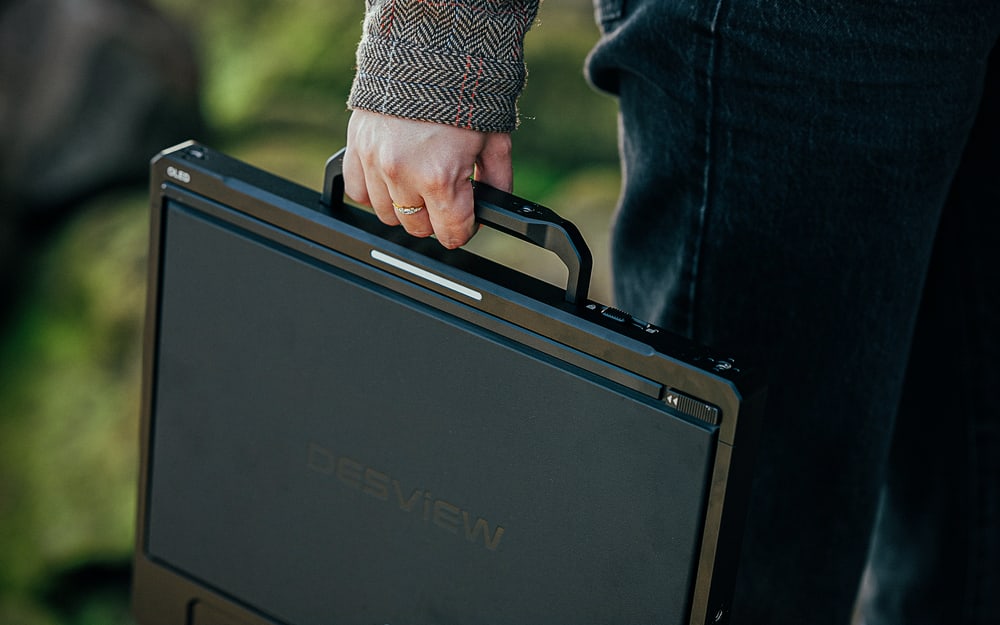

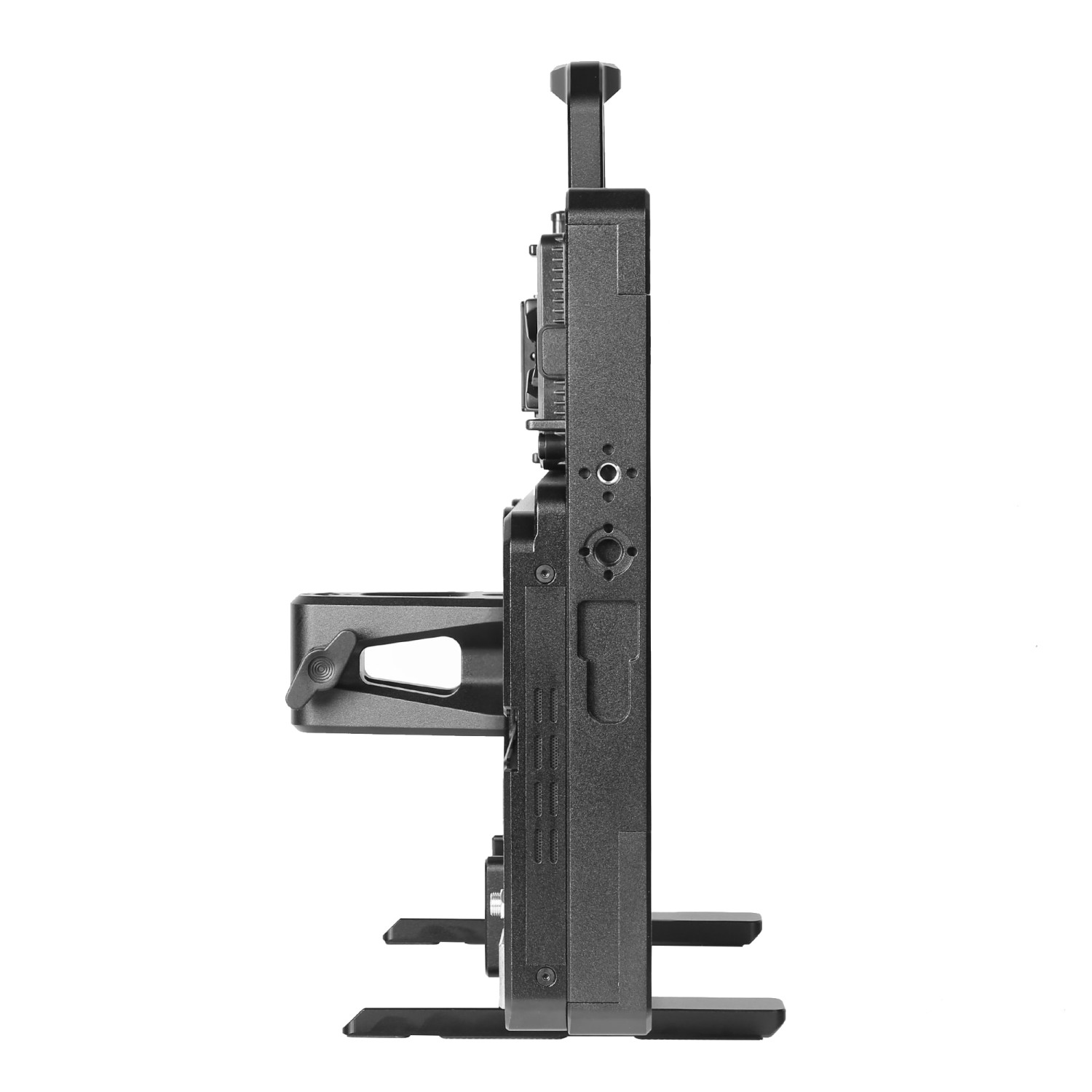

Aerospace aluminum, featherlight

The aerospace-grade aluminum alloy body increases structural strength while staying lightweight. It dissipates heat well, and the thin profile makes moving around the set easier.

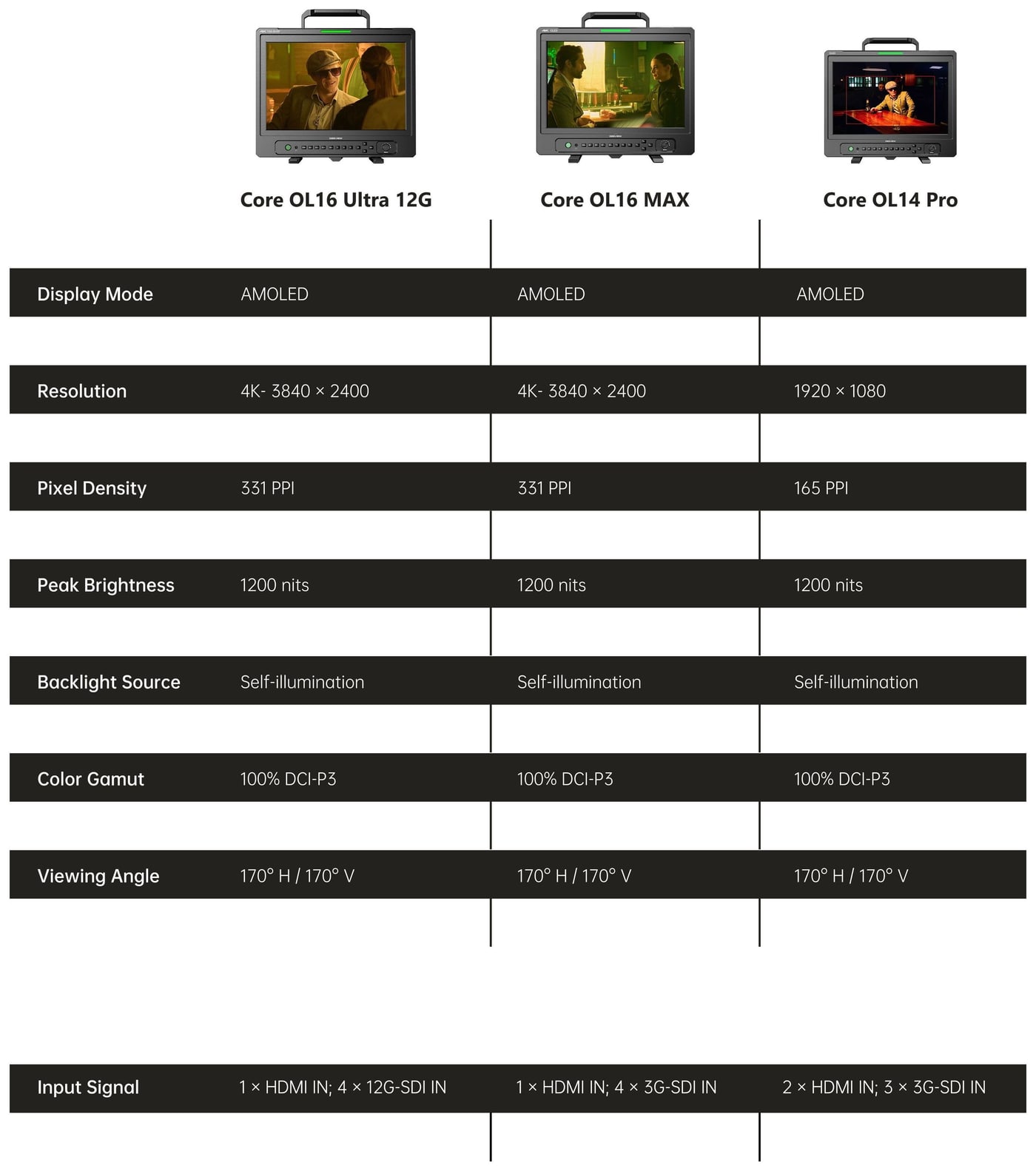

Core OL series at a glance

The Core OL14 Pro, Core OL16 MAX and Core OL16 Ultra 12G share an AMOLED display with 1200 nits and 100% DCI-P3 coverage. They differ in screen size, resolution and inputs – from Full HD with 3G-SDI to 4K with 12G-SDI.
