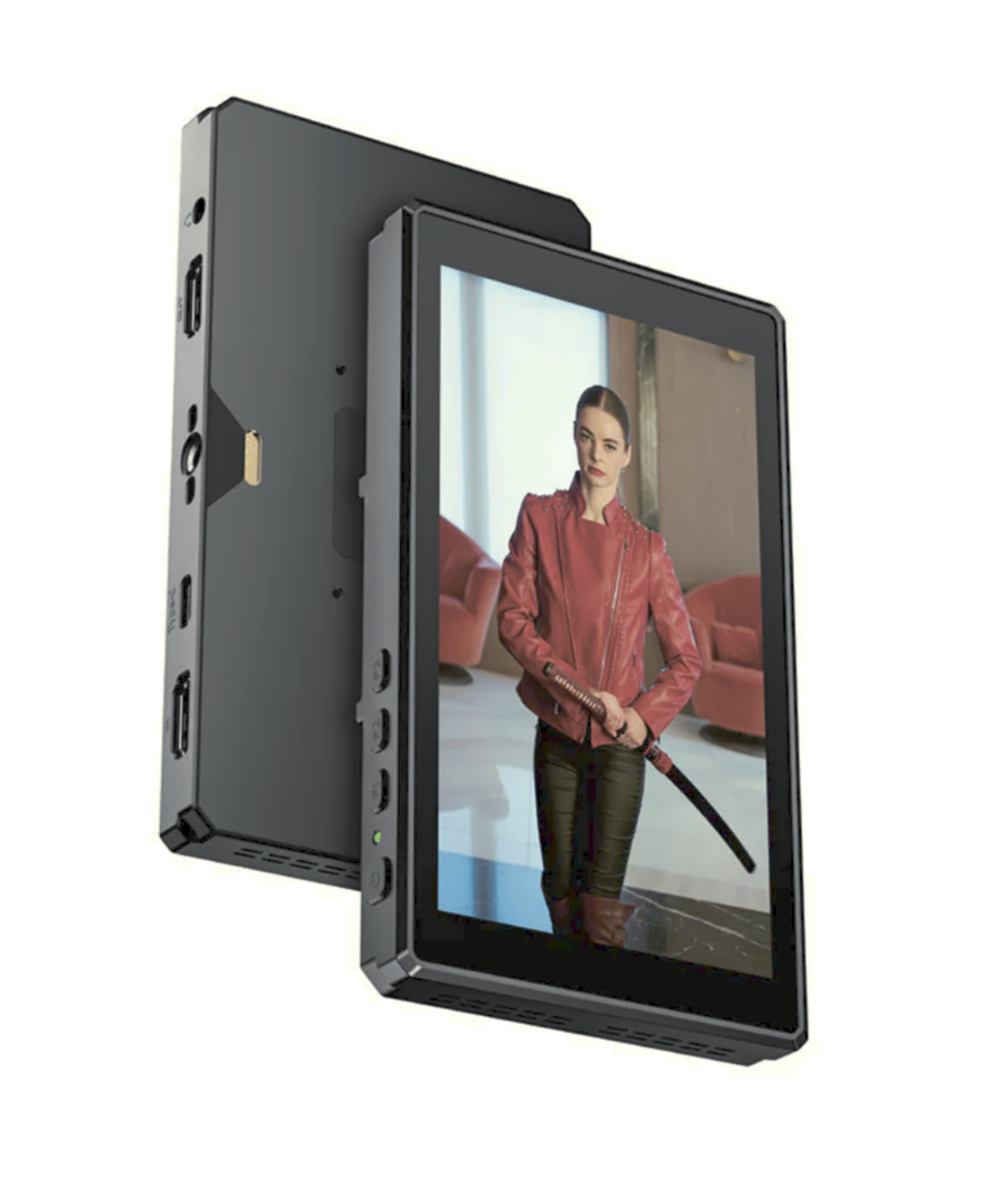

Desview Blade 5

The Desview Blade 5 is a sleek and lightweight 5.5-inch on-camera monitor built with a premium metal body just 13.2 mm thin. Offering accurate color reproduction, high contrast, and advanced monitoring tools such as 3D LUT, HDR, and waveform, it is ideal for filmmakers and content creators who demand professional performance in a compact form.

True colors from every angle

Every display is precisely calibrated at the factory for accurate color reproduction. It covers 100% of the Rec.709 color gamut, the standard of film and television production, and its 160° viewing angle keeps colors true even when viewed from the side. Professional ColourSpace calibration and 16.7 million colors deliver natural rendering of every shot.

Thin and light aluminum alloy body

The aluminum alloy body is only 13.2 mm thin and the whole monitor weighs 302 g. It adds no unnecessary load to your camera, gimbal or bag, and it is comfortable to work with when shooting handheld or on a lightweight stabilizer.

A monitor that stays out of the way

Thanks to its compact size and clear picture, the Blade 5 is a practical monitor for both camera and gimbal. You see the image larger than on the camera screen, check focus and framing more precisely, and the rig stays small and balanced.

4K transmission without quality loss

The monitor accepts HDMI signals up to 4K 60p and passes them on through the loop-out, for example to another monitor or a wireless transmitter. The image stays sharp and smooth along the whole chain. Customizable shortcut keys on the top edge hold your most used functions, and the NP-F battery holder on the back can be removed when not needed.

Custom 3D LUT styles

Load about 64 custom LUT files from a USB-C flash drive. You can preview different color styles instantly while shooting, compare them side by side and judge the final look of the shot before post-production.

A sunhood that comes off in a second

The detachable sunhood goes on and comes off in a second. When shooting outdoors it blocks side light that would otherwise hit the screen, so the image stays easy to read.

A monitor that fits in your pocket

The 5.5-inch size sits comfortably in one hand and the monitor even fits in a pocket. It is at hand whenever you need it, and you can set up a professional shooting rig in seconds.

Tools for precise exposure

The monitoring assist functions make it easier to control exposure and brightness while shooting. They help you judge contrast, exposure compensation and white balance, so shooting is faster and the final footage better.

Available tools: false color, zebra, histogram, waveform, vectorscope, full-frame waveform, focus peaking, monochrome display, HDR, LUT, anamorphic de-squeeze, aspect ratio markers, grid lines, composition guides, image rotation and audio meters.

More information

The Desview Blade 5 5.5" LCD monitor is engineered for professional video monitoring in both studio and field environments. Featuring a high-grade metal housing with an ultra-slim 13.2 mm profile and weighing 302 g, it adds minimal load to any camera rig. The Full HD 1920×1080 display delivers sharp detail, supported by a 1000:1 contrast ratio and 100% Rec.709 color gamut coverage for true-to-life color accuracy. With 10-bit color depth (8+2 FRC), the monitor ensures smooth gradients and precise color rendering. Advanced monitoring features including 3D LUT support, HDR monitoring, and full-frame waveform display provide reliable tools for exposure and color evaluation. Brightness reaches 1000 nits, keeping the image readable when shooting outdoors. HDMI 2.0 input and loop-out ensure seamless compatibility with modern cameras, while flexible power options—DC input, USB-C, and NP-F series batteries—make it suitable for any shooting setup.

Key Features:

• Aluminum alloy metal body only 13.2 mm thin
• Lightweight design at 302 g
• 1000:1 contrast ratio and 1000 nits brightness
• 100% Rec.709 color gamut coverage and 10-bit color depth (8+2 FRC)
• Supports 3D LUT, HDR and full-frame waveform display
• HDMI 2.0 input and loop-out (up to 4K 60p)
• Powered via DC 7–26 V, USB-C (PD 2.0/3.0) or NP-F series batteries
