Cartoni Focus 18 SDS ALU System

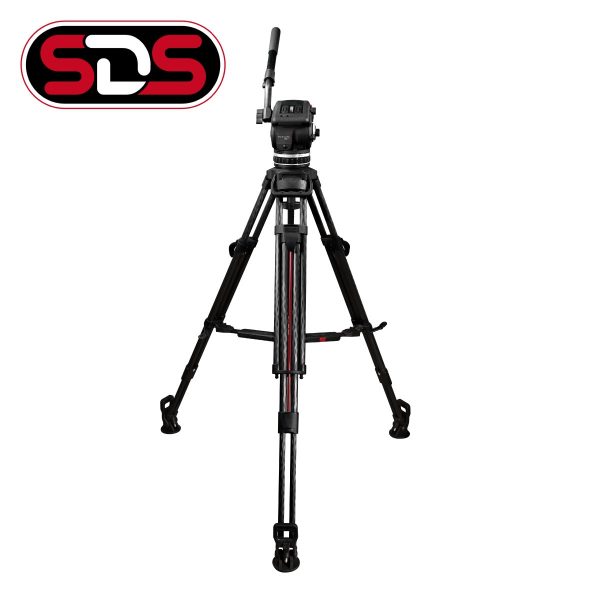

The Cartoni Focus 18 system combines the Focus 18 fluid head with a 2-stage aluminium SDS 100 tripod and a Smart Lock spreader; a padded bag is included. It carries cameras up to 21 kg, the working height is 67.5–178.5 cm and the complete system weighs 8.3 kg. It suits documentary shooters and news crews working with digital ENG cameras from Blackmagic Design, Canon, Sony and other brands.

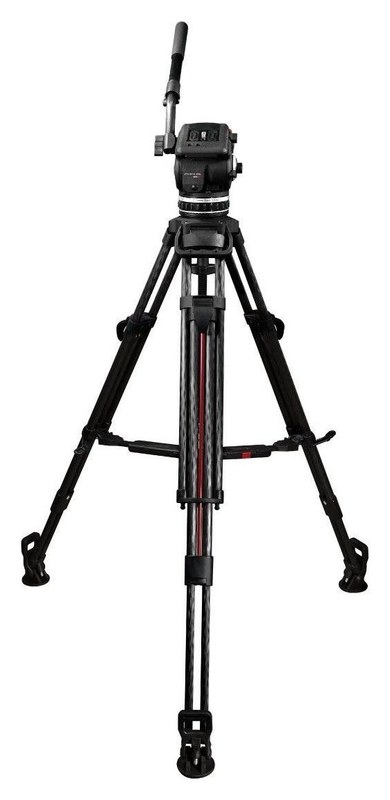

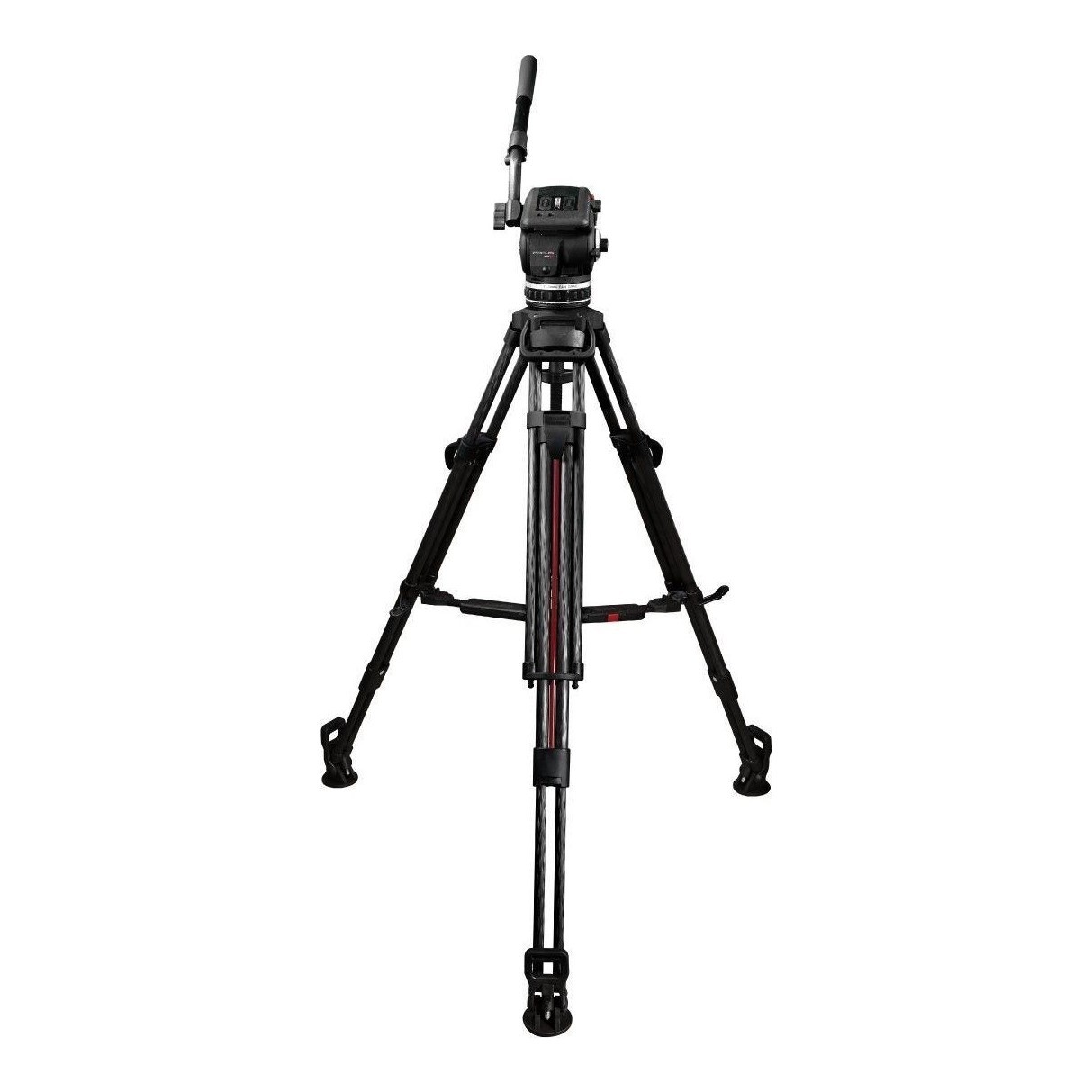

Focus 18 on the SDS 100 tripod

Built of magnesium alloy and aluminium, the Focus 18 fluid head offers infinitely adjustable damping on pan and tilt and a patented, continuously variable counterbalance with an easily readable numerical scale.

up to 21 kg payload100 mm bowlheight 67.5–178.5 cmweight 8.3 kg2-stage aluminium

Continuous drag and counterbalance

Focus 18 is built for today’s digital ENG cameras: continuous fluid drag on both axes and a patented variable counterbalance keep the shot steady even in slow moves.

Up to 21 kg

Payload for digital ENG cameras with accessories.

−40 to +60 °C

Illuminated bubble level, telescopic pan bar and a Euro-style quick release plate.

One lever

The fastest one-lever two-stage tripod on the market deploys and locks in one move.

Smart Lock spreader

The two arm sections release with a side button and retract with a simple push.

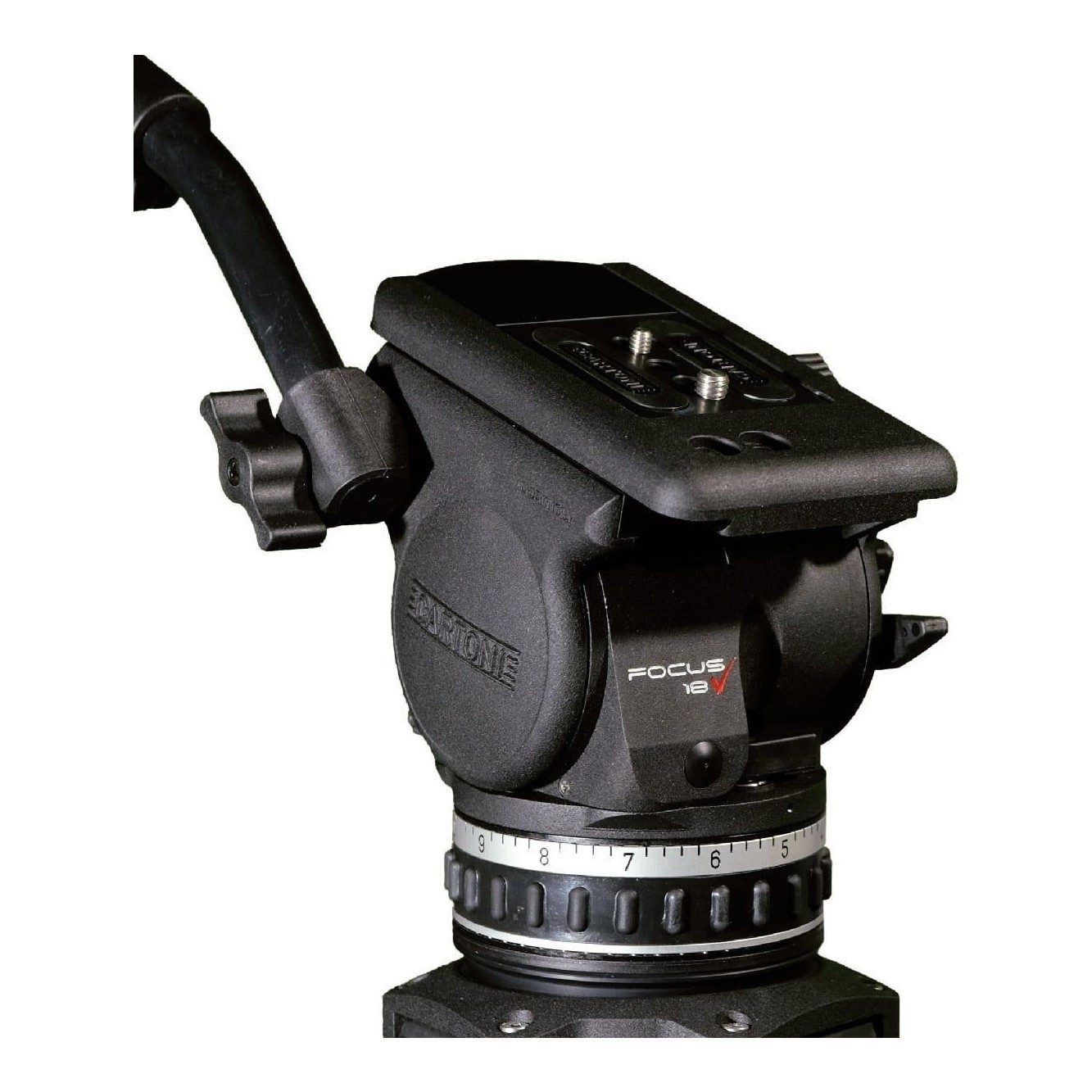

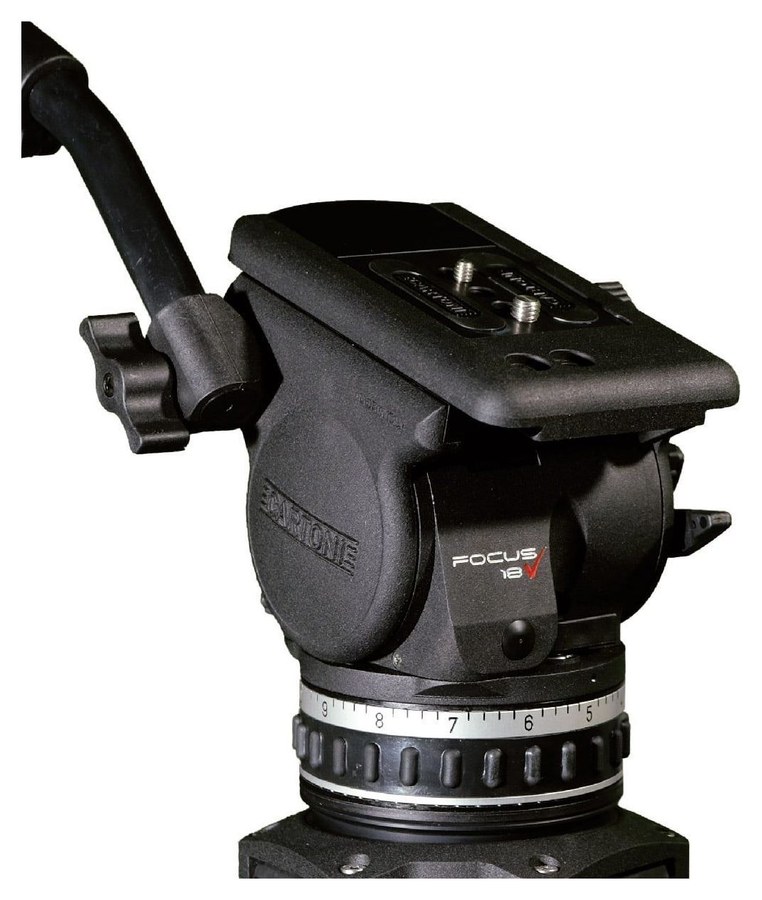

Focus 18 fluid head

The 100 mm bowl fits all tripods with a 100 mm bowl; the AH869 adapter mounts it on the Cartoni P20 pedestal as well.

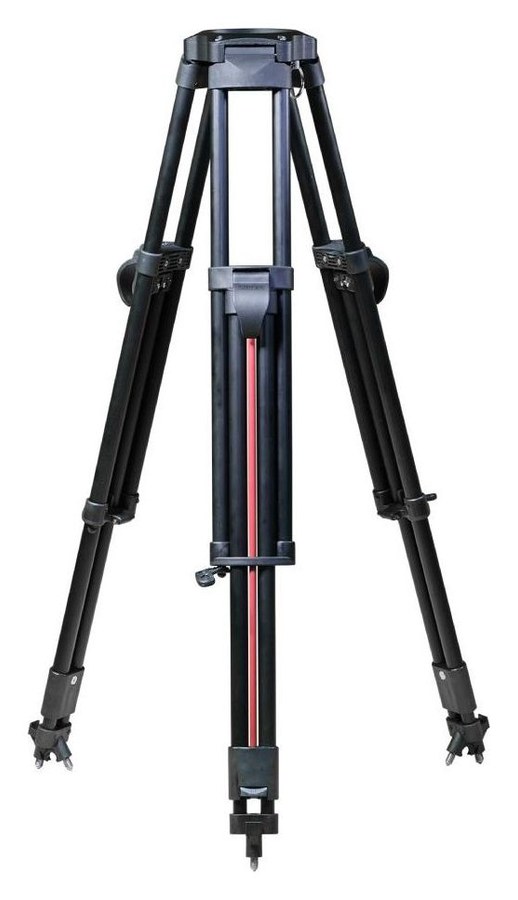

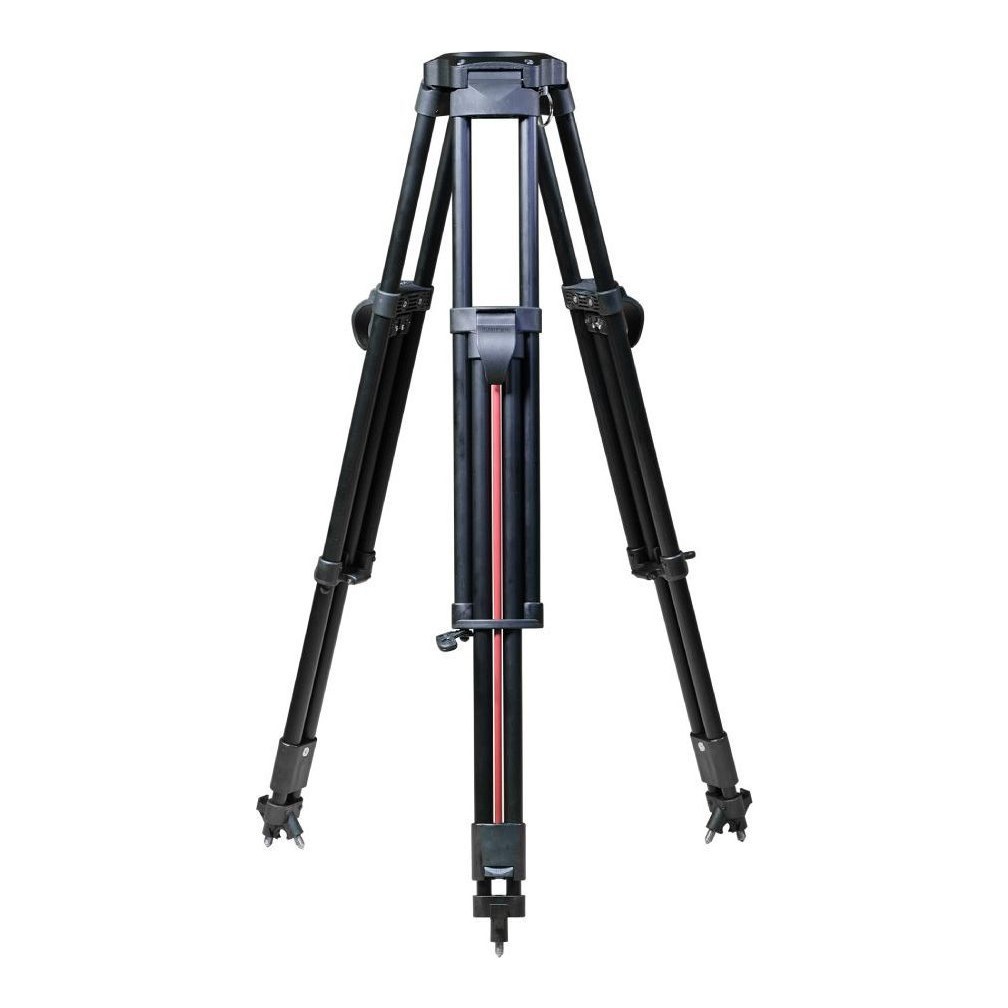

SDS 100 tripod

The Smart Deployment System, covered by three patents, adjusts both leg stages with a single lever on the middle stage; six telescopic aluminium tubes give outstanding torsional rigidity.

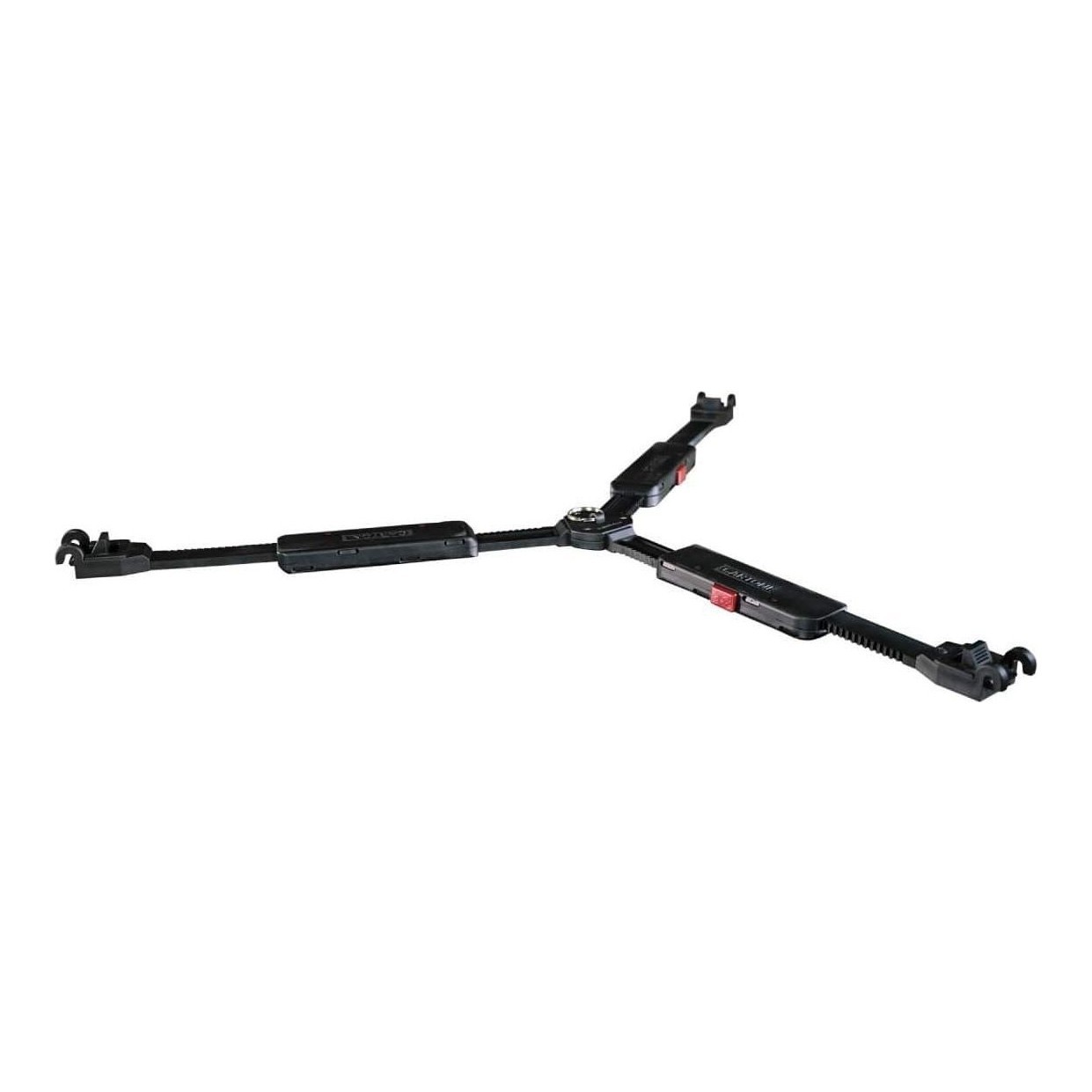

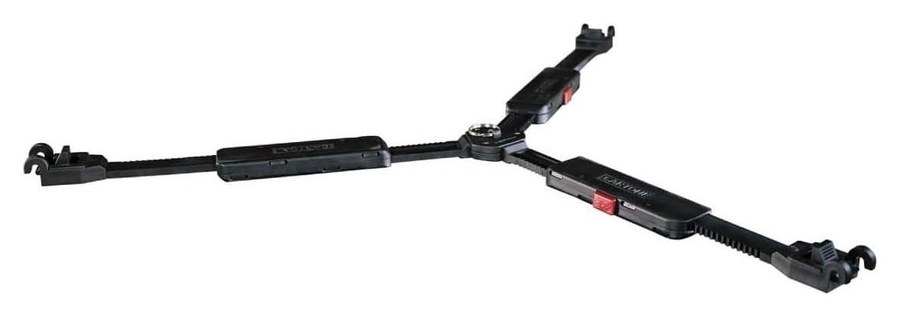

Smart Lock spreader

The built-in composite spreader weighs only 460 g; a patented no-bind mechanism spreads and collapses it quickly, and a strap to the base folds the system in one move.

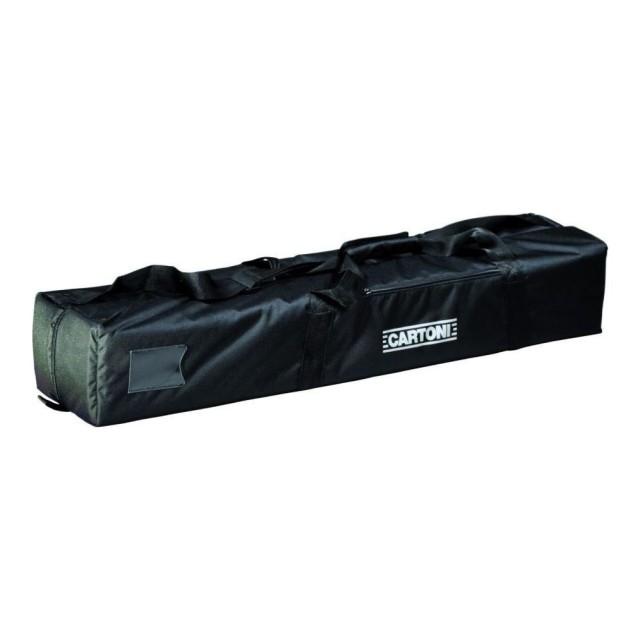

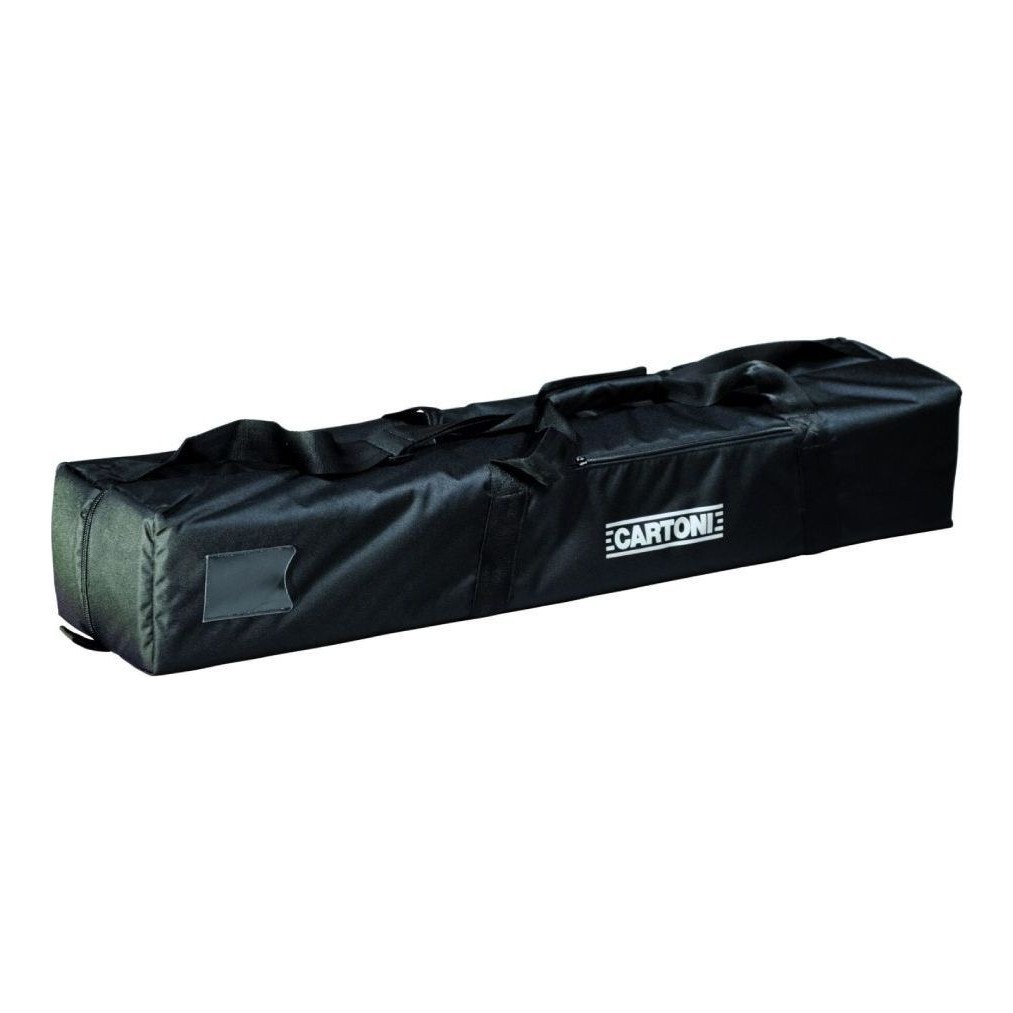

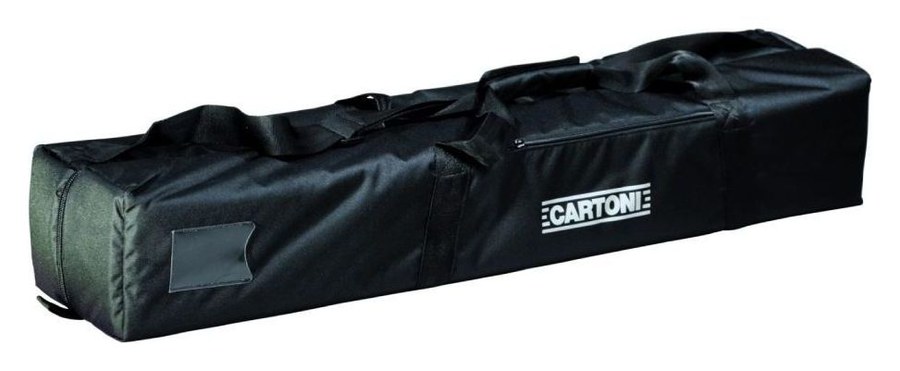

Padded bag

A fully padded soft bag for 2-stage systems.

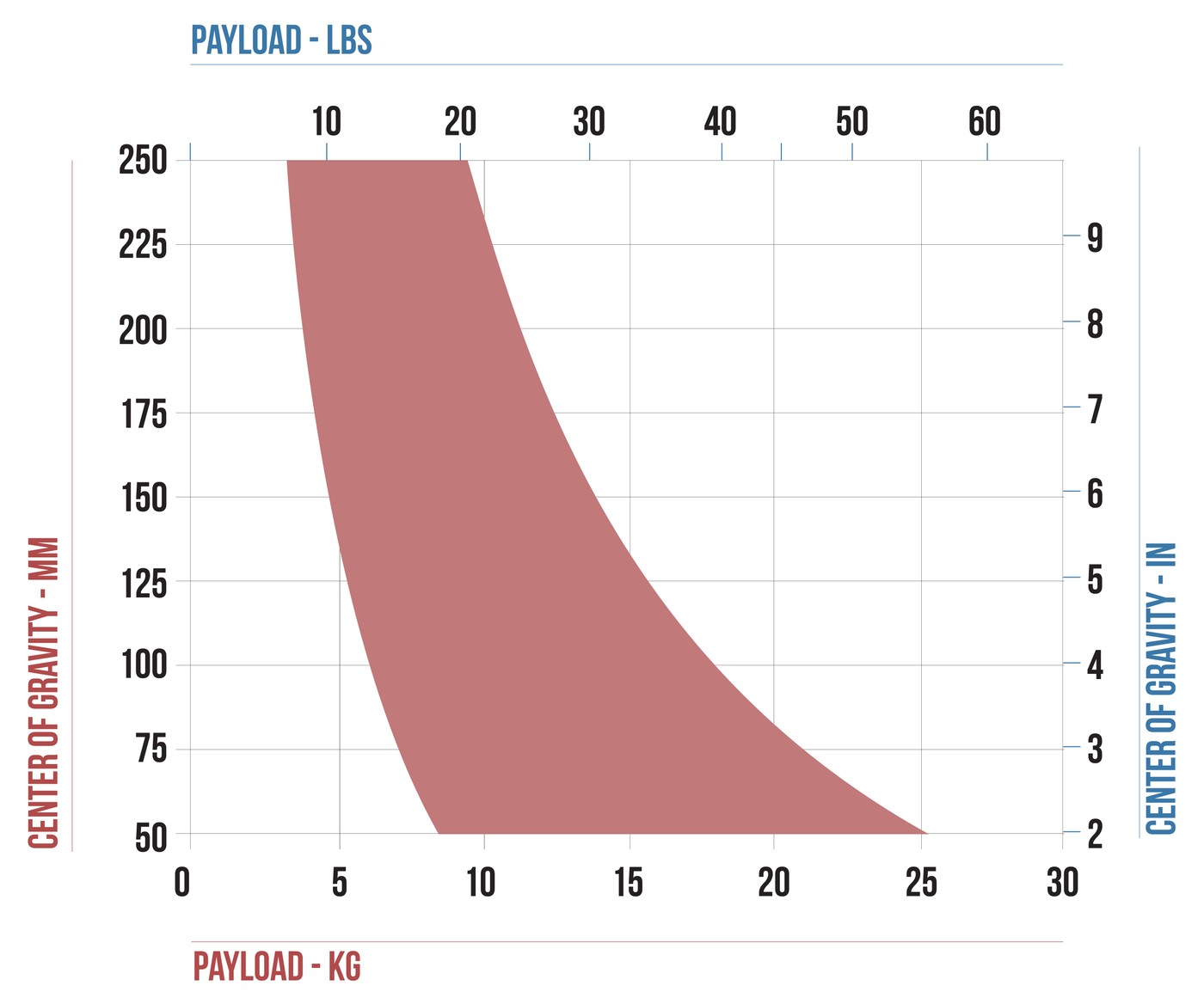

Payload range

The chart shows how much camera weight the Focus 18 head balances depending on the height of the centre of gravity above the plate.
