Sennheiser L 60 battery charger

SKU: L 60

The compact Sennheiser L 60 charger charges two BA 60 or BA 61 battery packs at once for Digital 6000 and Digital 9000 transmitters. It brings an empty pack to 70 % in about an hour and to full in about three hours, monitoring cell temperature and capacity. It is powered by the NT 3-1 mains unit, which is not included. One mains unit can power up to four cascaded…

More information

301 € with VAT 248.76 € without VAT
Add to Compare Price history
Availability
on request
SKU:
L 60
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The compact Sennheiser L 60 charger charges two BA 60 or BA 61 battery packs at once for Digital 6000 and Digital 9000 transmitters. It brings an empty pack to 70 % in about an hour and to full in about three hours, monitoring cell temperature and capacity. It is powered by the NT 3-1 mains unit, which is not included. One mains unit can power up to four cascaded chargers.

Two battery packs at once

The L 60 comes from the Digital 9000 series and serves as a compact alternative to the modular L 6000 charger in the Digital 6000 system. Each charging bay has its own status LED.

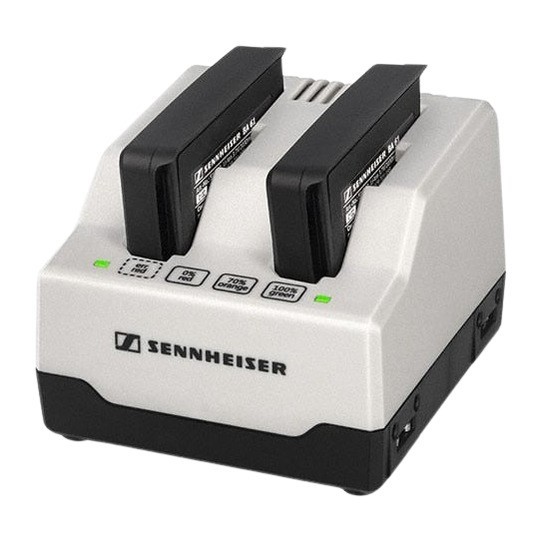

Sennheiser L 60 battery charger
2× BA 60 / BA 6170 % in approx. 60 minCascade up to 4 chargersNT 3-1 sold separately

Gentle charging for lithium cells

The charger uses the CC/CV method, recovers deeply discharged cells, monitors pack temperature and over- or undercharging, and switches off for safety after about eight hours of charging.

Status at a glance

The LEDs of each bay show charging progress in steps above 0 %, above 70 % and 100 %, and also signal errors such as a defective or overheated pack.

Several chargers side by side

Side rails join up to four L 60 chargers, all powered by a single NT 3-1 mains unit – eight packs at once.

PACKAGE CONTENT

  • L 60 charger
  • Instruction manual
  • NT 3-1 mains unit with mains cable not included

SPECIFICATIONS

  • Compatible battery packs: BA 60 (3.7 V, 1,600 mAh) and BA 61 (3.7 V, 2,030 mAh)
  • Charging bays: 2
  • Input voltage: 12 to 15 V DC (NT 3-1 mains unit)
  • Input current: max. 900 mA
  • Charging current: max. 2× 1,000 mA
  • Charging voltage: max. 4.2 V
  • Charging principle: CC/CV, deep discharge recovery, capacity, temperature and over/undercharge monitoring
  • Charging time: 70 % approx. 60 min, 100 % approx. 180 min (fully discharged, at approx. 20 °C), max. 3.5 h
  • Time limit: safety switch-off after approx. 8 h
  • Cascading: up to 4 chargers on one NT 3-1 mains unit
  • Dimensions (W × D × H): approx. 80 × 87 × 62 mm
  • Weight: approx. 160 g (without mains unit)
  • Operating temperature: 0 to +35 °C (with reduced charging power 0 to +45 °C)
  • Relative humidity: 25 to 95 % (non-condensing)
  • Article no.: 504704
Parameters

Parameters

Manufacturer: Sennheiser
Category: Accessories

Main parameters

Accessory typeCharger
CompatibilitySennheiser SKM 6000 · Sennheiser SKM 9000 · Sennheiser SK 6000 · Sennheiser SK 9000
Weight160g
