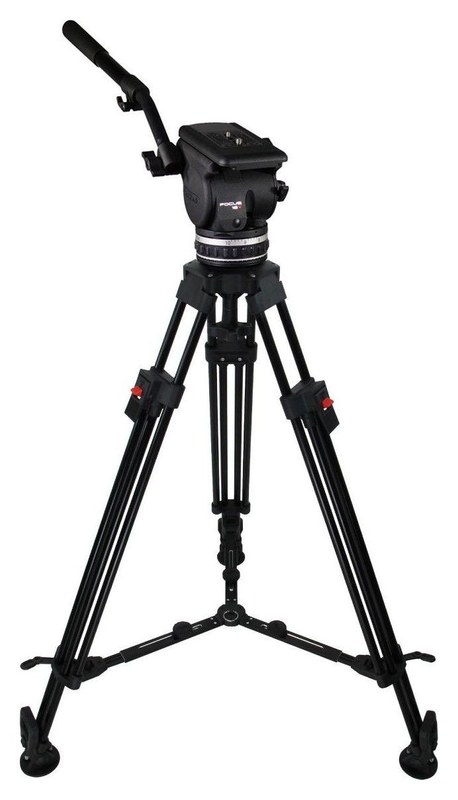

Cartoni Focus 18 EFP ALU System MS

The Cartoni Focus 18 system combines the Focus 18 fluid head with a 1-stage aluminium EFP 100 tripod and a mid-level spreader; a soft bag is included. It carries cameras up to 21 kg, the working height is 91–154 cm and the complete system weighs 7.6 kg. It suits documentary shooters and news crews working with digital ENG cameras from Blackmagic Design, Canon, Sony and other brands.

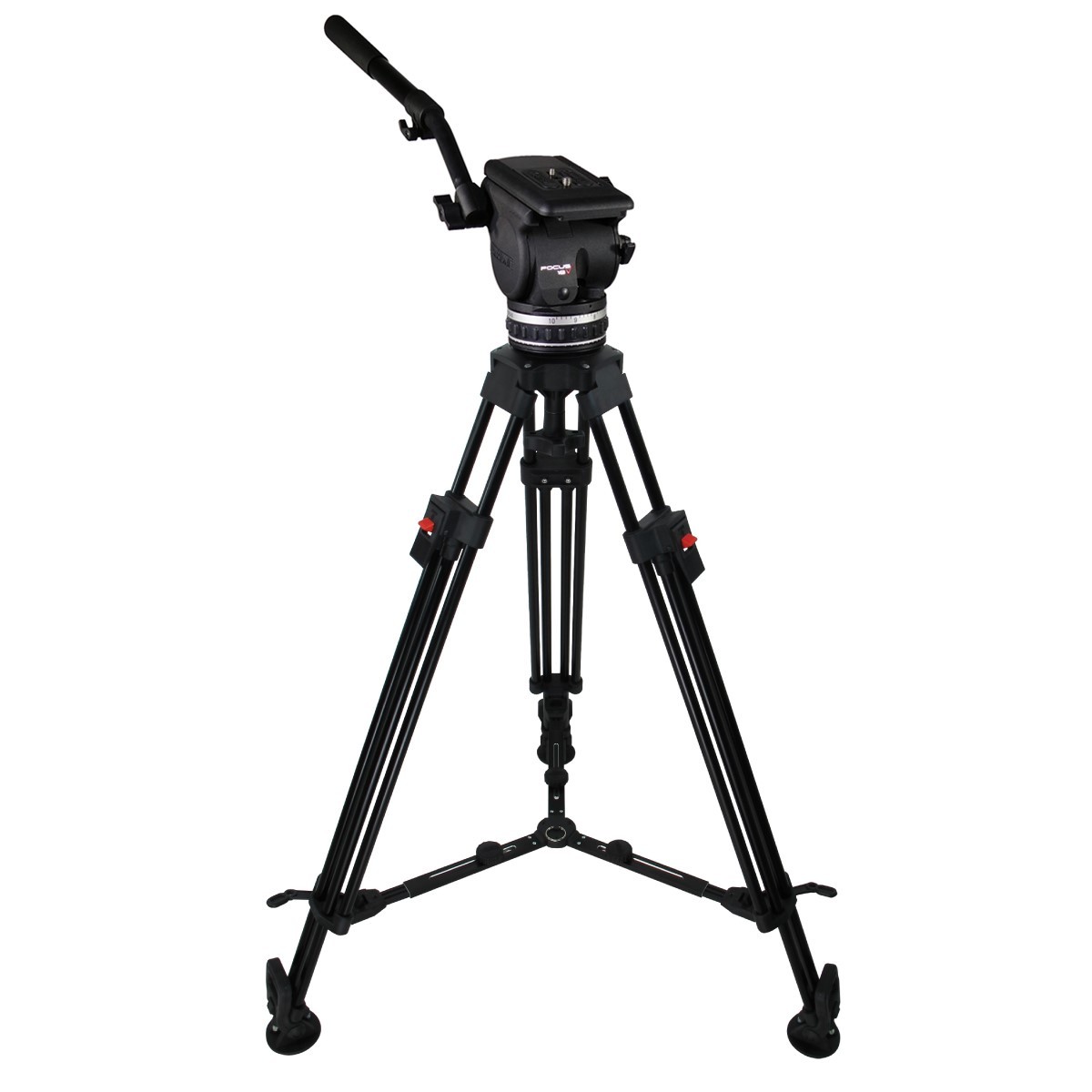

Focus 18 on the EFP 100 tripod

Built of magnesium alloy and aluminium, the Focus 18 fluid head offers infinitely adjustable damping on pan and tilt and a patented, continuously variable counterbalance with an easily readable numerical scale.

up to 21 kg payload100 mm bowlheight 91–154 cmweight 7.6 kg1-stage aluminium

Continuous drag and counterbalance

Focus 18 is built for today’s digital ENG cameras: continuous fluid drag on both axes and a patented variable counterbalance keep the shot steady even in slow moves.

Up to 21 kg

Payload for digital ENG cameras with accessories.

−40 to +60 °C

Illuminated bubble level, telescopic pan bar and a Euro-style quick release plate.

Torque-free tripod

Aluminium EFP tripod with a 100 mm bowl and an 80 kg capacity.

Mid-level spreader

Spreader at mid-leg height; the tripod stands on pivoting rubber feet.

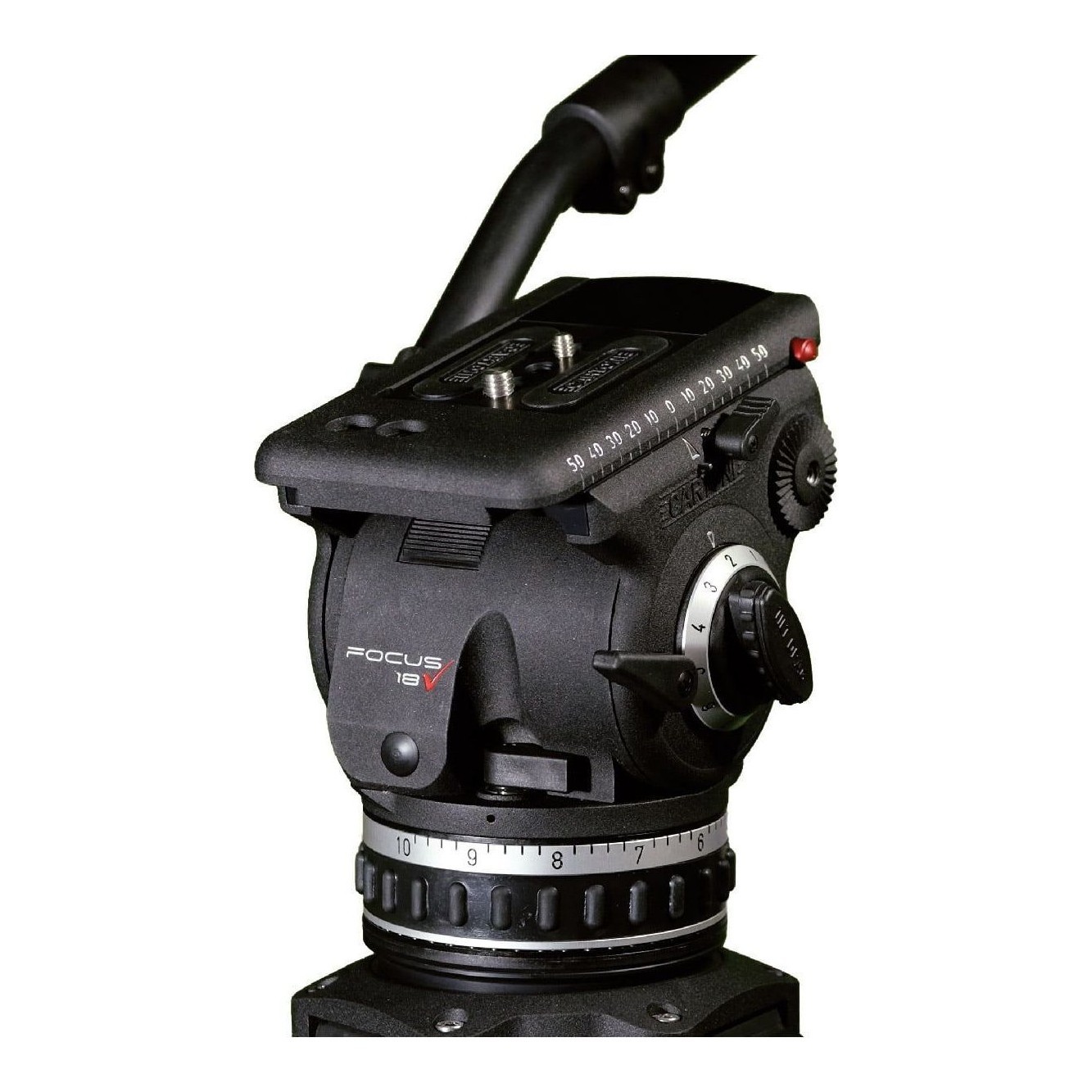

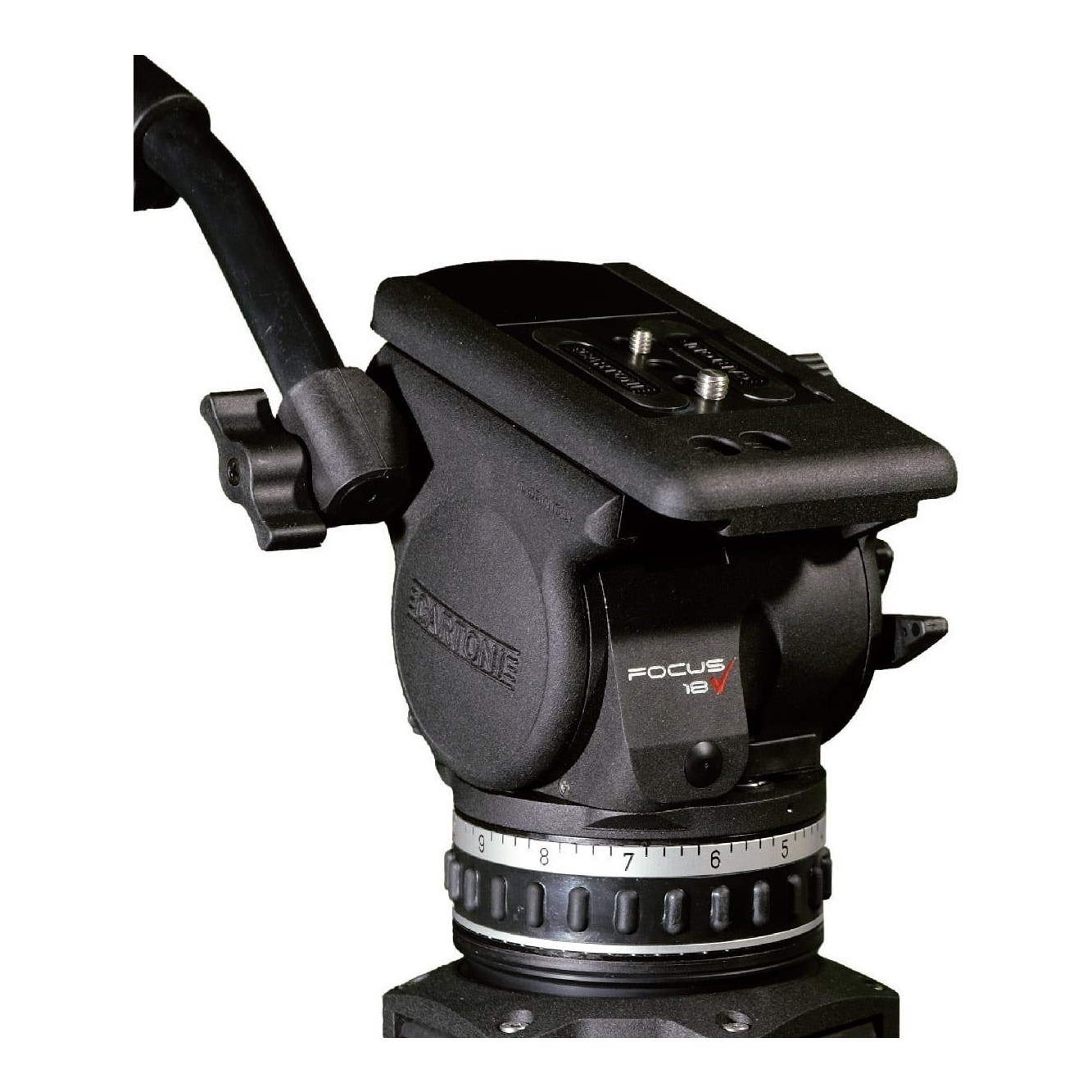

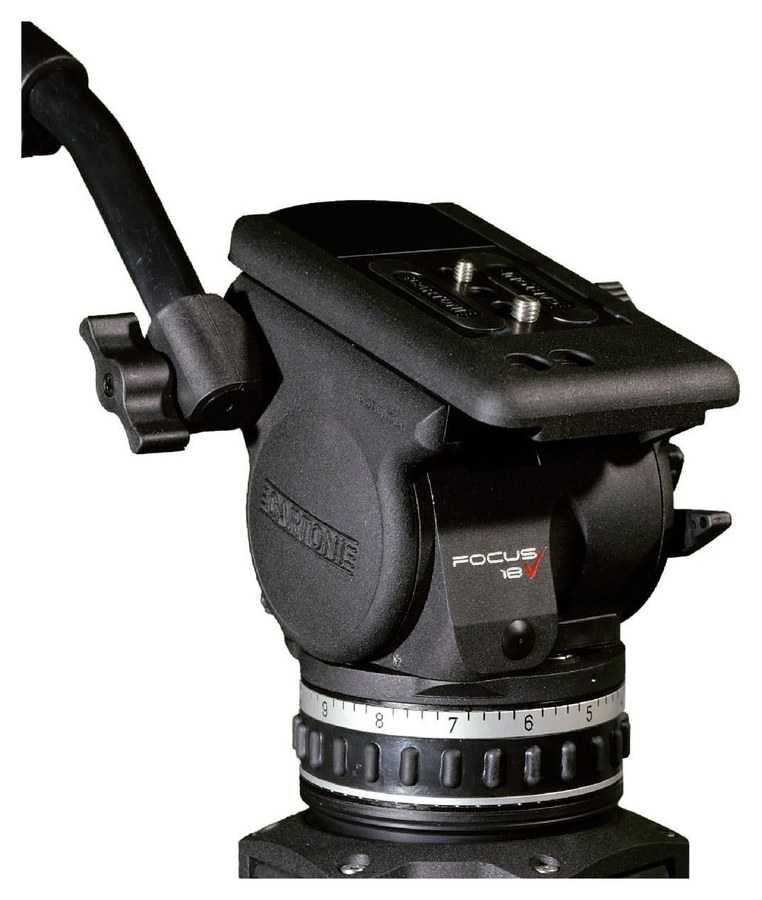

Focus 18 fluid head

The 100 mm bowl fits all tripods with a 100 mm bowl; the AH869 adapter mounts it on the Cartoni P20 pedestal as well.

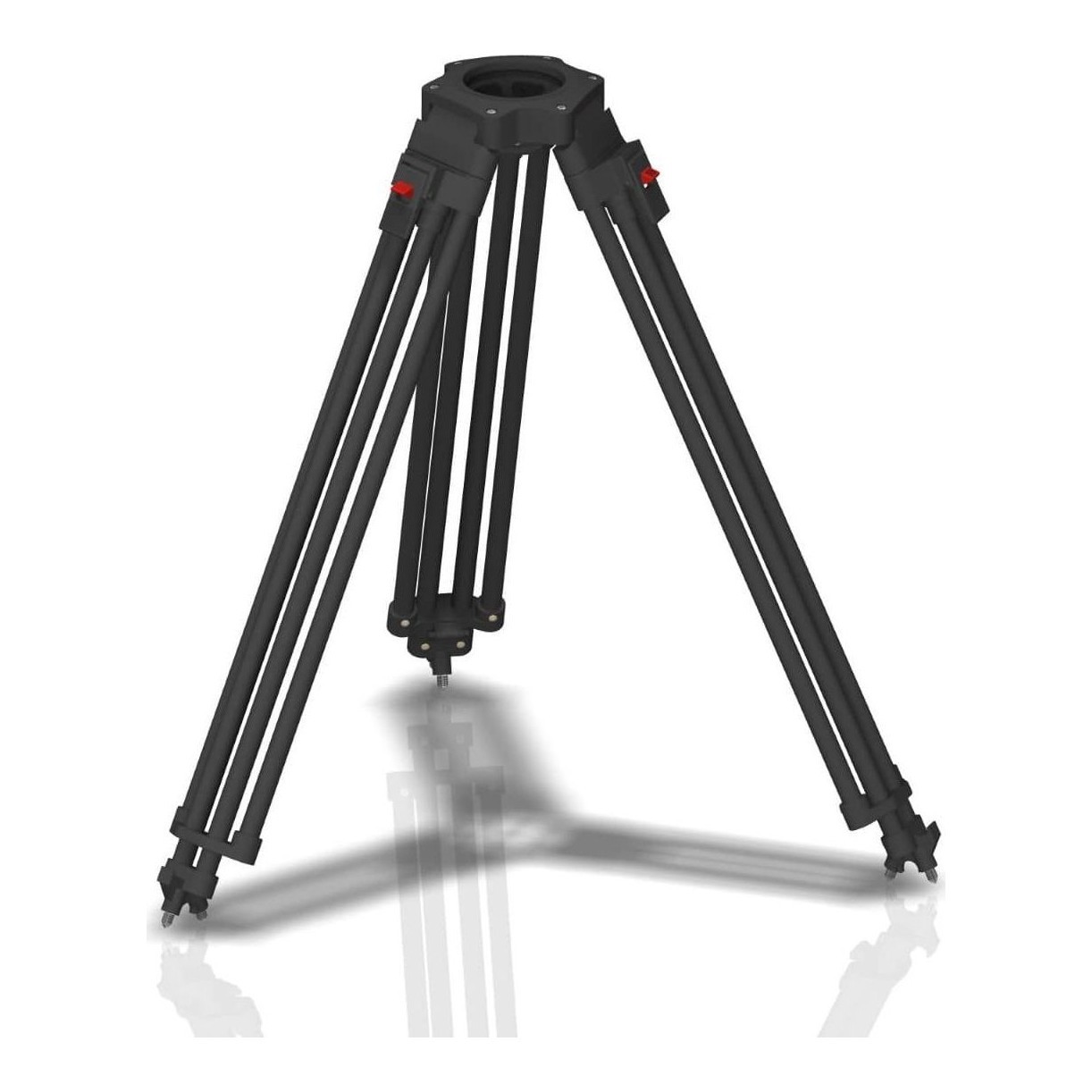

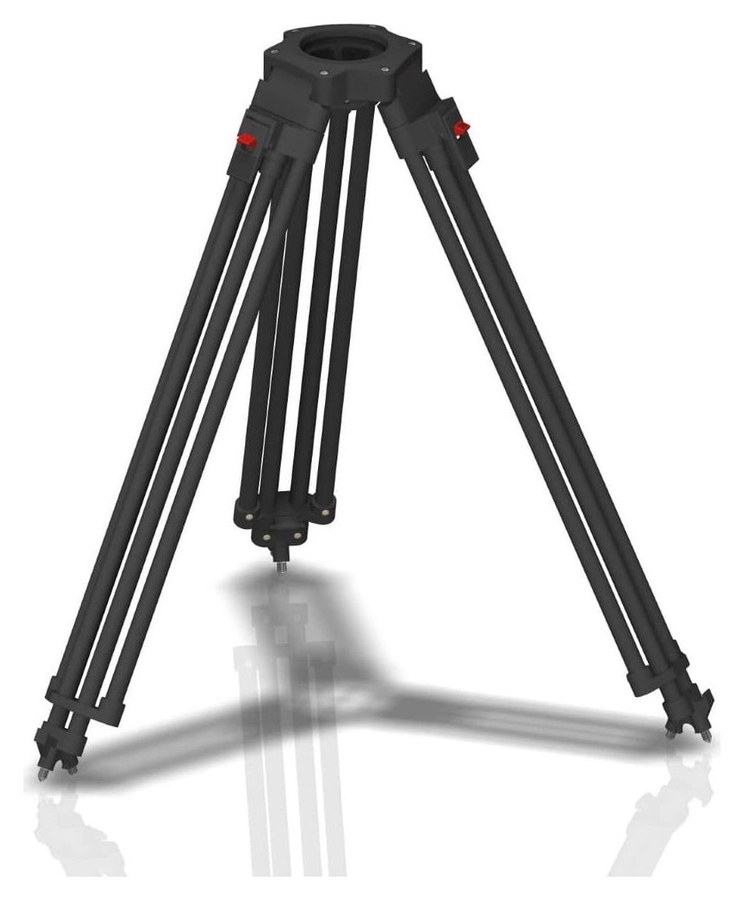

EFP 100 tripod

Elastic washers and a self-adjusting steel connection virtually eliminate torque even with heavy drag; height is set with fast clamps with a safety lock.

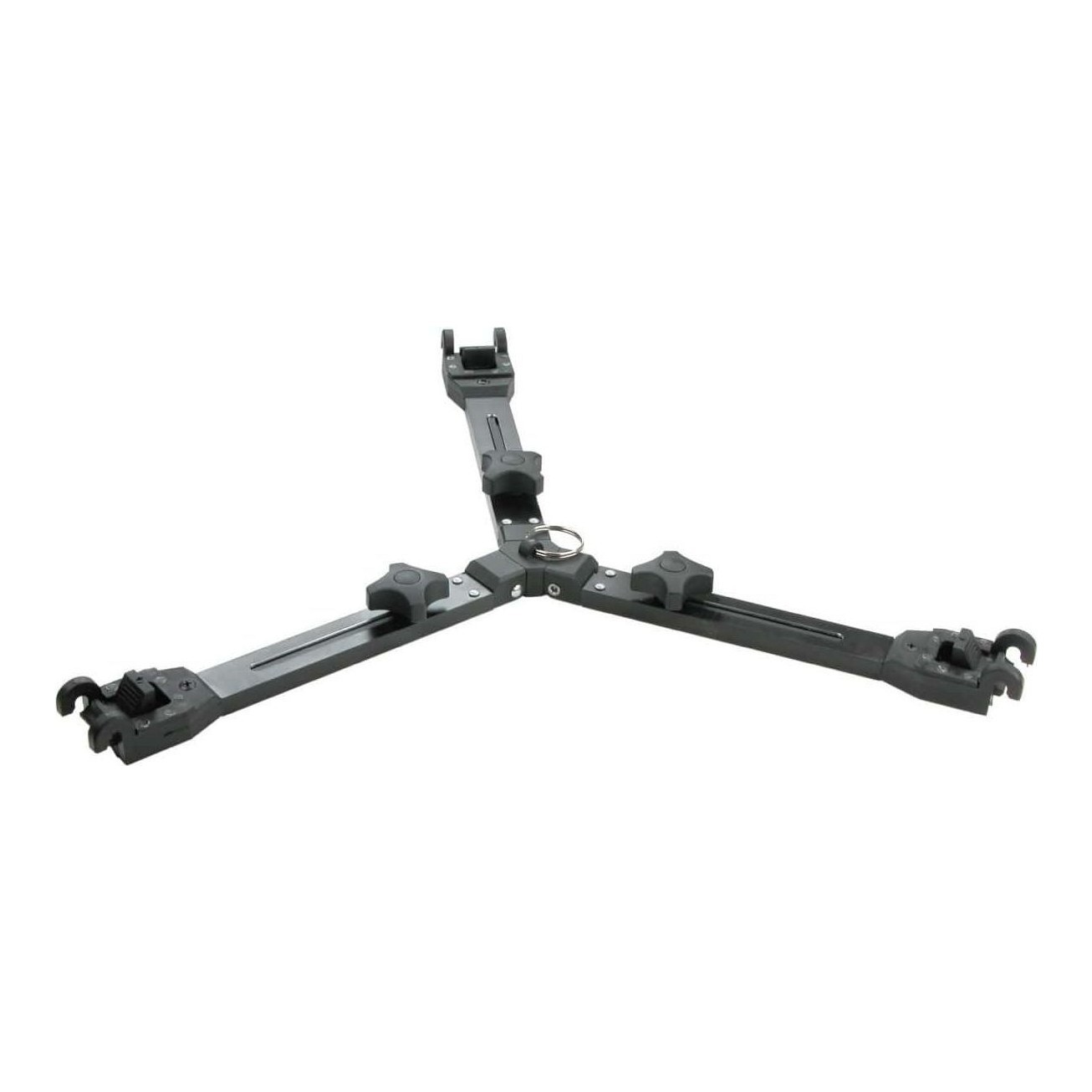

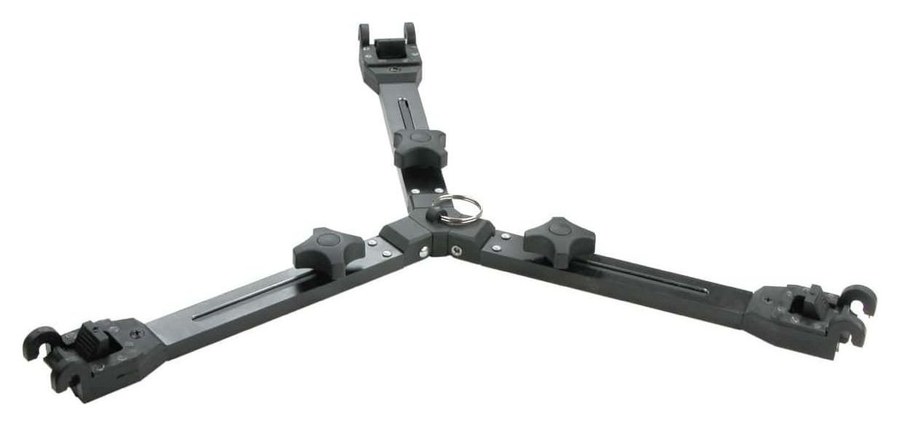

Mid-level spreader

Aluminium quick release mid-level spreader for 1-stage EFP tripods; with it the tripod stands on pivoting rubber feet.

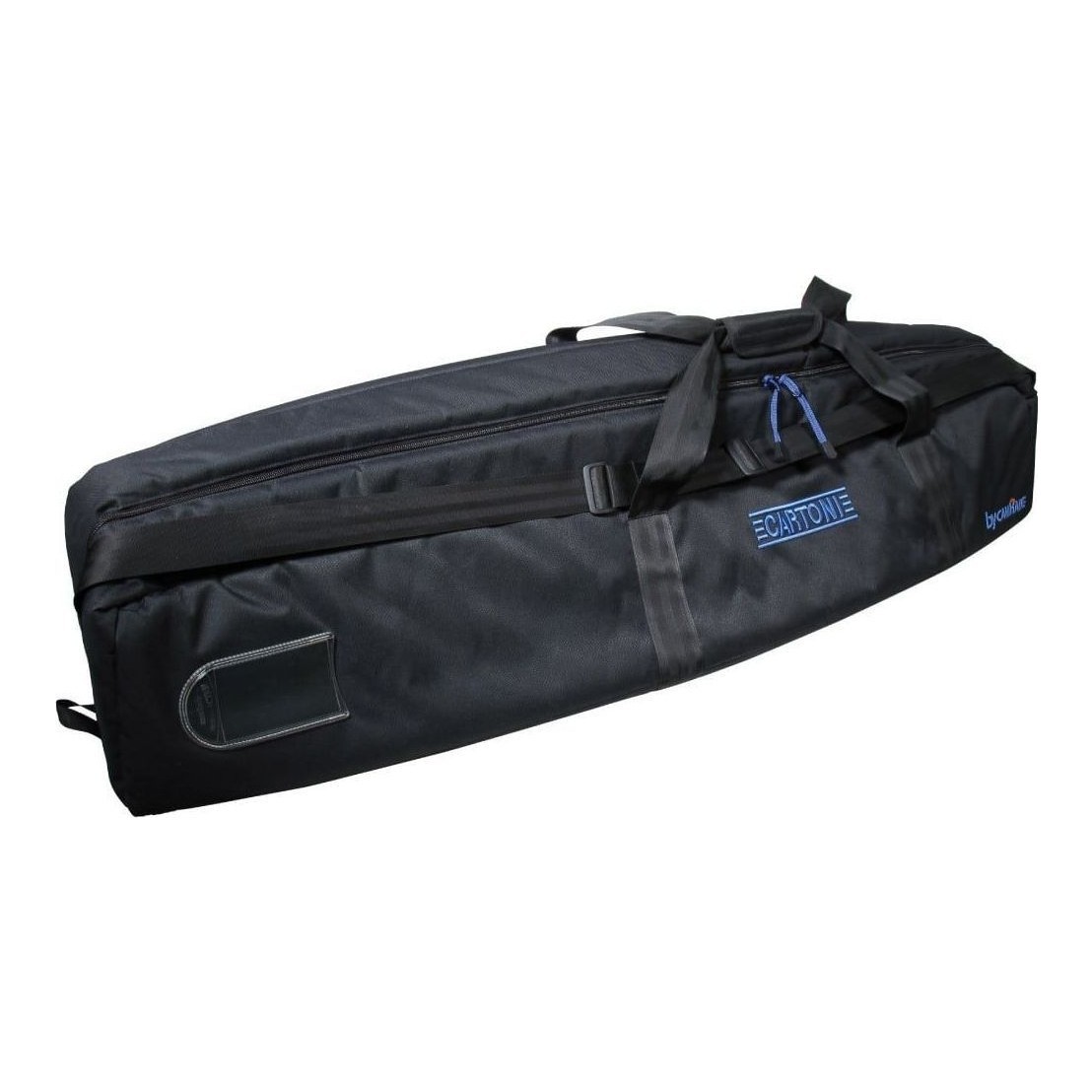

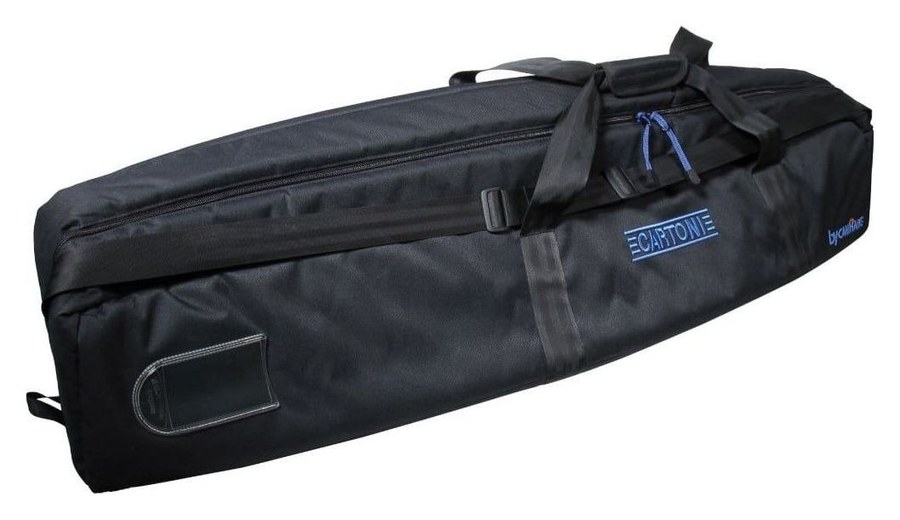

Soft bag

A light soft bag for carrying the whole system.

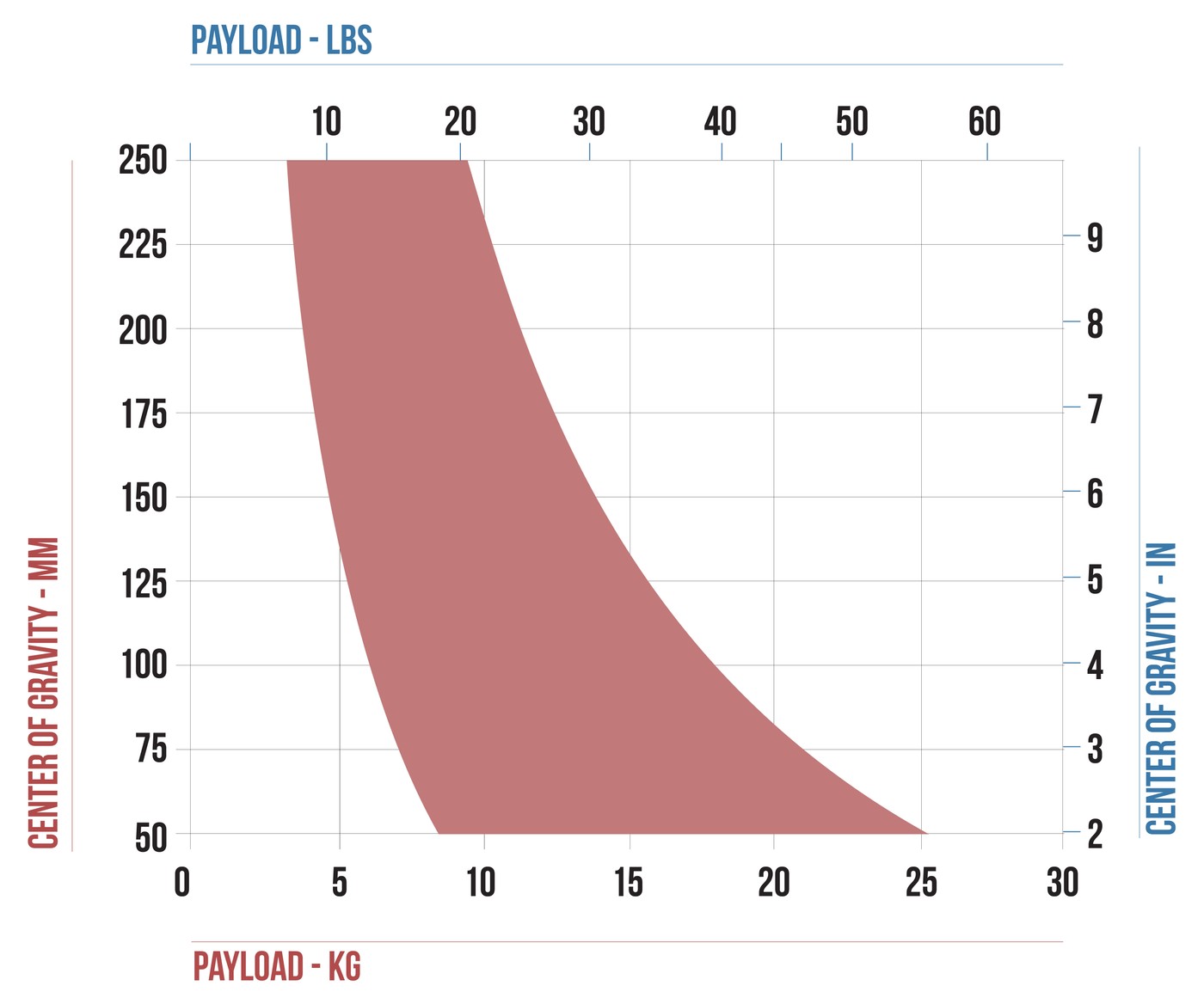

Payload range

The chart shows how much camera weight the Focus 18 head balances depending on the height of the centre of gravity above the plate.
