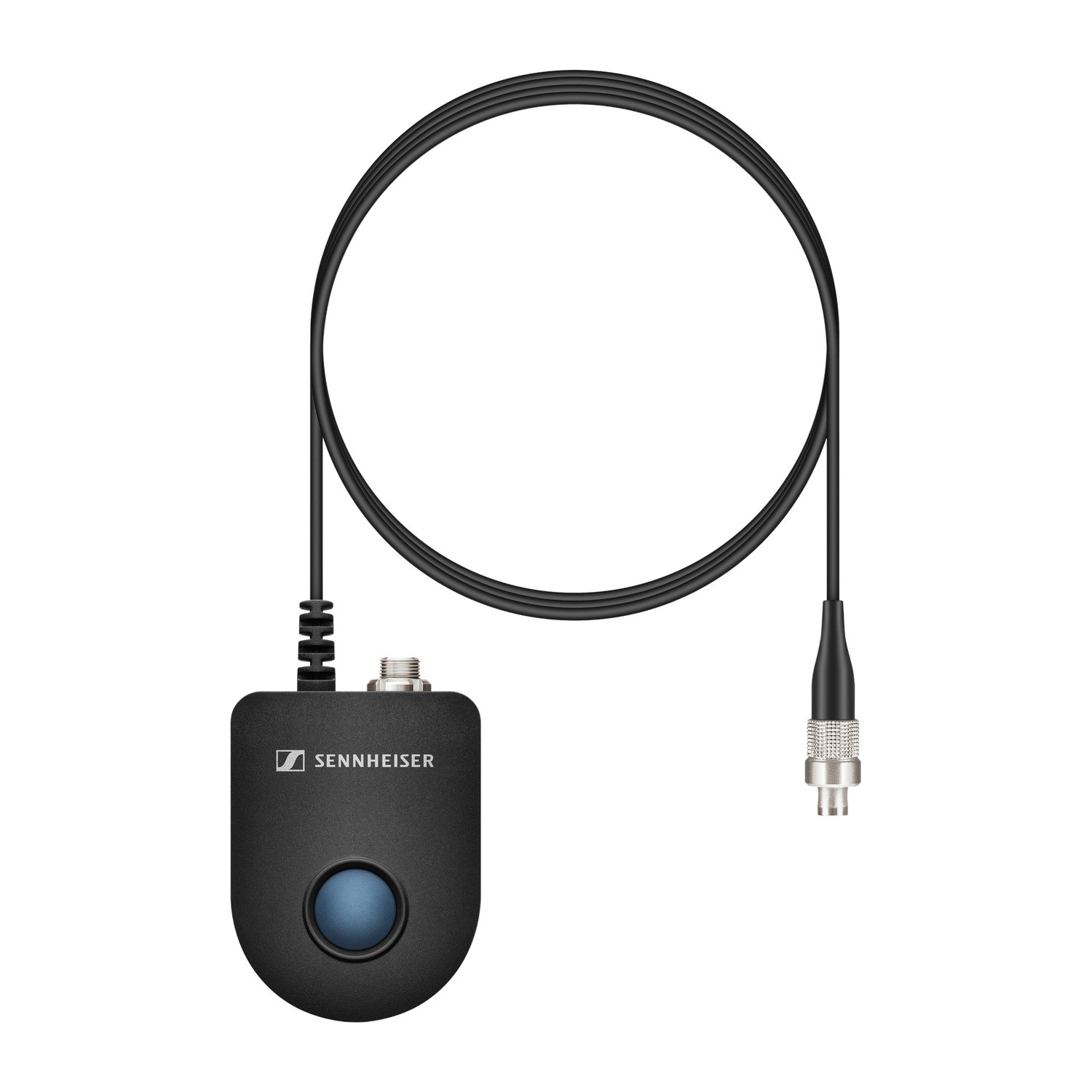

Sennheiser KA 9000 COM adapter
SKU: KA 9000 COM
The Sennheiser KA 9000 COM adapter adds a COMMAND button to the SK 6000 and SK 9000 bodypack transmitters. It connects between the transmitter and the microphone or instrument cable; pressing the button changes where the audio goes on the outputs of the EM 6000 or EM 9046 receiver. A presenter or singer can talk to the engineer without the audience hearing…
201 € with VAT
166.12 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Sennheiser KA 9000 COM adapter adds a COMMAND button to the SK 6000 and SK 9000 bodypack transmitters. It connects between the transmitter and the microphone or instrument cable; pressing the button changes where the audio goes on the outputs of the EM 6000 or EM 9046 receiver. A presenter or singer can talk to the engineer without the audience hearing it. The adapter cable is 1.6 m long.
A button for talking to the engineer
The button function is set in the receiver menu. Each output – analogue, AES3 and both Dante channels – can be given its own behaviour.
SK 6000 and SK 9000EM 6000 and EM 9046On / Talk / Mute modes1.6 m cable
Talk and Mute per output
Talk: the output is muted and passes audio only while the button is pressed. Mute: audio is live and the button mutes it. One press can mute the PA feed and route the voice only to the engineer on a Dante channel.
Simple connection
The adapter plug goes into the transmitter audio socket, and a Sennheiser microphone or the CI 1-4 cable then connects to the adapter socket.
Made for the SK bodypacks
Handheld transmitters are available as the SKM 9000 COM with a built-in button; bodypacks get the same function through this adapter.
PACKAGE CONTENT
- KA 9000 COM command adapter
- Instruction manual
SPECIFICATIONS
- Type: adapter with COMMAND button
- Compatible transmitters: SK 6000, SK 9000
- Compatible receivers: EM 6000, EM 6000 DANTE, EM 9046
- Connectors: 3-pin special audio connector (to transmitter), 3-pin special audio socket (for microphone or cable)
- Cable length: 1.6 m
- Button modes: On, Talk, Mute – set per output in the receiver menu
- Colour: black
- Article no.: 504735
Parameters
Parameters
| Manufacturer: | Sennheiser |
| Category: | Accessories |
Main parameters
| Accessory type | Adapter |
| Colour | Black |
| Compatibility | Sennheiser SK 6000 · Sennheiser SK 9000 · Sennheiser EM 6000 · Sennheiser EM 9046 |
