Blackmagic Design Video Assist 5” 3G - unpacked, full warranty

Unpacked, full warranty
LAST PIECE

SKU: HYPERD/AVIDA03/5X

Professional 5-inch monitor and recorder with 3G-SDI, HDMI, ProRes/DNxHD, scopes, 3D LUTs and HD recording up to 1080p60 on SD cards.

398 € with VAT 328.93 € without VAT

Price history

Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow

In stock 1 pcs
Praha 1 pcs

SKU:
HYPERD/AVIDA03/5X

Price history

Also available as a new product included in the price 364 € with VAT

BLACKMAGIC DESIGN Battery - NP-F570

LAST PIECE

Original battery from Blackmagic Design. Suitable for Video Assist 12G or Battery

48 €

In stock 1 pcs

SmallRig Power Cable for Blackmagic Cinema Camera/ Blackmagic Video Assist/ Shogun Monitor 1819

SmallRig Power Cable for Blackmagic Cinema Camera/ Blackmagic Video Assist/ Shogun

16 €

In stock > 5 pcs

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp BSE2347

-38 %

Promotion: -38% ends in: 10d: 12h: 38m

SmallRig Swivel and Tilt Monitor Mount with Nato Clamp BSE2347 Key Features: 1.Supports

43 €

69.44 €

To be sent 2 pcs

Libec AS-7K

-10 %

Promotion: -10% ends in: 9d: 15h: 54m

Libec AS-7K is a universal and adjustable articulated arm for tripod or camera, which

136.62 €

151.8 €

To be sent 1 pcs

Blackmagic Design Video Assist Power Supply

Universal 110V-240V power supply with international socket adapters for supplying

31 €

on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Professional 5-inch monitor and recorder with 3G-SDI, HDMI, ProRes/DNxHD, scopes, 3D LUTs and HD recording up to 1080p60 on SD cards.

Four tools in one

Video Assist 5” 3G combines a portable monitor, professional HD recorder, scopes and a high-quality alternative viewfinder in one compact device.

5-inch LCD3G-SDI1080p60ProRes + DNxHD

Improve any camera

SDI and HDMI connectivity adds a larger touchscreen, focus assist, zebra, false colour, histogram and other tools for confident focus and exposure.

Video Assist 5” 3G connected to a camera

Edit-ready files

10-bit Apple ProRes and Avid DNx recording provides higher quality than the internal codecs of many cameras, with files ready to open directly in an NLE.

Professional ProRes recording with Video Assist

Scopes always available

Waveform, vectorscope, RGB parade and histogram can be displayed directly on the monitor without a separate measuring instrument.

PACKAGE CONTENT

1× Blackmagic Design Video Assist 5” 3G
1× universal power supply with international adapters

SPECIFICATIONS

Display: 5-inch touchscreen LCD, 1920 × 1080

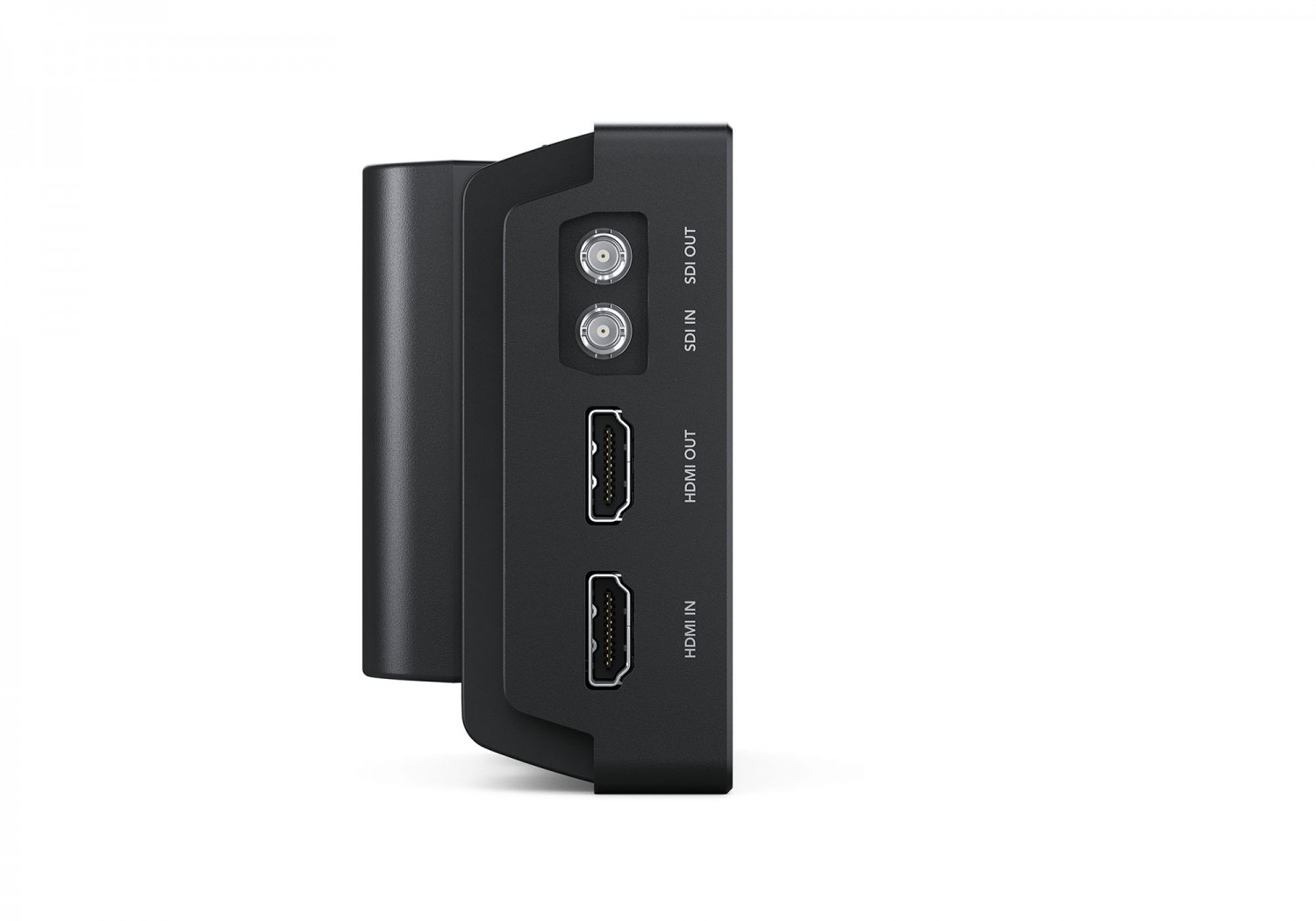

Video I/O: 1× 3G-SDI input and output, 1× HDMI input and output
Supported formats: SD and HD up to 1080p60
Codecs: Apple ProRes and Avid DNxHD
Media: 1× SD UHS-II
Scopes: Waveform, vectorscope, RGB parade and histogram
Monitoring: Focus assist, zebra, false colour, frame guides, 3D LUT
Power: External 12 V DC and Sony NP-F batteries
Warranty: 1-year limited manufacturer warranty

WE RECOMMEND

The Blackmagic Video Assist 5” 3G is a versatile monitor and recorder that requires a reliable Sony NP-F battery and high-quality SD recording media to operate. To fully utilize its potential, it is recommended to pair it with compatible cameras featuring HDMI/SDI output and professional post-production software for processing captured ProRes and DNxHD recordings.

Power and Batteries - Accessories for powering the monitor using the Sony NP-F (L-Series) standard.

Cameras and Signal Sources - Compatible cameras and devices providing HDMI or SDI output for monitoring and recording.

Video Converters and Control Rooms - Equipment for distributing, converting, and processing video signals within the production chain.

Post-production and software - Software and drivers for professional editing and color correction of captured footage.

Parameters

Manufacturer:	Blackmagic Design
Category:	Camera monitors

Main parameters

Size	5"
Diameter	5"
Monitor inputs	HDMI
Monitor inputs	SDI
Monitor inputs	3G-SDI
Format/Code	DNxHD
Format/Code	ProRes
Supported resolution	1080/50p, 60p
Supported resolution	1080/24p, 25p, 30p
Supported resolution	1080/50i, 60i
Supported resolution	720/50p, 60p
Supported resolution	480i/576i
Luminosity	300cd/m2
Panel resolution	1920x1080
Input	HDMI
Input	3G SDI
Recording medium	SD card
Monitor power supply	Sony NP-F
Monitor power supply	12V

Other parameters

Other features	Tally
Other features	SDI Loop
Other features	HDMI Loop
Other features	Signal Conversion (SDI/HDMI)
Display resolution	1920x1080px
Tally	Yes
Touchscreen display	Yes
Display type	LCD
High Brightness (NITS)	No
SDR/HDR	SDR
Power supply type	batteries
Power supply type	source
Battery type	Sony NP-F

ACCESSORIES (5)
