Blackmagic Design URSA Cine EVF

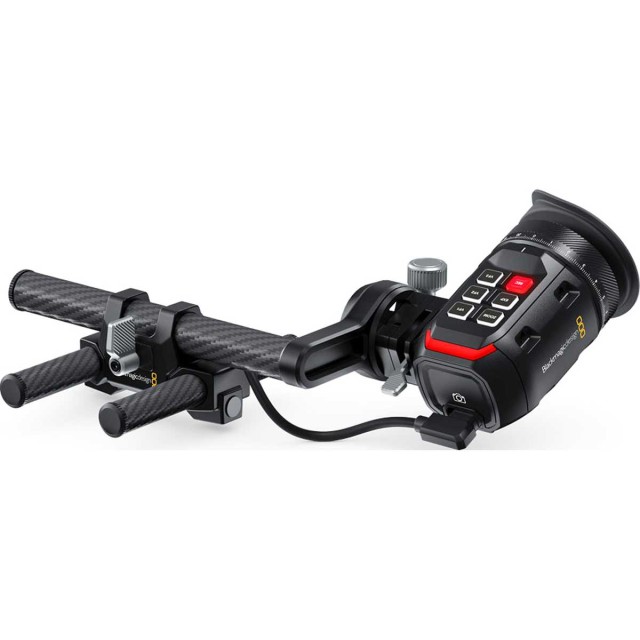

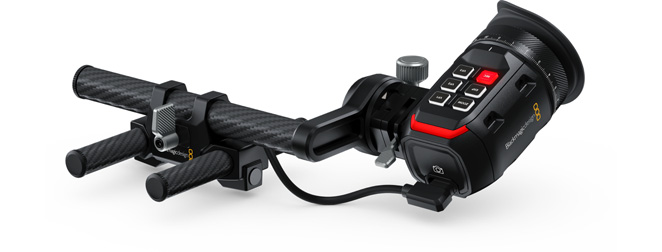

The Blackmagic URSA Cine EVF is an electronic viewfinder with a Full HD 1920 × 1080 OLED display and a four element glass diopter for Blackmagic URSA Cine and PYXIS 6K cameras. A single locking USB-C cable carries video, power and camera control. The package includes an adjustable mounting kit with an extension arm for dollies and geared heads, three USB-C…

More information

1 919 € with VAT 1 585.95 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 2 pcs
Praha 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Blackmagic URSA Cine EVF is an electronic viewfinder with a Full HD 1920 × 1080 OLED display and a four element glass diopter for Blackmagic URSA Cine and PYXIS 6K cameras. A single locking USB-C cable carries video, power and camera control. The package includes an adjustable mounting kit with an extension arm for dollies and geared heads, three USB-C cables and a rubber eyecup.

An OLED viewfinder for URSA Cine and PYXIS 6K

An accurate view at your eye for handheld and outdoor work – with −5 to +5 diopter, camera buttons under your fingers and a single USB-C cable.

Full HD OLED 1920 × 1080Diopter −5 to +5VF1–VF3 buttonsUSB-C: video · power · controlLED tally

Camera control without taking your eye off the shot

The zoom, exposure and record buttons and three assignable VF buttons give quick access to camera functions without looking away.

One USB-C cable

The locking USB-C cable carries video, power and camera control and is also used for software updates.

Eyepiece for the left or right eye

The eyepiece tilts vertically and extends, so the viewfinder suits both right and left eye users.

OLED display and four element diopter

The Full HD 1920 × 1080 display (6.22 million dots) with frame rates up to 60 fps and the four element glass diopter with a −5 to +5 range deliver accurate focusing and framing. A built in processor displays the camera overlays.

Blackmagic Design URSA Cine EVF – OLED display and four element diopter

Viewfinder buttons

The Zoom, Exp and Rec buttons and three assignable buttons VF1, VF2 and VF3 trigger recording and the camera functions you assign to them, so you can switch on exposure assist or focus zoom without taking your eye off the viewfinder.

Mounting and extension arm

The fully adjustable mounting kit – a rotating bracket with a 19 mm carbon fibre rod, a bracket rod mount and the URSA Cine EVF Extension extension arm – lets you position the viewfinder in many ways, including on a dolly or geared head. The Blackmagic URSA Cine Handle top handle is required to mount it on URSA Cine and PYXIS 6K cameras.

Three USB-C cables and eyecup

The package includes three USB-C cables – a long and a short right angle to straight cable and a short right angle to right angle cable – plus a rubber eyecup with a fabric chamois.

Blackmagic Design URSA Cine EVF – Three USB-C cables and eyecup

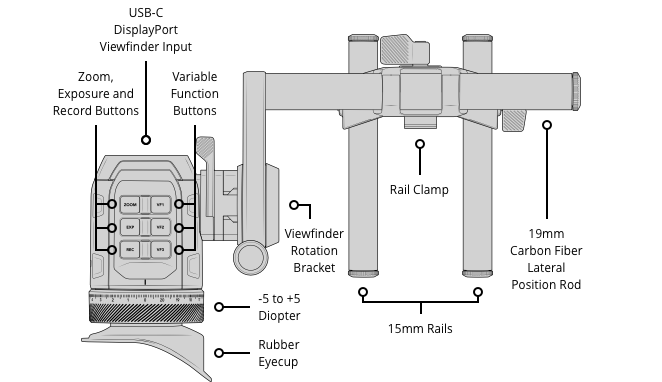

Viewfinder parts

The diagram shows the USB-C DisplayPort input, the buttons, the diopter, the eyecup and the mounting parts.

Blackmagic Design URSA Cine EVF – Viewfinder parts

PACKAGE CONTENT

  • Blackmagic URSA Cine EVF
  • Rotating bracket with 19 mm carbon fibre rod (Blackmagic URSA Cine EVF Rotating bracket)
  • Bracket rod mount (Blackmagic URSA Cine EVF Bracket rod mount)
  • Blackmagic URSA Cine EVF Extension
  • 2× short 15 mm carbon fibre rod
  • 1× long USB-C viewfinder cable, right angle to straight
  • 1× short USB-C viewfinder cable, right angle to straight
  • 1× short USB-C viewfinder cable, right angle to right angle
  • Rubber eyecup
  • Fabric chamois for the eyecup
  • Blackmagic Design sticker
  • Welcome wallet with QR code for software download

SPECIFICATIONS

  • Type: electronic viewfinder
  • Display: OLED, Full HD 1920 × 1080, 6.22 million dots
  • Frame rates: up to 60 fps
  • Optics: four element glass diopter, −5 to +5 range
  • Eyepiece: tilts vertically, extends for left or right eye use
  • Control: Zoom, Exposure and Record buttons, 3× assignable VF button
  • Overlays: built in overlay display processor
  • Tally: LED tally
  • Connection: USB-C with locking connector – video, power, data and software updates
  • Power: over USB-C
  • Mounting: fully adjustable mounting kit included, top handle Blackmagic URSA Cine Handle required for URSA Cine and PYXIS 6K
  • Metadata: displays and sends camera data and settings to Blackmagic URSA Cine and PYXIS 6K cameras
  • Compatibility: Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras
  • Software: Mac 13 Ventura, Mac 14 Sonoma or later, Windows 10 and 11
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −20 to 45 °C
  • Relative humidity: 0 to 90 % non-condensing
  • Warranty: 1 year limited manufacturer’s warranty
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: EVF (Electronic View Finder)

Main parameters

Supported video signal modes (resolution / frame rate)1080p up to 60p
Monitor inputsUSB-C
Panel resolution1920x1080
Monitor power supplyUSB-C

Other parameters

TallyYes
