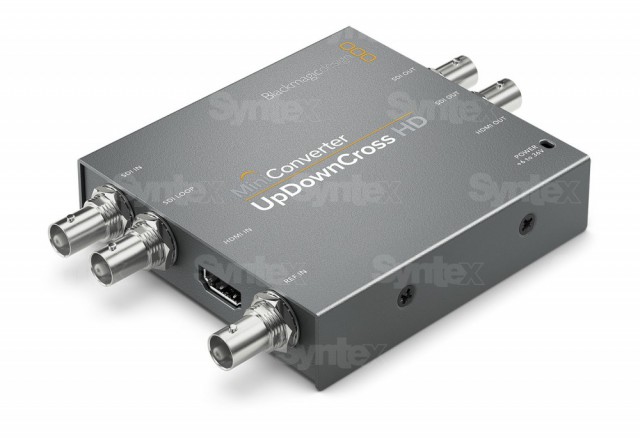

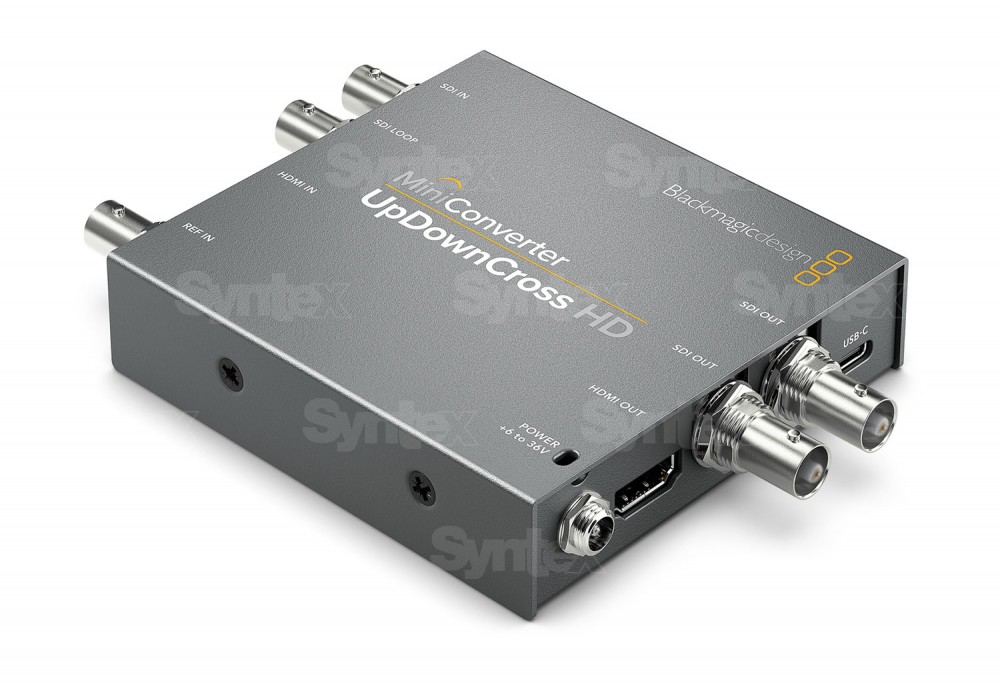

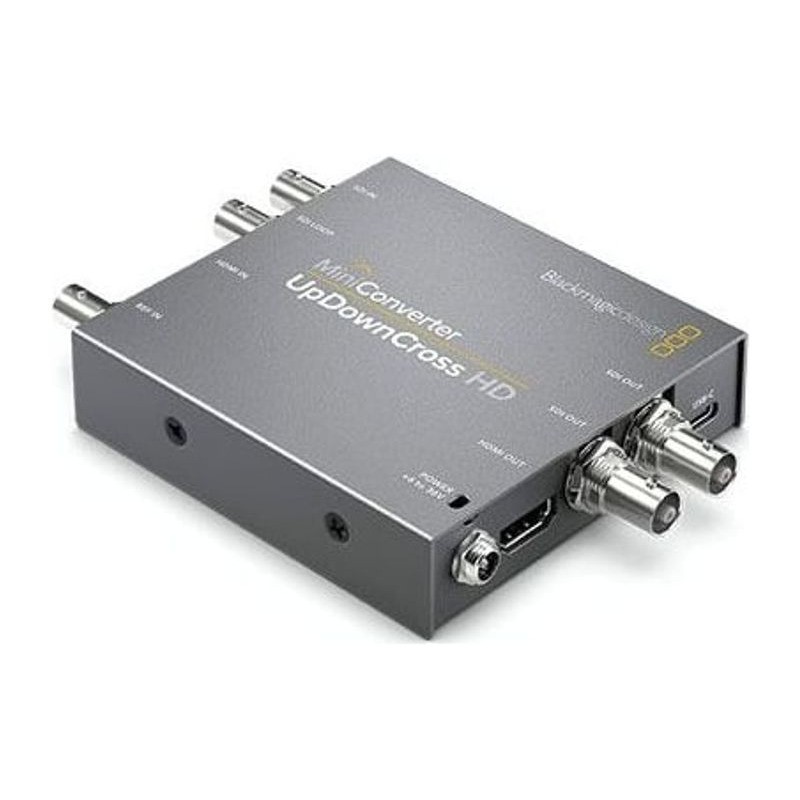

Blackmagic Design Mini Converter UpDownCross HD
SKU: CONVMUDCSTD/HD
Blackmagic Mini Converter UpDownCross HD is a standards converter for converting between SD and HD formats, with both SDI and HDMI inputs and outputs. It converts any input to the broadcast format you choose using Teranex algorithms and also automatically scales common computer resolutions to broadcast formats. A universal 12 V power supply is included.
191 € with VAT
157.85 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava 4 pcs, Budapest 1 pcs
Praha > 5 pcs, Bratislava 4 pcs, Budapest 1 pcs
Top accessories for Blackmagic Design Mini Converter UpDownCross HD
Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 80cm
Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.
23 €
In stock > 5 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC
Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Mini Converter UpDownCross HD is a standards converter for converting between SD and HD formats, with both SDI and HDMI inputs and outputs. It converts any input to the broadcast format you choose using Teranex algorithms and also automatically scales common computer resolutions to broadcast formats. A universal 12 V power supply is included.
Any SD and HD to the format you choose
A full standards converter that automatically converts an SD or HD input to the broadcast format you choose using Teranex algorithms, protecting downstream equipment from receiving the wrong signal.
3G-SDIHDMITeranex algorithmsUp to 1080p60Power supply included
SDI, HDMI and reference input
It features HDMI and 3G-SDI inputs and outputs, an SDI loop output, a reference input, re-sync and automatic audio delay for perfect picture and sound sync.
Equipment protection
Downstream devices always get the format they expect.
Computer to projector
Converts computer resolutions to a broadcast format for an SDI projector.
PAL and NTSC
Converts between SD standards and dozens of HD formats.
Synchronous operation
Re-sync to a Blackburst or Tri-Sync reference signal.

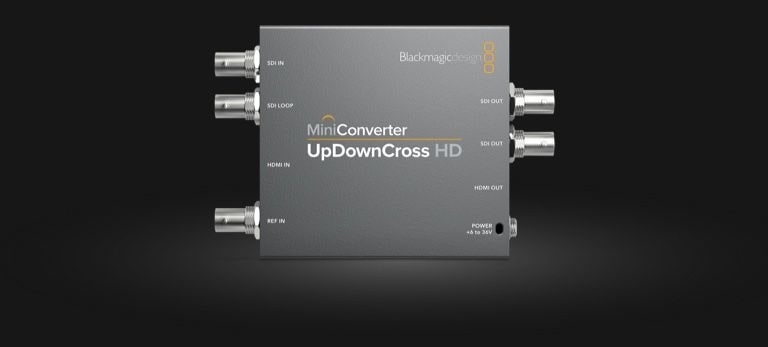

Format conversion without touching your equipment
Mini Converter UpDownCross HD converts any SD or HD input to the broadcast format you choose – simply set the output format and the input is converted automatically. Up, down and cross conversion is handled by high-quality Teranex algorithms.
Computers to SDI projectors
The converter is also ideal for connecting HDMI computers to SDI projectors: 640 × 480, 800 × 600 and 1024 × 768 resolutions on the HDMI input are scaled to the broadcast format you choose, from 525i59.94 and 625i50 up to 1080p60.
Reference, re-sync and audio delay
The reference input accepts Blackburst and Tri-Sync for SD and HD, so the output can be locked to the rest of the studio. Automatic audio delay keeps sound in sync with the picture, and the converter also carries timecode and closed captioning.
Setup with mini switches
The output format and other functions are selected with mini switches using the diagram printed on the converter. New software is installed over USB from a macOS or Windows computer.
In the rack, in the truck and outdoors
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.

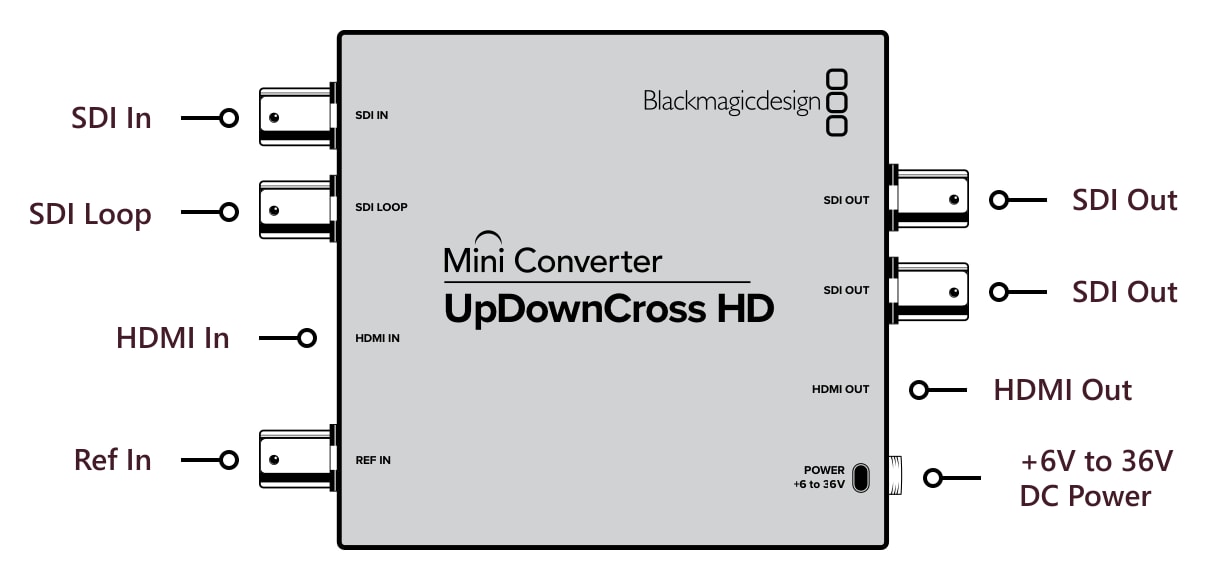

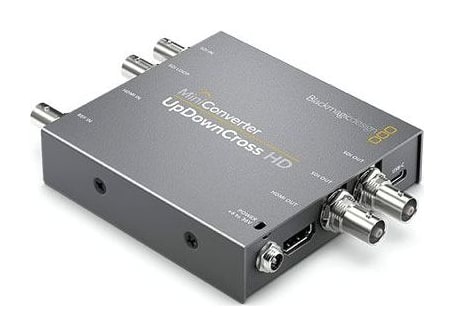

Connections
One side has the SDI input, the SDI loop output, the HDMI input and the reference input, the other two SDI outputs, the HDMI output with monitor EDID support and the power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
Core settings are selected with mini switches using the diagram printed on the unit, while USB is used for software updates. The converter keeps picture and sound stable throughout the signal chain.
PACKAGE CONTENT
- Mini Converter UpDownCross HD
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- SDI input: 1× SD/HD/3G-SDI
- Reference input: Blackburst and Tri-Sync for SD and HD
- HDMI input: 1× HDMI type A
- SDI outputs: 1× loop output and 2× outputs
- HDMI output: 1× HDMI type A, supports monitor EDID
- SDI rates: 270 Mb/s, 1.5G, 3G
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- HDMI standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M level B, 425M level B, ITU-R BT.656 and BT.601
- SDI metadata: timecode and closed captioning
- SDI sampling and color space: 4:2:2, YUV
- Audio sampling: 48 kHz, 24 bit
- Format conversion: any SD and HD input to 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Computer scaling: 640 × 480, 800 × 600 and 1024 × 768 via HDMI to 525i59.94, 625i50 and HD formats
- Reclocking: yes
- Settings control: mini switches
- Software updates: via USB from a Mac or Windows computer
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: universal 12 V with international socket adapters
- Operating voltage: 6–36 V DC
- Power consumption: 5 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

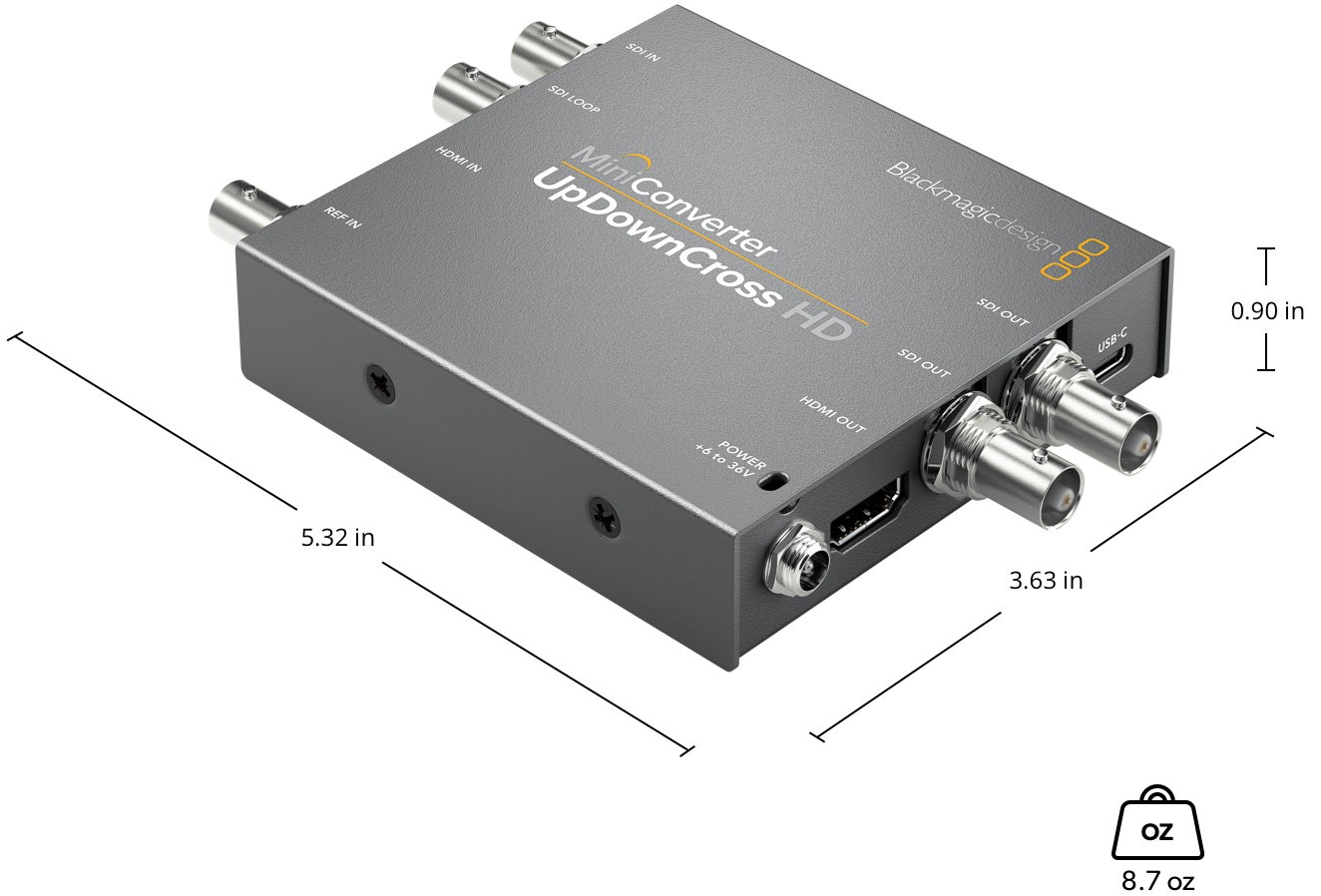

- Dimensions (L × W × H): 5.32 × 3.63 × 0.90 in (135 × 92 × 23 mm)
- Weight: 8.7 oz (247 g)
- Warranty: 3-year limited manufacturer warranty
WE RECOMMEND
The following accessories go with the Blackmagic Design Mini Converter UpDownCross HD.
Power supplies – Blackmagic Design power supplies for running the unit from the mains.
- Blackmagic Design Power Supply - Mini Converters 12V12W Locking
- Blackmagic Design Power Supply - Converters 12V10W
HDMI cables – Cables for connecting HDMI inputs and outputs.
SDI cables – Coaxial cables for carrying SDI signals.
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | Scaler · SDI LOOP |
| Source | SDI · HDMI · 3G SDI |
| Target | HDMI · SDI · 3G SDI |
