Decimator Design MD-LX

The Decimator Design MD LX is a compact bi directional converter that bridges the gap between HDMI and SDI video equipment. This pocket sized device allows for seamless signal conversion between 3G HD and SD formats. It features independent paths for HDMI to SDI and SDI to HDMI conversion making it a flexible tool for professional broadcast and live production. Its small form factor and low power consumption via USB make it perfect for field use. Experience reliable video signal integrity and easy integration into any workflow with this high quality and portable converter solution.

Decimator Design MD-LX HDMI SDI Converter

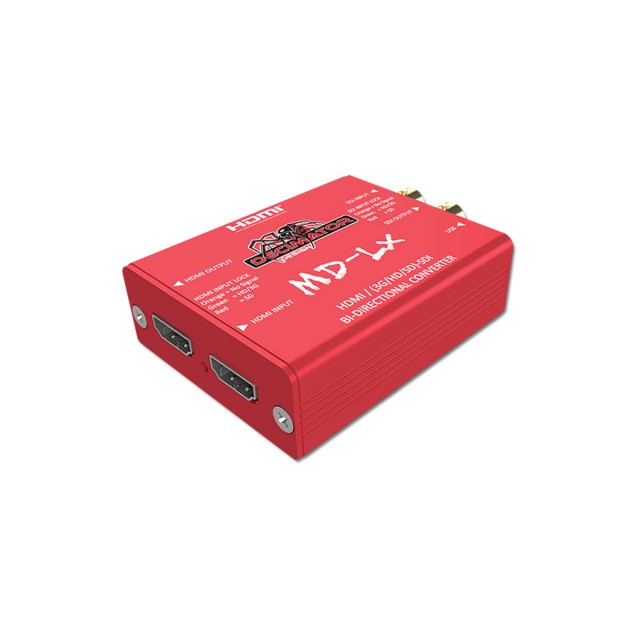

The Decimator Design MD-LX is a pocket-sized bidirectional converter designed for seamless signal conversion between HDMI and 3G/HD/SD-SDI formats. It features HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other, supporting resolutions up to Full HD 1080p60. This compact device is ideal for professional video production, broadcast, and live event applications where flexible signal routing is essential.

With its low power consumption, the MD-LX operates efficiently using under 2.5 Watts, powered via a Micro USB port that also enables control and firmware upgrades. The unit includes a power supply and USB cable for immediate deployment, though HDMI cables are not provided. Its rugged yet portable design measures 60mm x 73.7mm x 23mm, equivalent to 2.4 inches x 2.9 inches x 0.9 inches, making it suitable for field use or rack integration.

The converter supports multiple conversion modes to adapt to various workflows:

• Auto Select: Routes the active input to all outputs, or performs SDI-to-HDMI and HDMI-to-SDI conversion simultaneously if both inputs are active.
• HDMI IN to SDI OUT and SDI IN to HDMI OUT: Bidirectional cross-conversion between formats.
• SDI IN to HDMI and SDI OUT: Distributes SDI input to both HDMI and SDI outputs.
• HDMI IN to HDMI and SDI OUT: Distributes HDMI input to both HDMI and SDI outputs.

Advanced signal handling includes support for 3G Level A and Level B on both input and output, with automatic conversion between these standards. LED indicators provide visual feedback: green for HD/3G signal lock, orange for no signal, and red for SD signal detection on SDI inputs. HDMI input lock is also indicated for reliable operation.

SDI input specifications adhere to SMPTE standards, supporting SD formats such as 625i50 PAL at SMPTE 259M 270Mb/s and 525i59.94 NTSC. HD formats include 1080p at 60/59.94/50/30/29.97/25/24/23.98Hz, 1080i at 60/59.94/50Hz, and 720p at 60/59.94/50/30/29.97/25Hz. HDMI formats mirror these capabilities, ensuring broad compatibility across professional video ecosystems.

Inputs consist of one HDMI Type A connector, one 3G/HD/SD-SDI BNC connector, and a Micro USB port for power ranging from +4.4V to +5.25V DC. Outputs match with one HDMI Type A and one 3G/HD/SD-SDI BNC. The USB interface allows configuration via Decimator Design's control software, enabling mode selection, signal monitoring, and firmware updates without additional hardware.

Engineered for reliability in demanding environments, the MD-LX maintains signal integrity across conversions, with automatic detection and locking for uninterrupted workflows. Its bidirectional nature eliminates the need for multiple dedicated converters, reducing setup complexity and costs in multi-format productions.

Overall, the MD-LX stands out for its versatility, combining professional-grade performance in an ultra-compact form factor. It serves as a cost-effective solution for integrating HDMI and SDI signals in cameras, switchers, monitors, and streaming setups.
