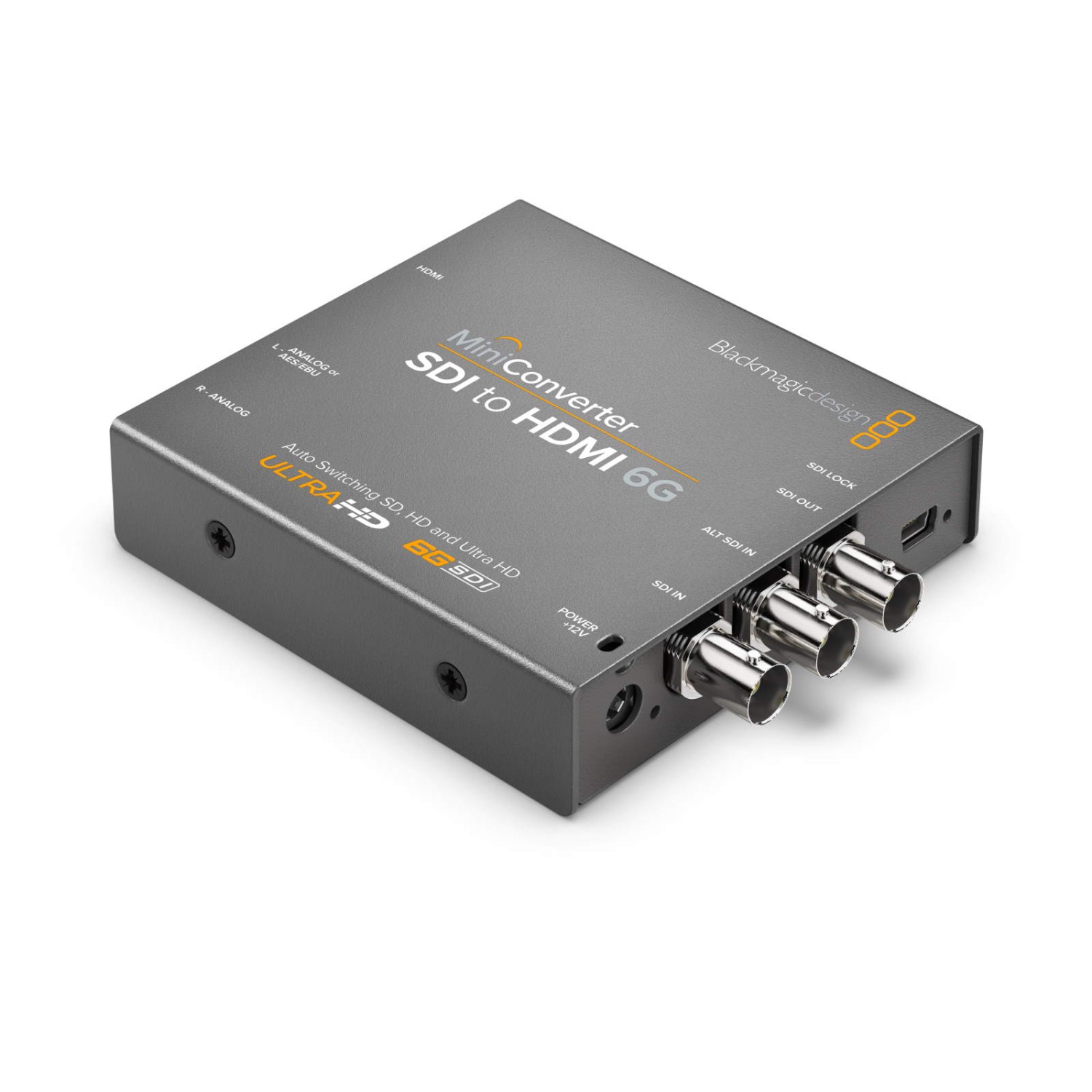

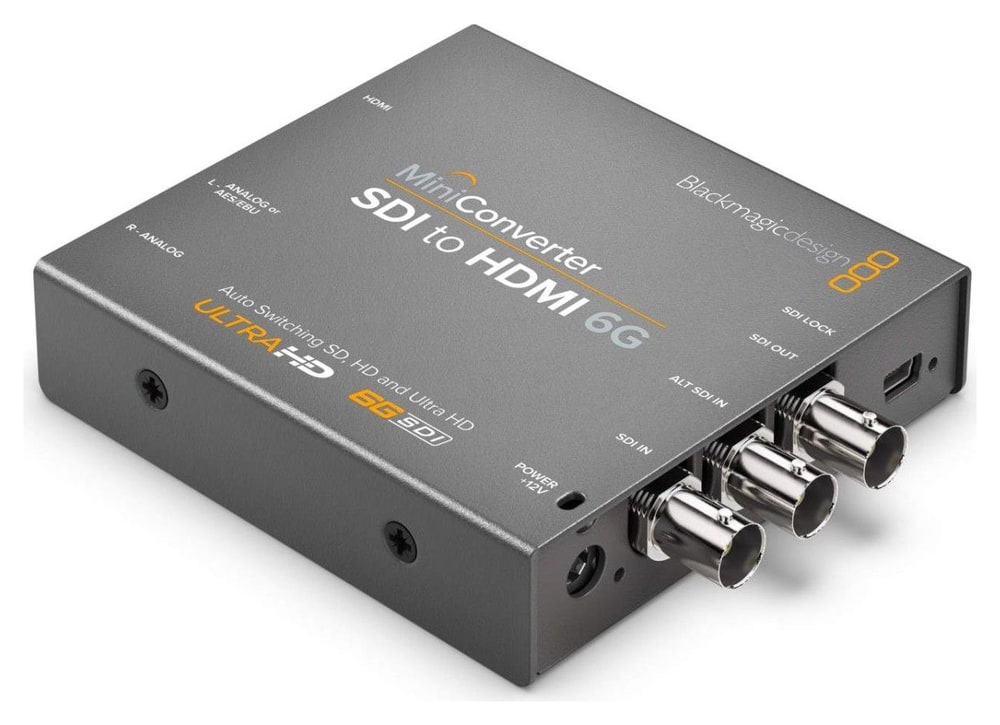

Blackmagic Design Mini Converter SDI to HDMI 6G

SKU: CONVMBSH4K6G

Blackmagic Mini Converter SDI to HDMI 6G is a professional 6G-SDI to HDMI converter for monitoring in SD, HD and Ultra HD. It offers a redundant SDI input, a loop output, audio de-embedding to HDMI, analog outputs or AES/EBU, a 33 point 3D LUT, down conversion from Ultra HD to HD and HDMI Instant Lock. A universal 12 V power supply is included.

More information

234 € with VAT 193.39 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CONVMBSH4K6G
Add to Compare Price history

Top accessories for Blackmagic Design Mini Converter SDI to HDMI 6G

Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 50cm

  • -20 %
  • Top product
Promotion: -20%
Ultra-thin and flexible HDMI cables for the needs of all creative professionals.
18.48 €
22.99 €
In stock > 5 pcs

Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 80cm

  • 4K / UHD
Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.
23 €
In stock > 5 pcs

Blackmagic Design Power Supply - Mini Converters 12V12W Locking

  • LAST PIECE
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs

Blackmagic Design ATEM SDI

  • -5 %
Promotion: -5%
ATEM SDI is the 3G-SDI version of the popular ATEM Mini HD switchers. Its four SDI
361.14 €
381.15 €
To be sent 1 pcs

Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request

Blackmagic Design Power Supply - Converters 12V10W

Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Blackmagic Mini Converter SDI to HDMI 6G is a professional 6G-SDI to HDMI converter for monitoring in SD, HD and Ultra HD. It offers a redundant SDI input, a loop output, audio de-embedding to HDMI, analog outputs or AES/EBU, a 33 point 3D LUT, down conversion from Ultra HD to HD and HDMI Instant Lock. A universal 12 V power supply is included.

6G-SDI to HDMI with 3D LUT

Convert SDI in SD, HD and Ultra HD to HDMI for professional monitoring. You get a redundant SDI input, a loop output, audio de-embedding, down conversion, a 3D LUT and HDMI Instant Lock.

6G-SDI inputHDMI output3D LUTHDMI Instant LockPower supply included

Ultra HD on an HD monitor

The built-in down conversion shows an Ultra HD signal even on an HD display with HDMI. HDMI Instant Lock speeds up the picture when switching between devices of the same format.

On-set monitoring

Bring the SDI camera signal to a television or monitor with HDMI.

Projection

Connect a projector with HDMI to a professional SDI route.

Audio monitoring

Take the audio from SDI to the analog output or AES/EBU.

Consistent look

Use 3D LUTs from DaVinci Resolve right on set.

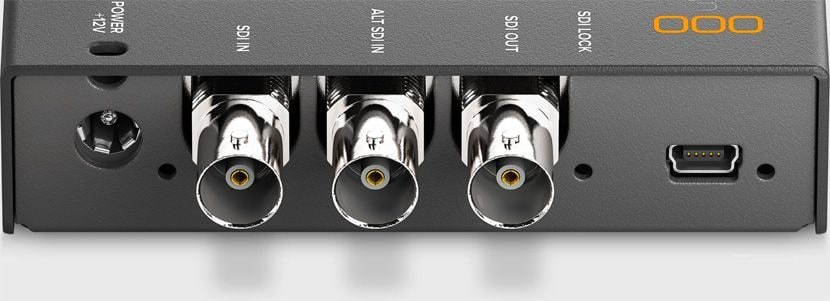

Reliable monitoring with a backup

The main and redundant SDI inputs switch over automatically if the main signal is lost – the second cable can run along a different route. The SDI loop output continues to the next device and HDMI connects a monitor, projector or television.

Mini Converter SDI to HDMI 6G – Reliable monitoring with a backup

Accurate picture with 3D LUTs

The built-in 33 point 3D LUT helps calibrate or creatively adjust the HDMI output: apply custom looks, color and gamma changes in realtime. LUTs can also be applied to the SDI loop output, turning the converter into a 3D LUT processor. LUT files are compatible with DaVinci Resolve.

Mini Converter SDI to HDMI 6G – Accurate picture with 3D LUTs

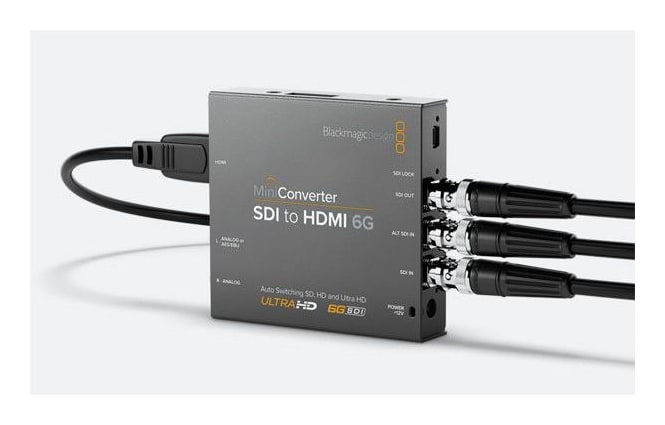

HDMI Instant Lock

HDMI televisions and projectors take a long time to lock onto a new signal. HDMI Instant Lock continuously sends an active HDMI signal to the display, so when you switch to a device of the same format the picture appears within a single frame – without glitches.

Mini Converter SDI to HDMI 6G – HDMI Instant Lock

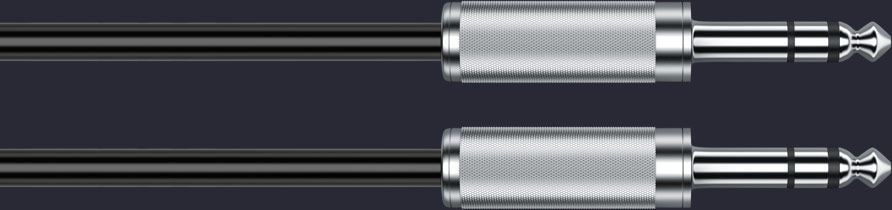

Audio from SDI to HDMI, analog and AES/EBU

The converter de-embeds the SDI audio to HDMI, to two channels of balanced analog audio on 1/4 inch jacks or to digital AES/EBU. Sampling at 48 kHz and 24 bit matches the television standard.

Mini Converter SDI to HDMI 6G – Audio from SDI to HDMI, analog and AES/EBU

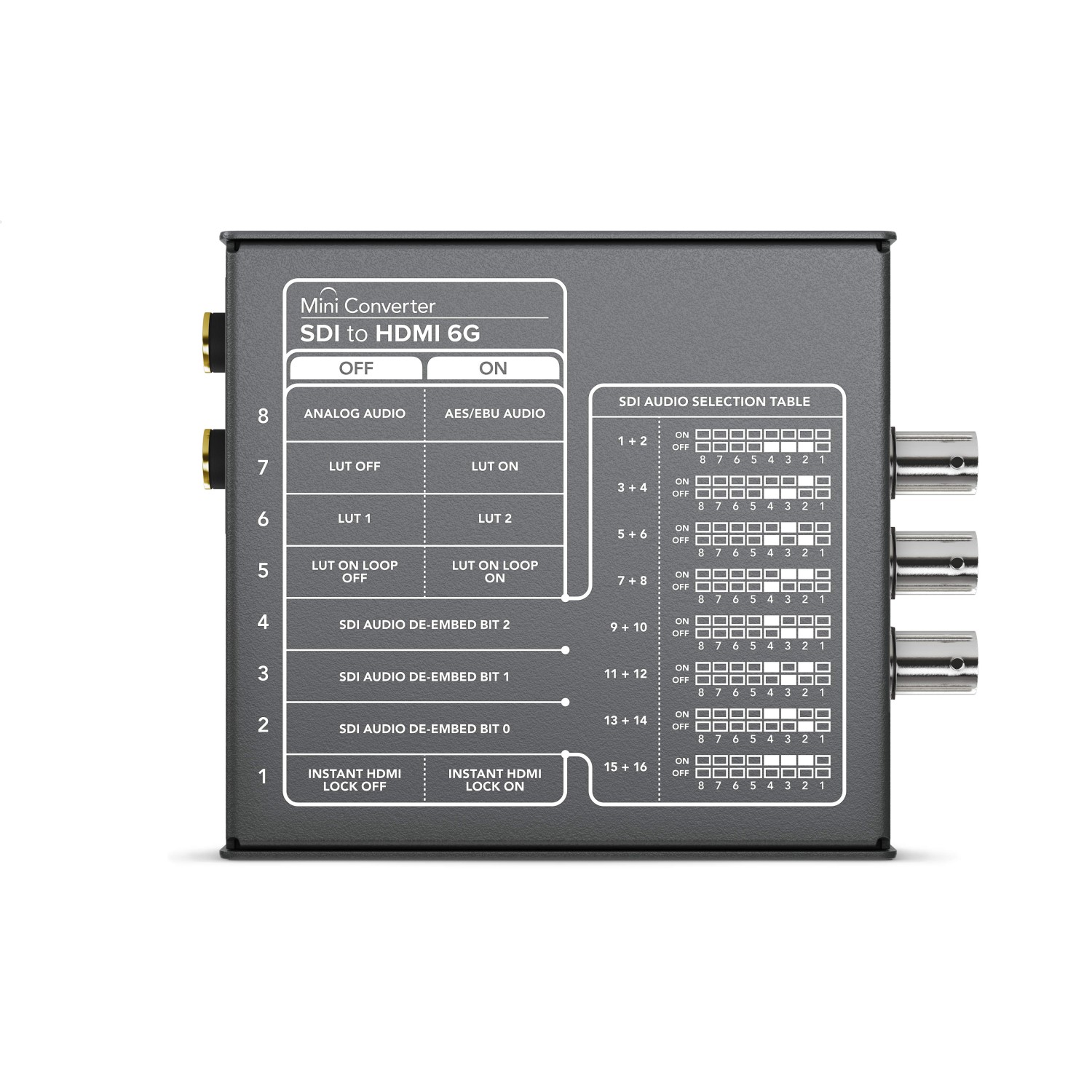

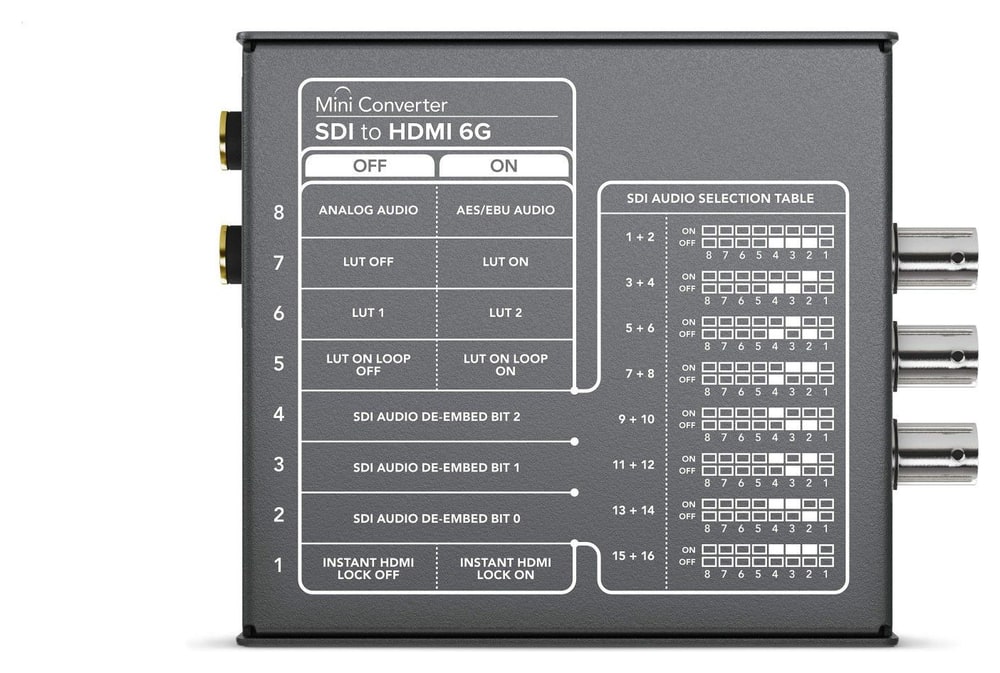

Setup with mini switches or over USB

Functions are selected with mini switches using the diagram printed on the converter, so you never have to look for the manual. Over USB and the utility for macOS and Windows, settings can be changed from a computer and new software installed.

Mini Converter SDI to HDMI 6G – Setup with mini switches or over USB

In the rack, in the truck and outdoors

The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.

Mini Converter SDI to HDMI 6G – In the rack, in the truck and outdoors

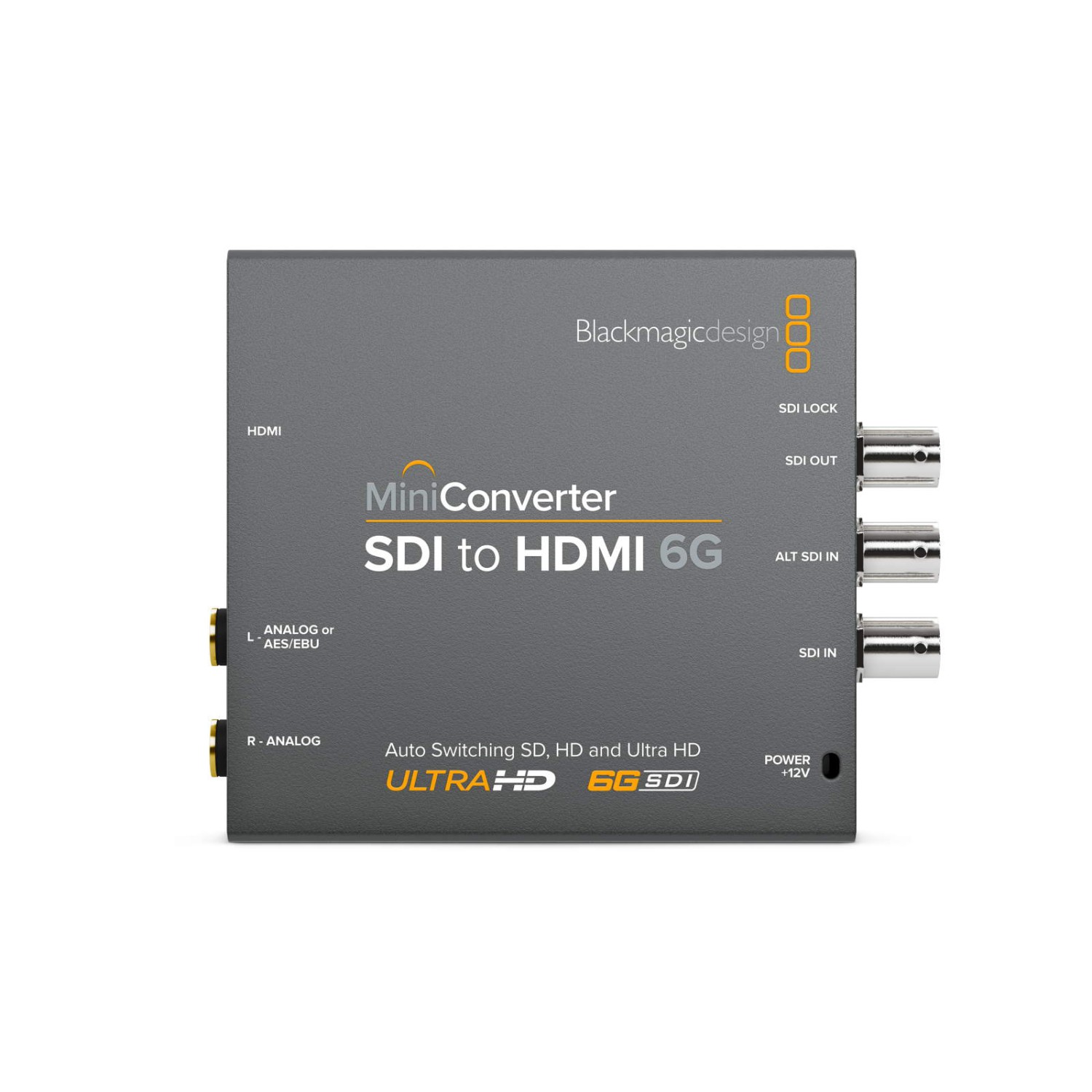

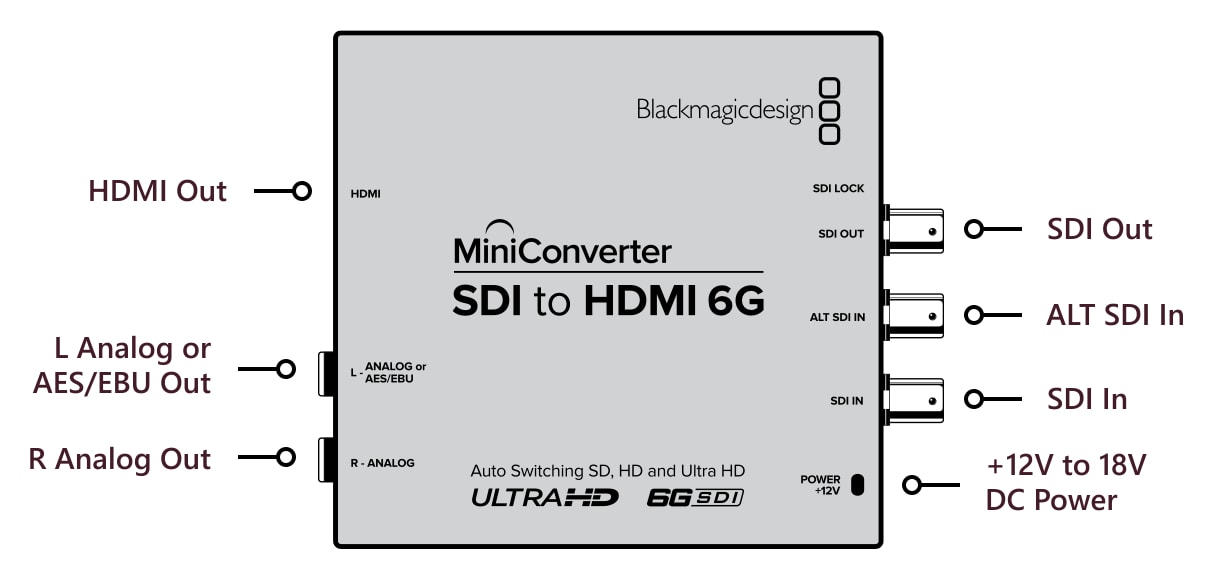

Connections

One side has the HDMI output and two audio jacks (left for analog or AES/EBU, right for analog), the other the SDI loop output, the redundant SDI input, the main SDI input and the power input.

Mini Converter SDI to HDMI 6G – Connections

More information

About the Mini Converter range

The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.

Core settings are selected with mini switches using the diagram printed on the unit, while USB is used for configuration and updates. The converter handles supported formats automatically and keeps picture and sound stable throughout the signal chain.

PACKAGE CONTENT

  • Mini Converter SDI to HDMI 6G
  • Universal 12 V power supply with international socket adapters

SPECIFICATIONS

  • SDI inputs: 1× SD/HD/6G-SDI and 1× redundant SDI input (ALT SDI)
  • Redundant SDI input: automatically switches over if the main input is lost
  • SDI output: 1× SDI loop output
  • HDMI output: 1× HDMI type A
  • Analog audio outputs: 2 channels of balanced analog audio, 1/4 inch jack
  • Digital audio outputs: 2 channels of AES/EBU (shared with the left analog jack)
  • Auto detection: SD, HD, 6G-SDI
  • SD standards: 625i50 PAL, 525i59.94 NTSC
  • HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
  • Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • 4K DCI standards: 4K DCI 23.98p, 24p, 25p
  • HDMI standards: 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • SDI compliance: SMPTE 259M, 292M, 296M, 372M, ST 2081, ITU-R BT.656 and BT.601
  • SDI sampling and color space: 4:2:2 and 4:4:4, YUV and RGB
  • Audio sampling: 48 kHz, 24 bit
  • Picture features: 33 point 3D LUT (also on the SDI loop output), Ultra HD to HD down conversion, HDMI Instant Lock
  • Reclocking: yes
  • Settings control: mini switches or USB software
  • Software updates: via USB from a Mac or Windows computer
  • Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
  • Power supply: universal 12 V with international socket adapters, cable tie point
  • Operating voltage: 12–18 V DC
  • Power consumption: 5.2 W
  • Operating temperature: 0 to 40 °C (32 to 104 °F)
  • Storage temperature: −20 to 45 °C (−4 to 113 °F)
  • Relative humidity: 0–90% non-condensing

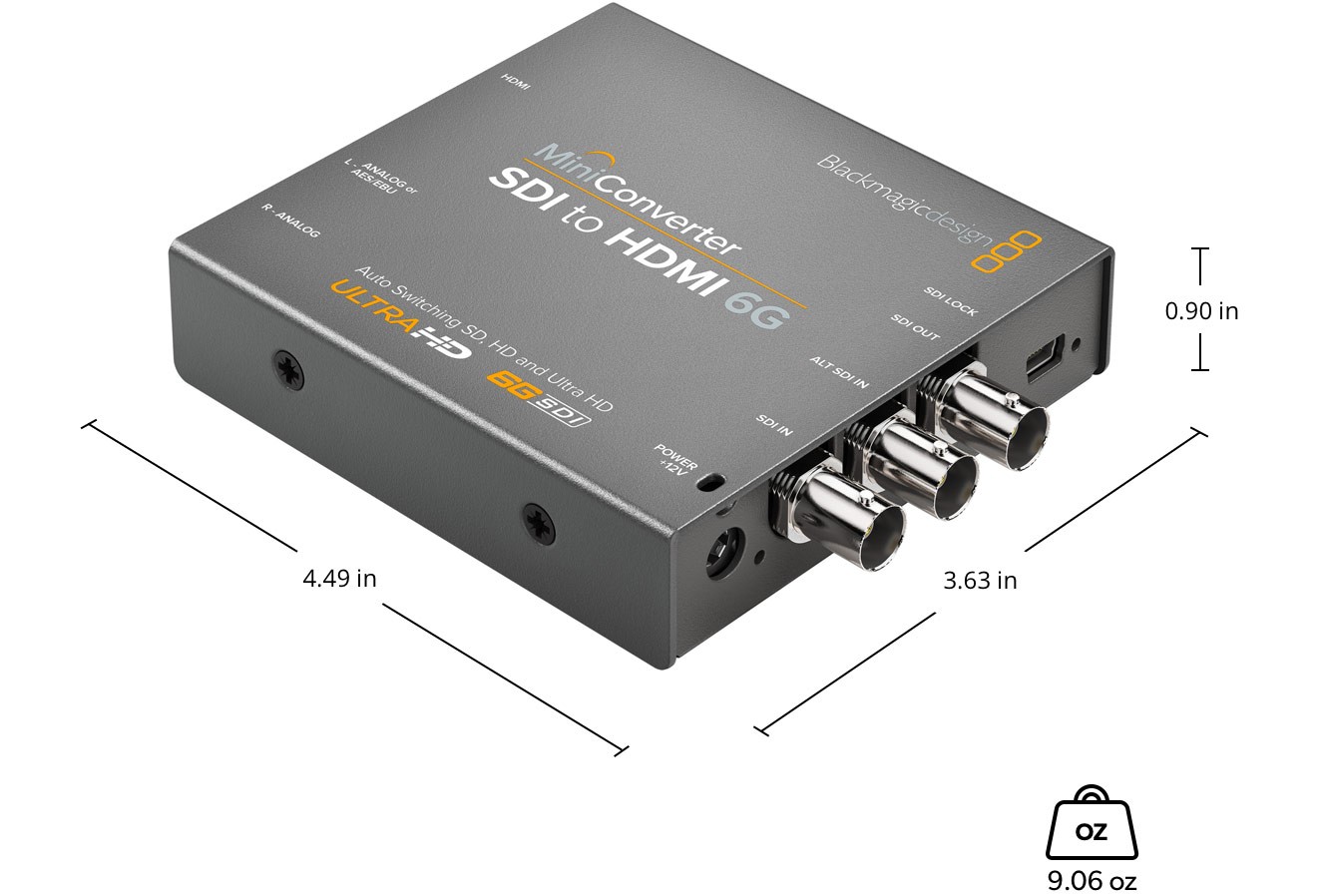

  • Dimensions (L × W × H): 4.49 × 3.63 × 0.90 in (114 × 92 × 23 mm)
  • Weight: 9.06 oz (257 g)
  • Warranty: 3-year limited manufacturer warranty
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

Other featuresSDI LOOP · Audio output · 3D LUT · auto format adaptation
SourceSDI · 6G SDI
TargetHDMI · Audio
