Blackmagic Design DeckLink SDI 4K
SKU: BDLKSDI4K

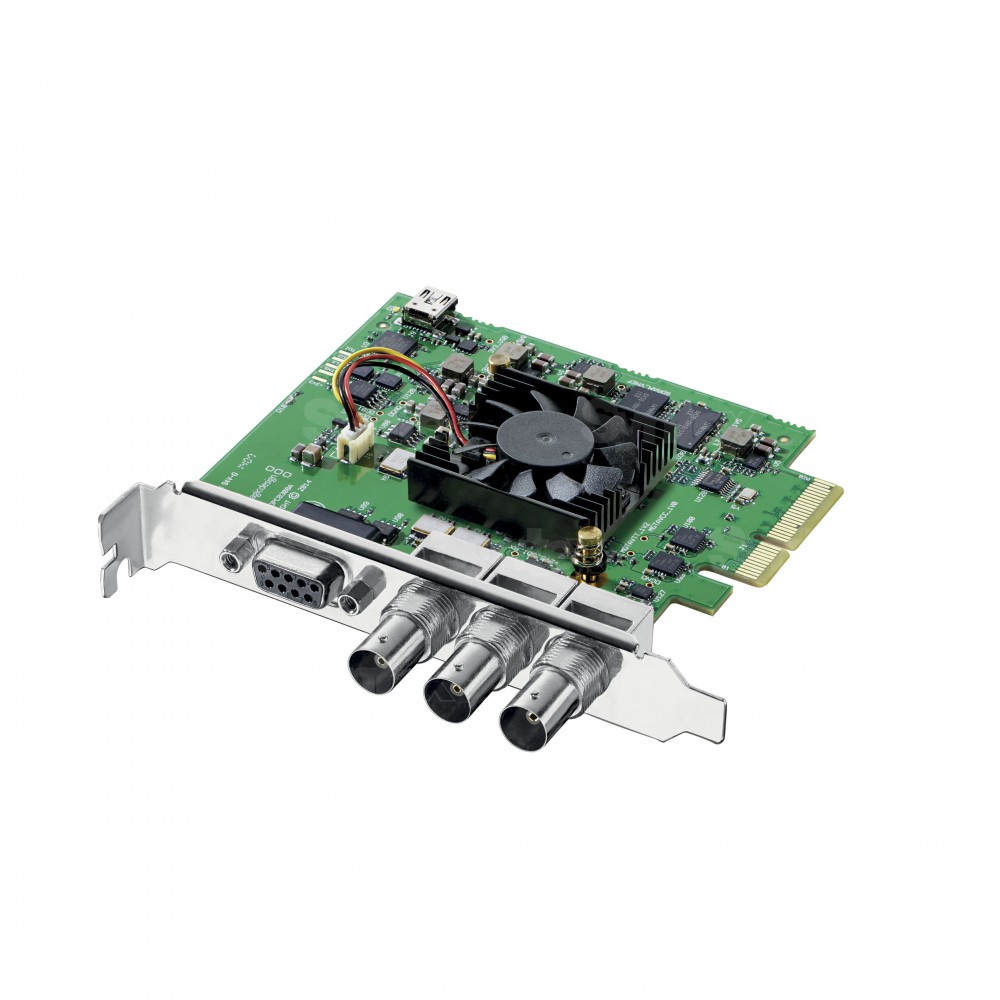

Blackmagic DeckLink SDI 4K is a compact PCI Express card for professional 6G-SDI capture and output in SD, HD, 2K and Ultra HD up to 2160p30 and 4K DCI up to 25p. It offers 10-bit quality, a reference input, RS-422 deck control and a hardware down converter, making it suitable for editing, graphics and studios with SDI equipment on macOS, Windows and Linu…
319 € with VAT
263.64 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 1 pcs
Praha 1 pcs, Bratislava 1 pcs
Praha 1 pcs, Bratislava 1 pcs
Top accessories for Blackmagic Design DeckLink SDI 4K
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
Sonnet Echo Express SE I (Thunderbolt 3)
PCIe cards for the additional connectivity and processing capabilities beyond what’s
529 €
To be sent 2 pcs
MagicSoft Recorder
MagicSoft Recorder is an ingest application designed for the broadcast and post-production
Call us for pricing information
Sonnet Echo Express SE III (Thunderbolt 3)
3-slot Thunderbolt 3 desktop expansion system for PCIe cards.Connect Three Full-height,
1 089 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

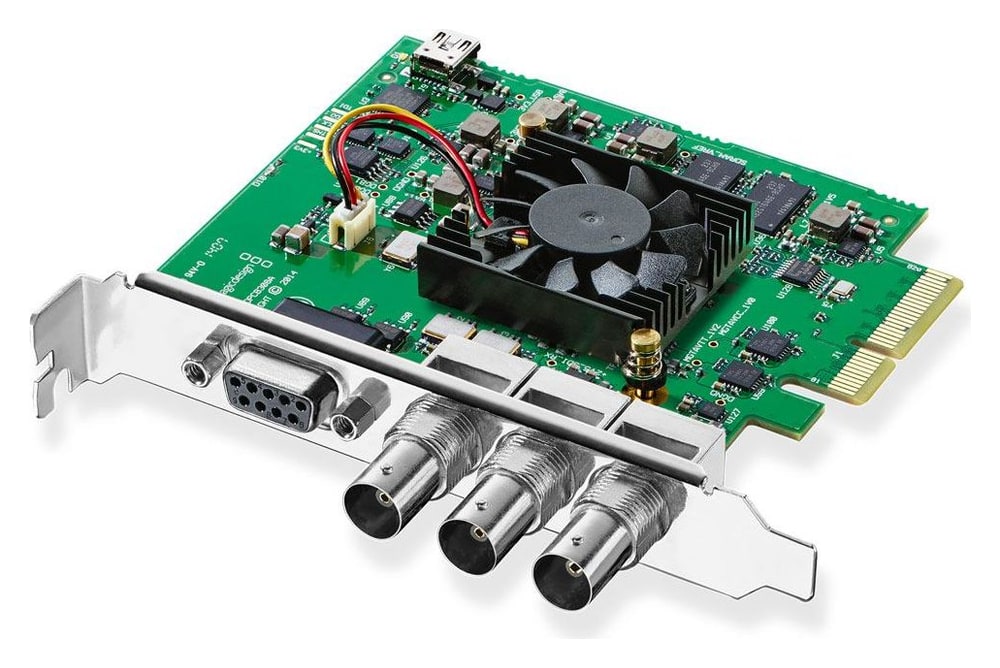

Blackmagic DeckLink SDI 4K is a compact PCI Express card for professional 6G-SDI capture and output in SD, HD, 2K and Ultra HD up to 2160p30 and 4K DCI up to 25p. It offers 10-bit quality, a reference input, RS-422 deck control and a hardware down converter, making it suitable for editing, graphics and studios with SDI equipment on macOS, Windows and Linux.
Professional SDI capture and output
One multi rate 6G-SDI input and one output, internal keying, a reference input and RS-422 deck control – a complete SDI solution for editing, graphics and design.
6G-SDIInput + outputUp to 2160p30RS-422PCIe x4
Connect professional SDI equipment
The card connects cameras, decks, routers and monitors in SD, HD, 2K and Ultra HD without an external converter.
Editing and grading
DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer.
Deck control
RS-422 ports compatible with the Sony protocol.
Synchronization
Black Burst and Tri-Sync reference input.
Custom applications
Free Desktop Video SDK for macOS, Windows and Linux.
One SDI card for the whole workflow
The card has one multi rate 6G-SDI input and one output on BNC connectors, switchable between SD, HD, 2K and Ultra HD. It embeds 16 audio channels in HD, 2K and 4K and 8 channels in SD, always 48 kHz and 24-bit; 6G-SDI carries 4:2:2 and 3G-SDI also 4:4:4.
Formats up to Ultra HD and 4K DCI
The card works with NTSC, PAL, 720p, 1080i, 1080PsF and 1080p up to 60 frames per second, with 2K DCI 23.98/24/25p, Ultra HD 2160p up to 30 frames per second and 4K DCI 23.98/24/25p. It processes video in 10 bits with 4:2:2 and 4:4:4 sampling (4K is 4:2:2 only), with the Rec. 601 and 709 color spaces, RP 188 timecode and closed captioning.
Format conversion
When working in HD, the built-in hardware down converter sends HD or SD to the SDI output as letterbox, anamorphic 16:9 or 4:3 center cut. During capture the software converts SD to HD, during playback 720p to 1080 and back; color space conversion runs in hardware in real time.

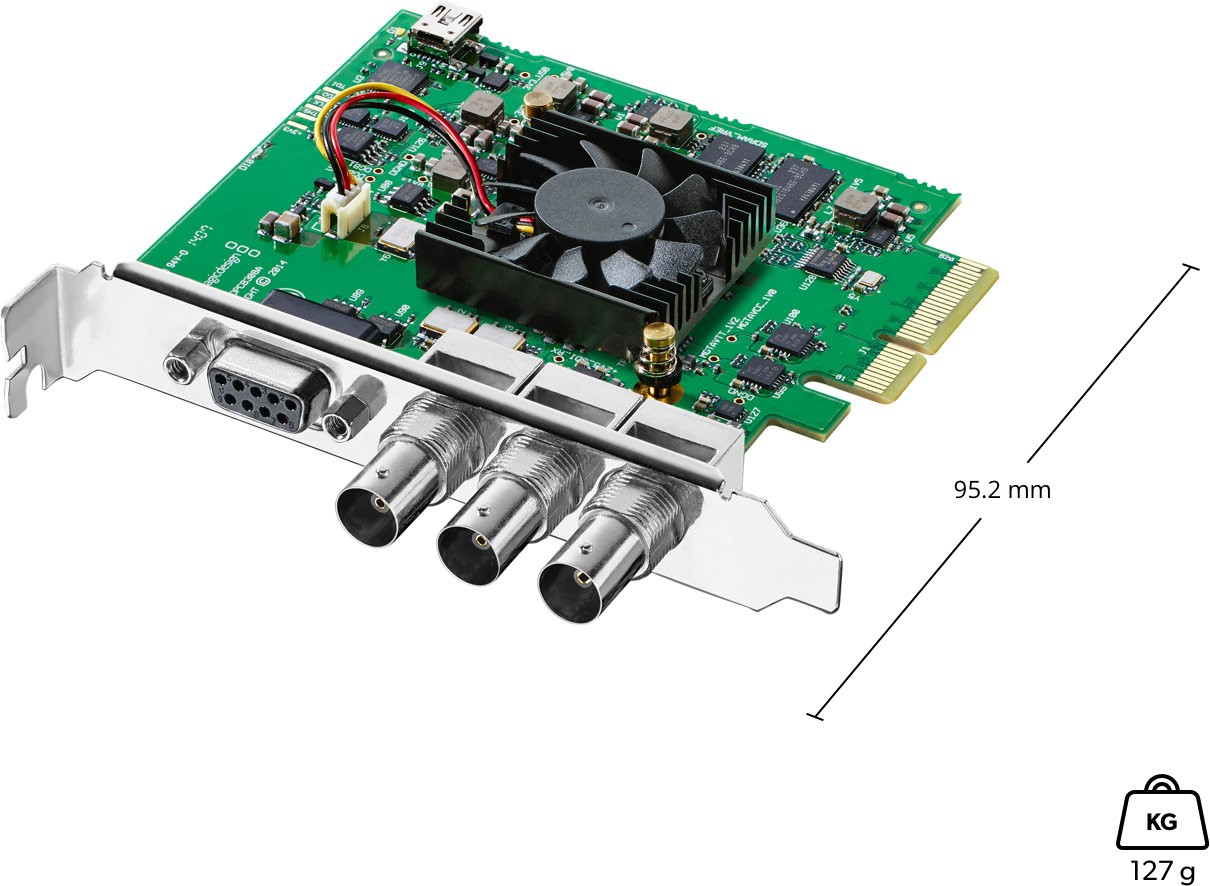

Dimensions and installation
The card is 95.2 mm long, weighs 127 g and draws 11 W. The PCI Express x4 generation 2 interface works in x4, x8 and x16 slots of computers with macOS, Windows and Linux.

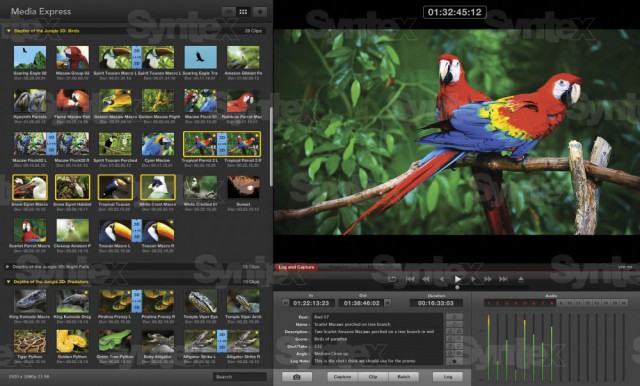

Desktop Video software included
The Desktop Video software includes Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and the driver for macOS and Windows, and Media Express, Desktop Video Utility and the driver for Linux. The card works with DaVinci Resolve, Fusion, Final Cut Pro, Premiere Pro, After Effects, Media Composer, Pro Tools and Photoshop, and plays back effects in real time in Resolve, Final Cut Pro, Premiere Pro and Media Composer.

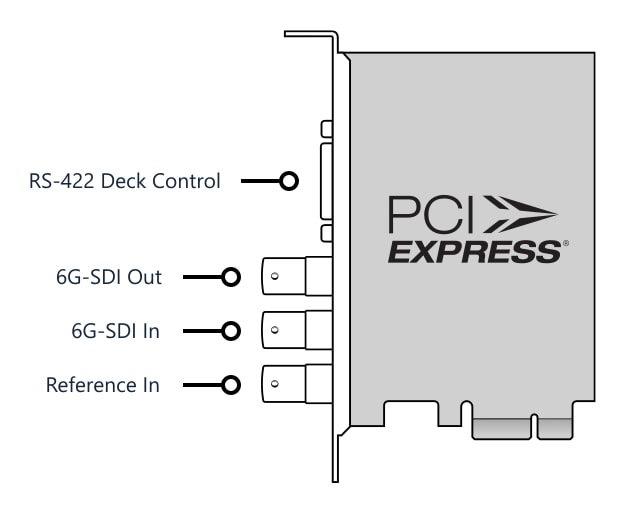

Connectors
The bracket carries the RS-422 deck control connector with the 6G-SDI output, 6G-SDI input and reference input below it, all three on BNC connectors.
More information
Details for SDI 4K post production
DeckLink SDI 4K is an editing card for SDI connectivity and maximum image quality. It is compatible with macOS, Windows and Linux and works with SD, HD and Ultra HD equipment. It offers RS-422 for controlling Sony decks and a sync input, so it suits studios with SDI routers and other professional SDI equipment.
The updated version of the original model supports, besides SD and HD up to 1080p60, also 2K 2048 × 1080 at 23.98/24/25p and 4K up to 4096 × 2160 at 23.98/24/25p.
Besides the basic functions it offers resolution conversion: during capture the software converts SD video to HD 720/1080, during playback it converts HD 720 to 1080 and back, and the hardware down converter scales HD to SD. It supports internal effects of Final Cut Pro, the Adobe Premiere Pro Mercury Playback Engine, Avid Media Composer and DaVinci Resolve.

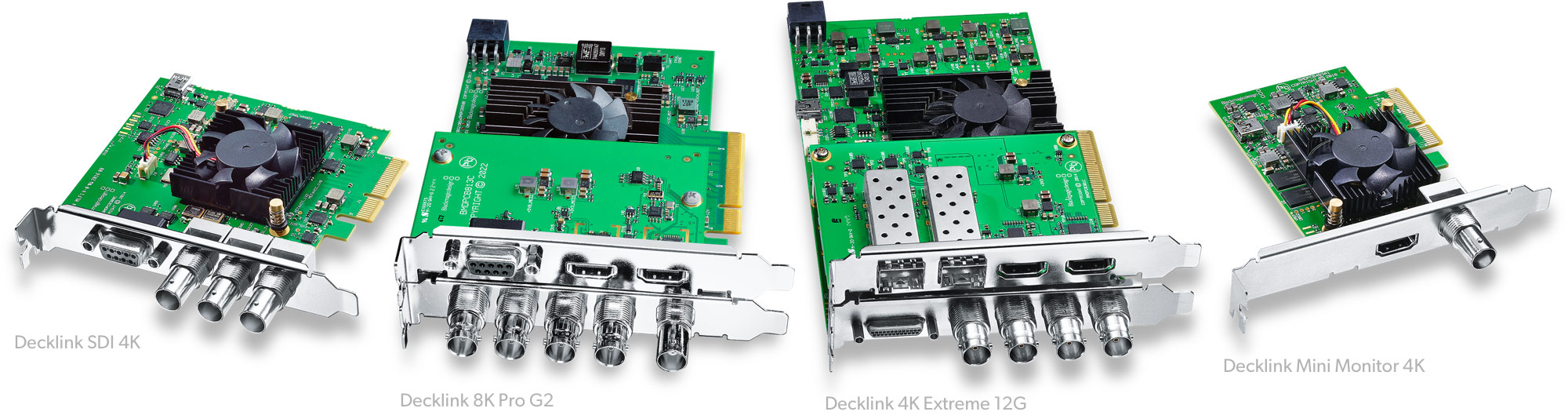

The 4K DeckLink models introduced 6G-SDI, on models with HDMI also HDMI 4K, a four-lane PCIe bus and full duplex operation for simultaneous capture and playback. This can be used, for example, for continuous color correction in DaVinci Resolve.
The card is compatible with a wide range of applications for editing, color correction, VFX and audio, and offers SDK tools for system integrators.
PACKAGE CONTENT
- DeckLink SDI 4K card
SPECIFICATIONS
- Function: Simultaneous capture and playback
- SDI input: 1 x 10-bit SD/HD/2K/4K; 6G-SDI 4:2:2, 3G-SDI 4:4:4 (BNC)
- SDI output: 1 x 10-bit SD/HD/2K/4K; 6G-SDI 4:2:2, 3G-SDI 4:4:4 (BNC)
- Embedded audio: SDI: 16 channels in HD, 2K and 4K, 8 channels in SD; 48 kHz, 24-bit
- Maximum format: Ultra HD 2160p30; 4K DCI up to 25p (SDI)
- Reference input: Tri-Sync or Black Burst
- Deck control: Sony compatible RS-422, TxRx direction reversible under software control
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K DCI formats (SDI): 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI formats: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- Sampling and color precision: 4:2:2 and 4:4:4 (4K is 4:2:2 only); 10-bit
- Color space: Rec. 601, Rec. 709
- Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, 2081, ITU-R BT.656, ITU-R BT.601
- SDI metadata: RP 188 / SMPTE 12M-2 and closed captioning
- Processing: hardware down converter (SDI output HD or SD; letterbox, anamorphic 16:9, 4:3 center cut); software SD to HD up conversion on capture (16:9 zoom or anamorphic); software 720p ↔ 1080 cross conversion on playback; hardware real time color space conversion; real time effects in DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer
- Computer interface: PCI Express x4 generation 2, compatible with x4, x8, x16 slots
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
- Software included: Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and driver for macOS and Windows; Media Express, Desktop Video Utility and driver for Linux
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux
- Power consumption: 11 W
- Card length: 95.2 mm
- Weight: 127 g
- Operating temperature: 5–40 °C
- Storage temperature: −20–45 °C
- Relative humidity: 0–90% non-condensing
- Manufacturer warranty: 3 years (limited manufacturer warranty)
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | 4K · HD |
| Output | SDI · 6G SDI |
| Inputs | SDI · 6G SDI |
| Interface type | PCI Express 2.0 x4 |
