AVMatrix TB-P51 Capture/Playback USB-C box

  • New
  • 4K / UHD
SKU: TB-P51

AVMATRIX TB-P51 is an external HD device for bidirectional capture and playback of pro video over 3G-SDI for live production, streaming and post. It connects over USB-C at up to 40 Gbps and offers DisplayPort 1.4 output, SDK support and active cooling.

More information

829 € with VAT 685.12 € without VAT
Add to Compare Price history
Availability
Backordered 1 pcs - 13.11.2026
SKU:
TB-P51
Add to Compare Price history

AVMatrix TB-C42 External 4 channel 4K HDMI capture box

In stock 2 pcs619 €without VAT 511.57 €

AVMatrix TB-C41 external 4 channel 3G SDI USB-C box

In stock 1 pcs669 €without VAT 552.89 €

AVMatrix TB-C12-4K external HDMI capture box

In stock 2 pcs569 €without VAT 470.25 €

AVMatrix Docking Station

In stock 2 pcs265 €without VAT 219.01 €

AVMatrix TB-P30 External 3channel USB-C 3G-SDI playback box

589 €without VAT 486.78 €

Top accessories for AVMatrix TB-P51 Capture/Playback USB-C box

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX TB-P51 is an external HD device for bidirectional capture and playback of pro video over 3G-SDI for live production, streaming and post. It connects over USB-C at up to 40 Gbps and offers DisplayPort 1.4 output, SDK support and active cooling.

Capture and playback over USB-C

AVMATRIX TB-P51 is an external HD capture/playback device with 3G-SDI and DisplayPort outputs plus SDK support. It is designed for bidirectional professional video in live production, streaming, broadcast and post-production.

AVMATRIX TB-P51
3G-SDI input/outputHD capture and playbackUSB 3.1 Gen 2Up to 40 GbpsDisplayPort 1.4SDK for integration

Professional video over 40 Gbps

Two high-speed USB-C ports deliver up to 40 Gbps of bandwidth and allow further devices to be daisy-chained. Active cooling is designed for stable continuous operation.

DisplayPort 1.4

Extends the desktop; DP MST support in Windows lets compatible monitors be daisy-chained.

USB 3.1 Gen 2

Alongside the video interfaces it adds another USB port for peripherals.

Lossless formats and SDK

YUY2, RGB and other uncompressed formats preserve image quality; the SDK enables integration into custom applications.

Optional USB-C PD power

Optional USB-C PD can provide up to 60 W of external power.

AVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographicAVMATRIX TB-P51 – infographic

More information

About the device

AVMATRIX TB-P51 is an external HD capture/playback device with 3G-SDI and DisplayPort outputs plus SDK support. It is designed for bidirectional capture and playback of professional video in live production, streaming, broadcast and post-production.

Professional video over high-speed USB-C. Dual high-speed ports provide up to 40 Gbps transfer bandwidth and support daisy-chaining additional devices. Active cooling is designed for stable continuous operation.

Expanded workstation connectivity. DisplayPort 1.4 and USB 3.1 Gen 2 are provided alongside the video interfaces. DisplayPort MST support in Windows allows compatible displays to be daisy-chained. Optional USB-C PD can provide up to 60 W of external power.

Lossless formats and SDK. YUY2, RGB and other uncompressed formats preserve image quality. SDK support enables integration with custom applications and specialized production systems.

Key features

  • an external HD capture/playback device with 3G-SDI and DisplayPort outputs plus SDK support
  • up to 40 Gbps transfer bandwidth
  • daisy-chain support

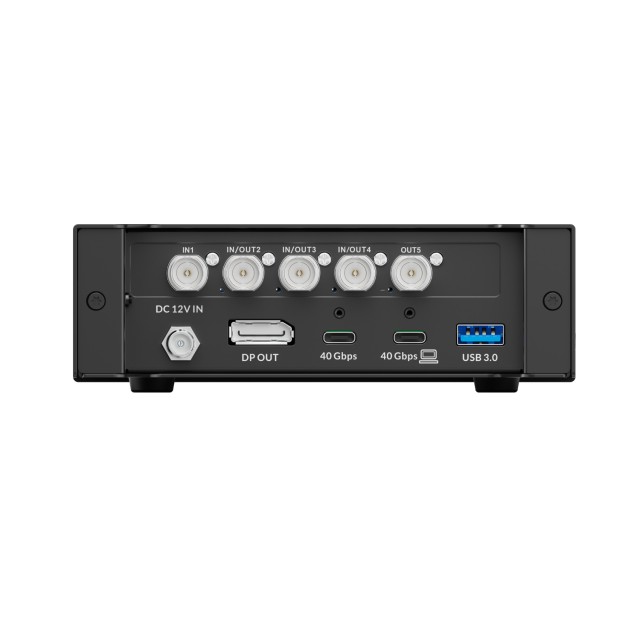

  • 3G-SDI input/output; DisplayPort 1.4; USB 3.1 Gen 2; 2× high-speed USB-C
  • YUY2, RGB and other lossless formats
  • DisplayPort MST on Windows
  • optional USB-C PD up to 60 W
  • SDK for custom integration
  • active cooling for continuous operation

PACKAGE CONTENT

  • 1× AVMATRIX TB-P51
  • 1× power adapter
  • 1× user documentation

SPECIFICATIONS

  • Function: bidirectional capture and playback of professional video
  • Video interfaces: 3G-SDI input/output; DisplayPort 1.4; USB 3.1 Gen 2; 2× high-speed USB-C
  • Maximum video format: HD video over 3G-SDI
  • Host connection: USB-C / Thunderbolt, up to 40 Gbps
  • Additional interfaces: USB 3.1 Gen 2, DisplayPort 1.4
  • Formats: YUY2, RGB and other uncompressed formats
  • Expansion: SDK, daisy-chain, optional USB-C PD up to 60 W
  • Cooling: active, for continuous operation
Parameters

Parameters

Manufacturer: AVMATRIX
Category: Capture cards external USB/TB

Main parameters

Maximum resolution1920×1080 @ 60 fps
Output3G SDI · DisplayPort
Inputs3G SDI
Interface typeThunderbolt
ACCESSORIES (2)

ACCESSORIES (2)

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
Alternative (5)

Alternative (5)

AVMatrix TB-C42 External 4 channel 4K HDMI capture box

  • New
  • 4K / UHD
  • LAST PIECE
AVMATRIX TB-C42 is a four-channel capture station for simultaneous recording of up
619 €
In stock 1 pcs

AVMatrix TB-C12-4K external HDMI capture box

  • New
  • 4K / UHD
AVMATRIX TB-C12-4K is a single-channel external capture device for recording one
569 €
In stock 2 pcs

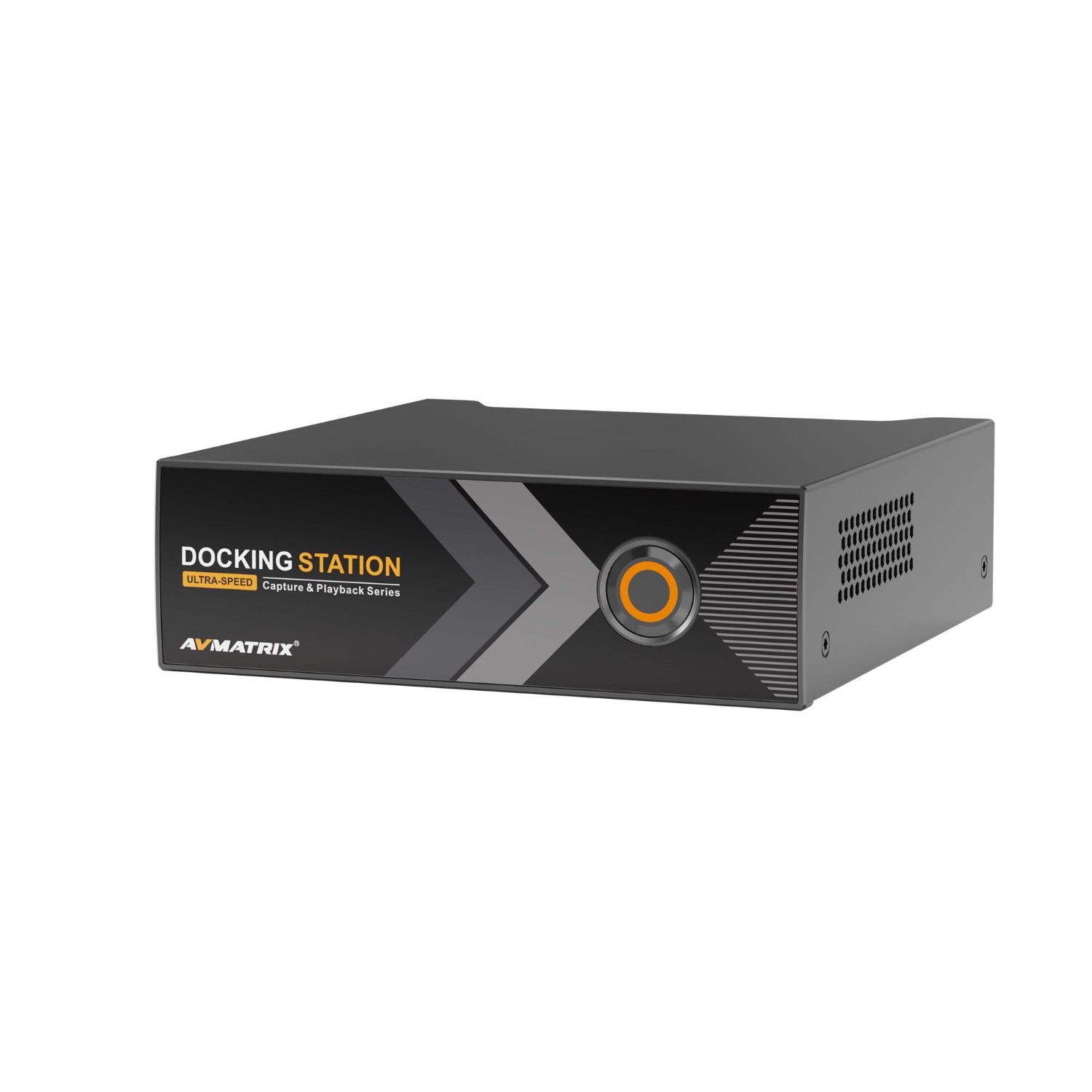

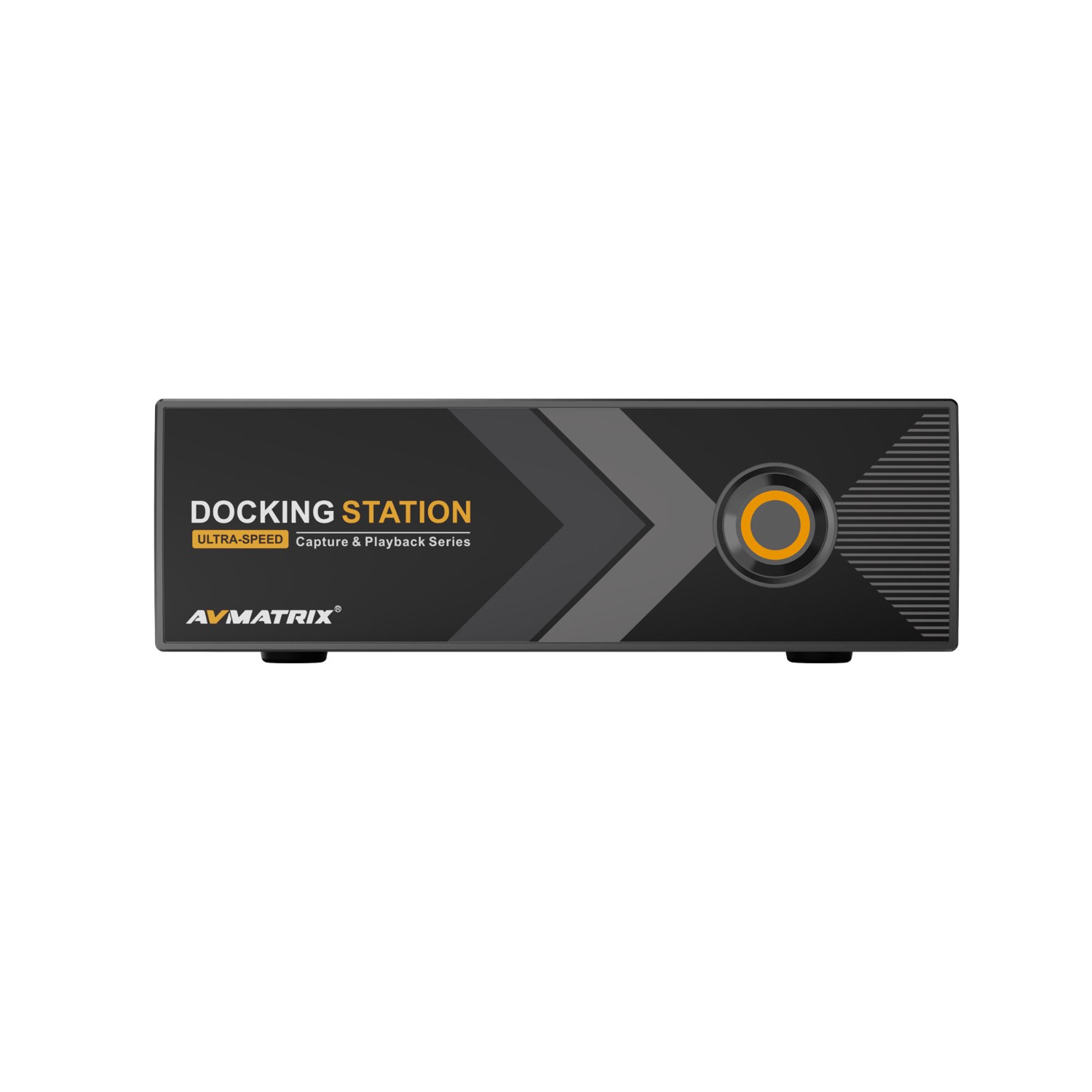

AVMatrix Docking Station
