AVMatrix TB-C41 external 4 channel 3G SDI USB-C box

AVMATRIX TB-C41 is a four-channel 3G-SDI capture station with 40 Gbps Thunderbolt, DisplayPort, USB 3.1 Gen 2 and 1080p60 support.

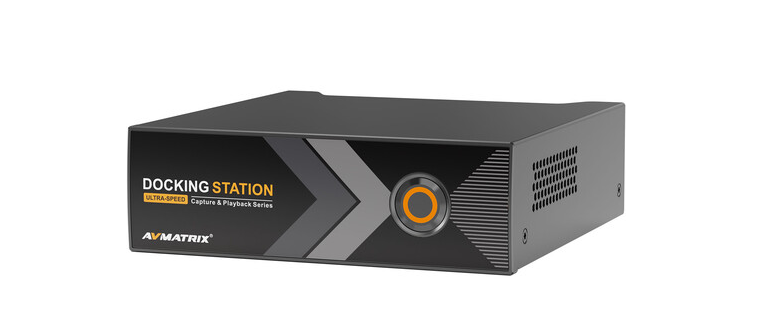

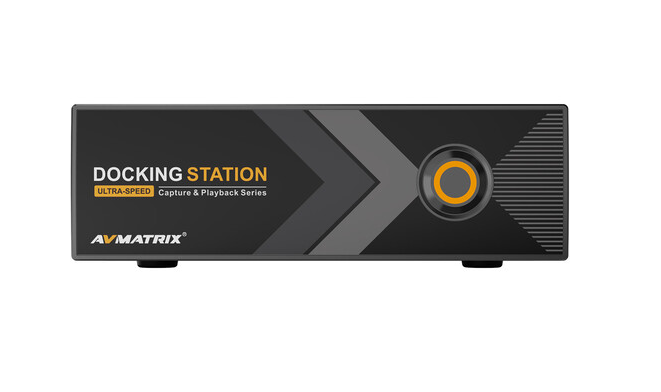

AVMATRIX TB-C41 is a professional Thunderbolt docking and capture station with four 3G-SDI inputs for simultaneous multicamera ingest. Dual 40 Gbps Thunderbolt ports, DisplayPort 1.4 and USB 3.1 Gen 2 expand the connectivity of a production computer.

Four SDI sources over Thunderbolt

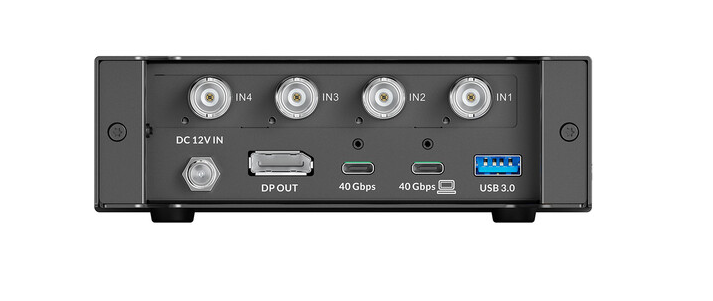

Four BNC inputs accept 3G-SDI video up to 1920 × 1080 at 60 fps in 8-bit YUV 4:2:2. The station is suitable for live broadcasting, multicamera recording, streaming and custom production software.

40 Gbps connectivity and daisy-chaining

Two Thunderbolt ports provide up to 40 Gbps bandwidth and support daisy-chaining additional devices. DisplayPort 1.4 provides a video output and USB-A 3.1 Gen 2 connects additional peripherals.

Professional audio and continuous operation

Embedded SDI audio operates at 48 kHz / 24-bit. The actively cooled design is intended for continuous operation, while SDK support for Windows and Linux enables integration with specialized applications.

Key features

• 4× 3G-SDI BNC inputs up to 1080p60
• 2× Thunderbolt, 40 Gbps and daisy-chain support
• DisplayPort 1.4 output
• USB-A 3.1/3.2 Gen 2
• 8-bit YUV 4:2:2 video
• 48 kHz / 24-bit embedded audio
• Windows and Linux SDK support
• design for continuous operation
