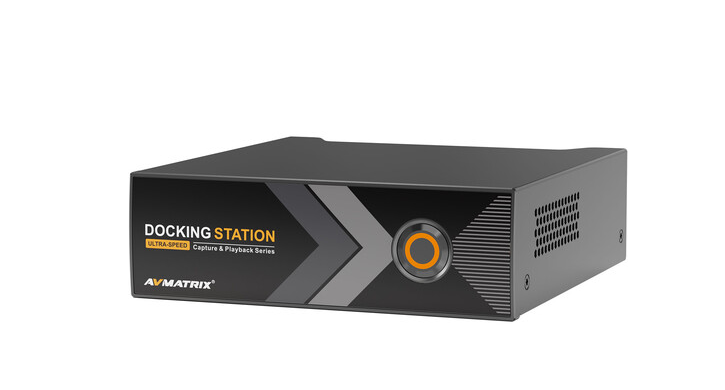

AVMatrix TB-C42 External 4 channel 4K HDMI capture box

AVMATRIX TB-C42 is a four-channel HDMI capture station with a 40 Gbps Thunderbolt interface for multicamera production.

AVMATRIX TB-C42 is a four-channel HDMI capture station with a 40 Gbps Thunderbolt interface for multicamera production. It is designed for simultaneous capture of up to four HDMI sources in live production, streaming, broadcast and post-production.

Professional video over high-speed USB-C

Dual high-speed ports provide up to 40 Gbps transfer bandwidth and support daisy-chaining additional devices. Active cooling is designed for stable continuous operation.

Expanded workstation connectivity

DisplayPort 1.4 and USB 3.1 Gen 2 are provided alongside the video interfaces. DisplayPort MST support in Windows allows compatible displays to be daisy-chained. Optional USB-C PD can provide up to 60 W of external power.

Lossless formats and SDK

YUY2, RGB and other uncompressed formats preserve image quality. SDK support enables integration with custom applications and specialized production systems.

Key features

• a four-channel HDMI capture station with a 40 Gbps Thunderbolt interface for multicamera production
• up to 40 Gbps transfer bandwidth
• daisy-chain support

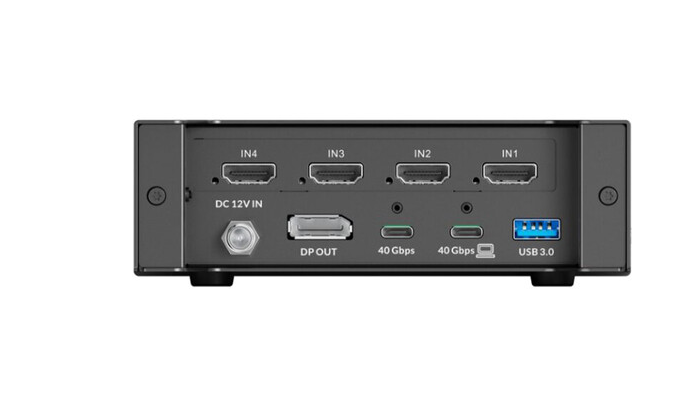

• 4× HDMI 1.4 inputs; 1× DisplayPort 1.4; 1× USB-A 3.1/3.2 Gen 2; 2× Thunderbolt
• YUY2, RGB and other lossless formats
• DisplayPort MST on Windows
• optional USB-C PD up to 60 W
• SDK for custom integration
• active cooling for continuous operation
