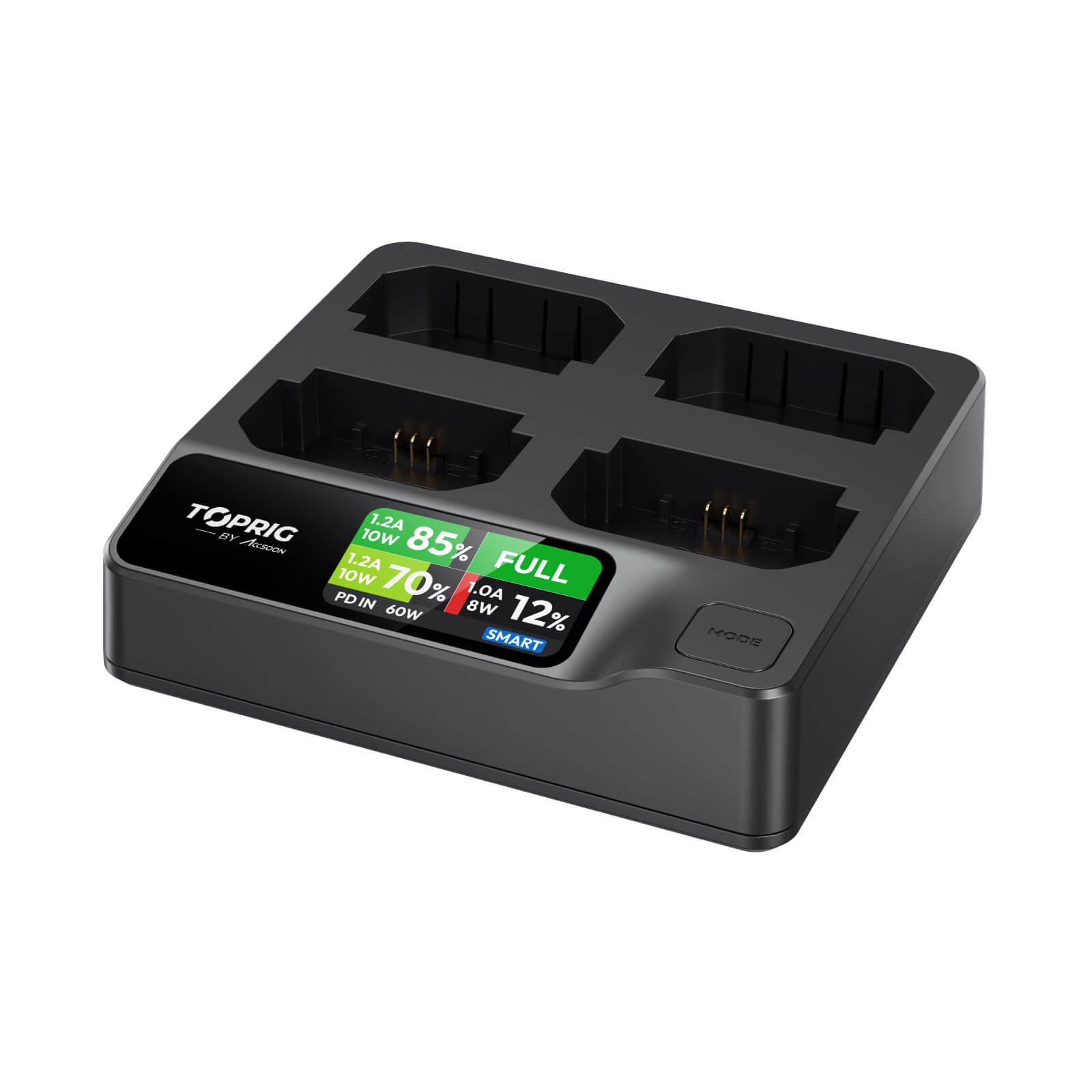

Accsoon TopRig 100W 4-Bay NP-FZ100 Fast Charger

The Accsoon TopRig NP-FZ100 (ACC-BC-02) is a four-bay charger for Sony NP-FZ100 batteries used in Sony mirrorless cameras and camcorders. Each bay charges independently; the 1.47″ color LCD display shows the charge level, current, power output, and selected mode. USB-C PD 3.0 supports 9, 12, 15, and 20 V input. "Smart" mode provides a total output of up to 40.32 W, while "Safe" mode provides up to 16.8 W. Automatic battery detection adjusts the charging process, and the activation feature helps restore power in case of undervoltage after prolonged storage. A USB-C cable is included; a compatible PD power adapter and batteries must be purchased separately.

ACCSOON TOPRIG NP-FZ100

Four Batteries Under Control

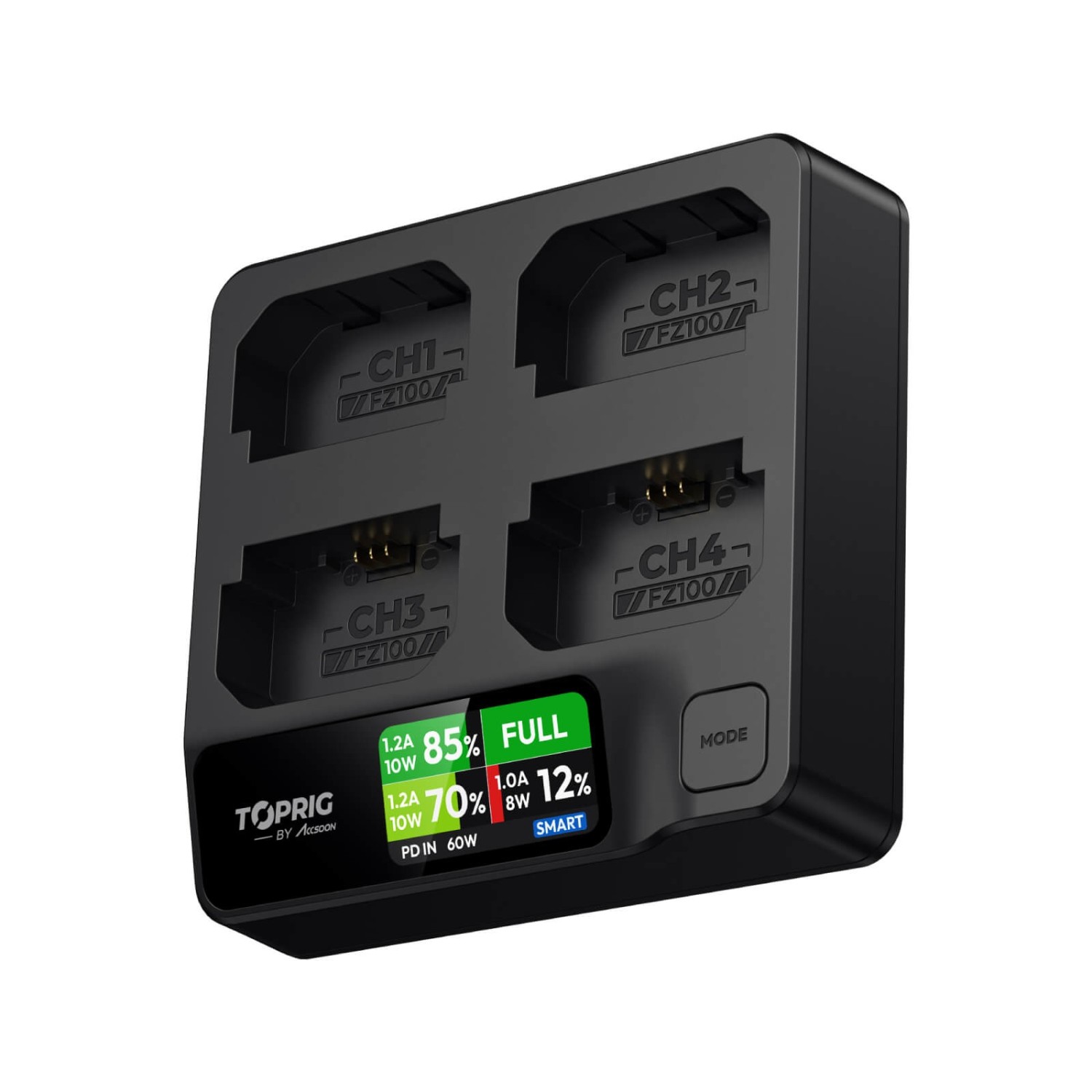

The Accsoon TopRig NP-FZ100 charges four batteries individually and displays their status on a color screen. You can select Smart and Safe modes with a single button. It is powered via USB-C PD; the AC adapter is sold separately.

4 baysNP-FZ100PD 3.0

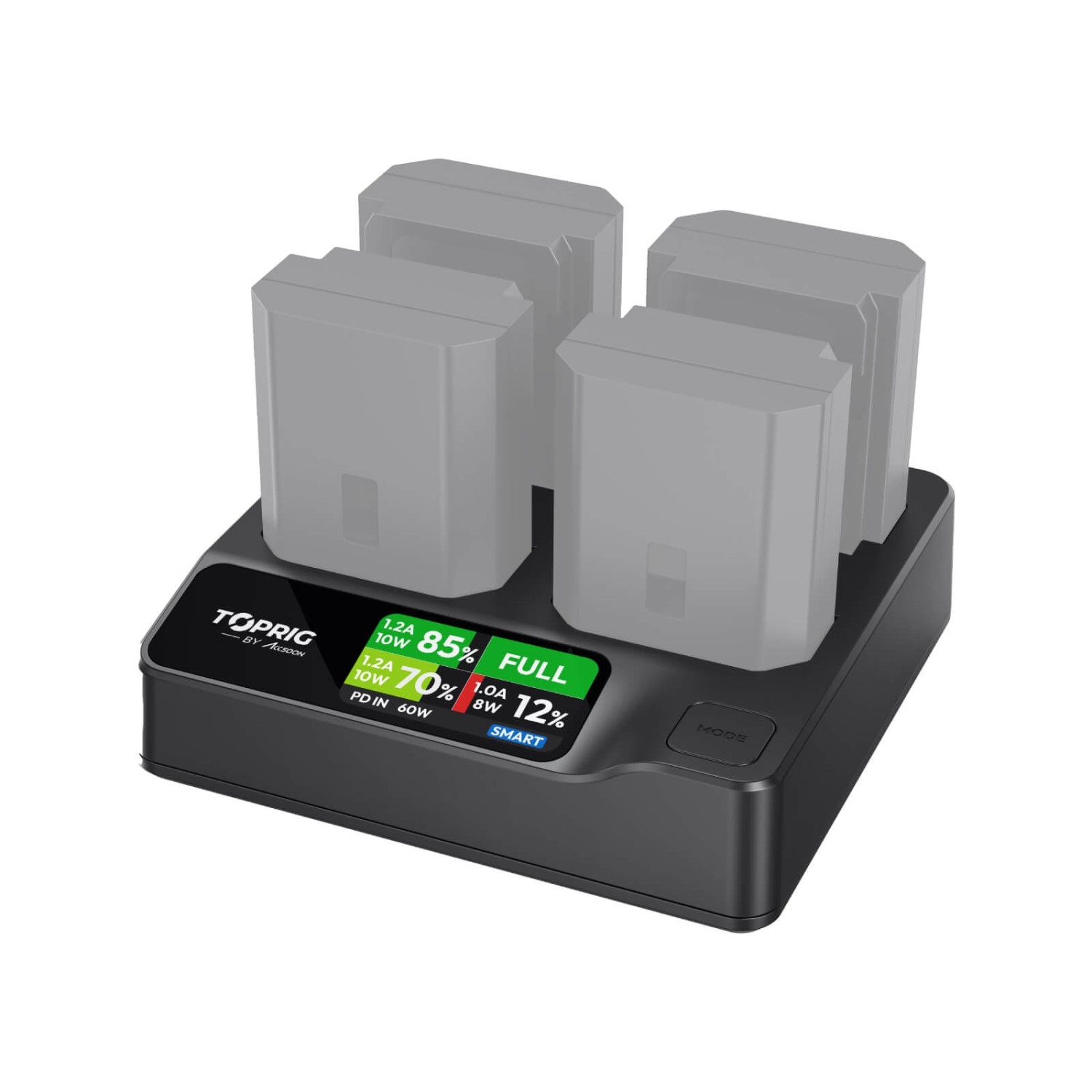

Battery status displayed on screen

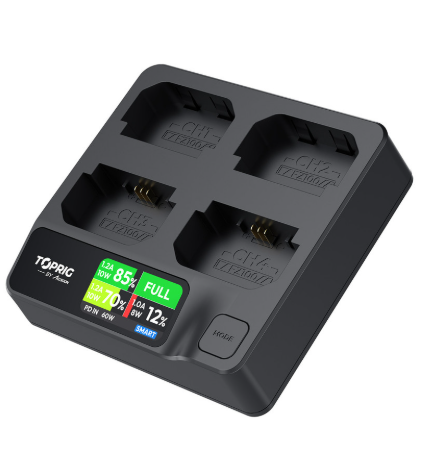

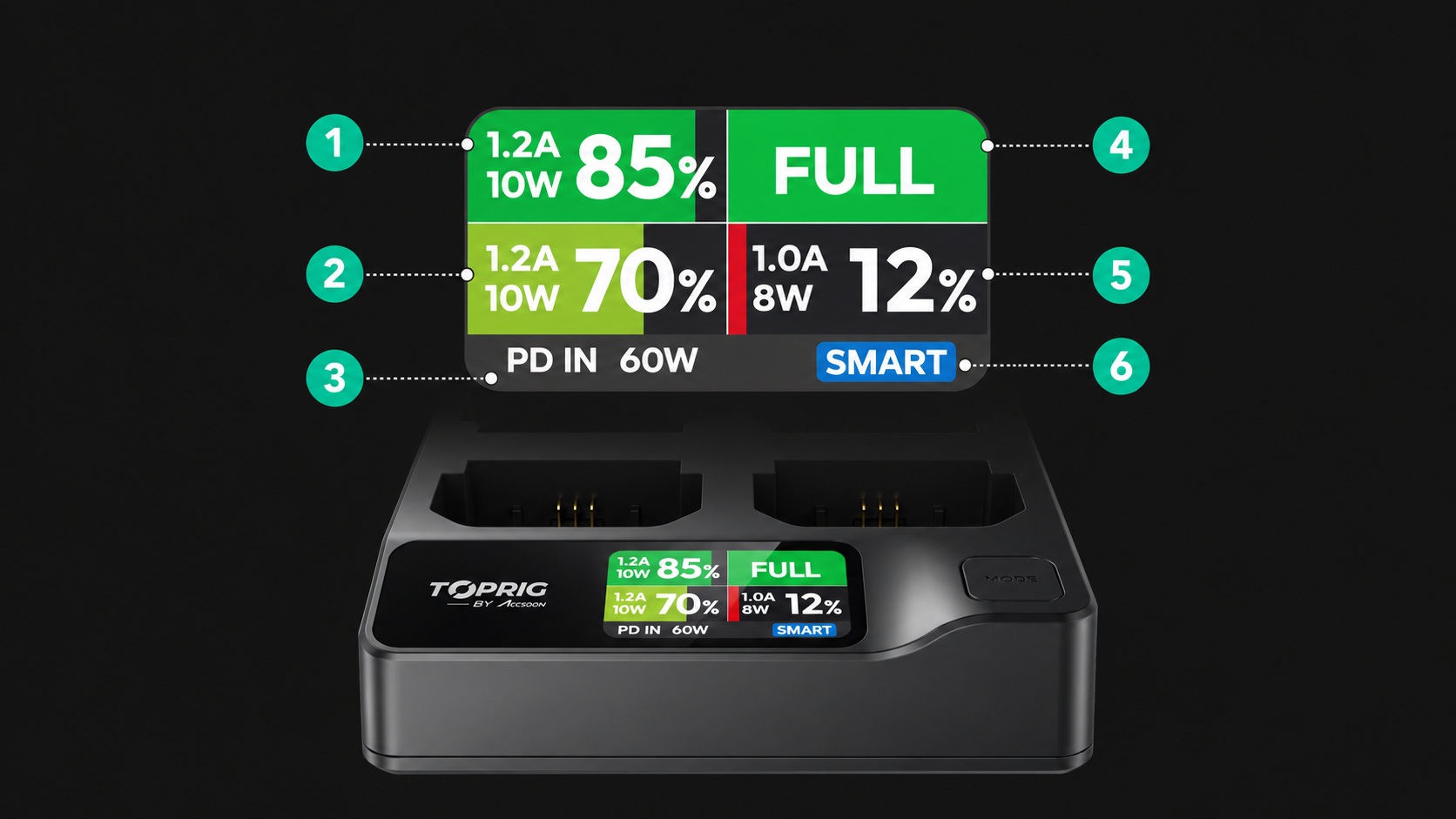

The 1.47″ color LCD shows each slot separately. In the graphic: 1 = current, 2 = power, 3 = input power, 4 = fully charged, 5 = charge percentage, and 6 = mode. The values shown in the image are examples of current status and do not represent guaranteed performance under all conditions.

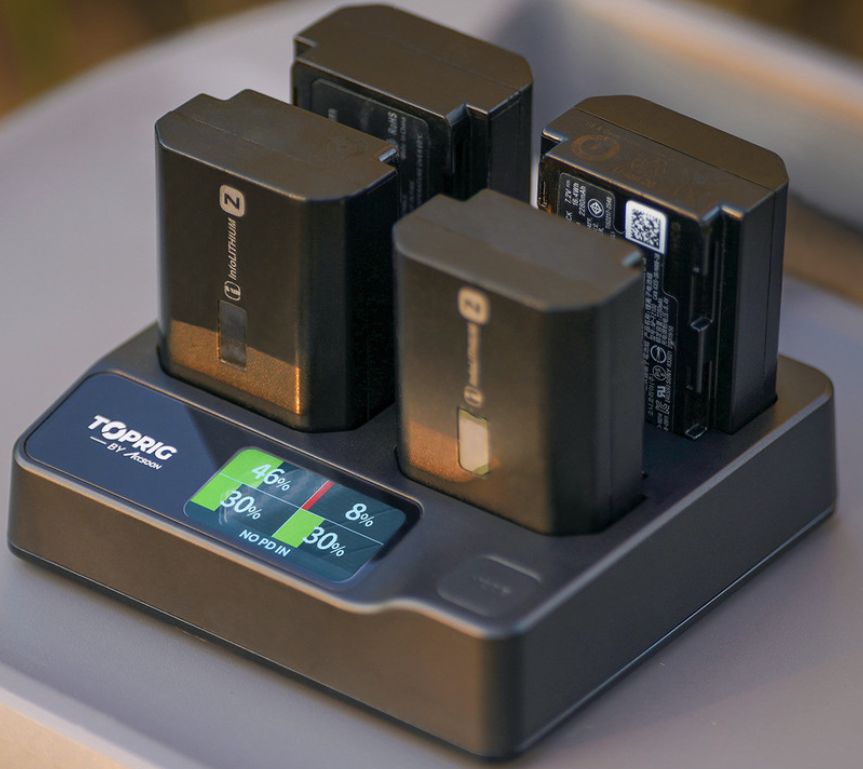

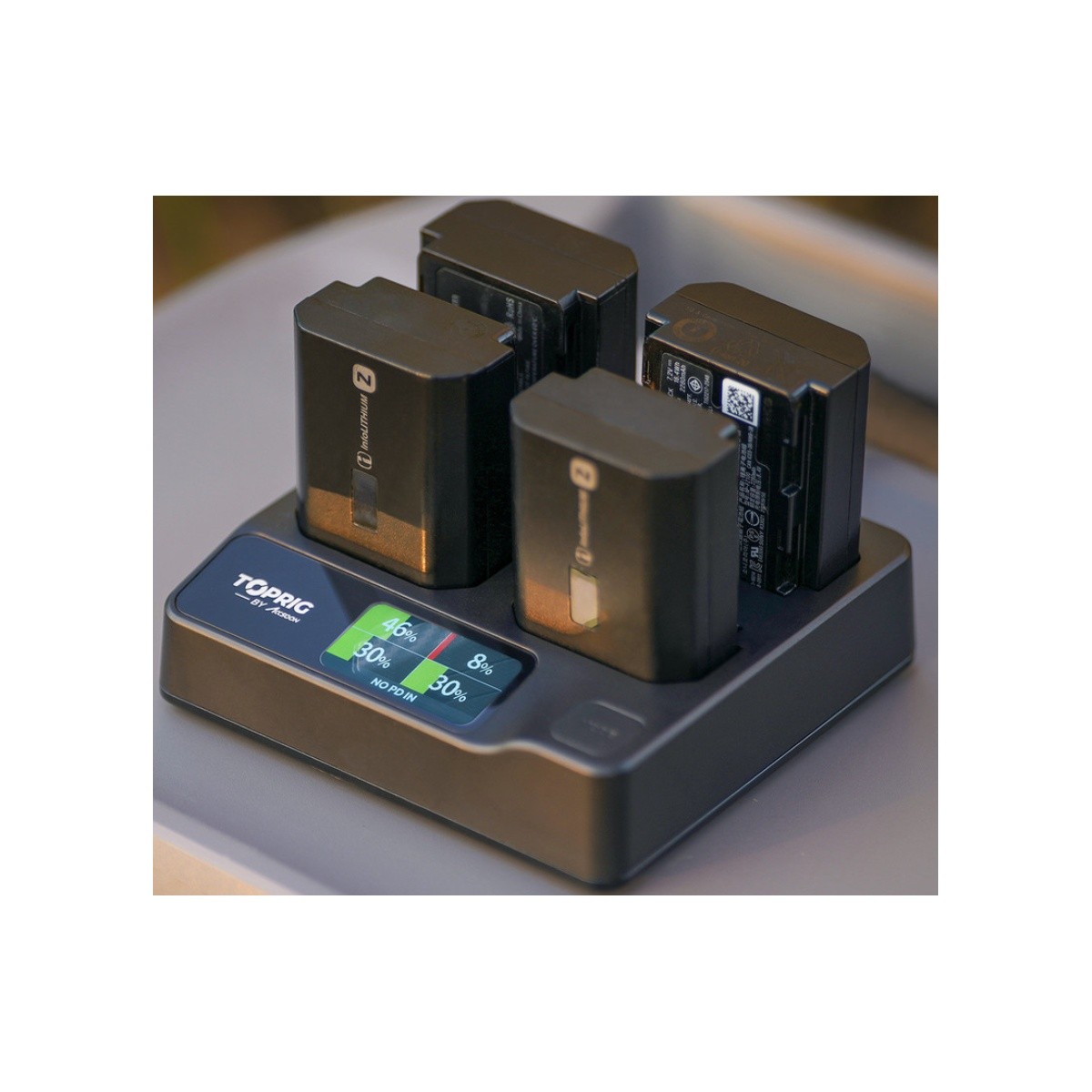

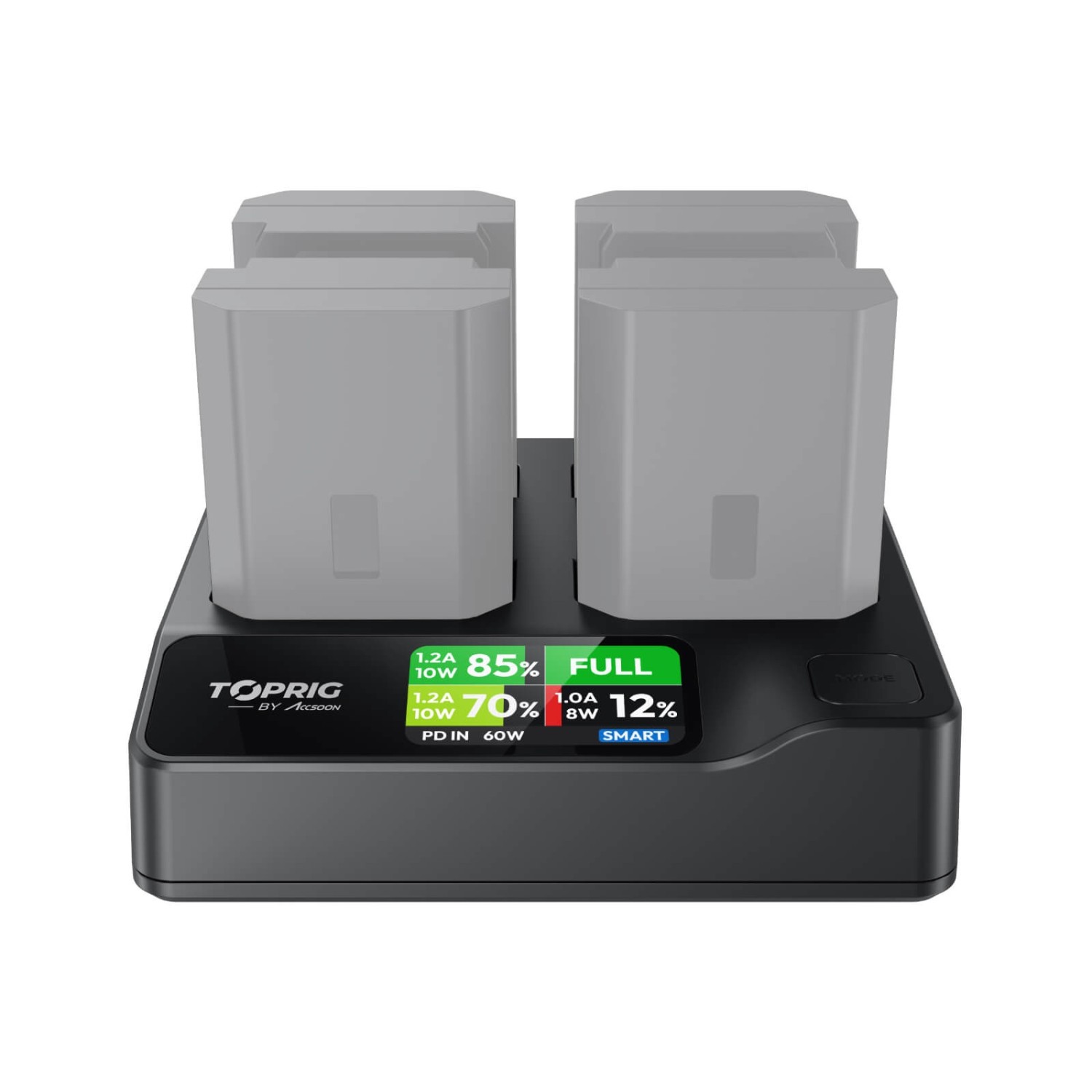

Four Batteries Simultaneously

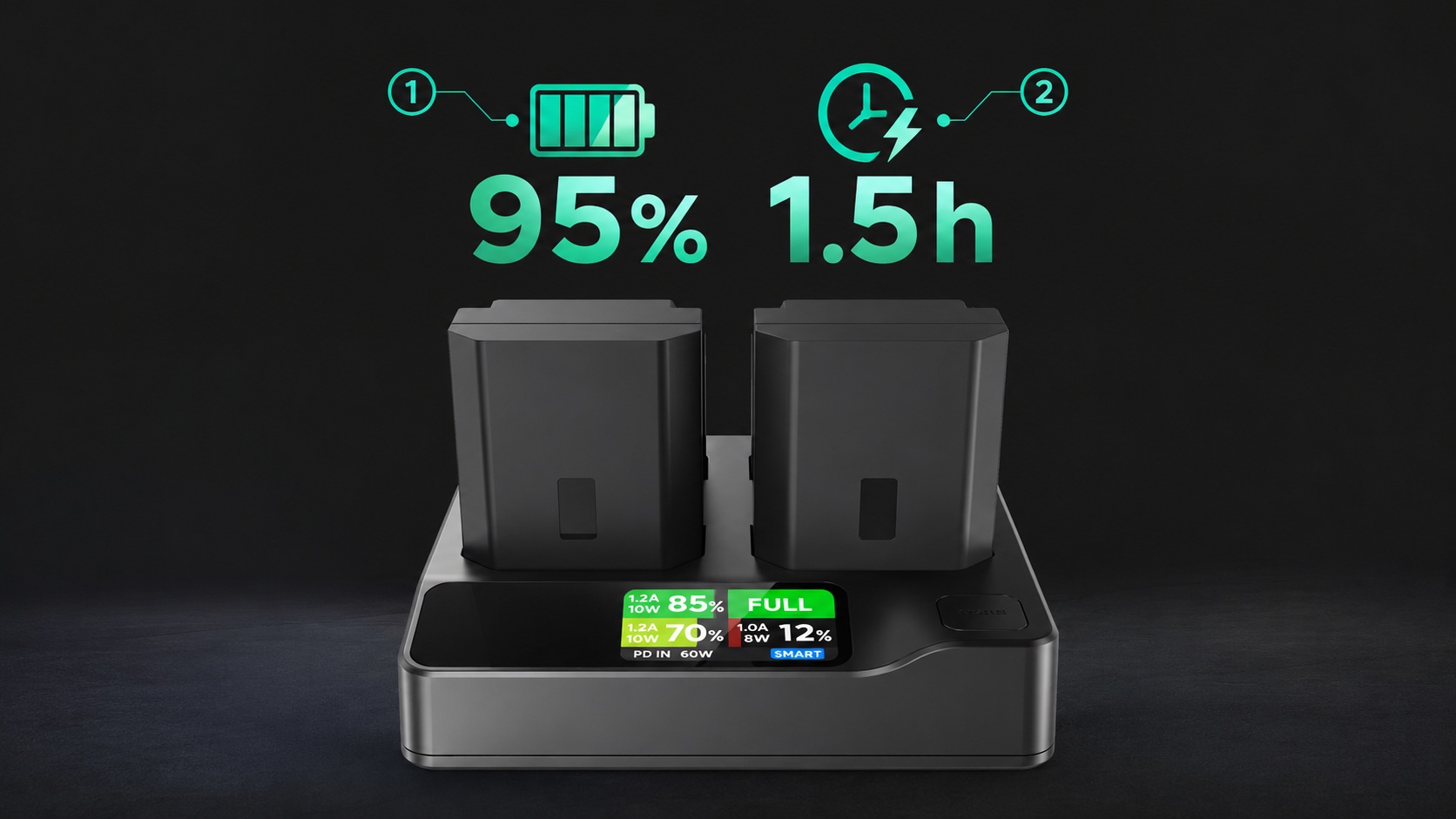

Charging four batteries separately eliminates the need for switching during filming preparations. Accsoon states that 95% charge is achieved in approximately 1.5 hours under its test conditions. Actual charging time depends on battery capacity, initial charge level, battery condition, mode, and PD power supply output; this figure does not represent the time required to fully charge each battery.

Rounded gold-plated contacts

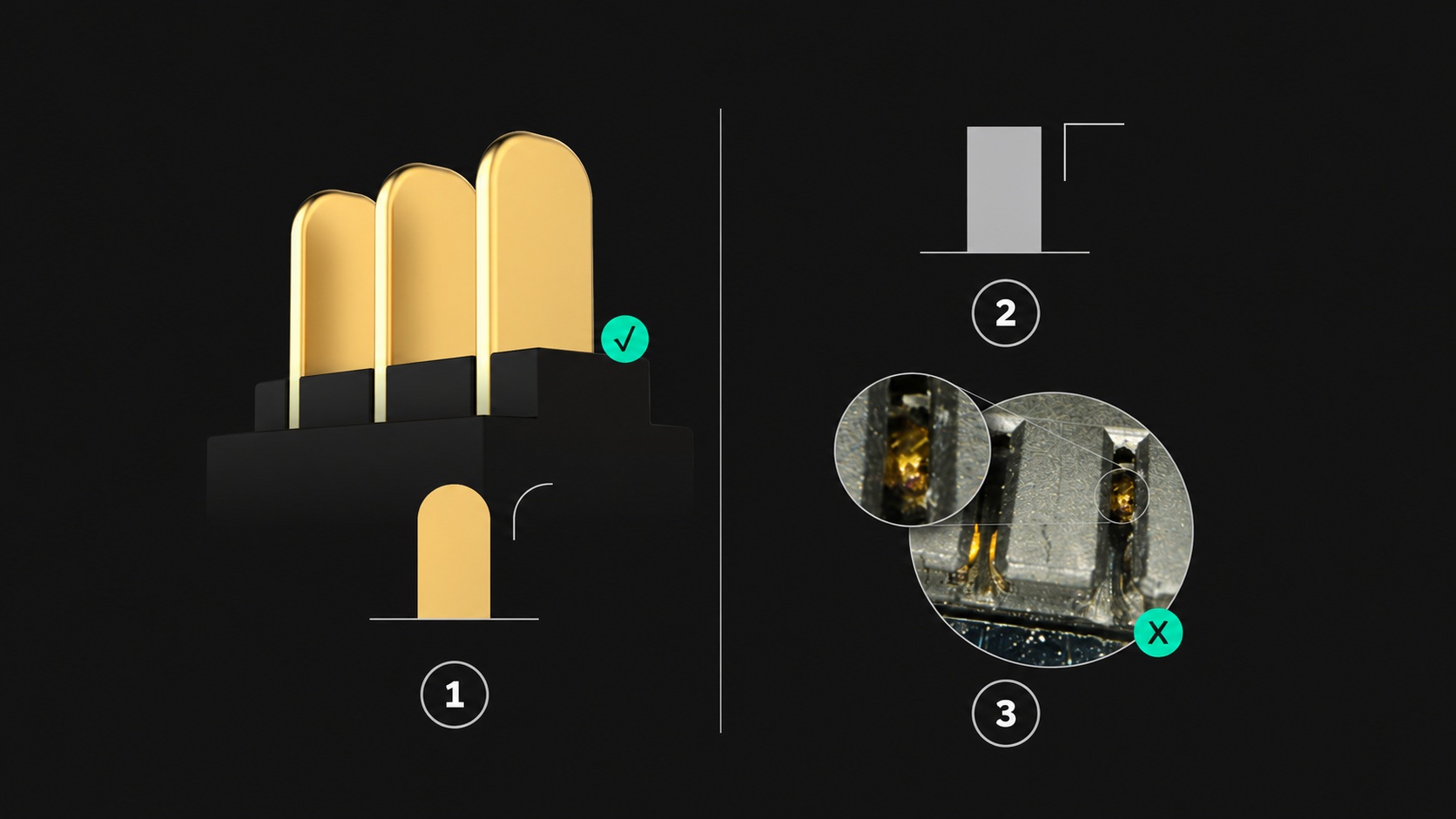

The manufacturer uses solid copper, gold-plated contacts with rounded tips. Figure 1 illustrates a rounded contact, Figure 2 shows a sharp tip for comparison, and Figure 3 depicts possible wear on a battery contact. This is the manufacturer’s design illustration; it does not specify the number of pins in each slot or guarantee the service life of all batteries.

Reusable Design

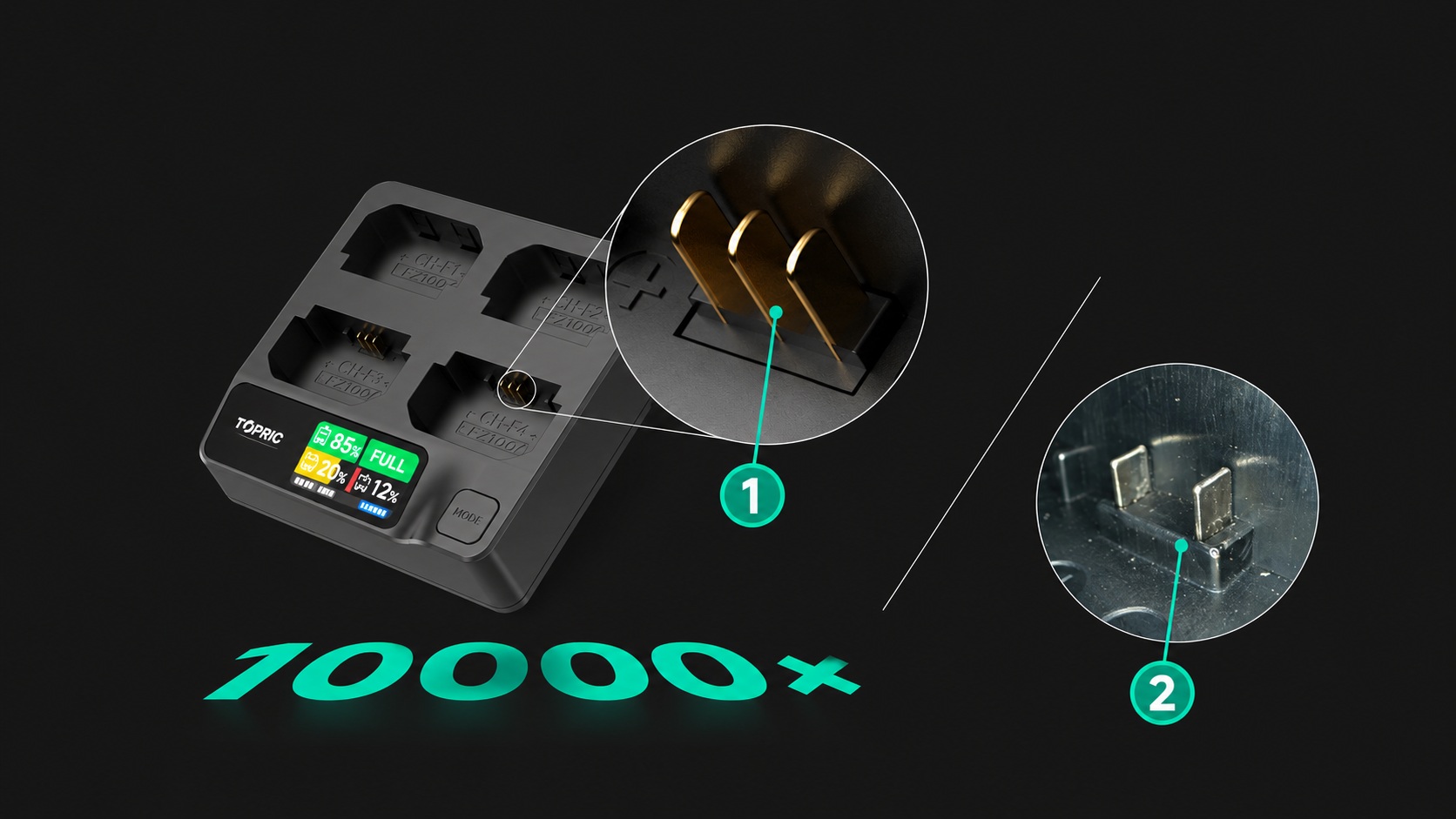

The detail shows the contacts of a specific charger (1) and another contact compared by the manufacturer (2). Accsoon reports a test of 10,000 insertions. This number is the manufacturer’s claim regarding the design test, not a guarantee of the number of charging cycles or battery capacity. Always align the battery with the slot contacts when inserting it.

Smart / Safe

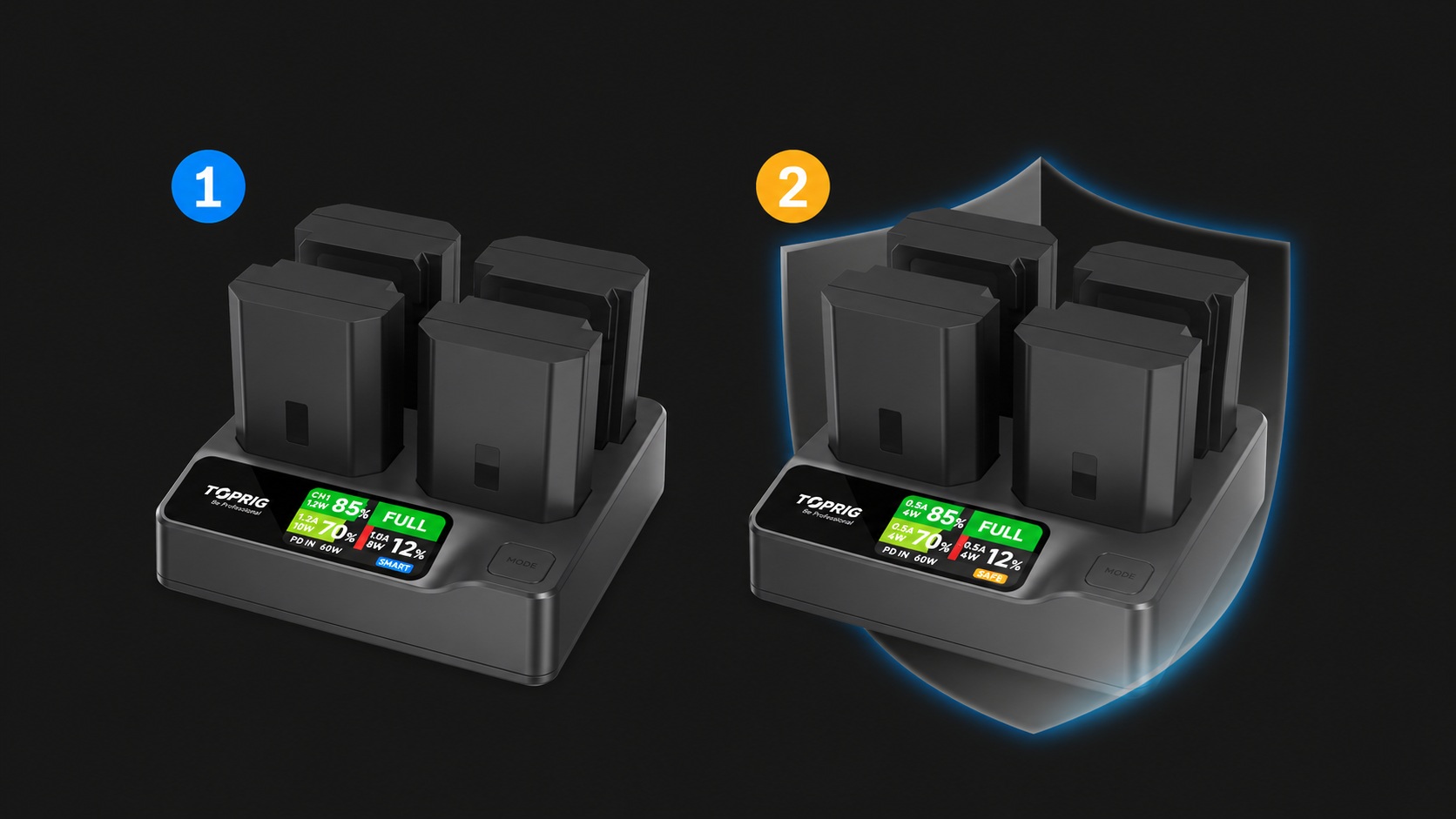

Smart (1) provides up to 1.2 A and 10.08 W per slot, for a total of 40.32 W. Safe (2) limits the current to 0.5 A, for a total of 16.8 W. You can switch modes using the button; the available power depends on the connected power source and the condition of the batteries.

In a bag with other gear

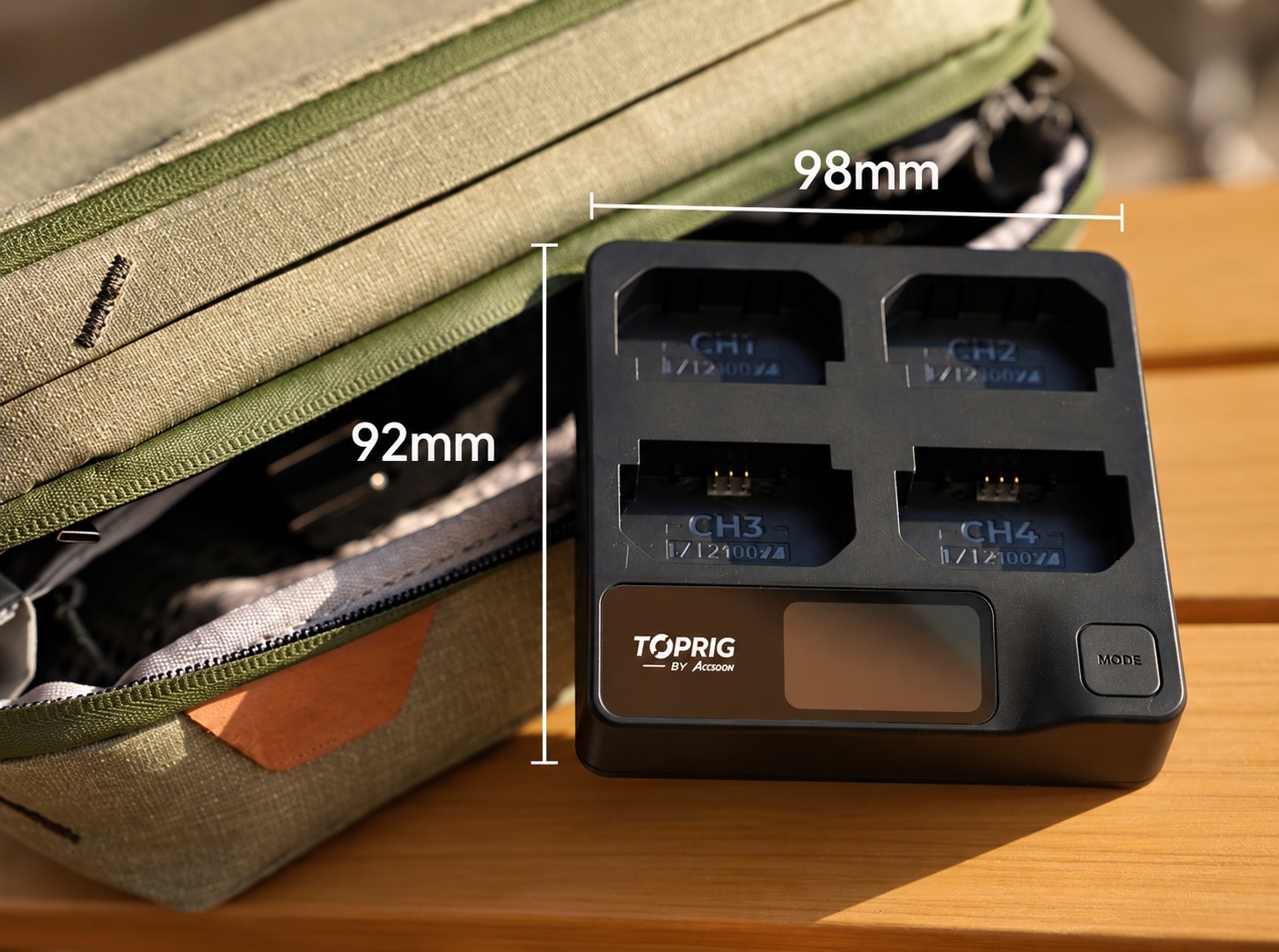

The charger’s footprint is 98 × 92 mm. The photo shows its size next to a bag, making it easier to plan space in your mobile setup. Remove the batteries for transport and use the charger in a dry, well-ventilated area.

Charger and Cable Included

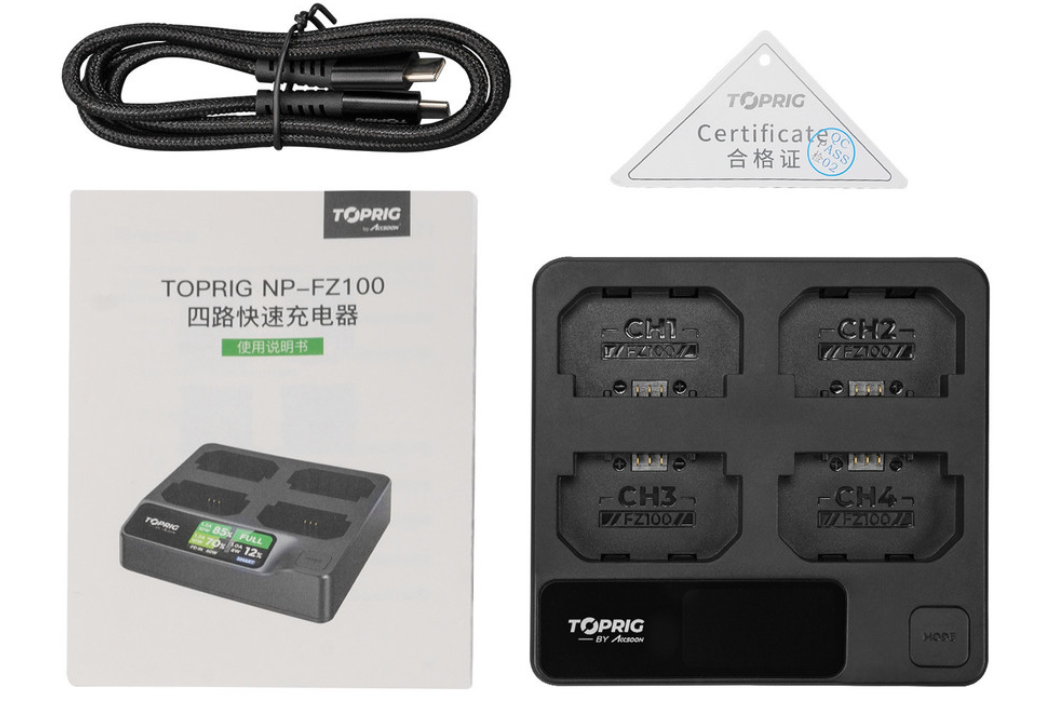

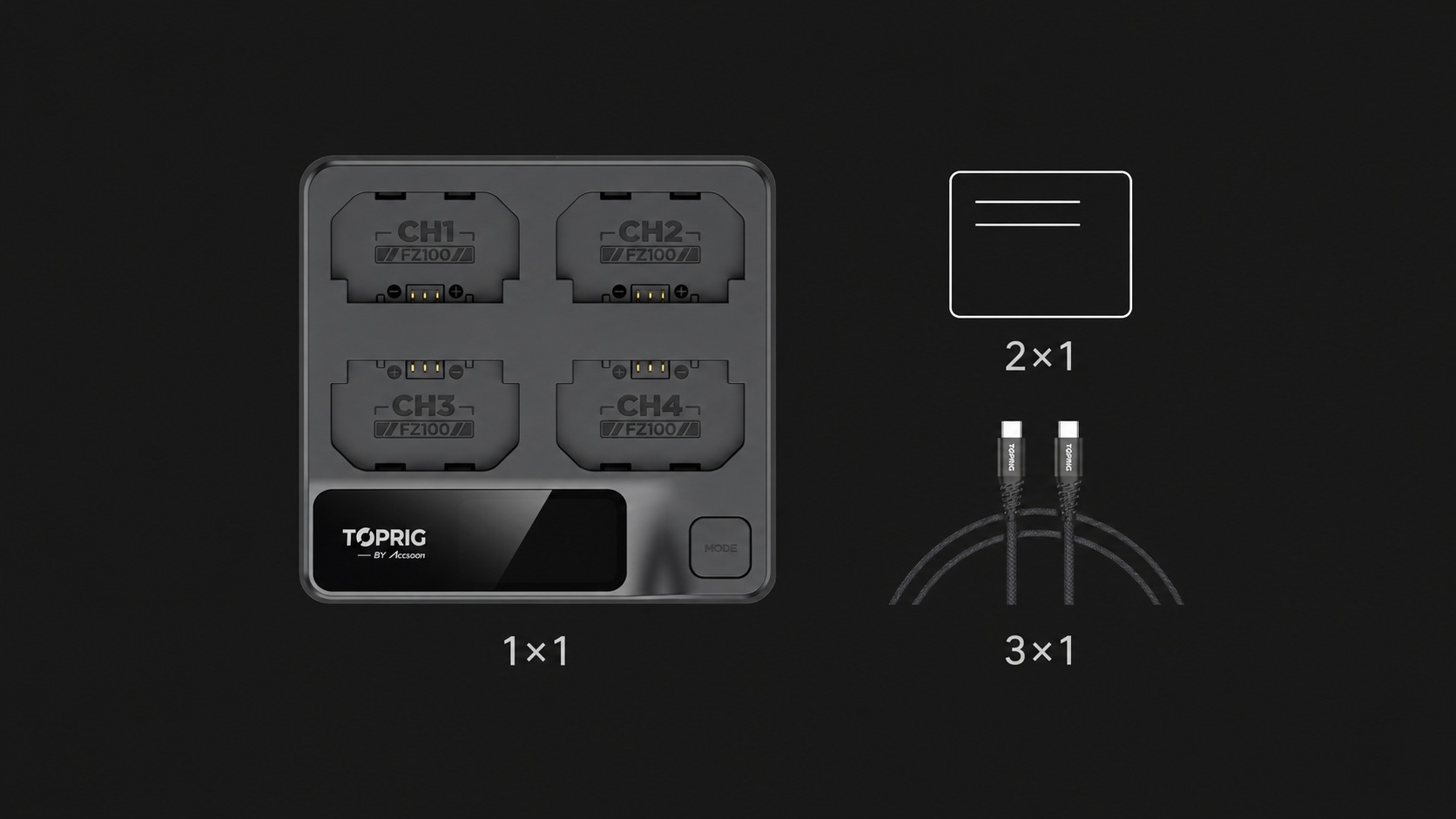

The illustration shows 1 charger, 2 user manual, and 3 USB-C cable for PD up to 100 W. The cable’s power rating does not represent the charger’s output power. The battery and PD power adapter are not included in this package; select an appropriate power source based on your required power output.

Power Supply and Package Contents

Use a compatible USB-C PD power source and cable. For full performance, use a PD adapter with sufficient power; the power source can supply the charger with 9, 12, 15, or 20 V via PD. The battery and AC adapter are not included.
