Viltrox DC-X3 KIT
SKU: DC-X3 KIT
Viltrox DC-X3 KIT is a professional 6-inch Full HD touchscreen monitor with 2000-nit brightness, HDMI and 3G-SDI input plus loop output. A metal cage is included for expanded mounting options. Waveform, histogram, zebra, peaking and custom 3D LUT import support precise image control in studio and field production.
328 € with VAT
271.07 € without VAT
Availability
on request
Top accessories for Viltrox DC-X3 KIT
K&F CONCEPT NP-F970 touch screen display direct charging battery, 10500mAh large capacity
A power block on a Sony NP-F mount with 10.500 mAh and an OLED touch screen that
73 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
Tilta Battery Charger for L Series NP F batteries in green. This dual channel charger
18 €
In stock 5 pcs
Infinitek L-3C2VS Flexible SDI BNC Cable (Yellow) 1m
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 1m
12 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs
Infinitek L-3C2VS Flexible SDI BNC Cable (Yellow) 2m
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 2m
14 €
To be sent 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

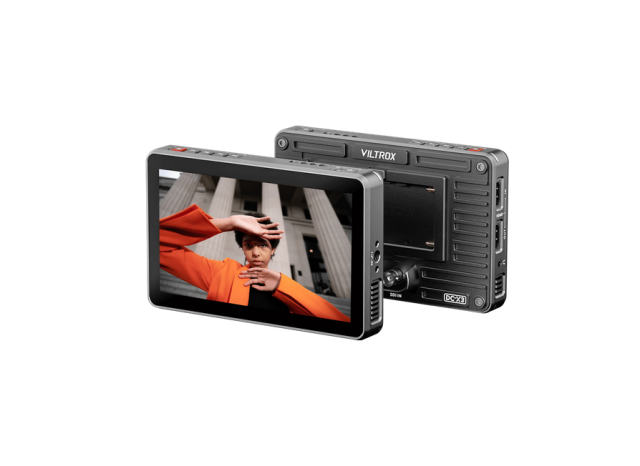

Viltrox DC-X3 KIT is a professional 6-inch Full HD touchscreen monitor with 2000-nit brightness, HDMI and 3G-SDI input plus loop output. A metal cage is included for expanded mounting options. Waveform, histogram, zebra, peaking and custom 3D LUT import support precise image control in studio and field production.

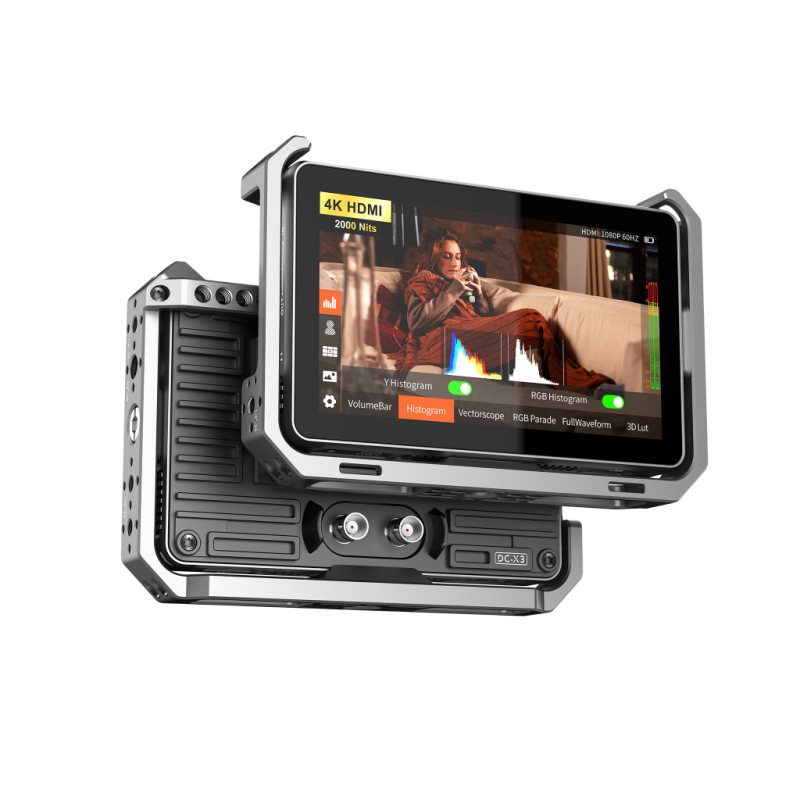

SDI WORKFLOW IN A COMPACT KIT
VILTROX DC-X3 KIT
A 6-inch Full HD touchscreen monitor with 2,000 nits of brightness, HDMI and 3G-SDI connectivity, and a metal cage included in the package. The DC-X3 KIT provides the camera operator with a clear view outdoors, reliable through-connections, and multiple mounting options.
Waveform, histogram, zebra, peaking, and the ability to import custom 3D LUTs help you monitor exposure, focus, and color during shooting without having to interrupt the take.
6″ FullHD 2000nits HDMI + 3G-SDI

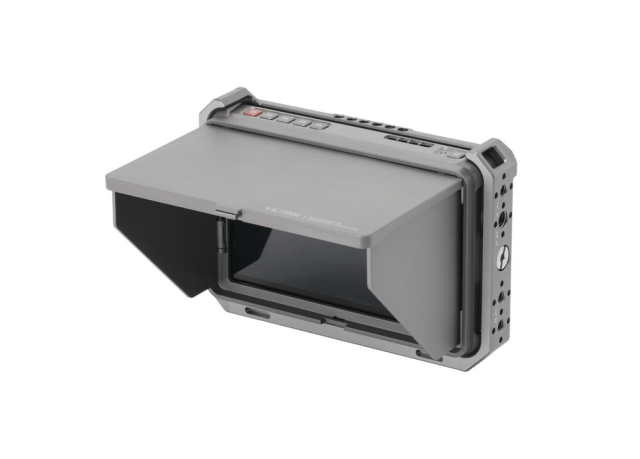

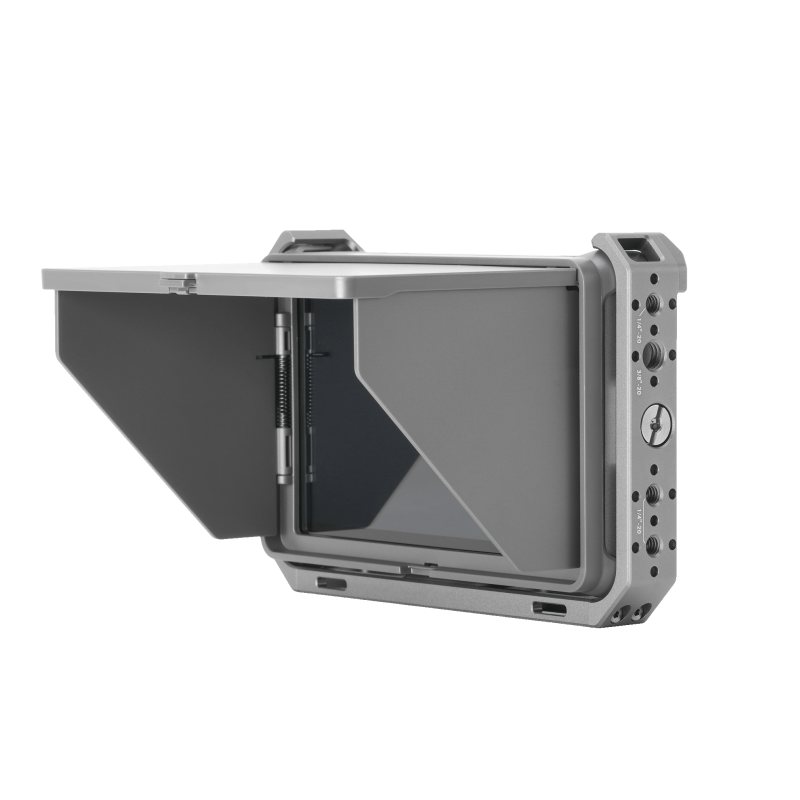

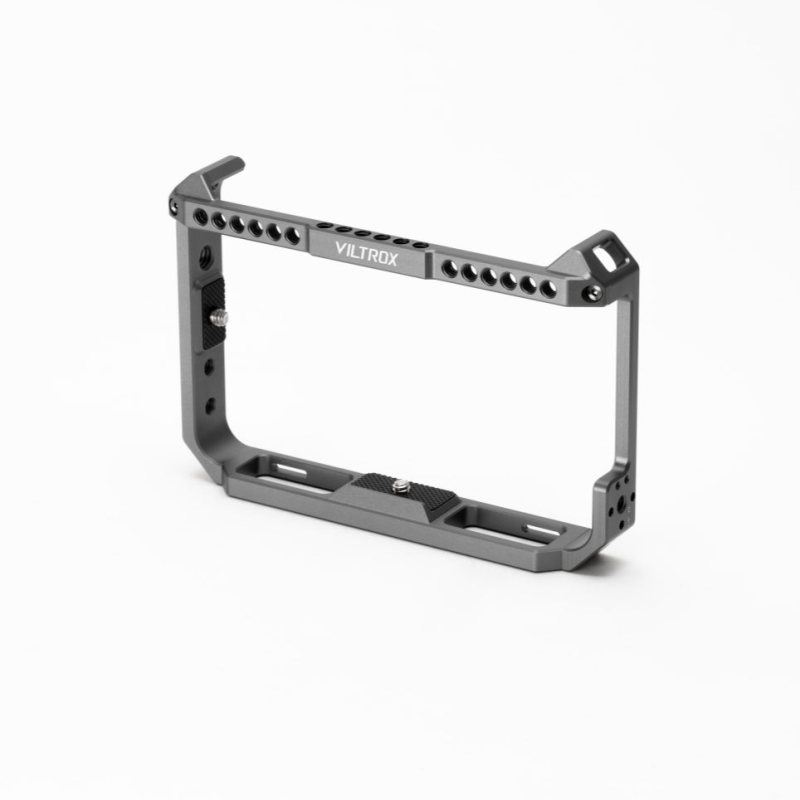

CAGE FOR MORE SECURE MOUNTING
The precisely shaped metal cage protects the monitor and expands rigging options. It features 1/4″‑20 and 3/8″‑16 threads, anti-rotation holes, and strap loops; it attaches to the monitor with two secured screws.

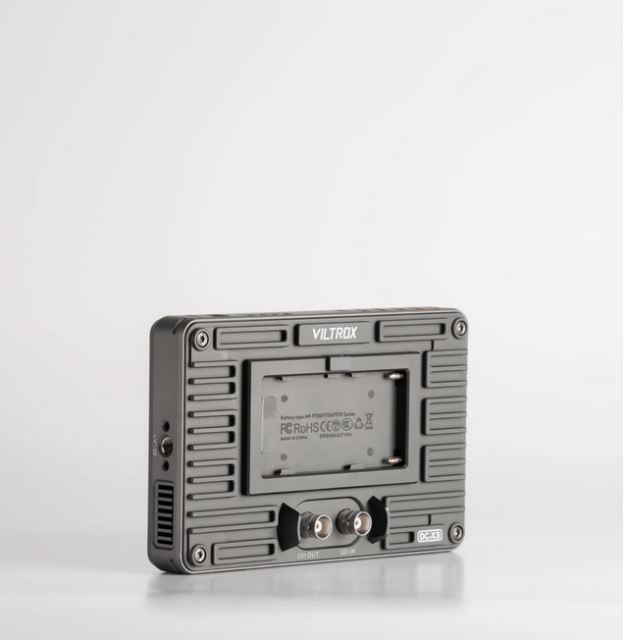

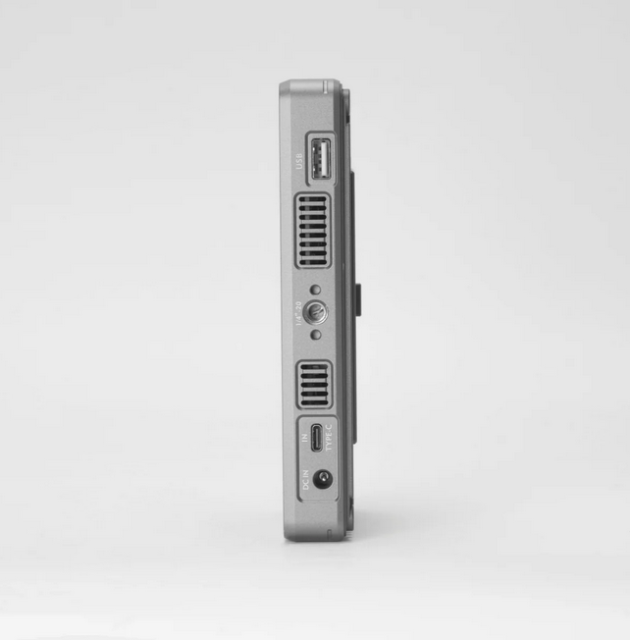

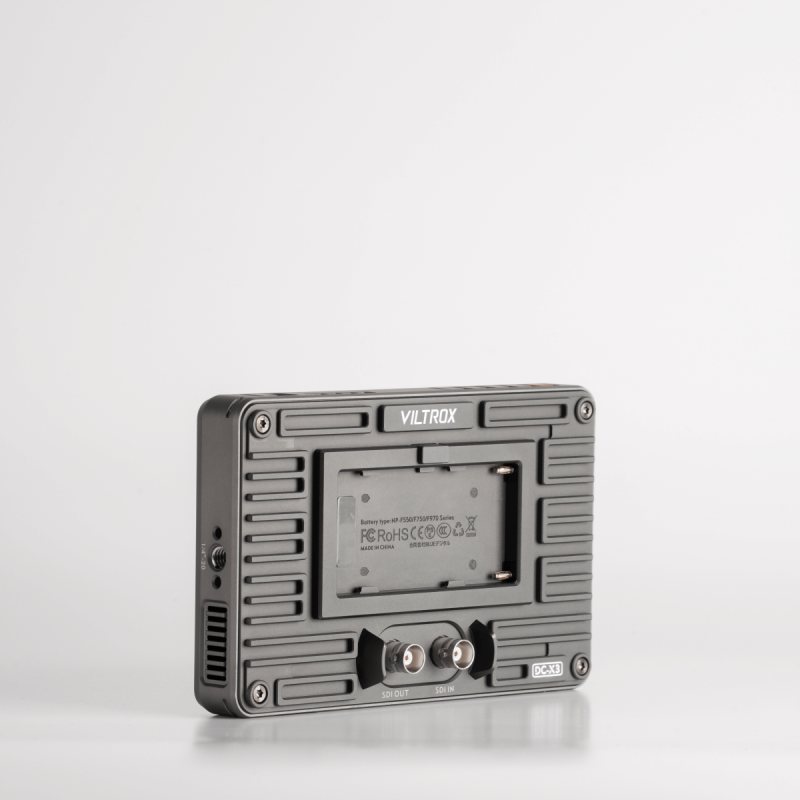

HDMI AND 3G-SDI INPUT AND LOOP OUTPUT
The DC‑X3 features HDMI and 3G‑SDI inputs and outputs, making it suitable for use in setups with mirrorless cameras, video cameras, and SDI equipment. It receives and passes through signals up to DCI/UHD 4K at 30 Hz; a 3.5mm jack provides audio monitoring through headphones.
ACCURATE PREVIEW EVEN IN DAYLIGHT
The 1920 × 1080 IPS touchscreen, with 2000 nits of brightness, a 1000:1 contrast ratio, and a 160° viewing angle, remains readable even outdoors. 100% ±3% sRGB/Rec.709 coverage, along with tools for sharpness, exposure, and 3D LUT, makes it easier to make decisions right on set.

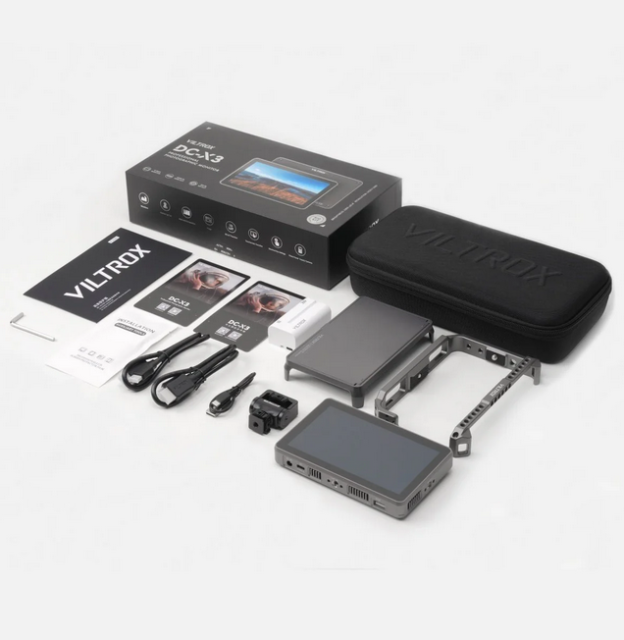

PACKAGE CONTENT
- 1× Viltrox DC‑X3 monitor
- 1× metal cage
- 1× hard carrying case
- 1× ball head for mounting
- 1× NP‑F550 battery
- 1× quick-release lens hood
- 1× screen protector
- 1× HDMI cable
- 1× Mini HDMI cable
- 1× USB-C cable
- 1× user manual and warranty card
SPECIFICATIONS
- Display size: 6″ IPS, touchscreen
- Resolution: 1920 × 1080 (Full HD)
- Aspect ratio: 16:9
- Brightness: 2000 nits
- Contrast ratio: 1000:1
- Refresh rate: 60 Hz
- Viewing angle: 160°
- Color gamut: 100% ±3% sRGB/Rec.709
- Input: HDMI, 3G-SDI
- Output: HDMI, 3G-SDI
- Supported signal: up to DCI/UHD 4K at 30 Hz
- LUT import and updates: USB
- Audio output: 3.5mm headphone jack
- Power: DC 12–18 V / 2 A, USB-C ≥9 V / 3 A, NP‑F battery
- Dimensions: 155.4 × 98.4 × 30 mm
- Weight: approximately 350 g
- Manufacturer model: DC-X3 KIT
Parameters
Parameters
| Manufacturer: | Viltrox |
| Category: | Camera monitors |
Main parameters
| Size | 6" |
| Monitor inputs | HDMI · SDI |
| Luminosity | 2000cd/m2 |
| Panel resolution | 1920 × 1080 (Full HD) |
| Monitor power supply | Sony NP-F · USB-C · DC 12-18 V |
Other parameters
| Other features | Lightweight · Touchscreen · 3D LUT correction · 3D LUT support |
| High Brightness (NITS) | Yes |
