Vaxis Storm Cine 8 Wireless Monitor

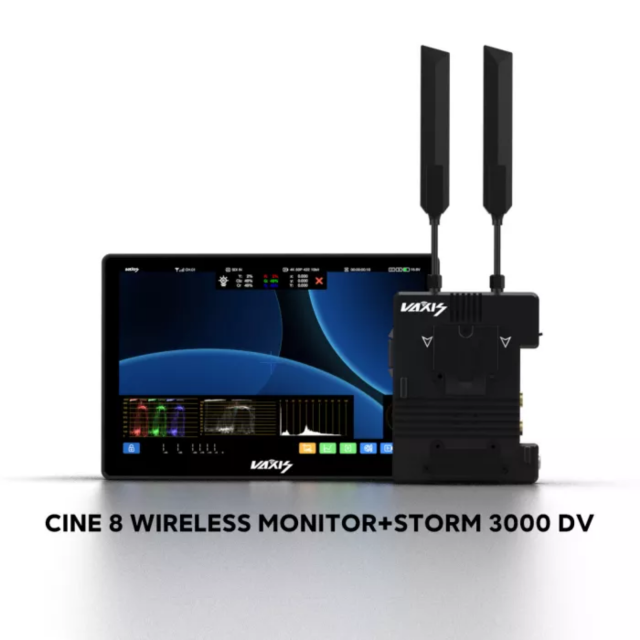

Vaxis Storm Cine 8 is an 8.9″ touch monitor with 2560 × 1600 resolution, 1500 nits and a built-in Storm 3000 receiver. CINE OS, 3D LUTs, picture-in-picture, full scopes and a 6G-SDI input for 4K over cable.

More information

4 399 € with VAT 3 635.54 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

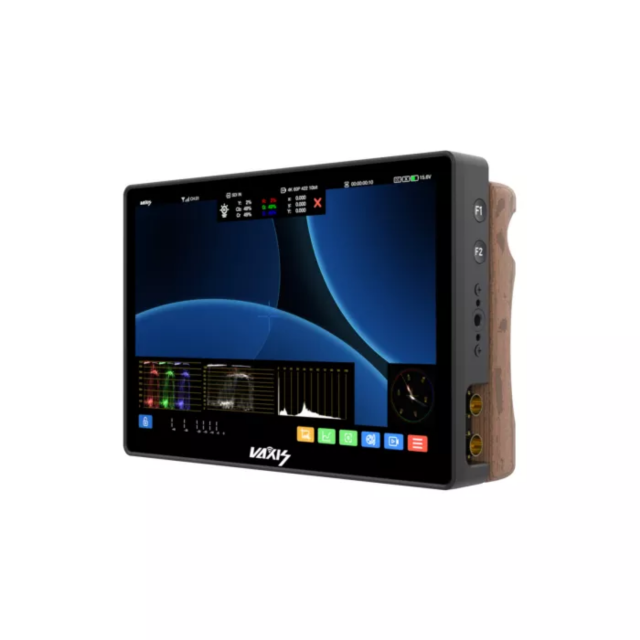

Vaxis Storm Cine 8 is an 8.9″ touch monitor with 2560 × 1600 resolution, 1500 nits and a built-in Storm 3000 receiver. CINE OS, 3D LUTs, picture-in-picture, full scopes and a 6G-SDI input for 4K over cable.

Cine 8 combines a large, bright director's monitor with a Storm 3000 wireless receiver. It receives a Storm transmitter without cables, handles 6G-SDI input up to 4K over a cable, and its own CINE OS touch system offers 3D LUTs, screenshot comparison, picture-in-picture and full scopes.

A director's monitor with Storm inside

8.9″ touch monitor with 1500 nits, 4K input and a built-in wireless receiver.

8.9″ screen2560 × 16001500 nitsStorm 3000 receiverCINE OS

Two cameras on one screen

Picture-in-picture shows camera A and B at once, and the window can go anywhere. Inputs, LUTs and tools are controlled by touch.

Antennas as needed

Without external antennas the monitor looks clean and works reliably; for more range, attach the Blade antennas from the box.

Its own CINE OS

Vaxis' first and only in-house touch system brings tetrahedral 3D LUT interpolation, unlimited custom LUT loading, real screenshot comparison with the live image and AFCA focus assist.

Scopes

Waveform, vectorscope, RGB histogram and histogram.

HDR

Frame-by-frame dynamic HDR compensation.

Power

Swappable V-Mount, Gold Mount and NP-F plates, 8–18 V.

Wireless

20 channels at 5.1–5.9 GHz, scanning and encryption.

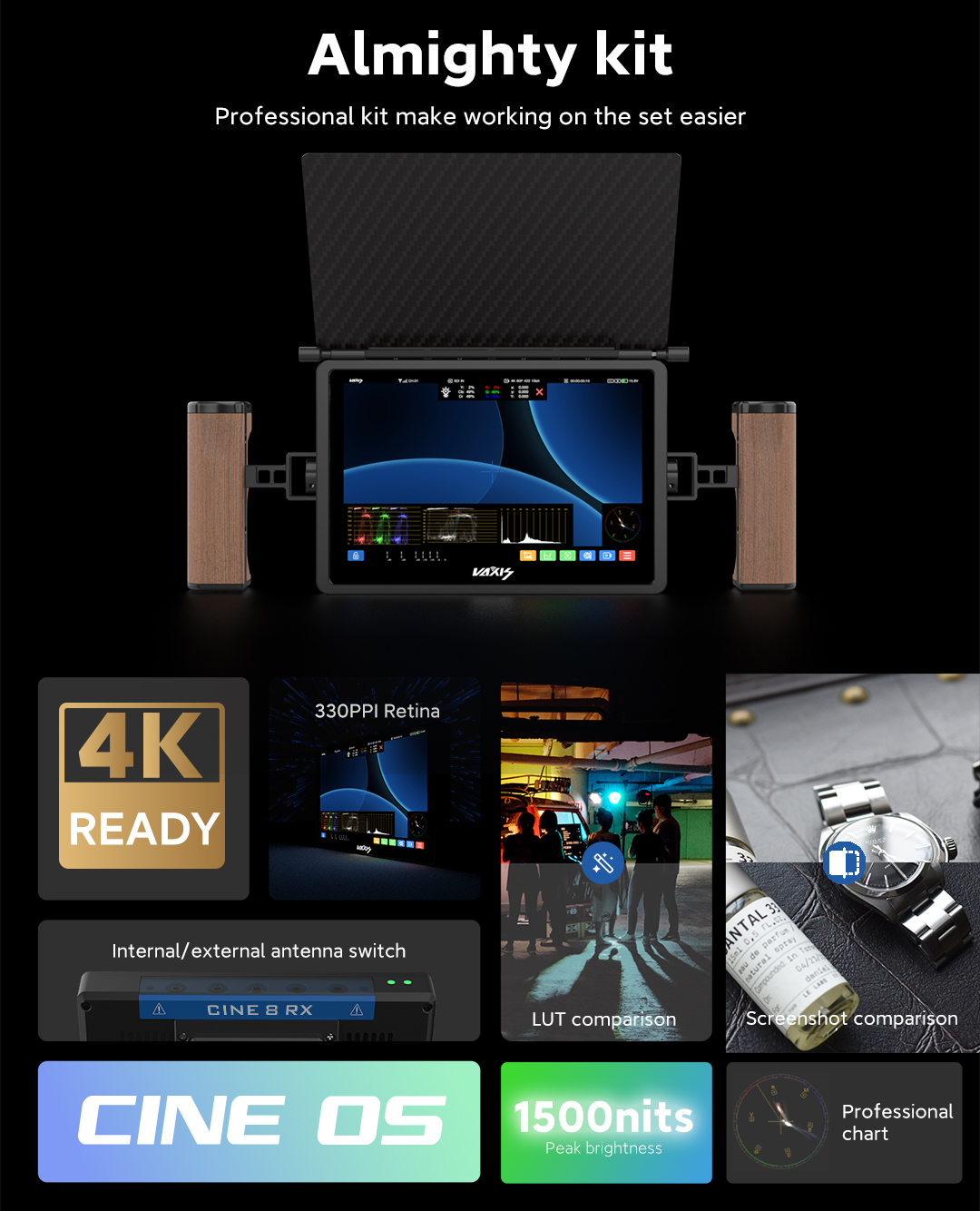

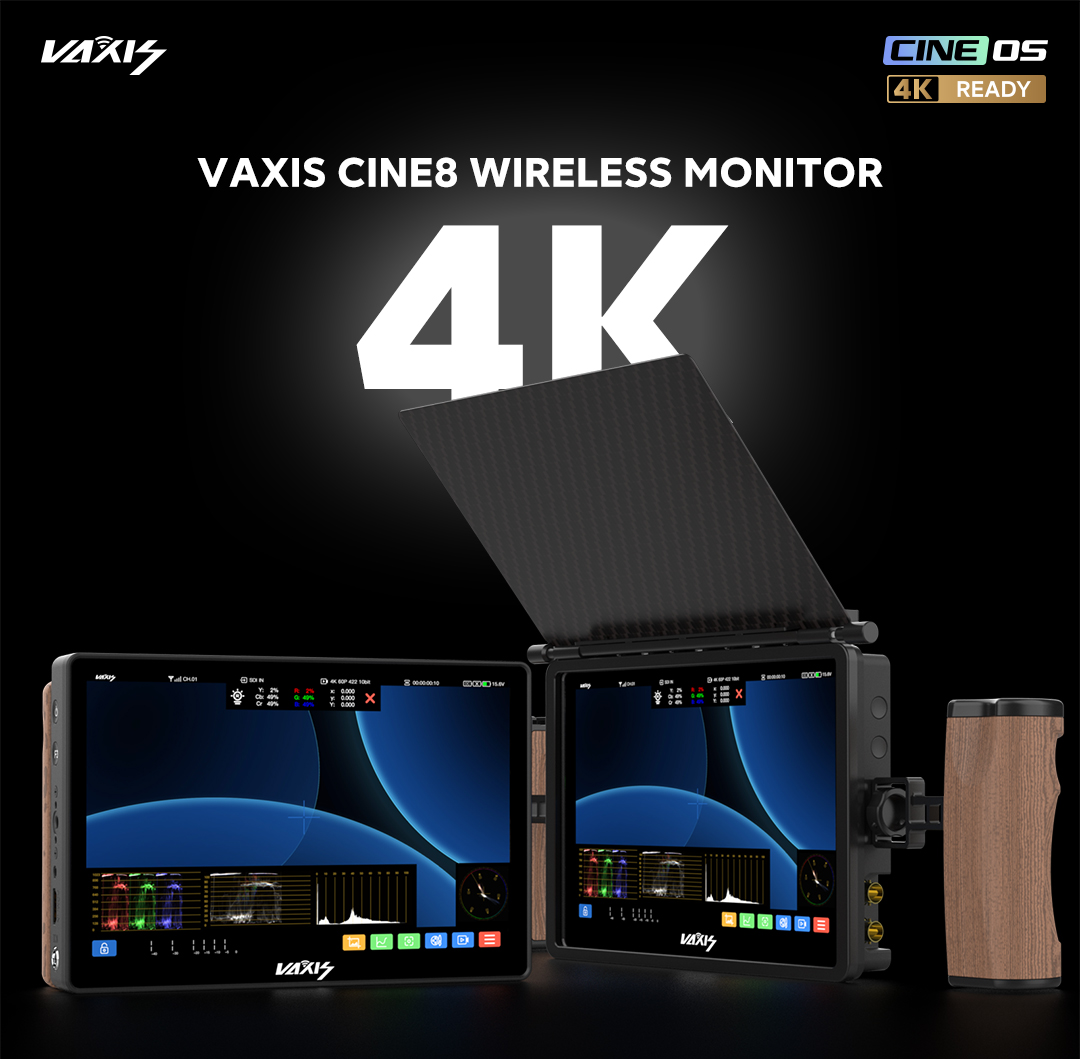

Vaxis Cine 8. A 4K-ready wireless monitor running CINE OS – shown here with sunhood and wooden handles.

Vaxis Cine 8

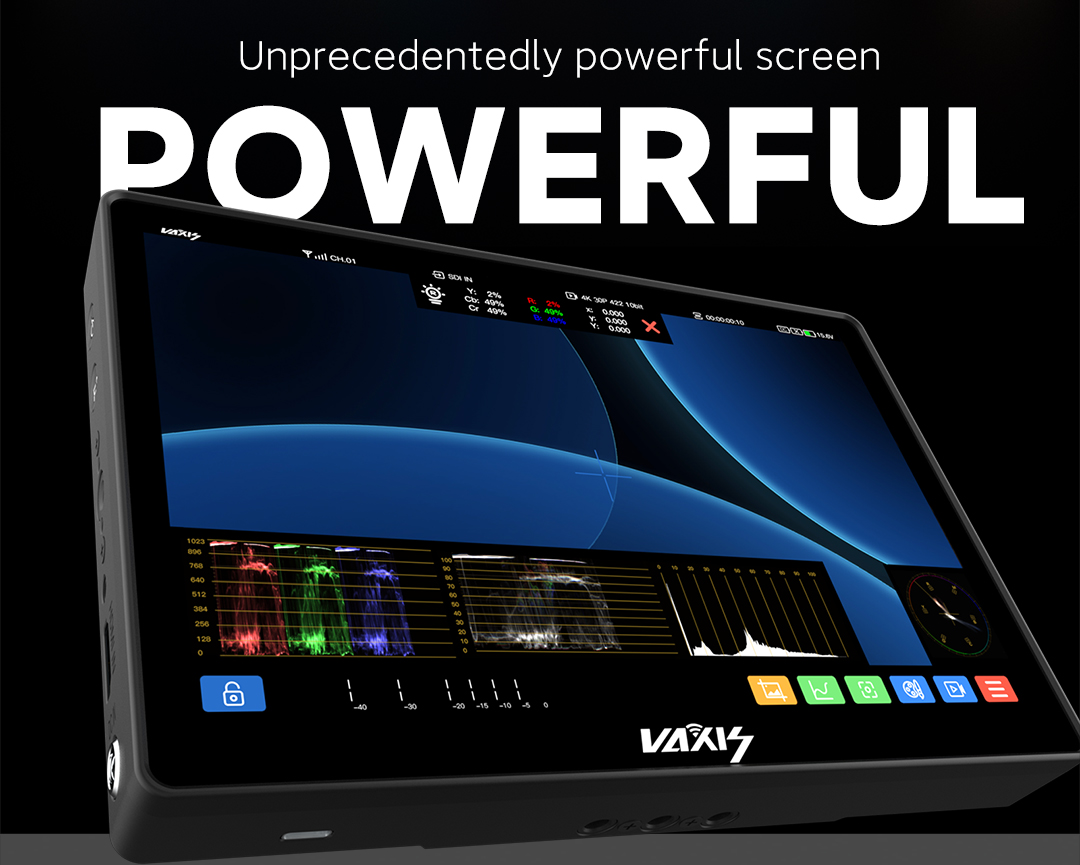

An exceptionally powerful screen. A large touch display with a clear interface and scopes on one surface.

An exceptionally powerful screen

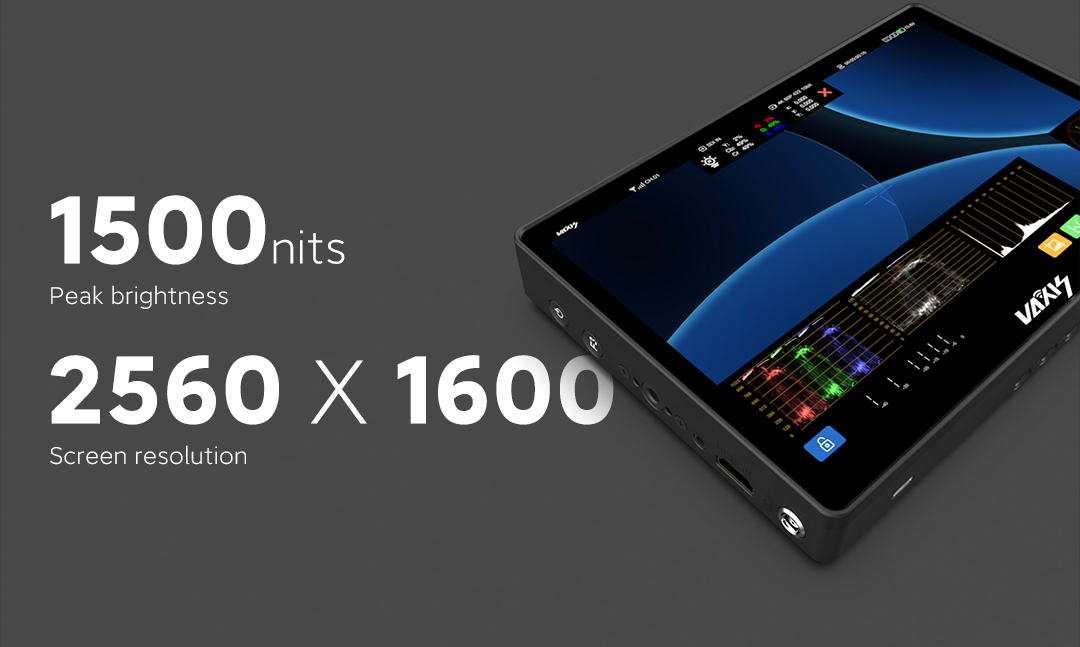

1500 nits and 2560 × 1600. Peak brightness for outdoor work and high screen resolution.

1500 nits and 2560 × 1600

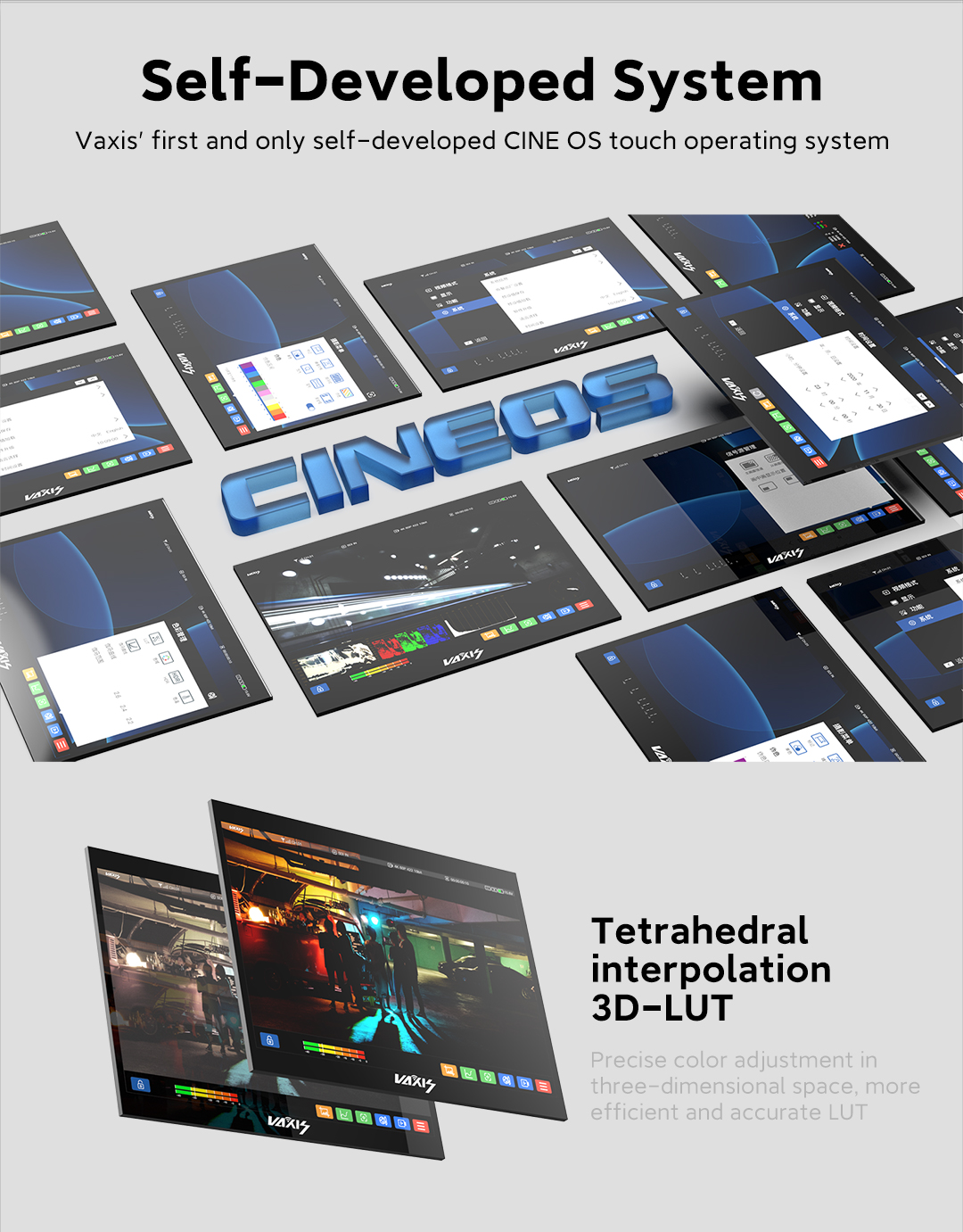

Its own CINE OS. Vaxis' first touch operating system with tetrahedral 3D LUT interpolation for more accurate colour.

Its own CINE OS

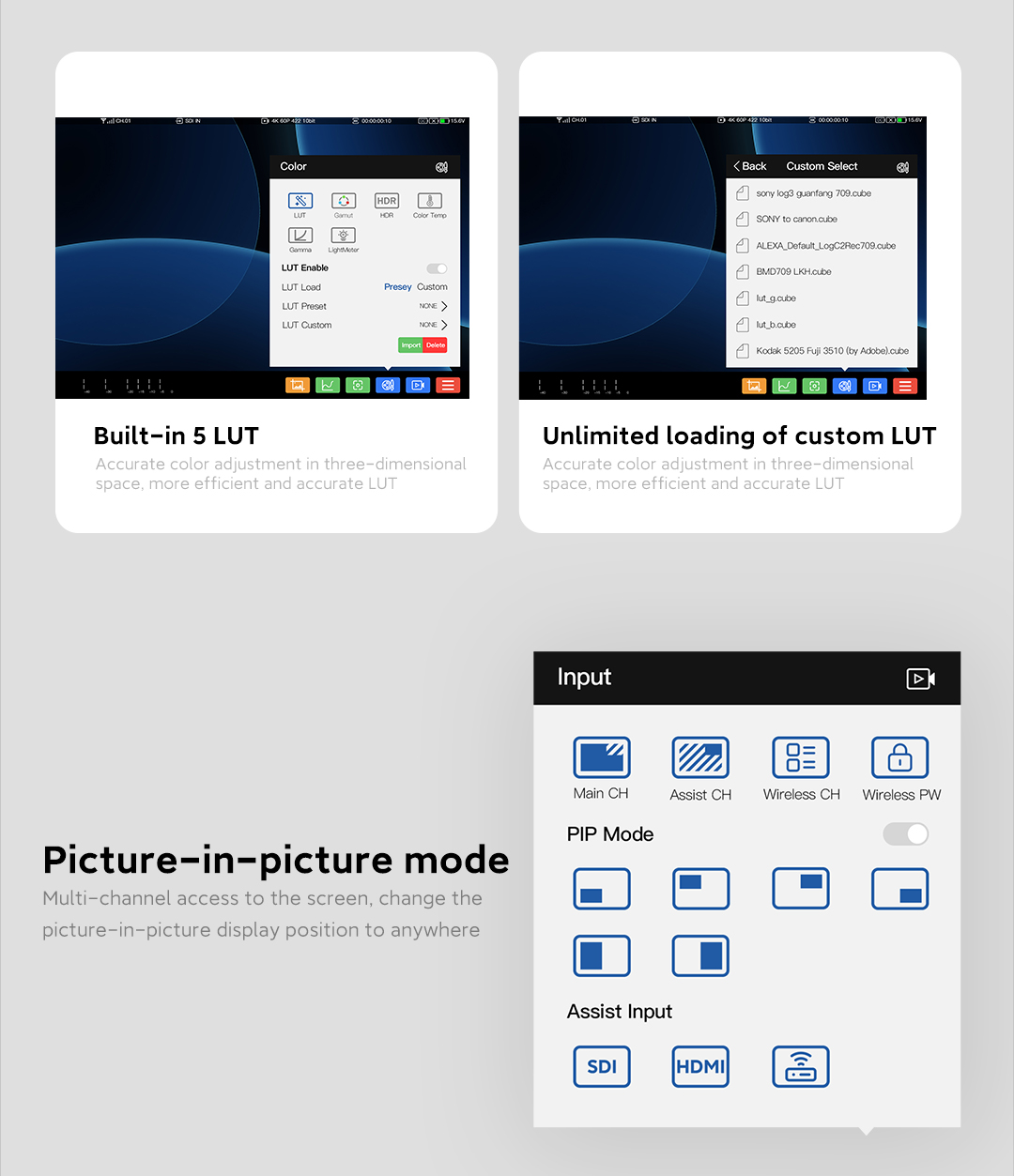

LUTs and picture-in-picture. Five built-in LUTs, unlimited custom .cube files and a picture-in-picture window you can move anywhere.

LUTs and picture-in-picture

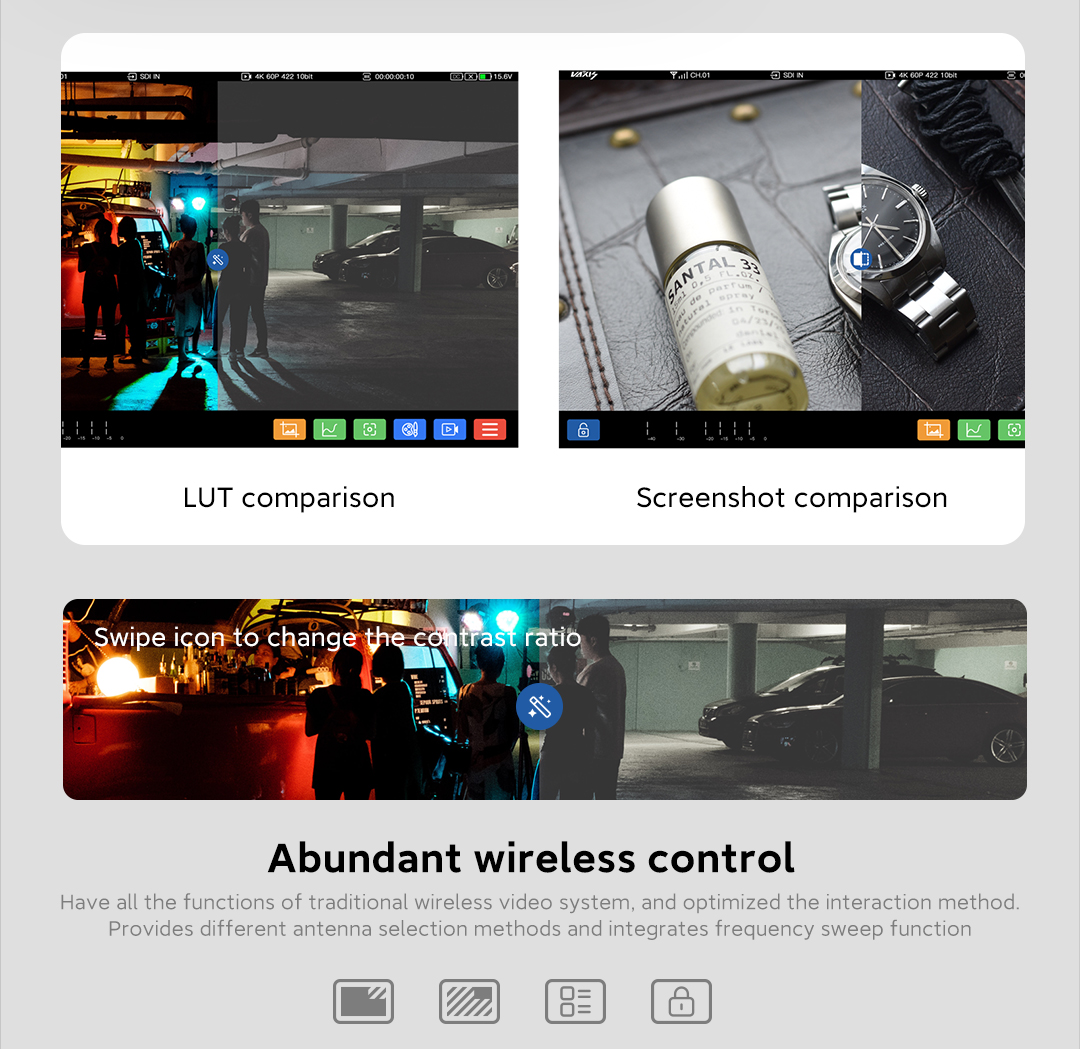

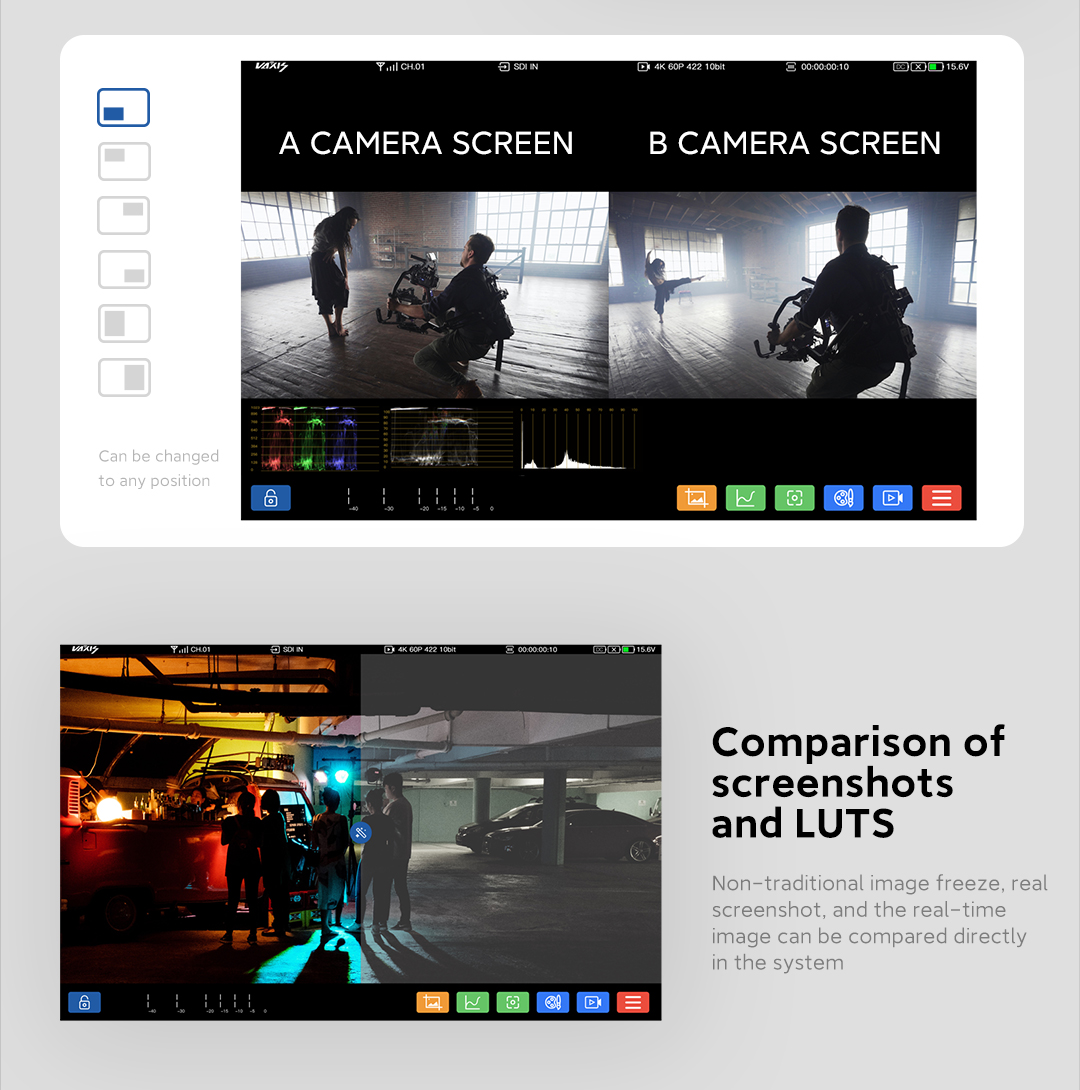

Screenshot and LUT comparison. Two cameras side by side and a real screenshot you compare with the live image right in the system.

Screenshot and LUT comparison

Abundant wireless control. Swipe the icon to change the comparison ratio; antenna selection and frequency scanning are built in.

Abundant wireless control

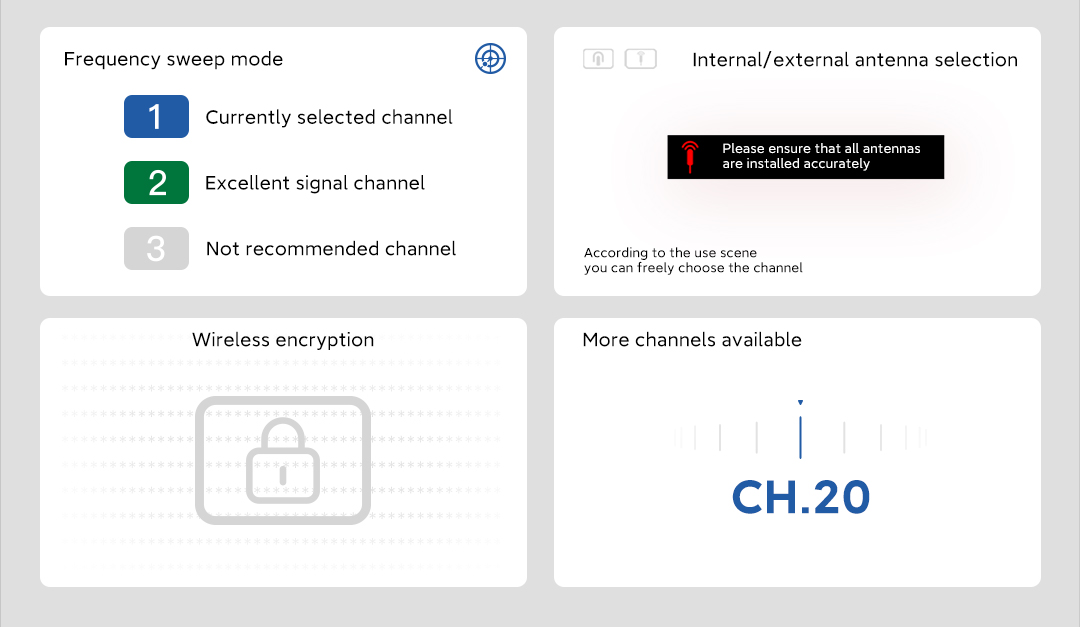

Channels, antennas and encryption. Scanning shows selected, excellent and not-recommended channels; internal or external antennas, encrypted link and 20 channels.

Channels, antennas and encryption

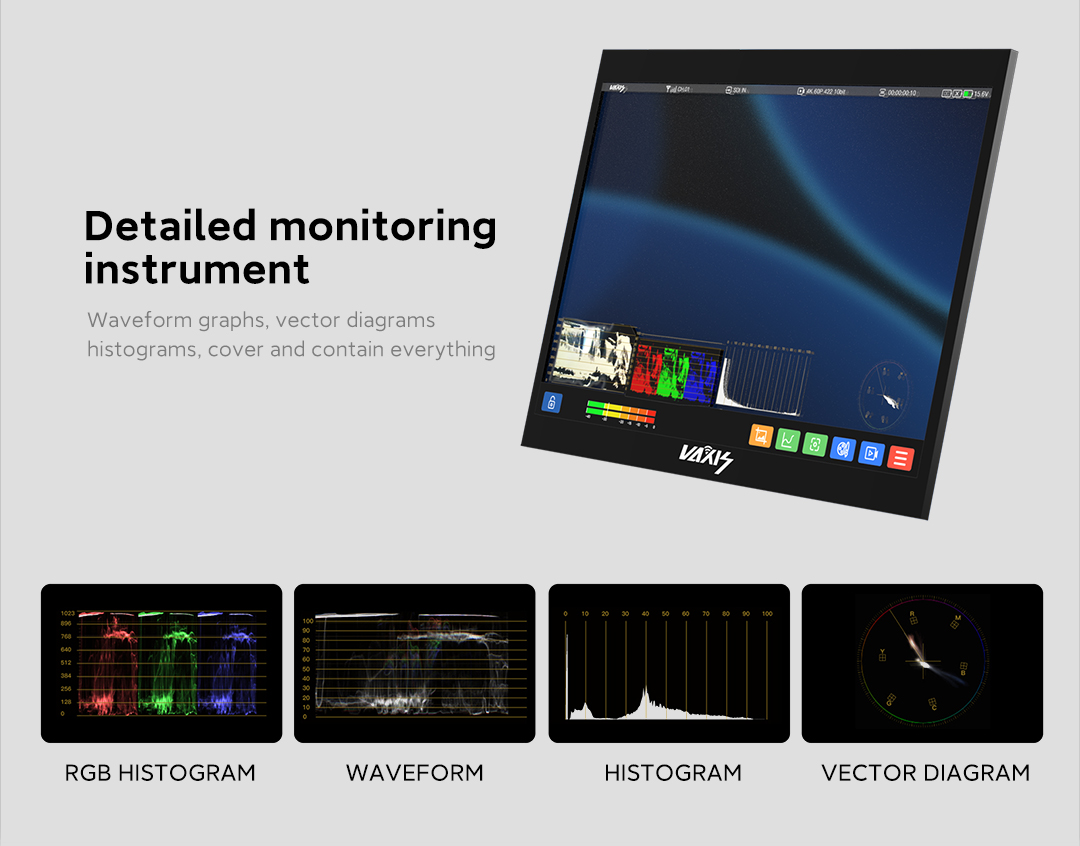

Detailed scopes. RGB histogram, waveform, histogram and vector diagram.

Detailed scopes

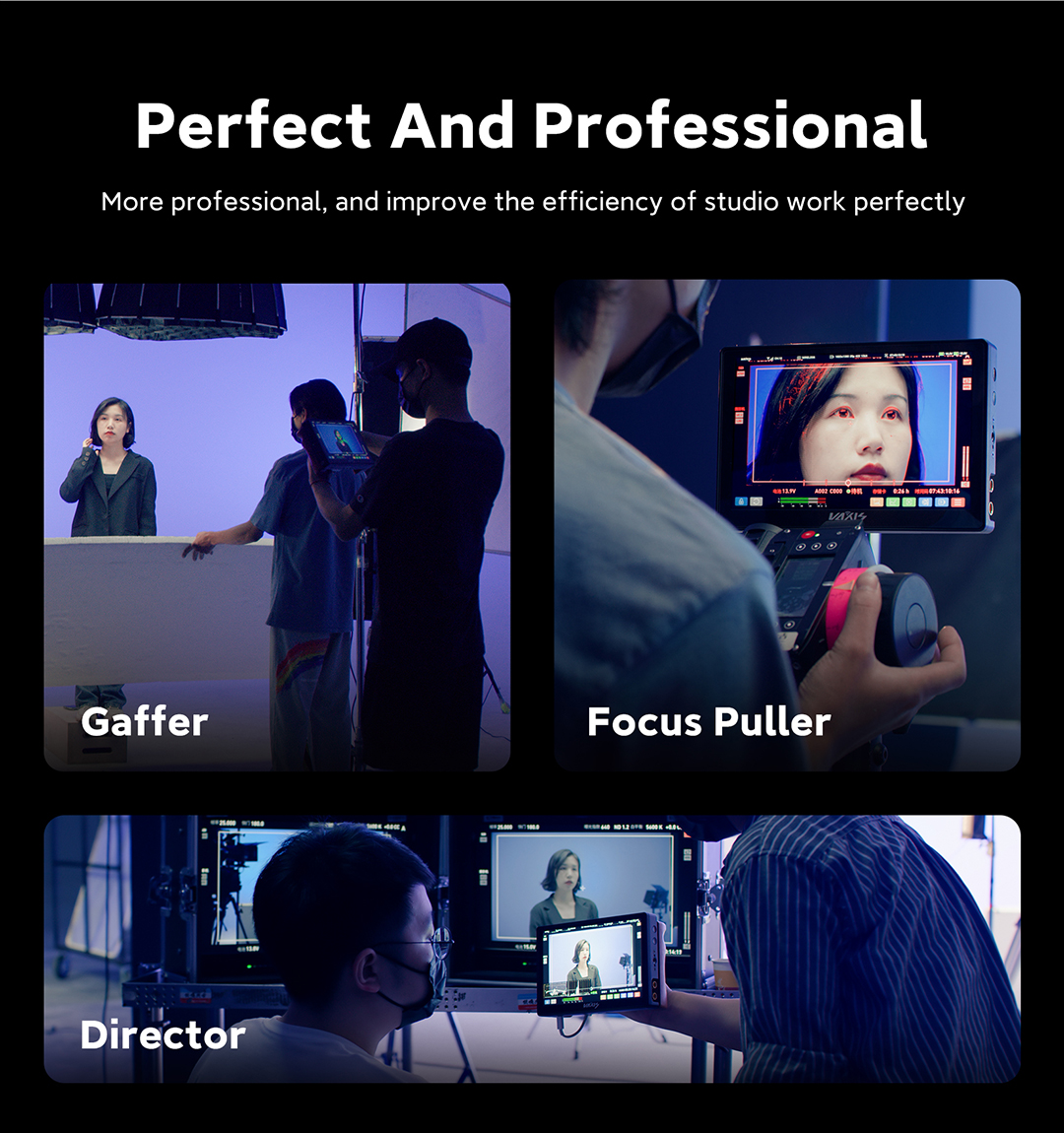

Perfect and professional. For gaffer, focus puller and director – more efficiency in the studio and on set.

Perfect and professional

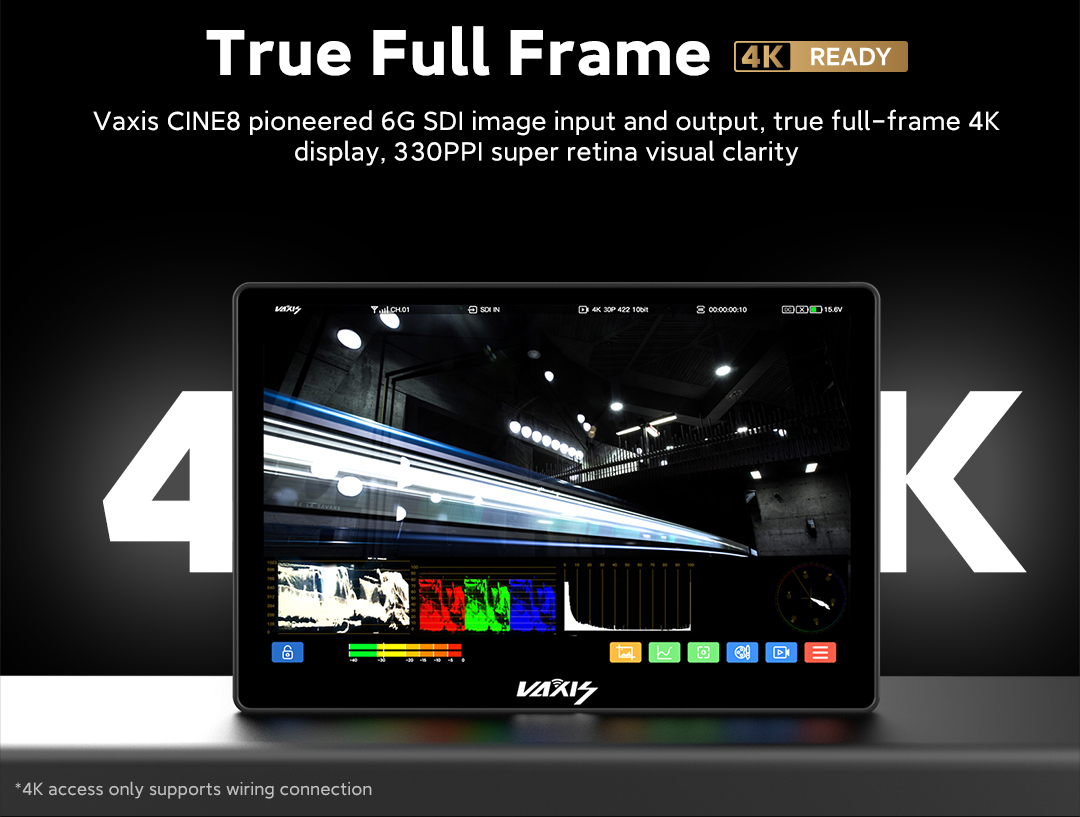

True full frame. 6G-SDI input and output, full-screen 4K display and 330 PPI clarity; 4K over cable only.

True full frame

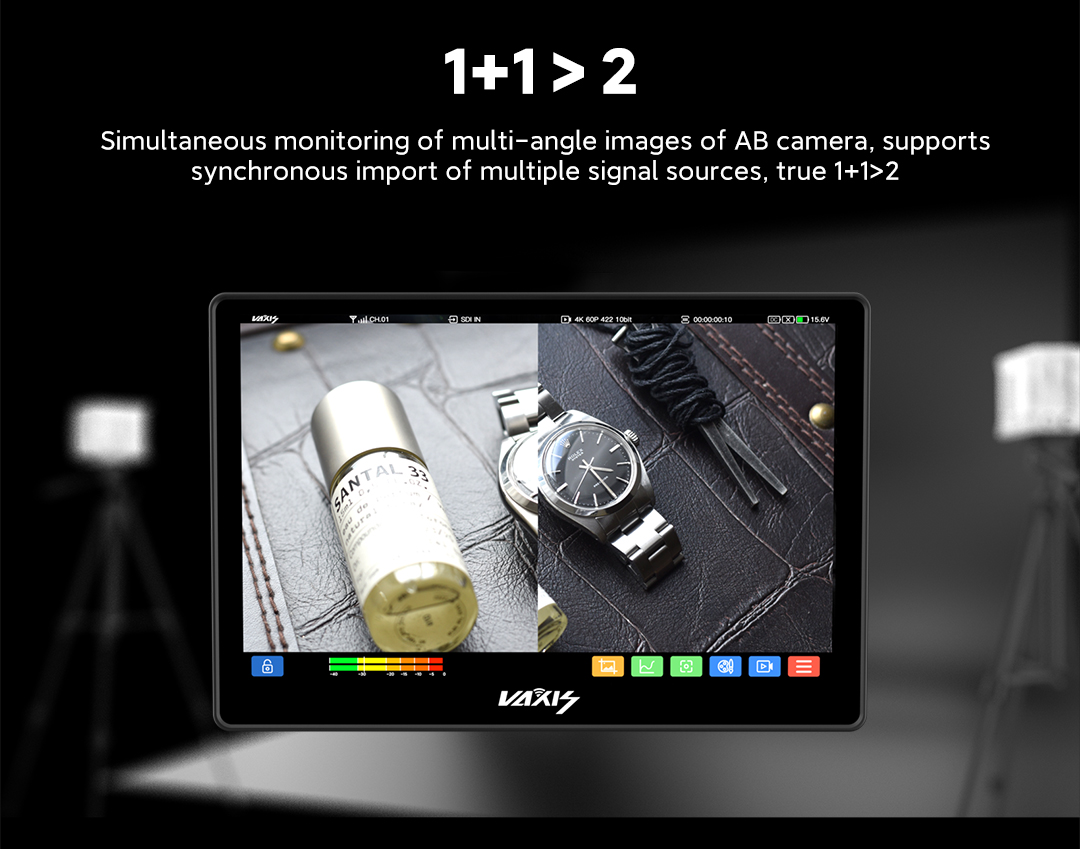

1 + 1 > 2. Simultaneous monitoring of cameras A and B and multiple signal sources at once.

1 + 1 > 2

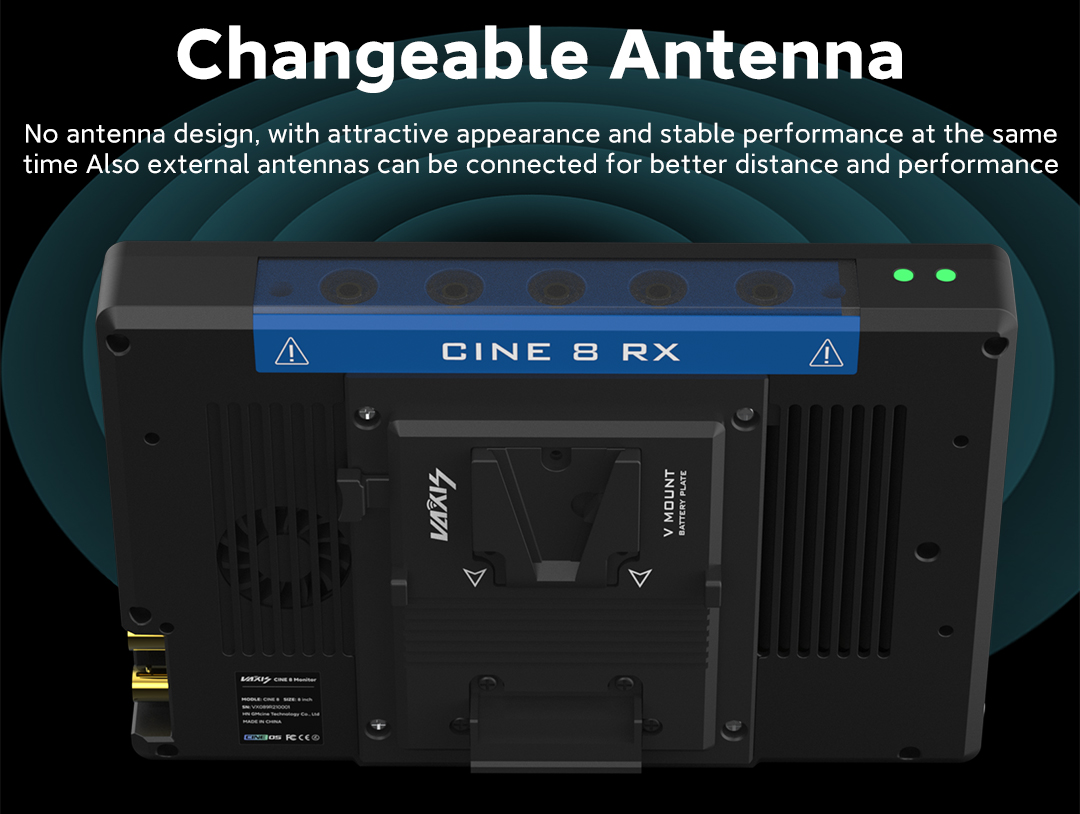

Changeable antennas. Built-in antennas, with external ones connectable for more range and performance.

Changeable antennas

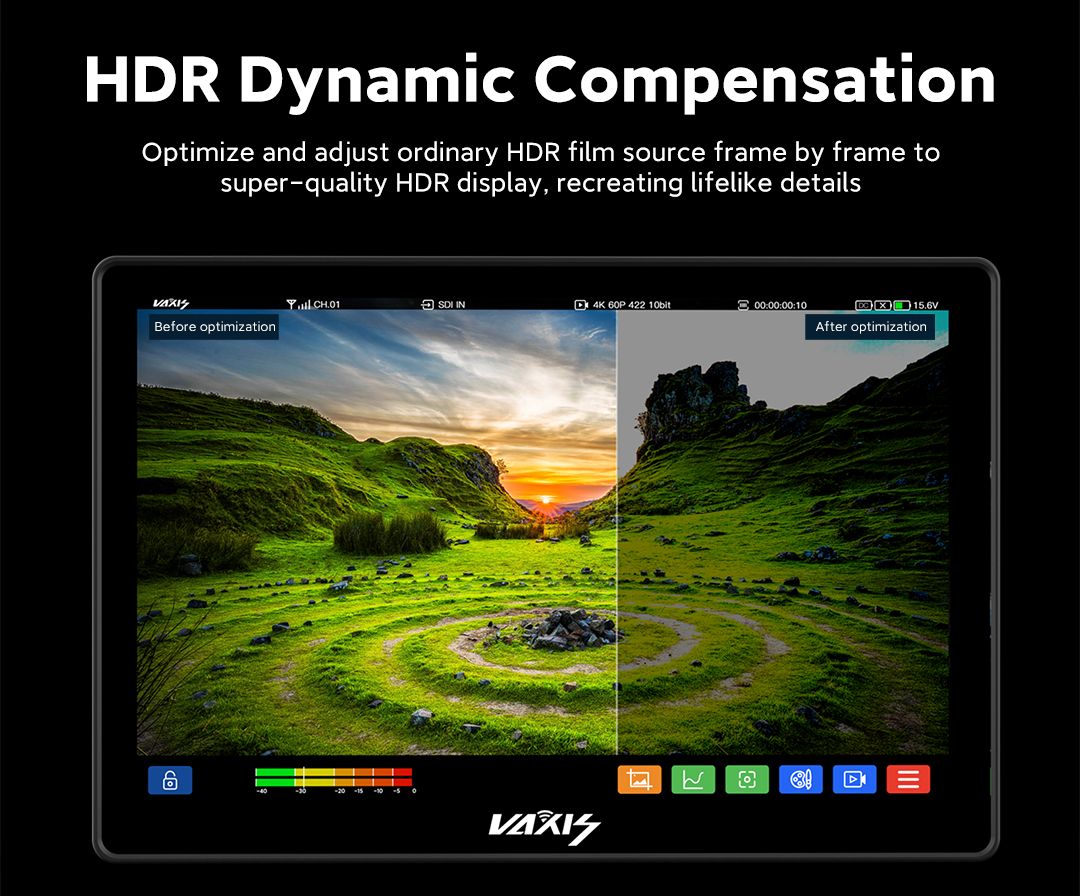

HDR dynamic compensation. Optimises ordinary HDR sources frame by frame for lifelike detail.

HDR dynamic compensation

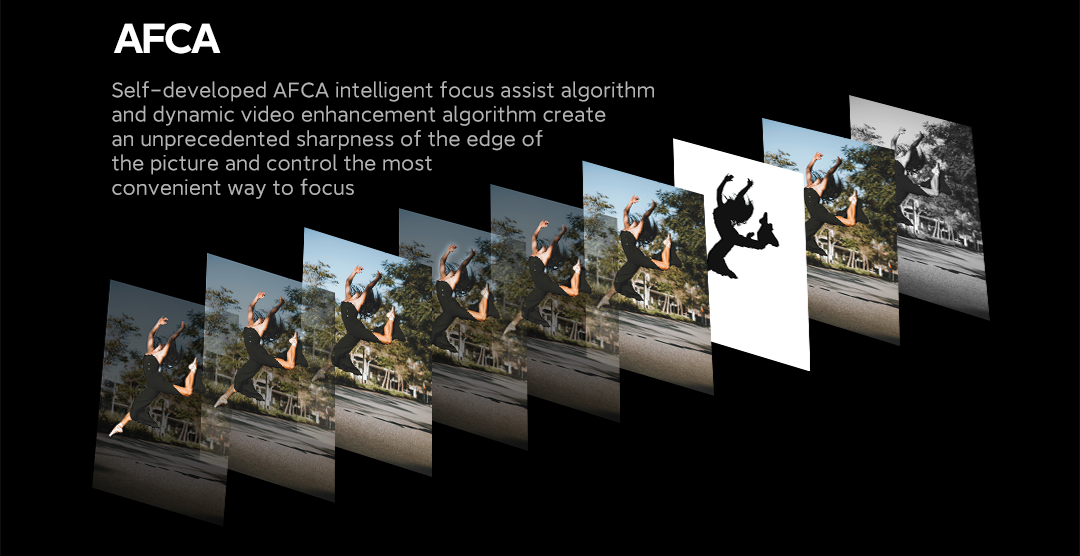

AFCA. An in-house focus-assist algorithm and dynamic image enhancement sharpen edges for comfortable focusing.

AFCA

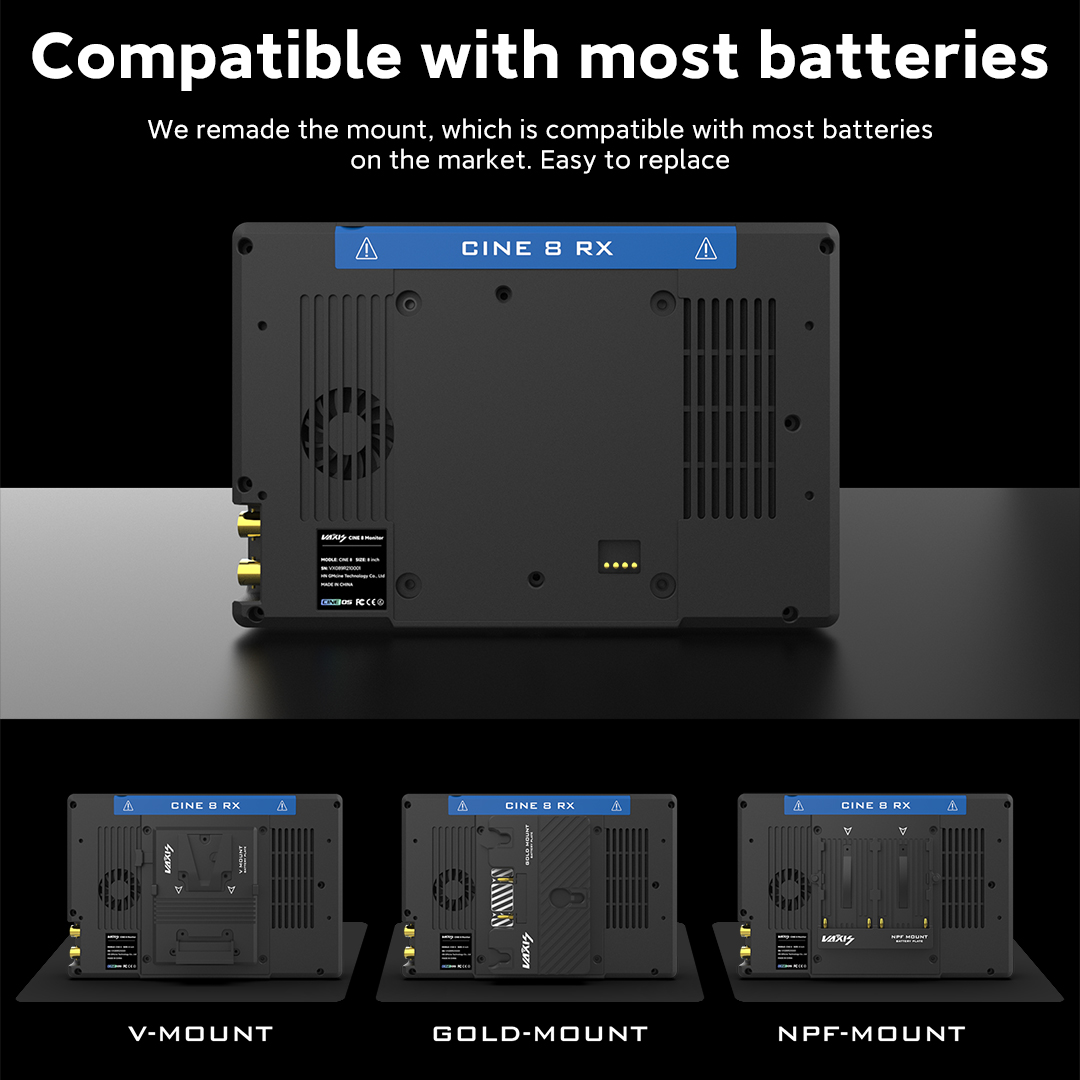

Fits most batteries. Swappable V-Mount, Gold Mount and NP-F plates fit most batteries on the market.

Fits most batteries

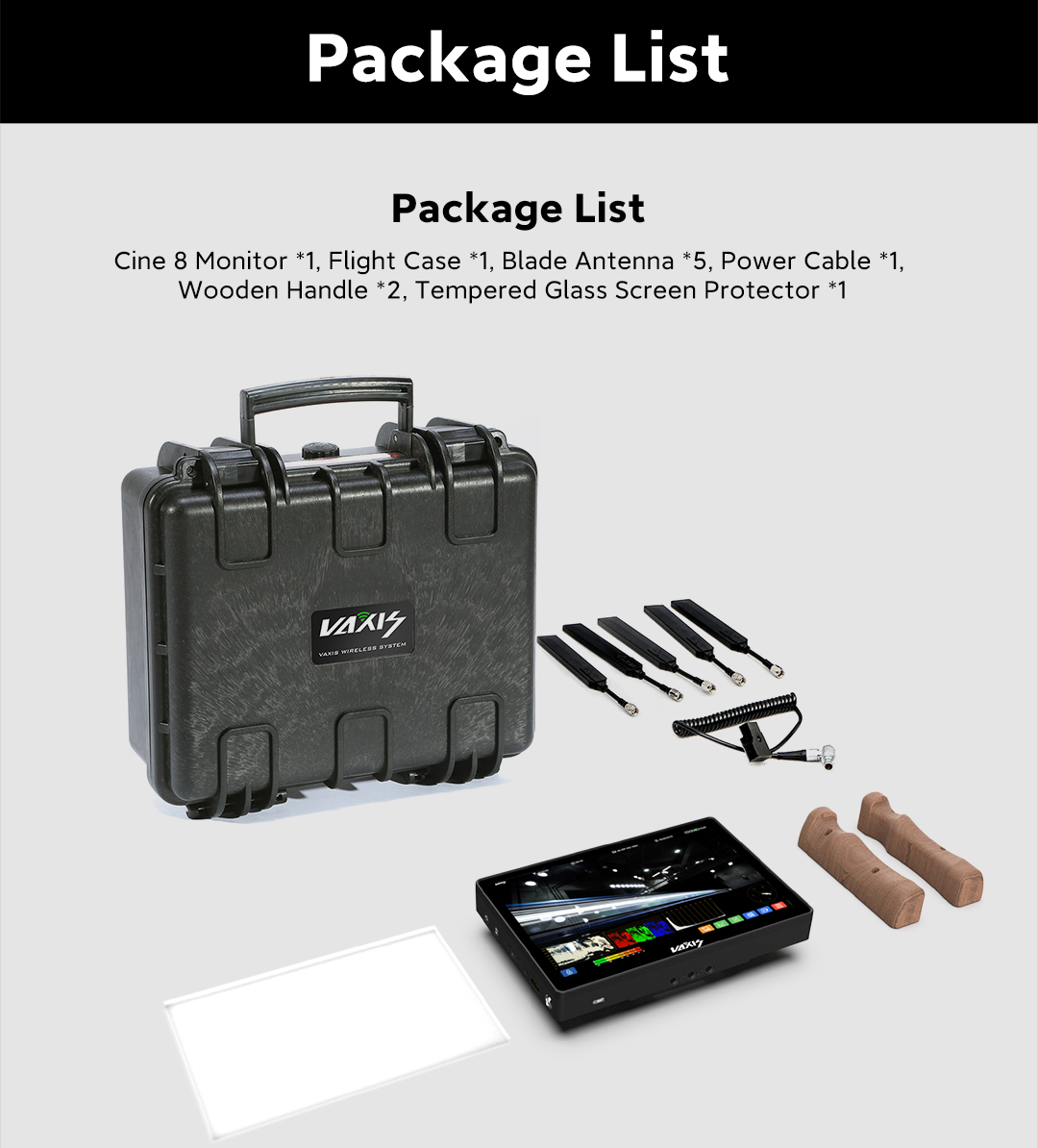

What is in the box. Cine 8 monitor, flight case, 5 Blade antennas, power cable, 2 wooden handles and a tempered glass screen protector.

What is in the box

PACKAGE CONTENT

  • Cine 8 monitor ×1
  • Flight case ×1
  • Blade antenna ×5
  • Power cable ×1
  • Wooden handle ×2
  • Tempered glass screen protector ×1

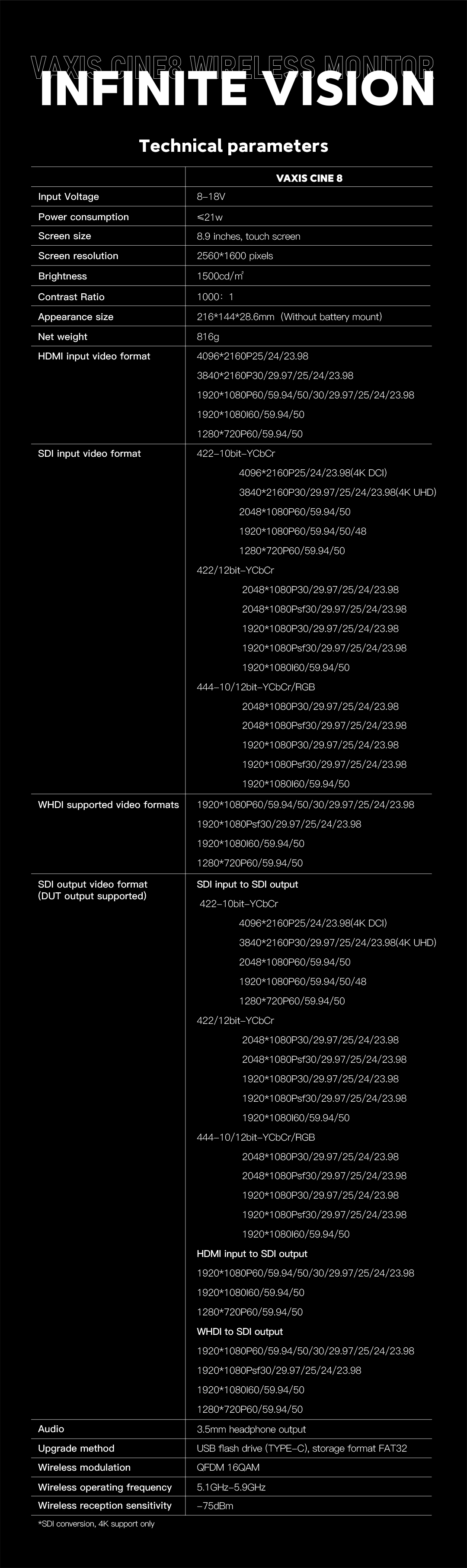

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm Cine 8, VS21-CINE8-R01
  • Display: 8.9″ touch, 2560 × 1600, 1500 cd/m², 1000:1 contrast
  • Wireless reception: built-in Storm 3000 receiver, 5.1–5.9 GHz, −75 dBm sensitivity
  • Inputs: HDMI up to 4096 × 2160p25, SDI up to 4K (6G-SDI), wireless up to 1080p60
  • System: CINE OS, 3D LUT, picture-in-picture, AFCA, HDR
  • Audio: 3.5 mm headphone out
  • Updates: USB flash drive (USB-C), FAT32
  • Power: 8–18 V, up to 21 W; V-Mount, Gold Mount, NP-F plates
  • Dimensions: 216 × 144 × 28.6 mm (without battery plate)
  • Weight: 816 g

WE RECOMMEND

The Vaxis Storm Cine 8 is a professional 8.9" monitor with an integrated Storm 3000 wireless receiver, offering a high brightness of 1500 nits and support for 4K resolution. To fully realize its potential, it is essential to pair it with compatible Storm series transmitters, rugged mounting hardware, and professional optical filters to achieve a top-quality image.

Wireless video transmission - Transmitters compatible with the integrated Storm 3000 receiver in the monitor.

Mounting accessories - Components for secure and flexible mounting of the monitor on a camera rig.

Optical filters - Professional Vaxis VFX filters for creative image adjustment directly during filming.

Cables and Power - Additional cables for power and accessory connectivity.

Parameters

Parameters

Manufacturer: Vaxis
Category: Camera monitors

Main parameters

Size8"
Monitor inputs3G-SDI · 6G-SDI · SDI
Luminosity1500cd/m2
Panel resolution2560x1600

Other parameters

Other features3D LUT correction
High BrightnessYes
ACCESSORIES (1)

ACCESSORIES (1)

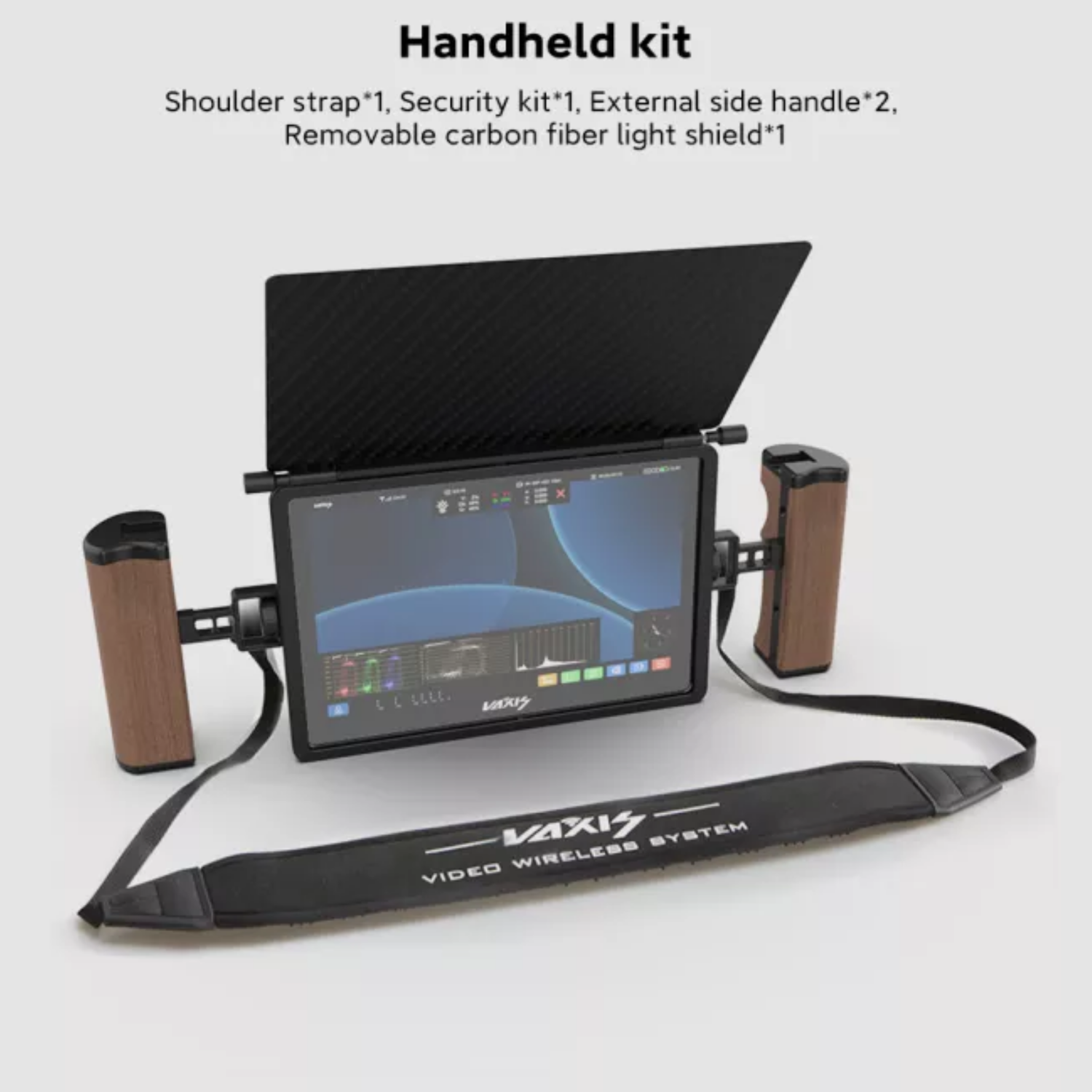

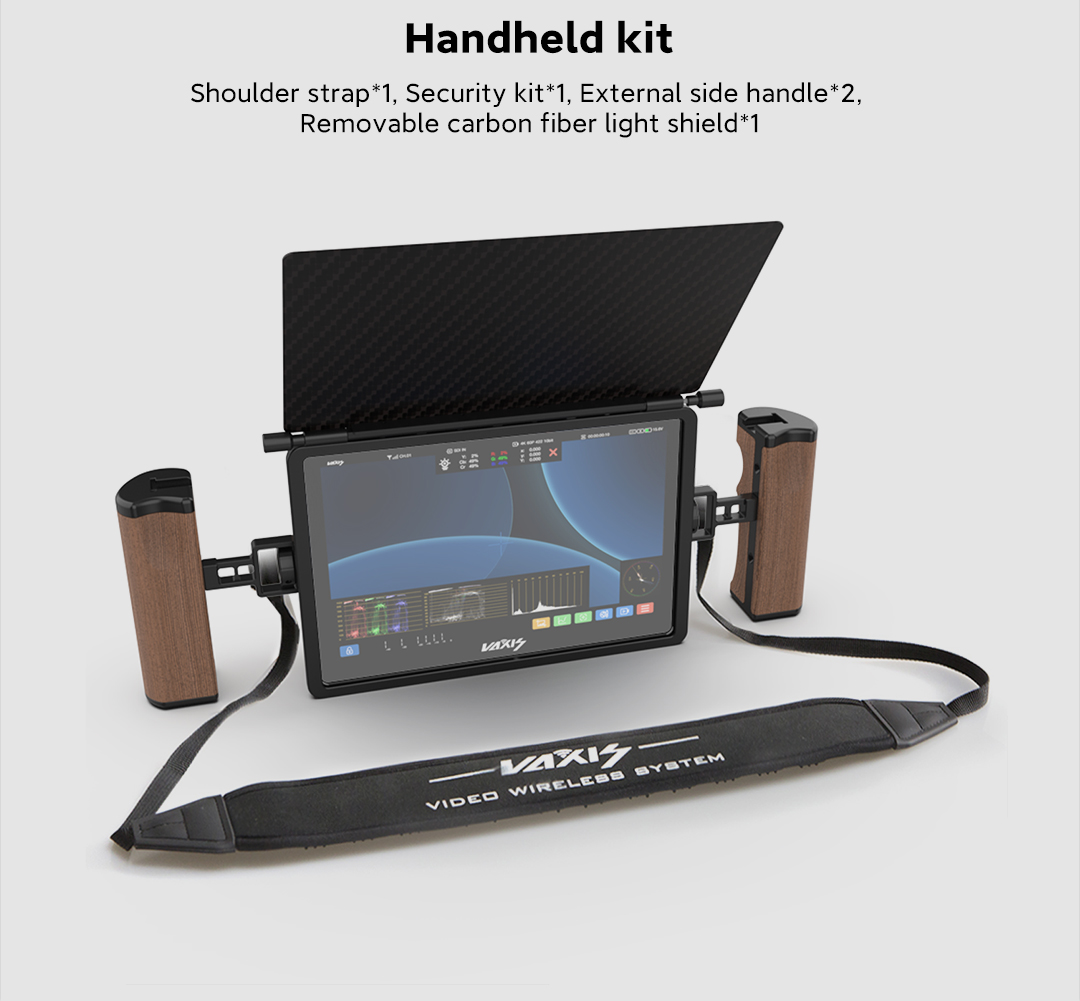

Vaxis Cine8 Monitor Handheld Kit (DO NOT INCLUDE WIRELESS MONITOR)
