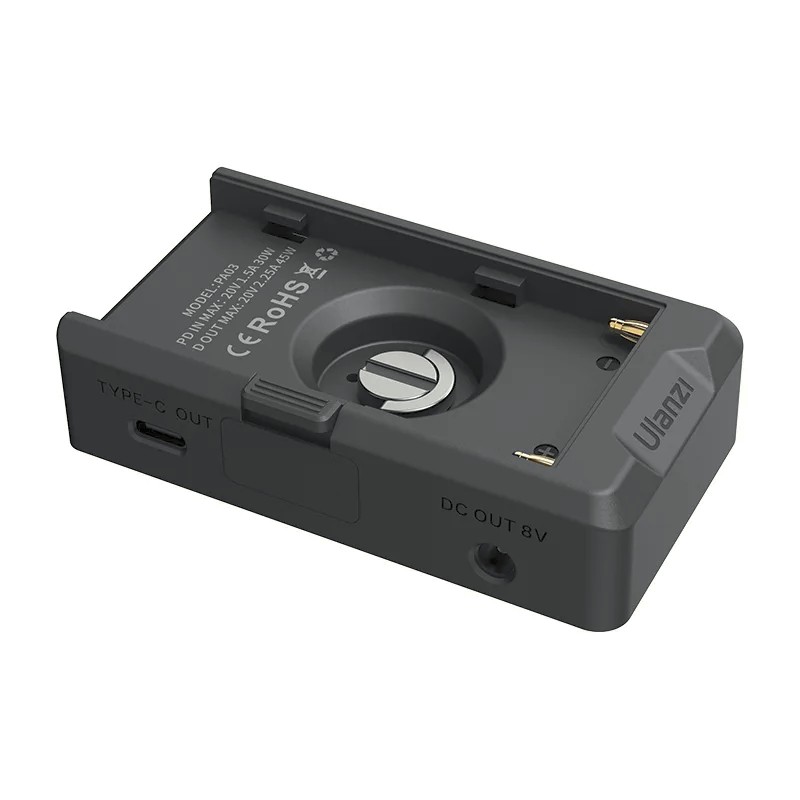

Ulanzi PA03 NP-F Mounting Plate

The Ulanzi PA03 transforms a standard Sony NP-F series battery into a compact power hub for a camera, monitor, phone, tablet, or streaming device. It offers four types of outputs, bidirectional USB-C PD, and the ability to mount securely directly onto a rig.

The power bank is compatible with NP-F550, NP-F570, NP-F750, NP-F770, NP-F960, NP-F970, and NP-F980 batteries. This means that a single battery can simultaneously power multiple devices in the setup via USB-C PD, USB-C, USB-A, and DC output. In addition, the inserted battery can be recharged via USB-C PD at up to 30 W.

Power for Mobile Setups

The USB-C PD output provides up to 45 W, and supported fast-charging protocols make it easy to power modern devices. A separate DC output matches the voltage of the inserted NP-F battery and is suitable, for example, for monitors and other devices operating at voltages between 7.2 and 8.4 V.

Secure Mounting and Status Monitoring

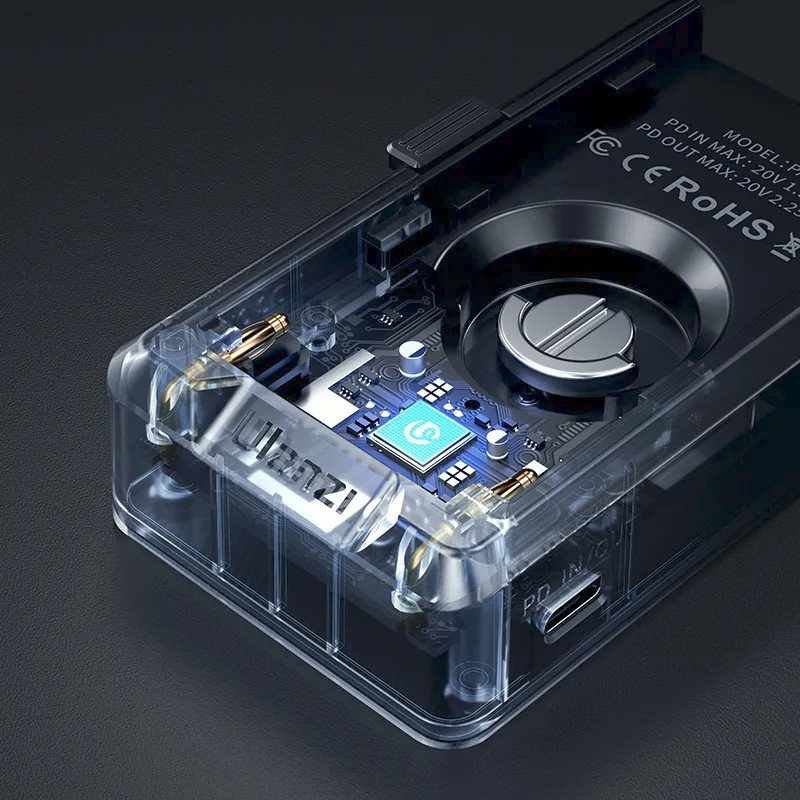

1/4"-20 threads and ARRI mounting holes with locking points allow for secure attachment to a cage, arm, or other part of the rig. An LED indicator shows the battery status, and protective circuits monitor temperature, short circuits, overcurrent, overvoltage, and reverse polarity.

Key Features

• Compatibility with standard Sony NP-F batteries and their replacements

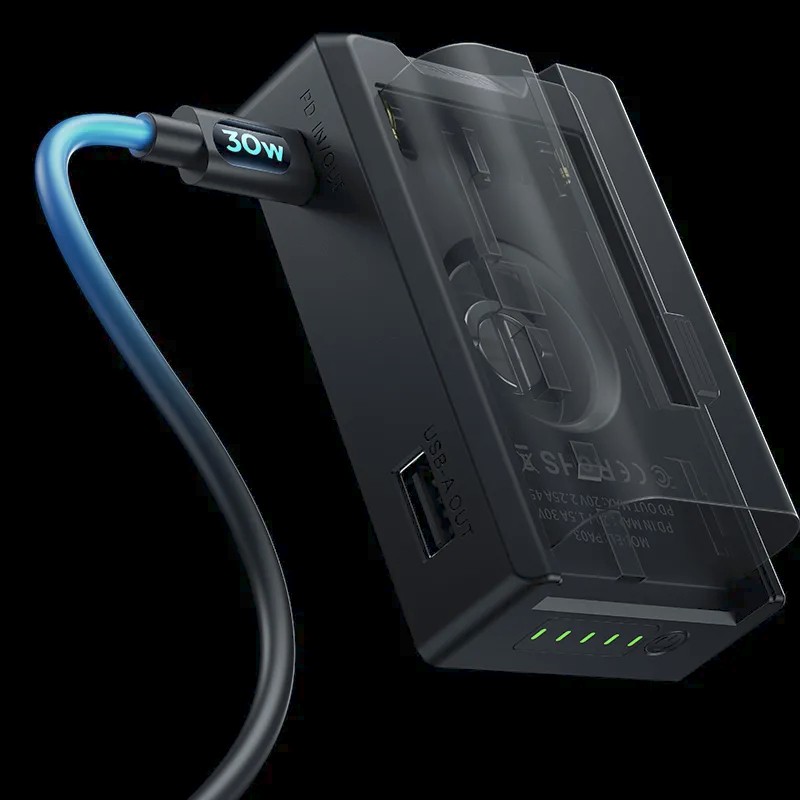

• USB-C PD input up to 30 W for charging the built-in battery
• USB-C PD output up to 45 W for powering devices
• USB-A, USB-C, and DC outputs

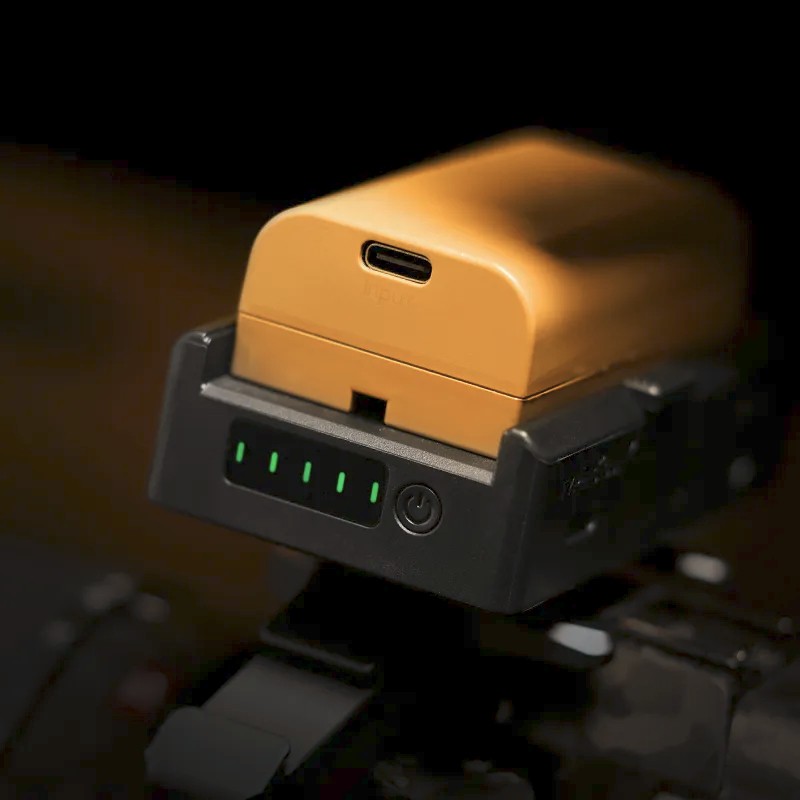

• LED battery status indicator

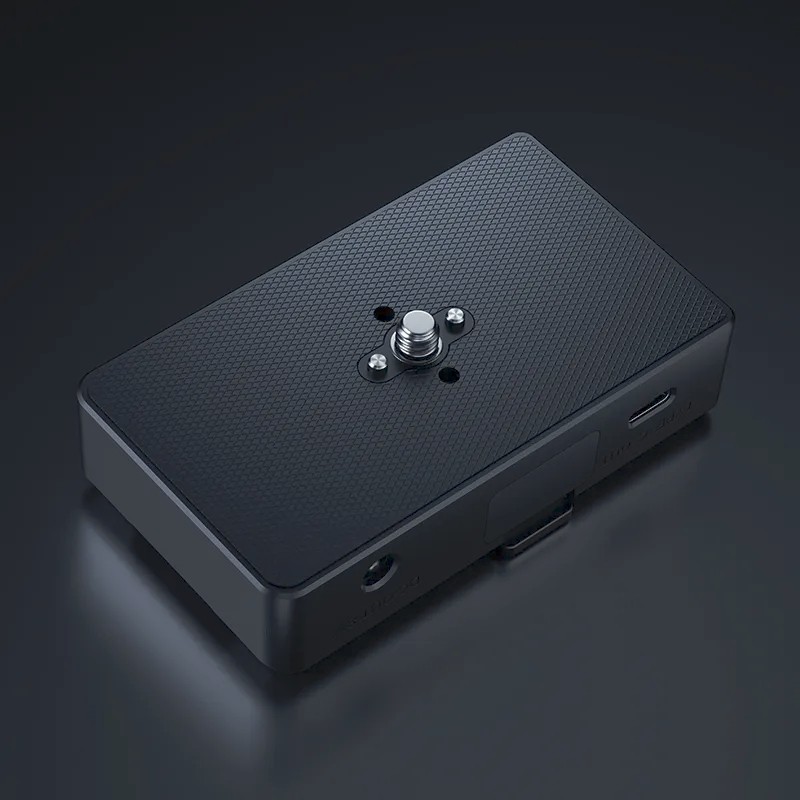

• 1/4"-20 mounting threads and ARRI mounting holes with locking mechanism
• Protection against overheating, short circuits, overcurrent, overvoltage, and reverse polarity
