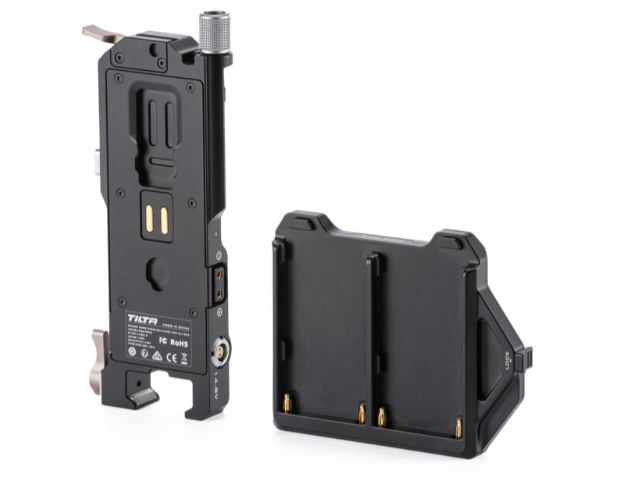

Tilta Battery Plate to DJI RS 4 Power Pass-through Plate Kit - L Series

The Tilta TGA-PPK3-LS Power Pass-through Plate for DJI RS 4 (and RS 2/3/3 Pro/4 Pro) is a direct drop-in replacement for the stock gimbal sled that adds swappable Gold/V-Mount or dual NP-F battery plates, multiple 14.8V P-Tap + 2-pin LEMO + USB-C outputs and a lower center of gravity for dramatically improved balance and longer runtimes—perfect for heavy cinema lenses, wireless follow focus, monitors, and integration with Hydra Alien or Float systems.

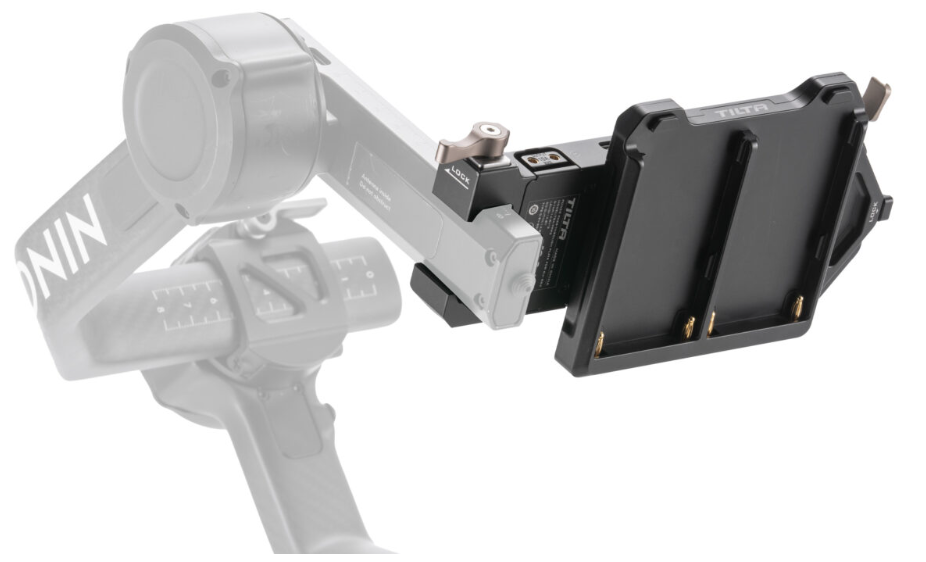

The Tilta TGA-PPK3-LS replaces the original extended lower plate with a full-featured power distribution base. Simply unlock and slide off the factory plate, then slide and lock this one in—no tools required. Choose from separately available Gold Mount, V-Mount, or dual Sony NP-F plates to mount high-capacity batteries underneath, instantly extending runtime while dropping the camera’s center of gravity for smoother, more stable gimbal performance—especially with long or front-heavy lenses. The plate retains the original Manfrotto quick-release receiver on top and cold shoe on the bottom, so all DJI accessories remain compatible. Power outputs include two 14.8V P-Taps, one 2-pin LEMO (input or output), and USB-C, making it easy to run cameras, Nucleus motors, Teradek transmitters or monitors simultaneously.

Key Features

• Direct replacement sled for DJI RS 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro
• Swappable Gold Mount, V-Mount, or dual NP-F battery plates (sold separately)
• 2 × 14.8V P-Tap, 1 × 2-pin LEMO (in/out), 1 × USB-C power outputs
• Lower center of gravity for better balance and gimbal performance
• Full compatibility with DJI Manfrotto QR plates, RavenEye, and accessories
• Seamless integration with Tilta Hydra Alien & Float systems
• Tool-free installation
