Tilta Battery Plate for Blackmagic PYXIS 6K - Gold Mount

Power your Blackmagic PYXIS 6K or 12K cinema camera and accessories with the Tilta ES-T21-BP-AB Gold Mount Battery Plate. Designed for direct mounting into the PYXIS battery slot, it provides multiple outputs, hot-swap capability and secure, reliable power distribution on set. Ideal for professional cinema setups, this battery plate streamlines power management for high-end Blackmagic PYXIS cameras while maintaining a compact, secure mounting solution.

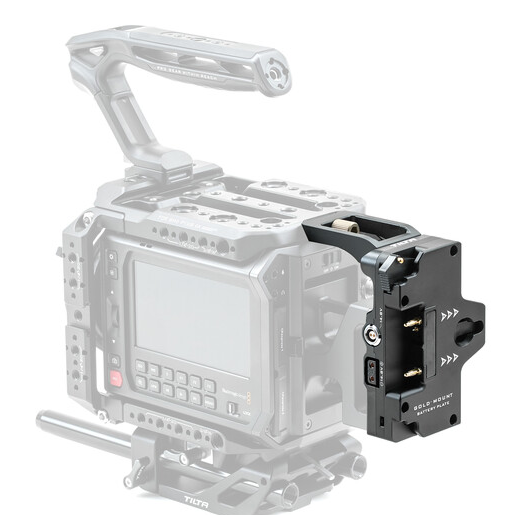

The Tilta ES-T21-BP-AB Battery Plate allows professional filmmakers to power their Blackmagic PYXIS 6K or 12K cameras with high-capacity Gold Mount batteries while also powering multiple accessories. This plate mounts directly into the camera’s BP-U battery slot and passes power from a Gold Mount battery through to the camera.

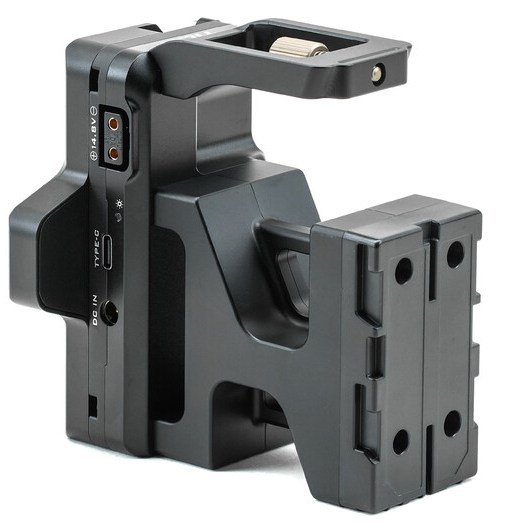

Equipped with two 14.8V D-Tap outputs, a 14.8V 2-pin LEMO-style output, and a USB-C output, the plate supports a wide variety of on-camera and rig-mounted accessories. A DC barrel input enables hot swapping of batteries using an external power source (cable sold separately), keeping your workflow uninterrupted. Built from aluminum and stainless steel, the battery plate is lightweight yet durable, with an LED indicator to monitor power status.

Key Features

• Directly mounts into the PYXIS 6K/12K BP-U battery slot

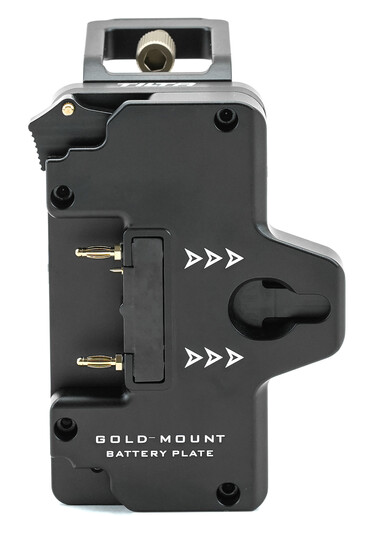

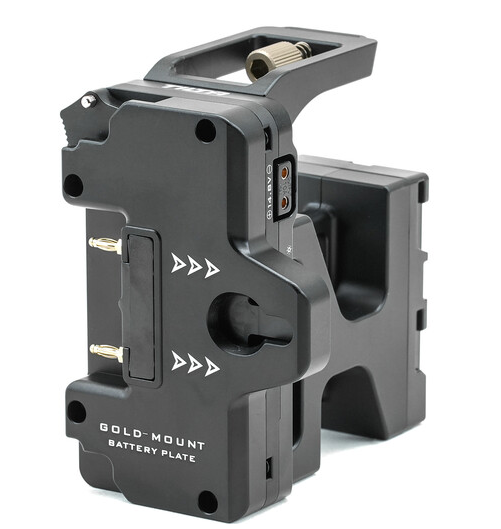

• Gold Mount input for high-capacity batteries
• Pass-through power to camera
• 2x 14.8V D-Tap outputs for accessories
• 1x 2-pin LEMO-style output
• 1x USB-C output for additional devices
• DC barrel input for battery hot-swapping
• LED power indicator
• Durable aluminum and stainless steel construction
