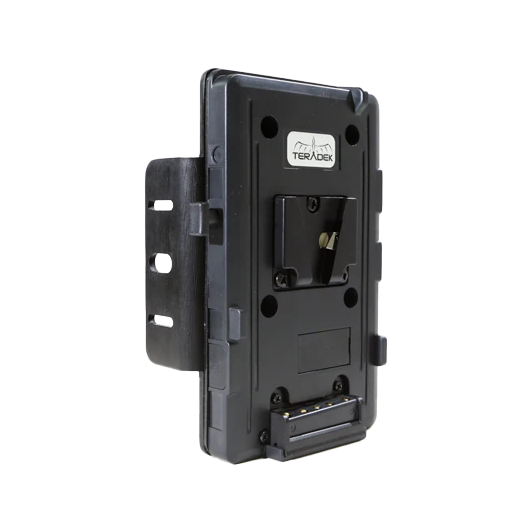

Teradek BIT-764 Single V Mount Battery Plate for BOLT Transmitter

  • New
SKU: TE-BIT764

The Teradek BIT-764 (11-0764) is a simple V-Mount battery plate for Teradek Bolt Pro 300, 500, 600, 1000, 2000, and 3000 transmitters. It allows you to power the transmitter from a single 14.4V V-Mount battery while also providing a side D-Tap output for accessories.

More information

391 € with VAT 323.14 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TE-BIT764
Add to Compare Price history
Product description PACKAGE CONTENT

Product description

The Teradek BIT-764 (11-0764) is a simple V-Mount battery plate for Teradek Bolt Pro 300, 500, 600, 1000, 2000, and 3000 transmitters. It allows you to power the transmitter from a single 14.4V V-Mount battery while also providing a side D-Tap output for accessories.

It includes an 11″ / 27 cm D-Tap to 2-pin cable for powering the transmitter. The plate is designed exclusively for the transmitter side of compatible older Bolt systems; it is not compatible with the Bolt XT or Bolt LT.

V-MOUNT POWER FOR BOLT TX

The BIT-764 connects a compatible Bolt transmitter to a standard 14.4V V-Mount battery. This single, compact plate provides a clean power solution for your camera rig.

The side D-Tap output is rated for a maximum of 50 W. A 27-cm D-Tap to 2-pin cable is included in the package for connecting the transmitter.

VERIFIED SPECIFICATIONS

  • Model: Teradek 11-0764 / BIT-764
  • Intended Use: Bolt Pro 300 / 500 / 600 / 1000 / 2000 / 3000 transmitters
  • Battery Mount: 1× V-Mount (female)
  • Output: 1× D-Tap, max. 14.4 V / 50 W
  • Cable: D-Tap → 2-pin, 11″ / 27 cm
  • Material: 6061-T6 aluminum
  • Dimensions / Weight: 8.5 × 15.7 × 7.7 cm / 433.7 g

PACKAGE CONTENT

PACKAGE CONTENTS

  • Teradek BIT-764 Single V-Mount Battery Plate ×1
  • D-Tap → 2-pin cable, 27 cm ×1
Parameters

Parameters

Manufacturer: Teradek
Category: Power battery plates

Main parameters

Typ baterie / uchyceníV-Mount
Výstupy a rozhraníD-Tap / P-Tap
Uchycení / montáž1/4"-20 / 3/8"-16 závit
KompatibilitaUniverzální
