The Telycam Explore XE (White) is a premium 4K60 PTZ camera featuring a 1-inch sensor, 20× optical zoom, PDAF autofocus, AI auto-tracking, and NDI®|HX3. With professional connectivity, FreeD support, and PoE++, it delivers broadcast-quality performance for advanced AV and production environments.
The Telycam Explore XE (White) is a premium 4K60 PTZ camera featuring a 1-inch sensor, 20× optical zoom, PDAF autofocus, AI auto-tracking, and NDI®|HX3. With professional connectivity, FreeD support, and PoE++, it delivers broadcast-quality performance for advanced AV and production environments.

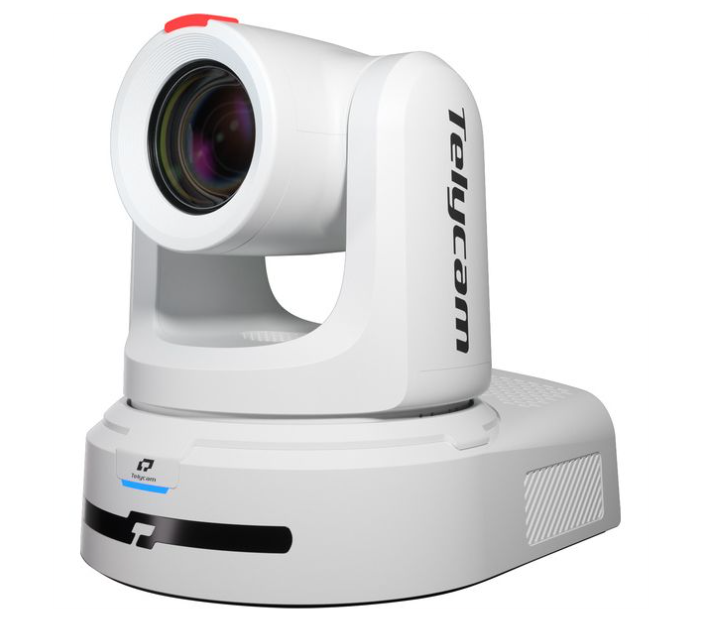

The Telycam Explore XE PTZ Camera (White) is a high-end professional camera designed for broadcast, live streaming, corporate AV, and virtual production applications. Powered by a large 1-inch 9MP CMOS sensor, it delivers stunning 4K60 video with exceptional clarity, dynamic range, and superior low-light performance. Its cinematic depth of field ensures sharp subject focus with beautifully rendered backgrounds.
Equipped with advanced PDAF (Phase Detection Autofocus), the Explore XE maintains fast and precise focus even in dynamic environments. Combined with AI-powered auto-tracking, it keeps subjects perfectly framed without manual intervention—ideal for lectures, presentations, performances, and live events.

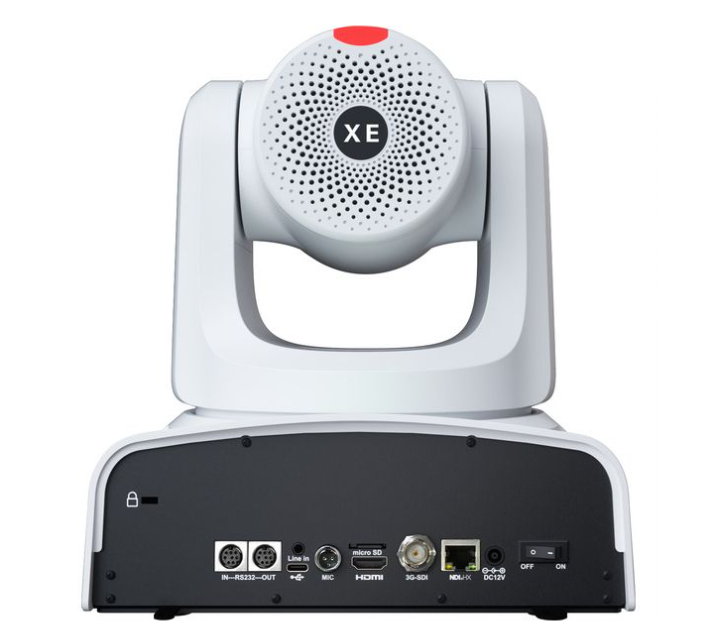

The camera offers extensive connectivity options, including NDI®|HX3, HDMI 2.0, 3G-SDI, and USB-C, enabling seamless integration into modern production workflows. With built-in FreeD protocol support, it is perfectly suited for AR/VR and virtual studio environments.
Professional audio integration is supported through both mini XLR (with phantom power) and 3.5mm line-in inputs. Additional features such as dual tally lights, internal microSD recording for backup, and PoE++ support for single-cable installation make the Explore XE a reliable and flexible solution.
Designed for demanding production environments, the Explore XE combines cutting-edge imaging technology with robust build quality, making it an ideal choice for studios, houses of worship, auditoriums, and enterprise AV setups.
Key Features:
4K UHD 60fps video with 1-inch 9MP CMOS sensor
20× optical zoom (f=9.79–186.5mm, F2.8–F4.5)
PDAF autofocus for fast and accurate focusing
AI-powered auto-tracking for hands-free operation
NDI®|HX3, HDMI 2.0, 3G-SDI, and USB-C outputs
FreeD protocol for AR/VR and virtual production
Dual audio input: Mini XLR (phantom power) + 3.5mm line-in
Internal microSD recording for backup
PoE++ (IEEE802.3bt) for single-cable deployment
Dual tally light support
Wide dynamic range and excellent low-light performance
1 × Telycam Explore XE PTZ Camera (White)
1 × Power Adapter
1 × Power Cable
1 × Remote Controller
1 × USB Type-C Cable
1 × RS232 Cable
1 × User Manual
Sensor: 1-inch 9MP UHD CMOS
Lens: 9.79–186.5 mm, F2.8–F4.5
Optical Zoom: 20×
Field of View:
Horizontal: 71° – 4.05°
Vertical: 39.6° – 2.2°
Diagonal: 78.5° – 4.6°
Minimum Focus Distance: Wide: 15 cm / Tele: 150 cm
Minimum Illumination: 0.5 lux
S/N Ratio: ≥50 dB
Video Outputs:
NDI®|HX3, HDMI 2.0, 3G-SDI, USB Type-C
Video Formats:
Up to 4K60 (HDMI, NDI®|HX3)
Full HD via SDI and USB
IP Streaming:
Encoding: H.264 / H.265
Bitrate: 1024 Kbps – 122800 Kbps
Protocols: NDI®|HX3, SRT, RTSP, RTMP, RTMPS, HTTP/HTTPS, ONVIF, VISCA over IP, FreeD, WebRTC, RTP Multicast
Audio:
Mini XLR (phantom power)
3.5 mm stereo line-in
Pan/Tilt:
Pan: -176° to +176° (0.1–80°/s)
Tilt: -90° to +90° (0.1–60°/s)
Presets: 10 (remote), 256 (serial), 0.1° accuracy
Power & Build:
Power: DC12V, PoE++ (IEEE802.3bt)
Operating Temperature: -10°C to 50°C
Humidity: ≤80%
Dimensions: 232.5 × 264 × 269 mm
Weight: 4.6 kg
Color: White
The Telycam Explore XE is a professional 4K PTZ camera with a 1-inch sensor and NDI|HX3 support, designed for high-end television production and streaming. To fully utilize it in various installations, it is essential to use compatible Explore series mounts, advanced IP controllers, and high-quality cabling for stable 4K signal transmission.
Mounting Accessories - Mounts designed specifically for the Explore series ensure safe and stable installation in various positions.
Control and Remote Control - Professional controllers and remote controls enable precise manipulation of camera movement and image parameters.
Cables and Connectivity - Long-range hybrid USB cables are ideal for connecting the camera to a computer or video control room over long distances.
Power and Audio - Accessories to ensure a stable power supply and high-quality audio recording in production environments.
| Manufacturer: | TelyCam |
| Category: | PTZ |
| Camera Sensor size | 1-inch 9MP UHD CMOS |
| Zoom | 20x |
| Version | PTZ |
| Lens lens aperture | 2.8f |
