The Telycam Explore SE Black is a broadcast-grade 4K60 PTZ camera featuring 30X optical zoom, AI auto-tracking, FreeD support, and advanced connectivity including NDI® | HX, 12G-SDI, HDMI, and SFP+. Designed for high-end production, it delivers ultra-clear video, Genlock synchronization, and professional audio integration.
The Telycam Explore SE Black is a broadcast-grade 4K60 PTZ camera featuring 30X optical zoom, AI auto-tracking, FreeD support, and advanced connectivity including NDI® | HX, 12G-SDI, HDMI, and SFP+. Designed for high-end production, it delivers ultra-clear video, Genlock synchronization, and professional audio integration.

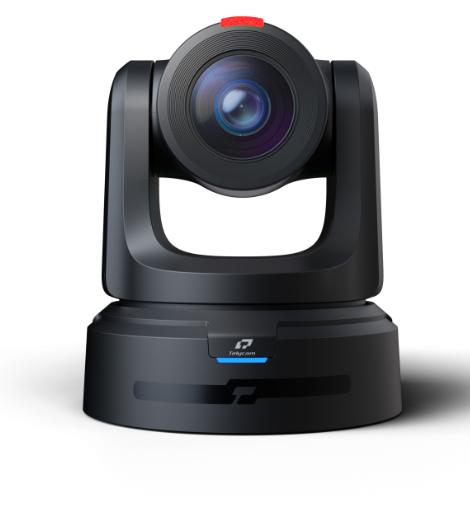

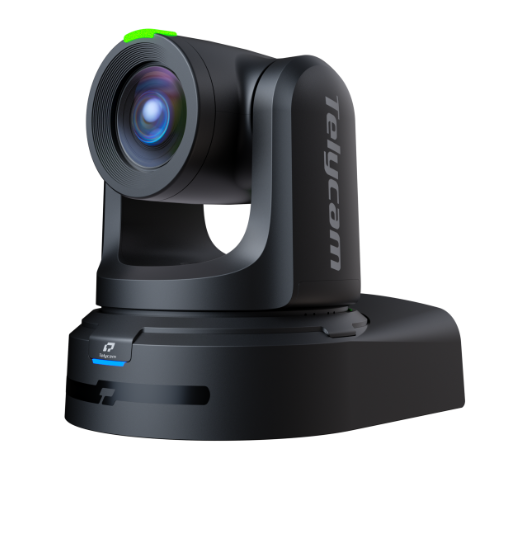

The Telycam Explore SE PTZ Camera (Black) is a high-performance, broadcast-level solution designed for professional video production, live streaming, and virtual studio environments. Powered by a Sony 1/1.8-inch 9MP CMOS sensor and an advanced image processor, it delivers stunning 4K60p ultra-HD video with exceptional clarity, accurate color reproduction, and fast, precise focusing.
Equipped with a powerful 30X optical zoom lens, the Explore SE captures detailed shots from wide angles to extreme close-ups. Its versatile connectivity—including NDI® | HX, 12G-SDI, HDMI, USB Type-C, and SFP+—ensures seamless integration into modern production workflows. With built-in Genlock, the camera can synchronize perfectly with other cameras, making it ideal for multi-camera broadcast environments.
The Explore SE features native AI-based auto-tracking, enabling smooth and accurate subject tracking without external systems. Integration of FreeD protocol further enhances its capabilities for VR/AR and virtual production, allowing precise PTZF data output. Professional audio support via 3.5mm line-in and Mini XLR with phantom power ensures high-quality sound capture. With PoE++ support, flexible control interfaces, and robust PTZ mechanics, the Explore SE is built for demanding professional applications.
Key Features:
4K UHD 60fps video with Sony 1/1.8" 9MP CMOS sensor
30X optical zoom with wide-to-telephoto range
Native AI auto-tracking for hands-free subject following
FreeD protocol for VR/AR and virtual production workflows
Multi-output: NDI® | HX, 12G-SDI, HDMI 2.0, USB Type-C, SFP+
Genlock support for multi-camera synchronization
Professional audio inputs: 3.5mm line-in and Mini XLR with phantom power
PoE++ (IEEE802.3bt) for single-cable power, control, and video
Smooth PTZ movement with high precision and preset support
Daisy-chain capability for multi-camera setups
1 × Telycam Explore SE PTZ Camera (Black)
1 × Power Adapter (if included)
1 × Mounting Accessories
1 × User Manual
Sensor: 1/1.8-inch 9MP UHD CMOS
Lens: 6.91–214.64 mm, F1.35–F4.6
Optical Zoom: 30X
Field of View: Horizontal: 60°–2°, Vertical: 34.14°–1.12°, Diagonal: 67.08°–2.27°
Minimum Distance: 1.5 m
S/N Ratio: ≥50 dB
Image Settings:
Noise Reduction: 2D & 3D
Minimum Illumination: 0.5 Lux
White Balance: Auto/Manual/ATW/Presets
Exposure Modes: Auto/Manual/Shutter/Iris/Brightness Priority
Image Controls: Flip, Mirror, Gamma, Backlight Compensation
Video & Streaming:
Encoding: H.264 / H.265
Bitrate: 1024 Kbps – 61440 Kbps
Protocols: NDI® | HX, SRT, RTSP, RTMP, HTTP, ONVIF, VISCA over IP, PELCO P/D
PTZ Movement:
Pan: -170° to +170° (0.1–80°/s)
Tilt: -90° to +90° (0.1–60°/s)
Presets: 10 (remote), 256 (serial), 0.1° accuracy
Interfaces:
Video: NDI® | HX, HDMI 2.0, 12G-SDI, USB Type-C, SFP+
Control: RS232, RS422, RS485, RJ45, USB
Audio: Mini XLR (phantom power), 3.5mm line-in
Tally: Supported
PoE: PoE++ (IEEE802.3bt)
General:
Power: DC 12V / PoE++
Operating Temp: -10°C to 50°C
Humidity: ≤80%
Dimensions: 232.5 × 264 × 269 mm
Weight: 4.6 kg
Color: Black
The Telycam Explore SE Black is a top-of-the-line 4K PTZ camera with advanced NDI, 12G-SDI, and HDMI connectivity, which requires specific mounting hardware and control interfaces for professional use. To fully realize its potential in a production environment, we recommend dedicated IP controllers, certified Explore series mounts, and high-quality connection cables.
Control consoles and remote controllers - Professional controllers and remotes for precise movement and adjustment of PTZ cameras.
Mounting Accessories - Original mounts and brackets designed specifically for the Explore series for secure installation on walls, ceilings, or structures.
Cables and Power - Reliable power supplies and hybrid USB cables for stable signal transmission over long distances.
Audio - Microphone systems to ensure high-quality audio accompaniment for 4K video.
| Manufacturer: | TelyCam |
| Category: | PTZ |
| Camera Sensor size | 1/1.8-inch 9MP UHD CMOS |
| Resolution | 9MP |
| Zoom | 30x |
| Version | PTZ |
| Lens lens aperture | 1.4f |
