The Telycam Explore XE is a high-end 4K60 PTZ camera featuring a large 1" sensor, 20× optical zoom, AI auto-tracking, PDAF autofocus, and built-in ND filters. With NDI®|HX3, HDMI, 3G-SDI, USB-C, FreeD, and PoE++, it delivers broadcast-quality performance for professional AV, streaming, and virtual production.
The Telycam Explore XE is a high-end 4K60 PTZ camera featuring a large 1" sensor, 20× optical zoom, AI auto-tracking, PDAF autofocus, and built-in ND filters. With NDI®|HX3, HDMI, 3G-SDI, USB-C, FreeD, and PoE++, it delivers broadcast-quality performance for professional AV, streaming, and virtual production.

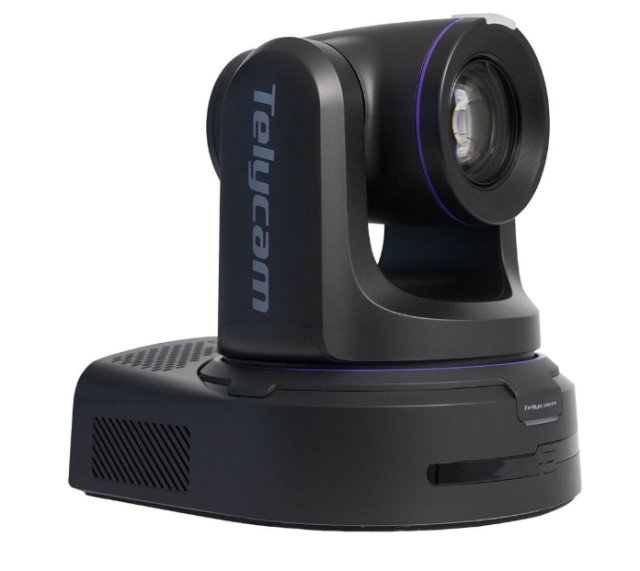

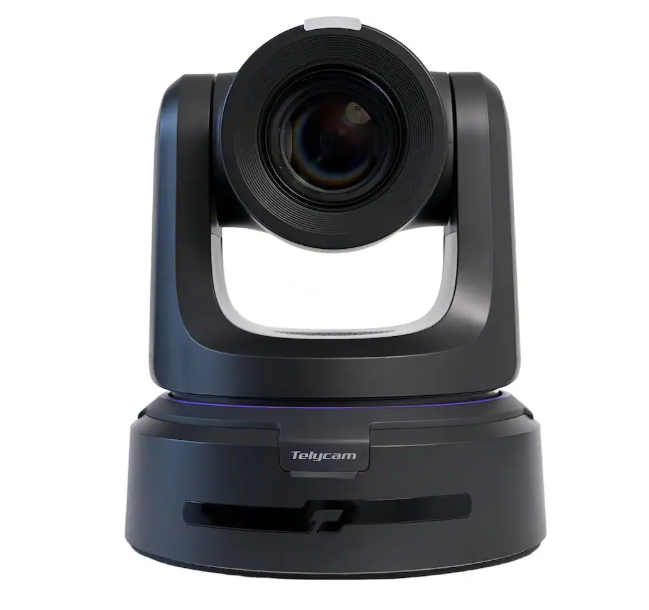

The Telycam Explore XE 4K60 PTZ Camera (Black) is a premium broadcast-grade solution designed for demanding professional AV, live production, and virtual studio environments. At its core is a powerful 1-inch 9MP sensor that delivers exceptional image quality, cinematic depth of field, and outstanding low-light performance with minimal noise. Combined with a 20× optical zoom lens, the Explore XE captures detailed close-ups and wide shots with stunning clarity.
Equipped with advanced PDAF (Phase Detection Autofocus), the camera ensures fast, accurate focusing even in dynamic or fast-moving scenarios. AI-supported auto-tracking keeps subjects perfectly framed without manual control, making it ideal for presentations, performances, and live events.

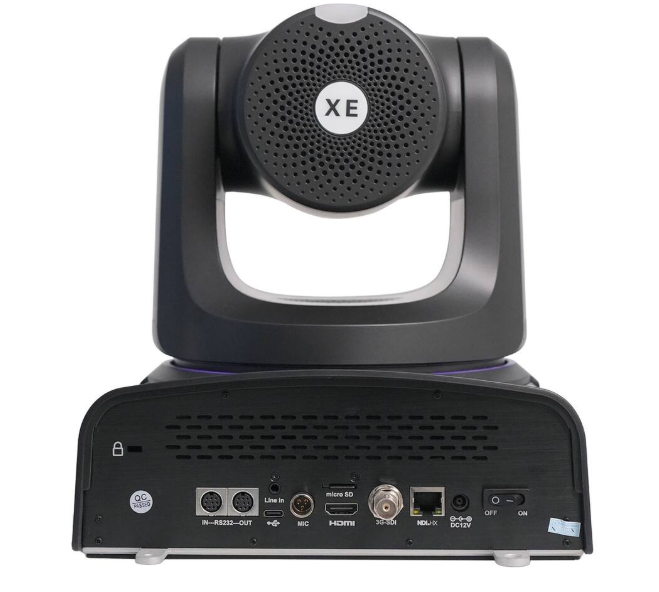

The Explore XE offers versatile connectivity with simultaneous outputs via NDI®|HX3, HDMI 2.0, 3G-SDI, and USB-C, allowing seamless integration into broadcast, streaming, and AV workflows. Built-in FreeD protocol enables precise PTZF data for AR/VR and virtual production, while dual tally lights enhance communication between operators and on-screen talent.
Designed for professional flexibility, the camera features a variable ND filter and external filter support to handle complex lighting conditions. Audio integration is equally robust, with mini-XLR (phantom power) and 3.5mm line-in inputs. PoE++ simplifies installation by combining power, data, and control over a single cable, while internal microSD recording provides backup and redundancy for critical productions.
Perfect for houses of worship, studios, auditoriums, corporate AV, and live events, the Telycam Explore XE sets a new standard for PTZ performance and reliability.
Key Features:
4K UHD 60fps video with large 1" 9MP sensor
20× optical zoom (f=9.79–186.5mm, F2.8–F4.5)
PDAF autofocus for fast and accurate subject tracking
AI-powered auto-tracking for hands-free operation
Built-in variable ND filter and external filter support
Multi-output: NDI®|HX3, HDMI 2.0, 3G-SDI, USB-C
FreeD protocol for AR/VR and virtual production
Dual tally lights for production visibility
Professional audio: Mini XLR with phantom power + 3.5mm line-in
PoE++ (IEEE802.3bt) and DC power options
Internal microSD card recording for backup
1 × Telycam Explore XE 4K60 PTZ Camera (Black)
1 × Power Adapter
1 × Power Cable
1 × Remote Controller
1 × USB Type-C Cable
1 × RS232 Cable
1 × User Manual
Sensor: 1-inch 9MP CMOS
Lens: 9.79–186.5 mm, F2.8–F4.5
Optical Zoom: 20×
Autofocus: PDAF (Phase Detection Autofocus)
Video Outputs: NDI®|HX3, HDMI 2.0, 3G-SDI, USB-C
ND Filter: Built-in variable ND + external filter support
Audio Inputs: Mini XLR (phantom power), 3.5mm line-in
Tracking: AI auto-tracking
Protocols: FreeD, NDI®|HX3, IP streaming protocols (varies by setup)
Power: PoE++ (IEEE802.3bt), DC 12V
Recording: Internal microSD card support
Tally: Dual tally lights
Applications: Broadcast, live streaming, corporate AV, education, houses of worship
The Telycam Explore XE is a professional 4K PTZ camera equipped with a large 1-inch sensor and an NDI®|HX3 interface, which requires specific Explore series mounting accessories for secure installation. For full-scale production use, it is recommended to supplement the camera with dedicated IP controllers and high-quality cabling for long-distance signal transmission.
Mounting Systems - Original brackets designed specifically for the mechanical specifications of the Explore series, ensuring stability during camera movement.
Control and Remote Control - Hardware controllers and remote controls for precise manipulation of PTZ functions and zoom.
Cabling and Connectivity - Hybrid USB cables enabling stable 4K video transmission over long distances via the camera’s USB-C interface.
Power and Audio - Accessories for providing alternative DC power and professional audio recording in conference rooms.
| Manufacturer: | TelyCam |
| Category: | PTZ |
| Camera Sensor size | 1-inch 9MP CMOS |
| Zoom | 20x |
| Version | PTZ |
| Lens lens aperture | 2.8f |
| Battery type | PoE++ (IEEE802.3bt), DC 12V |
