Tally Box + 3 x Tally Lights Bundle

SKAARHOJ Tally Box + 3 Tally Light lamps bundle: an Ethernet tally system with 8 RJ45 outputs that speaks TSL, Raw Panel and HTTP and follows ATEM or vMix directly. The lamps show both program and preview.

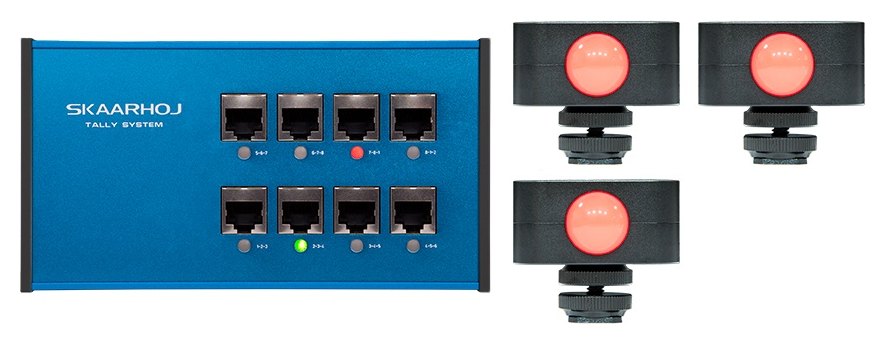

The bundle contains a SKAARHOJ Tally Box and 3 Tally Light lamps – everything you need for external tally on 3 cameras. The box carries tally signals from a vision mixer or control system, and each of its eight RJ45 outputs carries both red and green signals for one camera. The lamps are powered over the same cable and the system can later grow to eight cameras.

Tally Box + 3 lamps

A complete tally kit for 3 cameras, expandable up to eight cameras, for broadcast, live production and AV installations.

3 × Tally Light8 RJ45 outputsTSL, ATEM, vMixPoE poweredMade in Denmark

Set up in minutes

Connect the Tally Box to the same network as your production system, wire the lamps in star or daisy-chain topology and choose the tally source in the web interface. Up to three lamps can be chained on one output.

For presenters and operators

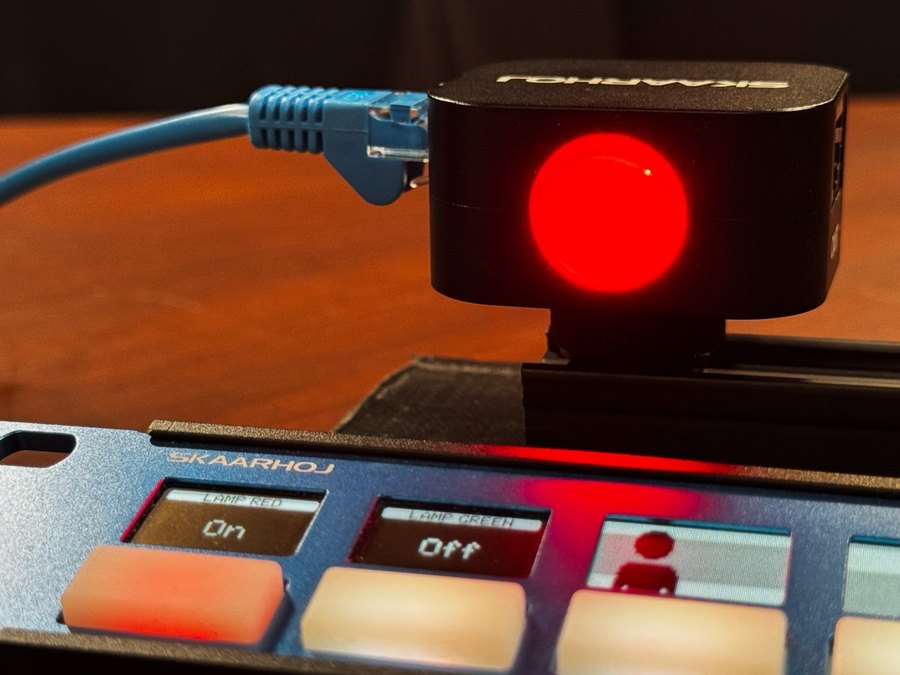

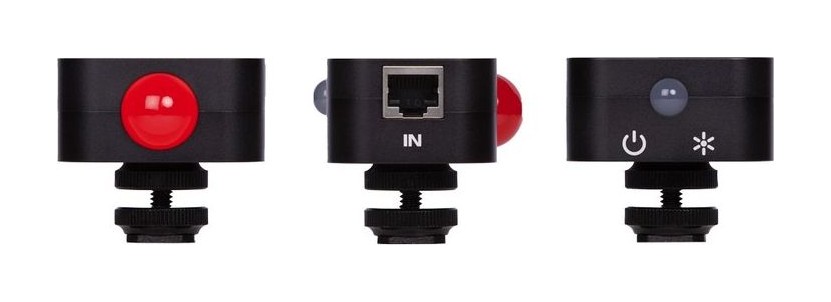

A big red light on the viewer’s side makes it obvious when the camera is on air. The operator gets a smaller red and green light for program and preview, and the lamp mounts on a cold shoe or a 1/4" screw.

Not only for broadcast

The lamps also work in AV and corporate installations, for example to show the active speaker in a meeting or system availability. They can be triggered automatically by the switcher or manually from SKAARHOJ hardware buttons.

One tally system for the whole studio

Tally Box brings together equipment from different brands speaking different protocols: TSL 3.1 and 5.0, Raw Panel, an HTTP API or direct following of ATEM and vMix switchers. Older GPIO-only systems connect through the SKAARHOJ ETH-GPI converter.

Eight cameras

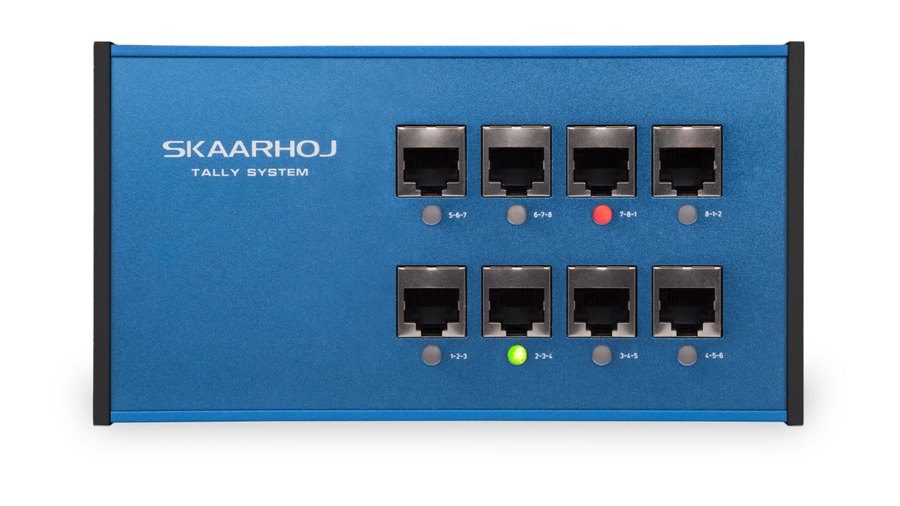

Each RJ45 output carries both red and green tally signals for one camera.

Daisy chaining

Chain up to three lamps for the same camera on a single output.

One cable

Lamps get power and signal over one cable; the box runs on PoE or 12 V DC.

Web interface

Set up protocols, camera mapping and test the lamps right in your browser.

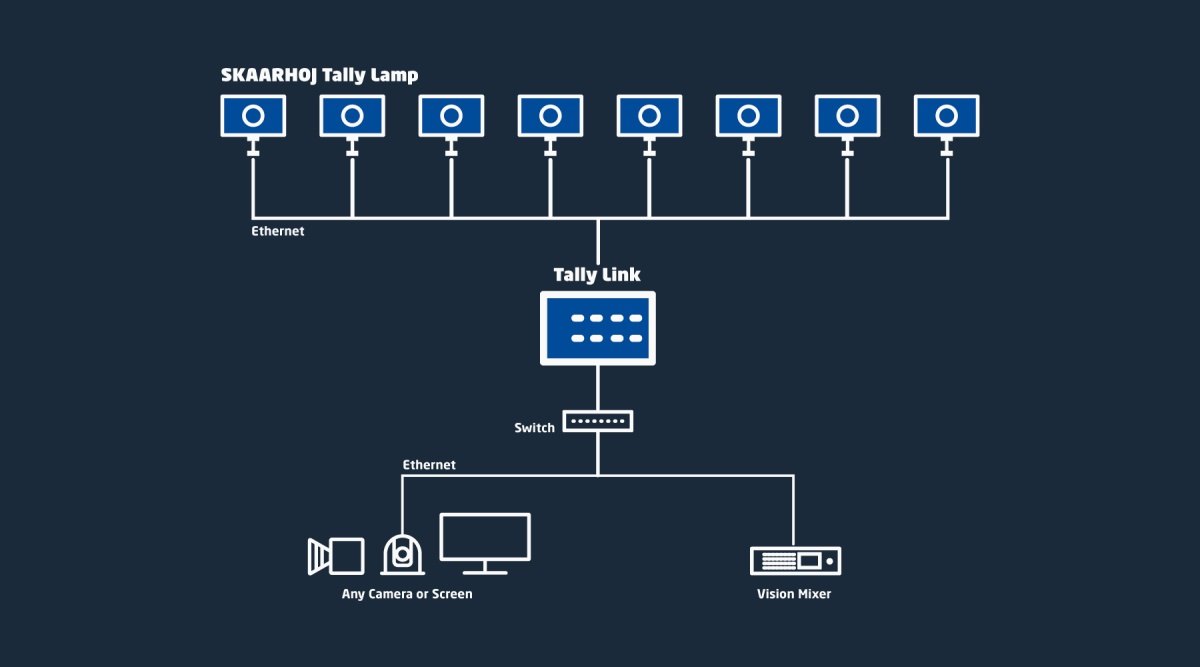

System wiring. Tally Box sits on the same network as the vision mixer and cameras and connects the Tally Light lamps over Ethernet cables – up to eight cameras, each with its own lamp.
