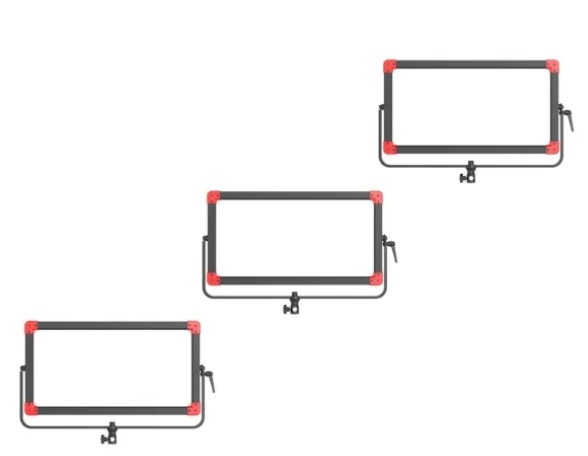

The SWIT PL-E90P 3KIT is a set of three ultra-slim, waterproof 90W LED panel lights with high CRI/TLCI, V-mount battery compatibility, and full DMX512 control. Designed for professional video production, these IP54-rated panels deliver bright, soft, evenly diffused light for both indoor and outdoor shoots.

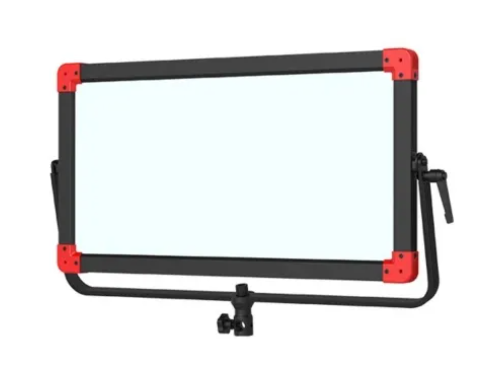

The SWIT PL-E90P 3KIT includes three advanced 90W waterproof LED panels, each featuring 480 edge-mounted SMD LEDs and a slim, portable design optimized for field and studio use. With SWIT’s proprietary 90° light guide and laser dot technology, these panels provide high-intensity, evenly distributed illumination with minimal glare. The PL-E90P outputs 2200 lux at 1 meter, covers a 70° beam angle, and supports two-color temperature operation, smoothly adjustable from 2700K to 6500K.
Built for professional use, each panel offers a high CRI of 98 and TLCI of 99 for accurate color reproduction, while the IP54 rating allows operation in rainy conditions without additional protection. The rear LCD displays brightness, color temperature, DMX channel, and battery status. Users can control brightness and color locally or via standard DMX512, with quick adjustment and interactive master/slave modes for synchronized multi-panel operation.

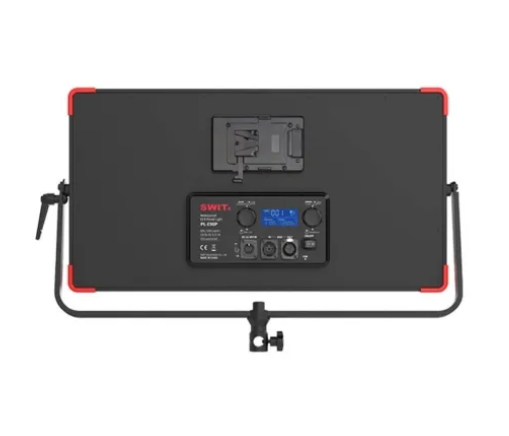

The PL-E90P supports wide input voltage (11–36V) via V-mount or Gold-mount batteries or 4-pin XLR DC, and comes with standard barn doors and an optional honeycomb panel for precise light shaping. Ideal for interviews, outdoor shoots, or any professional video application, the 3KIT provides a versatile lighting solution that combines portability, durability, and high-quality output.
Key Features
3 x 90W ultra-slim waterproof LED panels (IP54)
480 edge-mounted SMD LEDs per panel
Laser dot 90° light guide for even, soft illumination
2200 lux at 1 m; 70° beam angle (50% beamwidth limited)
Two-color operation: 2700K–6500K, flicker-free dimming 0–100%
High color accuracy: CRI 98, TLCI 99
DMX512 control with 5-pin in/out and interactive master/slave mode

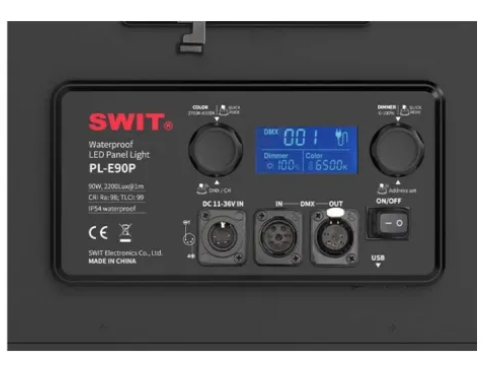

Rear LCD for brightness, color temperature, DMX channel, and battery info
Wide voltage support: 11–36 V DC, V-mount/Gold mount battery compatible
Full metal housing with barn doors; optional honeycomb panel (LA-GE90)
3 × SWIT PL-E90P LED panels
3 × V-mount battery plates (default; Gold-mount optional)
3 × Barn doors (standard accessory)
LED Quantity: 480 SMD LEDs per panel
Illumination: 2200 lux @ 1 m
Beam Angle: 70° (50% beamwidth limited)
Color Temperature: 2700K–6500K
Color Reproduction: CRI 98, TLCI 99
Power: ~90 W
Input Voltage: DC 11–36 V
IP Rating: IP54 (waterproof)
Dimensions: 650 × 403 × 48 mm
Illumination Area: 526 × 257 mm
Weight: 4.8 kg per panel
