The SWIT PL-E60P is an ultra-slim, waterproof 60W bi-color LED panel light delivering exceptional color accuracy (CRI 98, TLCI 99) with a variable 2700K–6500K range. Designed for studio and location work, it features smooth 0–100% dimming, V-mount battery compatibility, DMX control, and a wide 70° beam angle for soft, uniform illumination.

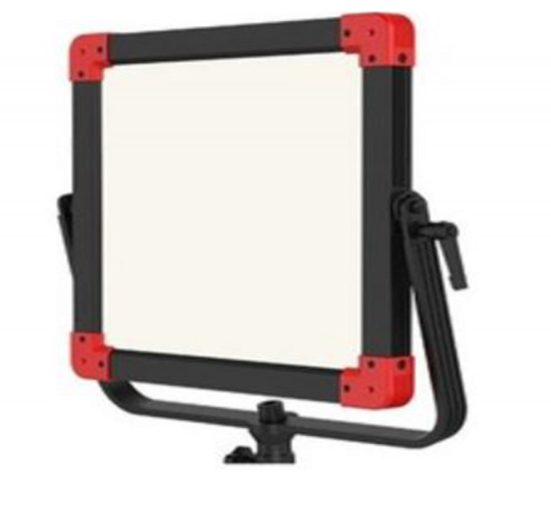

The SWIT PL-E60P 3rd Generation Natural-Born-Soft LED Panel Light combines advanced optical engineering with professional-grade performance in an ultra-slim and waterproof design. Delivering 60W of soft, evenly distributed light across a 14" × 14" panel area, it produces 1500 Lux at 1 meter (139.3 fc) with a wide 70° beam angle, making it ideal for broadcast studios, green screen production, interviews, and live streaming.
With a bi-color range of 2700K to 6500K, the PL-E60P allows precise color temperature adjustment to match various lighting environments. It features superior color rendering with CRI 98 and TLCI 99, ensuring accurate skin tones and true-to-life color reproduction on camera. Brightness is adjustable from 0% to 100% in stepped increments, and quick-access buttons allow fast switching between commonly used color temperatures.

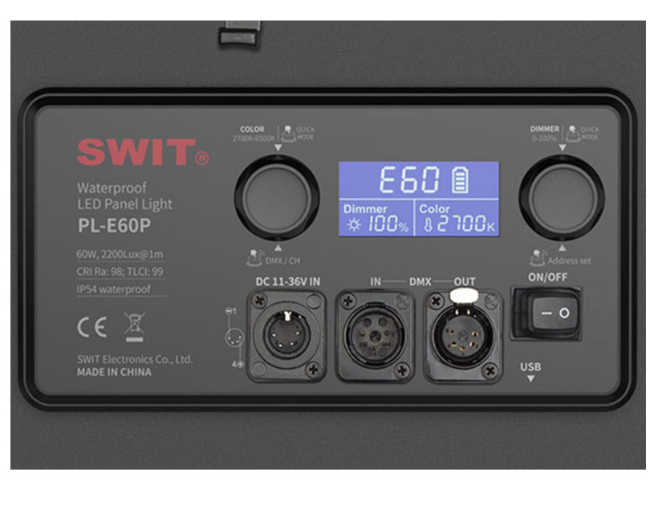

The rear LCD screen displays brightness level, color temperature, and remaining battery status. The panel supports AC multi-voltage operation and can also be powered by optional V-mount batteries via the integrated battery plate (Gold mount version available). It includes four-way barndoors for light shaping, with an optional 45° honeycomb grid for enhanced directional control. Passive cooling ensures silent operation, perfect for sound-sensitive environments.
Lightweight yet durable at 3.2 kg, the PL-E60P is built for portability and professional reliability, complete with a carrying bag for convenient transport.
Key Features
60W ultra-slim waterproof LED panel
Bi-color adjustable 2700K–6500K
High color accuracy: CRI 98, TLCI 99
1500 Lux at 1 meter (center)
Wide 70° beam angle with soft, uniform output
0–100% step dimming
Rear LCD display for brightness, CCT, and battery status
AC multi-voltage power with optional V-mount battery operation
DMX and Wireless DMX control support
Passive (silent) cooling system
Includes 4-way barndoors; optional 45° honeycomb grid available
5/8" receiver mount with yoke support
1 × SWIT PL-E60P LED Panel Light
1 × AC Adapter
1 × 4-Way Barndoor
1 × Carrying Bag
Photometric & Optical
Power Output: 60W
Beam Angle: 70°
Illuminance: 1500 Lux / 139.3 fc @ 1m
Color Temperature: 2700K–6500K
CRI: 98
TLCI: 99
Number of LEDs: 320
Control & Dimming
Dimming: 0–100% (Step)
Display: LCD
Remote Control: DMX, Wireless DMX
Power
DC Input: 11–17V DC (4-pin XLR)
Power Source: AC Adapter (included), External Battery
Battery Plate: 1 × Gold mount (V-mount option available)
Maximum Power Consumption: 60W
Physical
Panel Area: 14" × 14"
Fixture Dimensions: 403 × 382 × 48 mm
Weight: 3.2 kg (7.1 lb)
Mounting: 5/8" Receiver
Cooling System: Passive (fanless)
