SWIT PL-E90LH LED panel

The SWIT PL-E90LH is a 90W ultra-slim bi-color LED panel with an 8:1 aspect ratio, designed for ceiling and studio installations. Featuring high color accuracy, silent operation, DMX control, and V-Mount/Gold Mount battery support, it is ideal for professional broadcast and video environments.

The SWIT PL-E90LH is a professional 90W LED panel light engineered for modern studios, especially low-ceiling installations. With its ultra-slim 2.1 cm design and included mounting bracket for ceiling structures, the PL-E90LH minimizes height occupancy while maximizing usable lighting angles. The unique 8:1 aspect ratio and advanced 90° light guide technology deliver smooth, even illumination across wide areas, making it ideal for key, fill, or background lighting.

Equipped with 480 high-efficiency SMD LEDs, the PL-E90LH produces up to 2000 lux at 1 meter and supports flicker-free dimming from 0–100%. The bi-color output is continuously adjustable from 2700K to 6500K, ensuring excellent flexibility for mixed lighting conditions. Exceptional color accuracy with CRI Ra 99 and TLCI 99 ensures true-to-life color reproduction for broadcast and cinematic work.

Designed for professional control, the PL-E90LH supports DMX512 and includes a USB output for connecting a wireless DMX receiver. An onboard LCD displays color temperature, dimmer level, DMX address, and battery status. Power options include wide-range DC input (11–36V) as well as V-Mount or Gold Mount battery compatibility. Integrated barndoors allow precise light shaping and spill control.

Key Features

• 90W bi-color LED panel with ultra-slim 2.1 cm design

• 8:1 aspect ratio ideal for ceiling and studio mounting

• 480 high-output SMD LEDs

• Unique 90° light guide technology for even illumination

• Output: 2000 lux @ 1 m

• Flicker-free 0–100% dimming

• Color temperature adjustable from 2700K to 6500K

• Exceptional color accuracy: CRI Ra 99, TLCI 99

• DMX512 control support

• USB output for wireless DMX receiver

• LCD display for color, dimmer, DMX, and battery info

• Wide DC input voltage: 11–36V

• V-Mount and Gold Mount battery compatible

• Integrated barndoors for light control

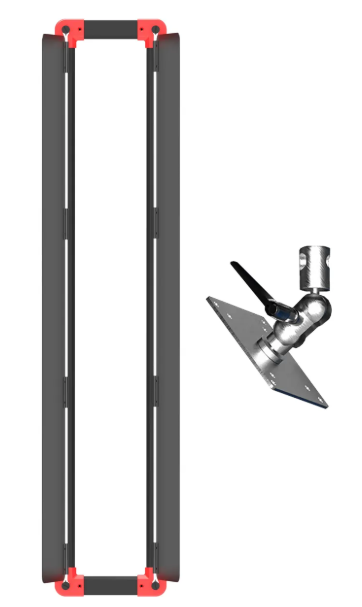

• Includes bracket for ceiling mounting structures
