SWIT PL-S150D | 150W super-bright Soft Panel LED Light, 5500Lux, V-Mount, DMX, also ideal for 4K sho

The SWIT PL-S150D is a 150W bi-color SMD LED panel light featuring a 2:1 form factor, high brightness, silent operation, and excellent color accuracy. Designed for both broadcast studios and field production, it delivers smooth dimming, wide beam coverage, and flexible power and control options.

The SWIT PL-S150D 150W Bi-color Studio SMD LED Light is a high-performance lighting solution engineered for professional broadcast, studio, and on-location production. Built with 1,152 ultra-bright long-life SMD LEDs, the PL-S150D delivers powerful illumination of up to 5,500 lux at 1 meter while maintaining a wide 64° half-peak beam angle for even, soft coverage.

The panel supports continuous bi-color adjustment from 2700K to 6500K, allowing seamless matching to ambient or mixed lighting environments. With outstanding color performance—CRI 97, TLCI 99, and SSI (D55) 73—the PL-S150D ensures accurate color reproduction for camera-based applications.

Designed for noise-sensitive environments, the PL-S150D features a fanless, silent design and a smooth exponential dimming curve for precise brightness control. It supports DMX512 control for both color temperature and dimming, with an onboard LCD display providing clear readouts of settings. Power flexibility is ensured through AC adaptor or V-mount / Gold-mount battery operation, while included metal barn doors and yoke bracket enable easy mounting and light shaping. An optional 40° honeycomb grid is available for enhanced beam control.

Key Features

• 150W bi-color SMD LED panel in 2:1 size format
• 1,152 ultra-bright, long-life LEDs
• 5500 lux @ 1 meter high output
• 64° wide beam angle (half peak)
• 2700K–6500K continuously adjustable color temperature
• High color accuracy: CRI 97, TLCI 99, SSI (D55) 73
• Fanless, silent operation
• Smooth exponential dimming curve
• DMX512 control for dimming and color

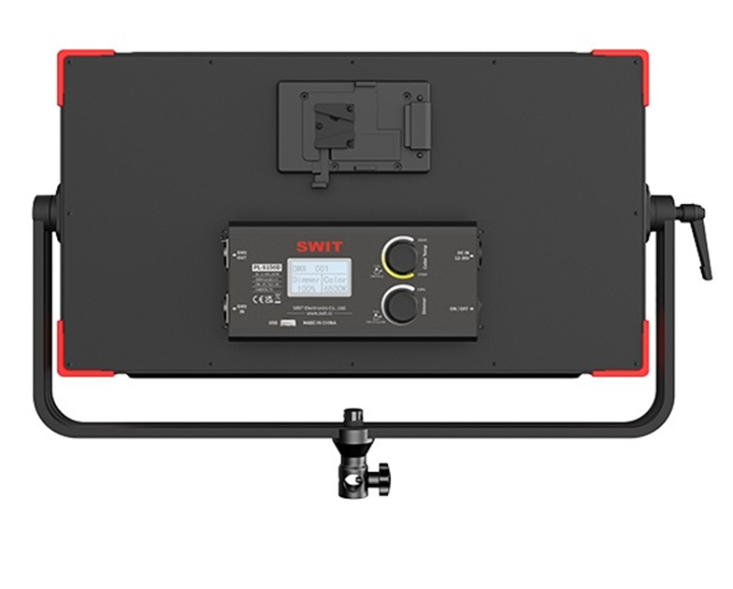

• Onboard LCD display
• IP20 protection rating
• Powered by AC adaptor or V-mount / Gold-mount battery

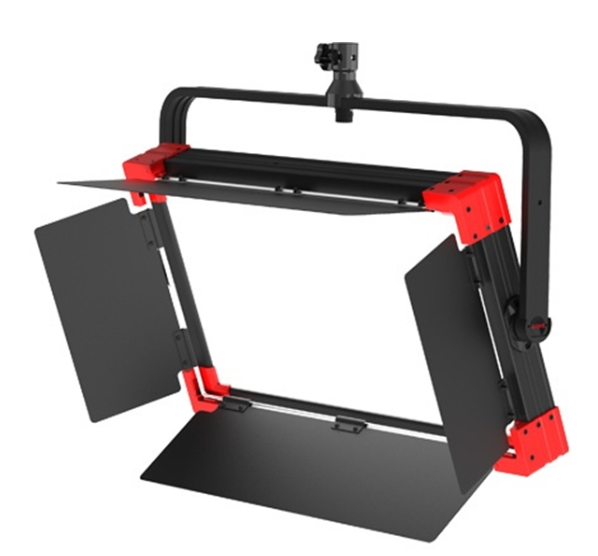

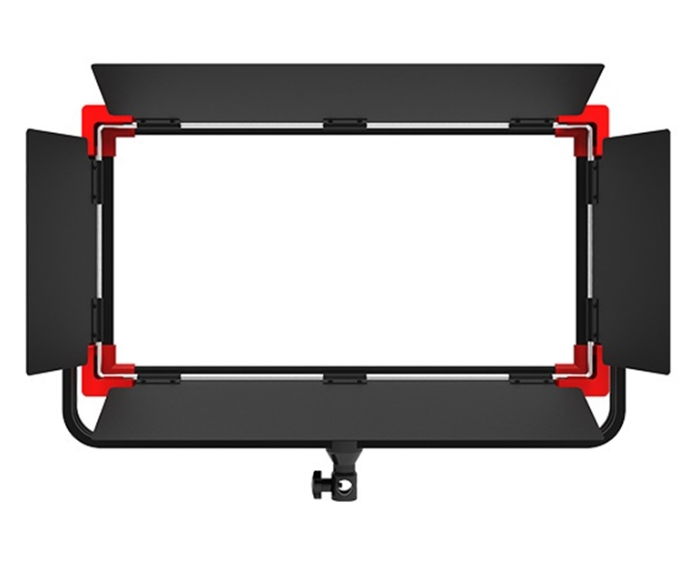

• Includes 4-leaf metal barn doors and yoke bracket
• Optional 40° honeycomb grid
