SWIT PL-E90D | 3rd Generation Natural-Born-Soft TLCI-99 90W LED Panel Light, ultra slim, SWIT patent

The SWIT PL-E90D 3rd Generation LED Panel is an ultra-slim, high-performance bi-color V-Mount panel light delivering 90W of flicker-free illumination. With TLCI 99, CRI 98, adjustable 2700–6500K color temperature, and 0–100% dimming, it offers precise, natural lighting for professional video and film productions. Its versatile power options include AC multi-voltage or V-Mount battery operation.

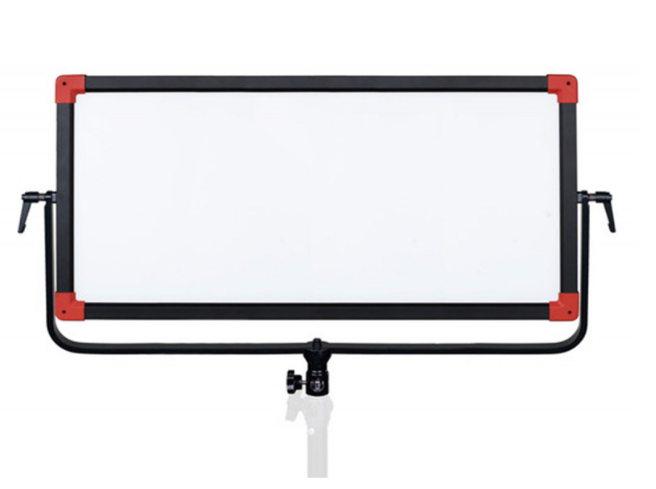

The SWIT PL-E90D TLCI-99 90W V-Mount LED Panel is a third-generation, ultra-slim professional lighting solution designed for studio and field productions. Measuring only 1.9" thick, its low-profile design houses 480 high-efficiency SMD LEDs behind a diffuser, producing a uniform 70° beam angle. The light delivers excellent color fidelity with CRI 98 and TLCI 99, accurately reproducing skin tones and other subtle colors.

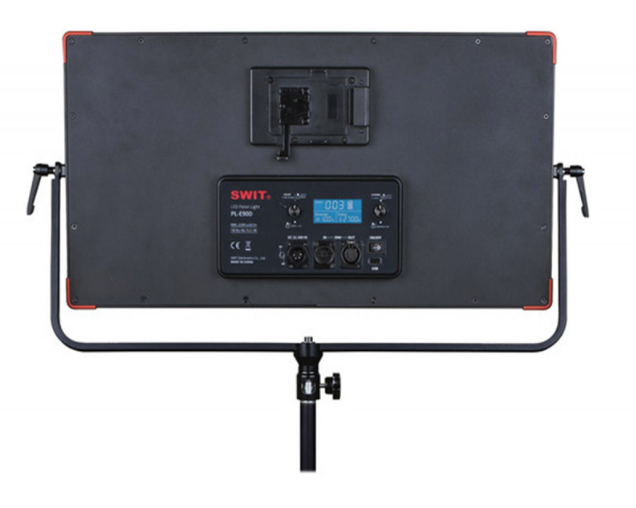

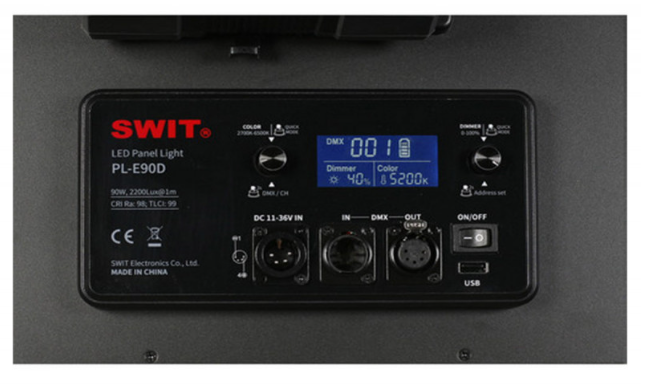

The panel offers a wide bi-color range from 2700K to 6500K, with continuous, flicker-free dimming from 0–100%. Quick adjustment modes allow switching between smooth dimming and preset increments, while preset color temperatures (2700K, 3200K, 4500K, 5600K, 6500K) simplify on-the-fly adjustments. Settings can be controlled locally via intuitive onboard controls and the rear LCD display or remotely via DMX (5-pin XLR), supporting master/slave configurations or integration into larger DMX512 networks.

Powering options include multi-voltage AC input (110–240 VAC) or optional V-Mount batteries via the 4-pin XLR DC input. The fixture also includes 4-way shutters for precise light control and a tilt range of 180° with a TVMP/Hex bolt yoke mount compatible with a 5/8" receiver. With a robust metal body, passive cooling, and an expected lifespan of 50,000 hours, the PL-E90D combines durability with professional-grade lighting performance.

Key Features:

• 3rd Generation ultra-slim 90W bi-color LED panel

• TLCI 99, CRI 98 for natural color rendering

• 2700–6500K color temperature range

• 0–100% flicker-free dimming, continuous or preset increments

• 480 high-efficiency SMD LEDs with 70° beam angle

• Integrated DMX control via 5-pin XLR

• AC multi-voltage or V-Mount battery operation

• Rear LCD display for brightness and color temperature

• 4-way shutters for beam shaping

• Tilt: 180°, Yoke mount: TVMP/Hex Bolt, Fixing: 5/8" receiver

• Passive cooling system, metal case, durable construction

• Expected LED lifespan: 50,000 hours
