SWIT PL-E60DA | 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light, ultra slim, SWIT paten

The SWIT PL-E60DA is a 3rd Generation 60W bi-color ultra-slim LED panel with CRI 98 / TLCI 99 accuracy, delivering 1500 lux at 1 meter and soft 70° diffusion. Featuring DMX512 control, V-mount battery compatibility, and flicker-free dimming, it is ideal for studio and field production.

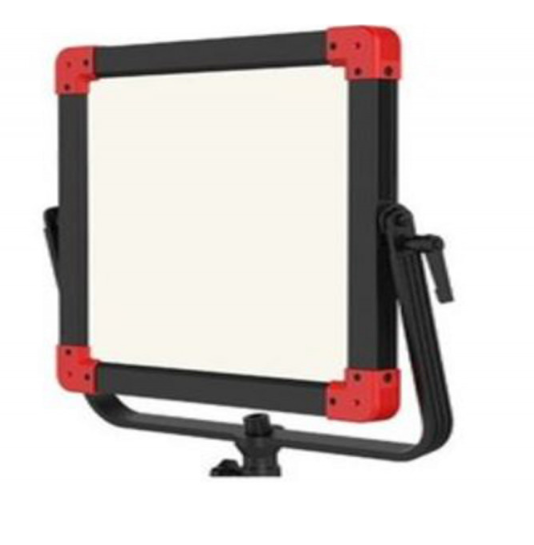

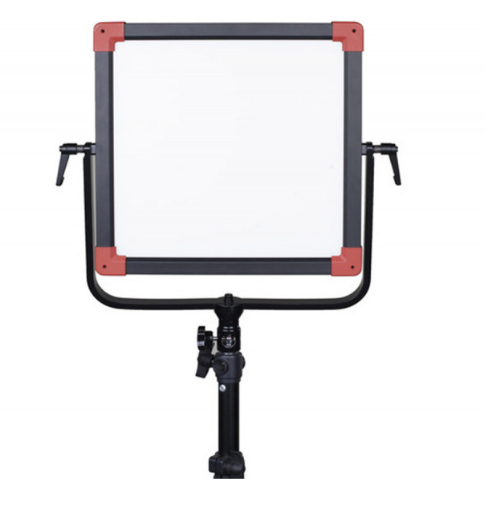

The SWIT PL-E60DA is a professional 60W bi-color SMD LED panel designed for broadcast, studio, and on-location video production. Built with 320 high-efficiency LEDs, it delivers 1500 lux at 1 meter with a soft 70° beam angle, providing wide and even illumination. The color temperature is continuously adjustable from 2700K to 6500K (±50K), allowing seamless matching with ambient light or other fixtures.

With an ultra-slim 1.8" profile and durable all-metal chassis, the PL-E60DA operates silently thanks to its passive cooling system, making it suitable for audio-sensitive environments. It supports flicker-free 0–100% continuous dimming and includes a quick adjustment mode for fast 10% brightness increments and preset color temperature selection (2700K / 3200K / 4500K / 5600K / 6500K).

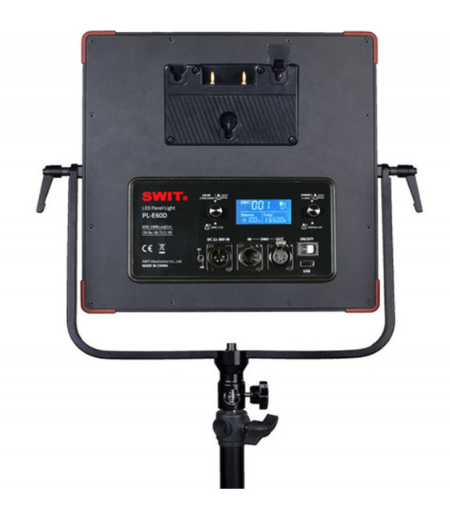

Control options include local onboard adjustments via LCD display and 5-pin XLR DMX512 input/output for master/slave or networked configurations. Power is supplied via 4-pin XLR (11–36V DC) or the included multi-voltage AC adapter, and the integrated V-mount battery plate enables portable operation. The fixture also includes 4-way barn doors for enhanced light shaping and spill control.

Key Features

• 60W bi-color SMD LED panel

• 1500 lux @ 1 meter

• 2700K–6500K adjustable color temperature (±50K)

• CRI 98, TLCI 99 for accurate color rendering

• 70° wide beam diffusion

• Flicker-free 0–100% continuous dimming

• 5-pin XLR DMX512 input/output

• Rear LCD for brightness and CCT display

• Ultra-slim 1.8" metal design

• Passive silent cooling

• V-mount battery plate (default)

• 4-pin XLR 11–36V DC input

• 4-way barn doors included
