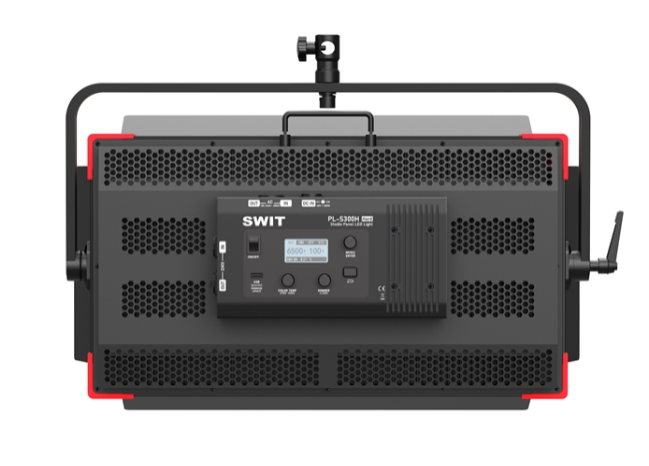

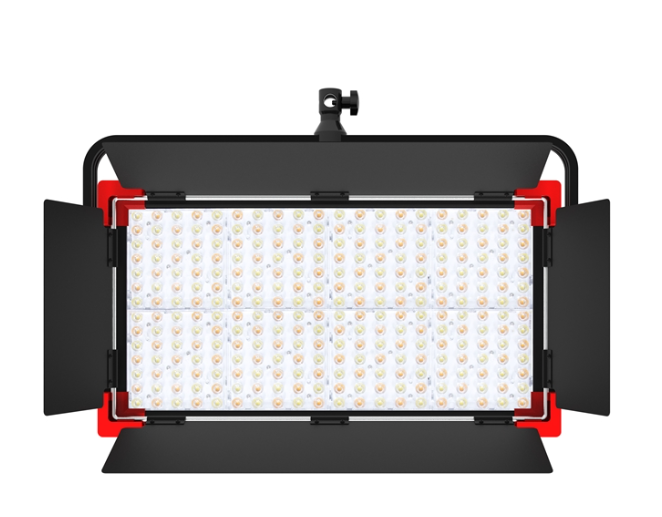

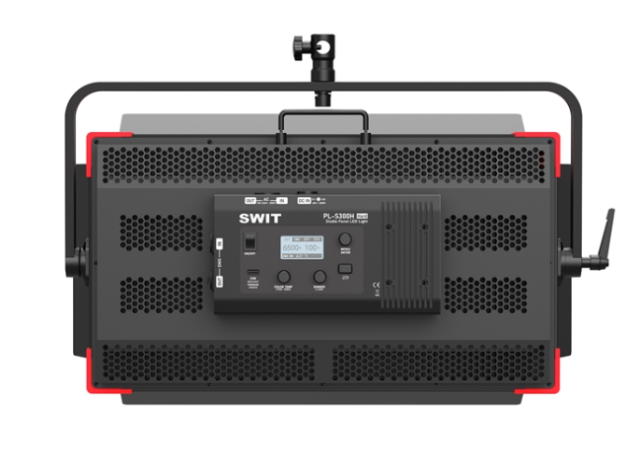

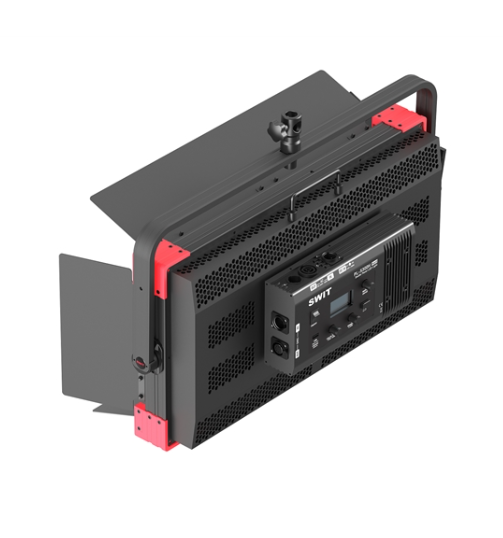

SWIT PL-S300H | 47000Lux Ultra-Bright TLCI99 300W Bi-color Hard-light Studio LED Panel Light, SWIT

The SWIT PL-S300H is a 300W hard bi-color LED studio panel delivering an extremely high output of 47,000 lux at 1 meter, designed specifically for large-scale broadcast studios, film sets, and event stage lighting where powerful, precise illumination is required.

The SWIT PL-S300H 300W Hard Bi-color Studio Panel LED Light is a high-performance lighting solution engineered for professional broadcast, film, and live event applications. Featuring 280 high-power, long-life SMD LEDs, each equipped with a dedicated 45° lens, the PL-S300H produces an intense, focused hard light with exceptional brightness. Its 2×1-foot panel design delivers an impressive 47,000 lux at 1 meter, making it ideal for illuminating large studio spaces and stages.

The PL-S300H offers a continuously adjustable bi-color temperature range from 2700K to 6500K, ensuring seamless matching with different lighting environments. With outstanding color accuracy ratings of CRI 96, TLCI 99, and SSI (D55) 75, it delivers reliable and natural color reproduction for professional camera work. Designed for silent operation, the fixture uses a fanless cooling system, making it perfect for sound-sensitive studio environments. Professional control is supported via DMX512, onboard LCD display, multiple dimming curves, and flexible power options including PowerCON TRUE1 AC and 48V DC XLR input.

Key Features

• 300W hard bi-color LED studio panel
• 2×1' panel size for large-scale lighting setups
• Ultra-bright output: 47,000 lux @ 1m
• 280 high-power long-life SMD LEDs
• Dedicated 45° lens on each LED for intense hard light
• Bi-color range: 2700K–6500K continuously adjustable
• Excellent color accuracy: CRI 96, TLCI 99, SSI (D55) 75
• Fanless design for silent operation
• Multiple dimming curves: Linear, Log, Exponential, S-curve
• DMX512 control for dimmer and color temperature
• LCD display showing color temperature and dimmer values
• PowerCON TRUE1 AC input and loop output
• 48V DC power via 3-pin XLR
• IP20 protection rating
• Designed for broadcast studios, film sets, and event stages
