Roland VR-6HD

The Roland high definition streaming switcher provides a comprehensive solution for professional live video production and web broadcasting. This compact device combines a multichannel video switcher with a powerful digital audio mixer and integrated streaming technology. It features high quality video processing and versatile inputs like HDMI and USB C for cameras or computers. With an intuitive interface and portable design it is perfect for business events and live presentations. This all in one unit ensures smooth transitions and professional sound for every broadcast.

The VR-6HD combines a six-input HDMI video switcher, a 28-channel audio mixer and two streaming encoders in a compact console. It streams directly over LAN or via USB-C while recording to SDXC, so one person can run a corporate event, worship service or online presentation.

Business livestreaming from one console

Six HDMI inputs, two streams up to 1080p/60 over LAN, SDXC recording, control of six PTZ cameras and a 4.3" touch screen.

6× HDMI 1080p2 RTMP/SRT streamsSDXC recording28 audio channelsUp to 6 PTZ cameras

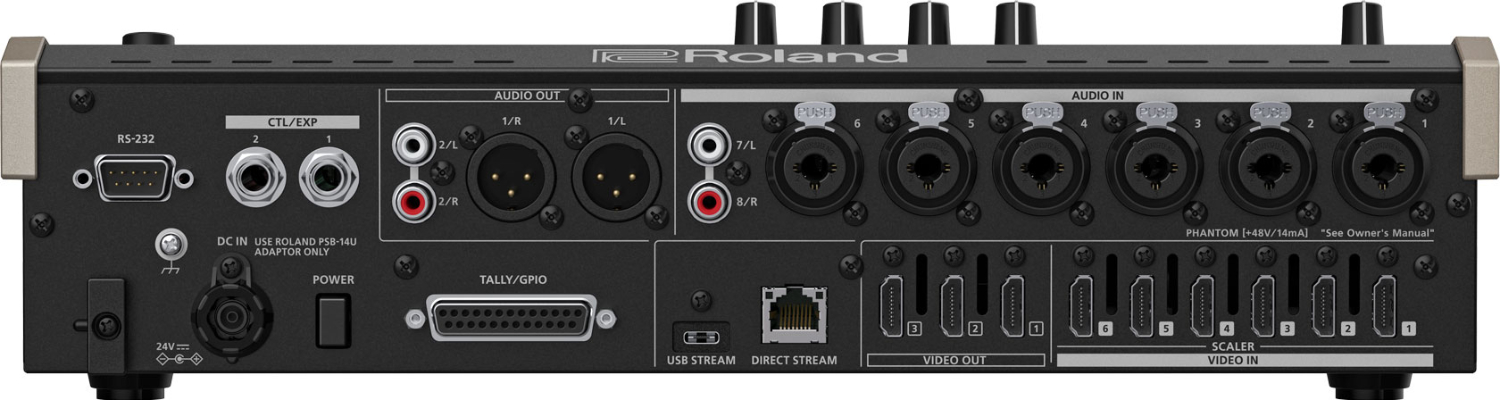

Everything connects at the rear

Six HDMI inputs, three HDMI outputs, USB-C streaming, gigabit LAN for direct streaming, six XLR/TRS combo inputs, XLR and RCA outputs, RS-232 and tally/GPIO.

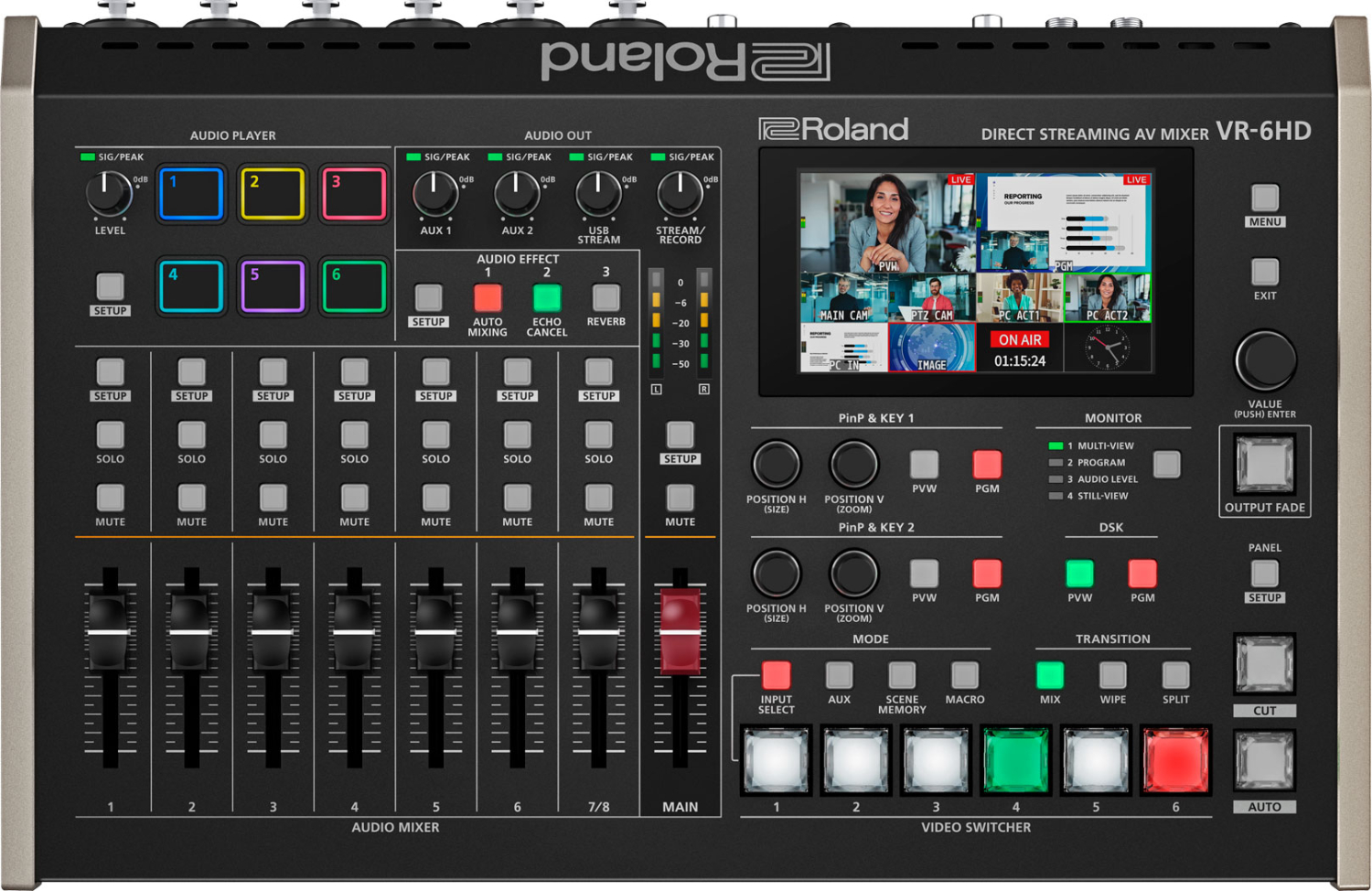

Built for a single operator

Faders, buttons and a touch screen for deeper settings. Scenes, macros and a sequencer with up to 1,000 steps prepare the show in advance.

For corporate events and worship

Switch cameras, computers, presentations, stills and video clips in one place and extend the setup with PTZ cameras.

Streaming without a computer or dropouts

Over LAN the VR-6HD streams straight to YouTube, Facebook or Twitch, and Adaptive Bitrate continuously matches the stream rate to network quality. You can broadcast to two channels at once and use a 4G/5G phone as the primary connection or a backup.

5 effect layers

Two backgrounds, two PinP or keyer windows and a DSK with fill/key and transparent PNG support.

28 audio channels

EQ and dynamics on every channel, Auto Mixing, two AUX buses and Bluetooth input.

Audio player

Six pads for jingles, effects and music from 12 stored files.

Remote control

iPad app, Mac and Windows software, VenuSet, footswitches and a USB numeric keypad.

• Ultra-compact audio/video mixer with direct streaming encoders
• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Five-layer video effects engine
• Five total outputs: three HDMI, USB-C streaming, and a dedicated direct streaming output
• Six selectable output modes: Program, Sub-Program, Aux, Preview, Multi-View, and Still-View
• 28-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with six trigger pads and onboard storage for 12 audio files
• Control six PTZ cameras with support for multiple brands and mixed protocols
• 4.3-inch touch screen with graphical menu
• Extensive device control with Bluetooth®, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows
• Wireless and wired camera tally support

Ultra-compact and filled with innovative Roland AV technologies, the VR-6HD is the ultimate all-in-one solution for everyday business livestreaming events. Offering advanced features and versatile connectivity in a portable, go-everywhere format, the VR-6HD is ideal for corporate meetings, online sales presentations, worship services, and other professional streaming and video capture applications.

Video switching, audio mixing, and LAN/USB streaming encoders are integrated into a single streamlined unit, eliminating the hassle and frustration that comes with connecting multiple devices. One operator can easily handle all production tasks with minimal study, thanks to the smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more.

Assignable video outputs. Send Program, Sub-Program, Aux, Preview, Multi-View and Still-View freely to three HDMI outputs, USB-C and the direct stream with recorder.

A mix for each audience. Route the main mix and two AUX buses to the XLR and RCA outputs, HDMI, USB and the stream and recording.

Stills and video clips. Up to 16 still images in internal memory and video clips played straight from the SDXC card, with no external player.

Adaptive Bitrate. The VR-6HD monitors the connection and lowers the stream rate when the network struggles, so the broadcast is not interrupted.

Two streams and a 4G/5G backup. Broadcast to two channels at once and use a phone connected via USB as the main link or a backup.

SRT input and output. Secure transport over LAN or the internet brings in video from a remote location and sends an output to another building.

Graphics Presenter and P-20HD. Titles and stinger transitions from free Windows software, plus synchronization with the P-20HD replay server (VR-6HD version 2.01 or later).

VenuSet control panel. A customizable app for iPadOS, macOS and Windows controls the VR-6HD over USB, LAN or Bluetooth.
