Roland V-02HD MK II 2-Camera Streaming Video Mixer

Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer, the world’s easiest two-camera live streaming solution. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.

The V-02HD MK II is a compact streaming video mixer for two HDMI cameras. It switches them with a T-bar, mixes audio from microphones and HDMI, and sends the finished picture over USB-C to your computer, where it appears as an ordinary camera – no drivers and no extra converters.

Two cameras live in minutes

Plug in up to two HDMI sources, connect USB-C to your computer and select the V-02HD MK II as the camera in your streaming software. That is all it takes.

2× HDMI inputUSB-C stream 1080p/6010-channel audio mixerBOSS footswitchesiPad, macOS, Windows apps

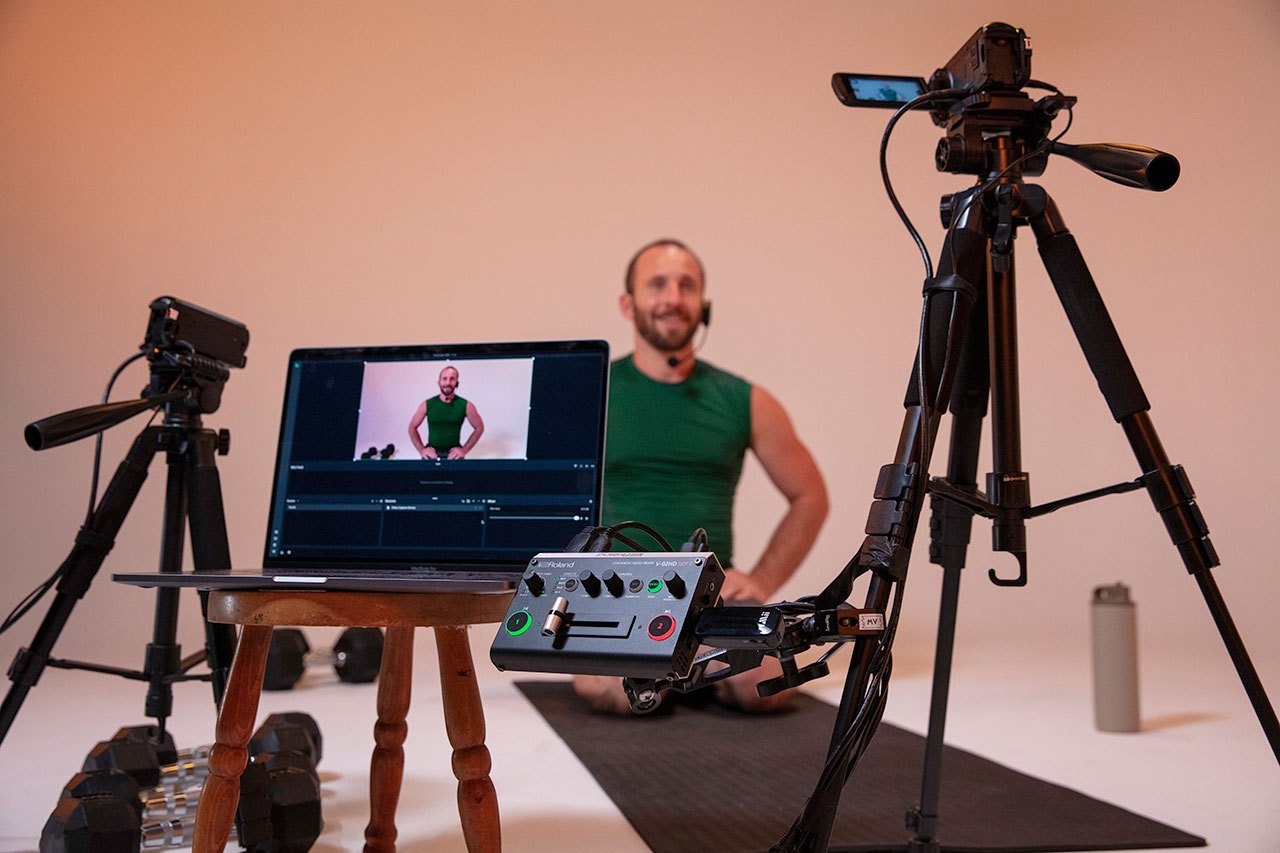

An HDMI camera instead of a webcam

A phone or tablet with an HDMI adaptor, a point-and-shoot or camcorder with zoom, or a DSLR or mirrorless camera for a cinematic look. All it needs is a clean HDMI output without overlays.

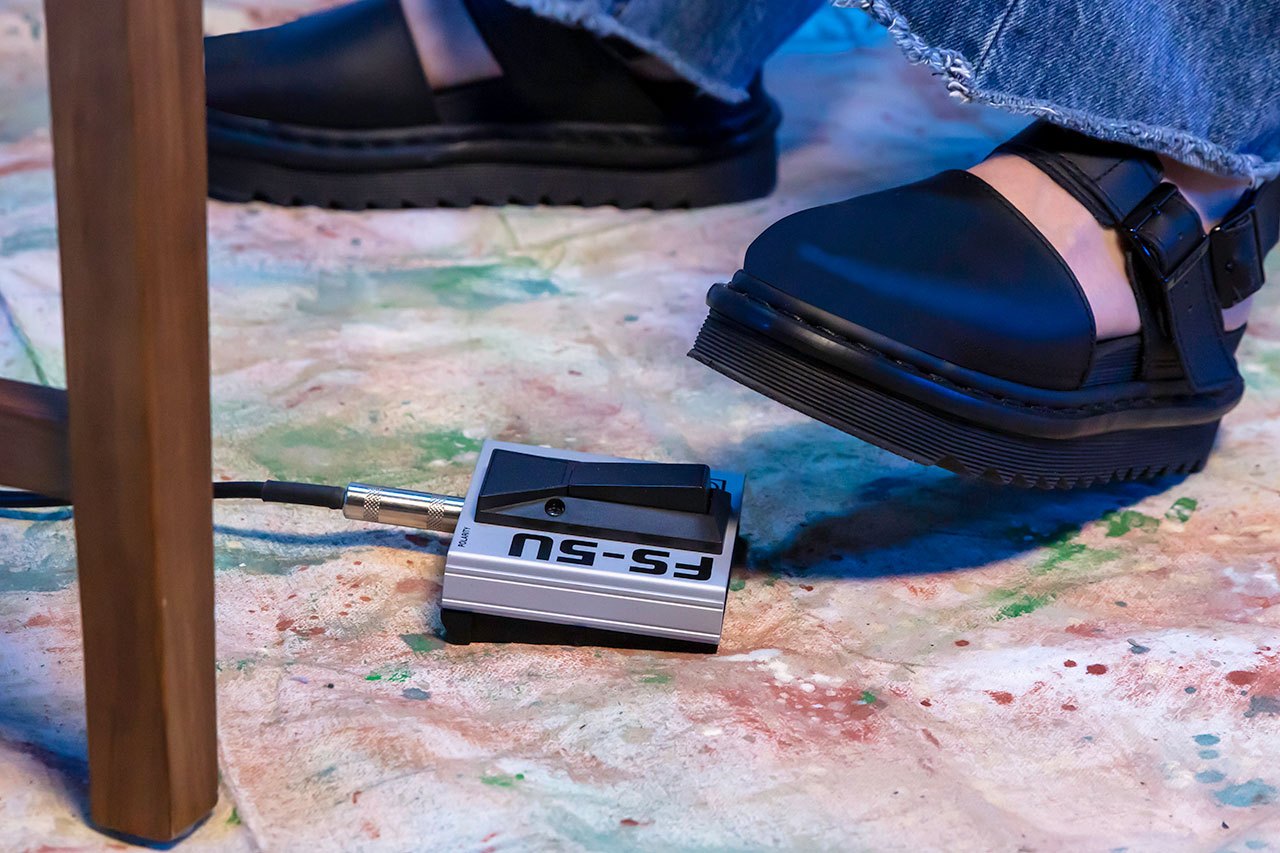

Switch with your feet

Up to two optional BOSS footswitches change camera angles, cut to a still image, change scenes or fade a PinP window, so your hands stay free to play or demonstrate.

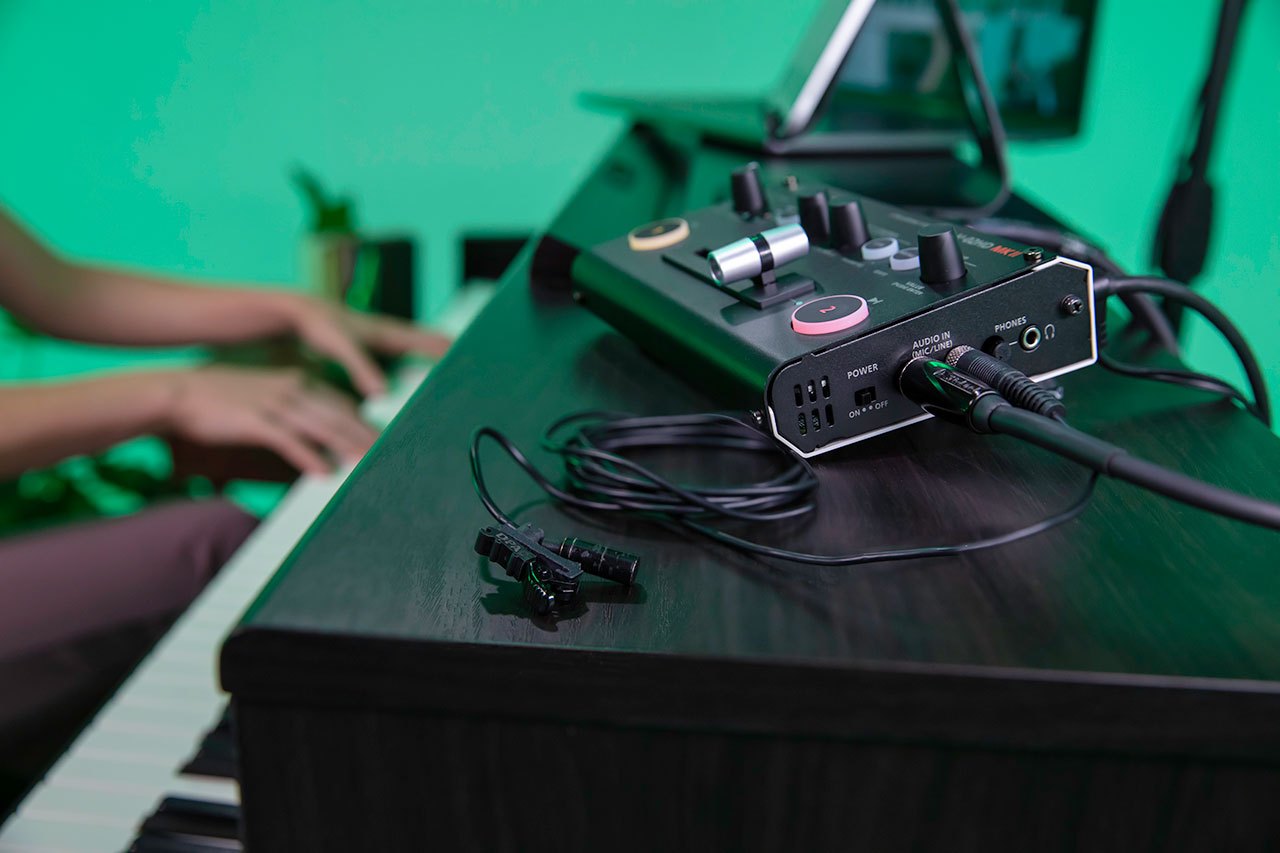

Better sound without a mixer

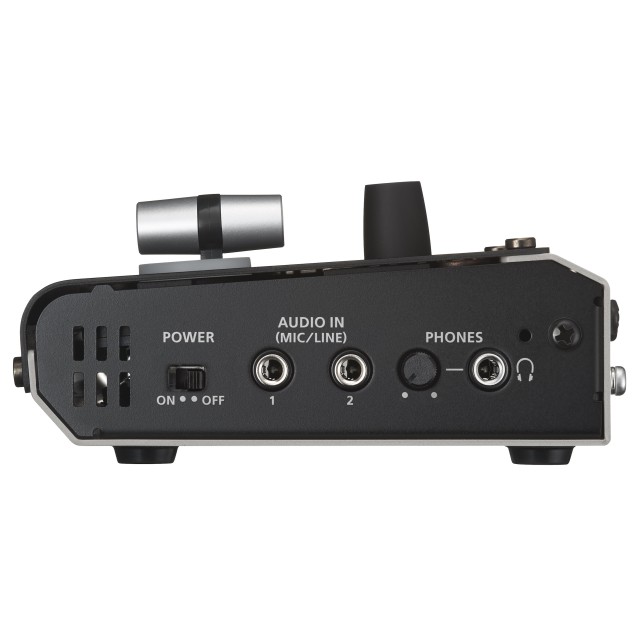

Two 3.5 mm inputs with plug-in power for lavalier mics or a stereo source, plus audio from both HDMI cameras. Compressor, EQ, reverb and a voice changer are built in.

Works with every platform

Connected over USB, the V-02HD MK II is recognised as a camera source for Facebook, YouTube, Twitch and Zoom and also works with OBS Studio, StreamYard and Restream. Streaming up to 1080p/60, plus Program and Preview HDMI outputs for a monitor or recorder.

Effects and scenes in hardware

MIX, WIPE, PinP, luminance and chroma key and 14 visual effects without loading your computer.

Advanced menu

A monitor on Preview Out gives access to the full set of functions right from the mixer panel.

Remote control

V-02HD MK II Remote app for iPad and V-02HD MK II RCS for macOS and Windows.

AeroCaster Switcher

Free with the mixer: up to five phones or tablets as wireless cameras via iPad.

- 2 Channel Streaming Video Mixer
- Simple, stress-free plug & play setup
- Works with the user’s current livestreaming services and setup
- Use any HDMI device source
- Buit-in 10-channel digital audio mixer with Roland’s legendary sound quality
- Supports control with up to two optional BOSS footswitches or expression pedals
- Advanced Pro A/V features
- Remote control app for iPad, macOS and Windows

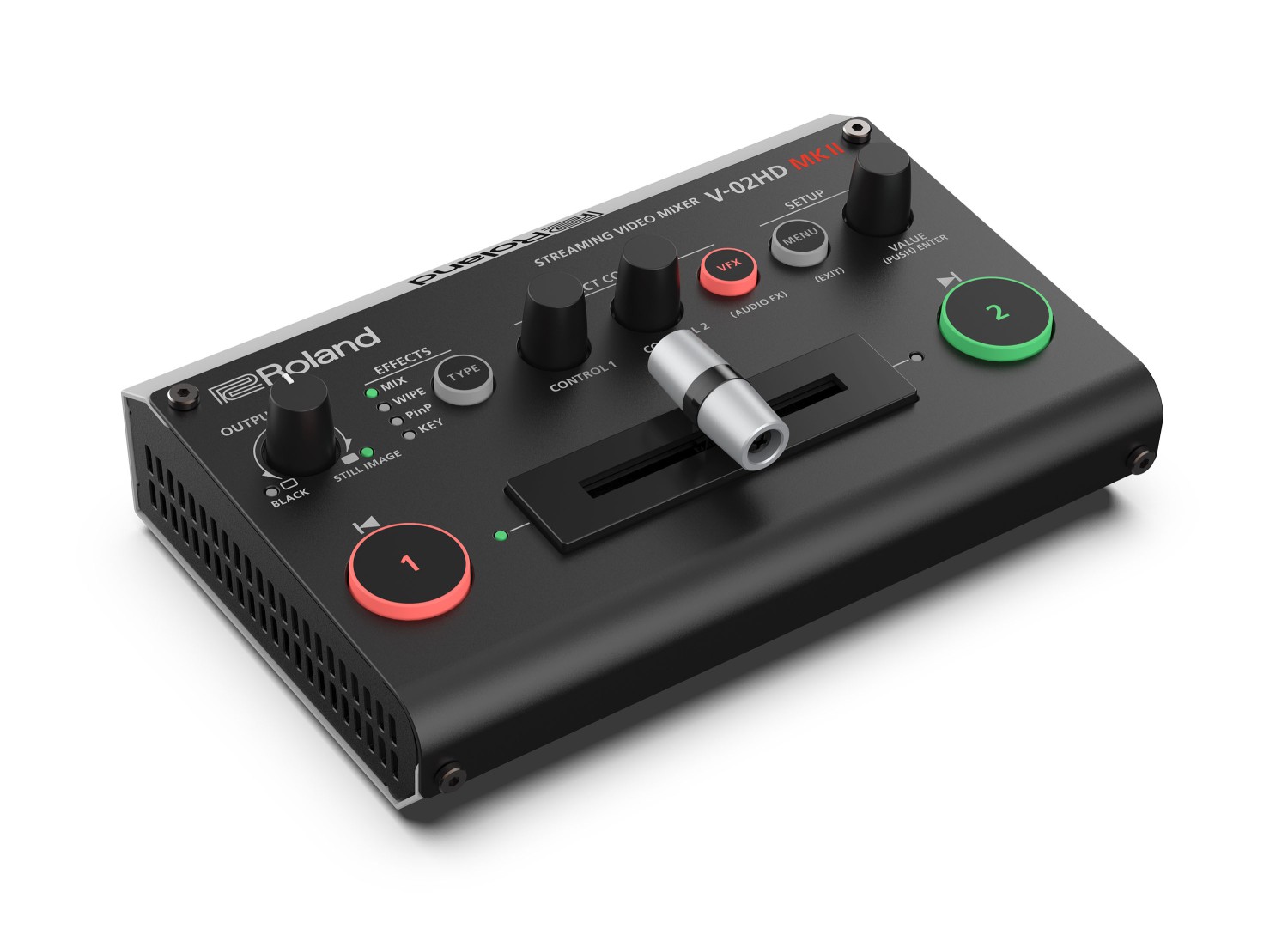

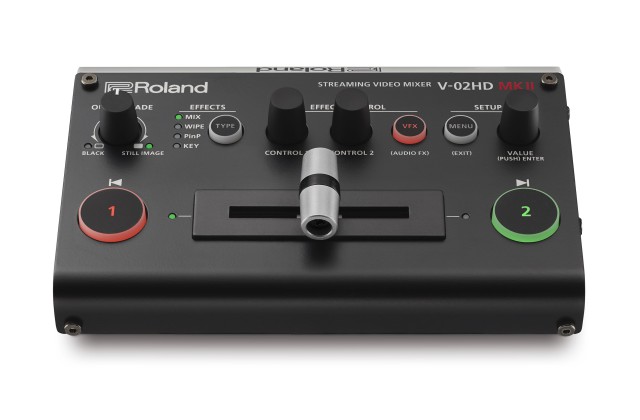

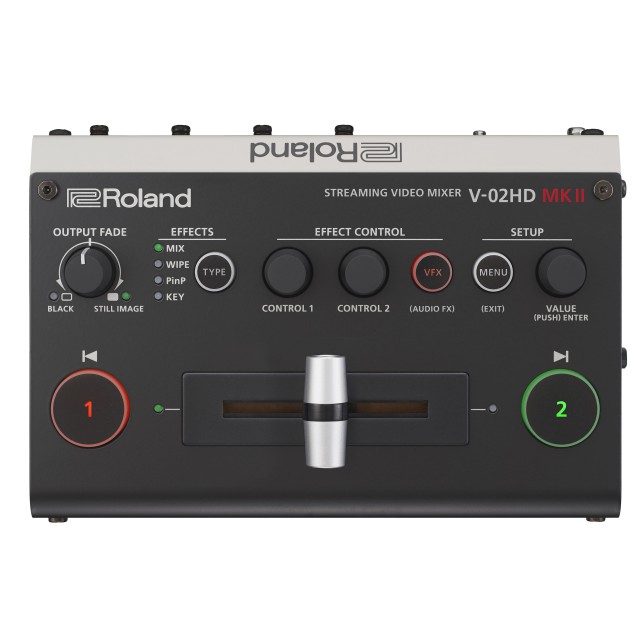

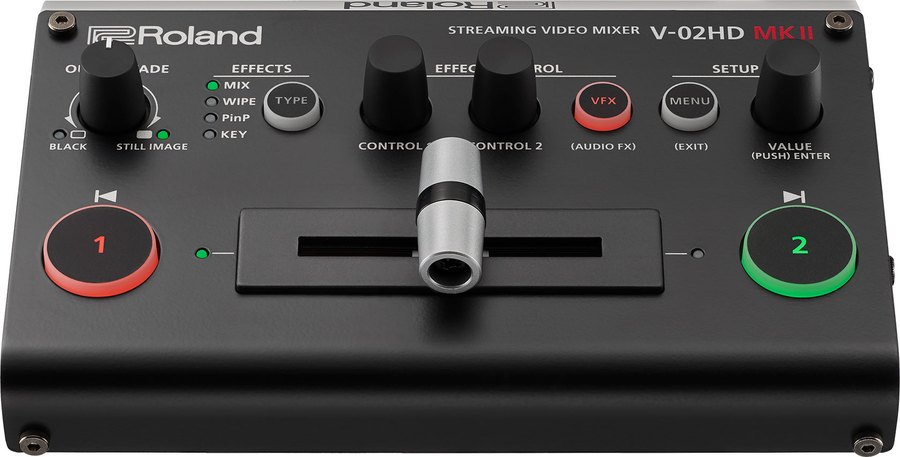

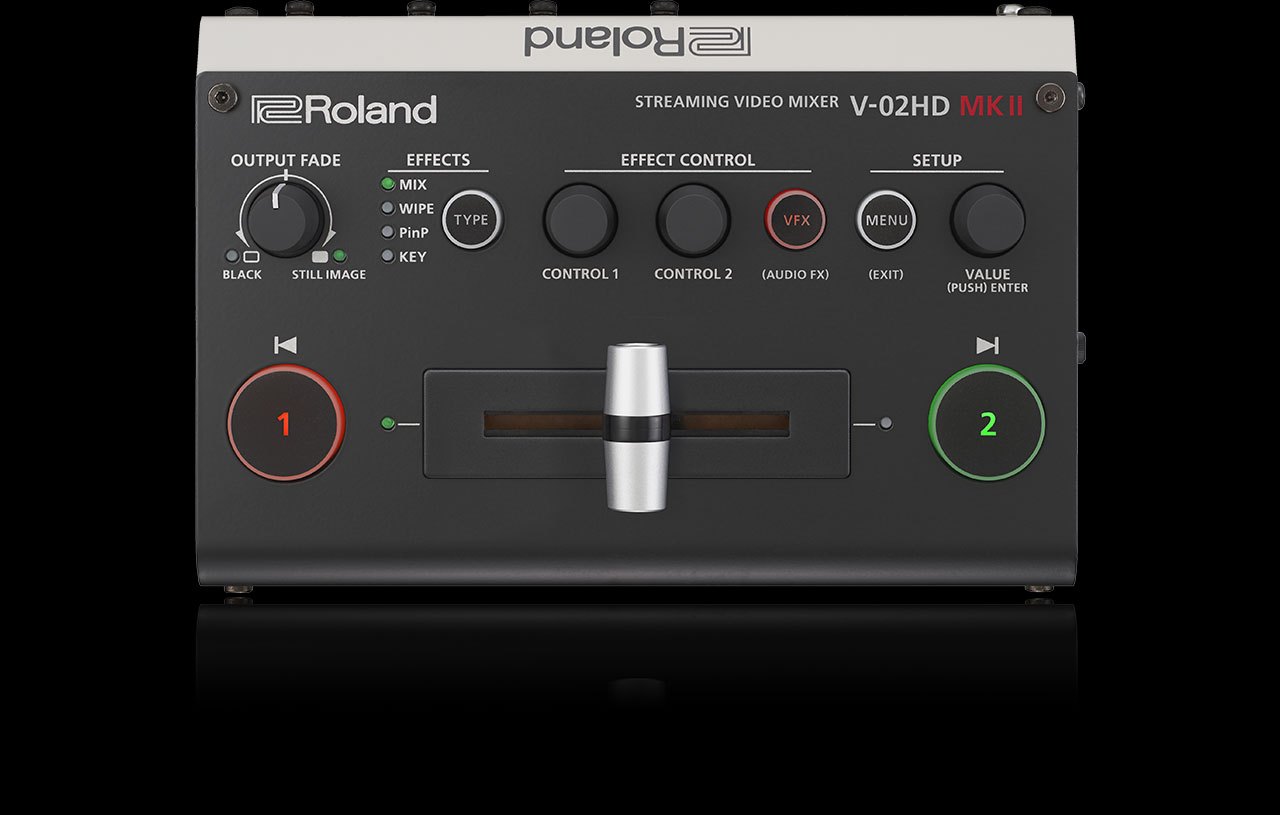

Control panel. A large button for each camera, a T-bar fader, the Output Fade knob, effect selection and two Control knobs for quick adjustments while live.

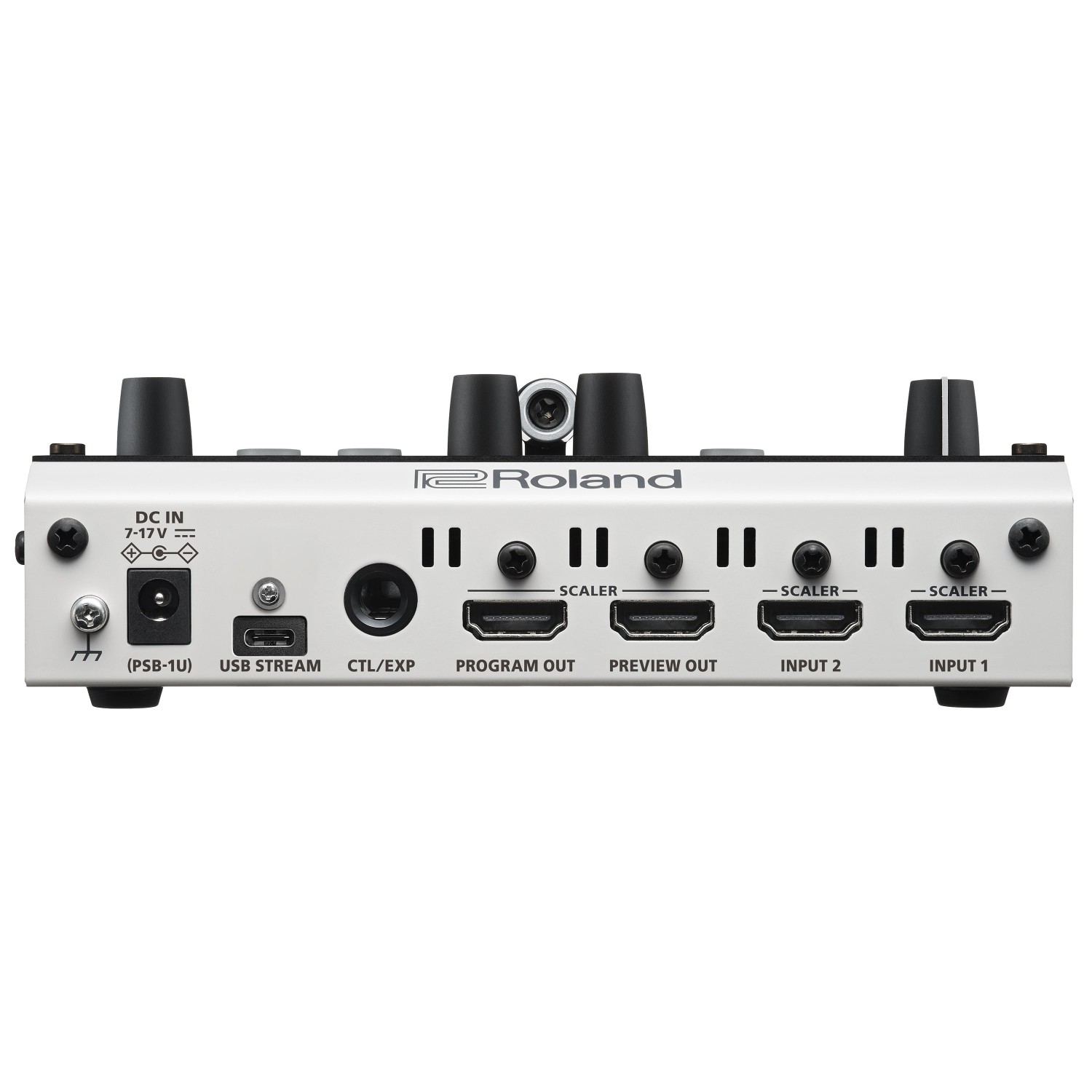

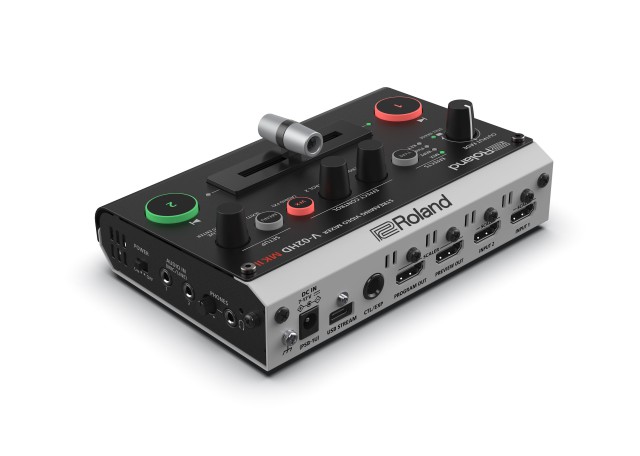

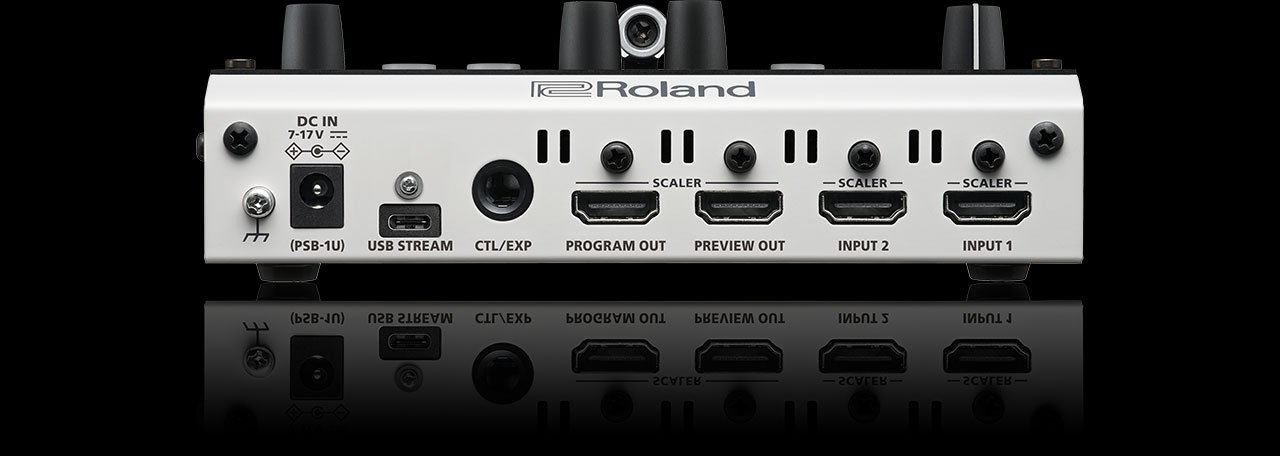

Rear panel. Two scaled HDMI inputs, Program Out and Preview Out, USB-C for streaming, a CTL/EXP jack for pedals and DC IN power.

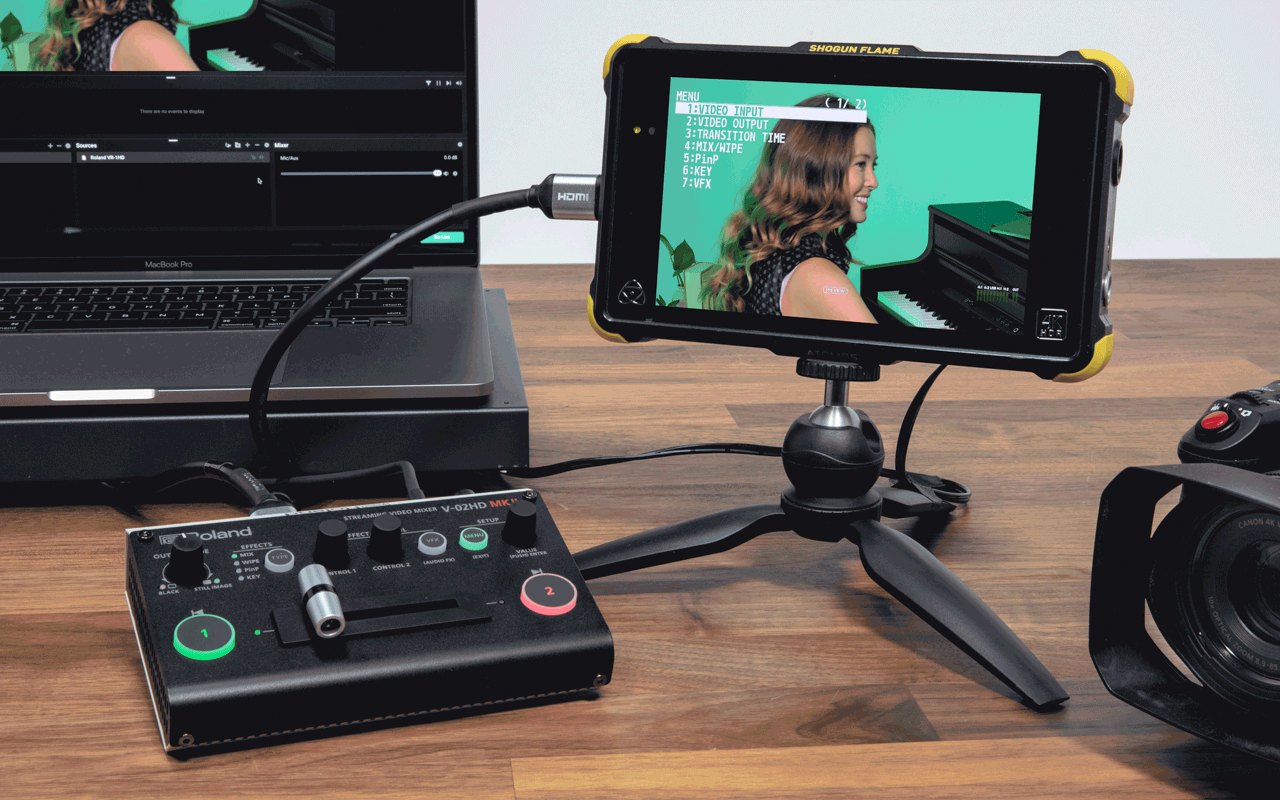

Menu on the preview monitor. A monitor connected to Preview Out shows the mixer menu for setting up inputs, outputs, transitions, PinP, keying and visual effects.

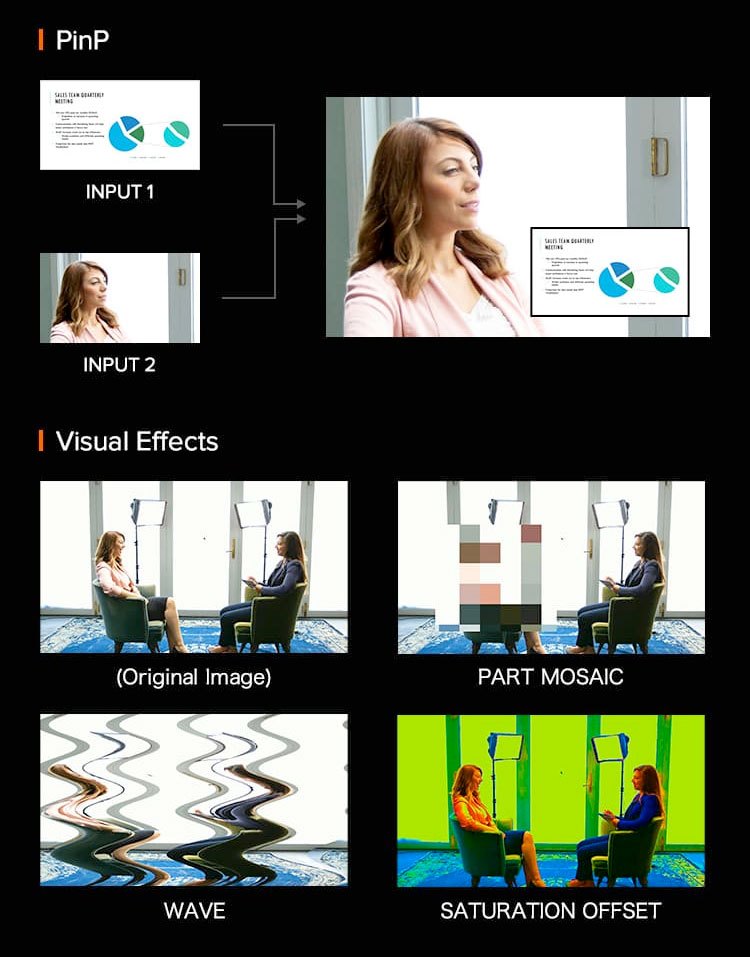

PinP and visual effects. Picture-in-picture combines both inputs in one shot, and visual effects such as mosaic, wave or saturation offset are processed by the mixer itself.

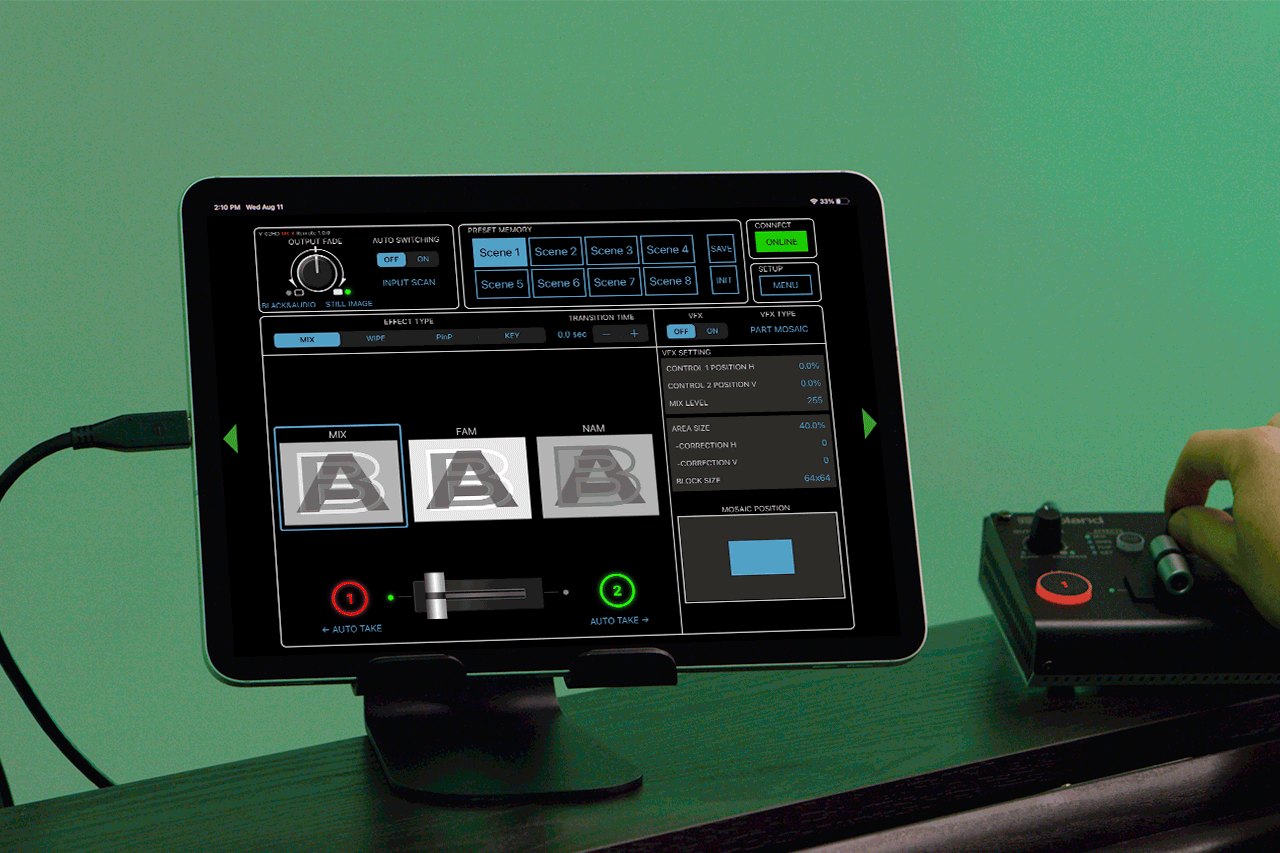

iPad app. V-02HD MK II Remote turns an iPad into a touch controller: switching, virtual faders, effect parameters and up to eight custom scenes.

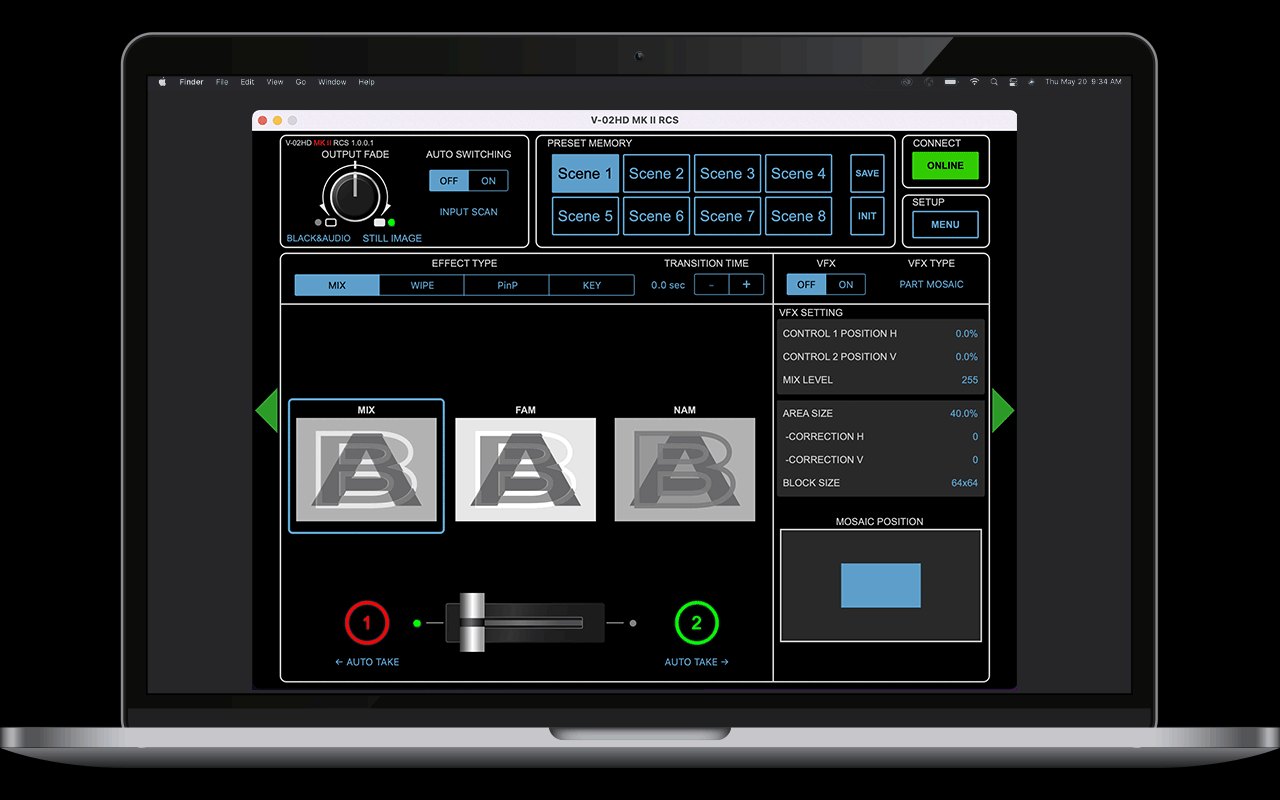

macOS and Windows app. V-02HD MK II RCS controls nearly all mixer functions over USB and runs alongside your streaming software (System Program 1.05 and later).
