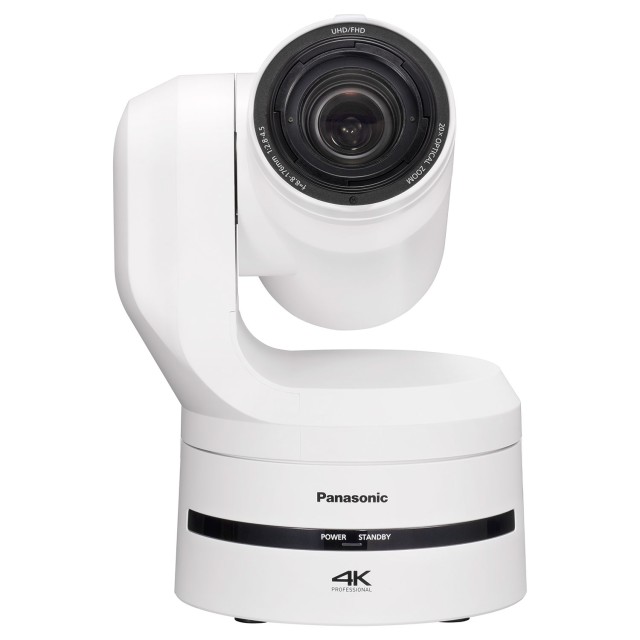

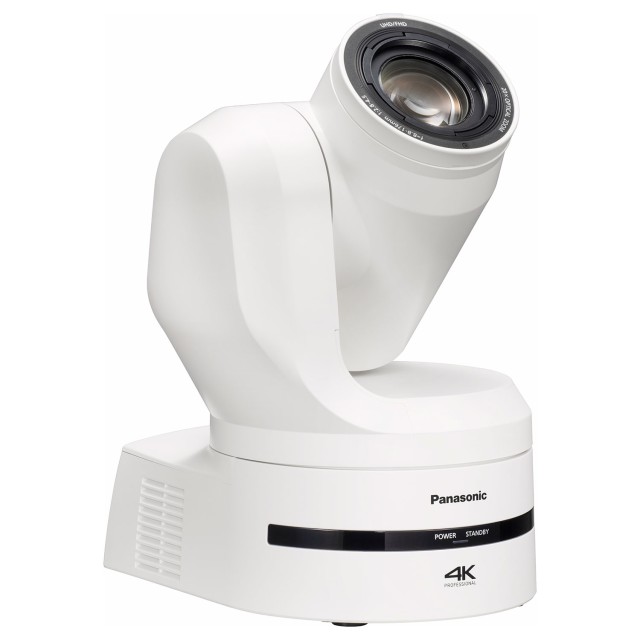

Panasonic AW-UE160W 4K 12G-SDI PTZ Camera (White)

Panasonic announced that in the first quarter of 2023 it will release the AW-UE160W/K, a next-generation 4K integrated camera that achieves both high-quality shooting and video production efficiency, for customers involved in the broadcasting industry and the entertainment industry such as live events, as well as video production. This will be the new flagship…

More information

16 093 € with VAT 13 300 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS

Product description

Panasonic announced that in the first quarter of 2023 it will release the AW-UE160W/K, a next-generation 4K integrated camera that achieves both high-quality shooting and video production efficiency, for customers involved in the broadcasting industry and the entertainment industry such as live events, as well as video production. This will be the new flagship model that pursues more unique and new visual expression by combining the flexibility of a PTZ camera that can be freely set in position and angle with the functionality of a system camera used in the broadcast industry. Panasonic will also release the AW-SFU60, an optional software key to activate SMPTE ST2110 for the AW-UE160 series.

The AW-UE160W/K is the industry's first product, which combines the strengths of system cameras and PTZ cameras. It also has the industry's highest level of shooting performance with unique video effects that can be expressed using a variety of shooting methods and a wealth of new functions provide viewers with new experiences, including immersive images from an unprecedented perspective.

In addition to the high sensitivity of F14 / 2,000 lx, equivalent to that of a studio camera, and the latest generation image processing found in LUMIX, the AW-UE160 is equipped with a newly developed phase detection autofocus (PDAF) that enables high-speed focusing and can also be used to shoot fast-moving subjects. The new PTZ is equipped with a variety of features that enable high-precision video production, including a new PTZ mechanism and hybrid image stabilization.

The AW-UE160 is the first PTZ camera to support the SMPTE ST2110 (requires optional AW-SFU60 software key), an IP transmission standard for the broadcasting industry, and wireless transmission with a 5G mobile router (via USB tethering). It also supports return input and a rear tally lamp that can also be lit in yellow, which are essential for combined operation with system cameras. In addition, it is equipped with the cropping zoom function that can output multiple angle video with a single camera and 2x high-speed output (HD) from SDI/HDMI.

Support for a variety of interfaces and protocols (SMPTE ST2110, Highbandwidth NDI 6, NDI|HX 6, SRT, FreeD, RTMP/RTMPS, etc.) reduces the burden of introducing the camera into existing systems. Even if output is performed from multiple video terminals at the same time, there is no restriction on video output, so simulcast operation in 4K is possible. Support for scene files, color matrix control and Panasonic's free software and Remote Operation Panel (ROP) for batch management of multiple cameras makes mixed operation with system cameras even easier. In addition, the waveform display function and the horizontal level gauge display function reduce the burden of setting up and adjusting the video.

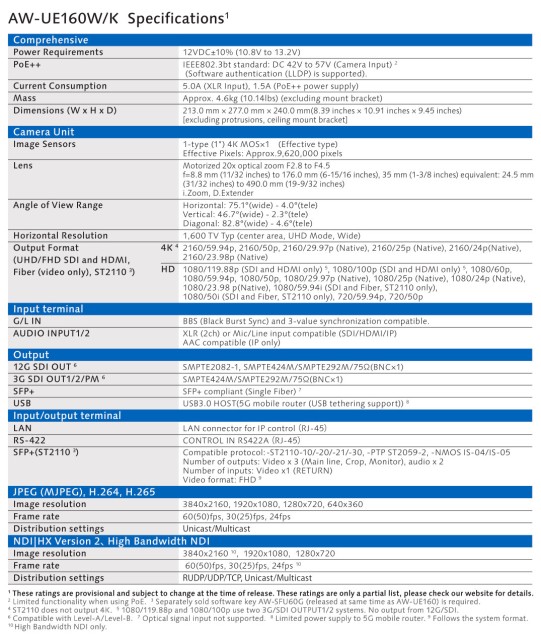

SPECIFICATIONS

  • Finish: Pearl White(W) /Black(K)
  • Image Sensor: 1-type (1") 7 4K MOS×1
  • Optical Zoom: 20x
  • Horizontal Angle of View Range: 75.1°
  • Standard Sensitivity: F14/2,000 lx (F11/2,000 lx in Normal Mode)
  • Minimum Illumination: 2 lx
  • HDR: HLG/BT.2020 support
  • Image Stabilization: Hybrid method of 2- axis Optical Image Stabilization (O.I.S.) and roll direction Electrical Image Stabilization (E.I.S.)
  • Supported Protocols: SMPTE ST2110 3, SRT, High bandwidth NDI 6, NDI| HX, FreeD, RTMP/RTMPS etc.

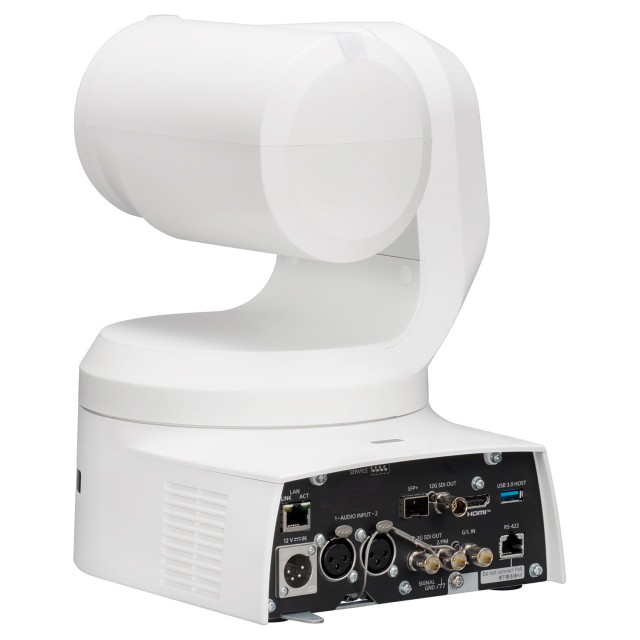

  • Output: 12G-SDI, 2x 3G-SDI, HDMI, SFP+ Optical Fiber, USB3.0 HOST (5G mobile router with USB tethering)
  • Input: G/L IN, 2x XLR pins x 2
  • Input/Output: LAN terminal (RJ-45), RS-422, SFP+
  • V-Log: Supported
  • Controller Supported: AW-RP150, AW-RP60, AW-RM50AG
  • Remote Operation Panel Supported: AK-HRP1010, AK-HRP1015, AK-HRP250
  • Dimensions (W x H x D): 213 mm x 277 mm x 240 mm
  • Mass: Approx. 4.6 kg
Parameters

Parameters

Manufacturer: Panasonic
Category: PTZ

Main parameters

Resolution4K
Type of bayonetintegrated lens
OutputHDMI
OutputNDI
Output12G SDI
OutputOptical Fiber
Output3G SDI
OutputIP

Other parameters

VersionPTZ
Other featuresStreaming
Other featuresTally
Other featuresNDI / NDI HX
Other featuresHDR
Other featuresFreeD
Control protocolNDI
